Connector and Cable Specifications
This chapter describes the connector and cable specifications.
•
Cable and Adapter Specifications
Connector Specifications
•
•
10/100/1000 Ports
The 10/100/1000 Ethernet ports on switches use RJ-45 connectors and Ethernet pinouts.
Figure B-1 10/100/1000 Port Pinouts
10-Gigabit Ethernet CX1 (SFP+ Copper) Connectors
The 10-Gigabit Ethernet electrical modules use CX1 copper connectors similar to the one shown in Figure B-2.
Note
The 10-Gigabit Ethernet optical modules use the connectors shown in Figure B-3 and Figure B-4.
Figure B-2 10-Gigabit Ethernet CX1 Copper Connector (example)
SFP and SFP+ Modules
Figure B-3, Figure B-4, and Figure B-5 show the SFP module connectors.
The switch supports the SFP module patch cable, a 0.5-meter, copper, passive cable with SFP module connectors at each end (Figure B-6). This cable can be used (only with 1-Gigabit Ethernet SFP ports) to connect two Catalyst 3850 switches in a cascaded configuration.
Figure B-3 Duplex LC Cable Connector
Figure B-4 Simplex LC Cable Connector
Figure B-5 Copper SFP Module RJ-45 Connector
Figure B-6 SFP Module Patch Cable
10/100/1000 Ethernet Management Port
The 10/100/1000 Ethernet management port uses RJ-45 connectors with Ethernet pinouts. Figure B-7 shows the pinouts.
Figure B-7 10/100 Port Pinouts
Console Port
The switch has two console ports: a USB 5-pin mini-Type B port on the front panel (see Figure B-8) and an RJ-45 console port on the rear panel.
Figure B-8 USB Mini-Type B Port
The USB console port uses a USB Type A to 5-pin mini-Type B cable, shown in Figure B-9. The USB Type A-to-USB mini-Type B cable is not supplied. You can order an accessory kit (part number 800-33434) that contains this cable.

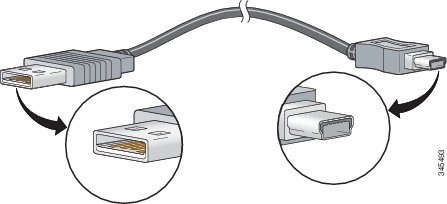

Figure B-9 USB Type A-to-USB 5-Pin Mini-Type B Cable
The RJ-45 console port uses an 8-pin RJ-45 connector (See Table B-2 and Table B-3.) The supplied RJ-45-to-DB-9 adapter cable is used to connect the console port of the switch to a console PC. You need to provide a RJ-45-to-DB-25 female DTE adapter if you want to connect the switch console port to a terminal. You can order a kit (part number ACS-DSBUASYN=) containing that adapter. For console port and adapter pinout information, see Table B-2 and Table B-3.
Cable and Adapter Specifications
•
•
•
•
SFP and SFP+ Module Cable Specifications
Each port must match the wave-length specifications on each end of the cable, and the cable must not exceed the stipulated cable length. Copper 1000BASE-T SFP module transceivers use standard four twisted-pair, Category 5 cable at lengths up to 328 feet (100 meters).
Table B-1 Fiber-Optic SFP and SFP+ Module Port Cabling Specifications
100BASE-FX (GLC-GE-100FX)
1310
MMF
50/125
62.5/125500
5006,562 feet (2 km)
6,562 feet (2 km)1000BASE-BX10-D
(GLC-BX-D)1490 TX
1310 RXSMF
G.6522
—
32,810 feet (10 km)
1000BASE-BX10-U
(GLC-BX-U)1310 TX
1490 RXSMF
G.6522
—
32,810 feet (10 km)
1000BASE-SX
(GLC-SX-MM)(GLC-SX-MMD)
850
MMF
62.5/125
62.5/125
50/125
50/125160
200
400
500
2000722 feet (220 m)
902 feet (275 m)
1,640 feet (500 m)
1,804 feet (550 m)
32,810 feet (10 km)1000BASE-T
(GLC-T)Standard 4 twisted-pair Category 5 cable
—
—
—
328 feet (100 m)
1000BASE-LX/LH
(GLC-LH-SM)1310
MMF3
SMF62.5/125
50/125
50/125
G.6522500
400
500
—1,804 feet (550 m)
1,804 feet (550 m)
1,804 feet (550 m)
32,810 feet (10 km)1000BASE-ZX
(GLC-ZX-SM)1550
SMF
G.6522
—
43.4 to 62 miles
(70 to 100 km)4CWDM
1470, 1490, 1510, 1530, 1550, 1570, 1590, 1610
SMF
G.6522
—
62 miles (100 km)
DWDM
3033, 3112, 3190, 3268, 3346, 3425, 3504, 3582, 3661, 3739, 3819, 3898, 3977, 4056, 4134, 4294, 4373, 4453, 4532, 4612, 4612, 4692, 4772, 4851, 4931, 5012, 5092, 5172, 5252, 5332, 5413, 5494, 5575, 5655, 5736, 5817, 5898, 5979, 6061, 6141
SMF
G.6522
—
Distance is based on a guaranteed power budget of 25 dB
SFP-GE-L
1300
MMF or SMF
62.5
50
50
9/10500
400
5001804 feet (550 m) 1804 feet (550 m) 1804 feet (550 m)
6.2 miles (10 km)SFP-GE-S
850
MMF
62.5
62.5
50
50160
500
400
500722 feet (220 m)
902 feet (275 m)
1640 feet (500 m)
1804 feet (550 m)SFP-GE-Z
1550
MMF
9/10
—
43.5 miles (70 km)
10GBASE-ER
(SFP-10G-ER)1550
SMF
G.6522
—
24.86 miles (40 km)
10GBASE-LR
(SFP-10G-LR)1310
SMF
G.6522
—
6.21 miles (10 km)
10GBASE-SR
(SFP-10G-SR)850
MMF
62.5/125
62.5/125
50/125
50/125
50/125160
200
400
500
200085 feet (26 m)
108 feet (33 m)
216 feet (66 m)
269 feet (82 m)
6,561 feet (2000 m)10GBASE-LRM (SFP-10G-LRM)
1310
MMF and SMF
62.5
50.0
50.0
G.652500
400
500722/220
328/100
722/220
984/30010GBASE-CX1
(SFP-H10GB-CU1M)
(SFP-H10GB-CU3M)
(SFP-H10GB-CU5M)—
Twinax cable, 30-AWG cable assembly
Twinax cable, 30-AWG cable assembly
Twinax cable, 24-AWG cable assembly
—
—
3 feet (1 m)
9 feet (3 m)
16 feet (5 m)
1 Modal bandwidth applies only to multimode fiber.
2 A mode-field diameter/cladding diameter = 9 micrometers/125 micrometers.
3 A mode-conditioning patch cord is required. Using an ordinary patch cord with MMF or 1000BASE-LX/LH SFP modules and a short link distance can cause transceiver saturation and an elevated bit error rate (BER). When using the LX/LH SFP module with 62.5-micron diameter MMF, you must also install a mode-conditioning patch cord between the SFP module and the MMF cable on both the sending and receiving ends of the link. The mode-conditioning patch cord is required for link distances greater than 984 feet (300 m).
4 1000BASE-ZX SFP modules can send data up to 62 miles (100 km) by using dispersion-shifted SMF or low-attenuation SMF; the distance depends on the fiber quality, the number of splices, and the connectors.
Four Twisted-Pair Cable Pinouts
Figure B-10 Four Twisted-Pair Straight-Through Cable Schematic
Figure B-11 Four Twisted-Pair Crossover Cable Schematic
Two Twisted-Pair Cable Pinouts
Figure B-12 Two Twisted-Pair Straight-Through Cable Schematic
Figure B-13 Two Twisted-Pair Crossover Cable Schematic
Identifying a Crossover Cable
To identify a crossover cable, hold the cable ends side-by-side, with the tab at the back. The wire connected to the pin on the outside of the left plug should be the same color as the wire connected to the pin on the outside of the right plug. (See Figure B-14.)
Figure B-14 Identifying a Crossover Cable
Console Port Adapter Pinouts
The console port uses an 8-pin RJ-45 connector, which is described in Table B-2 and Table B-3. If you did not order a console cable, you need to provide an RJ-45-to-DB-9 adapter cable to connect the switch console port to a PC console port. You need to provide an RF-45-to-DB-25 female DTE adapter if you want to connect the switch console port to a terminal. You can order a kit with an adapter (part number ACS-DSBUASYN=). For console port and adapter pinout information, see Table B-2 and Table B-3.
Table B-2 lists the pinouts for the console port, the RF-45-to-DB-9 adapter cable, and the console device.
Table B-3 lists the pinouts for the console port, RJ-45-to-DB-25 female DTE adapter, and the console device.
