Catalyst 2950 and Catalyst 2955 Switch Software Configuration Guide, 12.1(22)EA5
Configuring IGMP Snooping and MVR

Table Of Contents

Configuring IGMP Snooping and MVR

Understanding IGMP Snooping

IGMP Versions

Joining a Multicast Group

Leaving a Multicast Group

Immediate-Leave Processing

IGMP Configurable-Leave Timer

IGMP Leave Timer Guidelines

IGMP Report Suppression

IGMP Snooping Querier Configuration Guidelines and Restrictions

Source-Only Networks

Configuring IGMP Snooping

Default IGMP Snooping Configuration

Enabling or Disabling IGMP Snooping

Setting the Snooping Method

Configuring a Multicast Router Port

Configuring a Host Statically to Join a Group

Enabling IGMP Immediate-Leave Processing

Configuring the IGMP Leave Timer

Disabling IGMP Report Suppression

Disabling IP Multicast-Source-Only Learning

Configuring the Aging Time

Configuring the IGMP Snooping Querier

Displaying IGMP Snooping Information

Understanding Multicast VLAN Registration

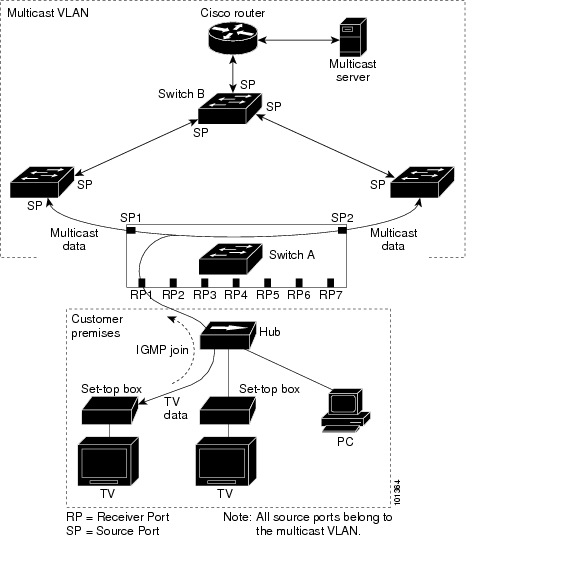

Using MVR in a Multicast Television Application

Configuring MVR

Default MVR Configuration

MVR Configuration Guidelines and Limitations

Configuring MVR Global Parameters

Configuring MVR Interfaces

Displaying MVR Information

Configuring IGMP Filtering and Throttling

Default IGMP Filtering and Throttling Configuration

Configuring IGMP Profiles

Applying IGMP Profiles

Setting the Maximum Number of IGMP Groups

Configuring the IGMP Throttling Action

Displaying IGMP Filtering and Throttling Configuration


Configuring IGMP Snooping and MVR


This chapter describes how to configure Internet Group Management Protocol (IGMP) snooping on your Catalyst 2950 or Catalyst 2955 switch, including an application of local IGMP snooping, Multicast VLAN Registration (MVR). It also includes procedures for controlling multicast group membership by using IGMP filtering and procedures for configuring the IGMP throttling action.


Note For complete syntax and usage information for the commands used in this chapter, see the switch command reference for this release and the Cisco IOS Release Network Protocols Command Reference, Part 1, for Cisco IOS Release 12.1


This chapter consists of these sections:

Understanding IGMP Snooping

Configuring IGMP Snooping

Displaying IGMP Snooping Information

Understanding Multicast VLAN Registration

Configuring MVR

Displaying MVR Information

Configuring IGMP Filtering and Throttling

Displaying IGMP Filtering and Throttling Configuration


Note For MAC addresses that map to IP multicast groups, you can either manage them through features such as IGMP snooping and MVR, or you can use static MAC addresses. However, you cannot use both methods simultaneously. Therefore, before using IGMP snooping or MVR, you should remove all statically configured MAC addresses that map to IP multicast groups.


Understanding IGMP Snooping

Layer 2 switches can use IGMP snooping to constrain the flooding of multicast traffic by dynamically configuring Layer 2 interfaces so that multicast traffic is forwarded to only those interfaces associated with IP multicast devices. As the name implies, IGMP snooping requires the LAN switch to snoop on the IGMP transmissions between the host and the router and to keep track of multicast groups and member ports. When the switch receives an IGMP report from a host for a particular multicast group, the switch adds the host port number to the forwarding table entry; when it receives an IGMP Leave Group message from a host, it removes the host port from the table entry. It also periodically deletes entries if it does not receive IGMP membership reports from the multicast clients.


Note For more information on IP multicast and IGMP, see RFC 1112 and RFC 2236.


The multicast router sends out periodic IGMP general queries to all VLANs. When IGMP snooping is enabled, the switch responds to the router queries with only one join request per MAC multicast group, and the switch creates one entry per VLAN in the Layer 2 forwarding table for each MAC group from which it receives an IGMP join request. All hosts interested in this multicast traffic send join requests and are added to the forwarding table entry.

Layer 2 multicast groups learned through IGMP snooping are dynamic. However, you can statically configure MAC multicast groups by using the ip igmp snooping vlan static global configuration command. If you specify group membership for a multicast group address statically, your setting supersedes any automatic manipulation by IGMP snooping. Multicast group membership lists can consist of both user-defined and IGMP snooping-learned settings.

You can configure an IGMP snooping querier to support IGMP snooping in subnets without multicast interfaces because the multicast traffic does not need to be routed. For more information about the IGMP snooping querier, see the "Configuring the IGMP Snooping Querier" section.

If a port spanning-tree, a port group, or a VLAN ID change occurs, the IGMP snooping-learned multicast groups from this port on the VLAN are deleted.

The switches support a maximum of 255 IP multicast groups.

These sections describe characteristics of IGMP snooping on the switch:

IGMP Versions

Joining a Multicast Group

Leaving a Multicast Group

Immediate-Leave Processing

IGMP Configurable-Leave Timer

IGMP Report Suppression

IGMP Snooping Querier Configuration Guidelines and Restrictions

Source-Only Networks

IGMP Versions

The switch supports IGMP version 1, IGMP version 2, and IGMP version 3. These versions are interoperable on the switch. For example, if IGMP snooping is enabled on an IGMPv2 switch and the switch receives an IGMPv3 report from a host, the switch can forward the IGMPv3 report to the multicast router.


Note The switches support IGMPv3 snooping based only on the destination multicast MAC address. They do not support snooping based on the source MAC address or on proxy reports.


An IGMPv3 switch supports Basic IGMPv3 Snooping Support (BISS), which includes support for the snooping features on IGMPv1 and IGMPv2 switches and for IGMPv3 membership report messages. BISS constrains the flooding of multicast traffic when your network includes IGMPv3 hosts. It constrains traffic to approximately the same set of ports as the IGMP snooping feature on IGMPv2 or IGMPv1 hosts.


Note IGMPv3 join and leave messages are not supported on switches running IGMP filtering or MVR.


An IGMPv3 switch can receive messages from and forward messages to a device running the Source Specific Multicast (SSM) feature. For more information, see the "Configuring IP Multicast Layer 3 Switching" chapter in the Catalyst 4500 Series Switch Cisco IOS Software Configuration Guide, Cisco IOS Release 12.1(12c)EW at this URL:

http://www.cisco.com/en/US/products/hw/switches/ps663/products_configuration_guide_book09186a00800ddab0.html

Joining a Multicast Group

When a host connected to the switch wants to join an IP multicast group, it sends an unsolicited IGMP join message, specifying the IP multicast group to join. Alternatively, when the switch receives a general query from the router, it forwards the query to all ports in the VLAN. Hosts wanting to join the multicast group respond by sending a join message to the switch. The switch CPU creates a multicast forwarding-table entry for the group if it is not already present. The CPU also adds the interface where the join message was received to the forwarding-table entry. The host associated with that interface receives multicast traffic for that multicast group. See Figure 20-1.

Figure 20-1 Initial IGMP Join Message

Router A sends a general query to the switch, which forwards the query to ports 2 through 5, all members of the same VLAN. Host 1 wants to join multicast group 224.1.2.3 and multicasts an IGMP membership report (IGMP join message) to the group with the equivalent MAC destination address of 0x0100.5E01.0203. When the CPU receives the IGMP report multicast by Host 1, the CPU uses the information in the IGMP report to set up a forwarding-table entry, as shown in Table 20-1, that includes the port numbers of Host 1, the router, and the switch internal CPU.

Table 20-1 IGMP Snooping Forwarding Table

Destination Address
Type of Packet
Ports

0100.5exx.xxxx

IGMP

0

0100.5e01.0203

!IGMP

1, 2


Note that the switch hardware can distinguish IGMP information packets from other packets for the multicast group.

The first entry in the table tells the switching engine to send IGMP packets to only the switch CPU. This prevents the CPU from becoming overloaded with multicast frames.

The second entry tells the switching engine to send frames addressed to the 0x0100.5E01.0203 multicast MAC address that are not IGMP packets (!IGMP) to the router and to the host that has joined the group.

If another host (for example, Host 4) sends an unsolicited IGMP join message for the same group (Figure 20-2), the CPU receives that message and adds the port number of Host 4 to the forwarding table as shown in Table 20-2. Note that because the forwarding table directs IGMP messages to only the CPU, the message is not flooded to other ports on the switch. Any known multicast traffic is forwarded to the group and not to the CPU. Any unknown multicast traffic is flooded to the VLAN and sent to the CPU until it becomes known.

Figure 20-2 Second Host Joining a Multicast Group

Table 20-2 Updated IGMP Snooping Forwarding Table

Destination Address
Type of Packet
Ports

0100.5exx.xxxx

IGMP

0

0100.5e01.0203

!IGMP

1, 2, 5


Leaving a Multicast Group

The router sends periodic multicast general queries and the switch forwards these queries through all ports in the VLAN. Interested hosts respond to the queries. If at least one host in the VLAN wishes to receive multicast traffic, the router continues forwarding the multicast traffic to the VLAN. The switch forwards multicast group traffic to only those hosts listed in the forwarding table for that Layer 2 multicast group.

When hosts want to leave a multicast group, they can either silently leave, or they can send a leave message. When the switch receives a leave message from a host, it sends out a MAC-based general query to determine if any other devices connected to that interface are interested in traffic for the specific multicast group. The switch then updates the forwarding table for that MAC group so that only those hosts interested in receiving multicast traffic for the group are listed in the forwarding table. If the router receives no reports from a VLAN, it removes the group for the VLAN from its IGMP cache.

Immediate-Leave Processing

Immediate Leave is only supported with IGMP version 2 hosts.

The switch uses IGMP snooping Immediate-Leave processing to remove from the forwarding table an interface that sends a leave message without the switch sending MAC-based general queries to the interface. The VLAN interface is pruned from the multicast tree for the multicast group specified in the original leave message. Immediate-Leave processing ensures optimal bandwidth management for all hosts on a switched network, even when multiple multicast groups are simultaneously in use.


Note You should only use the Immediate-Leave processing feature on VLANs where a single host is connected to each port. If Immediate Leave is enabled in VLANs where more than one host is connected to a port, some hosts might inadvertently be dropped.


IGMP Configurable-Leave Timer

In Cisco IOS Release 12.1(22)EA2 and earlier, the IGMP snooping leave time was fixed at 5 seconds. If membership reports were not received by the switch before the query response time of the query expired, a port was removed from the multicast group membership. However, some applications require a leave latency of less than 5 seconds.

In Cisco IOS Release 12.1(22)EA3 and later, you can configure the time that the switch waits after sending a group-specific query to determine if hosts are still interested in a specific multicast group. The IGMP leave response time can be configured from 100 to 5000 milliseconds. The timer can be set either globally or on a per-VLAN basis. The VLAN configuration of the leave time overrides the global configuration.

IGMP Leave Timer Guidelines

Follows these guidelines when configuring the IGMP leave timer:

You can configure the leave time globally or on a per-VLAN basis.

Configuring the leave time on a VLAN overrides the global setting.

The default leave time is 1000 milliseconds.

The IGMP configurable leave time is only supported on hosts running IGMP Version 2.

The actual leave latency in the network is usually the configured leave time. However, the leave time might vary around the configured time, depending on real-time CPU load conditions, network delays and the amount of traffic sent through the interface.

IGMP Report Suppression


Note IGMP report suppression is supported only when the multicast query has IGMPv1 and IGMPv2 reports. This feature is not supported when the query includes IGMPv3 reports.


The switch uses IGMP report suppression to forward only one IGMP report per multicast router query to multicast devices. When IGMP router suppression is enabled (the default), the switch sends the first IGMP report from all hosts for a group to all the multicast routers. The switch does not send the remaining IGMP reports for the group to the multicast routers. This feature prevents duplicate reports from being sent to the multicast devices.

If the multicast router query includes requests only for IGMPv1 and IGMPv2 reports, the switch forwards only the first IGMPv1 or IGMPv2 report from all hosts for a group to all the multicast routers.

If the multicast router query also includes requests for IGMPv3 reports, the switch forwards all IGMPv1, IGMPv2, and IGMPv3 reports for a group to the multicast devices.

If you disable IGMP report suppression, all IGMP reports are forwarded to the multicast routers.

IGMP Snooping Querier Configuration Guidelines and Restrictions

Follow these guidelines and restrictions when configuring the IGMP snooping querier on the Catalyst 2955 switches:

The IGMP snooping querier is disabled by default.

Configure the VLAN in global configuration mode.

Configure an IP address on the VLAN interface. When enabled, the IGMP snooping querier uses the IP address as the query source address.

If there is no IP address configured on the VLAN interface, the IGMP snooping querier tries to use the configured global IP address for the IGMP querier. If there is no global IP address specified, the IGMP querier tries to use the VLAN switch virtual interface (SVI) IP address (if one exists). If there is no SVI IP address, the switch uses the first available IP address configured on the switch. The first IP address available can be seen in the output of the show ip interface privileged EXEC command. The IGMP snooping querier does not generate an IGMP general query if it cannot find an available IP address on the switch.

The IGMP snooping querier supports IGMP Versions 1 and 2.

When administratively enabled, the IGMP snooping querier moves to the non-querier state if it detects the presence of a multicast router in the network.

When it is administratively enabled, the IGMP snooping querier moves to the operationally-disabled state under these conditions:

IGMP snooping is disabled in the VLAN.

PIM is enabled on the SVI of the corresponding VLAN.

Source-Only Networks

In a source-only network, switch ports are connected to multicast source ports and multicast router ports. The switch ports are not connected to hosts that send IGMP join or leave messages.

The switch learns about IP multicast groups from the IP multicast data stream by using the source-only learning method. The switch forwards traffic only to the multicast router ports.

The default learning method is IP multicast-source-only learning. You can disable IP multicast-source-only learning by using the no ip igmp snooping source-only-learning global configuration command.

In addition to IGMP query packets, the switch also uses Protocol-Independent Multicast protocol version 2 (PIMv2) packets for multicast router discovery. The packets are sent to the switch CPU, which can result in a occasional high CPU traffic. You can disable multicast router discovery by PIMv2 packets by using the no ip igmp snooping mrouter learn pim v2 global configuration command. This command only works when you also disable source-only learning on the switch by using the no ip igmp snooping source-only-learning global configuration command.

By default, the switch ages out forwarding-table entries that were learned by the source-only learning method and that are not in use. If the aging time is too long or is disabled, the forwarding table is filled with unused entries that the switch learned by using source-only learning or by using the IGMP join messages. When the switch receives traffic for new IP multicast groups, it floods the packet to all ports in the same VLAN. This unnecessary flooding can impact switch performance.

If aging is disabled and you want to delete multicast addresses that the switch learned by using source-only learning, re-enable aging of the forwarding-table entries. The switch can now age out the multicast addresses that were learned by the source-only learning method and are not in use.

Configuring IGMP Snooping

IGMP snooping allows switches to examine IGMP packets and make forwarding decisions based on their content.

These sections describe how to configure IGMP snooping:

Default IGMP Snooping Configuration

Enabling or Disabling IGMP Snooping

Setting the Snooping Method

Configuring a Multicast Router Port

Configuring a Host Statically to Join a Group

Enabling IGMP Immediate-Leave Processing

Configuring the IGMP Leave Timer

Disabling IGMP Report Suppression

Disabling IP Multicast-Source-Only Learning

Configuring the Aging Time

Configuring the IGMP Snooping Querier

Default IGMP Snooping Configuration

Table 20-3 shows the default IGMP snooping configuration.

Table 20-3 Default IGMP Snooping Configuration

Feature
Default Setting

IGMP snooping

Enabled globally and per VLAN.

Multicast routers

None configured.

Multicast router learning (snooping) method

PIM-DVMRP.

IGMP snooping Immediate Leave

Disabled.

Static groups

None configured.

IP multicast-source-only learning

Enabled.

PIM v2 multicast router discovery

Enabled

Aging forward-table entries (when source-only learning is enabled)

Enabled. The default is 600 seconds (10 minutes).

IGMP report suppression

Enabled.


Enabling or Disabling IGMP Snooping

By default, IGMP snooping is globally enabled on the switch. When globally enabled or disabled, it is also enabled or disabled in all existing VLAN interfaces. IGMP snooping is by default enabled on all VLANs, but can be enabled and disabled on a per-VLAN basis.

Global IGMP snooping overrides the VLAN IGMP snooping. If global snooping is disabled, you cannot enable VLAN snooping. If global snooping is enabled, you can enable or disable VLAN snooping.

Beginning in privileged EXEC mode, follow these steps to globally enable IGMP snooping on the switch:


Command
Purpose

Step 1

configure terminal

Enter global configuration mode.

Step 2

ip igmp snooping

Globally enable IGMP snooping in all existing VLAN interfaces.

Step 3

end

Return to privileged EXEC mode.

Step 4

copy running-config startup-config

(Optional) Save your entries in the configuration file.

To globally disable IGMP snooping on all VLAN interfaces, use the no ip igmp snooping global configuration command.

Beginning in privileged EXEC mode, follow these steps to enable IGMP snooping on a VLAN interface:


Command
Purpose

Step 1

configure terminal

Enter global configuration mode.

Step 2

ip igmp snooping vlan vlan-id

Enable IGMP snooping on the VLAN interface.

Step 3

end

Return to privileged EXEC mode.

Step 4

copy running-config startup-config

(Optional) Save your entries in the configuration file.

To disable IGMP snooping on a VLAN interface, use the no ip igmp snooping vlan vlan-id global configuration command for the specified VLAN number.

Setting the Snooping Method

Multicast-capable router ports are added to the forwarding table for every Layer 2 multicast entry. The switch learns of such ports through one of these methods:

Snooping on IGMP queries, Protocol Independent Multicast (PIM) packets, and Distance Vector Multicast Routing Protocol (DVMRP) packets

Listening to Cisco Group Management Protocol (CGMP) packets from other routers

Statically connecting to a multicast router port with the ip igmp snooping mrouter global configuration command

You can configure the switch either to snoop on IGMP queries and PIM/DVMRP packets or to listen to CGMP self-join or proxy-join packets. By default, the switch snoops on PIM/DVMRP packets on all VLANs. To learn of multicast router ports through only CGMP packets, use the ip igmp snooping vlan vlan-id mrouter learn cgmp global configuration command. When this command is entered, the router listens to only CGMP self-join and CGMP proxy-join packets and no other CGMP packets. To learn of multicast router ports through only PIM-DVMRP packets, use the ip igmp snooping vlan vlan-id mrouter learn pim-dvmrp global configuration command.

Beginning in privileged EXEC mode, follow these steps to alter the method in which a VLAN interface dynamically accesses a multicast router:


Command
Purpose

Step 1

configure terminal

Enter global configuration mode.

Step 2

ip igmp snooping vlan vlan-id mrouter learn {cgmp | pim-dvmrp}

Enable IGMP snooping on a VLAN. The VLAN ID range is 1 to 4094.

Specify the multicast router learning method:

cgmp—Listen for CGMP packets. This method is useful for reducing control traffic.

pim-dvmrp—Snoop on IGMP queries and PIM-DVMRP packets. This is the default.

Step 3

end

Return to privileged EXEC mode.

Step 4

show ip igmp snooping

Verify the configuration.

Step 5

copy running-config startup-config

(Optional) Save your entries in the configuration file.

This example shows how to configure IGMP snooping to use CGMP packets as the learning method:

Switch# configure terminal
Switch(config)# ip igmp snooping vlan 1 mrouter learn cgmp
Switch(config)# end

To return to the default learning method, use the no ip igmp snooping vlan vlan-id mrouter learn cgmp global configuration command.

Configuring a Multicast Router Port

To add a multicast router port (add a static connection to a multicast router), use the ip igmp snooping vlan mrouter global configuration command on the switch.

Beginning in privileged EXEC mode, follow these steps to enable a static connection to a multicast router:


Command
Purpose

Step 1

configure terminal

Enter global configuration mode.

Step 2

ip igmp snooping vlan vlan-id mrouter interface interface-id

Specify the multicast router VLAN ID and specify the interface to the multicast router. The VLAN ID range is 1 to 4094.

Step 3

end

Return to privileged EXEC mode.

Step 4

show ip igmp snooping mrouter [vlan vlan-id]

Verify that IGMP snooping is enabled on the VLAN interface.

Step 5

copy running-config startup-config

(Optional) Save your entries in the configuration file.

To remove a multicast router port from the VLAN, use the no ip igmp snooping vlan vlan-id mrouter interface interface-id global configuration command.

This example shows how to enable a static connection to a multicast router and verify the configuration:

Switch# configure terminal
Switch(config)# ip igmp snooping vlan 200 mrouter interface gigabitethernet0/1
Switch(config)# end

Configuring a Host Statically to Join a Group

Hosts or Layer 2 ports normally join multicast groups dynamically, but you can also statically configure a host on an interface.

Beginning in privileged EXEC mode, follow these steps to add a Layer 2 port as a member of a multicast group:


Command
Purpose

Step 1

configure terminal

Enter global configuration mode

Step 2

ip igmp snooping vlan vlan-id static mac-address interface interface-id

Statically configure a Layer 2 port as a member of a multicast group:

vlan-id is the multicast group VLAN ID.

mac-address is the group MAC address.

interface-id is the member port.

Step 3

end

Return to privileged EXEC mode.

Step 4

show ip igmp snooping mrouter vlan vlan-id

or
show mac address-table multicast vlan vlan-id

Verify that the member port is a member of the VLAN multicast group.

Verify the member port and the MAC address

Step 5

copy running-config startup-config

(Optional) Save your entries in the configuration file.

To remove the Layer 2 port from the multicast group, use the no ip igmp snooping vlan vlan-id static mac-address interface interface-id global configuration command.

This example shows how to statically configure a host on an interface and verify the configuration:

Switch# configure terminal
Switch(config)# ip igmp snooping vlan 1 static 0100.5e00.0203 interface gigabitethernet0/1
Switch(config)# end

Enabling IGMP Immediate-Leave Processing

When you enable IGMP Immediate-Leave processing, the switch immediately removes a port when it detects an IGMP version 2 leave message on that port. You should use the Immediate-Leave feature only when there is a single receiver present on every port in the VLAN.

Immediate Leave is supported with only IGMP version 2 hosts.

Beginning in privileged EXEC mode, follow these steps to enable IGMP Immediate-Leave processing:


Command
Purpose

Step 1

configure terminal

Enter global configuration mode

Step 2

ip igmp snooping vlan vlan-id immediate-leave

Enable IGMP Immediate-Leave processing on the VLAN interface.

Step 3

end

Return to privileged EXEC mode.

Step 4

show ip igmp snooping vlan vlan-id

Verify that Immediate Leave is enabled on the VLAN.

Step 5

copy running-config startup-config

(Optional) Save your entries in the configuration file.

To disable IGMP Immediate-Leave on a VLAN, use the no ip igmp snooping vlan vlan-id immediate-leave global configuration command.

This example shows how to enable IGMP immediate-leave processing on VLAN 130:

Switch# configure terminal
Switch(config)# ip igmp snooping vlan 130 immediate-leave
Switch(config)# end

Configuring the IGMP Leave Timer

Beginning in privileged EXEC mode, follow these steps to enable the IGMP configurable-leave timer:


Command
Purpose

Step 1

configure terminal

Enter global configuration mode.

Step 2

ip igmp snooping last-member-query-interval time

Configure the IGMP leave timer globally. The range is from 100 to 5000 milliseconds.

Step 3

ip igmp snooping vlan vlan-id last-member-query-interval time

(Optional) Configure the IGMP leave time on the VLAN interface. The range is from 100 to 5000 milliseconds.

Note Configuring the leave time on a VLAN overrides the globally configured timer.

Step 4

end

Return to privileged EXEC mode.

Step 5

show ip igmp snooping

(Optional) Display the configured IGMP leave time.

Step 6

copy running-config startup-config

(Optional) Save your entries in the configuration file.

Use the no ip igmp snooping last-member-query-interval global configuration command to globally reset the IGMP leave timer to the default setting (1000 milliseconds).

Use the no ip igmp snooping vlan vlan-id last-member-query-interval global configuration command to remove the configured IGMP leave-time setting from the specified VLAN.

Disabling IGMP Report Suppression

IGMP report suppression is enabled by default. When it is enabled, the switch forwards only one IGMP report per multicast router query. When report suppression is disabled, all IGMP reports are forwarded to the multicast routers.


Note IGMP report suppression is supported only when the multicast query has IGMPv1 and IGMPv2 reports. This feature is not supported when the query includes IGMPv3 reports.


Beginning in privileged EXEC mode, follow these steps to disable IGMP report suppression:


Command
Purpose

Step 1

configure terminal

Enter global configuration mode.

Step 2

no ip igmp snooping report-suppression

Disable IGMP report suppression.

Step 3

end

Return to privileged EXEC mode.

Step 4

show ip igmp snooping

Verify that IGMP report suppression is disabled.

Step 5

copy running-config startup-config

(Optional) Save your entries in the configuration file.

To re-enable IGMP report suppression, use the ip igmp snooping report-suppression global configuration command.

Disabling IP Multicast-Source-Only Learning

The IP multicast-source-only learning method is enabled by default. The switch learns the IP multicast group from the IP multicast data stream and only forwards traffic to the multicast router ports.

If IP multicast-source-only learning is disabled by using the no ip igmp snooping source-only-learning global configuration command, the switch floods unknown multicast traffic to the VLAN and sends the traffic to the CPU until the traffic becomes known. When the switch receives an IGMP report from a host for a particular multicast group, the switch forwards traffic from this multicast group only to the multicast router ports.

To disable multicast router discovery by PIMv2 packets, you should also enter the no ip igmp snooping mrouter learn pim v2 global configuration command.


Note We strongly recommend that you do not disable IP multicast-source-only learning. IP multicast-source-only learning should be disabled only if your network is not composed of IP multicast-source-only networks and if disabling this learning method improves the network performance.


Beginning in privileged EXEC mode, follow these steps to disable IP multicast-source-only learning:


Command
Purpose

Step 1

configure terminal

Enter global configuration mode

Step 2

no ip igmp snooping source-only-learning

Disable IP multicast-source-only learning.

Step 3

no ip igmp snooping mrouter learn pim v2

(Optional) Disable multicast router discovery by PIM v2 packets.

Step 4

end

Return to privileged EXEC mode.

Step 5

show running-config | include source-only-learning

Verify that IP multicast-source-only learning is disabled.

Step 6

copy running-config startup-config

(Optional) Save your entries in the configuration file.

To enable IP multicast-source-only learning, use the ip igmp snooping source-only-learning global configuration command. To enable PIM v2 multicast router discovery, use the p igmp snooping mrouter learn pim v2 global configuration command.

This example shows how to disable IP multicast-source-only learning and PIM v2 multicast router discovery:

Switch# configure terminal
Switch(config)# no ip igmp snooping source-only-learning
Switch(config)# no ip igmp snooping mrouter learn pim v2
Switch(config)# end

Configuring the Aging Time

You can set the aging time for forwarding-table entries that the switch learns by using the IP multicast-source-only learning method.

Beginning in privileged EXEC mode, follow these steps to configure the aging time:


Command
Purpose

Step 1

configure terminal

Enter global configuration mode

Step 2

ip igmp snooping source-only learning age-timer time

Set the aging time. The range is from 0 to 2880 seconds. The default is 600 seconds (10 minutes).

Step 3

end

Return to privileged EXEC mode.

Step 4

show running-config | include source-only-learning

Verify the aging time.

Step 5

copy running-config startup-config

(Optional) Save your entries in the configuration file.

To disable the aging of the forwarding table entries, enter the ip igmp snooping source-only-learning age-timer 0 global configuration command.

If you disable source-only learning by using the no ip igmp snooping source-only learning global configuration command and the aging time is enabled, it has no effect on the switch.

Configuring the IGMP Snooping Querier

To enable the IGMP snooping querier feature in a VLAN, follow these steps:


Command
Purpose

Step 1

configure terminal

Enter global configuration mode.

Step 2

ip igmp snooping querier

Enable the IGMP snooping querier.

Step 3

ip igmp snooping querier ip_address

(Optional) Specify an IP address for the IGMP snooping querier. If you do not specify an IP address, the querier tries to use the global IP address configured for the IGMP querier.

Note The IGMP snooping querier does not generate an IGMP general query if it cannot find an IP address on the switch.

Step 4

ip igmp snooping querier query-interval interval-count

(Optional) Set the interval between IGMP queriers. The interval range is from 1 to 18000 seconds.

Step 5

ip igmp snooping querier tcn query [count count | interval interval]

(Optional) Set the time (in seconds) between Topology Change Notification (TCN) queries. The count range is from 1 to 10. The interval range is from 1 to 255 seconds.

Step 6

ip igmp snooping querier timer expiry timeout

(Optional) Set the length of time (in seconds) until the IGMP querier expires.The range is from 60 to 300 seconds.

Step 7

ip igmp snooping querier version version

(Optional) Select the IGMP version number that the querier feature uses. Select 1 or 2.

Step 8

end

Return to privileged EXEC mode.

Step 9

show ip igmp snooping vlan vlan-id

(Optional) Verify that the IGMP snooping querier is enabled on the VLAN interface.

Step 10

copy running-config startup-config

(Optional) Save your entries in the configuration file.

This example shows how to set the IGMP snooping querier source address to 10.0.0.64 and to verify the configuration:

Switch# configure terminal
Switch(config)# ip igmp snooping querier 10.0.0.64

Switch(config)# end

This example shows how to set the IGMP snooping querier maximum response time to 25 seconds and to verify the configuration:

Switch# configure terminal
Switch(config)# ip igmp snooping querier query-interval 25
Switch(config)# end

This example shows how to set the IGMP snooping querier timeout to 60 seconds and to verify the configuration:

Switch# configure terminal
Switch(config)# ip igmp snooping querier timeout expiry 60
Switch(config)# end

This example shows how to set the IGMP snooping querier feature to version 2 and to verify the configuration:

Switch# configure terminal
Switch(config)# no ip igmp snooping querier version 2
Switch(config)# end

Displaying IGMP Snooping Information

You can display IGMP snooping information for dynamically learned and statically configured router ports and VLAN interfaces. You can also display MAC address multicast entries for a VLAN configured for IGMP snooping.

To display IGMP snooping information, use one or more of the privileged EXEC commands in Table 20-4. For more information about the keywords and options in these commands, see the command reference for this release. For examples of output from the commands in Table 20-4, see the command reference for this release.

Table 20-4 Commands for Displaying IGMP Snooping Information

Command
Purpose

show ip igmp snooping [vlan vlan-id]

Display the snooping configuration information for all VLANs on the switch or for a specified VLAN.

(Optional) Enter vlan vlan-id to display information for a single VLAN.

show ip igmp snooping group [vlan vlan-id]

Display information about the IGMP multicast groups, the compatibility mode, and the ports that are associated with each group.

(Optional) Enter vlan vlan-id to display information for a single VLAN.

show ip igmp snooping mrouter [vlan vlan-id]

Display information on dynamically learned and manually configured multicast router interfaces.

Note When you enable IGMP snooping, the switch automatically learns the interface to which a multicast router is connected. These are dynamically learned interfaces.

(Optional) Enter vlan vlan-id to display information for a single VLAN.

show ip igmp snooping querier [vlan vlad-id]

Display information about the IGMP version that an interface supports.

(Optional) Enter vlan vlan-id to display information for a single VLAN.

show mac address-table multicast [vlan vlan-id] [user | igmp-snooping] [count]

Display the Layer 2 MAC address table entries for a VLAN. The keywords are all optional and limit the display as shown:

vlan vlan-id—Displays only the specified multicast group VLAN.

user—Displays only the user-configured multicast entries.

igmp-snooping—Displays only entries learned through IGMP snooping.

count—Displays only the total number of entries for the selected criteria, not the actual entries.


Understanding Multicast VLAN Registration

Multicast VLAN Registration (MVR) is designed for applications using wide-scale deployment of multicast traffic across an Ethernet ring-based service provider network (for example, the broadcast of multiple television channels over a service-provider network). MVR allows a subscriber on a port to subscribe and unsubscribe to a multicast stream on the network-wide multicast VLAN. It allows the single multicast VLAN to be shared in the network while subscribers remain in separate VLANs. MVR provides the ability to continuously send multicast streams in the multicast VLAN, but to isolate the streams from the subscriber VLANs for bandwidth and security reasons.

MVR assumes that subscriber ports subscribe and unsubscribe (join and leave) these multicast streams by sending out IGMP join and leave messages. These messages can originate from an IGMP version-2-compatible host with an Ethernet connection. Although MVR operates on the underlying mechanism of IGMP snooping, the two features operate independently of each other. One can be enabled or disabled without affecting the behavior of the other feature. However, if IGMP snooping and MVR are both enabled, MVR reacts only to join and leave messages from multicast groups configured under MVR. Join and leave messages from all other multicast groups are managed by IGMP snooping.

The switch CPU identifies the MVR IP multicast streams and their associated MAC addresses in the switch forwarding table, intercepts the IGMP messages, and modifies the forwarding table to include or remove the subscriber as a receiver of the multicast stream, even though the receivers might be in a different VLAN from the source. This forwarding behavior selectively allows traffic to cross between different VLANs.

The switch has these modes of MVR operation: dynamic and compatible.

When operating in MVR dynamic mode, the switch performs standard IGMP snooping. IGMP information packets are sent to the switch CPU, but multicast data packets are not sent to the CPU. Dynamic mode allows the multicast router to run normally because the switch sends the IGMP join messages to the router, and the router forwards multicast streams for a particular group to an interface only if it has received a join message from the interface for the group. Receiver ports are treated as members of the multicast VLAN for MVR multicast control and data traffic. IGMP reports for MVR groups are sent out source ports in the multicast VLAN.

When in MVR compatible mode, MVR on the Catalyst 2950 or Catalyst 2955 switch interoperates with MVR on Catalyst 3500 XL and Catalyst 2900 XL switches. It works the same as dynamic mode for all multicast data packets and IGMP query and leave packets. However, received IGMP report packets for MVR groups are not sent out on the multicast VLAN source ports. In contrast to dynamic mode, the switch does not send join messages to the router. The router must be statically configured for the interface to receive the multicast stream. Therefore, in this mode, MVR does not support dynamic membership joins on source ports.


Note IGMPv3 join and leave messages are not supported on switches running MVR.


Using MVR in a Multicast Television Application

In a multicast television application, a PC or a television with a set-top box can receive the multicast stream. Multiple set-top boxes or PCs can be connected to one subscriber port, which is a switch port configured as an MVR receiver port. Figure 20-3 is an example configuration. DHCP assigns an IP address to the set-top box or the PC. When a subscriber selects a channel, the set-top box or PC sends an IGMP report to Switch A to join the appropriate multicast. If the IGMP report matches one of the configured multicast MAC addresses, the switch CPU modifies the hardware address table to include this receiver port and VLAN as a forwarding destination of the specified multicast stream when it is received from the multicast VLAN. Uplink ports that send and receive multicast data to and from the multicast VLAN are called MVR source ports.

When a subscriber changes channels or turns off the television, the set-top box sends an IGMP leave message for the multicast stream. The switch CPU sends an IGMP group-specific query through the receiver port VLAN. If there is another set-top box in the VLAN still subscribing to this group, that set-top box must respond within the maximum response time. If the CPU does not receive a response, it eliminates the receiver port as a forwarding destination for this group.

If the Immediate-Leave feature is enabled on a receiver port, the port leaves a multicast group more quickly. Without Immediate Leave, when the switch receives an IGMP leave message from a subscriber on a receiver port, it sends out an IGMP query on that port and waits for IGMP group membership reports. If no reports are received in a configured time period, the receiver port is removed from multicast group membership. With Immediate Leave, an IGMP query is not sent from the receiver port on which the IGMP leave was received. As soon as the leave message is received, the receiver port is removed from multicast group membership, which speeds up leave latency. Enable the Immediate Leave feature only on receiver ports to which a single receiver device is connected.

Figure 20-3 Multicast VLAN Registration Example

MVR eliminates the need to duplicate television-channel multicast traffic for subscribers in each VLAN. Multicast traffic for all channels is only sent around the VLAN trunk once—only on the multicast VLAN. Although the IGMP leave and join message in the VLAN to which the subscriber port is assigned. These messages dynamically register for streams of multicast traffic in the multicast VLAN on the Layer 3 device. The access layer switch (Switch A) modifies the forwarding behavior to allow the traffic to be forwarded from the multicast VLAN to the subscriber port in a different VLAN, selectively allowing traffic to cross between two VLANs.

IGMP reports are sent to the same MAC addresses as the multicast data. The Switch A CPU must capture all IGMP join and leave messages from receiver ports and forward them to the multicast VLAN of the source (uplink) port.

Configuring MVR

These sections include basic MVR configuration information:

Default MVR Configuration

MVR Configuration Guidelines and Limitations

Configuring MVR Global Parameters

Configuring MVR Interfaces

Default MVR Configuration

Table 20-5 shows the default MVR configuration.

Table 20-5 Default MVR Configuration

Feature
Default Setting

MVR

Disabled globally and per interface

Multicast addresses

None configured

Query response time

0.5 second

Multicast VLAN

VLAN 1

Mode

Compatible

Interface (per port) default

Neither a receiver nor a source port

Immediate Leave

Disabled on all ports


MVR Configuration Guidelines and Limitations

Follow these guidelines when configuring MVR:

Receiver ports cannot be trunk ports. Receiver ports on a switch can be in different VLANs, but should not belong to the multicast VLAN.

The maximum number of multicast entries that can be configured on a switch (that is, the maximum number of television channels that can be received) is 256.

Each channel is one multicast stream destined for a unique IP multicast address. These IP addresses cannot alias between themselves or with the reserved IP multicast addresses (in the range 224.0.0.xxx).

MVR does not support IGMPv3 messages.


Note For complete syntax and usage information for the commands used in this section, see the command reference for this release.


Configuring MVR Global Parameters

You do not need to set the optional MVR parameters if you choose to use the default settings. If you do want to change the default parameters (except for the MVR VLAN), you must first enable MVR.

Beginning in privileged EXEC mode, follow these steps to configure MVR parameters:


Command
Purpose

Step 1

configure terminal

Enter global configuration mode.

Step 2

mvr

Enable MVR on the switch.

Step 3

mvr group ip-address [count]

Configure an IP multicast address on the switch or use the count parameter to configure a contiguous series of MVR group addresses (the range for count is 1 to 256; the default is 1). Any multicast data sent to this address is sent to all source ports on the switch and all receiver ports that have elected to receive data on that multicast address. Each multicast address would correspond to one television channel.

Note Each IP address translates to a multicast 48-bit MAC address. If an IP address being configured translates (aliases) to a previously configured MAC address or to any reserved multicast MAC addresses, the command fails.

Step 4

mvr querytime value

(Optional) Define the maximum time to wait for IGMP report memberships on a receiver port before removing the port from multicast group membership. The value is in units of tenths of a second. The range is from 1 to 100 and the default is 5 tenths or one-half second.

Step 5

mvr vlan vlan-id

(Optional) Specify the VLAN in which multicast data is received; all source ports must belong to this VLAN. The VLAN ID range is 1 to 4094. The default is VLAN 1.

Step 6

mvr mode {dynamic | compatible}

(Optional) Specify the MVR mode of operation:

dynamic—Allows dynamic MVR membership on source ports.

compatible—Is compatible with Catalyst 3500 XL and Catalyst 2900 XL switches and does not support IGMP dynamic joins on source ports.

The default is compatible m
