Creating and Maintaining VLANs
A virtual LAN (VLAN) is a switched network that is logically segmented by function, project team, or application, without regard to the physical locations of the users. Any switch port can belong to a VLAN, and unicast, broadcast, and multicast packets are forwarded and flooded only to stations in the VLAN. Each VLAN is considered a logical network, and packets destined for stations that do not belong to the VLAN must be forwarded through a router or bridge as shown in Figure 5-1. Because a VLAN is considered a separate logical network, it contains its own bridge Management Information Base (MIB) information and can support its own implementation of the Spanning Tree Protocol (STP).
This chapter describes how to create and maintain VLANs through the Cluster Management software and the command-line interface (CLI). It contains the following information:
•
How to configure static-access ports without having the VLAN Trunk Protocol (VTP) database globally propagate VLAN configuration information.
•
•
•
•

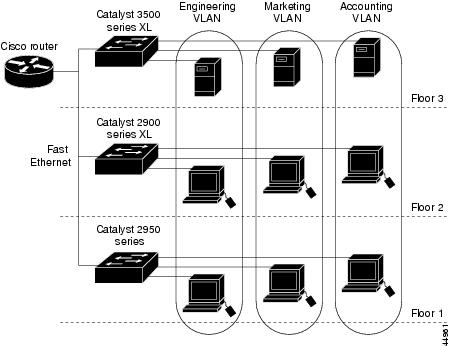

Figure 5-1 VLANs as Logically Defined Networks
Number of Supported VLANs
Table 5-1 lists the number of supported VLANs on Catalyst 2950 switches.
Table 5-1 Number of Supported VLANs
2950 switches with 16 MB of DRAM
64
Yes
VLANs are identified with a number between 1 and 1001. Regardless of the switch model, only 64 STP instances are supported.
The switches in Table 5-1 support IEEE 802.1Q trunking methods for transmitting VLAN traffic over 100BaseT, 100BaseFX, and Gigabit Ethernet ports.
VLAN Port Membership Modes
You configure a port to belong to a VLAN by assigning a membership mode that determines the kind of traffic the port carries and the number of VLANs it can belong to. Table 5-2 lists the membership modes and characteristics.
When a port belongs to a VLAN, the switch learns and manages the addresses associated with the port on a per-VLAN basis. For more information, see the "Managing the MAC Address Tables" section.
VLAN Membership Combinations
You can configure your switch ports in various VLAN membership combinations as listed in Table 5-3.
Table 5-3 VLAN Combinations
Static-access ports
No
If you do not want to use VTP to globally propagate the VLAN configuration information, you can assign a static-access port to a VLAN and set the VTP mode to transparent to disable VTP.
Static-access and
trunk portsRecommended
"CLI: Configuring VTP Server Mode" section
Add, modify, or remove VLANs in the database as described in the "Configuring VLANs in the VTP Database" section
"CLI: Assigning Static-Access Ports to a VLAN" section
Make sure to configure at least one trunk port on the switch and that this trunk port is connected to the trunk port of a second switch.
Some restrictions apply to trunk ports. For more information, see the "Trunks Interacting with Other Features" section.
You can change the VTP version on the switch.
You can define the allowed-VLAN list and configure the native VLAN for untagged traffic on the trunk port.
Clusters, VLAN Membership, and the Management VLAN
This software release supports the grouping of switches into a cluster that can be managed as a single entity. The command switch is the single point of management for the cluster and cluster members.
Links among a command switch, cluster members, and candidate switches must be through ports that belong to the management VLAN. By default, the management VLAN is VLAN 1. If you are using SNMP or the Cluster Management Suite (CMS) to manage the switch, ensure that the port through which you are connected to a switch is in the management VLAN. For information on configuring the management VLAN, see the "Changing the Management VLAN" section.
If you are configuring VLANs on a member switch, you might need to enter an extra command from the command-switch CLI to access the member switch. When configuring port parameters, for example, you can use the privileged EXEC rcommand command and the number of the member switch to display the member-switch CLI. Once you have accessed the member switch, command mode changes, and IOS commands operate as usual. Enter exit on the member switch in privileged EXEC mode to return to the command-switch CLI.
For more information about the rcommand command, refer to the Catalyst 2950 Desktop Switch Command Reference.
Assigning Static-Access Ports to a VLAN
By default, all ports are static-access ports assigned to the management VLAN, VLAN 1.
You can assign a static-access port to a VLAN without having VTP globally propagate VLAN configuration information (VTP is disabled). To assign a VLAN, you access the VLAN Membership window (Figure 5-2) by selecting VLAN > VLAN Membership from the menu bar and clicking the Assign
VLANs tab.Figure 5-2 VLAN Membership: Assign VLANs Tab
You configure the switch for VTP transparent mode, which disables VTP, by selecting VLAN > VTP Management from the menu bar and clicking the VTP Configuration tab (Figure 5-3).
You can also assign the port through the CLI on standalone, command, and member switches. If you are assigning a port on a cluster member to a VLAN, first log in to the member switch by using the privileged EXEC rcommand command. For more information on how to use this command, refer to the Catalyst 2950 Desktop Switch Command Reference.
Using the VLAN Trunk Protocol
VTP is a Layer 2 messaging protocol that maintains VLAN configuration consistency by managing the addition, deletion, and renaming of VLANs on a network-wide basis. VTP minimizes misconfigurations and configuration inconsistencies that can cause several problems, such as duplicate VLAN names, incorrect VLAN-type specifications, and security violations.
Before you create VLANs, you must decide whether to use VTP in your network. Using VTP, you can make configuration changes centrally on a single switch, such as a Catalyst 2950, 2900 XL, or 3500 XL switch, and have those changes automatically communicated to all the other switches in the network. Without VTP, you cannot send information about VLANs to other switches.
The VTP Domain
A VTP domain (also called a VLAN management domain) consists of one switch or several interconnected switches under the same administrative responsibility. A switch can be in only one VTP domain. You make global VLAN configuration changes for the domain by using the CLI, Cluster Management software, or Simple Network Management Protocol (SNMP).
By default, a Catalyst 2950, 2900 XL, or 3500 XL switch is in the no-management-domain state until it receives an advertisement for a domain over a trunk link (a link that carries the traffic of multiple VLANs) or until you configure a domain name. The default VTP mode is server mode, but VLAN information is not propagated over the network until a domain name is specified or learned.
If the switch receives a VTP advertisement over a trunk link, it inherits the domain name and configuration revision number. The switch then ignores advertisements with a different domain name or an earlier configuration revision number.
When you make a change to the VLAN configuration on a VTP server, the change is propagated to all switches in the VTP domain. VTP advertisements are sent over all trunk connections, including IEEE 802.1Q.
If you configure a switch for VTP transparent mode, you can create and modify VLANs, but the changes are not transmitted to other switches in the domain, and they affect only the individual switch.
For domain name and password configuration guidelines, see the "Domain Names" section.
VTP Modes and VTP Mode Transitions
You can configure a supported switch to be in one of the VTP modes listed in Table 5-4:
The "VTP Configuration Guidelines" section provides tips and caveats for configuring VTP.
VTP Advertisements
Each switch in the VTP domain sends periodic global configuration advertisements from each trunk port to a reserved multicast address. Neighboring switches receive these advertisements and update their VTP and VLAN configurations as necessary.
Note
VTP advertisements distribute the following global domain information in VTP advertisements:
•
•
•
•
VTP advertisements distribute the following VLAN information for each configured VLAN:
•
•
•
•
•
VTP Version 2
VTP version 2 supports the following features not supported in version 1:
•
•
•
•
VTP Configuration Guidelines
The following sections describe the guidelines you should follow when configuring the VTP domain name, password, and the VTP version number.
Domain Names
When configuring VTP for the first time, you must always assign a domain name. In addition, all switches in the VTP domain must be configured with the same domain name. Switches in VTP transparent mode do not exchange VTP messages with other switches, and you do not need to configure a VTP domain name for them.
Caution
Passwords
You can configure a password for the VTP domain, but it is not required. All domain switches must share the same password. Switches without a password or with the wrong password reject VTP advertisements.
Caution
If you configure a VTP password for a domain, a Catalyst 2950, 2900 XL, or
3500 XL switch that is booted without a VTP configuration does not accept VTP advertisements until you configure it with the correct password. After the configuration, the switch accepts the next VTP advertisement that uses the same password and domain name in the advertisement.If you are adding a new switch to an existing network that has VTP capability, the new switch learns the domain name only after the applicable password has been configured on the switch.
VTP Version
Follow these guidelines when deciding which VTP version to implement:
•
•
•
•
Default VTP Configuration
Table 5-5 shows the default VTP configuration.
Table 5-5 VTP Default Configuration
VTP domain name
Null.
VTP mode
Server.
VTP version 2 enable state
Version 2 is disabled.
VTP password
None.
Configuring VTP
You can configure VTP by using the VTP Management window (Figure 5-3).
To display this window, select VLAN > VTP Management from the menu bar, and click the VTP Configuration tab.

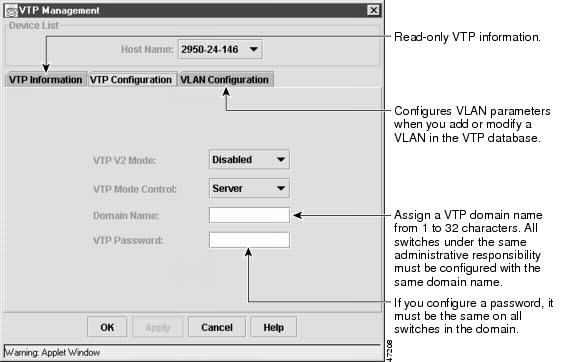

Figure 5-3 VTP Management: VTP Configuration Tab
After you configure VTP, you must configure a trunk port so that the switch can send and receive VTP advertisements. For more information, see the "How VLAN Trunks Work" section.
You can also configure VTP through the CLI on standalone, command, and member switches by entering commands in the VLAN database command mode. If you are configuring VTP on a cluster member switch to a VLAN, first log in to the member switch by using the privileged EXEC rcommand command. For more information on how to use this command, refer to the Catalyst 2950 Desktop Switch Command Reference.
When you enter the exit command in VLAN database mode, it applies all the commands that you entered. VTP messages are sent to other switches in the VTP domain, and you are returned to privileged EXEC mode.
Note
CLI: Configuring VTP Server Mode
When a switch is in VTP server mode, you can change the VLAN configuration and have it propagated throughout the network.
Beginning in privileged EXEC mode, follow these steps to configure the switch for VTP server mode:
The "Finding More Information About IOS Commands" section contains the path to the complete IOS documentation.
CLI: Configuring VTP Client Mode
When a switch is in VTP client mode, you cannot change its VLAN configuration. The client switch receives VTP updates from a VTP server in the VTP domain and then modifies its configuration accordingly.
Caution
Beginning in privileged EXEC mode, follow these steps to configure the switch for VTP client mode:
The "Finding More Information About IOS Commands" section contains the path to the complete IOS documentation.
CLI: Disabling VTP (VTP Transparent Mode)
When you configure the switch for VTP transparent mode, you disable VTP on the switch. The switch then does not send VTP updates and does not act on VTP updates received from other switches. However, a VTP transparent switch does forward received VTP advertisements on all of its trunk links.
Beginning in privileged EXEC mode, follow these steps to configure the switch for VTP transparent mode:
The "Finding More Information About IOS Commands" section contains the path to the complete IOS documentation.
CLI: Enabling VTP Version 2
VTP version 2 is disabled by default on VTP version 2-capable switches. When you enable VTP version 2 on a switch, every VTP version 2-capable switch in the VTP domain enables version 2.
Caution
Note
For more information on VTP version configuration guidelines, see the "VTP Version" section.
Beginning in privileged EXEC mode, follow these steps to enable VTP version 2:
The "Finding More Information About IOS Commands" section contains the path to the complete IOS documentation.
CLI: Disabling VTP Version 2
Beginning in privileged EXEC mode, follow these steps to disable VTP version 2:
The "Finding More Information About IOS Commands" section contains the path to the complete IOS documentation.
CLI: Monitoring VTP
You monitor VTP by displaying its configuration information: the domain name, the current VTP revision, and the number of VLANs. You can also display statistics about the advertisements sent and received by the switch.
Beginning in privileged EXEC mode, follow these steps to monitor VTP activity:
Step 1
show vtp status
Display the VTP switch configuration information.
Step 2
show vtp counters
Display counters about VTP messages being sent and received.
The "Finding More Information About IOS Commands" section contains the path to the complete IOS documentation.
VLANs in the VTP Database
You can set the following parameters when you add a new VLAN to or modify an existing VLAN in the VTP database:
•
•
•
•
•
•
•
•
•
•
•
The "Default VLAN Configuration" section lists the default values and possible ranges for each VLAN media type.
Token Ring VLANs
Although the 2950, 2900 XL, and 3500 XL switches do not support Token Ring connections, a remote device such as a Catalyst 5000 series switch with Token Ring connections could be managed from one of the supported switches. Switches running this IOS release advertise information about the following Token Ring VLANs when running VTP version 2:
•
•
For more information on configuring Token Ring VLANs, see the Catalyst 5000 Series Software Configuration Guide.
VLAN Configuration Guidelines
Follow these guidelines when creating and modifying VLANs in your network:
•
•
•
Default VLAN Configuration
Table 5-6 through Table 5-10 shows the default configuration for the different VLAN media types.
Note
Configuring VLANs in the VTP Database
You can use the VTP Management window (Figure 5-4) or the CLI to add, modify or remove VLAN configurations in the VTP database. VTP globally propagates these VLAN changes throughout the VTP domain.
To display this window, select VLAN > VTP Management from the menu bar, and click the VLAN Configuration tab. Click Help to for more information on using this window.

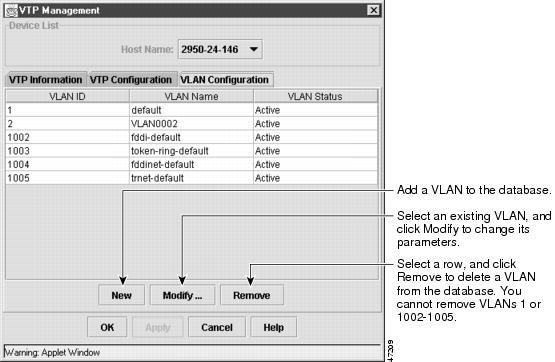

Figure 5-4 VTP Management: VLAN Configuration Tab
You use the CLI vlan database command mode to add, change, and delete VLANs. In VTP server or transparent mode, commands to add, change, and delete VLANs are written to the file vlan.dat, and you can display them by entering the privileged EXEC mode show vlan command. The vlan.dat file is stored in nonvolatile memory. The vlan.dat file is upgraded automatically, but you cannot return to an earlier version of Cisco IOS after you upgrade to this release.
Caution
You use the interface configuration command mode to define the port membership mode and add and remove ports from VLAN. The results of these commands are written to the running-configuration file, and you can display the file by entering the privileged EXEC mode show running-config command.
Note
CLI: Adding an VLAN
Each VLAN has a unique, 4-digit ID that can be a number from 1 to 1001. To add a VLAN to the VLAN database, assign a number and name to the VLAN. For the list of default parameters that are assigned when you add a VLAN, see the "Default VLAN Configuration" section.
If you do not specify the VLAN type, the VLAN is an Ethernet VLAN.
Beginning in privileged EXEC mode, follow these steps to add an Ethernet VLAN:
The "Finding More Information About IOS Commands" section contains the path to the complete IOS documentation.
CLI: Modifying a VLAN
Beginning in privileged EXEC mode, follow these steps to modify an Ethernet VLAN:
The "Finding More Information About IOS Commands" section contains the path to the complete IOS documentation.
CLI: Deleting a VLAN
When you delete a VLAN from a switch that is in VTP server mode, the VLAN is removed from all switches in the VTP domain. When you delete a VLAN from a switch that is in VTP transparent mode, the VLAN is deleted only on that specific switch.
You cannot delete the default VLANs for the different media types: Ethernet VLAN 1 and FDDI or Token Ring VLANs 1002 to 1005.
Caution
Beginning in privileged EXEC mode, follow these steps to delete a VLAN on the switch:
The "Finding More Information About IOS Commands" section contains the path to the complete IOS documentation.
CLI: Assigning Static-Access Ports to a VLAN
By default, all ports are static-access ports assigned to VLAN 1, which is the default management VLAN. If you are assigning a port on a cluster member switch to a VLAN, first log in to the member switch by using the privileged EXEC rcommand command. For more information on how to use this command, refer to the Cisco IOS Desktop Switching Command Reference (online only).
Beginning in privileged EXEC mode, follow these steps to assign a port to a VLAN in the VTP database:
The "Finding More Information About IOS Commands" section contains the path to the complete IOS documentation.
How VLAN Trunks Work
A trunk is a point-to-point link that transmits and receives traffic between switches or between switches and routers. Trunks carry the traffic of multiple VLANs and can extend VLANs across an entire network.
Figure 5-5 shows a network of switches that are connected by 802.1Q trunks.
Figure 5-5 Catalyst 2950, 2900 XL, and 3500 XL Switches in a 802.1Q Trunking Environment
IEEE 802.1Q Configuration Considerations
IEEE 802.1Q trunks impose some limitations on the trunking strategy for a network. The following restrictions apply when using 802.1Q trunks:
•
•
Trunks Interacting with Other Features
IEEE 802.1Q trunking interacts with other switch features as described in Table 5-11.
Configuring a Trunk Port
You configure trunk ports by using the Assign VLANs (Figure 5-2) and Trunk Configuration (Figure 5-6) tabs of the VLAN Membership window.
To display this window, select VLAN > VLAN Membership from the menu bar. Then click the Assign VLANs tab or the Trunk Configuration tab.

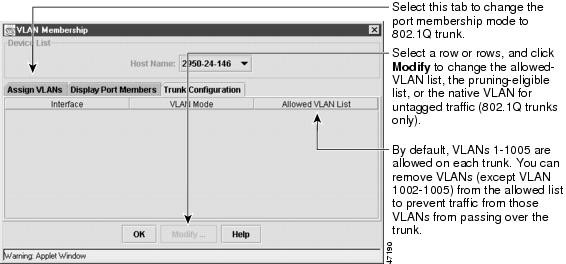

Figure 5-6 VLAN Membership: Trunk Configuration Tab
You can also configure a trunk port through the CLI on standalone, command, and member switches. If you are assigning a port on a cluster member switch to a VLAN, first log in to the member switch by using the privileged EXEC rcommand command. For more information on how to use this command, refer to the Catalyst 2950 Desktop Switch Command Reference.
CLI: Configuring a Trunk Port
For information on trunk port interactions with other features, see the "Trunks Interacting with Other Features" section.
Note
Beginning in privileged EXEC mode, follow these steps to configure a port as a 802.1Q trunk port:
Note
The "Finding More Information About IOS Commands" section contains the path to the complete IOS documentation.
CLI: Disabling a Trunk Port
You can disable trunking on a port by returning it to its default static-access mode.
Beginning in privileged EXEC mode, follow these steps to disable trunking on a port:
The "Finding More Information About IOS Commands" section contains the path to the complete IOS documentation.
CLI: Defining the Allowed VLANs on a Trunk
By default, a trunk port sends to and receives traffic from all VLANs in the VLAN database. All VLANs, 1 to 1005, are allowed on each trunk. However, you can remove VLANs from the allowed list, preventing traffic from those VLANs from passing over the trunk. To restrict the traffic a trunk carries, use the remove vlan-list parameter to remove specific VLANs from the allowed list.
A trunk port can become a member of a VLAN if the VLAN is enabled, if VTP knows of the VLAN, and if the VLAN is in the allowed list for the port. When VTP detects a newly enabled VLAN and the VLAN is in the allowed list for a trunk port, the trunk port automatically becomes a member of the enabled VLAN. When VTP detects a new VLAN and the VLAN is not in the allowed list for a trunk port, the trunk port does not become a member of the new VLAN.
Beginning in privileged EXEC mode, follow these steps to modify the allowed list of a 802.1Q trunk:
The "Finding More Information About IOS Commands" section contains the path to the complete IOS documentation.
CLI: Configuring the Native VLAN for Untagged Traffic
A trunk port configured with 802.1Q tagging can receive both tagged and untagged traffic. By default, the switch forwards untagged traffic with the native VLAN configured for the port. The native VLAN is VLAN 1 by default.
Note
For information about 802.1Q configuration issues, see the "IEEE 802.1Q Configuration Considerations" section.
Beginning in privileged EXEC mode, follow these steps to configure the native VLAN on a 802.1Q trunk:
If a packet has a VLAN ID the same as the outgoing port native VLAN ID, the packet is transmitted untagged; otherwise, the switch transmits the packet with a tag.
The "Finding More Information About IOS Commands" section contains the path to the complete IOS documentation.
Configuring IEEE 802.1p Class of Service
The Catalyst 2950 switches provide QoS-based 802.1p class of service (CoS) values. QoS uses classification and scheduling to transmit network traffic from the switch in a predictable manner. QoS classifies frames by assigning priority-indexed CoS values to them and gives preference to higher-priority traffic such as telephone calls.
How Class of Service Works
Before you set up 802.1p CoS on a Catalyst 2950, 2900 XL, and 3500 XL switch that operates with the Catalyst 6000 family of switches, refer to the Catalyst 6000 documentation. There are differences in the 802.1p implementation, and they should be understood to ensure compatibility.
Port Priority
Frames received from users in the administratively-defined VLANs are classified or tagged for transmission to other devices. Based on rules you define, a unique identifier (the tag) is inserted in each frame header before it is forwarded. The tag is examined and understood by each device before any broadcasts or transmissions to other switches, routers, or end stations. When the frame reaches the last switch or router, the tag is removed before the frame is transmitted to the target end station. VLANs that are assigned on trunk or access ports without identification or a tag are called native or untagged frames.
For IEEE 802.1Q frames with tag information, the priority value from the header frame is used. For native frames, the default priority of the input port is used.
Port Scheduling
Each port on the switch has a single receive queue buffer (the ingress port) for incoming traffic. When an untagged frame arrives, it is assigned the value of the port as its port default priority. You assign this value by using the CLI or CMS software. A tagged frame continues to use its assigned CoS value when it passes through the ingress port.
CoS configures each transmit port (the egress port) with a normal-priority transmit queue and a high-priority transmit queue, depending on the frame tag or the port information. Frames in the normal-priority queue are forwarded only after frames in the high-priority queue are forwarded.
Table 5-12 shows the two categories of switch transmit queues.
Table 5-12 Transmit Queue Information
2950 switches (802.1p user priority)
There are four priority queues. The frames are forwarded to appropriate queues based on priority-to-queue mapping as defined by the user.
2900 XL switches, 2900 XL Ethernet modules (802.1p user priority)
Frames with a priority value of 0 through 3 are sent to a normal-priority queue.
Frames with a priority value of 4 through 7 are sent to a high-priority queue.
3500 XL switches, Gigabit Ethernet modules (802.1p user priority)
Frames with a priority value of 0 through 3 are sent to a normal-priority queue.
Frames with a priority value of 4 through 7 are sent to a high-priority queue.
1 Catalyst 2900 XL switches with 4 MB of DRAM and the WS-X2914-XL and the WS-X2922-XL modules only have one transmit queue and do not support QoS.
CLI: Configuring the CoS Port Priorities
Beginning in privileged EXEC mode, follow these steps to set the port priority for untagged (native) Ethernet frames:
The "Finding More Information About IOS Commands" section contains the path to the complete IOS documentation.
CoS and WRR
The Catalyst 2950 switches support four CoS queues for each egress port. For each queue, you can specify the following types of scheduling:
•
Strict priority scheduling is based on the priority of queues. Packets can have priorities from 0 to 7, 7 being the highest. Packets in the high-priority queue always transmit first, and packets in the low-priority queue do not transmit until all the high-priority queues become empty.
•
WRR scheduling requires you to specify a number that indicates the importance (weight) of the queue relative to the other CoS queues. WRR scheduling prevents the low-priority queues from being completely neglected during periods of high-priority traffic. The WRR scheduler transmits some packets from each queue in turn. The number of packets it transmits corresponds to the relative importance of the queue. For example, if one queue has a weight of 3 and another has a weight of 4, then three packets are transmitted from the first queue for every four that are transmitted from the second queue. By using this scheduling, low-priority queues have the opportunity to transmit packets even though the high-priority queues are not empty.
Use the CoS and WRR window (Figure 5-7) to assign priorities to the queues and to enable the WRR scheduler. To display this window, select Device > CoS & WRR from the menu bar.
You can use this window to perform the following tasks:
•
•
•

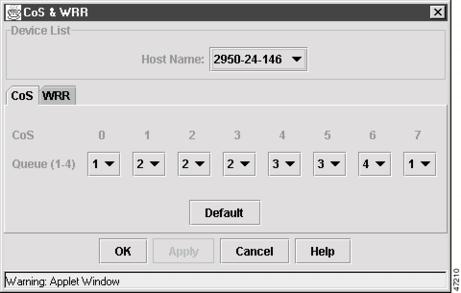

Use the CoS tab on the CoS and WRR window (Figure 5-7) to view the default settings. If you want to reassign a priority, open the list under that priority, and select a different queue number.
Figure 5-7 Modify CoS Settings

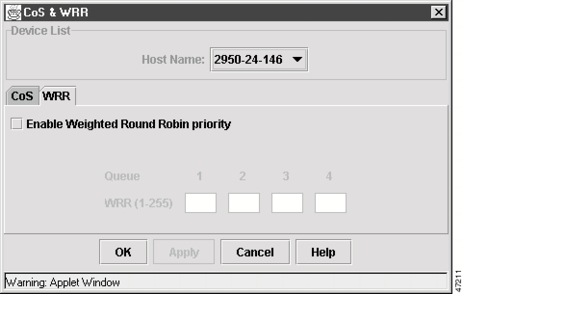

Use the WRR tab on the CoS and WRR window (Figure 5-8) to view the current settings. If WRR scheduler is disabled, all the fields will be blank.
If the WRR priority box is checked, WRR is enabled. You can assign a weighted number from 0 to 255 in the field below each queue number, as shown in Figure 5-8.
Figure 5-8 Modify WRR Settings
CLI: Configuring CoS Priority Queues
Beginning in privileged EXEC mode, follow these steps to configure the CoS priority queues:
To disable the new CoS settings and return to default settings, use the
no wrr-queue cos-map command.The "Finding More Information About IOS Commands" section contains the path to the complete IOS documentation.
CLI: Configuring WRR
Beginning in privileged EXEC mode, follow these steps to configure the weighted round robin priority:
To disable the WRR scheduler and enable the strict priority scheduler, use the
no wrr-queue bandwidth command.The "Finding More Information About IOS Commands" section contains the path to the complete IOS documentation.
Load Sharing Using STP
Load sharing divides the bandwidth supplied by parallel trunks connecting switches. To avoid loops, STP normally blocks all but one parallel link between switches. With load sharing, you divide the traffic between the links according to which VLAN the traffic belongs.
You configure load sharing on trunk ports by using STP port priorities or STP path costs. For load sharing using STP port priorities, both load-sharing links must be connected to the same switch. For load sharing using STP path costs, each load-sharing link can be connected to the same switch or to two different switches.
You can change STP port parameters by using the Port Parameters tab of the Spanning Tree Protocol window or by using the CLI. To display this window, select Device > Spanning-Tree Protocol from the menu bar. Then click the Port Parameters tab.
For more information about the STP window, see the "Configuring the Spanning Tree Protocol" section, or consult the online help in the application.
Load Sharing Using STP Port Priorities
When two ports on the same switch form a loop, the STP port priority setting determines which port is enabled and which port is in standby mode. You can set the priorities on a parallel trunk port so that the port carries all the traffic for a given VLAN. The trunk port with the higher priority (lower values) for a VLAN is forwarding traffic for that VLAN. The trunk port with the lower priority (higher values) for the same VLAN remains in a blocking state for that VLAN. One trunk port transmits or receives all traffic for the VLAN.
Figure 5-9 shows two trunks connecting supported switches. In this example, the switches are configured as follows:
•
•
•
•
In this way, trunk 1 carries traffic for VLANs 8 through 10, and trunk 2 carries traffic for VLANs 3 through 6. If the active trunk fails, the trunk with the lower priority takes over and carries the traffic for all of the VLANs. No duplication of traffic occurs over any trunk port.
Figure 5-9 Load Sharing by Using STP Port Priorities
CLI: Configuring STP Port Priorities and Load Sharing
Beginning in privileged EXEC mode, follow these steps to configure the network shown in Figure 5-9:
The "Finding More Information About IOS Commands" section contains the path to the complete IOS documentation.
Load Sharing Using STP Path Cost
You can configure parallel trunks to share VLAN traffic by setting different path costs on a trunk and associating the path costs with different sets of VLANs. The VLANs keep the traffic separate, because no loops exist, STP does not disable the ports, and redundancy is maintained in the event of a lost link.
In Figure 5-10, trunk ports 1 and 2 are 100BaseT ports. The path costs for the VLANs are assigned as follows:
•
•
•
•
Figure 5-10 Load-Sharing Trunks with Traffic Distributed by Path Cost
CLI: Configuring STP Path Costs and Load Sharing
Beginning in privileged EXEC mode, follow these steps to configure the network shown in Figure 5-10:
The "Finding More Information About IOS Commands" section contains the path to the complete IOS documentation set.
