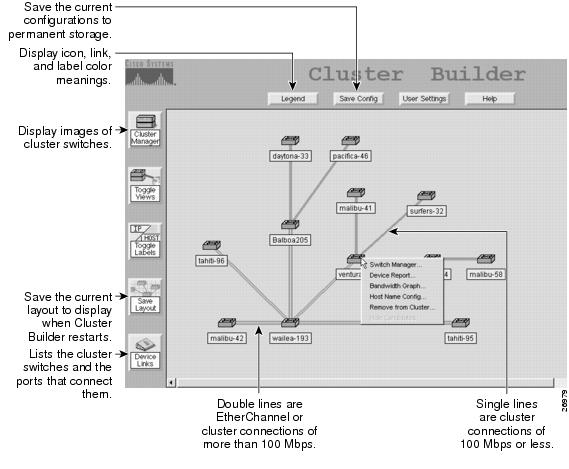

Using Cluster Builder

Using Cluster View

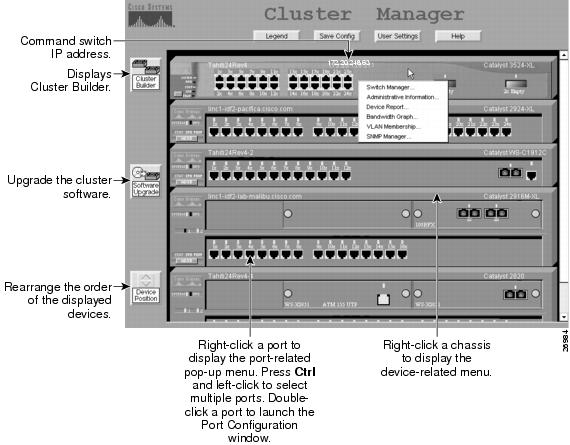

Using Cluster Manager

Using the IOS Command-Line Interface

Understanding the CLI

Setting Passwords and Privilege Levels

Using the CLI to Manage Cluster Members

Getting Help

Abbreviating Commands

Using no Commands

Understanding Command-Line Error Messages

Configuring the Switch for Telnet

Starting a Telnet Session from the Browser

Working with Files in Flash Memory

Using SNMP Management

Using FTP to Access the MIB Files

Using SNMP to Access MIB Variables

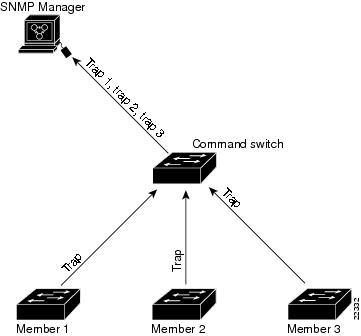

Managing Clusters through SNMP

Using the Management Interfaces

This chapter describes the features and characteristics of the management interfaces. You can use a web browser such as Netscape Communicator or Microsoft Internet Explorer to access these interfaces to monitor and configure a switch or a group of switches.

This chapter describes how to perform the following tasks:

•Prepare to use the web-based management interfaces

•Use the Cisco Visual Switch Manager (CVSM) interface for managing a switch

With CVSM, you can configure and monitor a switch by using a graphical user interface. Individual switch configuration information is provided in "."

•Use the Switch Network View interface for managing a simple stack of switches

With Switch Network View, you can manage a stack of up to five switches configured in a star topology. Each switch has its own IP address. You can display a map of the stack and information about the devices and links that connect them. Stack configuration information is provided in "."

•Use the Cluster Management interface for managing a cluster of switches

With Cluster Management, you can use a command switch with an IP address to manage a cluster of up to 15 other switches. The other switches, called member switches, do not need individual IP addresses. Cluster configuration information is provided in "."

•Use the IOS command-line interface (CLI) to manage a switch or group of switches.

The CLI is accessed through the console port or Telnet. Individual switch configuration procedures are provided in "" and "."

•Use SNMP MIB objects to manage a switch or group of switches.

The MIBs are accessed through an SNMP management application.

lists the key features and defaults of this release and cross-references the descriptions for changing them with the CLI or an HTML interface.

Preparing to Use the Web-Based Management Interfaces

All of the web-based management features are based on an embedded HTML web server in the switch Flash memory. This section describes how to configure your environment for web-based management.

Note   Web-based management uses HTTP, an in-band form of communication: you access the switch through one of its Ethernet ports. Therefore, be sure that you do not disable or otherwise misconfigure the port through which you are communicating with the switch. When you install the switch, you might want to write down the port number that you are using. In addition, you must have privilege level 15 to access the web-based management applications (CVSM, Switch Network View, and Cluster Management). For more information, see the "Setting Passwords and Privilege Levels" section.

Hardware and Software Requirements

You can access the web-based interfaces through the browsers listed in . The switch checks the browser version when starting a session to ensure that the browser is supported. If the browser is not supported, the switch displays an error message, and the session does not start.

The minimum requirement for a PC is a Pentium processor running at 166 MHz with
64 MB of DRAM. The minimum requirement for a UNIX workstation is a Sun Ultra 1 running at 143 MHz.

Note   In Cluster Management, Internet Explorer versions 4.01 and 5.0 display only edge devices connected to the command switch. Other functionality is similar to that of Netscape Communicator.

The following operating systems are supported for web-based management:

•Microsoft Windows 95 (Service Pack 1 required)

•Microsoft Windows 98, second edition

•Microsoft Windows NT 4.0 (Service Pack 3 required)

•Solaris 2.5.1 or higher, with the Sun-recommended patch cluster for that operating system and Motif library patch 103461-24

Table 2-1 Browser Support for Web-based Management

Browser

Minimum Version

Supported Versions

Netscape Communicator

4.5

4.5, 4.51, 4.61¹

Internet Explorer²

4.01a

4.01a, 5.0

¹Netscape Communicator 4.6 is not supported.

²Not supported on Solaris 2.5.1 or higher.

lists the configuration that yields the best results for web-based management.

Table 2-2 Recommended Platform Configuration for Web-based Management

OS

Processor Speed

DRAM

Number of Colors

Resolution

Font Size

Windows NT 4.0

Pentium 300 MHz

128 MB

65536

1024 x 768

Small

SunOS 5.6

Sparc 333 MHz

128 MB

Most colors for applications

—

Small (3)

Configuring Netscape Communicator

Follow these steps to configure Netscape Communicator:

Step 1 Start Netscape Communicator.

Step 2 From the menu bar, select Edit>Preferences.

Step 3 In the Preferences window, click Advanced.

(a) Select the Enable Java, Enable JavaScript, and Enable Style Sheets check boxes.

(b) Click OK to return to the browser Home page.

Step 4 From the menu bar, select Edit>Preferences.

(a) In the Preferences window, click Advanced Cache, and select Every time.

(b) Click OK to return to the browser Home page.

Configuring Microsoft Internet Explorer 4.01

Follow these steps to configure Microsoft Internet Explorer 4.01:

Step 1 Start Internet Explorer.

Step 2 From the menu bar, select View>Internet Options.

Step 3 In the Internet Options window, click the Advanced tab.

(a) Scroll through the list of options until you see Java VM. Select the Java logging enabled and Java JIT compiler enabled check boxes.

(b) Click Apply.

Step 4 In the Internet Options window, click the General tab.

(a) In the Temporary Internet Files section, click the Settings... button.

(b) In the Settings window, select Every visit to the page, and click OK.

Step 5 In the Internet Options window, click the Security tab.

(a) In the Zone drop-down list, select Trusted Sites Zone.

(b) In the Trusted Sites Zone section, select Custom.

(c) Click the Settings... button.

Step 6 In the Security Settings window, scroll to the Java>Java Permissions section, and select Custom.

Click the Java Custom Settings... button, which appears at the bottom of the window.

Step 7 In the Trusted Sites Zone window, click the Edit Permissions tab.

(a) If the buttons under Run Unsigned Content are not available, select either Medium or Low security in the Reset Java Permissions list box. Click Reset.

(b) Under Run Unsigned Content, select Enable, and click OK.

Step 8 In the Security Settings window, click OK.

Step 9 In the Internet Options window, click the Security tab.

(a) Verify that the Zone drop-down list is set to Trusted Sites Zone.

(b) In the Trusted Sites Zone section, click the Add Sites... button.

Step 10 In the Trusted Sites Zone window, deselect the Require server verification check box.

(a) In the Add this Web site to the Zone field, enter the IP address of the switch you want to manage, as in this example:

http://172.20.153.36

Note   If you plan to use Cluster Management for switch configuration, you must enter the IP address of the command switch. You can enter the addresses of member switches, but they are not required.

If you plan to use CVSM for switch configuration, you must enter the IP address of each switch that you want to manage. You do not need to delete the address from the trusted site list if the switch later becomes a cluster member.

(b) Click Add, and then click OK.

Step 11 In the Internet Options window, click OK.

Configuring Microsoft Internet Explorer 5.0

Note   During the installation of this browser, make sure to select the Install Minimal or Customize Your Browser check box. Then in the Component Options window, in the Internet Explorer 5 section, make sure to select the Microsoft Virtual Machine check box, which allows you to display applets written in Java.

Follow these steps to configure Microsoft Internet Explorer 5.0:

Step 1 Start Internet Explorer.

Step 2 From the menu bar, select Tools>Internet Options.

Step 3 In the Internet Options window, click the Advanced tab.

(a) Scroll through the list of options until you see Java VM. Select the Java logging enabled and JIT compiler for virtual machine enabled check boxes.

(b) Click Apply.

Step 4 In the Internet Options window, click the General tab.

(a) In the Temporary Internet Files section, click the Settings... button.

(b) In the Settings window, select Every visit to the page, and click OK.

Step 5 In the Internet Options window, click the Security tab.

(a) Select the Trusted Sites icon and click the Sites... button.

(b) Deselect the Require server verification check box.

(c) Add the switches you want to manage by entering their URLs in the Add this web site to the zone field. Click the Add button to add each switch.

A URL is the switch IP address preceded by http://. For example, you might enter:

http://172.20.153.36

Note   If you plan to use Cluster Management for switch configuration, you must enter the IP address of the command switch. You can enter the addresses of member switches, but they are not required.

If you plan to use CVSM for switch configuration, you must enter the IP address of each switch that you want to manage. You do not need to delete the address from the trusted site list if the switch later becomes a cluster member.

(d) After you have finished entering the URLs for your switches, click OK.

Step 6 While still in the Security tab of Internet Options window, click the Custom Level... button.

(a) In the Security Settings window, scroll to the Java>Java permissions section.

If you do not see this section, you need to reinstall the browser, and follow the instructions in the note at the beginning of this procedure.

(b) Select Custom to enable the Java Custom Settings button.

(c) Click the Java Custom Settings... button.

Step 7 In the Trusted Sites window, click the Edit Permissions tab.

(a) Under Run Unsigned Content, select Enable.

(b) Click OK.

Step 8 In the Security Settings window, click OK.

Step 9 In the Internet Options window, click OK.

Note   If you are using Microsoft Internet Explorer 5.0 to make configuration changes to the switch, be aware that this browser does not reflect the latest configuration changes. Make sure you click the browser Refresh button for every configuration change.

Using Cisco Visual Switch Manager

CVSM is a web-based device-management application for configuring and monitoring your switch. Because the switch is preconfigured, CVSM shows the settings that the switch is using. You change the configuration settings by entering information in fields, adding and removing list items, or selecting check boxes. In addition, the CVSM Home page displays an image of the switch (Figure 2-2). The LEDs reflect the current status of the switch, and you can click on ports to configure them.

When you enter information in a CVSM field and click Apply, the change becomes part of the running (current) configuration. If you make a mistake and want to retype an entry, click Cancel to undo your first entry. Items added to or removed from lists in CVSM immediately become part of the running configuration, and you do not need to click Apply.

Note   The current configuration is not necessarily the startup configuration. Save the configuration as the startup configuration in CVSM by following the procedure in "Saving the Configuration File" section. You can also save the configuration with the CLI; see the "Working with Files in Flash Memory" section.

Accessing CVSM for the First Time

The switch must have an IP address before you can use CVSM to manage the switch. By contrast, a cluster requires only one IP address per cluster. For instructions on assigning the IP address, see the "CLI Procedure for Assigning IP Information to the Switch" section. For information on clustering, see the "Using Cluster Management" section and "."

Follow these steps to access CVSM:

Step 1 Be sure that you have configured your browser correctly.

For more information, see the "Preparing to Use the Web-Based Management Interfaces" section.

Step 2 Start the browser.

Step 3 Enter the switch IP address in the browser Location field (Netscape Communicator) or Address field (Internet Explorer).

Step 4 Press Return.

Step 5 Enter your username and password when prompted.

The password provides level 15 access.

The Cisco Systems Access page (Figure 2-1) is displayed.

Step 6 Click Visual Switch Manager to display the CVSM Home page (Figure 3-4).

Figure 2-1 Cisco Systems Access Page

All the CVSM pages have a Home button that you can click to return to this page. From the Home page, you can monitor and configure the port as shown in Figure 2-2.

The other web-based applications, Cluster Management and Switch Network View, are available from the CVSM Home page:

•If your switch is part of a cluster, you can click Cluster Management to create and manage clusters of switches. To use the switch cluster capabilities, you must enable one switch as the command switch and name the cluster on the CVSM home page.

•If your switch is not part of a cluster, you can click Switch Network View to display the stack connected to the switch.

You can bookmark the IP address to easily retrieve the Home page for later use.

Note   If you are working with clusters of switches, limit your bookmarks to command-switch pages.

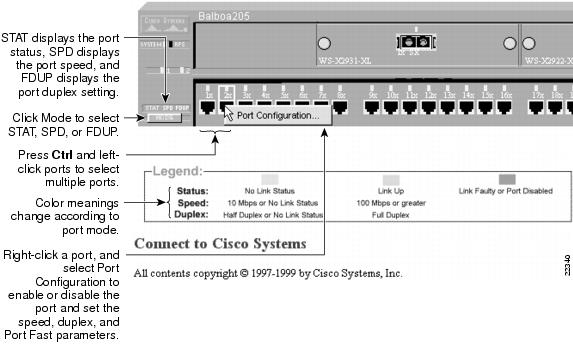

Figure 2-2 Using the Mode Button to Configure Ports

CVSM Menu Options

You can access the device-management features from the Home page menu bar drop-down menus, such as the Port menu shown in . describes the menu options and their function.

Figure 2-3 CVSM Menu Bar

Table 2-3 Cisco Visual Switch Manager Menu Options

Menu Bar Choices

Task

Port

Port Configuration

Enable or disable ports and set port parameters.

Port Grouping (EC)

Group ports into logical units for high-speed links between switches.

Switch Port Analyzer (SPAN)

Enable SPAN port monitoring.

Flooding Controls

Enable broadcast storm control, assign a network port, and block unicast and multicast flooding on a per-port basis.

System

System Configuration

Save the running configuration, and upgrade firmware through the Trivial File Transfer Protocol (TFTP).

System Time Management

Configure the time on the switch or configure the switch to receive the time from a Network Time Protocol (NTP) server.

IP Management

Enter IP information for the switch. Configure the management VLAN interface.

SNMP Configuration

Enter SNMP trap managers and community strings.

ARP Table

Display the ARP table and change the timeout setting.

Security

Address Management

Enter static and secure addresses; change the dynamic address aging time.

Port Security

Enable port security.

Device

Cisco Discovery Protocol

Enable and disable CDP information.

Cisco Group Management Protocol

Enable and disable CGMP and CGMP Fast Leave feature.

Spanning-Tree Protocol

Display and change STP parameters for the switch.

VLAN

VLAN Membership

Assign ports to port-based VLANs.

Fault

Logging Config

Set logging parameters.

Using Switch Network View

The Switch Network View page displays a map of the devices that are directly connected to a switch that is not part of a cluster. From this page, you can display switch connection information, device reports, and link reports.

You display Switch Network View from the CVSM home page, but its availability depends on how your switch is configured. If your switch is part of a cluster, the Cluster Management button displays. If your switch is not part of a cluster, the Switch Network View button displays.

If your switch is not in a cluster, click Switch Network View to display the view shown in Figure 2-4. Blue labels identify stack members, which include 2900 and 3500 XL switches. Yellow labels identify generic edge devices connected to stack members. Edge devices include Cisco routers, switches, hubs, and Cisco Micro Webservers if they are directly attached to a 2900 or 3500 XL switch. For information on the supported IOS Release for these switches, see .

Using Switch Network View Buttons

describes the Switch Network View buttons and how to use them.

Table 2-4 Switch Network View Buttons

Name

Purpose

Visual Stack

Displays images of stack members. From this page you can:

•Display the status, duplex, speed and Port Fast settings on this port.

•Configure ports.

•Start the CVSM for any stack member.

Switch Manager

Displays switch connection information (device type, IP address, port number) for switches that are directly connected to the primary switch. Switch stack members have blue labels, and switch edge devices have yellow labels.

Click the IP address of a stack member to display the CVSM Home page for the switch.

Toggle Labels

Alternates between displaying IP addresses and device type labels.

Help

Displays online help.

Legend

Displays the meanings of icons and links.

Figure 2-4 Switch Network View Page

Accessing Device Menus

To display the device pop-up menu, right-click a switch. You can select one of the following options:

•Device Report—Displays the device report for the switch. The device report has three pages of switch information: configuration, system, and port.

•Switch Manager—Displays the CVSM Home page for the switch.

Accessing Link Menus

To display the link report, right-click a link, and select Link Report. This report displays the link speed, VLAN and port group memberships, and the STP state.

Using Cluster Management

Cluster Management consists of three related applications that you can use to create clusters of switches, manage individual switches, and display device information, link information, and performance graphs. Each cluster requires a designated command switch with an IP address to manage and communicate all cluster-wide management functions.

This section describes how you can use the following Cluster Management applications to manage your network:

•Cluster Builder

•Cluster View

•Cluster Manager

To use the switch cluster capabilities, you must enable one switch as the command switch and name the cluster on the CVSM home page. You can also perform these tasks with the CLI.

Accessing Cluster Management

Once the cluster is created, you can access Cluster Management in the following ways:

•Click Cluster Management on the Cisco Systems Access page (Figure 2-1).

This link is present if the switch is running command-capable clustering software with the command switch functionality enabled (functioning as the command switch).

•Click Cluster Management on the CVSM Home page (Figure 3-4).

This button appears if the switch is command capable and enabled (functioning as the command switch), if the switch is command capable and disabled, or if the switch is a member of a cluster.

For information on how to create a cluster, see the "Creating Clusters" section.

Common Interface Features in Cluster Management

Certain features are common to all three Cluster Management applications. lists the buttons on the Cluster Builder, Cluster View, and Cluster Manager pages.

Table 2-5 Cluster Management Buttons

Button

Action

Legend

Provides a legend with the meaning of icons, labels, and links.

Save Config

Saves the current configuration to permanent storage on the 2900 and 3500 XL command and member switches. These configurations are saved in the config.text file that is used when the switches are reset. Click this button for all configuration changes except for saving the device layout or when making changes in the User Settings window. For more information, see the "Working with Files in Flash Memory" section.

This button does not apply to Catalyst 1900 and 2820 switches, which automatically save configuration changes to Flash memory as they occur.

User Settings

Configures your preferences for Cluster Management. The command switch saves this information in permanent storage, and you do not need to click Save Config. You can set these preferences to:

•Display suggested candidates every time Cluster Builder starts

•Display Cluster Builder or Cluster Manager page by default

•Polling interval for performance graphs

•Polling interval for Cluster Builder and Cluster Manager

For more information, see the "Changing User Settings" section.

Help

Displays detailed procedures for cluster management tasks.

Using Cluster Builder

Use Cluster Builder to automatically or manually create a cluster of switches. Switches directly connected to the command switch that are running the appropriate software display themselves as cluster members or candidates.

Depending on your topology, you can add all candidate switches to the cluster at once (star topology) or add them one by one (daisy-chain topology). shows Cluster Builder displaying a map of cluster devices.

Cluster Builder labels other network devices with the following colors:

Green

A cluster member, either as a member switch or as the command switch.

Blue

A cluster candidate that is fully qualified to become a cluster member. Add these candidates to the cluster with Cluster Builder.

describes the active buttons in Cluster Builder, describes the available menu options when you right-click a switch, and describes the available menu options when you right-click a link. The menu options can vary depending on the type of device and whether or not it is a cluster member.

Figure 2-5 Cluster Builder

Table 2-6 Cluster Builder Buttons

Button

Action

Cluster Manager

Displays Cluster Manager.

Toggle Views

Toggles between Cluster View and Cluster Builder. In Cluster View, all cluster switches are represented by a double-switch icon. Candidate switches and edge devices are also displayed.

Toggle Labels

Changes the labels on the links and icons. The labels can be

•MAC address (IP address of the command switch) of the switch and the port numbers that connect links. A candidate switch also displays its IP addresses if one is assigned.

•Host name.

Save Layout

Saves the current layout of the switch icons. As long as there are no topology changes, the saved layout displays the next time you display Cluster Builder. For more information, see the "Arranging and Saving the Device Layout" section.

Device Links

Displays port connection information for cluster members. For more information, see the "Displaying Port Connection Information" section.

(continued)

Table 2-7 Cluster Builder Device Menu Items

Menu Item

Action (available when you right-click a switch)

Switch Manager

Displays the switch manager home page. You can also display this page by double-clicking the command, member, or candidate switches. For more information, see the "Managing Your Switch through CVSM" section.

Device Web Page

Displays the HTML interface for the device. (Not always displayed.)

Device Report

Displays the device report for the switch. The device report has three pages of information about the switch: configuration, system, and port. This feature is not available on Catalyst 1900 and 2820 switches. For more information, see the "Displaying Device Reports and Graphs" section.

Bandwidth Graph

Displays a graph that plots the total bandwidth used by the switch. This feature is not available on Catalyst 1900 and 2820 switches. For more information, see the "Displaying Device Reports and Graphs" section.

Host Name Config

Displays a window where you can enter a host name for the switch. For more information, see the "Changing the Host Name" section.

Add to Cluster, Remove from Cluster

Adds or removes the selected switch to or from the cluster. (Not always displayed.) For more information, see the "Adding and Removing Member Switches" section.

Hide Candidates, Show Candidates

Hides or redisplays candidate switches connected to a cluster member.

Table 2-8 Cluster Builder Link Menu Items

Menu Item

Action (available when you right-click a link)

Link Graph

Displays the performance graph for the link. You can plot the link utilization percentage and the total packets, bytes, and errors recorded on the link. To display a link graph, one end of the link must be connected to a port on a cluster member that is a 2900 or 3500 XL switch. Links between Catalyst 1900 and 2820 switches, Catalyst 2820 and 2820 switches, or Catalyst 1900 and 1900 switches cannot be graphed. For more information, see the "Displaying Link Utilization Graphs" section.

Using Cluster View

Cluster View displays the cluster as a double-switch icon with connections to edge devices and candidate switches. To access Cluster View, click the Toggle Views button in Cluster Builder.

Figure 2-6 Cluster View

Cluster View labels network devices with the following colors:

Yellow

Noncluster-capable, but CDP-capable devices, or edge devices that are not running Cluster Management software. These devices are directly connected to a cluster member. Edge devices include Cisco switches, routers, hubs, or micro-web servers. Edge devices can only be Cisco devices.

Green

Cluster icon. A double-switch icon represents all members of the current cluster. Double-clicking the cluster icon launches the CVSM home page.

Blue

Candidate switches that are not part of the cluster but are eligible.

White

Additional clusters. If devices are directly connected to the cluster but are part of another cluster, these devices are represented by a double-switch icon as long as one of the devices connected is the command switch of the other cluster. If none of the devices connected is a command switch, they are all displayed as edge devices with yellow labels.

describes the active buttons in Cluster View. lists the menu options available when you right-click a device. lists the menu options available when you right-click a link.

Table 2-9 Cluster View Buttons

Button

Action

Cluster Manager

Displays Cluster Manager.

Toggle Views

Toggles between Cluster Builder and Cluster View. In Cluster Builder, the command switch, members, and candidate switches are displayed.

Toggle Labels

Changes the labels on the links and icons. The labels can be

•MAC address (IP address of the command switch) of the switch and the port numbers that connect links. A candidate switch also displays its IP addresses if one is assigned.

•Host names.

Save Layout

Saves the current layout of the switch icons. As long as there are no topology changes, the saved layout displays the next time you display Cluster View. For more information, see the "Arranging and Saving the Device Layout" section.

Table 2-10 Cluster View Device Menu Options

Menu Item

Action (available when you right-click a device)

Device web page

Displays the web management page for the device.

Disqualification code

Describes why the switch is not a cluster member or candidate.

Table 2-11 Cluster View Link Menu Options

Menu Item

Action (available when you right-click a link)

Link Graph

Displays the performance graph for the link. You can plot the link utilization percentage and the total packets, bytes, and errors recorded on the link. To display a link graph, one end of the link must be connected to a port on a cluster member that is a 2900 or 3500 XL switch. Links between Catalyst 1900 and 2820 switches, Catalyst 2820 and 2820 switches, or Catalyst 1900 and 1900 switches cannot be graphed. For more information, see the "Displaying Link Utilization Graphs" section.

Using Cluster Manager

Cluster Manager displays images of cluster switches that you can use to monitor and configure the devices. You can configure a cluster member on the port-, switch-, or cluster-level.

For port-level configuration, right-click a port (or several ports on the same switch while holding the Ctrl key) to display the port pop-up menu. describes the items available from this menu.

Table 2-12 Cluster Manager Port Menu Items

Menu Item

Action (available when you right-click a port)

Port Configuration

Double-click a port, or click a port (or several ports on the same switch while holding the Ctrl key) to display the Port Configuration window. From this window, you can configure the status, speed, duplex, and Port Fast settings. For more information, see the "Configuring Ports" section.

Link Graph

Right-click a port that is green to display the performance graph for the link. You can plot the link utilization percentage and the total packets, bytes, and errors recorded on the link. This feature is not available on Catalyst 1900 and 2820 switches. For more information, see the "Displaying Link Utilization Graphs" section.

You can click the Mode button to change the port LED mode and display the speed and duplex settings of all switch ports. The LEDs display real-time information on the status and configuration of the ports.

For device-level configuration, right-click the switch chassis to display the device pop-up menu. describes the items available from this menu.

Table 2-13 Cluster Manager Device Menu Items

Menu Item

Action (available when you right-click a switch chassis)

Switch Manager

Displays the switch manager home page. You can also display this page by double-clicking the command, member, or candidate switches. For more information, see the "Managing Your Switch through CVSM" section.

Administrative Information

Displays a window for entering the host name, system contact, and location. This window also displays the system uptime. The name you enter here is displayed on the switch in Cluster Manager and Cluster Builder. For more information, see the "Changing the Host Name" section.

Device Report

Displays the device report for the switch. The device report consists of three pages of information about the switch: configuration, system, and port. This feature is not available on Catalyst 1900 and 2820 switches. For more information, see the "Displaying Device Reports and Graphs" section.

Bandwidth Graph

Displays a graph that plots the total bandwidth in use by the switch. This feature is not available on Catalyst 1900 and 2820 switches. For more information, see the "Displaying Device Reports and Graphs" section.

VLAN Membership

Displays user configured VLANs on the switch. Select a VLAN, and click Display Members to show the ports that belong to the VLAN. Cluster Manager identifies the ports that belong to the selected VLAN by outlining them with a colored box on the switch image. Use the legend on the page to understand the VLAN port types. For more information, see the "Displaying VLAN Membership" section.

The VLAN Membership menu option is not available on Catalyst 1900 or 2820 switches running standard edition software or running Enterprise Edition Software with bridge groups enabled.

SNMP Manager

Displays the window for configuring SNMP community strings and trap managers on cluster members. For more information, see the "Configuring SNMP" section.

For cluster-level configuration, click the buttons on the left side of the Cluster Manager window. describes the group-level buttons.

Table 2-14 Cluster Manager Cluster-Level Buttons

Button Name

Action

Cluster Builder

Displays Cluster Builder.

Software Upgrade

Displays the window for performing group upgrades on cluster members. For more information, see the "Upgrading Software for a Group of Switches" section.

Device Position

Displays the window for rearranging the position of cluster members in Cluster Manager. By default, the command switch is displayed at the top of the stack of switches. For more information, see the "Rearranging the Order of the Switches" section.

Figure 2-7 Cluster Manager

Using the IOS Command-Line Interface

This section introduces the Cisco IOS command-line interface (CLI). The Cisco IOS Desktop Switching Command Reference (online only) contains a complete description of commands that have been created or changed for the 2900 and 3500 XL switches.

This section describes how to perform the following tasks:

•Understand the CLI and its command modes

•Use the CLI to manage member switches

•Set passwords

•Configure the switch for Telnet

•Work with files in Flash memory

Note   When configuring your switch with the CLI, be aware that certain combinations of port features can create configuration conflicts. For more information, see the "Managing Configuration Conflicts" section.

Understanding the CLI

This section describes the Cisco IOS command-mode structure. Each command mode supports specific Cisco IOS commands. For example, the interface type_number command is used only from global configuration mode.

The switch supports the following command modes:

•User EXEC

•Privileged EXEC

•VLAN database (Enterprise Edition Software only)

•Global configuration

•Interface configuration

•Line configuration

describes how to access each mode, the prompt you see in that mode, and how to exit the mode. The examples in the table use the host name switch.
Table 2-15 Command Modes Summary
Modes

Access Method

Prompt

Exit Method

About This Mode¹
User EXEC

Begin a session with your switch.
switch>
Enter logout or quit.

Use this mode to

•Change terminal settings.

•Perform basic tests.

•Display system information.
Privileged EXEC

Enter the enable command while in user EXEC mode.
switch#
Enter disable to exit.

Use this mode to verify commands you have entered. Access to this mode should be protected with a password.
VLAN database (Enterprise Edition Software only)

Enter the vlan database command while in privileged EXEC mode.
switch(vlan)#
To exit to privileged EXEC mode, enter exit.

Use this mode to configure VLAN-specific parameters.
Global configuration

Enter the configure command while in privileged EXEC mode.
switch(config)#
To exit to privileged EXEC mode, enter exit or end, or press Ctrl-Z.

Use this mode to configure parameters that apply to your switch as a whole.
Interface configuration

Enter the interface command (with a specific interface) while in global configuration mode.
switch(config-if)#
To exit to global configuration mode, enter exit.

Press Ctrl-Z or enter end to return to privileged EXEC mode.

Use this mode to configure parameters for the Ethernet interfaces.
Line configuration

Specify a line with the line vty or line console command while in global configuration mode.
switch(config-line)
#
To exit to global configuration mode, enter exit.

Press Ctrl-Z or enter end to return to privileged EXEC mode.

Use this mode to configure parameters for the terminal line.
¹For any of the modes, you can see a comprehensive list of the available commands by entering a question mark (?) at the prompt.
Setting Passwords and Privilege Levels

Because many privileged EXEC commands are used to set operating parameters, you should password-protect these commands to prevent unauthorized use.

Catalyst 2900 and 3500 XL switches have two commands for setting passwords:

•enable secret password (a very secure, encrypted password)

•enable password password (a less secure, unencrypted password)

You must enter one of these passwords to gain access to privileged EXEC mode. It is recommended that you use the enable secret password.

If you enter the enable secret command, the text is encrypted before it is written to the config.text file, and it is unreadable. If you enter the enable password command, the text is written as entered to the config.text file where you can read it.

Note When set, the enable secret password takes precedence, and the enable password serves no purpose.

Both types of passwords can contain from 1 to 25 uppercase and lowercase alphanumeric characters, and both can start with a number. Spaces are also valid password characters; for example, two words is a valid password. Leading spaces are ignored; trailing spaces are recognized. The password is case sensitive.

To remove a password, use the no version of the commands: no enable secret or no enable password. If you lose or forget your enable password, see the "Recovering from a Lost or Forgotten Password" section.

When the Cluster Management software suggests a candidate to add to a cluster, you enter the password of the candidate switch, if one was defined, and the switch joins the cluster. Then the member switch inherits the command switch password. For more information on managing passwords in Cluster Management, see the "Changes to Passwords" section.

You can also specify up to 15 privilege levels and define passwords for them by using the enable password [level level] {password} or enable secret [level level] {password} command. Level 1 is normal EXEC-mode user privileges. If you do not specify a level, the privilege level defaults to 15 (traditional enable privileges).

Note You need privilege level 15 to access CVSM, Switch Network View, and the Cluster Management software. You must also use privilege level 15 if you configure TACACS+ (Enterprise Edition Software only) with the CLI so that all your HTTP connections will be authenticated through the TACACS+ server.

You can specify a level, set a password, and give the password only to users who need to have access at this level. Use the privilege level global configuration command to specify commands accessible at various levels. For more information on these commands, refer to the complete IOS Release 12.0 documentation set on CCO by selecting Service and Support>Technical Documents>Documentation Home.

Using the CLI to Manage Cluster Members

You can configure member switches with the CLI by first logging into the command switch. Enter the EXEC mode rcommand command and the member switch number to start a Telnet session (through a console or Telnet connection) and access the member switch CLI. Except when connecting to a Catalyst 1900 or 2820 switch running standard edition software with the command switch at privilege level 1 to 14, you are not prompted for a password because the member switch inherited the password of the command switch when it joined the cluster.

The following example shows how to log into member-switch 3 from the command-switch CLI:
switch# rcommand 3
If you do not know the member-switch number, enter the EXEC mode show cluster members command on the command switch.

For 2900 and 3500 XL switches, the Telnet session accesses the member-switch CLI at the same privilege level as on the command switch. The IOS commands then operate as usual. For instructions on configuring the 2900 or 3500 XL switch for a Telnet session, see the "Configuring the Switch for Telnet" section.

For Catalyst 1900 and 2820 switches running standard edition software, the Telnet session accesses the menu console (the menu-driven interface) if the command switch is at privilege level 15. If the command switch is at privilege level 14, you are prompted for the password before being able to access the menu console.

Command switch privilege levels map to the Catalyst 1900 and 2820 member switches running standard and Enterprise Edition Software as follows:

•If the command switch privilege level is 1 to 14, the member switch is accessed at privilege level 1.

•If the command switch privilege level is 15, the member switch is accessed at privilege level 15.

The Catalyst 1900 and 2820 CLI is available only on switches running Enterprise Edition Software.

Getting Help

You can use the question mark (?) and arrow keys to help you enter commands.

For a list of available commands in a command mode, enter a question mark:
switch> ?
To complete a command, enter a few known characters followed by a tab (with no space):
switch# sh conf<tab>
switch#sh configuration
For a list of command variables, enter the command followed by a space and a question mark:
switch> show ?
To redisplay a command you previously entered, press the up-arrow key. You can continue to press the up-arrow key for more commands.

Abbreviating Commands

You only have to enter enough characters for the switch to recognize the command as unique. This example shows how to enter the show configuration command:
switch# show conf
Using no Commands

The word no can be used to create a no form of a command. The no form of a command does the following:

•Resets a command to its default values.

or

•Reverses the action of a command. For example, the command no shutdown reverses the shutdown of an interface.

Understanding Command-Line Error Messages

lists some error messages that you might encounter while using the CLI to configure your switch.
Table 2-16 Common CLI Error Messages
Error Message

Meaning

How to Get Help
% Ambiguous command: "show
con"
You did not enter enough characters for your switch to recognize the command.

Reenter the command followed by a question mark (?) with a space between the command and the question mark.

The possible keywords that you can enter with the command are displayed.
% Incomplete command.
You did not enter all of the keywords or values required by this command.

Reenter the command followed by a question mark (?) with a space between the command and the question mark.

The possible keywords that you can enter with the command are displayed.
% Invalid input detected at
`^' marker.
You entered the command incorrectly. The caret (^) marks the point of the error.

Enter a question mark (?) to display all of the commands that are available in this command mode.

The possible keywords that you can enter with the command are displayed.
Configuring the Switch for Telnet

The following procedure describes one way to configure a Telnet password.

Task

Prompt

Command

Step 1 Attach a PC or workstation with emulation software to the switch console port.

The default data characteristics of the console port are 9600, 8, 1, no parity. When the command line appears, go to Step 2.

Step 2 Enter privileged EXEC mode.

switch>

enable

Step 3 Enter global configuration mode.

switch#

config terminal

Step 4 Enter the interface configuration mode for the Telnet interface.

There are 16 possible sessions on a command-capable switch. The 0 and 15 indicate that you are configuring all 16 possible Telnet sessions.

switch(config)#

line vty 0 15

Step 5 Enter a password.

switch(config)#

password password

Step 6 Return to privileged EXEC mode so that you can verify the entry.

switch(config)#

end

Step 7 Display the running configuration.

The password is listed under the command line vty 0 15

switch#

show running-config

Step 8 (Optional) Save the running configuration to the startup configuration.

switch#

copy running-config startup-config

Starting a Telnet Session from the Browser

Follow this procedure to start a Telnet session by using a browser:

Step 1 Start one of the supported browsers.

Step 2 In the URL field, enter the IP address of the command switch.

Step 3 When the Cisco Systems Access page (Figure 2-1) is displayed, click Telnet - to the switch to start the Telnet session.

Working with Files in Flash Memory

You can use the file system in Flash memory to copy files and to troubleshoot configuration problems. Use the privileged EXEC dir flash: command to display the contents of Flash memory:
Switch# dir flash:
Directory of flash:
  2  -rwx      843947   Mar 01 1993 00:02:18  C2900XL-h-mz-112.8-SA
  4  drwx        3776   Mar 01 1993 01:23:24  html
 66  -rwx         130   Jan 01 1970 00:01:19  env_vars
 68  -rwx        1296   Mar 01 1993 06:55:51  config.text
1728000 bytes total (456704 bytes free)
The file system uses a URL-based file specification. The following example uses the TFTP protocol to copy the file conffile.txt from the host arno to switch Flash memory with the name bootfile:
switch# copy tftp://arno//2900/conffile.txt flash:bootfile
You can enter the following parameters as part of a filename:

•TFTP

•Flash

•RCP

•XMODEM

Use the copy running-config startup-config command to save your configuration changes to Flash memory so that they are not lost if there is a system reload or power outage. This example shows how to use this command to save your changes:
Switch# copy running-config startup-config
Building configuration...
It might take a minute or two to save the configuration to Flash memory. After it has been saved, the following message appears:
[OK]
switch#
Using SNMP Management

This section describes how to access Management Information Base (MIB) objects to configure and manage your switch. It provides the following information:

•Using FTP to access the MIB files

•Using SNMP to access the MIB variables

Note When configuring your switch using SNMP, be aware that certain combinations of port features create configuration conflicts. For more information, see the "Preparing to Use the Web-Based Management Interfaces" section.

Using FTP to Access the MIB Files

You can obtain each MIB file with the following procedure:

Step 1 Use FTP to access the server ftp.cisco.com.

Step 2 Log in with the username anonymous.

Step 3 Enter your e-mail username when prompted for the password.

Step 4 At the ftp> prompt, change directories to /pub/mibs/supportlists.

Step 5 Change directories to one of the following:

•wsc2900xl for a list of 2900 XL MIBs

•wsc3500xl for a list of 3500 XL MIBs

Step 6 Use the get MIB_filename command to obtain a copy of the MIB file.

Using SNMP to Access MIB Variables

The switch MIB variables are accessible through SNMP, an application-layer protocol facilitating the exchange of management information between network devices. The SNMP system consists of three parts:

•The SNMP manager, which resides on the network management system (NMS)

•The SNMP agent, which resides on the switch

•The MIBs that reside on the switch but can be compiled with your network management software

An example of an NMS is the CiscoWorks network management software. CiscoWorks software uses the switch MIB variables to set device variables and to poll devices on the network for specific information. The results of a poll can be displayed as a graph and analyzed in order to troubleshoot internetworking problems, increase network performance, verify the configuration of devices, monitor traffic loads, and more.

As shown in Figure 2-8, the SNMP agent gathers data from the MIB, which is the repository for information about device parameters and network data. The agent can send traps, or notification of certain events, to the SNMP manager, which receives and processes the traps. Traps are messages alerting the SNMP manager to a condition on the network such as improper user authentication, restarts, link status (up or down), and so forth. In addition, the SNMP agent responds to MIB-related queries sent by the SNMP manager in get-request, get-next-request, and set-request format.

The SNMP manager uses information in the MIB to perform the operations described in .

Figure 2-8 SNMP Network

Table 2-17 SNMP Operations

Operation

Description

get-request

Retrieves a value from a specific variable.

get-next-request

Retrieves a value from a variable within a table.¹

get-response

Replies to a get-request, get-next-request, and set-request sent by an NMS.

set-request

Stores a value in a specific variable.

trap

An unsolicited message sent by an SNMP agent to an SNMP manager indicating that some event has occurred.

¹With this operation, an SNMP manager does not need to know the exact variable name. A sequential search is performed to find the needed variable from within a table.

Managing Clusters through SNMP

SNMP must be enabled for the Cluster Management reporting and graphing features to function properly. When you power-up your 2900 or 3500 XL switch for the first time, SNMP is enabled if you enter the IP information by using the setup program and accept its proposed configuration. If you did not use the setup program to enter the IP information, and SNMP was not enabled, you can enable it on the SNMP Configuration page described in the "Configuring SNMP" section. On Catalyst 1900 and 2820 switches, SNMP is enabled by default.

When a cluster is created, the command switch manages the exchange of messages between member switches and an SNMP application. The Cluster Management software appends the member switch number (@esN, where N is the switch number) to the first configured RW and RO community strings on the command switch and propagates them to the member switch. The command switch uses this community string to control the forwarding of gets, sets, and get-next messages between the SNMP management station and the member switches. The command switch also passes traps from the member switch to the management station, as shown in Figure 2-9, if the member switch does not have an IP address. If a member switch has its own IP address and community strings, they can be used in addition to the access provided by the command switch. For more information, see the "Changes to the SNMP Community Strings" section and the "Configuring SNMP" section.

Figure 2-9 SNMP Management for a Cluster
