This chapter describes these features:
•
Spanning-Tree Protocol UplinkFast
•
Fast EtherChannel Feature
The Fast EtherChannel feature provides parallel bandwidth of up to 400 Mbps (in full-duplex mode) between a Catalyst 1900 or Catalyst 2820 switch and another switch or host. It groups two Fast Ethernet interfaces into a single, logical transmission path. VLANs must be enabled to configure the Fast EtherChannel feature.
You can configure channels by using the standard command-line interface (CLI), the Simple Network Management Protocol (SNMP), or the switch web console.
Note
When a Fast EtherChannel link is formed, the port-channel interface is enabled. You can verify this by using the show interfaces port-channel command. The port-channel remains enabled until both ports lose the link.
Note
Port Aggregation Protocol
The Port Aggregation Protocol (PAgP) facilitates the automatic creation of Fast EtherChannel links by sending packets between Fast EtherChannel-capable ports. The protocol allows directly connected devices to exchange information regarding the ability of ports to form a channel. Once PAgP identifies correctly paired Fast EtherChannel links, it groups the ports into a channel. The channel is then added to the spanning tree as a single bridge port.
The Fast EtherChannel feature includes four user-configurable channel modes: on, off, auto, and desirable. Each mode affects the way a port handles PAgP packets. By default, ports are in off mode. describes each of the four modes.
Both the auto and desirable modes allow ports to negotiate with connected ports to determine if they can form a channel, based on criteria such as trunking state, VLAN numbers, and so on.
The Fast EtherChannel mode only affects the two Fast Ethernet ports and is always the same on both of the Fast Ethernet ports.
Using a Template Port
Because port channel parameters are not stored separately from physical port parameters, you must use the parameters of one of the physical ports as a template for the parameters of the port channel. This is done by using the port-channel template-port command.
Note
Once aggregated, the following template port parameters are applied to both ports automatically:
•
•
•
•
•
•
•
•
•
•
When a port-channel is enabled, the parameters of the template port are applied to both physical ports (port A and port B). Any changes made to the port-channel or either of the physical ports are applied to both member ports and the port-channel.
Frame Ordering and Load Balancing
When configuring the Fast EtherChannel feature with PAgP enabled, you can preserve the order of frames or maximize load balancing between the Fast EtherChannel links. If you preserve the order of the frames, the switch indicates to its Fast EtherChannel partner that it is a physical learner device.
A physical learner device learns MAC addresses by physical ports, and it selects those ports based on that information for its subsequent transmissions. The Fast EtherChannel partner is therefore required to use source-based distribution for frame transmission. This requirement means that the frames with the same source MAC address transmitted from the partner always use the same Fast EtherChannel physical port and that the same MAC address learned at the switch does not change.
Source-based distribution prevents the switch from misordering frame transmissions. If not configured to preserve the order, the partner can distribute traffic arbitrarily, and unicast traffic is transmitted on the link where the source address was last seen. This provides the maximum possible load balancing configuration.
A special case of source-based distribution is the hot-standby operation, which distributes all Fast EtherChannel traffic on one link. A partner that is capable of distributing different source addresses on different links results in a good load balancing configuration while still preserving the order of frames. Otherwise, traffic could be restricted to a single link. To configure the switch to preserve frame ordering, use the port-channel preserve-order command.
By default, frame ordering is not preserved. However, the chances for frame misordering is highly unlikely, even in this mode. This default setting maximizes load balancing on the switch.
When the Fast EtherChannel feature is configured with PAgP disabled, the switch cannot negotiate with its partner about its learning capability. Whether the switch preserves frame ordering or not depends on whether the Fast EtherChannel partner performs source-based distribution.
Packet Forwarding Behavior
This section describes the concepts involved with the packet forwarding behavior of a Catalyst 1900 or Catalyst 2820 switch configured to use the Fast EtherChannel feature.
•
The active port selection depends on the port-channel mode of the port. If the port-channel mode is on, the active port will be the link with the highest priority value. If the mode is Desirable or Auto, the active port is selected based on the priority of the links on the switch that has the higher Ethernet address. When two ports on the switch with the higher Ethernet address have the same priority, the port with the lower ifIndex is selected.
•
•
Packet Forwarding for Flooded Traffic
For flooded traffic, the switch always transmits packets on the active link.
Packet Forwarding for Known Unicast Traffic
EtherChannel-capable devices forward known unicast traffic in one of these ways:
•
In order to preserve frame ordering, an address should be learned on one port and remain on that port. This prevents packets with the same destination address from being forwarded by alternating between the two links. This is done by having the partner perform source-based distribution. This method is used by the Catalyst 1900 and Catalyst 2820 switches.
•
Adding Addresses
This section discusses adding static and multicast addresses to the switch. Addresses can be entered before or after a port-channel is formed. Use the show interfaces port-channel command to see whether the port-channel is enabled.
If you add an address when the port-channel is down, the address is added only to the physical link specified. If you add an address when the port-channel is up, the address can be added to the physical link or to the port-channel. If the address is added to the port-channel, the address is located as if it was added to the physical port associated with the active link.
Irrespective of where the address is added, when the port-channel is formed, packets destined for an address are forwarded on the physical port of the active port-channel link.
Deleting Static Addresses
If you delete an address when the port-channel is up, the address is deleted from the physical member ports and the port-channel link.
Fast EtherChannel Configuration Guidelines
Certain port configurations are not supported by the Fast EtherChannel feature. It cannot be enabled if either of the two Fast Ethernet ports is configured as follows:
•
•
•
•
•
•
The trunk status of both Fast Ethernet ports must be identical (trunking or nontrunking) in order for the ports to aggregate.
Note
To avoid network loops and other problems, Fast EtherChannel links do not form if they are not properly configured.
The following information applies to the interaction of Fast EtherChannel and other features of the Catalyst 1900 and Catalyst 2820 switches:
•
•
•
Configuring the Fast EtherChannel Feature
To configure the Fast EtherChannel feature, follow these steps:
Step 1
Step 2
Step 3
switch(config)# port-channel mode {on | desirable | auto}Step 4
switch(config)# port-channel template-port template_portStep 5
switch(config-if)# pagp-port-priority priorityVerifying Fast EtherChannel
To verify that the Fast EtherChannel feature is configured correctly, use the show interfaces command. The following display is an example from the show interfaces command when the port-channel is down:
PortChannel is downPort-channel mode: on, preserve-order: DisabledPort parameters template port: APort Member Priority Cap. Partner Partner Partner PartnerDevice-id Port-id Priority Cap.--------------------------------------------------------------------------A No 128 1 00-00-00-00-00-00 0 0B No 128 1 00-00-00-00-00-00 0 0The following display is an example of the show interfaces command when the port-channel is up:
PortChannel is Enabled802.1d STP State: Forwarding Forward Transitions: 1Port-channel mode: on, preserve-order: DisabledPort parameters template port: AActive port: APort Member Priority Cap. Partner Partner Partner PartnerDevice-id Port-id Priority Cap.--------------------------------------------------------------------------A Yes 128 1 00-00-00-00-00-00 0 0B Yes 128 1 00-00-00-00-00-00 0 0Fast EtherChannel Example
This example shows how to enable the Fast EtherChannel feature in desirable mode, specifies port 27 or port B as the template port for member-port configuration, and configures the hot-standby port priority of Fast Ethernet port B to 100.
switch(config)# port-channel mode desirableswitch(config)# port-channel template port fastethernet 0/27switch(config)# interface fastethernet 0/27switch(config-if)# pagp-port-priority 100Supported CLI Commands
The following CLI commands for Fast EtherChannel support are fully documented in the Catalyst 1900 Series and Catalyst 2820 Series Command Reference (online only):
port-channel mode
port-channel preserve-order
port-channel template-port
pagp-port-priority
show interfacesWeb Console Support for Fast EtherChannel Configuration
To configure the Fast EtherChannel feature from the switch web console, click PORT on the menu bar. The Port Management Page is displayed. (See .)

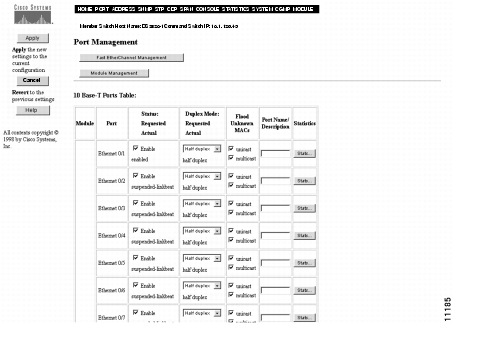

Figure 3-1 Port Management Menu
Click Fast EtherChannel Management to display the Fast EtherChannel Page. (See .)
Figure 3-2 Fast EtherChannel Submenu

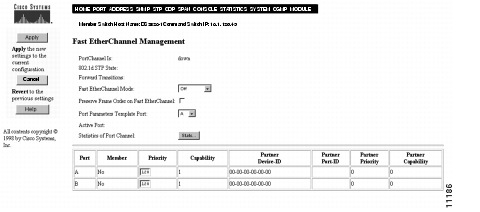

Select information in the fields for Fast EtherChannel Mode, Preserve Order of Frames on Fast EtherChannel, and Port Parameters Template Port. Enter a number in the Port Priority field.
Trunking with the Fast EtherChannel Feature
When using a Fast EtherChannel link as a trunk, configure the same trunk mode on all ports in a channel and on both ends of the link. Configuring ports in a channel in different trunk modes can prevent a port-channel from forming.
Spanning-Tree Protocol UplinkFast
UplinkFast is an enhancement to the STP that provides fast convergence whenever STP picks a new root port. STP will select a new root port automatically when a link or switch fails or when STP parameters change. VLANs must be enabled to configure Uplink Fast features.
Note
How UplinkFast Works

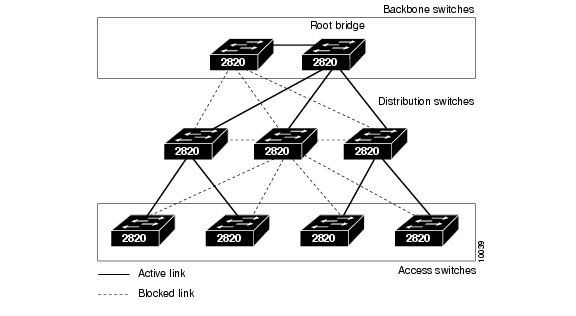

Switches are normally connected hierarchically, as shown in Figure 3-3. (In simpler networks, the upper two levels of the hierarchy might be collapsed into a single backbone layer.) Figure 3-3 shows the network topology after STP has blocked the redundant links to avoid loops. Every access switch and distribution switch in Figure 3-3 has at least one redundant uplink. The switch begins using the alternate paths as soon as STP selects a new root port. The root port transitions to the forwarding state immediately without going through the listening and learning states, as they would with normal STP procedures.
Figure 3-3 Hierarchical Switch Topology
Note
Station-Learning Frame Generation Rate
When the UplinkFast feature is enabled and the root port fails, station-learning multicast frames are sent out from the new root port. Each frame has a source address equal to an address on a designated port. The designated port must now be reached from the backbone by way of the new root port. We recommend that you limit the generation rate for these frames so that the network is not flooded with these packets.
The rate of station-learning frame generation is expressed as frames per 100 ms. If zero is entered, station-learning frames are not generated. If station-learning frames are not generated, the STP topology converges more slowly after a loss of connectivity.
Note
Configuring UplinkFast
To configure UplinkFast using the menu-based console, do the following:
You can configure two Uplink Fast parameters (Enable Uplink Fast and Uplink Fast Learning Rate) from the web console. Click STP from the menu bar to display the Spanning-Tree Management Page. The Uplink Fast parameters are in the Spanning Tree Configurations section.

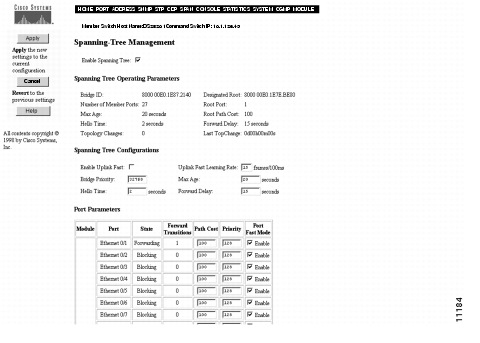

Figure 3-4 Uplink Fast Configuration Options
Bridge Groups
A bridge group is a group of ports that form a single broadcast domain that is local to the switch. Bridge groups are a feature of the Catalyst 1900 and Catalyst 2820 series standard software. The complete instructions to configure bridge groups are in the Catalyst 1900 Series Installation and Configuration Guide and the Catalyst 2820 Series Installation and Configuration Guide.
Bridge groups interact with the Enterprise Edition software in the following ways:
•
•
•
•
•
•
•
•
To switch between VLANs and bridge groups, use the [T] Reset to enable VLANs option in the System Menu.
TACACS+
The TACACS+ protocol exchanges network access server (NAS) information between a network device and a centralized database. TACACS+ is a Cisco proprietary enhancement of TACACS, an access-control protocol referenced by RFC 1492.
TACACS+ uses a server to provide authentication, authorization, and accounting (AAA). These services are independent of one another. A given TACACS+ configuration can use any or all of the three services.
Note
The switch authentication access can use locally configured passwords or can use the other services available on the TACACS+ server or on the network, as shown in .
Figure 3-5 TACACS+ Protocol Authentication
You can enable or disable TACACS+ at your discretion. If TACACS+ is not enabled, the current switch login interface is enabled by default.
You can use the TACACS+ feature for these authentication tasks:
•
•
•
•
•
•
•
If directed-request is enabled when you enter your assigned ID (password), you can specify the TACACS+ server to be used for password authentication. This example authenticates the user at the TACACS+ server named host:
user@hostNote that host must be one of the configured TACACS+ servers.
•
How TACACS+ Authentication Works
Authentication controls access to network devices by determining the identity of a user or an entity. TACACS+ works with a fixed password that is assigned to you by the TACACS+ security administrator at your site (that is, passwords are not dynamically assigned by the TACACS+ server). Your identity is authenticated each time you log into a switch using your assigned password.
When you send a request for privileged or restricted service, TACACS+ prompts you for the information necessary to access the privileged service.
By default, if the TACACS+ server cannot be contacted, access to the console is denied. This can be overridden with the last-resort command.The default setting of the last-resort command denies access if TACACS+ authentication cannot be performed.
If the TACACS+ last-resort command is configured to require a password and the TACACS+ server is down or unreachable, then the password authentication rules are the same as when TACACS+ is disabled—that is, the encrypted (secret) password takes precedence over the unencrypted password. Disabling TACACS+ authentication automatically reenables local authentication.
Note
A TACACS+ key can be configured on the switch so that you can encrypt the packets transmitted to the server. The key must be the same as the one configured on the server daemon. If a TACACS+ key is not configured, the packets are not encrypted.
Up to three TACACS+ servers can be configured. The servers are tried in the order in which they are configured
Caution
For more information on accessing the boot code, see the Catalyst 1900 Series Installation and Configuration Guide, or the Catalyst 2820 Series Installation and Configuration Guide.
Configuring TACACS+
You must configure a TACACS+ server before enabling TACACS+ on the Catalyst 1900 or Catalyst 2820 switch.
To configure TACACS+, perform these steps in privileged mode from the CLI:
Supported CLI Commands
The following TACACS+ commands are fully documented in the Catalyst 1900 Series and Catalyst 2820 Series Command Reference (online only):
enable use-tacacs
login tacacs
show tacacs
tacacs-server attempts
tacacs-server directed-request
tacacs-server host
tacacs-server key
tacacs-server last-resort
tacacs-server timeoutTACACS+ Example
The following example enables TACACS+ login authentication, configures a TACACS+ server at address 192.20.22.7, sets the server key to "I am cool," sets the maximum allowable login attempts to 3, and sets the server timeout to 5 seconds.
switch(config)# login tacacsswitch(config)# tacacs-server host 192.20.22.7switch(config)# tacacs-server key "I am cool"switch(config)# tacacs-server attempts 3switch(config)# tacacs-server timeout 5TACACS+ Verification
To verify the TACACS+ configuration settings, use the show tacacs command. After entering the command, you see this display:
switch# show tacacsEnable use-tacacs:EnabledLogin tacacs:EnabledTacacs-server last-resort:passwordTacacs-server hosts:192.20.27.7Tacacs-server key:I am coolTacacs-server login attempts:3Tacacs-server timeout:5 secondsTacacs-server directed-request:Disabled
Note
Configuration File Upload and Download
With the Configuration File Upload/Download feature, you can upload the current non-default switch configuration to an ASCII file on a TFTP server or download a saved configuration file from a TFTP server. You can also configure the switch to automatically retrieve the configuration file from a TFTP server when the switch powers on.
Note
The configuration file is downloaded to switch volatile memory, where it is read and executed line by line after the switch boots. After the entire file is read, the configuration file is removed from switch memory, and the temporary storage area is freed.
The switch does not maintain a copy of the file, nor does it store any comments that are in the file. If you enter the show running-config command to view the current configuration, no comments, other than the default comments, are listed.
In addition, because the switch executes the commands, but does not save the original file, output from the show running-config command might list the commands in a different order from which they appeared in the original file. The same is true when uploading the current configuration to a TFTP server.
The configuration download stops if the total size of the CLI command file exceeds 15 KB.
Automatic Configuration File Retrieval
A Catalyst 1900 or Catalyst 2820 switch can automatically retrieve the configuration file from the TFTP server when it powers on. You can either specify the address of the TFTP server or have the switch send a broadcast to the IP address 255.255.255.255. Once this feature is configured, the switch requests to download one of the following filenames, in this order:
•
•
•
•
You can also use DHCP to trigger an automatic download of the configuration file, as described in the "DHCP Auto Configuration" section.
Configuration File Upload/Download Commands
To configure the switch to download the configuration immediately from a TFTP server, use the following command in privileged mode:
switch# copy tftp://host/src_file nvramTo configure the switch to upload the current configuration to a TFTP server, use the following command in privileged mode:
switch# copy nvram tftp://host/dst_fileTo configure the IP address of a TFTP server so that the configuration is downloaded when the switch powers on, use the following command in global configuration mode:
switch(config)# tftp server hostTo configure the switch to automatically retrieve the configuration file from a TFTP server, use the following command in global configuration mode:
switch(config)# service configVerifying Current Configuration
To display the current configuration of the switch, use the following command:
switch# show running-configSupported CLI Commands
The following commands are fully documented in the Catalyst 1900 Series and Catalyst 2820 Series Command Reference (online only):
copy tftp
copy nvram tftp
service config
show running-config
tftp accept
tftp serverConfiguration File Examples
The following example configures the switch to download a configuration file named corporate.cfg from the TFTP server 192.20.22.7:
switch# copy tftp://192.20.22.7/corporate.cfg nvramThe following example configures the switch to upload its configuration to a file named normal.cfg on the TFTP server named tahoe:
switch# copy nvram tftp://tahoe/normal.cfgThe following example sets the TFTP server address to 192.20.22.7 and configures the switch to automatically retrieve the configuration upon cold-start:
switch(config)# tftp server 192.20.22.7switch(config)# service configDHCP Auto Configuration
DHCP can be used to enable automatic configuration download, whether or not theservice config command has been configured on the switch. Using DHCP, the switch gets its address from a DHCP server on the network. To use DHCP, you must do the following:
•
•
•
•
OR
•
•
# switch (config)# no service config
