Release Notes for Catalyst 2820 Series and Catalyst 1900 Series Firmware Version 5.35


August 15, 1997

These release notes describe the new features, modifications, and caveats for the Catalyst 2820 and the Catalyst 1900 version 5.35 firmware.

The product documentation for the Catalyst 2820 Series switches and Catalyst 1900 Series switches is as follows:

Catalyst 2820 Series and Catalyst 1900 Series Installation and Configuration Guide

Catalyst 2820 Modules User Guide

Catalyst 2820 Series and Catalyst 1900 Series MIB Reference Manual

New Features

This firmware version adds the following new features.

The spanning-tree Port Fast option

A Network Port for further control of flooded packets

Using the Port Fast Option

The switch Port Fast option is a simplified version of the Spanning-Tree Protocol that eliminates several of the normal spanning-tree states. The preforwarding states are bypassed to more quickly bring ports into the forwarding states. Port Fast is an option that you can enable on a per-port basis. It is recommended for end-station attachments only.

Enabling Port Fast

Use the Port Configuration Menu, shown in , to disable or enable the Port Fast option.

Display this menu by pressing P on the Main Menu. The following prompt is displayed:

Identify port: 1 to 24, AUI,[A1],[B1]
Select [1 - 24, AUI, A1, B1]:

Enter the number of the port you want to configure.

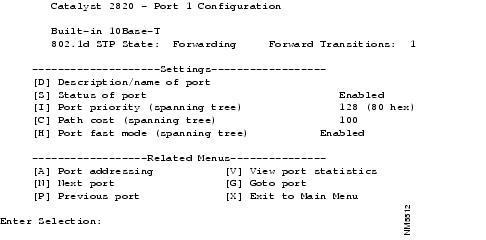

Figure 1

Port Configuration Menu

[H] Port fast mode (spanning tree)—Select this option to accelerate the time it takes for Spanning-Tree Protocol to bring a port into the forwarding state. Enter an E or D at the prompt and press Return.

Using a Network Port to Drain Flooded Traffic

When a Catalyst 2820 or 1900 receives a unicast packet with a destination address that it has not learned, the default is to flood it to all ports. However, on ports with only statically assigned addresses or with single stations attached, there are no unknown destinations, and flooding would serve no purpose. You can disable flooding in this case on a per-port basis.

You can also assign a single port, referred to as the Network Port, to act as the destination for all packets with unknown unicast addresses. This port is usually connected to a legacy network or backbone. A secured port cannot be the Network Port, and the Network Port does not learn addresses. Use the "System Menu" menu to define a port as the Network Port.


Note   When using a Network Port, it must be the only switch port connected to a backbone. If you are using a Network Port and you connect more than one port to a backbone, the switch might lose communication with the network. You can connect several ports to other multi-address devices if you are not using a Network Port. Refer to the Catalyst 2820 Series and Catalyst 1900 Series Installation and Configuration Guide for details.


Enabling a Network Port

Use the System Configuration Menu, shown in , to define a Network Port. Display this menu by entering S on the Main Menu.

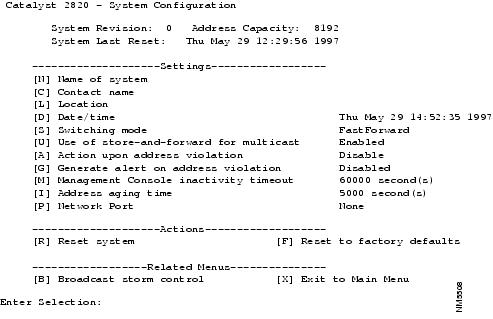

Figure 2 System Menu

[P] Network Port—Use this option to specify the destination port for all packets with unknown unicast addresses. If you select a secure port to act as the Network Port, you are prompted to disable the security feature before continuing. Define a port according to the conventions in the prompt and press Return.

Modifications

The following changes to the existing switch software are documented in the Catalyst 2820 Series and Catalyst 1900 Series Installation and Configuration Guide:

Overlapping VLANs has been removed.

A maximum of one IP address can be assigned to the switch, and it is reachable through the management VLAN.

In addition, there are the following modifications:

Previous switch firmware versions can lose 10 or 20 minutes of calendar time per week. Version 5.35 fixes this problem.

Previous switch firmware versions did not respond to trace-route messages. Version 5.35 fixes this problem.

Previous switch firmware versions can create brief bridging loops in a redundant configuration. In version 5.35, this is resolved by an option called Port Fast, which you can disable on a per-port basis. By default, Port Fast is enabled on all ports.

Caveats

This section lists possibly unexpected behavior by version 5.35.

BOOTP

The BOOTP protocol operates across the VLAN to which port 1 is assigned. By default, port 1 is assigned to VLAN 1.

VLAN IP Addresses

Previous versions supported up to four switch IP addresses, each associated with a separate VLAN. With version 5.35, the switch has a single IP address that is associated with the management VLAN. When upgrading to version 5.35, the IP address of VLAN1 becomes the IP address of the switch and the management VLAN. IP addresses associated with the other VLANs in the earlier firmware version are dropped.

If you downgrade from version 5.35 to version 5.34, the switch IP address becomes the IP address of VLAN1. If there were other VLANs configured with their own IP addresses before the upgrade, the IP addresses assigned to the VLANs reappear after the downgrade.

VLAN Port Membership

When you upgrade to version 5.35, the VLANs and the ports that belong to them are preserved, unless there are overlapping VLANs. Overlapping VLANs are no longer supported with version 5.35. If there is a port that belongs to more than one VLAN, it is assigned to the VLAN with the highest number and dropped from the other VLAN definition.

If you downgrade from version 5.35 to an earlier version, any overlapping VLAN information that existed prior to the 5.35 upgrade is lost.

Minimum of One Port in VLAN1

There should always be at least one port belonging to VLAN1. If there are no ports belonging to VLAN1, traffic can cross VLAN boundaries when the switch is reset.

Upgrading from Version 5.25

If you have customized any version 5.25 parameters, the upgrade to version 5.34 or 5.35 resets these parameters to their factory default values. Reset them to your customized settings after the upgrade. (The 5.34 and 5.35 default values of the configurable parameters have not changed from version 5.25.)

The following parameters return to the listed factory default values when you upgrade to
version 5.34 or 5.35 from 5.25.

Parameter
Default Value

Broadcast threshold (BCs received/sec)

500

Broadcast re-enable threshold

250

Spanning-Tree Protocol

Enabled

Generate alert on address violation

Enabled

Action upon address violation

Suspend

Switching mode

FastForward

Use of store-and-forward for multicast

Disabled

Capturing frames to the monitor

Disabled

Monitor port assignment

None

MIB object sysConfigHigherProtocolMonitor

Disabled

Authentication trap generation

Enabled

LinkUp/LinkDown trap generation

Enabled

Accept upgrade transfer from other hosts

Enabled

Action upon exceeding broadcast threshold

Ignore

Generate alert when threshold exceeded

Disabled

RS-232 data bits

8

RS-232 stop bits

1

RS-232 parity setting

None

RS-232 match remote baud rate (auto baud)

Enabled

RS-232 auto answer

Enabled

MIB object IP time to live

255

Help level setting of the management console

Novice

Overlapping of VLANs permitted

Disabled

Capture-time interval for the bandwidth-usage report

24 hours

Status of an SNMP write manager

Enabled

Status of an SNMP trap manager

Enabled

Management console inactivity timeout

None

Password intrusion threshold

3 attempts

Silent time upon intrusion detection

None

RS-232 baud rate

9600

Time delay between dial out attempts

300 seconds

Address aging time

300 seconds
