Overview

This chapter provides an overview of the Cisco NX-OS software.

Software Compatibility

The Cisco NX-OS software interoperates with Cisco products that run any variant of the Cisco IOS software. The Cisco NX-OS software also interoperates with any networking operating system that conforms to the IEEE and RFC compliance standards.

Common Software Throughout the Data Center

The Cisco NX-OS software provides a unified operating system that is designed to run all areas of the data center network including the LAN and Layer 4 through Layer 7 network services.

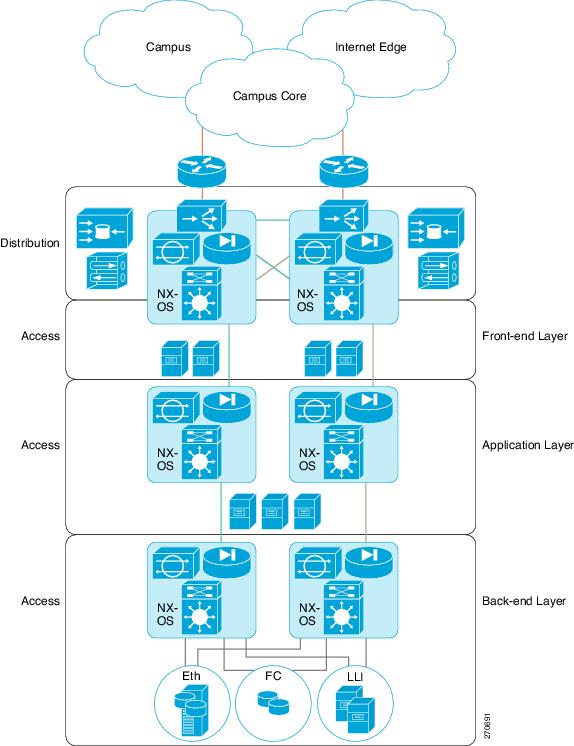

Figure 1. Cisco NX-OS in a Data Center. This figure shows an overview of the Cisco NX-OS software in the data center.

Modular Software Design

The Cisco NX-OS software supports distributed multithreaded processing on symmetric multiprocessors (SMPs), multi-core CPUs, and distributed data module processors. The Cisco NX-OS software offloads computationally intensive tasks, such as hardware table programming, to dedicated processors distributed across the data modules. The modular processes are created on demand, each in a separate protected memory space. Processes are started and system resources are allocated only when you enable a feature. A real-time preemptive scheduler helps to ensure the timely processing of critical functions.

Virtual Device Contexts

The Cisco NX-OS software can segment system and hardware resources into virtual contexts that emulate virtual devices. Each virtual device context (VDC) has its own software processes, dedicated hardware resources (interfaces), and an independent management environment. With VDCs, you can consolidate separate networks onto a common infrastructure, which maintain the administrative boundary separation and fault isolation characteristics of physically separate networks, and provide many of the operational cost benefits of a single infrastructure. For more information, see the Cisco Nexus 7000 Series NX-OS Virtual Device Context Configuration Guide.

Serviceability

The Cisco NX-OS software has serviceability functions that allow the device to respond to network trends and events. These features help you with network planning and improving response times.

Switched Port Analyzer

The Switched Port Analyzer (SPAN) feature allows you to analyze all traffic between ports (called the SPAN source ports) by nonintrusively directing the SPAN session traffic to a SPAN destination port that has an external analyzer attached to it. For more information about SPAN, see the Cisco Nexus 7000 Series NX-OS System Management Configuration Guide, Release 5.x.

Ethanalyzer

Ethanalyzer is a Cisco NX-OS protocol analyzer tool based on the Wireshark (formerly Ethereal) open source code. Ethanalyzer is a command-line version of Wireshark for capturing and decoding packets. You can use Ethanalyzer to troubleshoot your network and analyze the control-plane traffic. For more information about Ethanalyzer, see the Cisco Nexus 7000 Series NX-OS Troubleshooting Guide -- Troubleshooting Tools and Methodology.

Call Home

The Call Home feature continuously monitors hardware and software components to provide e-mail-based notification of critical system events. A versatile range of message formats is available for optimal compatibility with pager services, standard e-mail, and XML-based automated parsing applications. It offers alert grouping capabilities and customizable destination profiles.You can use this feature, for example, to directly page a network support engineer, send an e-mail message to a network operations center (NOC), and employ Cisco AutoNotify services to directly generate a case with the Cisco Technical Assistance Center (TAC). For more information about Call Home, see the Cisco Nexus 7000 Series NX-OS System Management Configuration Guide, Release 5.x.

Online Diagnostics

Cisco generic online diagnostics (GOLD) verify that hardware and internal data paths are operating as designed. Boot-time diagnostics, continuous monitoring, and on-demand and scheduled tests are part of the Cisco GOLD feature set. GOLD allows rapid fault isolation and continuous system monitoring. For information about configuring GOLD, see the Cisco Nexus 7000 Series NX-OS System Management Configuration Guide, Release 5.x.

Embedded Event Manager

Cisco Embedded Event Manager (EEM) is a device and system management feature that helps you to customize behavior based on network events as they happen. For information about configuring EEM, see the Cisco Nexus 7000 Series NX-OS System Management Configuration Guide, Release 5.x.

NetFlow

The Cisco NX-OS NetFlow implementation supports version 5 and version 9 exports. It also supports the Flexible NetFlow configuration model and hardware-based Sampled NetFlow for enhanced scalability. For more information about NetFlow, see the Cisco Nexus 7000 Series NX-OS System Management Configuration Guide, Release 5.x.

Manageability

This section describes the manageability features in the Cisco NX-OS software.

Simple Network Management Protocol

The Cisco NX-OS software is compliant with Simple Network Management Protocol (SNMP) version 1, version 2, and version 3. A large number of MIBs is supported. For more information about SNMP, see the Cisco Nexus 7000 Series NX-OS System Management Configuration Guide, Release 5.x.

Configuration Verification and Rollback

The Cisco NX-OS software allows you to verify the consistency of a configuration and the availability of necessary hardware resources prior to committing the configuration. You can preconfigure a device and apply the verified configuration at a later time. Configurations also include checkpoints that allow you to roll back to a known good configuration as needed. For more information about rollback, see the Cisco Nexus 7000 Series NX-OS System Management Configuration Guide, Release 5.x.

Role-Based Access Control

With role-based access control (RBAC), you can limit access to device operations by assigning roles to users. You can customize access and restrict it to the users who require it. For more information about RBAC, see the Cisco Nexus 7000 Series NX-OS Security Configuration Guide, Release 5.x.

Connectivity Management Processor

The Cisco NX-OS software supports the use of a Connectivity Management Processor (CMP) for remote platform management. The CMP provides an out-of-band access channel to the Cisco NX-OS console. For more information about CMP, see the Cisco Nexus 7000 Series Connectivity Management Processor Configuration Guide.

Cisco NX-OS Device Configuration Methods

You can configure devices using the CLI from a Secure Shell (SSH) session or a Telnet session. SSH provides a secure connection to the device. The CLI configuration guides and command references are organized by feature. For more information, see the Cisco NX-OS configuration guides and the Cisco NX-OS command references. For more information on SSH and Telnet, see the Cisco Nexus 7000 Series NX-OS Security Configuration Guide, Release 5.x.

You can also configure devices using the XML management interface, which is a programmatic method based on the NETCONF protocol that complements the CLI. For more information, see the Cisco NX-OS XML Interface User Guide .

Traffic Routing, Forwarding, and Management

This section describes the traffic routing, forwarding, and management features supported by the Cisco NX-OS software.

Ethernet Switching

The Cisco NX-OS software supports high-density, high-performance Ethernet systems and provides the following Ethernet switching features:

  • IEEE 802.1D-2004 Rapid and Multiple Spanning Tree Protocols (802.1w and 802.1s)
  • IEEE 802.1Q VLANs and trunks
  • 16,000-subscriber VLANs
  • IEEE 802.3ad link aggregation
  • Private VLANs
  • Cross-chassis private VLANs
  • Unidirectional Link Detection (UDLD) in aggressive and standard modes

For more information, see the Cisco Nexus 7000 Series NX-OS Interfaces Configuration Guide, Release 5.x and the Cisco Nexus 7000 Series NX-OS Layer 2 Switching Configuration Guide.

IP Routing

The Cisco NX-OS software supports IP version 4 (IPv4) and IP version 6 (IPv6) and the following routing protocols:

  • Open Shortest Path First (OSPF) Protocol Versions 2 (IPv4) and 3 (IPv6)
  • Intermediate System-to-Intermediate System (IS-IS) Protocol
  • Border Gateway Protocol (BGP)
  • Enhanced Interior Gateway Routing Protocol (EIGRP)
  • Routing Information Protocol Version 2 (RIPv2)

The Cisco NX-OS software implementations of these protocols are fully compliant with the latest standards and include 4-byte autonomous system numbers (ASNs) and incremental shortest path first (SPF). All unicast protocols support Non-Stop Forwarding Graceful Restart (NSF-GR). All protocols support all interface types, including Ethernet interfaces, VLAN interfaces, subinterfaces, port channels, tunnel interfaces, and loopback interfaces.

For more information, see the Cisco Nexus 7000 Series NX-OS Unicast Routing Configuration Guide, Release 5.x.

IP Services

The following IP services are available in the Cisco NX-OS software:

  • Virtual Routing and Forwarding (VRF)
  • Dynamic Host Configuration Protocol (DHCP) Helper
  • Hot-Standby Routing Protocol (HSRP)
  • Gateway Load Balancing Protocol (GLBP)
  • Enhanced Object Tracking
  • Policy-Based Routing (PBR)
  • Unicast Graceful Restart for all protocols in IPv4 Unicast Graceful Restart for OPSFv3 in IPv6

For more information, see the Cisco Nexus 7000 Series NX-OS Unicast Routing Configuration Guide, Release 5.x.

IP Multicast

The Cisco NX-OS software includes the following multicast protocols and functions:

  • Protocol Independent Multicast (PIM) Version 2 (PIMv2)
  • Source Specific Multicast (SSM)
  • PIM sparse mode (Any-Source Multicast [ASM] for IPv4 and IPv6)

Note

The Cisco NX-OS software does not support PIM dense mode.

  • Bidirectional Protocol Independent Multicast (Bidir PIM)
  • Anycast rendezvous point (Anycast-RP)
  • Multicast NSF for IPv4 and IPv6
  • RP-Discovery using bootstrap router (BSR) (Auto-RP and static)
  • Internet Group Management Protocol (IGMP) Versions 1, 2, and 3 router role
  • IGMPv2 host mode
  • IGMP snooping
  • Multicast Listener Discovery (MLD) Protocol Version 2 (for IPv6)
  • Multicast Source Discovery Protocol (MSDP) (for IPv4 only)

For more information, see the Cisco Nexus 7000 Series NX-OS Multicast Routing Command Reference.

Quality of Service

The Cisco NX-OS software supports quality of service (QoS) functions for classification, marking, queuing, policing, and scheduling. Modular QoS CLI (MQC) supports all QoS features. You can use MQC to provide uniform configurations across various Cisco platforms. For more information, see the Cisco Nexus 7000 Series NX-OS Quality of Service Configuration Guide, Release 5.x.

Network Security

This section describes the network security features support by the Cisco NX-OS software.

Cisco TrustSec

Cisco TrustSec security provides data confidentiality and integrity and supports standard IEEE 802.1AE link-layer cryptography with 128-bit Advanced Encryption Standard (AES) cryptography. Link-layer cryptography guarantees end-to-end data privacy while allowing the insertion of security service devices along the encrypted path. Cisco TrustSec uses security group access control lists (SGACLs), which are based on security group tags instead of IP addresses. SGACLs enable policies that are more concise and easier to manage due to their topology independence. For more information, see the Cisco Nexus 7000 Series NX-OS Security Configuration Guide, Release 5.x.

Additional Network Security Features

In addition to Cisco TrustSec, the Cisco NX-OS software includes the following security features:

  • Data path intrusion detection system (IDS) for protocol conformance checks
  • Control Plane Policing (CoPP)
  • Message-digest algorithm 5 (MD5) routing protocol authentication
  • Cisco-integrated security features, including Dynamic Address Resolution Protocol (ARP) inspection (DAI), DHCP snooping, and IP Source Guard
  • Authentication, authorization, and accounting (AAA)
  • RADIUS and TACACS+
  • SSH Protocol Version 2
  • SNMPv3
  • Port security
  • IEEE 802.1X authentication
  • Layer 2 Cisco Network Admission Control (NAC) LAN port IP
  • Policies based on MAC and IPv4 addresses supported by named ACLs (port-based ACLs [PACLs], VLAN-based ACLs [VACLs], and router-based ACLs [RACLs])
  • Traffic storm control (unicast, multicast, and broadcast)
  • Unicast Reverse Path Forwarding (Unicast RPF)

For more information, see the Cisco Nexus 7000 Series NX-OS Security Configuration Guide, Release 5.x.

Licensing

The Cisco NX-OS software licensing feature allows you to access premium features on the device after you install the appropriate license for that feature. Any feature not included in a license package is bundled with the Cisco NX-OS software and is provided to you at no extra charge.

You must purchase and install a license for each device.


Note

With the exception of the Cisco TrustSec feature, you can enable a feature without installing its license. The Cisco NX-OS software gives you a grace period that allows you to try a feature before purchasing its license. You must install the Advanced Services license package to enable the Cisco TrustSec feature.

For detailed information about Cisco NX-OS software licensing, see the Cisco NX-OS Licensing Guide.

For information about troubleshooting licensing issues, see the Cisco Nexus 7000 Series NX-OS Troubleshooting Guide.

Supported Standards

This table lists the IEEE compliance standards.

Table 1 IEEE Compliance Standards

Standard

Description

802.1D

MAC Bridges

802.1s

Multiple Spanning Tree Protocol

802.1w

Rapid Spanning Tree Protocol

802.1AE

MAC Security (link layer cryptography)

802.3ad

Link aggregation with LACP

802.3ab

1000BaseT (10/100/1000 Ethernet over copper)

802.3ae

10-Gigabit Ethernet

802.1Q

VLAN Tagging

802.1p

Class of Service Tagging for Ethernet frames

802.1X

Port-based network access control
This table lists the RFC compliance standards.

Table 2  RFC Compliance Standards

Standard

Description

BGP

RFC 1997

BGP Communities Attribute

RFC 2385

Protection of BGP Sessions via the TCP MD5 Signature Option

RFC 2439

BGP Route flap damping

RFC 2519

A Framework for Inter-Domain Route Aggregation

RFC 2858

Multiprotocol Extensions for BGP-4

RFC 3065

Autonomous System Confederations for BGP

RFC 3392

Capabilities Advertisement with BGP-4

RFC 4271

BGP version 4

RFC 4273

BGP4 MIB - Definitions of Managed Objects for BGP-4

RFC 4456

BGP Route reflection

RFC 4486

Subcodes for BGP cease notification message

RFC 4724

Graceful Restart Mechanism for BGP

RFC 4893

BGP Support for Four-octet AS Number Space

ietf-draft

Bestpath transition avoidance (draft-ietf-idr-avoid-transition-05.txt)

ietf-draft

Peer table objects (draft-ietf-idr-bgp4-mib-15.txt)

ietf-draft

Dynamic Capability (draft-ietf-idr-dynamic-cap-03.txt)

OSPF

RFC 2370

OSPF Opaque LSA Option

RFC 2328

OSPF Version 2

RFC 2740

OSPF for IPv6 (OSPF version 3)

RFC 3101

OSPF Not-So-Stubby-Area (NSSA) Option

RFC 3137

OSPF Stub Router Advertisement

RFC 3509

Alternative Implementations of OSPF Area Border Routers

RFC 3623

Graceful OSPF Restart

RFC 4750

OSPF Version 2 MIB

RIP

RFC 1724

RIPv2 MIB extension

RFC 2082

RIPv2 MD5 Authentication

RFC 2453

RIP Version 2

IS-IS

RFC 1142 (OSI 10589)

OSI 10589 Intermediate system to intermediate system intra-domain routing exchange protocol

RFC 1195

Use of OSI IS-IS for routing in TCP/IP and dual environment.

RFC 2763

Dynamic Hostname Exchange Mechanism for IS-IS

RFC 2966

Domain-wide Prefix Distribution with Two-Level IS-IS

RFC 2973

IS-IS Mesh Groups

RFC 3277

IS-IS Transient Blackhole Avoidance

RFC 3373

Three-Way Handshake for IS-IS Point-to-Point Adjacencies

RFC 3567

IS-IS Cryptographic Authentication

RFC 3847

Restart Signaling for IS-IS

ietf-draft

Internet Draft Point-to-point operation over LAN in link-state routing protocols (draft-ietf-isis-igp-p2p-over-lan-06.txt)

IP Services

RFC 768

UDP

RFC 783

TFTP

RFC 791

IP

RFC 792

ICMP

RFC 793

TCP

RFC 826

ARP

RFC 854

Telnet

RFC 959

FTP

RFC 1027

Proxy ARP

RFC 1305

NTP v3

RFC 1519

CIDR

RFC 1542

BootP relay

RFC 1591

DNS client

RFC 1812

IPv4 routers

RFC 2131

DHCP Helper

RFC 2338

VRRP

RFC 2784

Generic Routing Encapsulation (GRE)

IP-Multicast

RFC 2236

Internet Group Management Protocol, Version 2

RFC 2710

Multicast Listener Discovery (MLD) for IPv6

RFC 3376

Internet Group Management Protocol, Version 3

RFC 3446

Anycast Rendezvous Point (RP) mechanism using Protocol Independent Multicast (PIM) and Multicast Source Discovery Protocol (MSDP)

RFC 3569

An Overview of Source-Specific Multicast (SSM)

RFC 3618

Multicast Source Discovery Protocol (MSDP)

RFC 3810

Multicast Listener Discovery Version 2 (MLDv2) for IPv6

RFC 4601

ASM - Sparse Mode (PIM-SM): Protocol Specification (Revised)

RFC 4607

Source-Specific Multicast for IP

RFC 4610

Anycast-RP Using Protocol Independent Multicast (PIM)

ietf-draft

Mtrace server functionality, to process mtrace-requests, draft-ietf-idmr-traceroute-ipm-07.txt

ietf-draft

Bi-directional Protocol Independent Multicast (BIDIR-PIM), draft-ietf-pim-bidir-09.txt
