Installing the Cisco Nexus 1000V

This chapter includes the following sections:

Information About Installing the Cisco Nexus 1000V

VSM Software

You can obtain the Cisco Nexus 1000V software from the Cisco Nexus 1000V Series switches web page:

Cisco Nexus 1000V Download Software page

The filename is Nexus1000v.4.2.1.SV1.5.2.zip.

VEM Software

You can obtain the Virtual Ethernet Module (VEM) software from the sources listed in the following table:

Table 1 VEM Software Sources

Source

Description

VSM

After the VSM has been installed as a Virtual Machine (VM), copy the file that contains the VEM software from the Virtual Supervisor Module (VSM) home page located at the following URL:

http://VSM_IP_Address/

Cisco

Download the VEM software from the Cisco Nexus 1000V Download Software page.

Information About the Nexus 1000V Installation Management Center

The Nexus 1000V Installation Management Center is the graphical user interface (GUI) for installing the VSMs in high availability (HA) mode and the VEMs on ESX/ESXi hosts.

To prevent a disruption in connectivity, all port profiles are created with a system VLAN. You can change this after migration if needed.

The host and adapter migration process moves all physical network interface cards (PNICs) used by the VSM from the VMware vSwitch to the Cisco Nexus 1000V Distributed Virtual Switch (DVS).

The migration process supports Layer 2 and Layer 3 topologies.

The installer does the following:

  • Creates port profiles for the control, management, and packet port groups.
  • Creates uplink port profiles.
  • Creates port profiles for VMware kernel NICs.
  • Specifies a VLAN to be used for system login and configuration, and control and packet traffic.

    Note

    You can use the same VLAN for control, packet, and management port groups, but you can also use separate VLANs for flexibility. If you use the same VLAN, make sure that the network segment where the VLAN resides has adequate bandwidth and latency.

  • Enables Telnet and Secure Shell (SSH) and configures an SSH connection.
  • Creates a Cisco Nexus 1000V plug-in and registers it on the vCenter Server.
  • Migrates each VMware port group or kernel NIC to the correct port profile.
  • Migrates each physical network interface card (PNIC) from the VMware vSwitch to the correct uplink on the DVS.
  • Adds the host to the DVS.

Prerequisites for Installing the Cisco Nexus 1000V

Nexus 1000V Installation Management Center Prerequisites


Note

The Installation Management Center requires you to satisfy all the prerequisites.

If you migrate the host and adapters from the VMware vSwitch to the Cisco Nexus 1000V DVS:

  • The host must have one or more physical NICs on each VMware vSwitch in use.
  • The VMware vSwitch must not have any active VMs. To prevent a disruption in connectivity during migration, any VMs that share a VMware vSwitch with port groups used by the VSM must be powered off.
  • You must also configure the VSM connection to the vCenter server datacenter where the host resides.
  • Host should have only one VMware vSwitch.
  • Make sure no VEMs were previously installed on the host where the VSM resides.
  • You must have administrative credentials for the vCenter Server.

Host Prerequisites

The ESX or ESXi hosts to be used for the Cisco Nexus 1000V have the following prerequisites:

  • You have already installed and prepared the vCenter Server for host management using the instructions from VMware.
  • SSH has been enabled.
  • You should have the VMware vSphere Client installed.
  • You have already installed the VMware Enterprise Plus license on the hosts.
  • All VEM hosts must be running ESX/ESXi 4.1 or later releases.
  • You have two physical NICs on each host for redundancy.
  • All hosts must have Layer 2 connectivity to each other.
  • If you are using a set of switches, make sure that the inter-switch trunk links carry all relevant VLANs, including control and packet VLANs. The uplink should be a trunk port that carries all VLANs configured on the host.
  • The control and management VLANs must already be configured on the host to be used for the VSM VM.
  • Make sure that the VM to be used for the VSM meets the minimum requirements listed in the following table.
  • All the vmnics should have the same configuration upstream.

Caution

The VSM VM might fail to boot if RAM and CPU are not properly allocated. This document includes procedures for allocating RAM and setting the CPU speed.

The following table lists the minimum requirements for hosting a VSM.

Table 2 Minimum Requirements for a VM Hosting a VSM

VSM VM Component

Minimum Requirement

Platform

64-bit

Type

Other 64-bit Linux (recommended)

Processor

1

RAM (configured and reserved)

2 GB1

NIC

3

SCSI Hard Disk

3 GB with LSI Logic Parallel adapter

CPU speed

1500 MHz2
1 If you are installing the VSM using an OVA file, the correct RAM setting is made automatically during the installation of this file. If you are using the CD ISO image, see Installing the Software from the ISO Image to reserve RAM and set the memory size.
2 If you are installing the VSM using an OVA file, the correct CPU speed setting is made automatically during the installation. If you are using the CD ISO image, see Installing the Software from the ISO Image to reserve RAM and set the memory size.

Upstream Switch Prerequisites

The switch upstream from the Cisco Nexus 1000V has the following prerequisites:

  • If you are using a set of switches, make sure that the inter-switch trunk links carry all relevant VLANs, including the control and packet VLANs. The uplink must be a trunk port that carries all the VLANs that are configured on the host.
  • The following spanning tree prerequisites apply to the switch upstream from the Cisco Nexus 1000V on the ports connected to the VEM.
    • On upstream switches, the following configuration is mandatory: On your Catalyst series switches with Cisco IOS software, enter the following command: (config-if) spanning-tree portfast trunk or (config-if) spanning-tree portfast edge trunk On your Cisco Nexus 5000 series switches with Cisco NX-OS software, enter the following command: (config-if) spanning-tree port type edge trunk
    • On upstream switches we highly recommend that you enable the following globally: Global BPDU Filtering Global BPDU Guard
    • On upstream switches where you cannot globally enable BPDU Filtering and BPDU Guard, we highly recommend that you enter the following commands: (config-if) spanning-tree bpdu filter (config-if) spanning-tree bpdu guard
    For more information about spanning tree and its supporting commands, see the documentation for your upstream switch.
  • Run the following commands on the upstream switch:
    show running interface interface number
interface GigabitEthernet interface number
 description description of interface
switchport
switchport trunk encapsulation dot1q
switchport trunk native VLAN native VLAN
switchport trunk allowed vlan list of VLANs
switchport mode trunk

end

VSM Prerequisites

The Cisco Nexus 1000V VSM software has the following are prerequisites:

  • You have the VSM IP address.
  • You have installed the appropriate vCenter Server and VMware Update Manager (VUM) versions.
  • If you are installing redundant VSMs, make sure that you first install and set up the software on the primary VSM before installing and setting up the software on the secondary VSM.
  • You have already identified the HA role for this VSM from the list in the following table.
Table 3 HA Roles

HA Role

Single Supervisor System

Dual Supervisor System

Standalone (test environment only)

X



HA



X

Note

A standalone VSM is not supported in a production environment.

  • You are familiar with the Cisco Nexus 1000V topology diagram that is shown in Layer 3 Topology.

VEM Prerequisites

The Cisco Nexus 1000V VEM software has the following prerequisites:


Note

If the VMware vCenter Server is hosted on the same ESX/ESXi host as a Cisco Nexus 1000V VEM, a VUM-assisted upgrade on the host will fail. You should manually vMotion the vCenter Server VM to another host before you perform an upgrade.

  • When you perform any VUM operation on hosts that are a part of a cluster, ensure that VMware HA, VMware fault tolerance (FT), and VMware distributed power management (DPM) features are disabled for the entire cluster. Otherwise, VUM cannot install the hosts in the cluster.
  • You have a copy of your VMware documentation available for installing software on a host.
  • You have already obtained a copy of the VEM software file from one of the sources listed in VEM Software.
  • You have already downloaded the correct VEM software based on the current ESX/ESXi host patch level. For more information, see the Cisco Nexus 1000V and VMware Compatibility Information.
  • For a VUM-based installation, you must deploy VUM and make sure that the VSM is connected to the vCenter Server.

Guidelines and Limitations

Guidelines and Limitations of the Nexus 1000V Installation Management Center

Configuring the software using the Nexus 1000V Installation Management Center has the following guidelines and limitations:

  • For a complete list of port profile guidelines and limitations, see the Cisco Nexus 1000V Port Profile Configuration Guide.

    Caution

    Host management connectivity might be interrupted if the management vmknic or vswif are migrated and the uplink’s native VLAN is not correctly specified in the setup process.

  • If you are installing a Cisco Nexus 1000V in an environment where the upstream switch does not support static port channels, such as the Cisco Unified Computing System (UCS), you must use the channel-group auto mode on the mac-pinning command instead of the channel-group auto mode command.
  • We recommend that you install redundant VSMs on the Cisco Nexus 1000V. For information about high availability and redundancy, see the Cisco Nexus 1000V High Availability and Redundancy Configuration Guide.
  • If the Installation Management Center fails, check the vCenter Server event status. If an event shows failure due to a timeout, then it could be because of a vCenter Server overload. Please consult the VMware website to address a vCenter Server overload event.

Guidelines and Limitations for Installing the Cisco Nexus 1000V

Use the following guidelines and limitations when installing the Cisco Nexus 1000V software:

  • Do not enable VMware FT for the VSM VM because it is not supported. Instead, Cisco NX-OS HA provides high availability for the VSM.
  • The VSM VM supports VMware HA. However, we strongly recommend that you deploy redundant VSMs and configure Cisco NX-OS HA between them. Use the VMware recommendations for the VMware HA.
  • Do not enable VM Monitoring for the VSM VM because it is not supported, even if you enable the VMware HA on the underlying host. Cisco NX-OS redundancy is the preferred method.
  • When a user moves a VSM from the VMware vSwitch to the Cisco Nexus 1000V DVS, it is possible that the connectivity between the active and standby VSM is temporarily lost. In that situation, both active and standby VSMs assume the active role. Once the connectivity is restored between the VSMs, the VSM configured with the role of primary reloads itself and comes back as standby.
  • If the VSM is moved from the VMware vSwitch to the Cisco Nexus 1000V DVS, it is recommended that you configure the port-security on the VSM vethernet interfaces to secure control/packet MACs.
  • To improve redundancy, install primary and secondary VSM virtual machines in separate hosts that are connected to different upstream switches.

Installing a VSM HA Pair with L3 Mode Behind a VEM Using the Nexus 1000V Installation Management Center

Installing a VSM HA Pair Using the Nexus 1000V Installation Management Center

Before You Begin
  • You have the following information:
    • Control VLAN ID
    • Management VLAN ID
    • Domain ID
    • Management IP address
    • Subnet mask
    • Gateway IP address
    • SVS datacenter name
    • VLAN ID of the untagged traffic
  • You have the JDK version 1.6 or later installed.
Procedure
    Step 1   Download the Nexus1000v.4.2.1.SV1.5.2.zip file.
    Step 2   Enter the following command from a Windows, Linux, or Mac command prompt. java -jar zip_file_location/Nexus1000v.4.2.1.SV1.5.2/VSM/Installer_App/Nexus1000V-install.jar
    Step 3   In the Nexus 1000V Installation Management Center window, click the VSM Installation radio button.

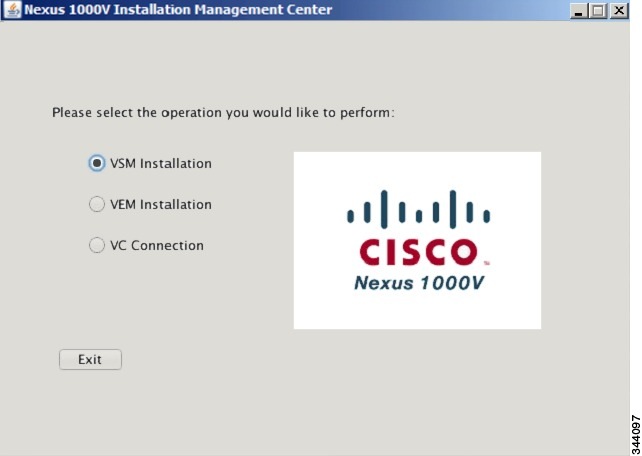

    Figure 1. Nexus 1000V Installation Management Center Window



    Step 4   In the Enter vCenter Credentials screen, do the following:
    1. Enter the following vCenter credentials:
      • vCenter IP address
      • Secure HTTP port Port 443 is configured by default, but you can change the port if needed.
      • vCenter User ID (for a vCenter user with administrator-level privileges)
      • vCenter Password (for a vCenter user with administrator-level privileges)
    2. Click Next.

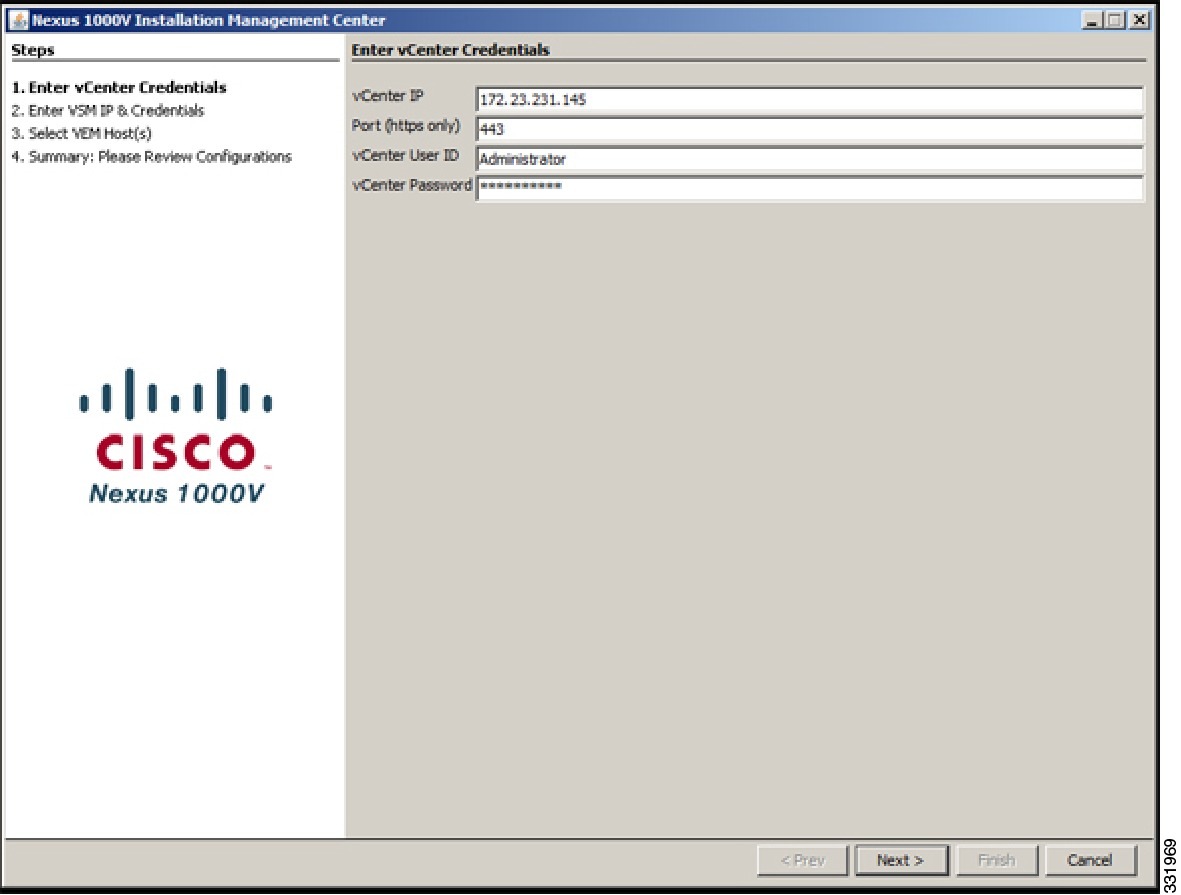

    Figure 2. Enter vCenter Credentials Screen



    Step 5   In the Select the VSM's host screen, Choose a host where the VSM will be deployed and click Next.

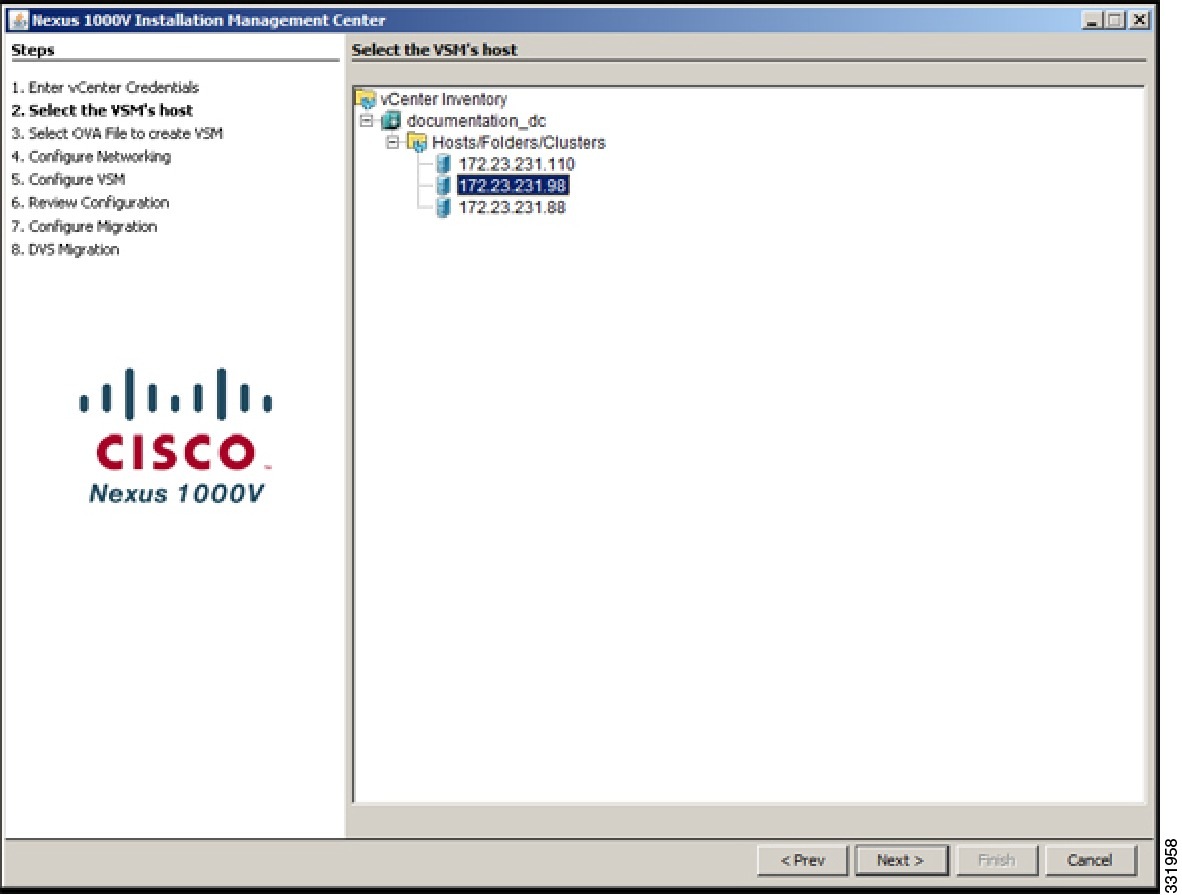

    Figure 3. Select the VSM's host Screen



    Step 6   In the Select OVA File to create VSM screen, do the following:
    1. Click Browse OVA and browse to the location of the OVA file.
    2. From the System Redundancy drop-down list, choose a System Redundancy value.
      Note

      If you choose a System Redundancy value of HA, a primary and secondary VSM is created.

    3. In the Virtual Machine Name field, enter a name for the virtual machine.
      Note

      The application appends "-1" to the primary VSM and "-2" to the secondary VSM.

    4. From the VSM Datastore drop-down list, choose a datastore.
    5. Click Next.

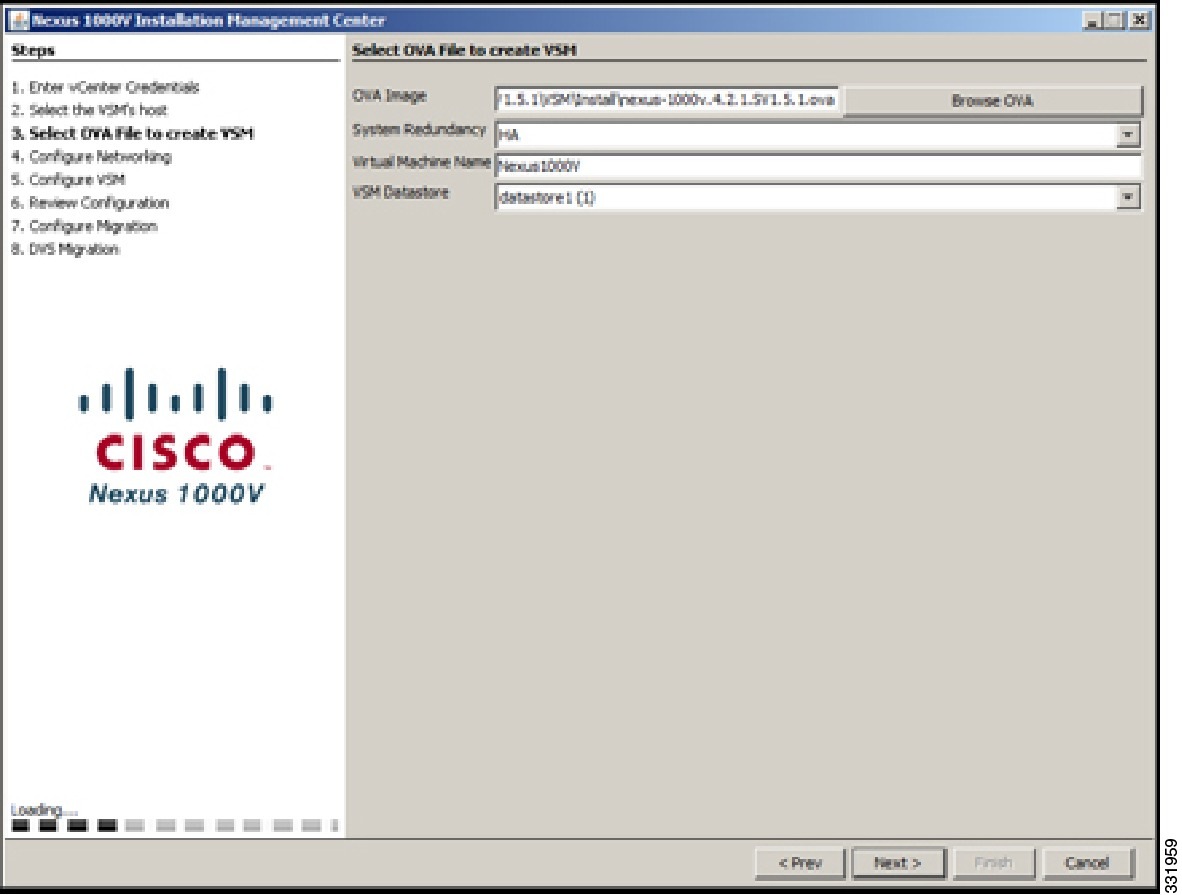

    Figure 4. Select OVA File to create VSM Screen

    Step 7   To configure Layer 3 connectivity, click the L3: Configure port groups for L3 radio button in the Configure Networking screen.
    Note

    To configure Layer 2 connectivity, see Configuring Layer 2 Connectivity.

    Step 8   For the control port group, do the following:
    1. Click the Create New radio button.
    2. In the Port Group Name field, enter a port group name.
    3. In the VLAN ID field, enter a VLAN.
    4. From the vSwitch drop-down list, choose a VMWare vSwitch value.
    Step 9   For the management port group, do the following.
    1. Click the Create New radio button.
    2. In the Port Group Name field, enter a port group name.
    3. In the VLAN ID field, enter a VLAN.
    4. From the vSwitch drop-down list, choose a VMWare vSwitch value.
    Note

    You can also use existing port groups for the control and management port groups.

    Step 10   For Layer 3 connectivity, choose the mgmt0 radio button and do the following:
    1. In the Enter L3 mgmt0 Interface Port Profile VLAN ID field, enter the VLAN of your management network.
    2. Click Next.

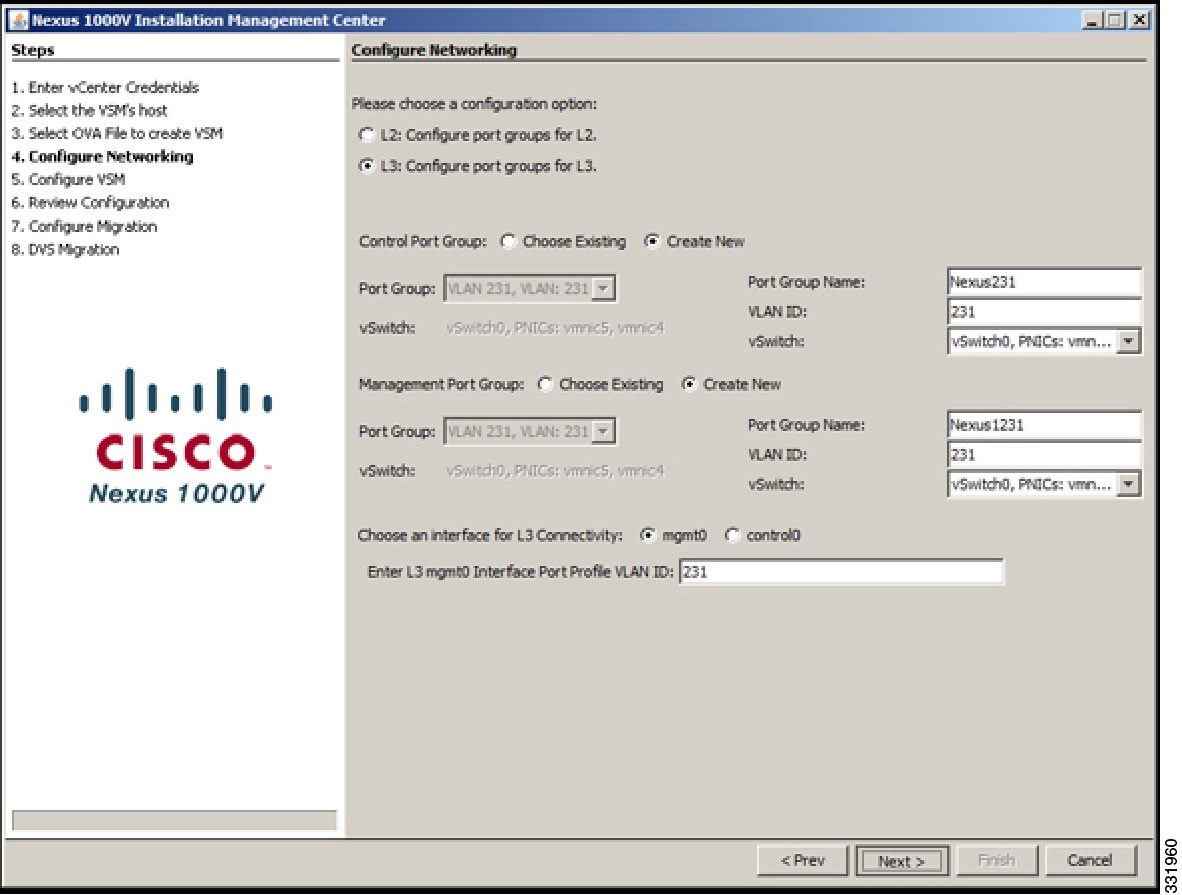

    Figure 5. Configure Networking Screen



    Note

    For Layer 3 control0 mode, control and management IP addresses must be in different subnets. Step 10 will fail if the control and management IP addresses are not in different subnets.

    Step 11   In the Configure VSM screen, enter the following information:
    1. In the Switch Name field, enter the switch name.
    2. In the Enter Admin Password field, enter the admin password.
      Note

      All alphanumeric characters and symbols on a standard US keyboard are allowed except for these three: $ \ ?

    3. In the Confirm Admin Password field, enter the admin password.
    4. In the Mgmt IP Address field, enter the mgmt0 IP address of the VSM VM.
    5. In the Subnet Mask field, enter the subnet mask.
    6. In the Gateway IP address field, enter the gateway IP address.
    7. In the Domain ID field, enter the domain ID.
    8. From the SVS Datacenter Name drop-down list, choose a data center name.
    9. In the vSwitch0 Native VLAN ID field, enter the native VLAN ID.
    Caution

    Host management connectivity might be interrupted if VMware kernel 0 and the VMware vSwitch interface 0 are migrated and the native VLAN is not correctly specified.

    Step 12   (Optional) Click Enable Telnet if you want to enable Telnet or click Enable SSH if you want to enable SSH.
    Step 13   Click Next.

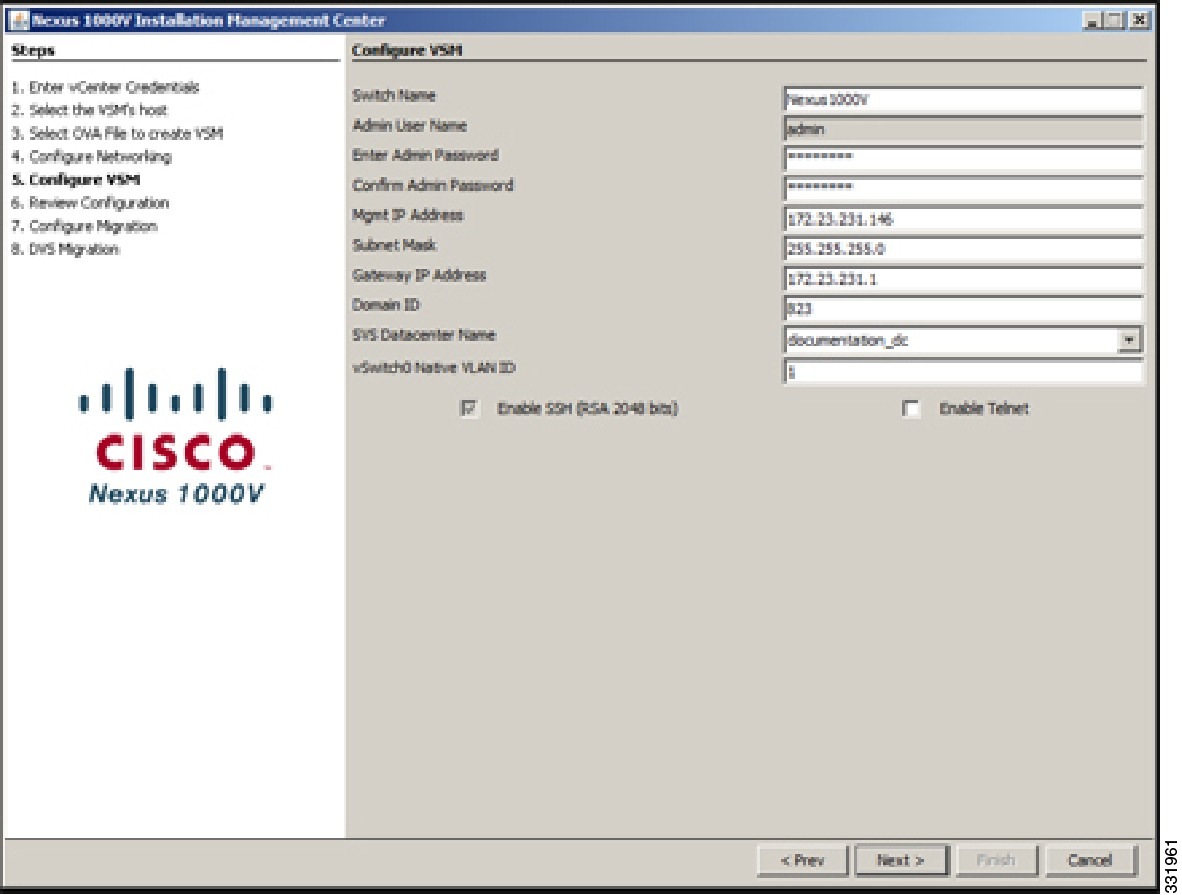

    Figure 6. Configure VSM Screen



    Step 14   In the Review Configuration screen, do one of the following:
    • To make corrections, click Prev, go back to the previous screens, and make corrections.
    • If the configuration is correct, continue with Step 14.
    Step 15   In the Review Configuration screen, click Next.
    Figure 7. Review Configuration Screen



    If you chose a redundancy value of HA, the primary and secondary VSMs are being created.

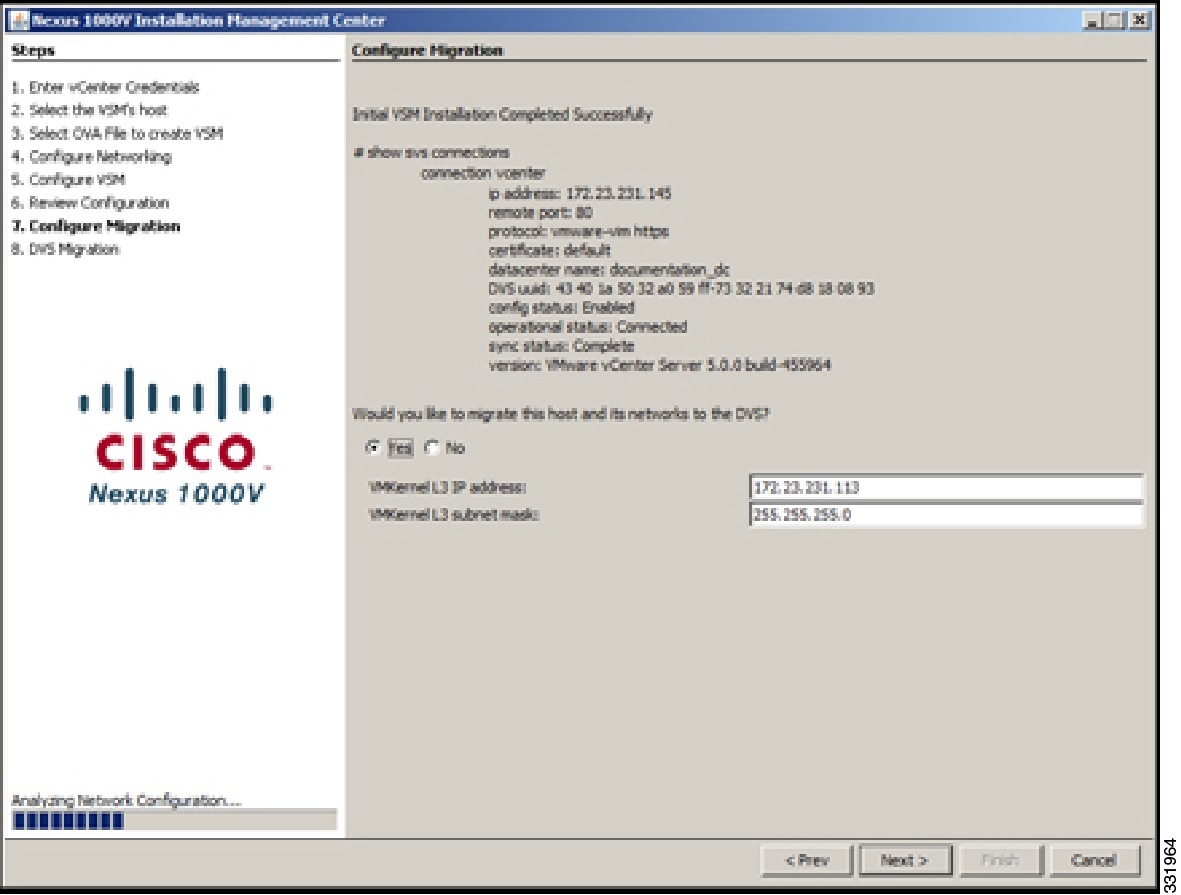

    Step 16   In the Configure Migration screen, do the following:
    1. Click the Yes radio button.
    2. In the VMkernel L3 IP Address field, enter an IP address.
    3. In the VMkernel L3 subnet mask field, enter the subnet mask.

      When you click Yes, one of the channel-group commands in the following table is applied to the uplink port profile during migration.

    Port Channel created during migration

    For VMware vSwitch Teaming policy in use

    A static port channel

    channel-group auto mode on

    Route based on IP hash or route based on the originating virtual port ID

    A vPC host mode port channel with mac-pinning

    channel-group auto mode on mac-pinning

    MAC hash
    Note

    If VUM is not installed, the VSM installer installs the vSphere Installation Bundles (VIBs) as a part of the VSM installation.

    Step 17   In the Configure Migration screen, click Next.
    Figure 8. Configure Migration Screen

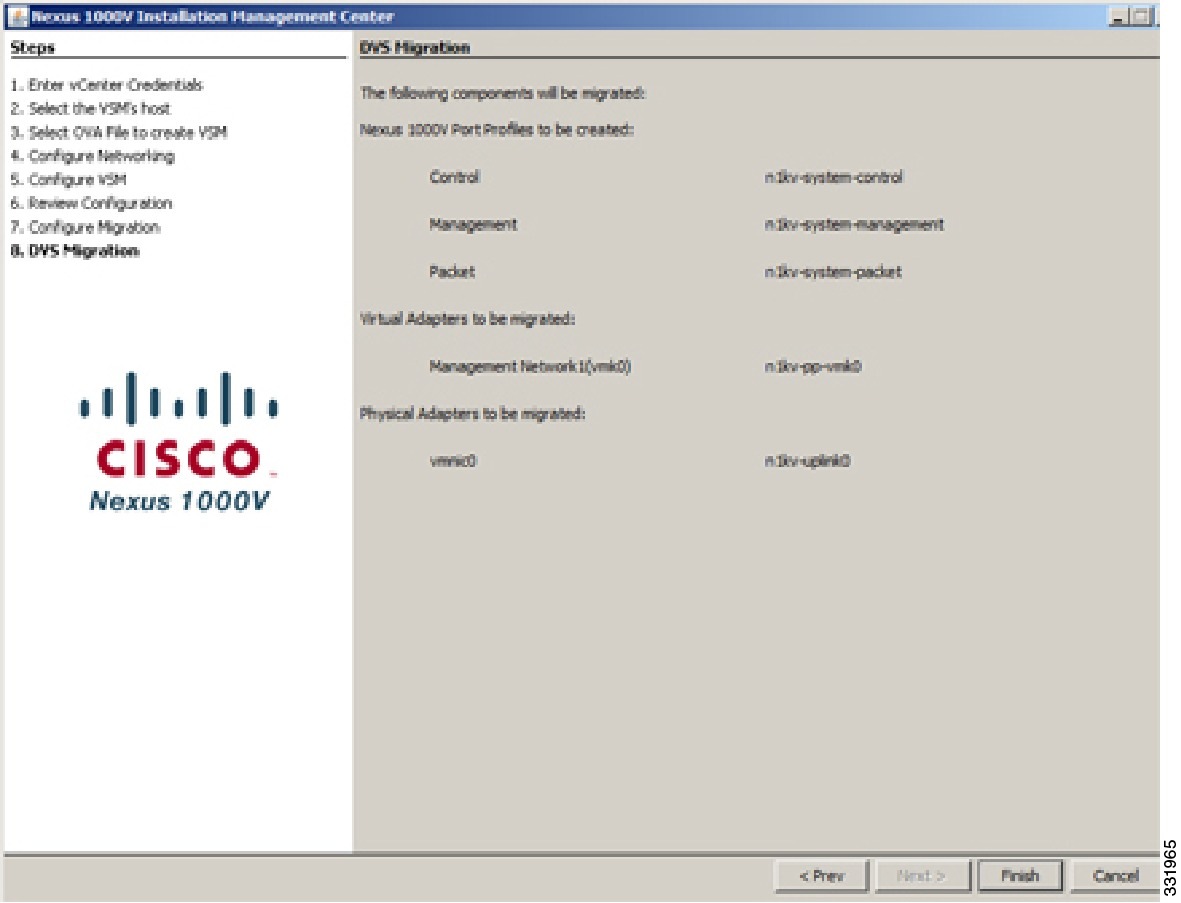

    Step 18   In the DVS Migration Components screen, click Finish.
    Figure 9. DVS Migration Components Screen



    The migration starts and the DVS Migration Installation Progress screen opens.

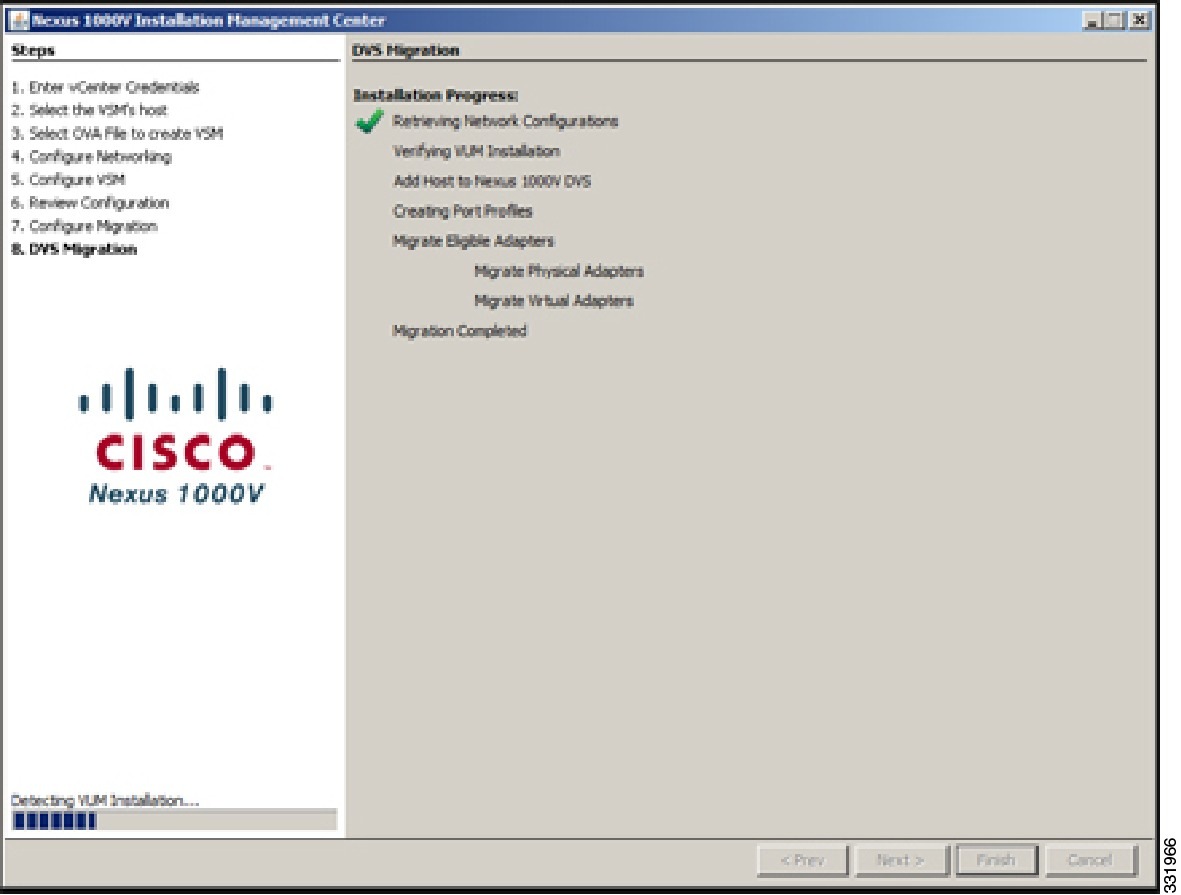

    Figure 10. DVS Migration Installation Progress Screen



    Step 19   In the Initial VSM Installation Completed Successfully screen, click Close.

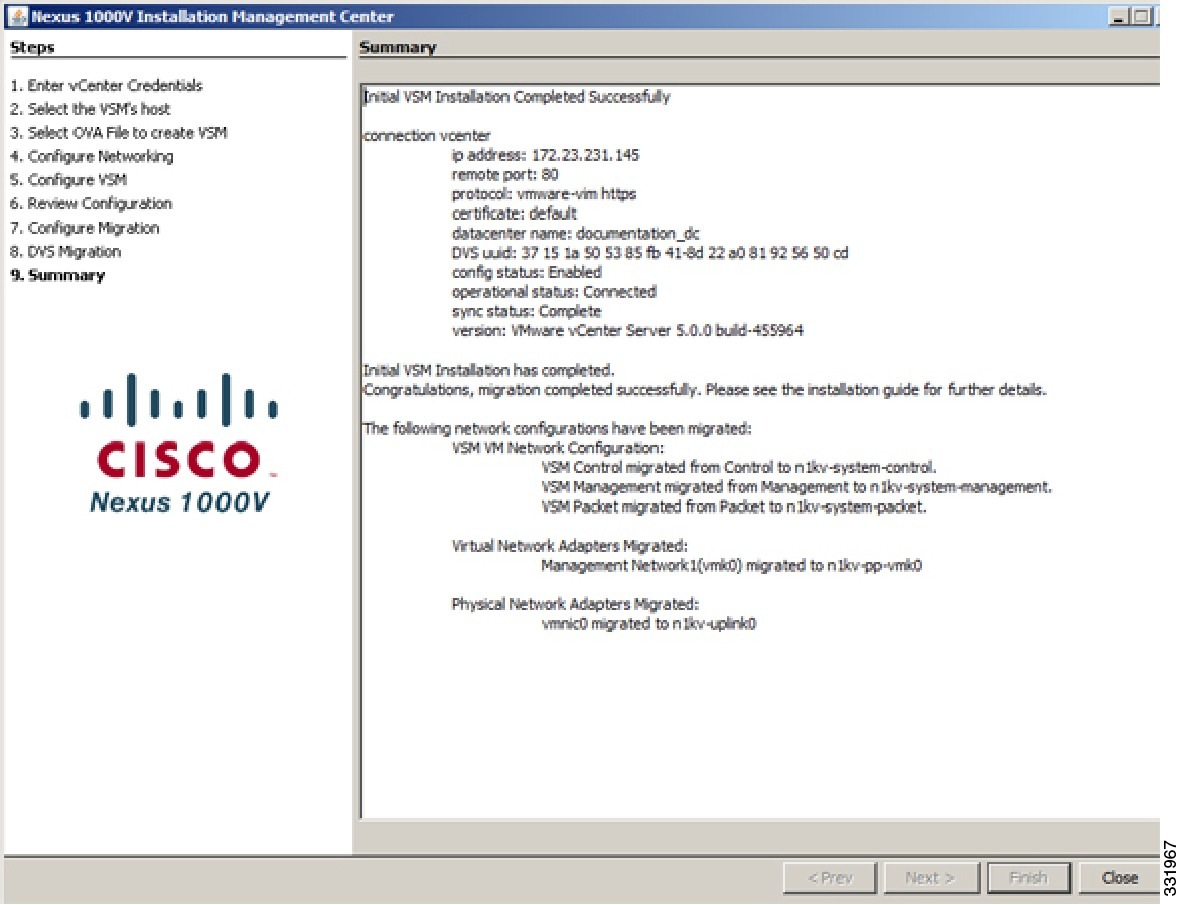

    Figure 11. Initial VSM Installation Completed Successfully Screen



    VSM installation is complete.

    Installing VEM Software Using the Nexus 1000V Installation Management Center

    Before You Begin
    • You have the following information:
      • vCenter IP address
      • vCenter User ID
      • vCenter Password
      • VSM IP Address
      • VSM Password

    Note

    The installer application does not expect the VIBs to be available.

    Procedure
      Step 1   Enter the following command from a Windows, Linux, or Mac command prompt.

      java -jar zip_file_location/Nexus1000v.4.2.1.SV1.5.2/VSM/Installer_App/Nexus1000V-launchPad.jar

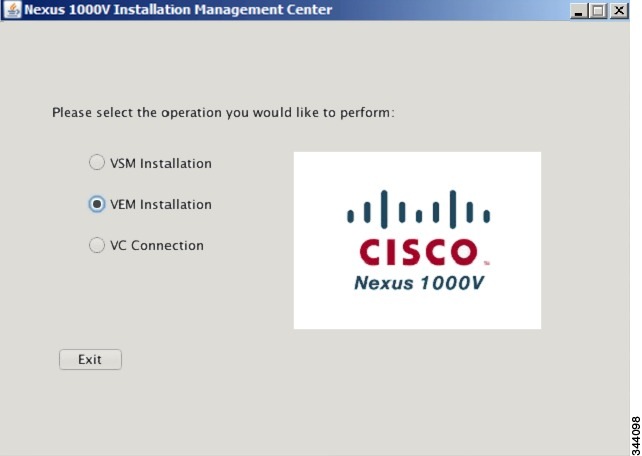

      Step 2   In the Nexus 1000V Installation Management Center window, click the VEM Installation radio button.
      Figure 12. Nexus 1000V Installation Management Center Window



      Step 3   In the VEM Enter vCenter Credentials screen, do the following:
      1. Enter the following vCenter Credentials:
        • vCenter IP address
        • Secure HTTP port Port 443 is configured by default, but you can change the port if needed.
        • vCenter User ID (for a vCenter user with administrator-level privileges)
        • vCenter Password (for a vCenter user with administrator-level privileges)
      2. Click Next.
      Figure 13. VEM Enter vCenter Credentials Screen



      Step 4   In the Enter VSM IP & Credentials screen, do the following:
      1. Enter the following credentials:
        • VSM IP address
        • VSM Password
      2. Click Next.
      Figure 14. VEM Enter VSM IP & Credentials Screen



      Step 5   In the Select VEM Host(s) screen, do the following:
      1. Choose the hosts on which to install the VEM software.
        Note

        The hosts that are displayed in the Select VEM Host(s) pane are all the hosts in the datacenter.

        You do not need to install the VEM software on the host which contains the VSM. The VEM software was installed on the VSM host during the VSM installation process.

        VIBs should be present on the selected hosts. If there are VIBs present, the application fails to install the VEM on that host.

      2. Click Next.
      Note

      The VIBs should not present be present on the host. The VEM installer expects the host to be a clean host with no pre-installed Cisco VIBs.

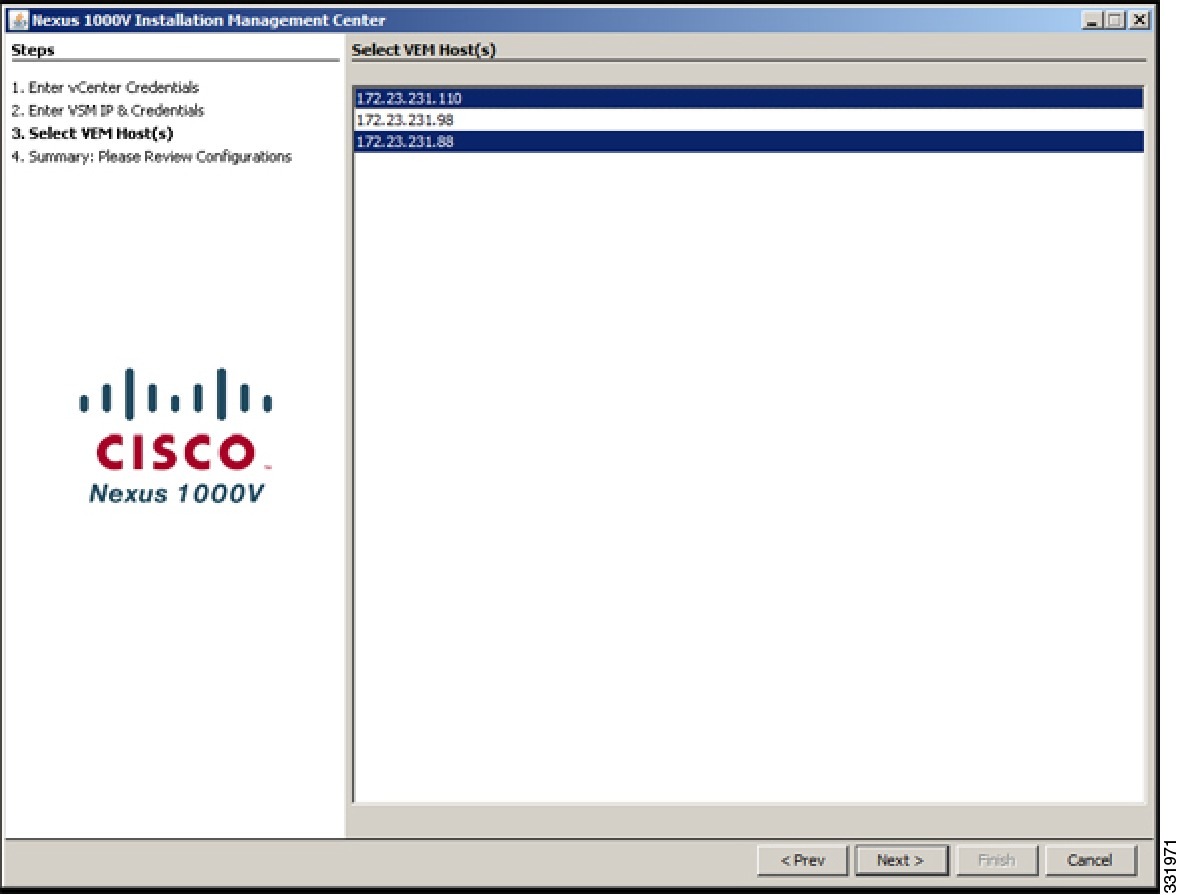

      Figure 15. Select VEM Host(s) Screen

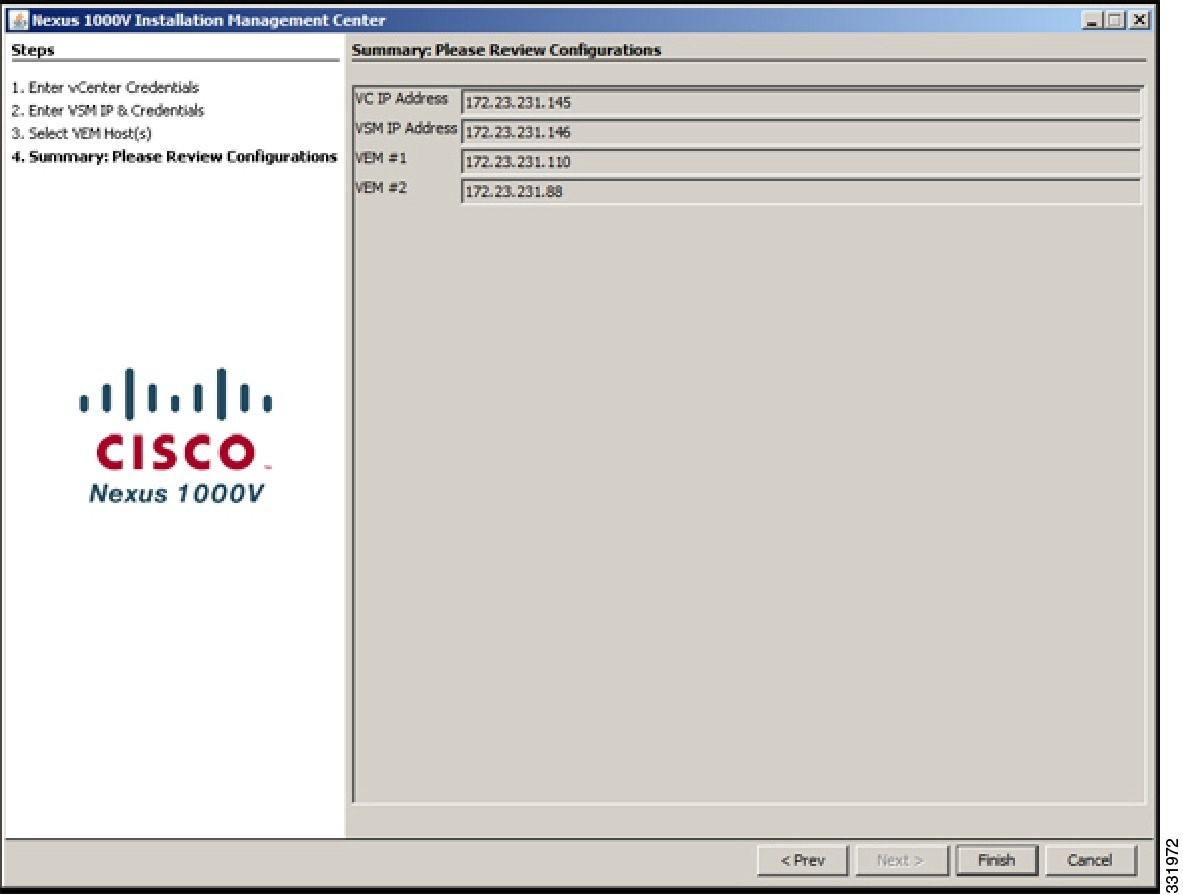

      Step 6   In the VEM Summary: Please Review Configuration screen, validate the entries and click Finish.
      Figure 16. VEM Summary: Please Review Configuration Screen

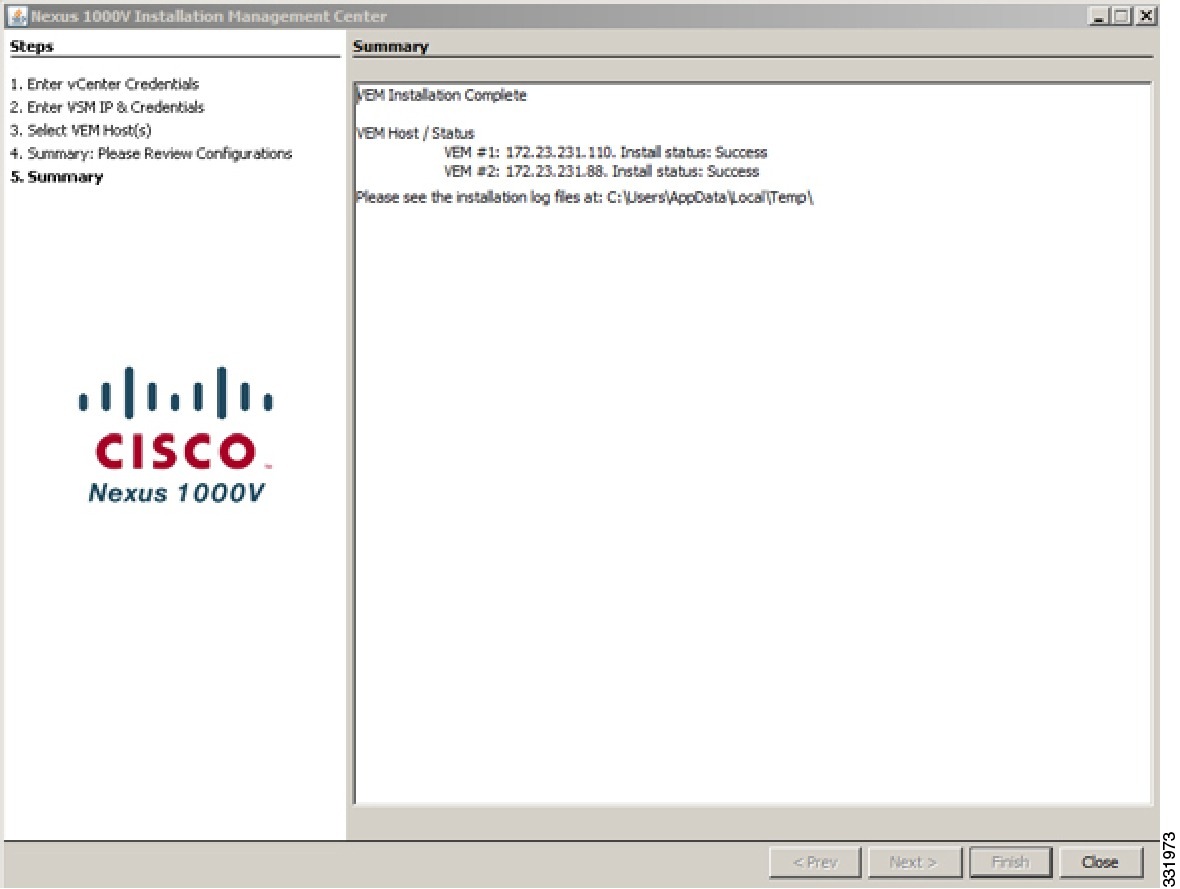

      Step 7   In the VEM Summary screen, click Close.
      Figure 17. VEM Summary Screen



      Note

      If the VEM software fails to install on a host, the following message is displayed: Install status: Failure.

      For more information about troubleshooting VSMs and VEMS, see the Cisco Nexus 1000V Troubleshooting Guide.

      The installation of the VEM software is complete.

      Adding VEM Hosts to the Distributed Virtual Switch

      Before You Begin
      • You have the following information:
        • Physical adapters
        • Uplink port groups
      Procedure
        Step 1   In the vSphere Client window, choose Hosts and Clusters > Networking.
        Figure 18. vSphere Client WIndow



        Step 2   In the vSphere Client Hosts window, choose the DVS and click the Hosts tab.
        Figure 19. vSphere Client Hosts Window



        Step 3   IN the Add Hosts to DVS window, right-click the DVS and from the drop-down list, choose Add Host.
        Figure 20. Add Hosts to DVS

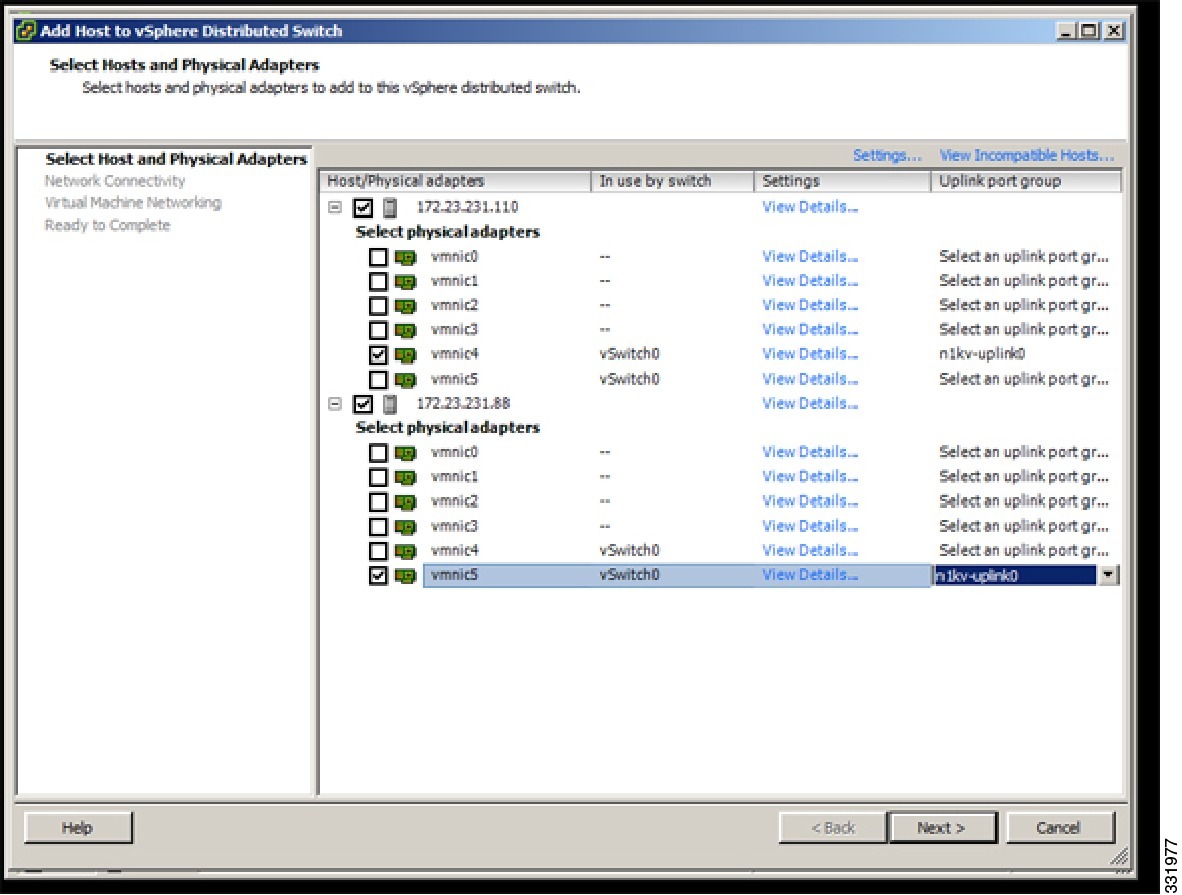

        Step 4   In the Select Hosts and Physical Adapters screen, choose the hosts and the uplink port groups and click Next.
        Figure 21. Select Hosts and Physical Adapters Screen



        Step 5   In the Network Connectivity screen, click Next.

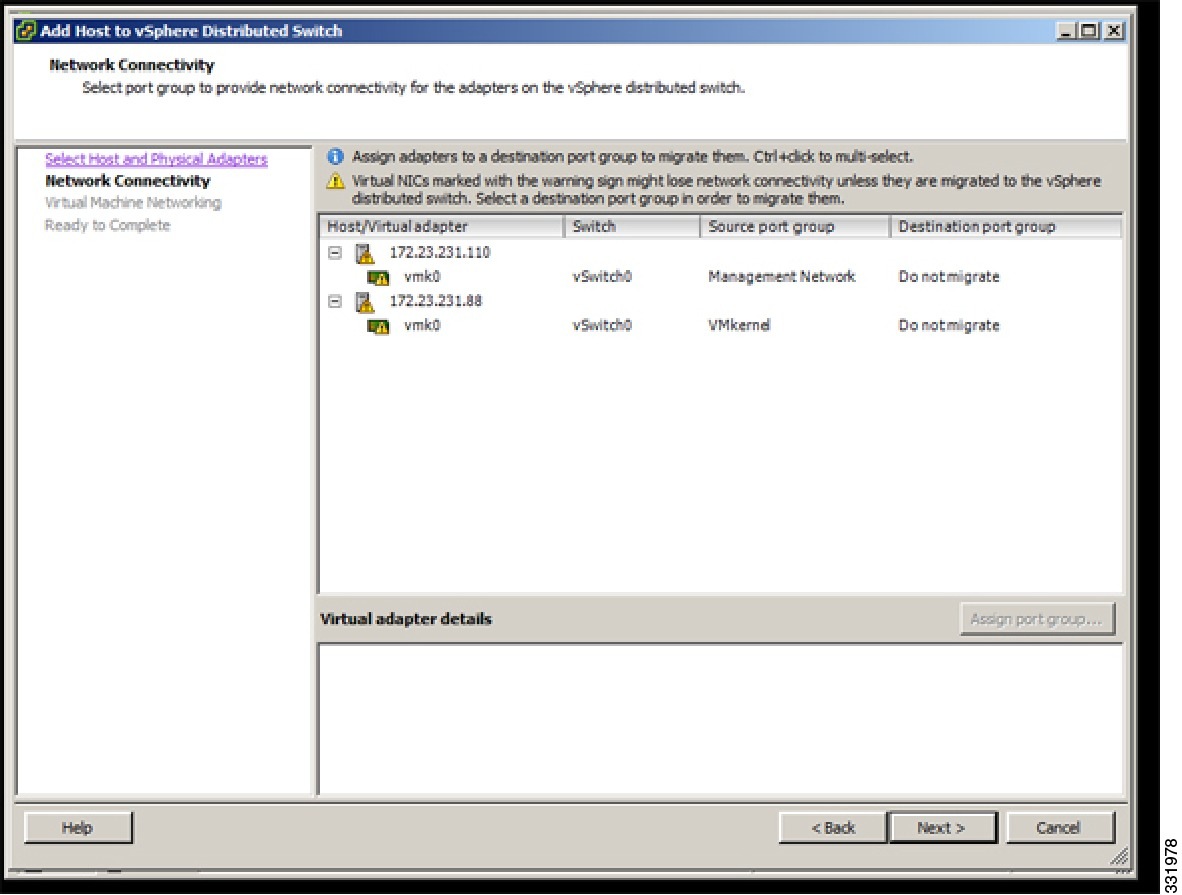

        Figure 22. Network Connectivity Screen



        Step 6   In the Virtual Machine Networking screen, click Next.
        Figure 23. Virtual Machine Networking Screen



        Step 7   In the Ready to Complete screen, click Finish.

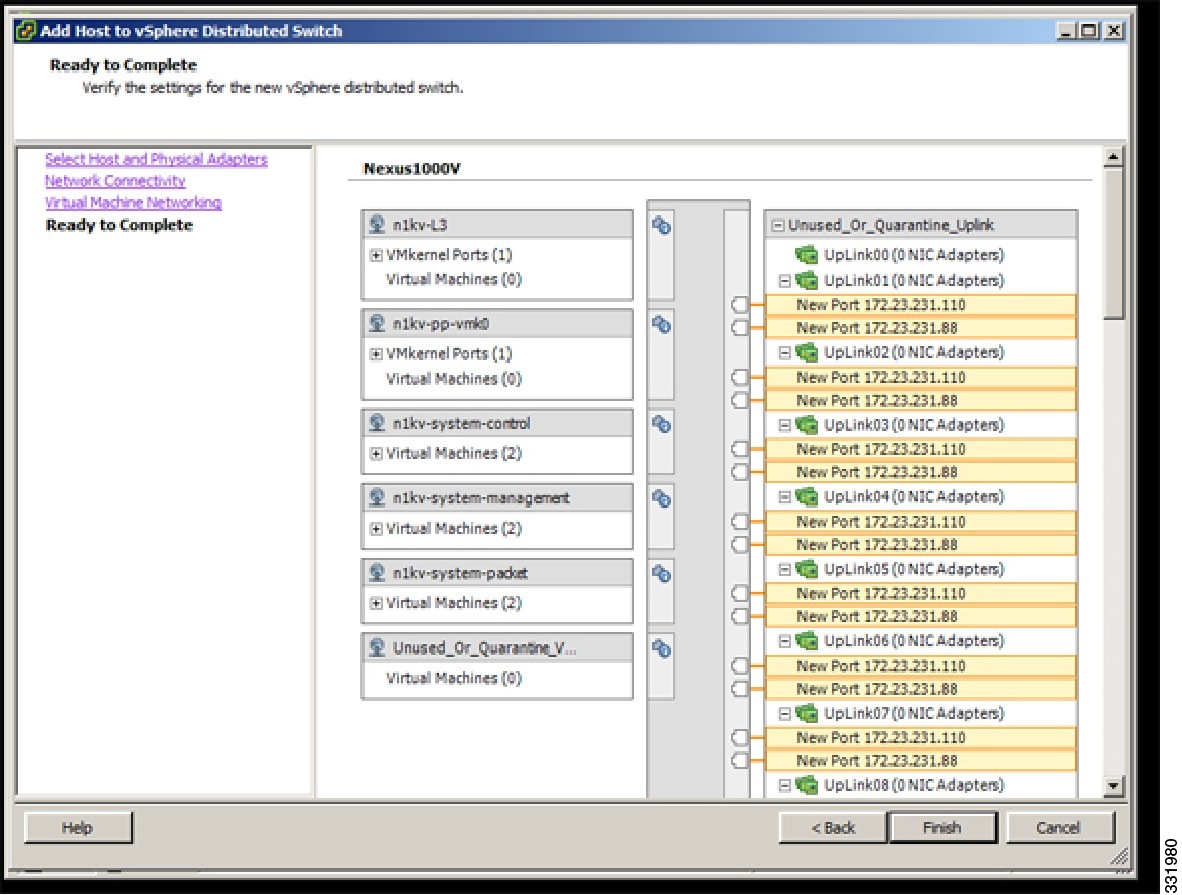

        Figure 24. Ready to Complete Screen

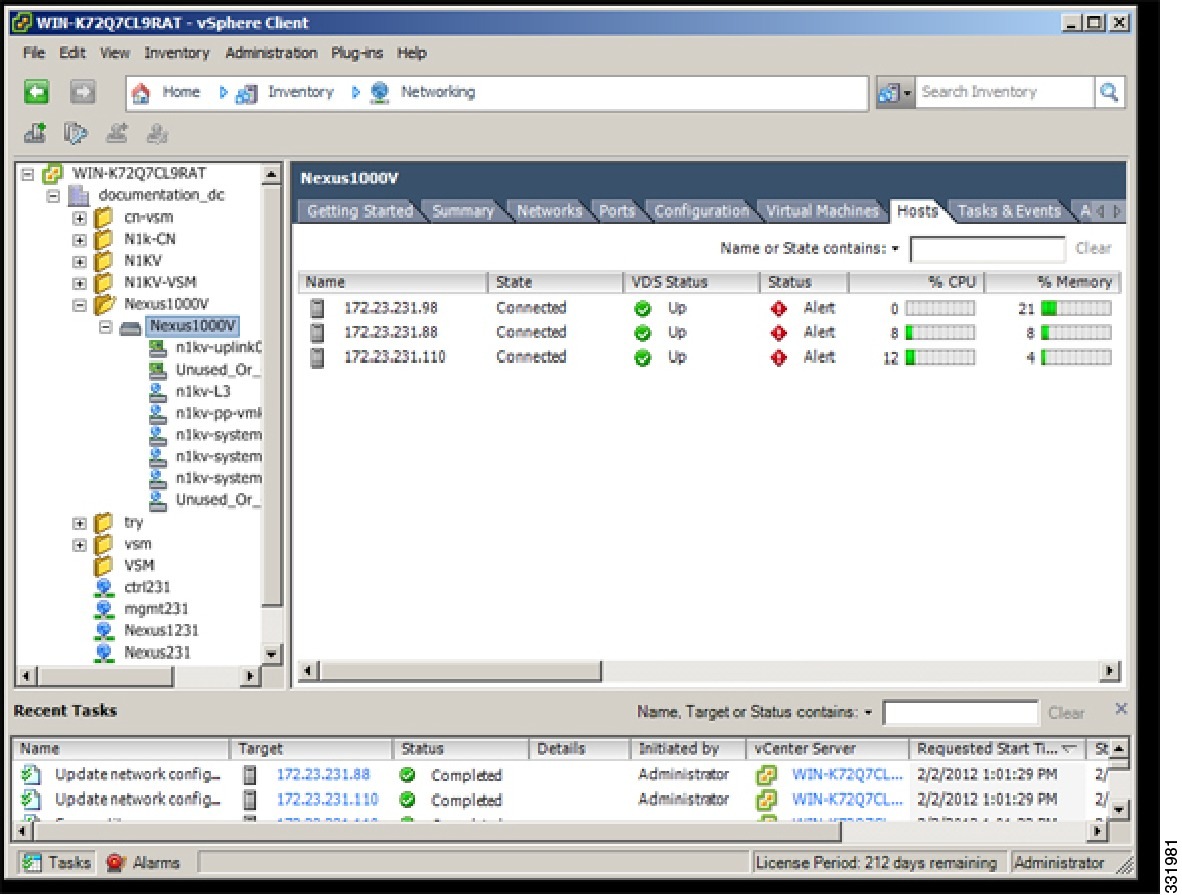

        Step 8   In the vSphere Client Hosts window, confirm that the hosts are in the Connected state.
        Figure 25. vSphere Client Hosts Window



        The host connection process is complete.

        Moving the Secondary VSM to a Different Host

        Before You Begin
        • You have the following information:
          • Host to which you are moving the secondary VSM
          • The host to which you are moving the secondary VSM must be a part of the DVS
        Procedure
          Step 1   In the vSphere Client window, choose Networking > Host and Clusters.

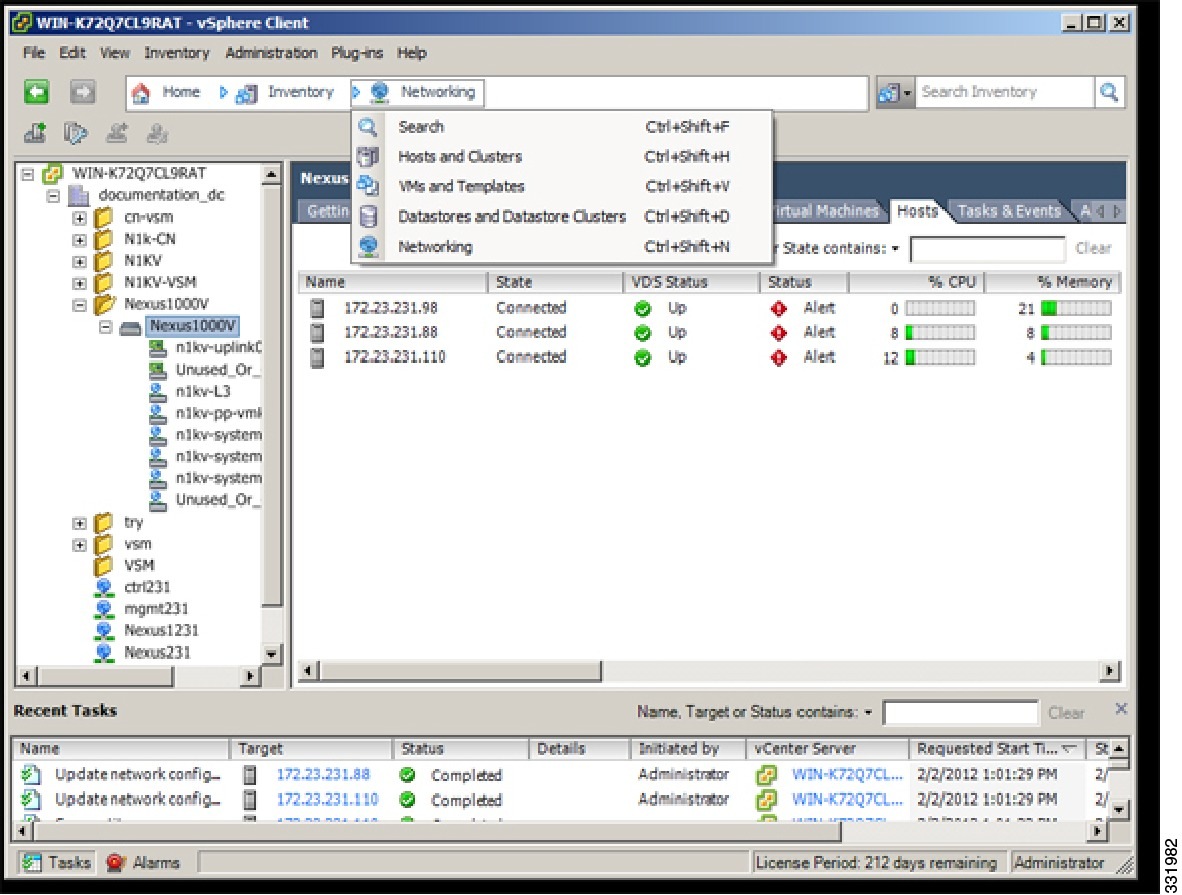

          Figure 26. vSphere Client Window



          Step 2   In the Powering Off Secondary VSM window, right-click the secondary VSM and from the drop-down list, choose Power > Power Off.

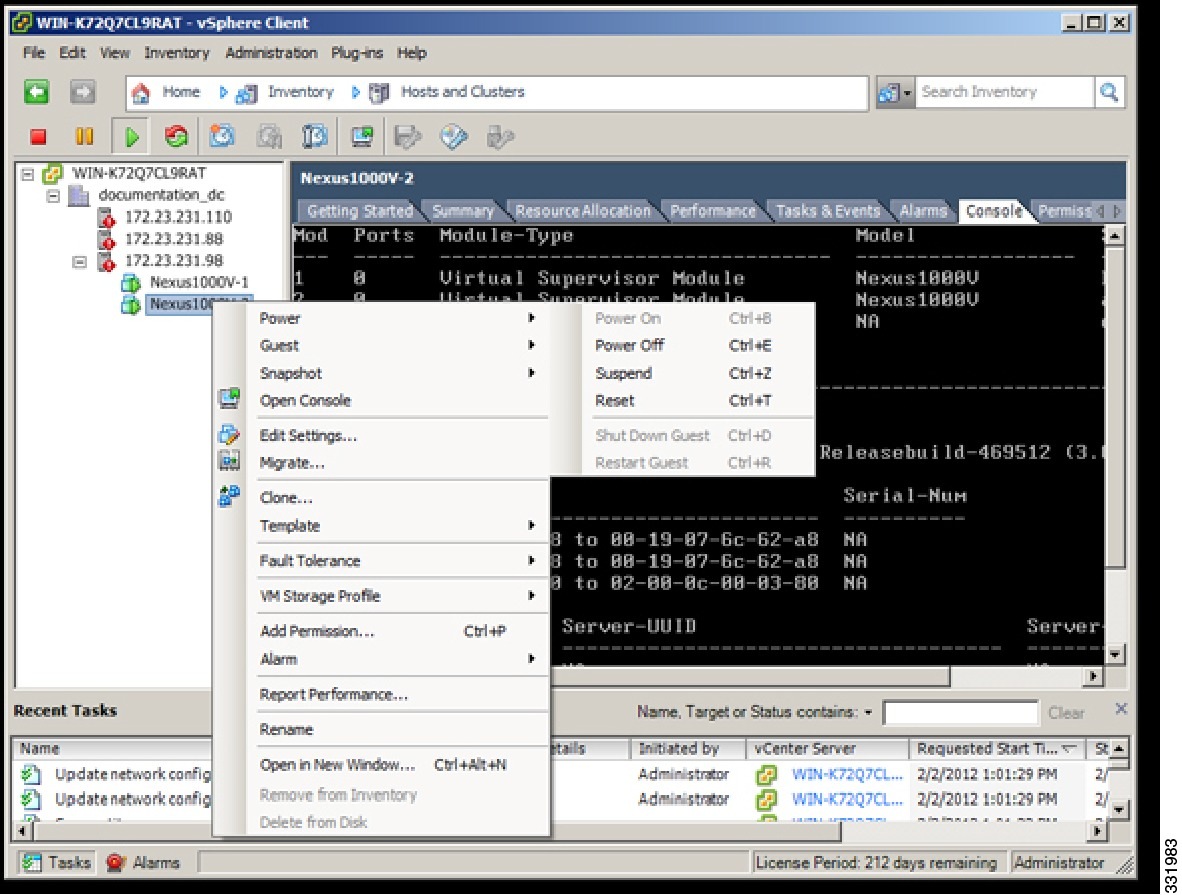

          Figure 27. Powering Off Secondary VSM Window

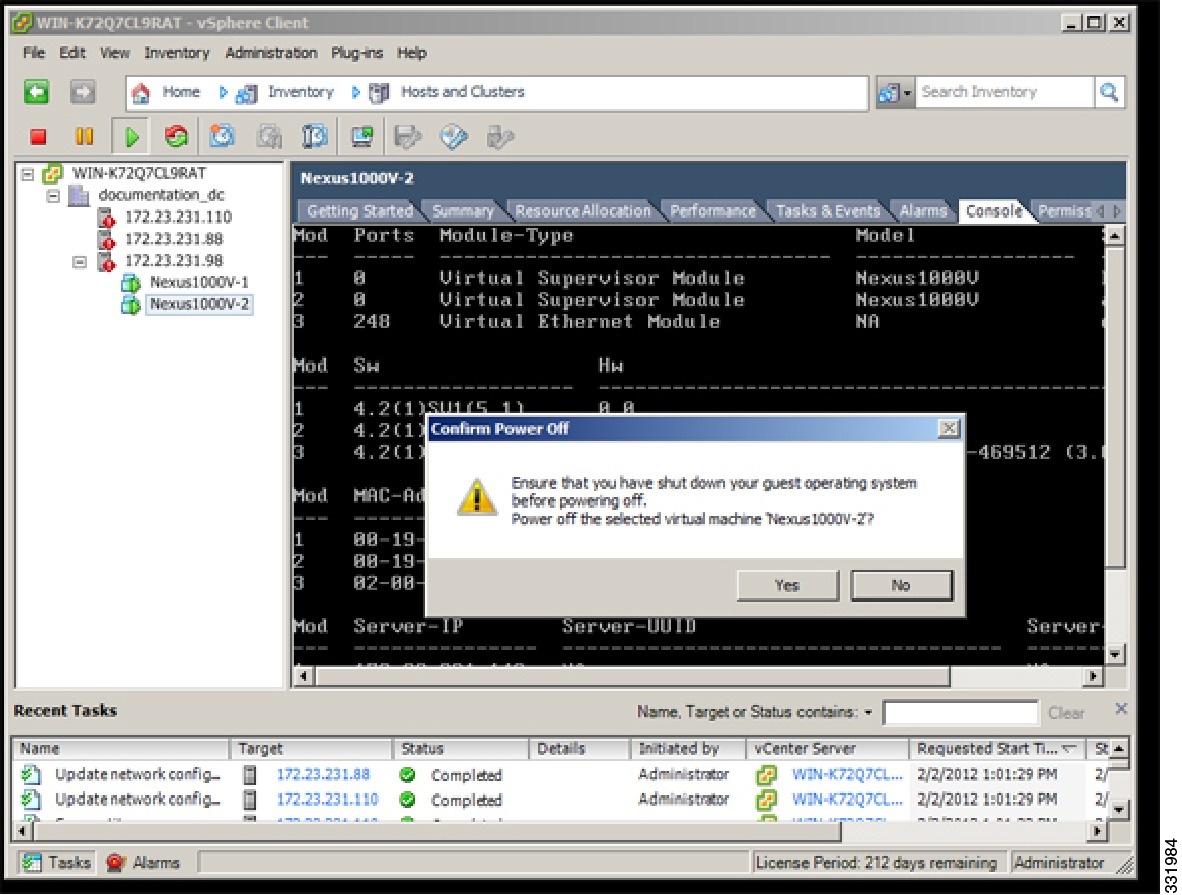

          Step 3   In the Confirm Power Off dialog box, click Yes.
          Figure 28. Confirm Power Off Dialog Box

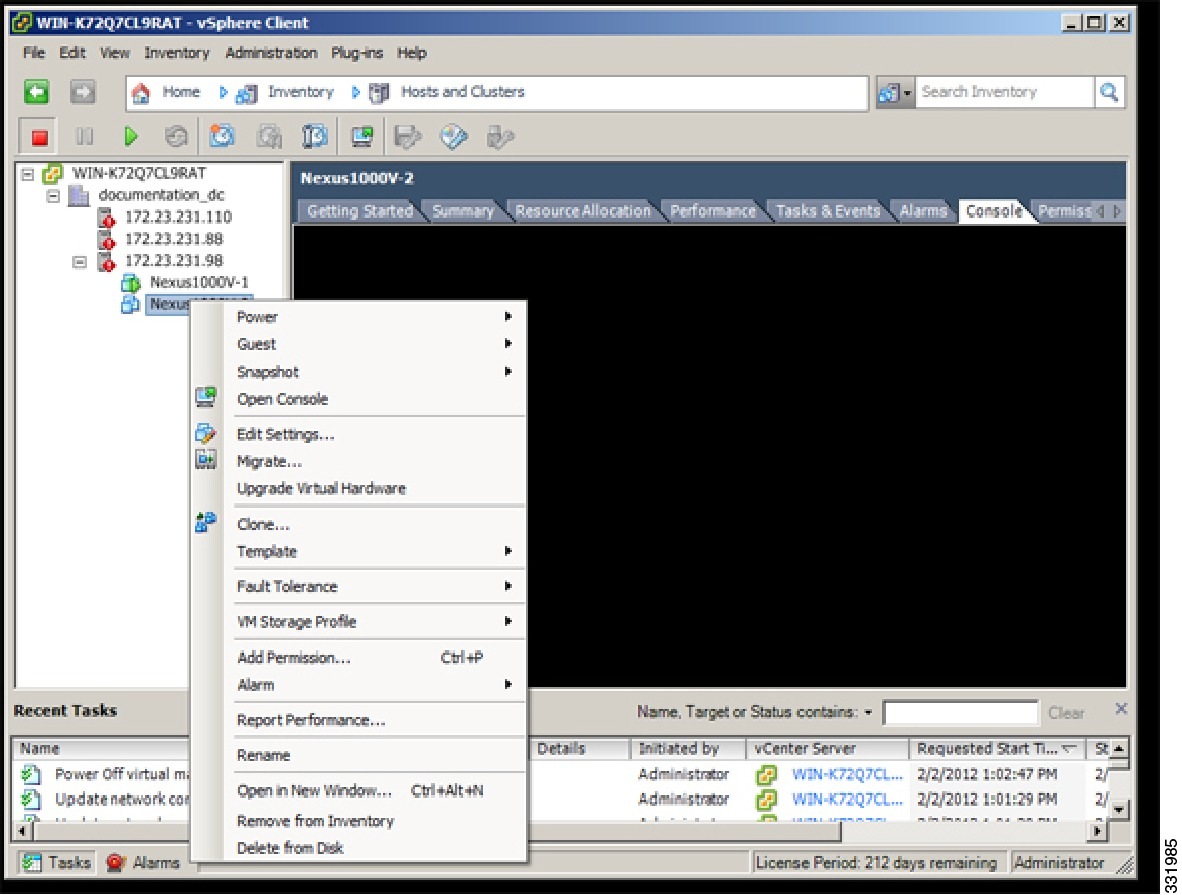

          Step 4   In the Migrate Secondary VSM window, right-click the secondary VSM and from the drop-down list, choose Migrate.
          Figure 29. Migrate Secondary VSM Window

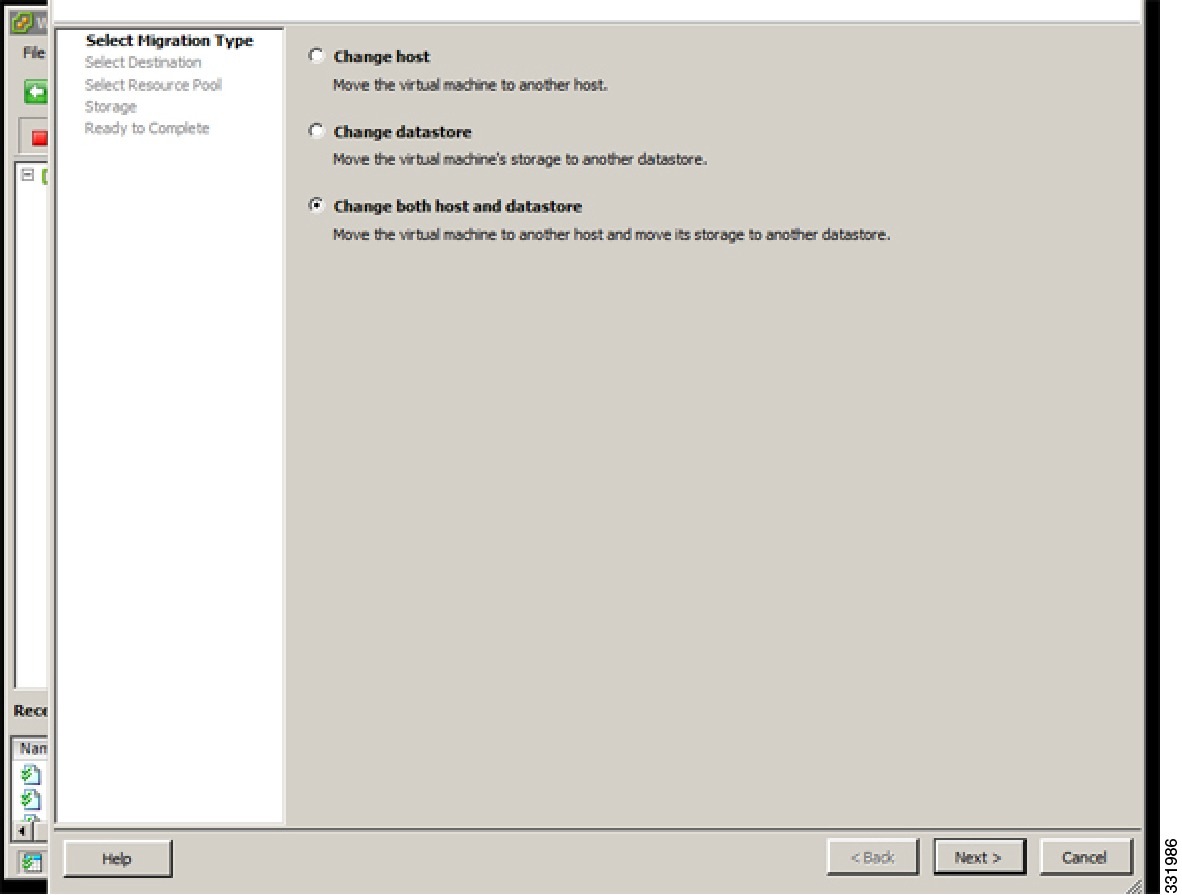

          Step 5   In the Select Migration Type screen, click the Change both host and datastore radio button and click Next.
          Figure 30. Select Migration Type Screen



          Step 6   In the Select Destination screen, choose the host for migration and click Next.

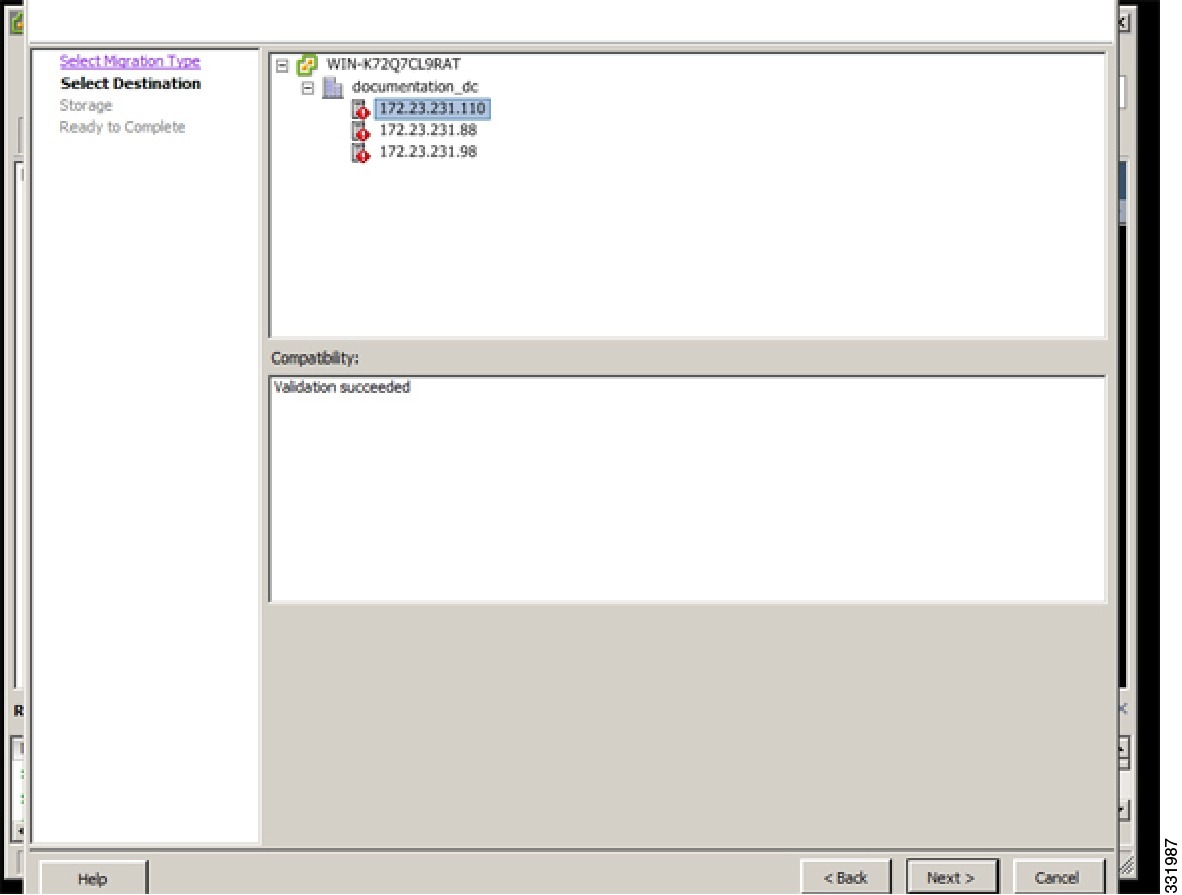

          Figure 31. Select Destination Screen



          Step 7   In the Storage screen, click Next.
          Figure 32. Storage Screen

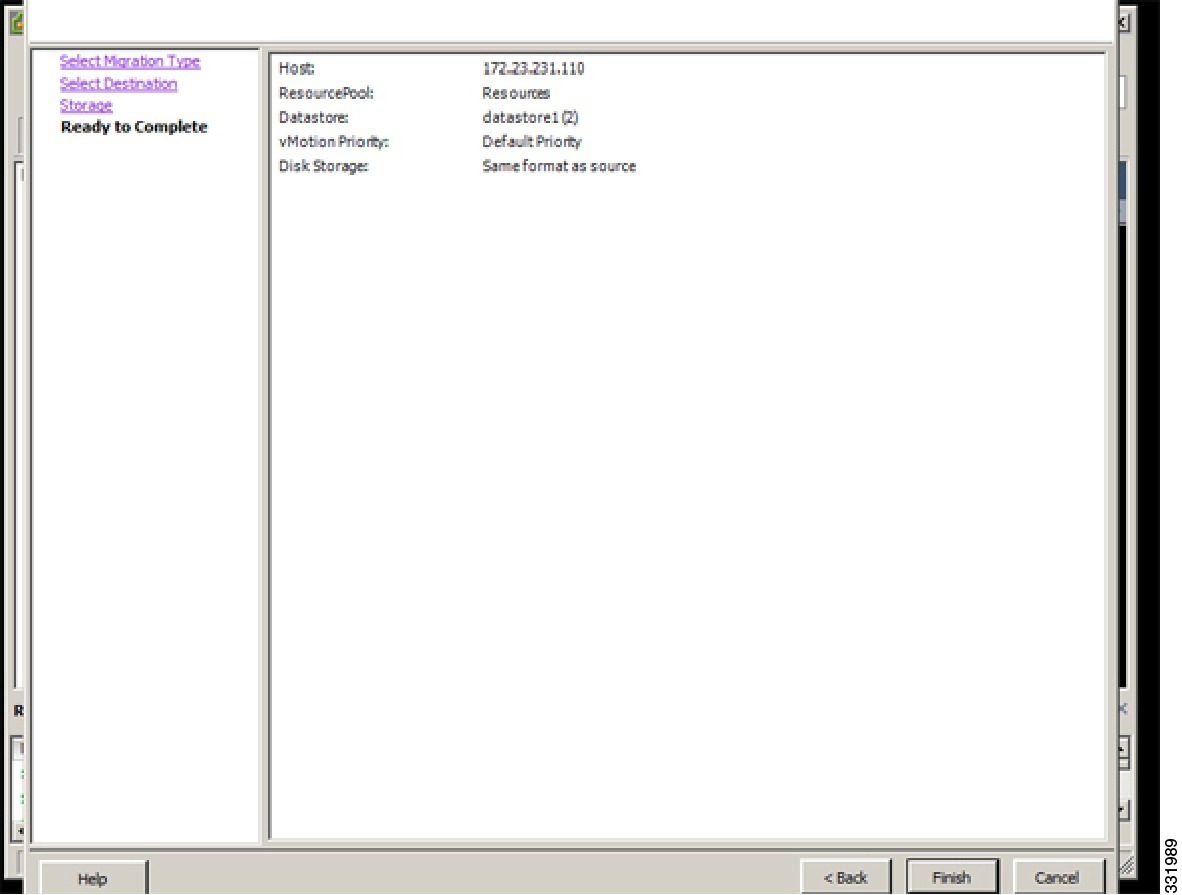

          Step 8   In the Ready to Complete screen, click Finish.
          Figure 33. Ready to Complete Screen

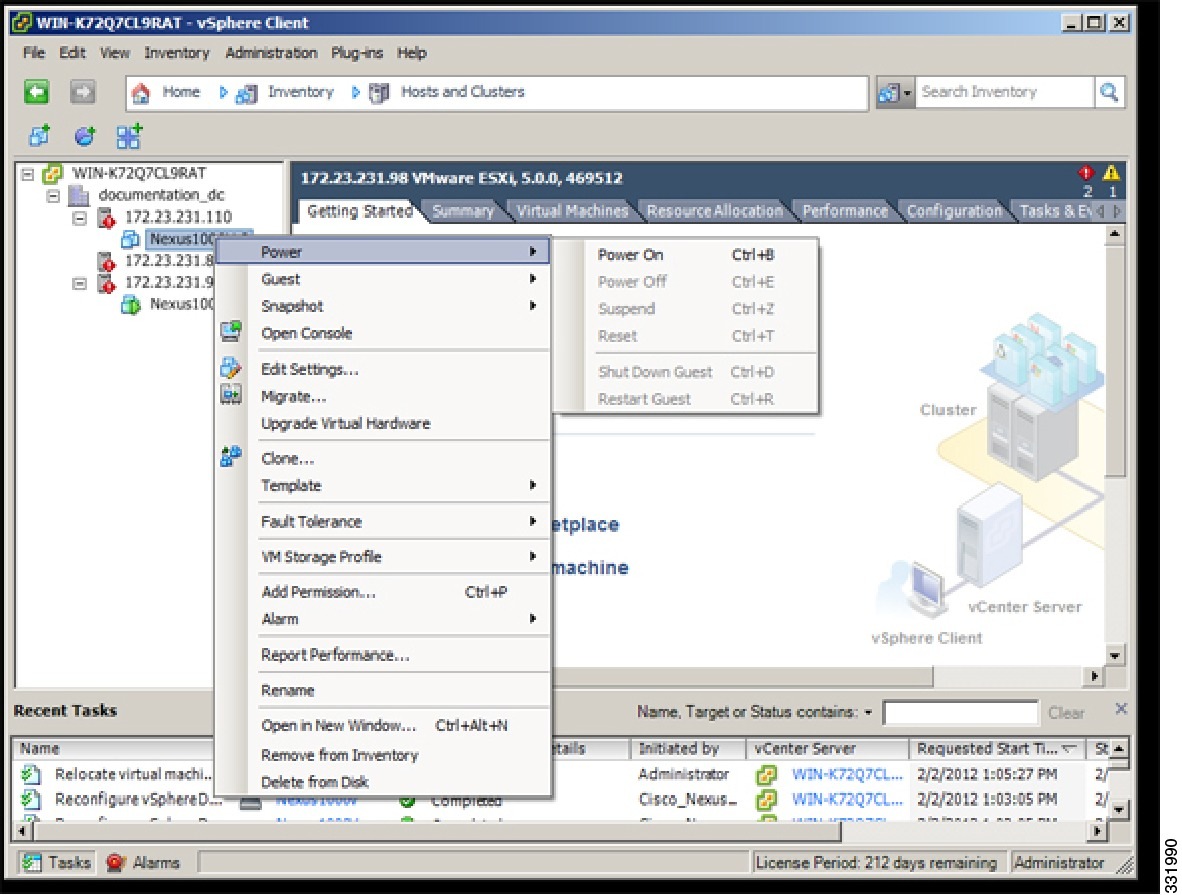

          Step 9   In the Power On window, right-click the secondary VSM and from the drop-down list, choose Power > Power On.
          Figure 34. Power On Window



          The movement of the secondary VSM to a different host than the primary VSM is complete.

          Setting Virtual Machine Startup and Shutdown Parameters

          Before You Begin
          • You have the following information:
            • Number of seconds for the default startup delay
            • Number of seconds for the default shutdown delay
          Procedure
            Step 1   In the vSphere Client window, choose a host and click the Configuration tab.
            Figure 35. vSphere Client Window



            Step 2   In the Configuration pane, choose Virtual Machine Startup/Shutdown.
            Figure 36. Configuration Pane



            Step 3   In the Virtual Machine Startup and Shutdown pane, click the Properties link.
            Figure 37. Virtual Machine Startup and Shutdown Pane



            Step 4   In the System Settings dialog box, do the following:
            1. Check the Allow virtual machines to start and stop automatically with the system check box.
            2. In the System Settings pane, do the following:
              • Enter a number of seconds in the Default Startup Delay seconds field.
              • Enter a number of seconds in the Default Shutdown Delay seconds field.
            3. In the Startup Order pane, do the following:
              • Choose the virtual machine.
              • Click the Move Up button until the virtual machine is under Automatic Startup.
            4. Click OK.
            5. Repeat Step 2 through Step 4 for the other virtual machine.
            Figure 38. System Settings Dialog Box



            Startup and shutdown settings are complete.

            Installing the VEM Software Using VUM

            Before You Begin

            VMware Update Manager (VUM) automatically selects the correct VEM software to be installed on the host when the host is added to the DVS.


            Note

            Make sure that you read the VEM Prerequisites to ensure that the VUM operation proceeds without failure.

            Installing the VEM Software Using the CLI

            Installing VEM Software Locally on a VMware 4.1 Host by Using the CLI

            Before You Begin
            • If you are using the esxupdate command, you are logged into the ESX host.
            • Check the Cisco Nexus 1000V and VMware Compatibility Information for compatible versions.
            • You have already copied the VEM software installation file to the /tmp directory.
            • You know the name of the VEM software file to be installed.
            Procedure
              Step 1   From the ESX host /tmp directory, begin the VEM update procedure.
              • If the offline bundle is used, enter the following command: esxupdate --bundle VMware_offline_update_bundle update


              Example:
              /tmp # esxupdate --bundle VEM410-201201401.zip update
Unpacking cross_cisco-vem-v14.. ######################################## [100%]

Installing packages :cross_ci.. ######################################## [100%]

Running [/usr/sbin/vmkmod-install.sh]...
ok.
              • If the VIB file is used, enter the following command: esxupdate -b VIB_file update


              Example:
              /tmp # esxupdate -b cross_cisco-vem-v140-4.2.1.1.5.2.0-2.0.1.vib update

Unpacking cross_cisco-vem-v140-esx.. ################################################# [100%]

Installing packages :cross_cisco-v.. ################################################# [100%]

Running [/usr/sbin/vmkmod-install.sh]...
ok.

              This command loads the software manually onto the host, loads the kernel modules, and starts the VEM Agent on the running system.

              Step 2   Verify that the VEM software is installed on the host.
              /tmp # esxupdate --vib-view query | grep cisco
cross_cisco-vem-v140-4.2.1.1.5.2.0-2.0.1.vib                                installed     2012-02-02T12:29:18.728890+00:00
              Step 3   Verify that the installation was successful by checking for the “VEM Agent (vemdpa) is running” statement in the output of the vem status command.
              /tmp # vem status -v
Package vssnet-esx5.5.0-00000-release
Version 4.2.1.1.5.2.0-2.0.2
Build 2
Date Tue Jan 31 05:01:37 PST 2012

Number of PassThru NICs are 0
VEM modules are loaded

Switch Name      Num Ports   Used Ports  Configured Ports  MTU     Uplinks
vSwitch0         128         3           128               1500    vmnic0

Number of PassThru NICs are 0
VEM Agent (vemdpa) is running
              Step 4   Do one of the following:
              • If the installation was successful, the installation procedure is complete.
              • If the installation was not successful, see the "Recreating the Cisco Nexus 1000V Installation" section in the Cisco Nexus 1000V Troubleshooting Guide.

              Installing the VEM Software Remotely on a VMware 4.1 Host by Using the CLI

              Before You Begin
              • If you are using the vSphere command-line interface (vCLI), do the following:
                • You have downloaded and installed the VMware vCLI. For information about installing the vCLI, see the VMware vCLI documentation.
                • You are logged in to the remote machine where the vCLI is installed.

              Note

              The vCLI command set allows you to enter common system administration commands against ESX/ESXi systems from any machine with network access to those systems. You can also enter most CLI commands against a vCenter Server system and target any ESX/ESXi system that the vCenter Server system manages. vCLI commands are especially useful for ESXi hosts because ESXi does not include a service console.

              Procedure
                Step 1   Go to the directory where the new VEM software was copied.
                [root@serialport -]# cd tmp
[root@serialport tmp]#
                Step 2   Install the VEM software. [root@serialport tmp]# vihostupdate -i -b ./Cisco_updated_VEM_offline_bundle --server vsphere_host

                Example:
                [root@serialport tmp]# vihostupdate -i -b ./VEM410-201201401.zip --server 192.0.2.0
Enter username: root
Enter password:
Please wait patch installation is in progress ...
Host updated successfully.
                Step 3   Verify that the VEM software is installed on the host. vihostupdate.pl -q --server host_ip_address

                Example:
                [root@serialport tmp]# vihostupdate.pl -q --server 192.0.2.1
Enter username: root
Enter password:

                Look for the following:

                ---------Bulletin ID--------- -----Installed----- ----------------Summary-------
----------
VEM410-201201401-BG           2012-02-02T00:54:14 Cisco Nexus 1000V 4.2(1)SV1(5.2)
                Step 4   Do one of the following:
                • If the installation was successful, the installation procedure is complete.
                • If the installation was not successful, see the "Recreating the Cisco Nexus 1000V Installation" section in the Cisco Nexus 1000V Troubleshooting Guide.

                Installing the VEM Software Locally on a VMware 5.0 Host by Using the CLI

                Procedure
                  Step 1   Copy the VEM software to the /tmp directory.
                  Step 2   Begin the VEM installation procedure. esxcli software vib install -v /tmp/VIB_FILE

                  Example:
                  ~ # esxcli software vib install -v /tmp/cross_cisco-vem-v140-4.2.1.1.5.2.0-3.0.1.vib
Installation Result
   Message: Operation finished successfully.
   Reboot Required: false
   VIBs Installed: Cisco_bootbank_cisco-vem-v140-esx_4.2.1.1.5.2.0-3.0.1
   VIBs Removed:
   VIBs Skipped:
                  Step 3   Verify that the VEM software is installed on the host.
                  ~ # esxcli software vib list | grep cisco
cisco-vem-v140-esx 4.2.1.1.5.2.0-3.0.1 Cisco PartnerSupported
2012-02-02
                  Step 4   Verify that the installation was successful by checking for the “VEM Agent (vemdpa) is running” statement in the output of the vem status command.

                  Example:
                  ~ # vem status -v
Package vssnet-esxmn-ga-release
Version 4.2.1.1.5.2.0-3.0.1
Build 1
Date Mon Jan 30 18:38:49 PST 2012

Number of PassThru NICs are 0
VEM modules are loaded

Switch Name    Num Ports   Used Ports  Configured Ports MTU   Uplinks
vSwitch0       128         3           128              1500  vmnic0
Number of PassThru NICs are 0
VEM Agent (vemdpa) is running
                  Step 5   Do one of the following:
                  • If the installation was successful, the installation procedure is complete.
                  • If the installation was not successful, see the "Recreating the Cisco Nexus 1000V Installation" section in the Cisco Nexus 1000V Troubleshooting Guide.

                  Installing VEM Software Remotely on a VMware 5.0 Host by Using the CLI

                  Procedure
                    Step 1   Copy the VEM software to the NFS storage which is mounted on the ESXi 5.0 host.
                    Step 2   Enter the following command from the remote machine where the vCLI is installed. esxcli --server=[server ip] software vib install --depot=Path_to_the_NFS_storage_mounted_ _on_ESXi_5.0 host

                    Example:
                    vi-admin@localhost:~> esxcli --server=192.0.2.2 software vib install --depot=/vmfs/volumes/newnfs/MN-patch01/CN-FCS/VEM500-201201140102-BG-release.zip
Enter username: root
Enter password:
Installation Result
   Message: Operation finished successfully.
   Reboot Required: false
   VIBs Installed: Cisco_bootbank_cisco-vem-v140-esx_4.2.1.1.5.2.0-3.0.1
   VIBs Removed:
   VIBs Skipped:

                    where 192.0.2.2 is the target ESXi 5.0 host IP address and newnfs is the NFS storage mounted on the ESXi 5.0 host.

                    Note

                    You should refer to the official VMware documentation for further information on the esxcli command.

                    Step 3   Verify that the VEM software is installed on the host. esxcli --server=host_ip_address software vib list

                    Example:
                    vi-admin@localhost:~> esxcli --server=192.0.2.1 software vib list
Enter username: root
Enter password:

                    Look for the following:

                    Name                  Version                             Vendor  Acceptance Lev
el  Install Date
--------------------  ----------------------------------  ------  --------------
--  ------------
cisco-vem-v140-esx    4.2.1.1.5.2.0-3.0.1                 Cisco   PartnerSupport
ed  2012-04-06
                    Step 4   Do one of the following:
                    • If the installation was successful, the installation procedure is complete.
                    • If the installation was not successful, see the "Recreating the Cisco Nexus 1000V Installation" section in the Cisco Nexus 1000V Troubleshooting Guide.

                    Installing the VEM Software on a Stateless ESXi Host

                    The following list outlines the VEM installation process on a stateless ESXi host.

                    Procedure
                      Step 1   See the procedure for Adding the Cisco Nexus 1000V to an ESXi Image Profile.
                      Step 2   Installing the VEM software using one of the two following procedures:
                      Step 3   See the procedure for Configuring Layer 2 Connectivity.

                      Stateless ESXi Host


                      Note

                      For Stateless ESXi, the VLAN used for Preboot Execution Environment (gPXE) and Management must be a native VLAN in the Cisco Nexus 1000V management uplink. It must also be a system VLAN on the management VMkernel NIC and on the uplink.

                      VMware vSphere 5.0.0 introduces the VMware Auto Deploy, which provides the infrastructure for loading the ESXi image directly into the host’s memory. The software image of a stateless ESXi is loaded from the Auto Deploy Server after every boot. In this context, the image with which the host boots is identified as the image profile.

                      An image profile is a collection of vSphere Installation Bundles (VIBs) required for the host to operate and the image profile includes base VIBs from VMware and additional VIBs from partners.

                      On a stateless host, VEM software can be installed or upgraded using either the VUM or CLI.

                      In addition, you should bundle the new or modified VEM module in the image profile from which the stateless host boots. If it is not bundled in the image profile, the VEM module does not persist across reboots of the stateless host.

                      For more information about the VMware Auto Deploy Infrastructure and stateless boot process, see the “Installing ESXi using VMware Auto Deploy” chapter of the vSphere Installation and Setup, vSphere 5.0.0 document.

                      Adding the Cisco Nexus 1000V to an ESXi Image Profile

                      Before You Begin
                      • Install and set up the VMware Auto Deploy Server. See the vSphere Installation and Setup document.
                      • Install the VMware PowerCLI on a Windows platform. This step is required for bundling the VEM module into the image profile. For more information, see the vSphere PowerCLI Installation Guide.
                      • On the same Windows platform, where VMware PowerCLI is installed, do the following:
                        • Download the image profile offline bundle, which is a ZIP file, to a local file path.
                        • Download the VEM offline bundle, which is a ZIP file, to a local file path.

                      Note

                      In the following procedure, the image profile bundle is available as C:\ESXi-5.0.0-depot.zip and the VEM bundle is available as C:\VEM500-20110822140-BG.zip.

                      Procedure
                        Step 1   Start the vSphere PowerCLI application.
                        Step 2   Connect to the vCenter Server.
                        [vSphere PowerCLI] > Connect-VIServer 192.0.2.1 –User Administrator –Password XXXXX
                        Step 3   Load the image profile offline bundle.
                        Note

                        Each image profile bundle can include multiple image profiles.

                        [vSphere PowerCLI] > Add-ESXSoftwareDepot c:\vmware-ESXi-5.0.0-depot.zip
                        Step 4   List the image profiles.
                        [vSphere PowerCLI] > Get-EsxImageProfile

Name                             Vendor          Last Modified
----                             ------          -------------
ESXi-5.0.0-standard              VMware, Inc.    2/25/2011 9:42:21 PM
ESXi-5.0.0-no-tools              VMware, Inc.    2/25/2011 9:42:21 PM
                        Step 5   Choose the image profile into which the VEM is to be bundled from the output of the Get-EsxImageProfile command.
                        Note

                        The image profiles will be in read-only format. You need to clone the image profile before adding the VEM into it.

                        [vSphere PowerCLI] > New-EsxImageProfile -CloneProfile ESXi-5.0.0-standard -Name n1kv-Image
                        Note

                        The n1kv-Image is the cloned image profile of the ESXi-5.0.0-standard.

                        Step 6   Load the Cisco Nexus 1000V VEM offline bundle.
                        Note

                        The offline bundle is a zip file that includes the n1kv-vib file.

                        [vSphere PowerCLI] > Add-EsxSoftwareDepot C:\VEM500-20110822140-BG.zip
                        Step 7   Confirm that the n1kv-vib package is loaded.
                        [vSphere PowerCLI] > Get-EsxSoftwarePackage -Name cisco*

Name                           Version              Vendor          Release
----                           -------              ------          -----------
cisco-vem-v131-esx             4.2.1.1.3.24.0-3.0.8 Cisco           8/22/2011.
                        Step 8   Bundle the n1kv-package into the cloned image profile.
                        [vSphere PowerCLI] > Add-EsxSoftwarePackage -ImageProfile n1kv-Image -SoftwarePackage cisco-vem-v131-esx
                        Step 9   List all the VIBs in the cloned image profile.
                        [vSphere PowerCLI]> $img = Get-EsxImageProfile n1kv-Image
[vSphere PowerCLI]> $img.vibList

Name                     Version                        Vendor     Release Date
----                     -------                        ------     ------------
scsi-bnx2i               1.9.1d.v50.1-3vmw.500.0.0.4... VMware     6/22/2011...
net-s2io                 2.1.4.13427-3vmw.500.0.0.43... VMware     6/22/2011...
net-nx-nic               4.0.557-3vmw.500.0.0.434219    VMware     6/22/2011...
scsi-aic79xx             3.1-5vmw.500.0.0.434219        VMware     6/22/2011...
sata-ata-piix            2.12-4vmw.500.0.0.434219       VMware     6/22/2011...
net-e1000e               1.1.2-3vmw.500.0.0.434219      VMware     6/22/2011...
net-forcedeth            0.61-2vmw.500.0.0.434219       VMware     6/22/2011...
tools-light              5.0.0-0.0.434219               VMware     6/22/2011...
ipmi-ipmi-msghandler     39.1-4vmw.500.0.0.434219       VMware     6/22/2011...
scsi-aacraid             1.1.5.1-9vmw.500.0.0.434219    VMware     6/22/2011...
net-be2net               4.0.88.0-1vmw.500.0.0.434219   VMware     6/22/2011...
sata-ahci                3.0-6vmw.500.0.0.434219        VMware     6/22/2011...
ima-qla4xxx              2.01.07-1vmw.500.0.0.434219    VMware     6/22/2011...
ata-pata-sil680          0.4.8-3vmw.500.0.0.434219      VMware     6/22/2011...
scsi-ips                 7.12.05-4vmw.500.0.0.434219    VMware     6/22/2011...
scsi-megaraid-sas        4.32-1vmw.500.0.0.434219       VMware     6/22/2011...
scsi-mpt2sas             06.00.00.00-5vmw.500.0.0.43... VMware     6/22/2011...
net-cnic                 1.10.2j.v50.7-2vmw.500.0.0.... VMware     6/22/2011...
ipmi-ipmi-si-drv         39.1-4vmw.500.0.0.434219       VMware     6/22/2011...
esx-base                 5.0.0-0.0.434219               VMware     6/22/2011...
ata-pata-serverworks     0.4.3-3vmw.500.0.0.434219      VMware     6/22/2011...
scsi-mptspi              4.23.01.00-5vmw.500.0.0.434219 VMware     6/22/2011...
net-bnx2x                1.61.15.v50.1-1vmw.500.0.0.... VMware     6/22/2011...
ata-pata-hpt3x2n         0.3.4-3vmw.500.0.0.434219      VMware     6/22/2011...
sata-sata-sil            2.3-3vmw.500.0.0.434219        VMware     6/22/2011...
scsi-hpsa                5.0.0-17vmw.500.0.0.434219     VMware     6/22/2011...
block-cciss              3.6.14-10vmw.500.0.0.434219    VMware     6/22/2011...
net-tg3                  3.110h.v50.4-4vmw.500.0.0.4... VMware     6/22/2011...
net-igb                  2.1.11.1-3vmw.500.0.0.434219   VMware     6/22/2011...
ata-pata-amd             0.3.10-3vmw.500.0.0.434219     VMware     6/22/2011...
ata-pata-via             0.3.3-2vmw.500.0.0.434219      VMware     6/22/2011...
net-e1000                8.0.3.1-2vmw.500.0.0.434219    VMware     6/22/2011...
scsi-adp94xx             1.0.8.12-6vmw.500.0.0.434219   VMware     6/22/2011...
scsi-lpfc820             8.2.2.1-18vmw.500.0.0.434219   VMware     6/22/2011...
scsi-mptsas              4.23.01.00-5vmw.500.0.0.434219 VMware     6/22/2011...
ata-pata-cmd64x          0.2.5-3vmw.500.0.0.434219      VMware     6/22/2011...
sata-sata-svw            2.3-3vmw.500.0.0.434219        VMware     6/22/2011...
misc-cnic-register       1.1-1vmw.500.0.0.434219        VMware     6/22/2011...
ipmi-ipmi-devintf        39.1-4vmw.500.0.0.434219       VMware     6/22/2011...
sata-sata-promise        2.12-3vmw.500.0.0.434219       VMware     6/22/2011...
sata-sata-nv             3.5-3vmw.500.0.0.434219        VMware     6/22/2011...
cisco-vem-v131-esx       4.2.1.1.3.24.0-3.0.8           Cisco      6/30/2011...
                        Step 10   Export the image profile to a depot file for future use.
                        [vSphere PowerCLI] > Export-EsxImageProfile –ImageProfile n1kv-Image –FilePath C:\n1kv-Image.zip –ExportToBundle.
                        Step 11   Set up the rule for the host to boot with this image profile.
                        Note

                        Any of the host parameters, such as the MAC address, IPV4 IP address, or domain name, can be used to associate an image profile with the host.

                        [vSphere PowerCLI] > New-deployrule -item $img -name rule-test –Pattern “mac=00:50:56:b6:03:c1”
[vSphere PowerCLI] > Add-DeployRule -DeployRule rule-test
                        Step 12   Display the configured rule to make sure that the correct image profile is associated with the host.
                        [vSphere PowerCLI] > Get-DeployRuleSet

Name        : rule-test
PatternList : {mac=00:50:56:b6:03:c1}
ItemList    : {n1kv-Image}
                        Step 13   Reboot the host.

                        The host contacts the Auto-Deploy Server and presents the host boot parameters. The Auto Deploy server checks the rules to find the image profile associated with this host and loads the image to the host’s memory. The host boots from the image.

                        Installing the VEM Software on a Stateless ESXi Host Using esxcli

                        Before You Begin
                        • When entering the esxcli software vib install command on an ESXi 5.0.0 host, note that the following message appears: Message: WARNING: Only live system was updated, the change is not persistent.
                        Procedure
                          Step 1   Display the VMware version and build number.
                          ~ # vmware -v
VMware ESXi 5.0.0 build-441354
~ #
~ # vmware -l
VMware ESXi 5.0.0 GA
                          Step 2   Log in to the ESXi stateless host.
                          Step 3   Copy the offline bundle to the host.
                          ~ # esxcli software vib install -d /vmfs/volumes/newnfs/MN-VEM/VEM500-20110728153-BG-release.zip
Installation Result
   Message: WARNING: Only live system was updated, the change is not persistent.
   Reboot Required: false
   VIBs Installed: Cisco_bootbank_cisco-vem-v131-esx_4.2.1.1.4.1.0-3.0.5
   VIBs Removed:
   VIBs Skipped:
                          Note

                          If the host is an ESXi 5.0.0 stateful host, the “Message: Operation finished successfully” line appears.

                          Step 4   Verify that the VIB has installed.
                          ~ # esxcli software vib list | grep cisco
cisco-vem-v131-esx    4.2.1.1.4.1.0-3.0.5                 Cisco   PartnerSupported  2011-08-18
                          Step 5   Check that the VEM agent is running.
                          ~ # vem status -v
Package vssnet-esxmn-ga-release
Version 4.2.1.1.4.1.0-3.0.5
Build 5
Date Thu Jul 28 01:37:10 PDT 2011
Number of PassThru NICs are 0
VEM modules are loaded
Switch Name      Num Ports   Used Ports  Configured Ports  MTU     Uplinks
vSwitch0         128         4           128               1500    vmnic4
Number of PassThru NICs are 0
VEM Agent (vemdpa) is running
                          Step 6   Display the VEM version, VSM version, and ESXi version.
                          ~ # vemcmd show version
VEM Version: 4.2.1.1.4.1.0-3.0.5
VSM Version:
System Version: VMware ESXi 5.0.0 Releasebuild-441354
                          Step 7   Display the ESXi version and details about pass-through NICs.
                          ~ # vem version -v
Number of PassThru NICs are 0
Running esx version -441354 x86_64
VEM Version: 4.2.1.1.4.1.0-3.0.5
VSM Version:
System Version: VMware ESXi 5.0.0 Releasebuild-441354
                          Step 8   Add the host to the DVS by using the vCenter Server.
                          Step 9   On the VSM, verify that the VEM software has been installed.
                          switch# show module
Mod  Ports  Module-Type                       Model               Status
---  -----  --------------------------------  ------------------  ------------
1    0      Virtual Supervisor Module         Nexus1000V          active *
2    0      Virtual Supervisor Module         Nexus1000V          ha-standby
3    248    Virtual Ethernet Module          NA                             ok

Mod  Sw                Hw
---  ----------------  ------------------------------------------------
1    4.2(1)SV1(4a)     0.0
2    4.2(1)SV1(4a)     0.0
3    4.2(1)SV1(4a)     VMware ESXi 5.0.0 Releasebuild-441354 (3.0)

Mod  MAC-Address(es)                         Serial-Num
---  --------------------------------------  ----------
1    00-19-07-6c-5a-a8 to 00-19-07-6c-62-a8  NA
2    00-19-07-6c-5a-a8 to 00-19-07-6c-62-a8  NA
3    02-00-0c-00-03-00 to 02-00-0c-00-03-80  NA

Mod  Server-IP        Server-UUID                           Server-Name
---  ---------------  ------------------------------------  --------------------
1    10.104.62.227    NA                                    NA
2    10.104.62.227    NA                                    NA
3    10.104.62.216    3fa746d4-de2f-11de-bd5d-c47d4f7ca460  sans2-216.cisco.com

                          Installing the VEM Software on a Stateless ESXi Host Using VUM

                          Before You Begin
                          • Make sure that the VUM patch repository has the VEM software downloaded.
                          Procedure
                            Step 1   In the vCenter Server, choose Home > Update Manager > Configuration > ESX host/Cluster settings.
                            Step 2   Check the PXE Booted ESXi Host Settings check box.
                            Figure 39. ESX Host/Cluster Settings Window



                            Step 3   Add the host to the DVS by using the vCenter Server.

                            Information About Layer 2 Connectivity


                            Note

                            Layer 3 connectivity is the preferred method.

                            The following figure shows an example of redundant VSM VMs, where the software for the primary VSM is installed on ESXi 1, and the software for the secondary VSM is installed on ESXi 2 for Layer 2 connectivity.

                            Figure 40. Cisco Nexus 1000V Installation Diagram for Layer 2



                            Layer 2 on the Same Host

                            The following figure shows a VSM and VEM running on the same host in Layer 2 mode.

                            Figure 41. VSM and VEM on the Same Host in Layer 2 Mode



                            Configuring Layer 2 Connectivity


                            Note

                            Layer 3 connectivity is the preferred method.

                            Procedure
                              Step 1   To configure a different VMware vSwitch port group for each VSM network adapter, in the Configure Networking screen click L2: Configure port groups for L2.
                              Step 2   In the Configure Networking screen, do the following:
                              • From the Port Group drop-down lists, choose your port groups.
                              • (Optional) In the VLAN ID field, enter the VLAN ID.
                                Note

                                Only needed if you choose to create a new port group.

                              • Click Next.
                              Figure 42. Configure Networking Screen



                              Step 3   Return to Step 17 in the Layer 2 configuration procedure.

                              Installing a VSM on the Cisco Nexus 1010

                              You can install the VSM on the Cisco Nexus 1010 and move from Layer 2 to Layer 3 connectivity.

                              Procedure
                                Step 1   Create a virtual service blade by entering the following commands.
                                switch(config)# show virtual-service-blade summary

---------------------------------------------------------------------------------
Name        HA-Role       HA-Status     Status               Location
---------------------------------------------------------------------------------
switch(config)# virtual-service-blade vsm-1
switch(config-vsb-config)# virtual-service-blade-type new nexus-1000v.4.2.1.SV1.5.2.iso
switch(config-vsb-config)# show virtual-service-blade summary

--------------------------------------------------------------------------------------
Name        HA-Role       HA-Status     Status                   Location
--------------------------------------------------------------------------------------
vsm-1       PRIMARY       NONE          VSB NOT PRESENT          PRIMARY
vsm-1       SECONDARY     NONE          VSB NOT PRESENT          SECONDARY

switch(config-vsb-config)#
                                Step 2   Configure the control, packet, and management interface VLANs for static and flexible topologies.
                                switch(config-vsb-config)# interface management vlan 100
switch(config-vsb-config)# interface control vlan 101
switch(config-vsb-config)# interface packet vlan 101
                                Step 3   Configure the Cisco Nexus 1000V on the Cisco Nexus 1010.
                                switch(config-vsb-config)# enable
Enter vsb image: [nexus-1000v.4.2.1.SV1.5.2.iso]
Enter domain id[1-4095]: 127
Enter SVS Control mode (L2 / L3): [L3] L2
Management IP version [V4/V6]: [V4]
Enter Management IP address: 192.0.2.79
Enter Management subnet mask: 255.255.255.0
IPv4 address of the default gateway: 192.0.2.1
Enter HostName: n1000v
Enter the password for ‘admin’: ********
Note: VSB installation is in progress, please use show virtual-service-blade commands to check the installation status.
switch(config-vsb-config)#
                                Step 4   Display the primary and secondary VSM status.
                                switch(config-vsb-config)# show virtual-service-blade summary

--------------------------------------------------------------------------------------
Name        HA-Role       HA-Status     Status                   Location
--------------------------------------------------------------------------------------
vsm-1       PRIMARY       NONE          VSB POWER ON IN PROGRESS PRIMARY
vsm-1       SECONDARY     ACTIVE        VSB POWERED ON           SECONDARY
                                Step 5   Log in to the VSM.
                                switch(config)# virtual-service-blade vsm-1
switch(config-vsb-config)# login virtual-service-blade vsm-1
Telnet escape character is ‘^\’.
Trying 192.0.2.18...
Connected to 192.0.2.18.
Escape character is ‘^\’.

Nexus 1000v Switch
n1000v login: admin
Password:
Cisco Nexus operating System (NX-OS) Software
TAC support: http://www/cisco.com/tac
Copyright (c) 2002-2012, Cisco Systems, Inc. All rights reserved.
The copyrights to certain works contained in this software are
owned by other third parties and used and distributed under
license. Certain components of this software are licensed under
the GNU General Public License (GPL) version 2.0 or the GNU
Lesser General Public License (LGPL) Version 2.1. A copy of each
such license is available at
http://www.opensource.org/licenses/gpl-2.0.php and
http://www.opensource.org/licenses/lgpl-2.1.php
switch#
                                Step 6   Change svs mode from Layer 2 to Layer 3 in Cisco Nexus 1000V.
                                switch(config)# svs-domain
switch(config-svs-domain)# no control vlan
Warning: Config saved but not pushed to vCenter Server due to inactive connection!
switch(config-svs-domain)# no packet vlan
Warning: Config saved but not pushed to vCenter Server due to inactive connection!
switch(config-svs-domain)# svs mode L3 interface mgmt0
Warning: Config saved but not pushed to vCenter Server due to inactive connection!
switch(config-svs-domain)# show svs domain
SVS domain config
  Domain id:    101
  Control vlan: 1
  Packet vlan:  1
  L2/L3 Control mode: L3
  L3 control interface: mgmt0
  Status: Config push to VC failed: (communication failure to VC).
switch(config-svs-domain)#

                                Feature History for Installing the Cisco Nexus 1000V

                                The following table lists the release history for installing the Cisco Nexus 1000V.

                                Feature Name

                                Releases

                                Feature Information

                                Updated installation application

                                4.2(1)SV1(5.2)

                                Added screens to the Java application.

                                VSM and VEM Installation

                                4.2(1)SV1(5.1)

                                Java applications introduced for VSM and VEM installation.

                                Installing the Cisco Nexus 1000V

                                4.0(1)SV1(1)

                                Introduced in this release.
