Installing and Configuring Licenses
This chapter describes how to install and configure licenses and includes the following sections:
•
Information About Licenses
•Guidelines and Limitations
•Default Settings
•Obtaining and Installing a License
•Transferring Licenses
•Uninstalling a License
•Configuring Volatile Licenses
•Verifying the License Configuration
•Changing the Serial Number in a License
•Feature History for Licenses
Information About Licenses
For detailed information about licenses, see Chapter 1, "Overview."
Guidelines and Limitations
Use the following guidelines and limitations when configuring permanent licenses:
•If you modify a permanent license key file, it is invalidated.
•When you purchase permanent licenses, the license key file is sent to you in an e-mail. The license key authorizes use on only the host ID device. You must obtain a separate license key file for each of your VSMs.
•A license file contains the number of licenses ordered for your VSM. One license is required for each CPU on each VEM.
•A VSM can have more than one license file depending on the number of installed VEM CPUs.
•You must have a role equivalent to that of network-admin to install, uninstall, or copy a permanent license file. For information about user accounts and roles, see the Cisco Nexus 1000V Security Configuration Guide, Release 4.2(1)SV1(4).
•If you are installing multiple permanent licenses for the same VSM, also called license stacking, each permanent license key filename must be unique.
•Licenses cannot be applied to a VEM unless there are sufficient licenses in the pool to cover all of its CPUs.
•If a license is in use, you cannot delete its license file. You must first transfer all licenses from the VEMs to the VSM license pool before uninstalling the license file.
•When you install a permanent license file, all default licenses are invalidated. Installing a permanent license file has no effect on evaluation licenses. For more information, see the "Types of Licenses" section on page 2.
Default Settings
Table 2-1 lists the default settings in the license configuration.
Table 2-1 License Defaults
Parameter
|
Default
|
license filename
|
n1kv_license.lic
|
volatile license
|
disabled
By default, licenses are not returned to the VSM pool when a VEM is removed from service.
|
Obtaining and Installing a License
This section describes how to obtain the license file that is required for each VSM and then install it.
This section includes the following topics:
•Flow Chart: Obtaining and Installing a License
•Obtaining the License File
•Installing the License File on the VSM
•Verifying the License Configuration
BEFORE YOU BEGIN
Before beginning the procedures in this section, you must know or do the following:
•A license file is tied to each VSM by the host ID or the serial number associated with the VSM device.
•A license file contains the number of licenses ordered for your VSM. One license is required for each CPU on each VEM.
•A VSM can have more than one license file depending on the number of installed VEM CPUs.
Flow Chart: Obtaining and Installing a License
Use the flow chart in Figure 1 to guide you through the process of installing a license on a VSM. After completing a procedure, return to the flow chart to make sure you complete all procedures in the correct sequence.
Figure 1 Flow Chart: Obtaining and Installing a License
Obtaining the License File
You can use this procedure to obtain a license file for a VSM.
BEFORE YOU BEGIN
Before beginning this procedure, you must know or do the following:
•A license file is tied to each VSM by the host ID or the serial number associated with the VSM device.
•Make sure that you have your product authorization key (PAK), found in your software license claim certificate.
If you cannot locate your software license claim certificate, contact Cisco Technical Support.
•You are logged in to the CLI in EXEC mode.
•In this procedure, you must copy a license file. This requires that your username have a role equivalent to that of the network-admin role which allows you to copy files. For information about user accounts and roles, see the Cisco Nexus 1000V Security Configuration Guide, Release 4.2(1)SV1(4).
PROCEDURE
Step 1 Obtain the serial number, also called the host ID, for your VSM:
n1000v# show license host-id
License hostid: VDH=1280389551234985805
Note The host ID includes everything that appears after the equal sign (=). In this example, the host ID is 1280389551234985805. You will need the host ID in Step 4.
Step 2 From your software license claim certificate, locate the product authorization key (PAK).
You will need the PAK in Step 4.
Step 3 Go to the Product License Registration site.
Step 4 From the Product License Registration website, follow the instructions for registering your VSM license.
The license key file is sent to you in an e-mail. The license key authorizes use on only the host ID device. You must obtain separate license key file(s) for each of your VSMs.
Caution The license key file is invalidated if you modify it.
Step 5 Copy your license key file to bootflash on the VSM.
copy [source url] filename [destination filesystem:] filename
Note The file in bootflash: must have a filename that ends in .lic One that ends in .LIC will not work.
n1000v# copy scp://user@linux-box.cisco.com/home/user/n1kv_license.lic bootflash:
n1kv_license.lic
Enter vrf (If no input, current vrf 'default' is considered):
user@linux-box.cisco.com's password:
n1kv_license.lic 100% 252 0.3KB/s 00:00
Installing the License File on the VSM
You can use this procedure to install the license file(s) on a VSM. Installing multiple licenses is called stacking.
BEFORE YOU BEGIN
Before beginning this procedure, you must know or do the following:
•Default licenses are invalidated when a permanent license file is installed. Make sure that the license file you are installing contains the number of licenses needed to cover all VEMs. For more information, see the "Default Licenses" section on page 3.
•This procedure installs the license file using the name, license_file.lic. You can specify a different name if needed.
•If you are installing multiple licenses for the same VSM, also called license stacking, make sure that each license key filename is unique.
•Repeat this procedure for each additional license file you are installing, or stacking, on the VSM.
•You are logged in to the CLI in EXEC mode.
•You must have a role with privileges equivalent to that of the network-admin role to install a license. For information about user accounts and roles, see the Cisco Nexus 1000V Security Configuration Guide, Release 4.2(1)SV1(4).
SUMMARY STEPS
1. install license bootflash: filename
2. show license file filename
3. show license usage package_name
4. copy running-config startup-config
DETAILED STEPS
| |
Command
|
Purpose
|
Step 1
|
install license bootflash: filename
Example:
n1000v# install license
bootflash:license_file.lic
Installing license ..done
|
Installs the license from the active VSM console.
Note If you specify a license filename, the file is installed with the specified name. Otherwise, the default filename is used.
The license is installed on the VSM and each VEM automatically acquires a license for every CPU socket.
|
Step 2
|
show license file filename
Example:
n1000v# show license file
license_file.lic
|
Verifies the license installation by displaying the license configured for the VSM.
|
Step 3
|
show license usage package_name
Example:
n1000v#show license usage
NEXUS1000V_LAN_SERVICES_PKG
|
Verifies the license installation by displaying it in the license usage table.
Note If you already have VEMs installed, the output of this command shows installed VEMs and sockets.
|
Step 4
|
copy running-config startup-config
Example:
n1000v(config)# copy running-config
startup-config
|
(Optional) Saves the running configuration persistently through reboots and restarts by copying it to the startup configuration.
|
Example Configuration
This example shows how to install a license file and then display its contents and usage:
n1000v# install license bootflash:license_file.lic
Installing license ..done
n1000v# show license file license_file.lic
INCREMENT NEXUS1000V_LAN_SERVICES_PKG cisco 1.0 permanent 10 \
HOSTID=VDH=1575337335122974806 \
NOTICE="<LicFileID>license_file.lic</LicFileID><LicLineID>0</LicLineID> \
<PAK>PAK12345678</PAK>" SIGN=3AF5C2D26E1A
n1000v# show license usage NEXUS1000V_LAN_SERVICES_PKG
--------------------------------------
Feature Usage Info
--------------------------------------
Installed Licenses : 10
Default Eval Licenses : 0
Max Overdraft Licenses : 16
Installed Licenses in Use : 2
Overdraft Licenses in Use : 0
Default Eval Lic in Use : 0
Licenses Available : 24
Shortest Expiry : Never
--------------------------------------
Application
--------------------------------------
VEM 3 - Socket 1
VEM 3 - Socket 2
--------------------------------------
Transferring Licenses
You can use the following procedures in this section to transfer licenses between VEMs and uninstall a license by transferring it from a VEM to the VSM license pool.
•Transferring Licenses Between VEMs
•Transferring Licenses to the License Pool
•Transferring Licenses from the License Pool to VEMs
Transferring Licenses Between VEMs
You can use this procedure to transfer licenses from one VEM to another, for example, after moving a VM from one host to another.
BEFORE YOU BEGIN
Before beginning this procedure, you must know or do the following:
•You are logged in to the CLI in EXEC mode.
•You know the VEM that you want to transfer licenses from and the number of licenses it has.
•You know the VEM that you are transferring licenses to and the number of licenses required.
•You know the number of CPUs installed on the destination VEM.
•Licenses cannot be transferred to a VEM unless there are sufficient licenses in the pool to cover all of its CPUs.
•When licenses are successfully transferred from one VEM to another, then the virtual Ethernet interfaces on the source VEM are removed from service, and the virtual Ethernet interfaces on the destination VEM are brought into service. The licenses on the source VEM are checked in regardless of any failure that might occur while the destination module is being licensed.
•For detailed information about the fields in the output of these commands, see the Cisco Nexus 1000V Command Reference, Release 4.2(1)SV1(4).
SUMMARY STEPS
1. svs license transfer src-vem vem_no dst-vem vem_no
2. show license usage package_name
DETAILED STEPS
| |
Command
|
Purpose
|
Step 1
|
svs license transfer src-vem vem_no
dst-vem vem_no
Example:
n1000v# svs license transfer src-vem 3
dst-vem 5
n1000v(config)#
|
Transfers the licenses from one VEM to another.
|
Step 2
|
show license usage package_name
Example:
n1000v#show license usage
|
Verifies the transfer by displaying the licenses in use on each VEM.
|
EXAMPLES
This example shows how to transfer a license from VEM 3 to VEM 5 and verify the transfer in the license usage:
n1000v# svs license transfer src-vem 3 dst-vem 5
n1000v(config)#
n1000v# show license usage NEXUS1000V_LAN_SERVICES_PKG
--------------------------------------
Feature Usage Info
--------------------------------------
Installed Licenses : 10
Eval Licenses : 0
Max Overdraft Licenses : 16
Installed Licenses in Use : 4
Overdraft Licenses in Use : 0
Eval Licenses in Use : 0
Licenses Available : 22
--------------------------------------
Application
--------------------------------------
VEM 4 - Socket 1
VEM 4 - Socket 2
VEM 5 - Socket 1
VEM 5 - Socket 2
--------------------------------------
Transferring Licenses to the License Pool
You can use this procedure to transfer licenses from a VEM to the VSM license pool when, for example, removing a license from a VEM.
BEFORE YOU BEGIN
Before beginning this procedure, you must know or do the following:
•You are logged in to the CLI in EXEC mode.
•When you transfer its licenses to the VSM license pool, all virtual Ethernet interfaces on the VEM are removed from service.
•For detailed information about the fields in the output of these commands, see the Cisco Nexus 1000V Command Reference, Release 4.2(1)SV1(4).
SUMMARY STEPS
1. svs license transfer src-vem vem no license_pool
2. show license usage package_name
DETAILED STEPS
| |
Command
|
Purpose
|
Step 1
|
svs license transfer src-vem vem_no
license_pool
Example:
n1000v# svs license transfer src-vem 3
license_pool
n1000v(config)#
|
Transfers the licenses from a VEM to the license pool. All virtual Ethernet interfaces on the VEM are removed from service.
|
Step 2
|
show license usage package_name
Example:
n1000v# show license usage
|
Verifies the transfer by displaying the licenses in use on each VEM.
|
EXAMPLES
The following example shows how to display the licenses in use on each VEM. Notice that the licenses on VEM 3 are no longer in use.
n1000v#show license usage NEXUS1000V_LAN_SERVICES_PKG
--------------------------------------
Feature Usage Info
--------------------------------------
Installed Licenses : 10
Eval Licenses : 0
Max Overdraft Licenses : 16
Installed Licenses in Use : 2
Overdraft Licenses in Use : 0
Eval Licenses in Use : 0
Licenses Available : 24
--------------------------------------
Application
--------------------------------------
VEM 4 - Socket 1
VEM 4 - Socket 2
--------------------------------------
Transferring Licenses from the License Pool to VEMs
You can use this procedure to transfer licenses from a license pool to a VEM. The VEM will be licensed only if there are enough available licenses.
BEFORE YOU BEGIN
Before beginning this procedure, you must know or do the following:
•You are logged in to the CLI in EXEC mode.
•When you transfer licenses from the license pool to the VEM, if there are enough licenses available the module will be licensed and all the Virtual Ethernet Interfaces that were powered down will be powered up.
•For detailed information about the fields in the output of these commands, see the Cisco Nexus 1000V Command Reference, Release 4.2(1)SV1(4).
SUMMARY STEPS
1. svs license transfer license_pool dst-vem module
2. show module vem module license-info
DETAILED STEPS
| |
Command
|
Purpose
|
Step 1
|
svs license transfer license_pool
dst-vem module
Example:
n1000v# svs license transfer license
license_pool dst-vem 3
n1000v(config)#
|
Transfers a license from the license pool to the VEM.
The value of module can be from 3 - 66.
|
Step 2
|
show module vem module license-info
Example:
n1000v# show module vem 3 license-info
|
Verifies the transfer by displaying the licenses in use on each VEM.
|
EXAMPLES
The following example shows how to display the licenses in use on each VEM.
n1000v#show license usage NEXUS1000V_LAN_SERVICES_PKG
--------------------------------------
Feature Usage Info
--------------------------------------
Installed Licenses : 16
Eval Licenses : 0
Max Overdraft Licenses : 16
Installed Licenses in Use : 4
Overdraft Licenses in Use : 0
Eval Licenses in Use : 0
Licenses Available : 28
Shortest Expiry : Never
--------------------------------------
Application
--------------------------------------
VEM 4 - Socket 1
VEM 4 - Socket 2
--------------------------------------
Uninstalling a License
You can use this procedure to uninstall a license that is not in use.
BEFORE YOU BEGIN
Before beginning this procedure, you must know or do the following:
Caution Service Disruption—When you uninstall a license file from a VSM, the vEthernet interfaces on the VEMs are removed from service and the traffic flowing to them from virtual machines is dropped. This traffic flow is not resumed until you add a new license file with licenses for the VEMs. We recommend that you notify the server administrator that you are uninstalling a license, and this action will cause the vEthernet interfaces to shut down.
•You are logged in to the CLI in EXEC mode.
•If a license is in use, you cannot delete it. This procedure includes instructions for transferring all licenses from the VEMs to the VSM license pool before uninstalling the license file.
•Only users with the network-admin role can uninstall licenses. For information on user accounts and roles, see the Cisco Nexus 1000V Security Configuration Guide, Release 4.2(1)SV1(4).
•For detailed information about the fields in the output of these commands, see the Cisco Nexus 1000V Command Reference, Release 4.2(1)SV1(4).
SUMMARY STEPS
1. copy running-config tftp://server/path/filename
2. show license brief
3. show license usage package_name
4. svs license transfer src-vem vem no license_pool
5. Repeat 4. for each VEM.
6. clear license license_name
7. copy running-config startup-config
DETAILED STEPS
| |
Command
|
Purpose
|
Step 1
|
copy running-config
tftp://server/path/filename
Example:
n1000v# copy running-config tftp:
n1000v(config)#
|
Copies the VSM running configuration to a remote server.
|
Step 2
|
show license brief
Example:
n1000v# show license brief
|
Identifies the name of the license file to uninstall.
|
Step 3
|
show license usage package_name
Example:
n1000v# show license usage
NEXUS1000V_LAN_SERVICES_PKG
--------------------------------------
Feature Usage Info
--------------------------------------
Installed Licenses : 10
Eval Licenses : 0
Max Overdraft Licenses : 16
Installed Licenses in Use : 4
Overdraft Licenses in Use : 0
Eval Licenses in Use : 0
Licenses Available : 22
--------------------------------------
Application
--------------------------------------
VEM 3 - Socket 1
VEM 3 - Socket 2
VEM 4 - Socket 1
VEM 4 - Socket 2
--------------------------------------
n1000v#
|
Displays the licenses in use on each VEM so that you can transfer them back to the VSM license pool before uninstalling the license file.
|
Step 4
|
svs license transfer src-vem vem_no
license_pool
Example:
n1000v# svs license transfer src-vem 3
license_pool
|
Transfers the licenses from the VEM back to the VSM license pool.
As the licenses are transferred from a VEM, its vEthernet interfaces are shut down and the following syslog is generated:
PLATFORM-2-PFM_VEM_UNLICENSED
|
Step 5
|
Repeat Step 4 for each VEM until all licenses in use have been transferred back to the VSM license pool.
|
Step 6
|
clear license license_name
Example:
n1000v# clear license Enterprise.lic
Clearing license Enterprise.lic:
Do you want to continue? (y/n) y
|
Begins the uninstall of the named license file.
In this example, the Enterprise.lic file is uninstalled.
|
Step 7
|
copy running-config startup-config
Example:
n1000v(config)# copy running-config
startup-config
|
(Optional) Saves the running configuration persistently through reboots and restarts by copying it to the startup configuration.
|
EXAMPLES
This example shows how to uninstall a license that is no longer in use. In this example, the file to uninstall is the Enterprise.lic file.
n1000v# show license brief
n1000v# show license usage NEXUS1000V_LAN_SERVICES_PKG
--------------------------------------
Feature Usage Info
--------------------------------------
Installed Licenses : 10
Eval Licenses : 0
Max Overdraft Licenses : 16
Installed Licenses in Use : 4
Overdraft Licenses in Use : 0
Eval Licenses in Use : 0
Licenses Available : 22
--------------------------------------
Application
--------------------------------------
VEM 3 - Socket 1
VEM 3 - Socket 2
VEM 4 - Socket 1
VEM 4 - Socket 2
--------------------------------------
n1000v# svs license transfer src-vem 3 license_pool
n1000v# clear license Enterprise.lic
Clearing license Enterprise.lic:
Do you want to continue? (y/n) y
n1000v(config)# copy running-config startup-config
Configuring Volatile Licenses
This section provides information about enabling and disabling the volatile license feature and includes the following sections:
•Enabling Volatile Licenses
•Disabling Volatile Licenses
Enabling Volatile Licenses
You can use this procedure to enable volatile licenses so that whenever a VEM is taken out of service its licenses are returned to the VSM pool of available licenses.
Note Service Disruption—Volatile licenses are removed from a VEM during a loss in connectivity and the system will try to get the required licenses when connectivity resumes. We recommend that the volatile licenses remain disabled and that you transfer unused licenses using the "Transferring Licenses to the License Pool" section.
BEFORE YOU BEGIN
Before beginning this procedure, you must know or do the following:
•You are logged in to the CLI in EXEC mode.
•A volatile license is disabled by default. That is, by default, licenses are not returned to the VSM pool when a VEM is removed from service.
SUMMARY STEPS
1. config t
2. svs license volatile
3. copy running-config startup-config
DETAILED STEPS
| |
Command
|
Purpose
|
Step 1
|
config t
Example:
n1000v# config t
n1000v(config)#
|
Places you into global configuration mode.
|
Step 2
|
svs license volatile
Example:
n1000v(config)# svs license volatile
n1000v(config)#
|
Enables volatile licenses in the running configuration.
|
Step 3
|
copy running-config startup-config
Example:
n1000v(config)# copy running-config
startup-config
|
(Optional) Saves the running configuration persistently through reboots and restarts by copying it to the startup configuration.
|
Disabling Volatile Licenses
You can use this procedure to disable volatile licenses so that when a VEM is taken out of service, its licenses are not returned to the VSM pool of available licenses.
Note By default, the licenses are non-volatile (sticky) in nature. This is the recommended configuration. This will ensure that the licenses are reserved for a VEM. Even after a period of brief connectivity loss between the VEM and the VSM, the VEM is guaranteed to get the needed licenses.
BEFORE YOU BEGIN
Before beginning this procedure, you must know or do the following:
•You are logged in to the CLI in EXEC mode.
•A volatile license is disabled by default. That is, by default, licenses are not returned to the VSM pool when a VEM is removed from service.
•For detailed information about the fields in the output of these commands, see the Cisco Nexus 1000V Command Reference, Release 4.2(1)SV1(4).
SUMMARY STEPS
1. config t
2. no svs license volatile
3. copy running-config startup-config
DETAILED STEPS
| |
Command
|
Purpose
|
Step 1
|
config t
Example:
n1000v# config t
n1000v(config)#
|
Places you into CLI Global Configuration mode.
|
Step 2
|
no svs license volatile
Example:
n1000v(config)# no svs license volatile
n1000v(config)#
|
Disables volatile licenses in the running configuration.
|
Step 3
|
copy running-config startup-config
Example:
n1000v(config)# copy running-config
startup-config
|
(Optional) Saves the running configuration persistently through reboots and restarts by copying it to the startup configuration.
|
Verifying the License Configuration
Use the following commands to verify the license configuration.
Command
|
Purpose
|
show license
|
Displays the license filename for the VSM.
|
show license brief
|
Displays the license installed on the VSM.
|
show license file filename
|
Displays the contents of the license file installed on the VSM, including the license filename and the expiration date for evaluation licenses.
Example 2-1
Example 2-2
|
show license usage
|
Displays the total number of licenses in use on the VEMs.
Example 2-3
|
show license usage package_name
|
Displays statistics about the number of evaluation and permanent licenses available, installed, and in use on the VSM.
Example 2-4
|
show module vem [module] license-info
|
Displays the license mode and the usage of licenses by each module.
Example 2-5
Example 2-6
|
Example 2-1 Evaluation License
n1000v# show license file eval.lic
INCREMENT NEXUS1000V_LAN_SERVICES_PKG cisco 1.0 1-dec-2010 16 \
HOSTID=VDH=0871396331270074457 \
NOTICE="<LicFileID>eval.lic</LicFileID><LicLineID>0</LicLineID> \
<PAK>dummyPak</PAK>" SIGN=E08A38544DBE
Example 2-2 Permanent license
n1000v# show license file Enterprise.lic
INCREMENT NEXUS1000V_LAN_SERVICES_PKG cisco 1.0 permanent 16 \
HOSTID=VDH=0871396331270074457 \
NOTICE="<LicFileID>Enterprise.lic</LicFileID><LicLineID>0</LicLineID> \
<PAK>dummyPak</PAK>" SIGN=E08A38544DBE
Example 2-3 show license usage
n1000v# show license usage
Feature Ins Lic Status Expiry Date Comments
----------------------------------------------------------------------------
NEXUS_VSN_SERVICES_PKG No 0 Unused -
NEXUS1000V_LAN_SERVICES_PKG No 1 In use None -
----------------------------------------------------------------------------
Example 2-4 show license usage NEXUS1000V_LAN_SERVICES_PKG
n1000v# show license usage NEXUS1000V_LAN_SERVICES_PKG
--------------------------------------
Feature Usage Info
--------------------------------------
Installed Licenses : 10
Default Eval Licenses : 0
Max Overdraft Licenses : 16
Installed Licenses in Use : 2
Overdraft Licenses in Use : 0
Default Eval Lic in Use : 0
Licenses Available : 24
Shortest Expiry : Never
--------------------------------------
Application
--------------------------------------
VEM 3 - Socket 1
VEM 3 - Socket 2
--------------------------------------
n1000v#
Example 2-5 show module vem license-info
n1000v# show module vem license-info
Licenses are Sticky
Mod Socket Count License Usage Count License Version License Status
--- ------------ ------------------- --------------- --------------
3 2 2 1.0 licensed
4 2 2 1.0 licensed
Example 2-6 show module vem 3 license-info
n1000v# show module vem 3 license-info
Licenses are Sticky
Mod Socket Count License Usage Count License Version License Status
--- ------------ ------------------- --------------- --------------
3 2 2 1.0 licensed
Changing the Serial Number in a License
You can use this procedure to change the serial number, or host ID, associated with a license. This process is also called rehosting and is required if you replace a VSM in your network with a new VSM.
This section includes the following topics:
•Flow Chart: Changing the Serial Number in a License
•Table 2-1Obtaining the License File
•Installing the License File on the VSM
•Verifying the License Configuration
BEFORE YOU BEGIN
Before beginning the procedures in this section, you must know or do the following:
Caution Service Disruption—When you remove a VSM from your network, the vEthernet interfaces on the VEMs are removed from service and the traffic flowing to them from virtual machines is dropped. This traffic flow is not resumed until you add a new VSM and new license file with the new host ID.
•You have a copy of your existing license file(s) with the host ID of the existing VSM.
•A license file is tied to each VSM by the host ID, or the serial number, associated with the VSM device.
•A license file contains the number of licenses ordered for your VSM. One license is required for each CPU on each VEM.
•A VSM can have more than one license file depending on the number of installed VEM CPUs.
•If you have multiple license files stacked on your VSM, repeat this process for each license file.
Flow Chart: Changing the Serial Number in a License
Use the flow chart in Figure 2 to guide you through the process required to change the serial number, or host ID, in an existing license. After completing a procedure, return to the flow chart to make sure you complete all procedures in the correct sequence.

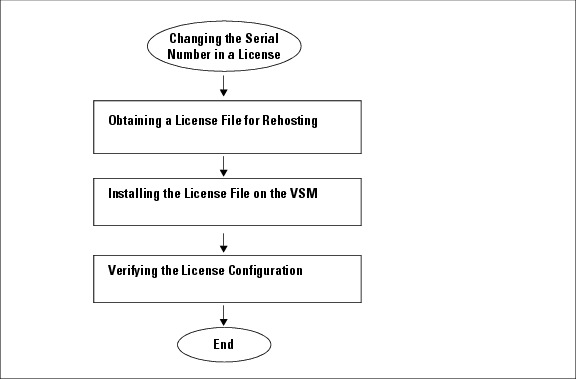

Figure 2 Flow Chart: Changing the Serial Number in a License
Obtaining a License File for Rehosting
You can use this procedure to obtain a license file for a new VSM host, if the old VSM host is lost or destroyed.
BEFORE YOU BEGIN
Before beginning this procedure, you must know or do the following:
•A license file is tied to each VSM by the host ID, or the VSM serial number.
•You are logged in to the CLI in EXEC mode.
•You must copy a license file. Your username must have the network-admin role that allows you to copy files. For information about user accounts and roles, see the Cisco Nexus 1000V Security Configuration Guide, Release 4.2(1)SV1(4).
PROCEDURE
Step 1 Obtain the serial number, also called the host ID, for your new VSM:
n1000v# show license host-id
License hostid: VDH=1280389551234985805
Note The host ID number appears after the equal sign (=). In this example, the host ID is 1280389551234985805. You will need the host ID in Step 4.
Step 2 E-mail the following information to licensing@cisco.com, requesting the license file be rehosted to the new host ID:
•The new host ID
•A copy of the existing license file from the old VSM
A new license key file, with the host ID of the new VSM, is sent to you in e-mail within 48 hours.
Note Do not modify the license key file. The license key file is invalidated if you modify it.
Step 3 Save your license to a TFTP server.
Step 4 Copy your license to bootflash on the VSM.
n1000v@ copy scp://user@linux-box.cisco.com/home/user/n1kv_license.lic bootflash:
Enter vrf (If no input, current vrf 'default' is considered):
user@linux-box.cisco.com's password:
n1kv_license.lic 100% 252 0.3KB/s 00:00
Feature History for Licenses
This section provides the release history for the license feature.
Feature Name
|
Releases
|
Feature Information
|
Evaluation license
|
4.0(4)SV1(3)
|
16 evaluation licenses that are good for 60 days are included in the software image. More evaluation licenses of varied durations can be downloaded from Cisco.com and installed separately.
|
Evaluation license
|
4.0(4)SV1(2)
|
Evaluation licenses are part of the software installation or upgrade. A separate evaluation license file no longer needs to be installed.
|
show license usage package_name command
|
4.0(4)SV1(2)
|
The show license usage filename command output is updated to show statistics about the number of evaluation and permanent licenses available, installed, and in use on the VSM.
|
License
|
4.0(4)SV1(1)
|
This feature was introduced.
|
Feedback
