Configuring VSD
This chapter describes how to configure VSD and includes the following topics:
•
Information About Virtual Service Domain
•Guidelines and Limitations
•Default Settings
•Configuring VSD
•Verifying the Configuration
•Additional References
•Feature History
Information About Virtual Service Domain
A virtual service domain (VSD) allows you to classify and separate traffic for network services, such as firewalls, traffic monitoring, and those in support of compliance goals such as Sarbanes Oxley.
Service Virtual Machine
A service VM (SVM) provides the specialized service like firewall, deep packet inspection (application aware networking), or monitoring. Each Service VM has three virtual interfaces:
Interface
|
Description
|
Management
|
A regular interface that manages the SVM
Should have Layer 2 or Layer 3 connectivity, depending on its use.
|
Incoming
|
Guards the traffic coming into the VSD
Any packet coming into the VSD must go through this interface.
|
Outgoing
|
Guards the traffic going out of the VSD.
Any packet that originates in the VSD and goes out must go through the SVM and out through the outgoing interface.
|
There is no source MAC learning on these interfaces. Each SVM creates a secure VSD. Interfaces within the VSD are shielded by the SVM.
Port Profiles
A VSD is the collection of interfaces that are guarded by the SVM providing the security service. Any traffic coming into the VSD or going out of the VSD has to go through the SVM.
Traffic that both originates and terminates within the same VSD need not be routed through the SVM as it is considered to be safe.
A VSD is formed by creating the following port profiles:
Port Profile
|
Description
|
Inside
|
Traffic originating from a VSD member goes into the service VM (SVM) through the inside port and comes out of the outside port before it is forwarded to its destination.
|
Outside
|
Traffic destined for a VSD member goes into the SVM through the outside port and comes out of the inside port before it is forwarded to its destination.
|
Member
|
Location for individual inside VMs.
|

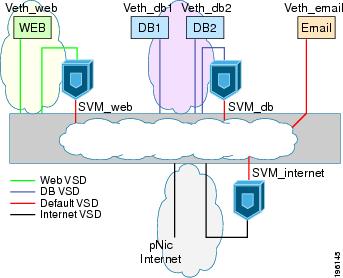

In Figure 3-1, a single VEM takes the place of vswitches; the SVMs define the following VSDs;
VSD
|
SVM (guard)
|
Inside Port Profile
|
Outside Port Profile
|
Member Port Profile(s)
|
DB VSD
|
SVM_db
|
SVM_db_inside
|
SVM_db_outside
|
vEth_db1
vEth_db2
|
Web VSD
|
SVM_web
|
SVM_web_inside
|
SVM_web_outside
|
vEth_web
|
Internet VSD
|
SVM_Internet
|
SVM_internet_inside
|
SVM_internet_outside
|
|
Default
|
|
SVM VSD
|
|
vEth Email
|
Figure 3-1 Virtual Service Domain (VSD) Example
Guidelines and Limitations
Virtual Service Domain has the following configuration guidelines and limitations:
•To prevent traffic latency, VSD should only be used for securing traffic.
•Up to 6 VSDs can be configured per host and up to 64 on the VSM.
•Up to 214 interfaces per VSD are supported on a single host, and 2048 interfaces on the VSM.
•Vmotion is not supported for the SVM and should be disabled.
•To avoid network loops following a VSM reload or a network disruption, control and packet VLANS must be disabled in all port profiles of the Service VMs.
•If a port profile without a service port is configured on an SVM, it will flood the network with packets.
•When configuring a port profile on an SVM, first bring the SVM down, This prevents a port-profile that is mistakenly configured without a service port from flooding the network with packets. The SVM can be returned to service after the configuration is complete and verified.
Default Settings
The following table lists the Telnet defaults.
Parameters
|
Default
|
switchport trunk allowed vlan
|
All
|
Configuring VSD
This section includes the following procedures:
•Configuring an Inside or Outside VSD Port Profile
•Configuring a Member VSD Port Profile
Configuring an Inside or Outside VSD Port Profile
Use this procedure to configure the port-profiles that define the connections going into and out of the SVM.
BEFORE YOU BEGIN
Before beginning this procedure, you must know or do the following:
•You are logged in to the CLI in EXEC mode.
•You have taken the SVM out of service to prevent any configuration errors from flooding the network. Once the configuration is complete and verified, you can bring the SVM back into service.
•If you do not configure a service-port, the SVM will come up as a regular VM, flooding the network with packets.
•Selected VLAN filtering is not supported in this configuration. The default should be used instead, which allows all VLANs on the port.
SUMMARY STEPS
1. config t
2. port-profile name
3. switchport mode trunk
4. switchport trunk allowed vlan all
5. virtual-service-domain name
6. no shut
7. vmware port-group pg-name
8. service-port {inside | outside} default-action {drop | forward}
9. state enabled
10. show virtual-service-domain name
11. copy running-config startup-config
DETAILED STEPS
| |
Command
|
Purpose
|
Step 1
|
config t
Example:
n1000v# config t
n1000v(config)#
|
Places you in the CLI Global Configuration mode.
|
Step 2
|
port-profile name
Example:
n1000v(config)# port-profile
webserver-inside
n1000v(config-port-profile)#
|
Creates a port profile and places you into Port Profile Configuration mode for the named port profile.
The port profile name can be up to 80 characters and must be unique for each port profile on the Cisco Nexus 1000V.
|
Step 3
|
switchport mode trunk
Example:
n1000v(config-port-profile)# switchport
mode trunk
n1000v(config-port-profile)#
|
Designates that the interfaces are switch trunk ports.
|
Step 4
|
switchport trunk allowed vlan all
Example:
n1000v(config-port-profile)# switchport
trunk allowed vlan all
n1000v(config-port-profile)#
|
Allows all VLANs on the port.
|
Step 5
|
virtual-service-domain name
Example:
n1000v(config-port-profile)#
virtual-service-domain vsd1-webserver
n1000v(config-port-profile)#
|
Adds a VSD name to this port profile.
|
Step 6
|
no shutdown
n1000v(config-port-prof)# no shutdown
n1000v(config-port-prof)#
|
Administratively enables all ports in the profile.
|
Step 7
|
vmware port-group pg-name
n1000v(config-port-prof)# vmware
port-group webservers-inside-protected
n1000v(config-port-prof)#
|
Designates the port-profile as a VMware port-group.
The port profile is mapped to a VMware port group of the same name. When a vCenter Server connection is established, the port group created in Cisco Nexus 1000V is then distributed to the virtual switch on the vCenter Server.
name: Port group name. If you do not specify a pg-name, then the port group name will be the same as the port profile name. If you want to map the port profile to a different port group name, use the pg-name option followed by the alternate name.
|
Step 8
|
service-port {inside | outside} default-action {drop | forward}
|
Configures the interface as either inside or outside and designates (default-action) whether packets should be forwarded or dropped if the service port is down.
Caution If you do not configure a service-port, the SVM will come up as a regular VM, flooding the network with packets.
|
| |
n1000v(config-port-prof)# service-port
inside default-action forward
n1000v(config-port-prof)#
|
This example configures an inside VSD that forwards packets if the service port is down.
|
| |
n1000v(config-port-prof)# service-port
outside default-action forward
n1000v(config-port-prof)#
|
This example configures an outside VSD that forwards packets if the service port is down.
|
Step 9
|
state enabled
n1000v(config-port-prof)# state enabled
n1000v(config-port-prof)#
|
Enables the VSD port profile.
The configuration for this port profile is applied to the assigned ports, and the port group is created in the VMware vSwitch on the vCenter Server.
|
Step 10
|
show virtual-service-domain name
Example:
n1000v(config-port-prof)# show
virtual-service-domain vsd1-webserver
Default Action: forward
___________________________
Interface Type
___________________________
Vethernet1 Member
Vethernet2 Member
Vethernet3 Member
Vethernet7 Inside
Vethernet8 Outside
n1000v(config-port-prof)#
|
(Optional) Displays the configuration for this VSD port profile. Use this to verify that the port-profile was configured as expected.
|
Step 11
|
copy running-config startup-config
Example:
n1000v(config-port-prof)# copy
running-config startup-config
[#######################################
#] 100%
n1000v(config-port-prof)#
|
(Optional) Saves the running configuration persistently through reboots and restarts by copying it to the startup configuration.
|
Configuring a Member VSD Port Profile
You can use the procedures in this section to configure a member VSD port profile where individual port members reside.
•Configuring an Access Member VSD Port Profile
•Configuring a Trunk Member VSD Port Profile
BEFORE YOU BEGIN
Before beginning the procedures in this section, you must know or do the following:
•You are logged in to the CLI in EXEC mode.
•Do not configure a member VSD port profile on an SVM.
A member VSD port profile does not have a service port, and will flood the network with packets if configured on an SVM.
Configuring an Access Member VSD Port Profile
Use this procedure to configure the VSD port profile where individual access port members reside.
If you want to configure a trunk port member instead, see the "Configuring a Trunk Member VSD Port Profile" procedure.
SUMMARY STEPS
1. config t
2. port-profile name
3. switchport mode {access | trunk}
4. switchport access vlan vlan-id-access
5. virtual-service-domain name
6. no shut
7. state enabled
8. show virtual-service-domain name
9. copy running-config startup-config
DETAILED STEPS
| |
Command
|
Purpose
|
Step 1
|
config t
Example:
n1000v# config t
n1000v(config)#
|
Places you in the CLI Global Configuration mode.
|
Step 1
|
port-profile name
Example:
n1000v(config)# port-profile vsd1-member
n1000v(config-port-profile)#
|
Creates a port profile and places you into Port Profile Configuration mode for the named port profile.
The port profile name can be up to 80 characters and must be unique for each port profile on the Cisco Nexus 1000V.
|
Step 2
|
switchport mode {access | trunk}
Example:
n1000v(config-port-prof)# switchport
mode access
n1000v(config-port-prof)#
|
Designates the interfaces as either switch access ports (the default) or trunks.
VSD member ports can be access or trunk.
A trunk port transmits untagged packets for the native VLAN and transmits encapsulated, tagged packets for all other VLANs.
|
Step 3
|
switchport access vlan vlan-id-access
Example:
n1000v(config-port-prof)# switchport
access vlan 300
|
(Optional) Assigns an access VLAN ID to this port profile.
Note If you do not specify a VLAN ID, then VLAN 1 is used automatically.
|
Step 4
|
virtual-service-domain name
Example:
n1000v(config-port-profile)#
virtual-service-domain vsd1-webserver
n1000v(config-port-profile)#
|
Assigns a VSD name to this port profile.
|
Step 5
|
no shutdown
n1000v(config-port-prof)# no shutdown
n1000v(config-port-prof)#
|
Administratively enables all ports in the profile.
|
Step 6
|
state enabled
n1000v(config-port-prof)# state enabled
n1000v(config-port-prof)#
|
Enables the VSD port profile.
The configuration for this port profile is applied to the assigned ports, and the port group is created in the VMware vSwitch on the vCenter Server.
|
Step 7
|
show virtual-service-domain name
Example:
n1000v(config-port-prof)# show
virtual-service-domain vsd1-webserver
Default Action: forward
___________________________
Interface Type
___________________________
Vethernet1 Member
Vethernet2 Member
Vethernet3 Member
Vethernet6 Member
Vethernet7 Inside
Vethernet8 Outside
n1000v(config-port-prof)#
|
(Optional) Displays the configuration for this VSD port profile. Use this to verify that the port-profile was configured as expected.
|
Step 8
|
copy running-config startup-config
Example:
n1000v(config-port-prof)# copy
running-config startup-config
[#######################################
#] 100%
n1000v(config-port-prof)#
|
(Optional) Saves the running configuration persistently through reboots and restarts by copying it to the startup configuration.
|
Configuring a Trunk Member VSD Port Profile
Use this procedure to configure the VSD port profile where individual trunk port members reside.
If you want to configure an access port member instead, see the "Configuring an Access Member VSD Port Profile" procedure.
SUMMARY STEPS
1. config t
2. port-profile name
3. switchport mode {access | trunk}
4. switchport trunk allowed vlan vlanID
5. virtual-service-domain name
6. no shut
7. state enabled
8. show virtual-service-domain name
9. copy running-config startup-config
DETAILED STEPS
| |
Command
|
Purpose
|
Step 1
|
config t
Example:
n1000v# config t
n1000v(config)#
|
Places you in the CLI Global Configuration mode.
|
Step 1
|
port-profile name
Example:
n1000v(config)# port-profile vsd1-member
n1000v(config-port-profile)#
|
Creates a port profile and places you into Port Profile Configuration mode for the named port profile.
The port profile name can be up to 80 characters and must be unique for each port profile on the Cisco Nexus 1000V.
|
Step 2
|
switchport mode {access | trunk}
Example:
n1000v(config-port-prof)# switchport
mode trunk
n1000v(config-port-prof)#
|
Designates the interfaces as either switch access ports (the default) or trunks.
VSD member ports cn be access or trunk.
A trunk port transmits untagged packets for the native VLAN and transmits encapsulated, tagged packets for all other VLANs.
|
Step 3
|
switchport trunk allowed vlan
{allowed-vlans | add add-vlans | except
except-vlans | remove remove-vlans | all
| none}
Example:
n1000v(config-port-prof)# switchport
trunk allowed vlan all
|
(Optional) Designates the port profile as trunking and defines VLAN access to it as follows:
•allowed-vlans—Defines VLAN IDs that are allowed on the port.
•add—Lists VLAN IDs to add to the list of those allowed on the port.
•except—Lists VLAN IDs that are not allowed on the port.
•remove—Lists VLAN IDs whose access is to be removed from the port.
•all—Indicates that all VLAN IDs are allowed on the port, unless exceptions are also specified.
•none—Indicates that no VLAN IDs are allowed on the port.
Note If you do not configure allowed VLANs, then the default VLAN 1 is used as the allowed VLAN.
|
Step 4
|
virtual-service-domain name
Example:
n1000v(config-port-profile)#
virtual-service-domain vsd1-webserver
n1000v(config-port-profile)#
|
Assigns a VSD name to this port profile.
|
Step 5
|
no shutdown
n1000v(config-port-prof)# no shutdown
n1000v(config-port-prof)#
|
Administratively enables all ports in the profile.
|
Step 6
|
state enabled
n1000v(config-port-prof)# state enabled
n1000v(config-port-prof)#
|
Enables the VSD port profile.
The configuration for this port profile is applied to the assigned ports, and the port group is created in the VMware vSwitch on the vCenter Server.
|
Step 7
|
show virtual-service-domain name
Example:
n1000v(config-port-prof)# show
virtual-service-domain vsd1-webserver
Default Action: forward
___________________________
Interface Type
___________________________
Vethernet1 Member
Vethernet2 Member
Vethernet3 Member
Vethernet6 Member
Vethernet7 Inside
Vethernet8 Outside
n1000v(config-port-prof)#
|
(Optional) Displays the configuration for this VSD port profile. Use this to verify that the port-profile was configured as expected.
|
Step 8
|
copy running-config startup-config
Example:
n1000v(config-port-prof)# copy
running-config startup-config
[#######################################
#] 100%
n1000v(config-port-prof)#
|
(Optional) Saves the running configuration persistently through reboots and restarts by copying it to the startup configuration.
|
Verifying the Configuration
To display the VSD configuration, use the following commands:
Command
|
Purpose
|
show virtual-service-domain name vsd-name
|
Displays a specific VSD configuration.
|
module vem module_number execute vemcmd show vsd
|
Displays the VEM VSD configuration by sending the command to the VEM from the remote Cisco Nexus 1000V.
|
show virtual-service-domain brief
|
Displays a summary of all VSD configurations.
|
show virtual-service-domain interface
|
Displays the interface configuration for all VSDs.
|
Example 3-1 show vsd
n1000v# module vem 3 execute vemcmd show vsd
ID Def_Act ILTL OLTL NMLTL State Member LTLs
1 DROP 48 49 4 ENA 54,52,55,53
vsim-cp# module vem 3 execute vemcmd show vsd ports
LTL IfIndex VSD_ID VSD_PORT_TYPE
Example 3-2 show virtual-service-domain brief
n1000v# show virtual-service-domain brief
Name default action in-ports out-ports mem-ports
vsim-cp# sho virtual-service-domain interface
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
Name Interface Type Status
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
vsd1 Vethernet1 Member Active
vsd1 Vethernet2 Member Active
vsd1 Vethernet3 Member Active
vsd1 Vethernet6 Member Active
vsd1 Vethernet7 Inside Active
vsd1 Vethernet8 Outside Active
vsd2 Vethernet9 Inside Active
vsd2 Vethernet10 Outside Active
vsim-cp# show virtual-service-domain name vsd1
___________________________
___________________________
Additional References
For additional information related to VSD configuration, see the following:
•Related Documents
•Standards
Related Documents
Related Topic
|
Document Title
|
Port Profiles
|
Cisco Nexus 1000V Port Profile Configuration Guide, Release 4.0(4)SV1(3)
|
Commands: complete command syntax, command modes, command history, defaults, usage guidelines, and examples
|
Cisco Nexus 1000V Command Reference, Release 4.0(4)SV1(3)
|
Standards
Standards
|
Title
|
No new or modified standards are supported by this feature, and support for existing standards has not been modified by this feature.
|
—
|
Feature History
This section provides the VSD release history.
Feature Name
|
Releases
|
Feature Information
|
VSD
|
4.0(4)SV1(2)
|
This feature was introduced.
|
Feedback
