MDS 9000 Switch and McData Dual Core Topology (Interop Mode 1)

This chapter describes how to set up a basic dual-core topology with an MDS 9000 switch configured for interop mode 1 and a McData 6064 switch. Devices are connected to both core switches and all traffic must flow through both cores to reach its destination.

This chapter includes the following sections:

•Specifications

•Expected Topology Behavior

•Configuration

•Verification

•Zoning

Specifications

The following switches and code levels were used for this example configuration:

•MDS 9509 running NX-OS Release 5.2(1)

•McData 6064 Version 09.09.09 2

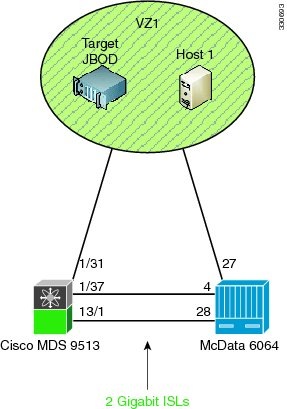

Figure 5-1 shows the topology used for this example configuration.

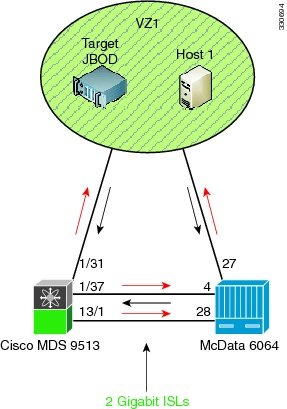

Figure 5-1 MDS 9509 Switch and McData Switch Dual Core Topology

Note The VZ1 JBOD is an arbitrated loop with 12 drives.

Expected Topology Behavior

This section covers the Fibre Channel services and features that act differently in this topology (Figure 5-1) as compared to a homogeneous, single-vendor implementation.

It contains the following topics:

•Zoning

•FSPF

•Trunking and PortChannels

•Domain IDs

Zoning

In the core-core topology, zone members are all pWWNs, because the McData domain/port nomenclature is not a valid form according to the FC standard. When a zone set activation is made at one core switch, the zone set activation is sent to the other core switch. Either core switch may make zoning changes and have them be propagated to the other core switch.

Both core switches provide all of the zone security for the device-attached ports because the Cisco MDS 9000 switch and the McData switches do not check the source and destination of the frame when traversing E ports. The Cisco MDS 9000 switch only provides hardware-enforced security on the ingress ports to the fabric, while the McData switch only provides soft zoning.

Note After two active zone sets successfully merge, always copy the active zone set to the full zone set database prior to modifying it on the Cisco MDS 9000 switch.

FSPF

All links within the topology show the link cost of 500, because the McData 6064 switch used in this example only supports 2 Gbps.

The McData switches load balance their routes using source/destination; the ingress edge switch uses the same ISL for all traffic that has the same source/destination pair. If the McData switch can load balance using source/destination/ox-id, then it can choose either of the ISLs for the route through the fabric. The MDS switch continues to load balance across ISLs using source/destination/ox-id of the frame.

Trunking and PortChannels

The lack of MDS 9000 switch-to-MDS 9000-switch connections prohibits the topology from containing TE ports or PortChannels. Only standard E ports are used for the ISLs.

Domain IDs

The domain IDs are limited to the 97 to 127 range due to a restriction imposed by McData's inability to handle IDs outside of that range. While the MDS 9000 switch can handle domain IDs outside of this range in its normal mode of operation, the implementation of interoperability mode includes this limitation.

Domain ID modifications can be handled in two ways, disruptively or nondisruptively:

•Disruptive—This event impacts the entire switch. When changing domain IDs, McData requires the entire switch to be taken offline and/or rebooted.

•Nondisruptive—This event is limited to the VSAN where the event is taking place. Only the MDS 9000 switch can perform this action, as the domain manager process for this VSAN is restarted and not the entire switch. This restart requires any device logged into the VSAN to log into the fabric again to obtain a new FC ID.

Configuration

This section describes the configuration process and includes the following topics:

•Configuring the McData 6064 Switch

•Configuring the MDS 9000 Switch

Configuring the McData 6064 Switch

In this example, the McData 6064 switch is configured for interop mode using Telnet and the CLI. The switch is placed in an offline state, the default zone is set to deny, the domain ID is set to 0x61 (97), and timers are altered to match the fabric.

To configure the McData 6064 switch, follow these steps:

Step 1 Display current switch information.

Root> show switch

State:                  Online

R_A_TOV:                100   <=== must match other fabric switches

E_D_TOV:                20    <=== must match other fabric switches

Preferred Domain ID:    2

Domain ID Offset:       96

Switch Priority:        Never Principal

Speed:                  2 Gb/sec

Rerouting Delay:        Disabled

Interop Mode:           McDATA Fabric 1.0  <=== McData Fabric mode

Active Domain ID:       2

World Wide Name:        10:00:08:00:88:A0:7A:74

Insistent Domain ID:    Disabled

Domain RSCN:            Disabled

Zoning RSCN:            Enabled

FC Address Domain:      62 (hex)

Limited Fabric RSCN:    Disabled

Zone FlexPars:          Fabric Filtering

RSCN Zone Isolation:    Fabric Filtering

Safe Zoning:            Disabled

ISL FSPF Cost:          By Port Speed

Web Enabled:            Enabled

Frame Resize State:     Enabled

Block Dup WWN State:    Disabled

API Enabled:            Enabled

API Management IP:      172.25.242.164

Password Exp. Time:     0

Step 2 Alter the timers, RA_TOV and ED_TOV, if needed. These options are listed in the config switch menu.

Root> config switch

Config.Switch>

..                - Move back one level

FrameResizeState  - Set the FRAME_RESIZE enabled state

RSCNZoneIsolation - Set the RSCN Zone Isolation state

apiState          - Set the api enabled state

banner            - Configure the banner

blockDupWWN       - Set Block duplicate WWN state

commadelim        - Toggle comma-delimited display mode

domainIDOffset    - Set the domain ID offset for the switch

domainRSCN        - Set the switch state for generation of domain RSCN's

edTOV             - Set the E_D_TOV for the switch

insistDomainId    - Set the Insistent domain ID state for the switch

interopMode       - Set the Interoperability mode for the switch

islFSPFCost       - Sets the FSPF cost of ISLs

login             - Login to CLI under different access rights

logout            - Logout of CLI

ltdFabRSCN        - Set the switch state for limiting Fabric RSCN's

prefDomainId      - Set the preferred domain ID for the switch

priority          - Set the switch priority

raTOV             - Set the R_A_TOV for the switch

rerouteDelay      - Enable or disable the reroute delay

root              - Move back to root level

safeZoning        - Set the fabric state for prohibiting Default Zoning

setIPv6           - Sets the enabled state of IPv6

show              - Display the switch configuration

speed             - Set the switch operating speed

webState          - Set the web enabled state

zoneFlexPars      - Set the zone FlexPars state

zoningRSCN        - Set the Zoning RSCN state for the switch

Step 3 Set the switch offline. The switch must be offline before changing the mode to interop.

Config.Switch> interopmode open

Error 045:  Not Allowed While Switch Online

Note To change to interop mode, the switch must be set to offline.

Config.Switch> root

Root> maint system

Maint.System> setonlinestate 0

Maint.System> root

Root> show switch

State:                  Offline   <==== switch is now offline

R_A_TOV:                100

E_D_TOV:                20

Preferred Domain ID:    2

Domain ID Offset:       96

Switch Priority:        Never Principal

Speed:                  2 Gb/sec

Rerouting Delay:        Disabled

Interop Mode:           McDATA Fabric 1.0

Active Domain ID:       2

World Wide Name:        10:00:08:00:88:A0:7A:74

Insistent Domain ID:    Disabled

Domain RSCN:            Disabled

Zoning RSCN:            Enabled

FC Address Domain:      62 (hex)

Limited Fabric RSCN:    Disabled

Zone FlexPars:          Fabric Filtering

RSCN Zone Isolation:    Fabric Filtering

Safe Zoning:            Disabled

ISL FSPF Cost:          By Port Speed

Web Enabled:            Enabled

Frame Resize State:     Enabled

Block Dup WWN State:    Disabled

API Enabled:            Enabled

API Management IP:      172.25.242.164

Password Exp. Time:     0

Step 4 Set the mode to interop.

Root> config switch

Config.Switch> interopmode open

Warning: Zone members configured by domain and port will be ignored.

Config.Switch> root

Root> show switch

State:                  Offline  <==== still offline

R_A_TOV:                100

E_D_TOV:                20

Preferred Domain ID:    2

Domain ID Offset:       96

Switch Priority:        Never Principal

Speed:                  2 Gb/sec

Rerouting Delay:        Disabled

Interop Mode:           Open Fabric 1.0  <=== now in interop mode

Active Domain ID:       2

World Wide Name:        10:00:08:00:88:A0:7A:74

Insistent Domain ID:    Disabled

Domain RSCN:            Disabled

Zoning RSCN:            Enabled

FC Address Domain:      62 (hex)

Limited Fabric RSCN:    Disabled

Zone FlexPars:          Fabric Filtering

RSCN Zone Isolation:    Fabric Filtering

Safe Zoning:            Disabled

ISL FSPF Cost:          By Port Speed

Web Enabled:            Enabled

Frame Resize State:     Enabled

Block Dup WWN State:    Disabled

API Enabled:            Enabled

API Management IP:      172.25.242.164

Password Exp. Time:     0

Step 5 Set the preferred domain ID, with an offset of 0x60. In this example, the McData switch is domain ID 0x61 (decimal 97). The FC IDs for nodes on this switch are 61xxxx.

Root> config switch

Config.Switch> prefDo

Config.Switch> prefDomainId 1

Config.Switch> root

Root> maint system

Maint.System> setonlinestate 1

Maint.System> root

Root> show switch

State:                  Online   <==== now online

R_A_TOV:                100

E_D_TOV:                20

Preferred Domain ID:    1    <==== Domain ID 97

Domain ID Offset:       96

Switch Priority:        Never Principal

Speed:                  2 Gb/sec

Rerouting Delay:        Disabled

Interop Mode:           Open Fabric 1.0  <==== in interop mode

Active Domain ID:       1

World Wide Name:        10:00:08:00:88:A0:7A:74

Insistent Domain ID:    Disabled

Domain RSCN:            Disabled

Zoning RSCN:            Enabled

FC Address Domain:      61 (hex)

Limited Fabric RSCN:    Disabled

Zone FlexPars:          Fabric Filtering

RSCN Zone Isolation:    Fabric Filtering

Safe Zoning:            Disabled

ISL FSPF Cost:          By Port Speed

Web Enabled:            Enabled

Frame Resize State:     Enabled

Block Dup WWN State:    Disabled

API Enabled:            Enabled

API Management IP:      172.25.242.164

Password Exp. Time:     0

Configuring the MDS 9000 Switch

See Chapter 3 "MDS 9000 Core with Brocade Edge Topology (Interop Mode 1)," for examples of how to set the MDS 9000 switch to interop mode.

Verification

This section highlights the commands used to verify that the fabric is up and running in interoperability mode. It includes the following topics:

•Verifying the McData 6064 Switch

•Verifying the MDS 9513 Switch

Verifying the McData 6064 Switch

The following examples show the commands used to verify the configuration of the McData 6064 switch:

Root> show switch

State:                  Online

R_A_TOV:                100

E_D_TOV:                20

Preferred Domain ID:    1

Domain ID Offset:       96

Switch Priority:        Never Principal

Speed:                  2 Gb/sec

Rerouting Delay:        Disabled

Interop Mode:           Open Fabric 1.0

Active Domain ID:       1

World Wide Name:        10:00:08:00:88:A0:7A:74

Insistent Domain ID:    Disabled

Domain RSCN:            Disabled

Zoning RSCN:            Enabled

FC Address Domain:      61 (hex)

Limited Fabric RSCN:    Disabled

Zone FlexPars:          Fabric Filtering

RSCN Zone Isolation:    Fabric Filtering

Safe Zoning:            Disabled

ISL FSPF Cost:          By Port Speed

Web Enabled:            Enabled

Frame Resize State:     Enabled

Block Dup WWN State:    Disabled

API Enabled:            Enabled

API Management IP:      172.25.242.164

Password Exp. Time:     0

Root> show system

Name:                M6064

Description:         McData-6064

Contact:             Field Support

Location:            LabD-Interop

Date/Time:           08/23/2011 18:53:21

Serial Number:

Type Number:         006064

Model Name:          ED-64M

Model Number:        001

EC Level:            1050211

Firmware Version:    09.09.09 2

Beaconing:           Disabled

Issue the show port status command to verify that the correct ports are online and are type E port or F port.

Root> show port status

Port  State               Type    Attached WWN             Beaconing  Reason

----  ------------------  ------  -----------------------  ---------  ------

0     No Light            gPort   None                     Disabled

1     No Light            gPort   None                     Disabled

2     No Light            gPort   None                     Disabled

3     No Light            gPort   None                     Disabled

4     Online              ePort   20:01:00:05:9B:01:B4:B3  Disabled

5     No Light            gPort   None                     Disabled

6     No Light            gPort   None                     Disabled

7     No Light            gPort   None                     Disabled

8     No Light            gPort   None                     Disabled

24    No Light            gPort   None                     Disabled

25    No Light            gPort   None                     Disabled

26    No Light            gPort   None                     Disabled

27    Online              fPort   10:00:00:00:C9:D0:92:E6  Disabled

28    No Light            gPort   None                     Disabled

29    No Light            gPort   None                     Disabled

30    No Light            gPort   None                     Disabled

31    No Light            gPort   None                     Disabled

32    Online              ePort   20:01:00:05:9B:01:B4:B3  Disabled

33    No Light            gPort   None                     Disabled

60    No Light            gPort   None                     Disabled

61    No Light            gPort   None                     Disabled

62    No Light            gPort   None                     Disabled

63    No Light            gPort   None                     Disabled

The show nameserver command shows that the Netfinity host has logged into the McData switch:

Root> show nameserver

DID  Type  PortId  Port Name                Node Name                COS  FC4

---  ----  ------  -----------------------  -----------------------  ---  ---

1    N     611F13  10:00:00:00:C9:D0:92:E6  20:00:00:00:C9:D0:92:E6  2-3  Unknown

FC4 types decode information can be viewed through the Show nameserverFC4types CLI command:

Root> show nameserverfc4types

0. ISO/IEC 8802-2 LLC

1. ISO/IEC 8802-2 LLC/SNAP

2. SCSI-FCP

3. SCSI-GPP

4. IPI-3 Master

5. IPI-3 Slave

6. IPI-3 Peer

7. CP IPI-3 Master

8. CP IPI-3 Slave

9. CP IPI-3 Peer

10. SBCCS-Channel

11. SBCCS-Cntrl Unit

12. FC Srvcs

13. FC-FG

14. FC-XS

15. FC-AL

16. SNMP

17. HIPPI-FP

18. Vendor Unique

Root> show loginserver

Port  BB Crdt  RxFldSz  COS  Port Name                Node Name

----  -------  -------  ---  -----------------------  -----------------------

27    40       2048     2-3  10:00:00:00:C9:D0:92:E6  20:00:00:00:C9:D0:92:E6

To view the FSPF routes used by the McData 3032 switch, use the Web GUI tool (Figure 5-2). There is no command line entry available to show this information.

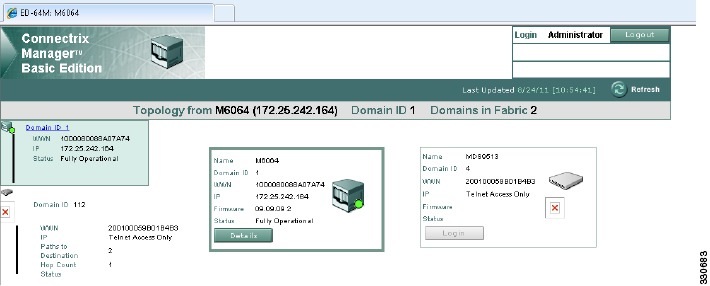

Figure 5-2 McData Core Displaying Routes

Verifying the MDS 9513 Switch

The following examples show the commands used to verify the configuration of the MDS 9513 switch:

MDS9513(config)# show version

Cisco Nexus Operating System (NX-OS) Software

TAC support: http://www.cisco.com/tac

Documents:
http://www.cisco.com/en/US/products/ps9372/tsd_products_support_series_home.html

Copyright (c) 2002-2011, Cisco Systems, Inc. All rights reserved.

The copyrights to certain works contained herein are owned by

other third parties and are used and distributed under license.

Some parts of this software are covered under the GNU Public

License. A copy of the license is available at

http://www.gnu.org/licenses/gpl.html.

Software

  BIOS:      version 1.0.10

  loader:    version N/A

  kickstart: version 5.2(1)

  system:    version 5.2(1)

  BIOS compile time:       01/08/09

  kickstart image file is: bootflash:///m9500-sf2ek9-kickstart-mz.5.2.1.bin.S74

  kickstart compile time:  12/25/2020 12:00:00 [07/16/2011 22:48:52]

  system image file is:    bootflash:///m9500-sf2ek9-mz.5.2.1.bin.S74

  system compile time:     6/7/2011 13:00:00 [07/17/2011 00:15:24]

Hardware

  cisco MDS 9513 (13 Slot) Chassis ("Supervisor/Fabric-2a")

  Motorola, 7447A, altivec  with 2071296 kB of memory.

  Processor Board ID JAE141501UD

  Device name: MDS9513

  bootflash:    1000440 kB

  slot0:              0 kB (expansion flash)

Kernel uptime is 20 day(s), 2 hour(s), 51 minute(s), 44 second(s)

Last reset

  Reason: Unknown

  System version: 5.2(1)

  Service:

plugin

  Core Plugin

MDS9513(config)# show interface brief

-------------------------------------------------------------------------------

Interface  Vsan   Admin  Admin   Status          SFP    Oper  Oper   Port

                  Mode   Trunk                          Mode  Speed  Channel

                         Mode                                 (Gbps)

-------------------------------------------------------------------------------

fc1/1      1      auto   on      down             swl    --           --

fc1/2      1      FX     on      down             swl    --           --

fc1/3      1      FX     on      down             swl    --           --

fc1/28     1      FX     on      sfpAbsent        --     --           --

fc1/29     1      FX     on      sfpAbsent        --     --           --

fc1/30     1      FX     on      sfpAbsent        --     --           --

fc1/31     1      FX     on      up               swl    FL      2    --

fc1/32     1      FX     on      sfpAbsent        --     --           --

fc1/33     1      FX     on      sfpAbsent        --     --           --

fc1/34     1      FX     on      sfpAbsent        --     --           --

fc1/35     1      FX     on      sfpAbsent        --     --           --

fc1/36     1      FX     on      sfpAbsent        --     --           --

fc1/37     1      auto   on      up               swl    E       2    --

fc1/38     1      FX     on      sfpAbsent        --     --           --

fc1/39     1      FX     on      sfpAbsent        --     --           --

fc1/40     1      FX     on      sfpAbsent        --     --           --

...

fc13/1     1      auto   on      up               swl    E       1    --

fc13/2     1      FX     on      sfpAbsent        --     --           --

fc13/3     1      FX     on      sfpAbsent        --     --           --

fc13/4     1      FX     on      sfpAbsent        --     --           --

MDS9513(config)# show vsan 1

vsan 1 information

         name:VSAN0001  state:active

         interoperability mode:1

         loadbalancing:src-id/dst-id/oxid

         operational state:up

MDS9513(config)# show fcdomain vsan 1

The local switch is the Principal Switch.

Local switch run time information:

        State: Stable

        Local switch WWN:    20:01:00:05:9b:01:b4:b3

        Running fabric name: 20:01:00:05:9b:01:b4:b3

        Running priority: 2

        Current domain ID: 0x64(100)

Local switch configuration information:

        State: Enabled

        FCID persistence: Enabled

        Auto-reconfiguration: Disabled

        Contiguous-allocation: Disabled

        Configured fabric name: 20:01:00:05:30:00:28:df

        Optimize Mode: Disabled

        Configured priority: 128

        Configured domain ID: 0x64(100) (preferred)

Principal switch run time information:

        Running priority: 2

Interface               Role          RCF-reject

----------------    -------------    ------------

fc1/37              Downstream       Disabled

fc13/1              Non-principal    Disabled

----------------    -------------    ------------

MDS9513(config)# show fcdomain domain-list vsan 1

Number of domains: 2

Domain ID              WWN

---------    -----------------------

0x64(100)    20:01:00:05:9b:01:b4:b3 [Local] [Principal]

 0x61(97)    10:00:08:00:88:a0:7a:74

@@@@

MDS9513(config-if)# sh fspf internal route vsan 1

FSPF Unicast Routes

---------------------------

 VSAN Number  Dest Domain   Route Cost    Next hops

-----------------------------------------------

           1     0x61(97)          500       fc1/37

                                             fc13/1

MDS9513(config)# show fcns database vsan 1

VSAN 1:

--------------------------------------------------------------------------

FCID        TYPE  PWWN                    (VENDOR)        FC4-TYPE:FEATURE

--------------------------------------------------------------------------

0x611f13    N     10:00:00:00:c9:d0:92:e6 (Emulex)        scsi-fcp:init

0x6401d4    NL    50:00:00:e0:10:32:d1:61 (Fujitsu)       scsi-fcp:target

0x6401d5    NL    50:00:00:e0:10:32:d0:f1 (Fujitsu)       scsi-fcp:target

0x6401d6    NL    50:00:00:e0:10:32:da:a1 (Fujitsu)       scsi-fcp:target

0x6401d9    NL    50:00:00:e0:10:33:04:01 (Fujitsu)       scsi-fcp:target

0x6401da    NL    50:00:00:e0:10:33:fc:d1 (Fujitsu)       scsi-fcp:target

0x6401dc    NL    50:00:00:e0:10:5c:3c:21 (Fujitsu)       scsi-fcp:target

0x6401e0    NL    50:00:00:e0:10:4b:b3:61 (Fujitsu)       scsi-fcp:target

0x6401e1    NL    50:00:00:e0:10:33:06:51 (Fujitsu)       scsi-fcp:target

0x6401e2    NL    50:00:00:e0:10:34:a4:c1 (Fujitsu)       scsi-fcp:target

0x6401e4    NL    50:00:00:e0:10:32:d3:61 (Fujitsu)       scsi-fcp:target

0x6401e8    NL    50:00:00:e0:10:33:01:d1 (Fujitsu)       scsi-fcp:target

0x6401ef    NL    50:00:00:e0:10:32:d8:81 (Fujitsu)       scsi-fcp:target

Total number of entries = 13

switch# show fcns database vsan 99

VSAN 99:

--------------------------------------------------------------------------

FCID        TYPE  PWWN                    (VENDOR)        FC4-TYPE:FEATURE

--------------------------------------------------------------------------

0x610713    N     21:00:00:e0:8b:07:a4:36 (QLogic)

0x7800d5    NL    22:00:00:20:37:0e:65:da (Seagate)       scsi-fcp:target

0x7800d6    NL    22:00:00:20:37:14:74:e8 (Seagate)       scsi-fcp:target

0x7800d9    NL    22:00:00:20:37:04:f8:a1 (Seagate)       scsi-fcp:target

0x7800da    NL    22:00:00:20:37:0c:6f:a9 (Seagate)       scsi-fcp:target

0x7800dc    NL    22:00:00:20:37:0d:b6:4b (Seagate)       scsi-fcp:target

0x7800e0    NL    22:00:00:20:37:0e:65:44 (Seagate)       scsi-fcp:target

0x7800e1    NL    22:00:00:20:37:0c:75:d5 (Seagate)       scsi-fcp:target

0x7800e2    NL    22:00:00:20:37:04:ea:2b (Seagate)       scsi-fcp:target

0x7800e4    NL    22:00:00:20:37:14:74:49 (Seagate)       scsi-fcp:target

0x7800e8    NL    22:00:00:20:37:14:74:fc (Seagate)       scsi-fcp:target

Total number of entries = 11

You can use Cisco DCNM-SAN and Device Manager to verify the current state of the fabric.

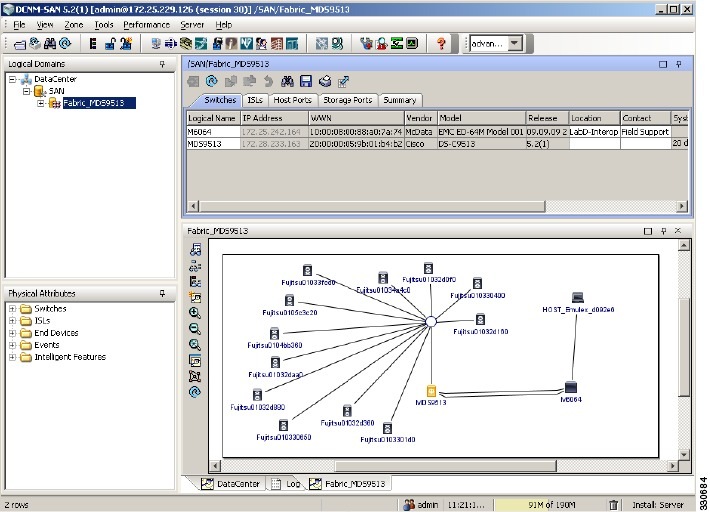

Figure 5-3 shows the fabric topology from Cisco DCNM-SAN.

Figure 5-3 MDS 9000 Switch and McData Dual Core Displayed in Cisco DCNM-SAN

Figure 5-4 shows Device Manager on the MDS 9513 switch in the example topology. It shows which ports are active as E ports.

Figure 5-4 MDS 9513 Switch Device Manager Showing Active Ports

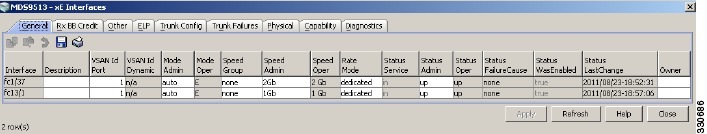

Figure 5-5 shows the status of the E ports that verifies the link speed.

Figure 5-5 Cisco DCNM-SAN Verifying Port Status and Type

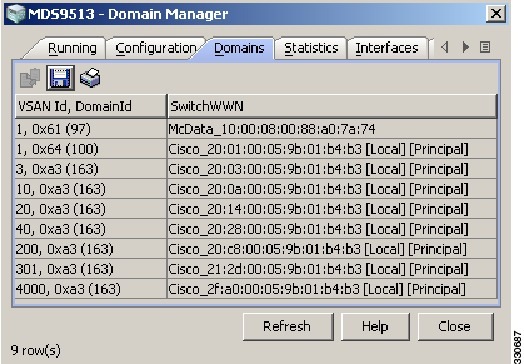

Figure 5-6 shows the domain ID of the switches in the fabric.

Figure 5-6 Cisco DCNM-SAN Verifying Domains

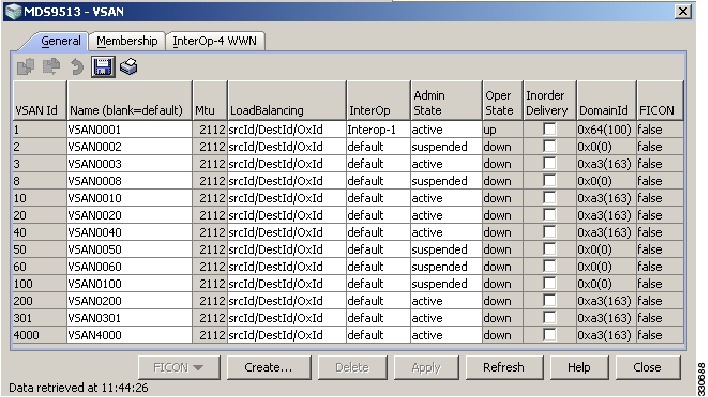

Figure 5-7 shows that VSAN 1 is operating in interop mode.

Figure 5-7 Verifying Interop Mode is Set

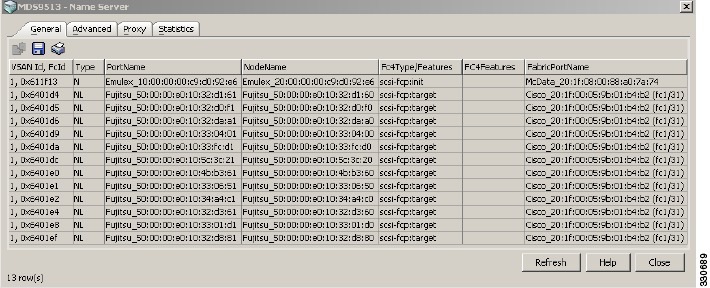

Figure 5-8 shows the MDS 9513 switch name server. This shows the edge devices that have registered.

Figure 5-8 MDS 9513 Switch Name Server Entries

Figure 5-9 shows the FSPF routes as calculated by this switch.

Figure 5-9 FSPF Calculations in Cisco DCNM-SAN

Zoning

In this example topology, Cisco DCNM-SAN was used to create zones and zone sets. Cisco DCNM-SAN displays are also used to verify the zone and zone set information.

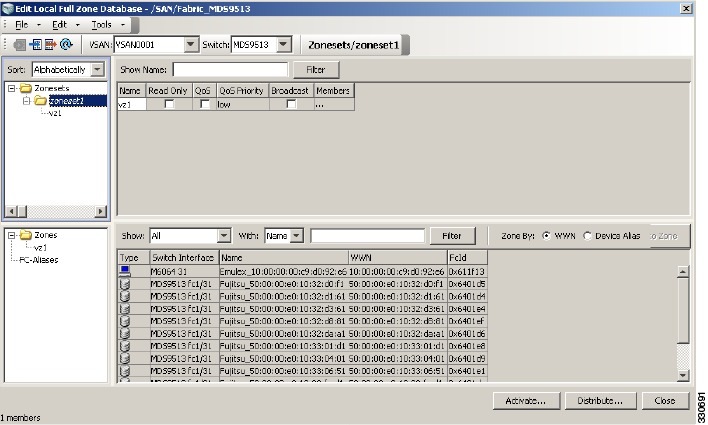

Figure 5-10 shows the zones and zone sets displayed in Cisco DCNM-SAN.

Figure 5-10 Zoning Configuration for MDS 9000 Switch and McData Dual Core Topology

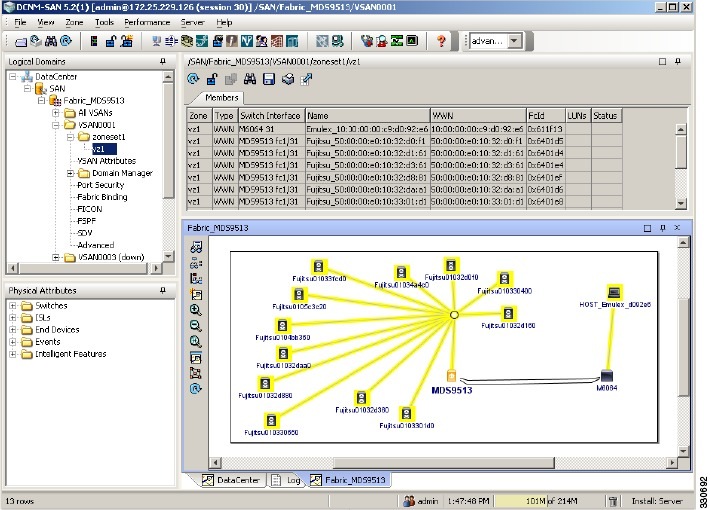

Figure 5-11 shows the zone VZ1.

Figure 5-11 Zone VZ1 Displayed in Cisco DCNM-SAN

Figure 5-12 shows the FSPF traffic flow in this multivendor fabric.

Figure 5-12 MDS 9000 Switch and McData Dual Core FSPF Data Flow

	Cisco MDS 9000 Family Switch-to-Switch Interoperability Configuration Guide
	MDS 9000 Switch and McData Dual Core Topology (Interop Mode 1)
Cisco MDS 9000 Family Switch-to-Switch Interoperability Configuration Guide Index Preface Interoperability Overview Interoperability Limitations MDS 9000 Core with Brocade Edge Topology (Interop Mode 1) MDS 9000 Core with Brocade and McData Edge Topology (Interop Mode 1) MDS 9000 Switch and McData Dual Core Topology (Interop Mode 1) MDS 9000 Core with Brocade 3900/12000 Edge Toplogy MDS 9000 Legacy Switch Interop Mode 2 MDS 9000 Legacy Switch Interop Mode 3 MDS 9000 Legacy Switch Interop Mode 4 Interoperability with Inter-VSAN Routing IBM BladeCenter Standards Perspectives Interoperability Guidelines for Non-Cisco Switches	Download this chapter MDS 9000 Switch and McData Dual Core Topology (Interop Mode 1) Download the complete book Full Book PDF (PDF - 5 MB) Feedback Table Of Contents MDS 9000 Switch and McData Dual Core Topology (Interop Mode 1) Specifications Expected Topology Behavior Zoning FSPF Trunking and PortChannels Domain IDs Configuration Configuring the McData 6064 Switch Configuring the MDS 9000 Switch Verification Verifying the McData 6064 Switch Verifying the MDS 9513 Switch Zoning MDS 9000 Switch and McData Dual Core Topology (Interop Mode 1) This chapter describes how to set up a basic dual-core topology with an MDS 9000 switch configured for interop mode 1 and a McData 6064 switch. Devices are connected to both core switches and all traffic must flow through both cores to reach its destination. This chapter includes the following sections: •Specifications •Expected Topology Behavior •Configuration •Verification •Zoning Specifications The following switches and code levels were used for this example configuration: •MDS 9509 running NX-OS Release 5.2(1) •McData 6064 Version 09.09.09 2 Figure 5-1 shows the topology used for this example configuration. Figure 5-1 MDS 9509 Switch and McData Switch Dual Core Topology Note The VZ1 JBOD is an arbitrated loop with 12 drives. Expected Topology Behavior This section covers the Fibre Channel services and features that act differently in this topology (Figure 5-1) as compared to a homogeneous, single-vendor implementation. It contains the following topics: •Zoning •FSPF •Trunking and PortChannels •Domain IDs Zoning In the core-core topology, zone members are all pWWNs, because the McData domain/port nomenclature is not a valid form according to the FC standard. When a zone set activation is made at one core switch, the zone set activation is sent to the other core switch. Either core switch may make zoning changes and have them be propagated to the other core switch. Both core switches provide all of the zone security for the device-attached ports because the Cisco MDS 9000 switch and the McData switches do not check the source and destination of the frame when traversing E ports. The Cisco MDS 9000 switch only provides hardware-enforced security on the ingress ports to the fabric, while the McData switch only provides soft zoning. Note After two active zone sets successfully merge, always copy the active zone set to the full zone set database prior to modifying it on the Cisco MDS 9000 switch. FSPF All links within the topology show the link cost of 500, because the McData 6064 switch used in this example only supports 2 Gbps. The McData switches load balance their routes using source/destination; the ingress edge switch uses the same ISL for all traffic that has the same source/destination pair. If the McData switch can load balance using source/destination/ox-id, then it can choose either of the ISLs for the route through the fabric. The MDS switch continues to load balance across ISLs using source/destination/ox-id of the frame. Trunking and PortChannels The lack of MDS 9000 switch-to-MDS 9000-switch connections prohibits the topology from containing TE ports or PortChannels. Only standard E ports are used for the ISLs. Domain IDs The domain IDs are limited to the 97 to 127 range due to a restriction imposed by McData's inability to handle IDs outside of that range. While the MDS 9000 switch can handle domain IDs outside of this range in its normal mode of operation, the implementation of interoperability mode includes this limitation. Domain ID modifications can be handled in two ways, disruptively or nondisruptively: •Disruptive—This event impacts the entire switch. When changing domain IDs, McData requires the entire switch to be taken offline and/or rebooted. •Nondisruptive—This event is limited to the VSAN where the event is taking place. Only the MDS 9000 switch can perform this action, as the domain manager process for this VSAN is restarted and not the entire switch. This restart requires any device logged into the VSAN to log into the fabric again to obtain a new FC ID. Configuration This section describes the configuration process and includes the following topics: •Configuring the McData 6064 Switch •Configuring the MDS 9000 Switch Configuring the McData 6064 Switch In this example, the McData 6064 switch is configured for interop mode using Telnet and the CLI. The switch is placed in an offline state, the default zone is set to deny, the domain ID is set to 0x61 (97), and timers are altered to match the fabric. To configure the McData 6064 switch, follow these steps: Step 1 Display current switch information. Root> show switch State: Online R_A_TOV: 100 <=== must match other fabric switches E_D_TOV: 20 <=== must match other fabric switches Preferred Domain ID: 2 Domain ID Offset: 96 Switch Priority: Never Principal Speed: 2 Gb/sec Rerouting Delay: Disabled Interop Mode: McDATA Fabric 1.0 <=== McData Fabric mode Active Domain ID: 2 World Wide Name: 10:00:08:00:88:A0:7A:74 Insistent Domain ID: Disabled Domain RSCN: Disabled Zoning RSCN: Enabled FC Address Domain: 62 (hex) Limited Fabric RSCN: Disabled Zone FlexPars: Fabric Filtering RSCN Zone Isolation: Fabric Filtering Safe Zoning: Disabled ISL FSPF Cost: By Port Speed Web Enabled: Enabled Frame Resize State: Enabled Block Dup WWN State: Disabled API Enabled: Enabled API Management IP: 172.25.242.164 Password Exp. Time: 0 Step 2 Alter the timers, RA_TOV and ED_TOV, if needed. These options are listed in the config switch menu. Root> config switch Config.Switch> .. - Move back one level FrameResizeState - Set the FRAME_RESIZE enabled state RSCNZoneIsolation - Set the RSCN Zone Isolation state apiState - Set the api enabled state banner - Configure the banner blockDupWWN - Set Block duplicate WWN state commadelim - Toggle comma-delimited display mode domainIDOffset - Set the domain ID offset for the switch domainRSCN - Set the switch state for generation of domain RSCN's edTOV - Set the E_D_TOV for the switch insistDomainId - Set the Insistent domain ID state for the switch interopMode - Set the Interoperability mode for the switch islFSPFCost - Sets the FSPF cost of ISLs login - Login to CLI under different access rights logout - Logout of CLI ltdFabRSCN - Set the switch state for limiting Fabric RSCN's prefDomainId - Set the preferred domain ID for the switch priority - Set the switch priority raTOV - Set the R_A_TOV for the switch rerouteDelay - Enable or disable the reroute delay root - Move back to root level safeZoning - Set the fabric state for prohibiting Default Zoning setIPv6 - Sets the enabled state of IPv6 show - Display the switch configuration speed - Set the switch operating speed webState - Set the web enabled state zoneFlexPars - Set the zone FlexPars state zoningRSCN - Set the Zoning RSCN state for the switch Step 3 Set the switch offline. The switch must be offline before changing the mode to interop. Config.Switch> interopmode open Error 045: Not Allowed While Switch Online Note To change to interop mode, the switch must be set to offline. Config.Switch> root Root> maint system Maint.System> setonlinestate 0 Maint.System> root Root> show switch State: Offline <==== switch is now offline R_A_TOV: 100 E_D_TOV: 20 Preferred Domain ID: 2 Domain ID Offset: 96 Switch Priority: Never Principal Speed: 2 Gb/sec Rerouting Delay: Disabled Interop Mode: McDATA Fabric 1.0 Active Domain ID: 2 World Wide Name: 10:00:08:00:88:A0:7A:74 Insistent Domain ID: Disabled Domain RSCN: Disabled Zoning RSCN: Enabled FC Address Domain: 62 (hex) Limited Fabric RSCN: Disabled Zone FlexPars: Fabric Filtering RSCN Zone Isolation: Fabric Filtering Safe Zoning: Disabled ISL FSPF Cost: By Port Speed Web Enabled: Enabled Frame Resize State: Enabled Block Dup WWN State: Disabled API Enabled: Enabled API Management IP: 172.25.242.164 Password Exp. Time: 0 Step 4 Set the mode to interop. Root> config switch Config.Switch> interopmode open Warning: Zone members configured by domain and port will be ignored. Config.Switch> root Root> show switch State: Offline <==== still offline R_A_TOV: 100 E_D_TOV: 20 Preferred Domain ID: 2 Domain ID Offset: 96 Switch Priority: Never Principal Speed: 2 Gb/sec Rerouting Delay: Disabled Interop Mode: Open Fabric 1.0 <=== now in interop mode Active Domain ID: 2 World Wide Name: 10:00:08:00:88:A0:7A:74 Insistent Domain ID: Disabled Domain RSCN: Disabled Zoning RSCN: Enabled FC Address Domain: 62 (hex) Limited Fabric RSCN: Disabled Zone FlexPars: Fabric Filtering RSCN Zone Isolation: Fabric Filtering Safe Zoning: Disabled ISL FSPF Cost: By Port Speed Web Enabled: Enabled Frame Resize State: Enabled Block Dup WWN State: Disabled API Enabled: Enabled API Management IP: 172.25.242.164 Password Exp. Time: 0 Step 5 Set the preferred domain ID, with an offset of 0x60. In this example, the McData switch is domain ID 0x61 (decimal 97). The FC IDs for nodes on this switch are 61xxxx. Root> config switch Config.Switch> prefDo Config.Switch> prefDomainId 1 Config.Switch> root Root> maint system Maint.System> setonlinestate 1 Maint.System> root Root> show switch State: Online <==== now online R_A_TOV: 100 E_D_TOV: 20 Preferred Domain ID: 1 <==== Domain ID 97 Domain ID Offset: 96 Switch Priority: Never Principal Speed: 2 Gb/sec Rerouting Delay: Disabled Interop Mode: Open Fabric 1.0 <==== in interop mode Active Domain ID: 1 World Wide Name: 10:00:08:00:88:A0:7A:74 Insistent Domain ID: Disabled Domain RSCN: Disabled Zoning RSCN: Enabled FC Address Domain: 61 (hex) Limited Fabric RSCN: Disabled Zone FlexPars: Fabric Filtering RSCN Zone Isolation: Fabric Filtering Safe Zoning: Disabled ISL FSPF Cost: By Port Speed Web Enabled: Enabled Frame Resize State: Enabled Block Dup WWN State: Disabled API Enabled: Enabled API Management IP: 172.25.242.164 Password Exp. Time: 0 Configuring the MDS 9000 Switch See Chapter 3 "MDS 9000 Core with Brocade Edge Topology (Interop Mode 1)," for examples of how to set the MDS 9000 switch to interop mode. Verification This section highlights the commands used to verify that the fabric is up and running in interoperability mode. It includes the following topics: •Verifying the McData 6064 Switch •Verifying the MDS 9513 Switch Verifying the McData 6064 Switch The following examples show the commands used to verify the configuration of the McData 6064 switch: Root> show switch State: Online R_A_TOV: 100 E_D_TOV: 20 Preferred Domain ID: 1 Domain ID Offset: 96 Switch Priority: Never Principal Speed: 2 Gb/sec Rerouting Delay: Disabled Interop Mode: Open Fabric 1.0 Active Domain ID: 1 World Wide Name: 10:00:08:00:88:A0:7A:74 Insistent Domain ID: Disabled Domain RSCN: Disabled Zoning RSCN: Enabled FC Address Domain: 61 (hex) Limited Fabric RSCN: Disabled Zone FlexPars: Fabric Filtering RSCN Zone Isolation: Fabric Filtering Safe Zoning: Disabled ISL FSPF Cost: By Port Speed Web Enabled: Enabled Frame Resize State: Enabled Block Dup WWN State: Disabled API Enabled: Enabled API Management IP: 172.25.242.164 Password Exp. Time: 0 Root> show system Name: M6064 Description: McData-6064 Contact: Field Support Location: LabD-Interop Date/Time: 08/23/2011 18:53:21 Serial Number: Type Number: 006064 Model Name: ED-64M Model Number: 001 EC Level: 1050211 Firmware Version: 09.09.09 2 Beaconing: Disabled Issue the show port status command to verify that the correct ports are online and are type E port or F port. Root> show port status Port State Type Attached WWN Beaconing Reason ---- ------------------ ------ ----------------------- --------- ------ 0 No Light gPort None Disabled 1 No Light gPort None Disabled 2 No Light gPort None Disabled 3 No Light gPort None Disabled 4 Online ePort 20:01:00:05:9B:01:B4:B3 Disabled 5 No Light gPort None Disabled 6 No Light gPort None Disabled 7 No Light gPort None Disabled 8 No Light gPort None Disabled 24 No Light gPort None Disabled 25 No Light gPort None Disabled 26 No Light gPort None Disabled 27 Online fPort 10:00:00:00:C9:D0:92:E6 Disabled 28 No Light gPort None Disabled 29 No Light gPort None Disabled 30 No Light gPort None Disabled 31 No Light gPort None Disabled 32 Online ePort 20:01:00:05:9B:01:B4:B3 Disabled 33 No Light gPort None Disabled 60 No Light gPort None Disabled 61 No Light gPort None Disabled 62 No Light gPort None Disabled 63 No Light gPort None Disabled The show nameserver command shows that the Netfinity host has logged into the McData switch: Root> show nameserver DID Type PortId Port Name Node Name COS FC4 --- ---- ------ ----------------------- ----------------------- --- --- 1 N 611F13 10:00:00:00:C9:D0:92:E6 20:00:00:00:C9:D0:92:E6 2-3 Unknown FC4 types decode information can be viewed through the Show nameserverFC4types CLI command: Root> show nameserverfc4types 0. ISO/IEC 8802-2 LLC 1. ISO/IEC 8802-2 LLC/SNAP 2. SCSI-FCP 3. SCSI-GPP 4. IPI-3 Master 5. IPI-3 Slave 6. IPI-3 Peer 7. CP IPI-3 Master 8. CP IPI-3 Slave 9. CP IPI-3 Peer 10. SBCCS-Channel 11. SBCCS-Cntrl Unit 12. FC Srvcs 13. FC-FG 14. FC-XS 15. FC-AL 16. SNMP 17. HIPPI-FP 18. Vendor Unique Root> show loginserver Port BB Crdt RxFldSz COS Port Name Node Name ---- ------- ------- --- ----------------------- ----------------------- 27 40 2048 2-3 10:00:00:00:C9:D0:92:E6 20:00:00:00:C9:D0:92:E6 To view the FSPF routes used by the McData 3032 switch, use the Web GUI tool (Figure 5-2). There is no command line entry available to show this information. Figure 5-2 McData Core Displaying Routes Verifying the MDS 9513 Switch The following examples show the commands used to verify the configuration of the MDS 9513 switch: MDS9513(config)# show version Cisco Nexus Operating System (NX-OS) Software TAC support: http://www.cisco.com/tac Documents: http://www.cisco.com/en/US/products/ps9372/tsd_products_support_series_home.html Copyright (c) 2002-2011, Cisco Systems, Inc. All rights reserved. The copyrights to certain works contained herein are owned by other third parties and are used and distributed under license. Some parts of this software are covered under the GNU Public License. A copy of the license is available at http://www.gnu.org/licenses/gpl.html. Software BIOS: version 1.0.10 loader: version N/A kickstart: version 5.2(1) system: version 5.2(1) BIOS compile time: 01/08/09 kickstart image file is: bootflash:///m9500-sf2ek9-kickstart-mz.5.2.1.bin.S74 kickstart compile time: 12/25/2020 12:00:00 [07/16/2011 22:48:52] system image file is: bootflash:///m9500-sf2ek9-mz.5.2.1.bin.S74 system compile time: 6/7/2011 13:00:00 [07/17/2011 00:15:24] Hardware cisco MDS 9513 (13 Slot) Chassis ("Supervisor/Fabric-2a") Motorola, 7447A, altivec with 2071296 kB of memory. Processor Board ID JAE141501UD Device name: MDS9513 bootflash: 1000440 kB slot0: 0 kB (expansion flash) Kernel uptime is 20 day(s), 2 hour(s), 51 minute(s), 44 second(s) Last reset Reason: Unknown System version: 5.2(1) Service: plugin Core Plugin MDS9513(config)# show interface brief ------------------------------------------------------------------------------- Interface Vsan Admin Admin Status SFP Oper Oper Port Mode Trunk Mode Speed Channel Mode (Gbps) ------------------------------------------------------------------------------- fc1/1 1 auto on down swl -- -- fc1/2 1 FX on down swl -- -- fc1/3 1 FX on down swl -- -- fc1/28 1 FX on sfpAbsent -- -- -- fc1/29 1 FX on sfpAbsent -- -- -- fc1/30 1 FX on sfpAbsent -- -- -- fc1/31 1 FX on up swl FL 2 -- fc1/32 1 FX on sfpAbsent -- -- -- fc1/33 1 FX on sfpAbsent -- -- -- fc1/34 1 FX on sfpAbsent -- -- -- fc1/35 1 FX on sfpAbsent -- -- -- fc1/36 1 FX on sfpAbsent -- -- -- fc1/37 1 auto on up swl E 2 -- fc1/38 1 FX on sfpAbsent -- -- -- fc1/39 1 FX on sfpAbsent -- -- -- fc1/40 1 FX on sfpAbsent -- -- -- ... fc13/1 1 auto on up swl E 1 -- fc13/2 1 FX on sfpAbsent -- -- -- fc13/3 1 FX on sfpAbsent -- -- -- fc13/4 1 FX on sfpAbsent -- -- -- MDS9513(config)# show vsan 1 vsan 1 information name:VSAN0001 state:active interoperability mode:1 loadbalancing:src-id/dst-id/oxid operational state:up MDS9513(config)# show fcdomain vsan 1 The local switch is the Principal Switch. Local switch run time information: State: Stable Local switch WWN: 20:01:00:05:9b:01:b4:b3 Running fabric name: 20:01:00:05:9b:01:b4:b3 Running priority: 2 Current domain ID: 0x64(100) Local switch configuration information: State: Enabled FCID persistence: Enabled Auto-reconfiguration: Disabled Contiguous-allocation: Disabled Configured fabric name: 20:01:00:05:30:00:28:df Optimize Mode: Disabled Configured priority: 128 Configured domain ID: 0x64(100) (preferred) Principal switch run time information: Running priority: 2 Interface Role RCF-reject ---------------- ------------- ------------ fc1/37 Downstream Disabled fc13/1 Non-principal Disabled ---------------- ------------- ------------ MDS9513(config)# show fcdomain domain-list vsan 1 Number of domains: 2 Domain ID WWN --------- ----------------------- 0x64(100) 20:01:00:05:9b:01:b4:b3 [Local] [Principal] 0x61(97) 10:00:08:00:88:a0:7a:74 @@@@ MDS9513(config-if)# sh fspf internal route vsan 1 FSPF Unicast Routes --------------------------- VSAN Number Dest Domain Route Cost Next hops ----------------------------------------------- 1 0x61(97) 500 fc1/37 fc13/1 MDS9513(config)# show fcns database vsan 1 VSAN 1: -------------------------------------------------------------------------- FCID TYPE PWWN (VENDOR) FC4-TYPE:FEATURE -------------------------------------------------------------------------- 0x611f13 N 10:00:00:00:c9:d0:92:e6 (Emulex) scsi-fcp:init 0x6401d4 NL 50:00:00:e0:10:32:d1:61 (Fujitsu) scsi-fcp:target 0x6401d5 NL 50:00:00:e0:10:32:d0:f1 (Fujitsu) scsi-fcp:target 0x6401d6 NL 50:00:00:e0:10:32:da:a1 (Fujitsu) scsi-fcp:target 0x6401d9 NL 50:00:00:e0:10:33:04:01 (Fujitsu) scsi-fcp:target 0x6401da NL 50:00:00:e0:10:33:fc:d1 (Fujitsu) scsi-fcp:target 0x6401dc NL 50:00:00:e0:10:5c:3c:21 (Fujitsu) scsi-fcp:target 0x6401e0 NL 50:00:00:e0:10:4b:b3:61 (Fujitsu) scsi-fcp:target 0x6401e1 NL 50:00:00:e0:10:33:06:51 (Fujitsu) scsi-fcp:target 0x6401e2 NL 50:00:00:e0:10:34:a4:c1 (Fujitsu) scsi-fcp:target 0x6401e4 NL 50:00:00:e0:10:32:d3:61 (Fujitsu) scsi-fcp:target 0x6401e8 NL 50:00:00:e0:10:33:01:d1 (Fujitsu) scsi-fcp:target 0x6401ef NL 50:00:00:e0:10:32:d8:81 (Fujitsu) scsi-fcp:target Total number of entries = 13 switch# show fcns database vsan 99 VSAN 99: -------------------------------------------------------------------------- FCID TYPE PWWN (VENDOR) FC4-TYPE:FEATURE -------------------------------------------------------------------------- 0x610713 N 21:00:00:e0:8b:07:a4:36 (QLogic) 0x7800d5 NL 22:00:00:20:37:0e:65:da (Seagate) scsi-fcp:target 0x7800d6 NL 22:00:00:20:37:14:74:e8 (Seagate) scsi-fcp:target 0x7800d9 NL 22:00:00:20:37:04:f8:a1 (Seagate) scsi-fcp:target 0x7800da NL 22:00:00:20:37:0c:6f:a9 (Seagate) scsi-fcp:target 0x7800dc NL 22:00:00:20:37:0d:b6:4b (Seagate) scsi-fcp:target 0x7800e0 NL 22:00:00:20:37:0e:65:44 (Seagate) scsi-fcp:target 0x7800e1 NL 22:00:00:20:37:0c:75:d5 (Seagate) scsi-fcp:target 0x7800e2 NL 22:00:00:20:37:04:ea:2b (Seagate) scsi-fcp:target 0x7800e4 NL 22:00:00:20:37:14:74:49 (Seagate) scsi-fcp:target 0x7800e8 NL 22:00:00:20:37:14:74:fc (Seagate) scsi-fcp:target Total number of entries = 11 You can use Cisco DCNM-SAN and Device Manager to verify the current state of the fabric. Figure 5-3 shows the fabric topology from Cisco DCNM-SAN. Figure 5-3 MDS 9000 Switch and McData Dual Core Displayed in Cisco DCNM-SAN Figure 5-4 shows Device Manager on the MDS 9513 switch in the example topology. It shows which ports are active as E ports. Figure 5-4 MDS 9513 Switch Device Manager Showing Active Ports Figure 5-5 shows the status of the E ports that verifies the link speed. Figure 5-5 Cisco DCNM-SAN Verifying Port Status and Type Figure 5-6 shows the domain ID of the switches in the fabric. Figure 5-6 Cisco DCNM-SAN Verifying Domains Figure 5-7 shows that VSAN 1 is operating in interop mode. Figure 5-7 Verifying Interop Mode is Set Figure 5-8 shows the MDS 9513 switch name server. This shows the edge devices that have registered. Figure 5-8 MDS 9513 Switch Name Server Entries Figure 5-9 shows the FSPF routes as calculated by this switch. Figure 5-9 FSPF Calculations in Cisco DCNM-SAN Zoning In this example topology, Cisco DCNM-SAN was used to create zones and zone sets. Cisco DCNM-SAN displays are also used to verify the zone and zone set information. Figure 5-10 shows the zones and zone sets displayed in Cisco DCNM-SAN. Figure 5-10 Zoning Configuration for MDS 9000 Switch and McData Dual Core Topology Figure 5-11 shows the zone VZ1. Figure 5-11 Zone VZ1 Displayed in Cisco DCNM-SAN Figure 5-12 shows the FSPF traffic flow in this multivendor fabric. Figure 5-12 MDS 9000 Switch and McData Dual Core FSPF Data Flow
	Terms & Conditions \| Privacy Statement \| Cookie Policy \| Trademarks

Table Of Contents

MDS 9000 Switch and McData Dual Core Topology (Interop Mode 1)

Specifications

Expected Topology Behavior

Zoning

FSPF

Trunking and PortChannels

Domain IDs

Configuration

Configuring the McData 6064 Switch

Configuring the MDS 9000 Switch

Verification

Verifying the McData 6064 Switch

Verifying the MDS 9513 Switch

Zoning
