Installing the Cisco MDS 9500 Series
This chapter describes how to install the Cisco MDS 9500 Series chassis and its components, and includes the following information:
•
Preinstallation
•Installing the Chassis in a Cabinet or Rack
•System Grounding
•Grounding the Chassis
•Starting Up the Switch
•Removing, Installing, and Verifying Supervisor, Switching, and Services Modules
•Maintaining a Caching Services Module
•Removing and Installing a Power Supply or PEM
•Removing and Installing Fan Modules
•Removing and Installing CompactFlash Cards
•Removing and Installing Clock Modules
Note Before you install, operate, or service the system, read the Regulatory Compliance and Safety Information for the Cisco MDS 9000 Family for important safety information.
Warning IMPORTANT SAFETY INSTRUCTIONS
This warning symbol indicates danger. You are in a situation that could cause physical injury. Before you work on any equipment, be aware of the hazards involved with electrical circuitry and be familiar with standard practices for preventing accidents. Use the statement number provided at the end of each warning to locate its translation in the translated safety warnings that accompanied this device. Statement 1071
SAVE THESE INSTRUCTIONS
Warning This unit is intended for installation in restricted access areas. A restricted access area can be accessed only through the use of a special tool, lock and key, or other means of security. Statement 1017
Warning Only trained and qualified personnel should be allowed to install, replace, or service this equipment. Statement 1030
Warning A readily accessible two-poled disconnect device must be incorporated in the fixed wiring. Statement 1022
Preinstallation
This section provides the following topics:
•Installation Options
•Installation Guidelines
•Required Equipment
•Unpacking and Inspecting the Switch
Installation Options
The Cisco MDS 9513 Director can be installed using the following methods:
•In an open four-post EIA rack, using:
–The rack-mount kit shipped with the switch
The Cisco MDS 9509 Director can be installed using the following methods:
•In an open EIA rack, using:
–The rack-mount kit shipped with the switch
–The Telco and EIA Shelf Bracket Kit (optional and purchased separately) in addition to the rack-mount kit shipped with the switch
•In a perforated or solid-walled EIA cabinet, using:
–The rack-mount kit shipped with the switch
–The Telco and EIA Shelf Bracket Kit (optional and purchased separately) in addition to the rack-mount kit shipped with the switch
•In a two-post telco rack using the rack-mount kit shipped with the switch
•In a four-post nonthreaded cabinet or rack using the optional 9500 Shelf Bracket Kit
The Cisco MDS 9506 Director can be installed using the following methods:
•In an open EIA rack, using:
–The rack-mount kit shipped with the switch
–The Telco and EIA Shelf Bracket Kit (optional and purchased separately) in addition to the rack-mount kit shipped with the switch
•In a perforated or solid-walled EIA cabinet, using:
–The rack-mount kit shipped with the switch
–The Telco and EIA Shelf Bracket Kit (optional and purchased separately) in addition to the rack-mount kit shipped with the switch
•In a two-post telco rack, using:
–The rack-mount kit shipped with the switch
–The Telco and EIA Shelf Bracket Kit (optional and purchased separately) in addition to the front brackets shipped with the switch
For instructions on installing the switch using the rack-mount kit shipped with the switch, see the"Installing the Chassis in a Cabinet or Rack" section.
For instructions on installing the switch using the optional Telco and EIA Shelf Bracket Kit (purchased separately), see the "Cisco MDS 9000 Family Telco and EIA Shelf Bracket" section on page A-5.
Note The Telco and EIA Shelf Bracket Kit is optional and is not provided with the switch. To order the kit, contact your switch provider.
Note The Telco and EIA Shelf Bracket Kit is not intended for use with a Cisco MDS 9513 Director or Cisco MDS 9509 Director in a two-post telco rack.
Installation Guidelines
Follow these guidelines when installing the Cisco MDS 9500 Series:
•Plan your site configuration and prepare the site before installing the chassis. Cisco recommends you to use the site planning tasks listed in Appendix D, "Site Planning and Maintenance Records."
•Ensure that there is adequate space around the switch to allow for servicing the switch and for adequate airflow (airflow requirements are listed in Appendix B, "Technical Specifications").
•Ensure that the air-conditioning meets the heat dissipation requirements listed in Appendix B, "Technical Specifications".
•Ensure that the cabinet or rack meets the requirements listed in Appendix A, "Cabinet and Rack Requirements."
Note Jumper power cords are available for use in a cabinet. For more information, see the "Jumper Power Cord" section on page C-12.
•Ensure that the chassis is adequately grounded. Grounding the chassis is recommended in all cases, and is mandatory for Cisco MDS 9506 Directors that have a DC power supply installed. If the switch is not mounted in a grounded rack or cabinet, Cisco recommends connecting the system ground on the chassis and the power supply ground to an earth ground, regardless of whether the power supplies are AC or DC.
•Ensure that the site power meets the power requirements listed in Appendix B, "Technical Specifications." You can use an uninterruptible power supply (UPS) to protect against power failures.
Caution Avoid UPS types that use ferroresonant technology. These UPS types can become unstable with systems such as the Cisco MDS 9000 Family, which can have substantial current draw fluctuations because of fluctuating data traffic patterns.
•Ensure that circuits are sized according to local and national codes. For North America:
–The 1900-W AC power supplies require a 20-A circuit.
–The 1900-W DC power supplies require a 70-A circuit.
–The 2500-W AC power supplies require a 20-A circuit.
–The 2500-W DC power supplies require a 100-A circuit.
–The 4000-W AC power supplies require a 30-A circuit.
–The 6000-W AC power supplies require two 220 V inputs at 20-A circuit.
If you are using 200/240 VAC power sources in North America, the circuits must be protected by two-pole circuit breakers.
Caution To prevent loss of input power, ensure that the total maximum loads on the circuits supplying power are within the current ratings of the wiring and breakers.
•Record your installation and configuration information as you work. See Appendix D, "Site Planning and Maintenance Records."
•Use the following screw torques when installing the switch:
–Captive screws: 4 in-lb
–M3 screws: 4 in-lb
–M4 screws: 12in-lb
–M6 screws: 20in-lb
–10-32 screws: 20in-lb
–12-24 screws: 30in-lb
Required Equipment
Gather the following items before beginning the installation:
•Number 1 and number 2 Phillips screwdrivers with torque capability.
•3/16-inch flat-blade screwdriver.
•Tape measure and level.
•ESD wrist strap or other grounding device.
•Antistatic mat or antistatic foam.
•In addition to the grounding items provided in the accessory kit, you need the following items:
–Grounding cable (6 AWG recommended), sized according to local and national installation requirements; the required length depends on the proximity of the Cisco MDS 9500 to proper grounding facilities.
–Crimping tool large enough to accommodate girth of lug.
–Wire-stripping tool.
•For DC power supplies in a Cisco MDS 9506 Director, you need two 10-32 ring lugs for each DC power supply.
•For the Cisco MDS 9513 Director, you need a mechanical lift to handle the weight of the chassis.
Unpacking and Inspecting the Switch
Warning Two people are required to lift the chassis. Grasp the chassis underneath the lower edge and lift with both hands. To prevent injury, keep your back straight and lift with your legs, not your back. To prevent damage to the chassis and components, never attempt to lift the chassis with the handles on the power supplies or on the interface processors, or by the plastic panels on the front of the chassis. These handles were not designed to support the weight of the chassis. Statement 5
Caution Use a mechanical lift to lift the MDS 9513 chassis. The Cisco MDS 9513 Director can weigh up to 375 lb (170 kg) when fully loaded, depending on what modules populate the chassis.
Caution Cisco recommends that a third person assist whenever the chassis is being moved or lifted. The Cisco MDS 9509 Director weighs approximately 170 lb (77 kg) when fully loaded, and the Cisco MDS 9506 Director weighs approximately 125 lb (57 kg) when fully loaded with all modules and power supplies.
Caution When handling switch components, wear an ESD strap and handle modules by the carrier edges only. An ESD socket is provided on the chassis. For the ESD socket to be effective, the chassis must be grounded either through the power cable, the chassis ground, or metal-to-metal contact with a grounded rack.
Tip Keep the shipping container for use when moving or shipping the chassis in the future. The shipping carton can be flattened and stored with the pallet.
Note If you purchased this product through a Cisco reseller, contact the reseller directly for technical support. If you purchased this product directly from Cisco Systems, contact Cisco Technical Support at this URL: http://www.cisco.com/warp/public/687/Directory/DirTAC.shtml.
Note The switch is thoroughly inspected before shipment. If any damage occurred during transportation or any items are missing, contact your customer service representative immediately.
To inspect the shipment, follow these steps:
Step 1 Compare the shipment to the equipment list provided by your customer service representative and ensure that you have received all items, including the following:
•Print documentation and CD-ROMs
•Grounding lug kit
•Rack-mount kit
•ESD wrist strap
•Cables and connectors
•Any optional items ordered
Step 2 Check for damage and report any discrepancies or damage to your customer service representative. Keep the following information ready:
•Invoice number of shipper (see packing slip)
•Model and serial number of the damaged unit
•Description of damage
•Effect of damage on the installation
Installing the Chassis in a Cabinet or Rack
This section describes how to install the Cisco MDS 9500 Series in a cabinet or rack that meets the requirements described in this document, using the rack-mount kit provided with the switch. A separate procedure is provided for each type of director:
•Installing the Cisco MDS 9513 Director in a Rack
•Installing the Cisco MDS 9509 Director in a Rack
•Installing the Cisco MDS 9506 Director in a Rack
Caution If the rack is on wheels, ensure that the brakes are engaged or that the rack is otherwise stabilized.
Note You can remove the modules and other field-replaceable components to make moving and positioning the chassis easier and safer. See the "Removing, Installing, and Verifying Supervisor, Switching, and Services Modules" section for instructions specific to the component.
Installing the Cisco MDS 9513 Director in a Rack

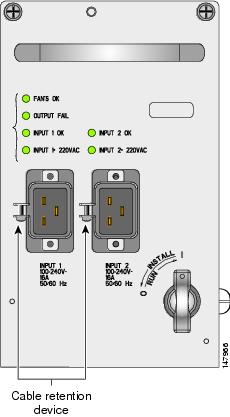

The 6000-W AC power supplies for the Cisco MDS 9513 Director are designed to provide an output power for the modules and fans. Each power supply has two AC power connections and will provide power as follows:
•One AC power connection @110 VAC = No output
•Two AC power connection @110 VAC = 2900-W output
•One AC power connection @ 220 VAC = 2900-W output
•Two AC power connection @ 220 VAC = 6000-W output
Note Power output does not include the power used by the individual modules used in the chassis.
Installation of the Cisco MDS 9513 Director in a rack requires a mechanical lift to place the chassis in the rack. Ensure that you have access to the lift during the installation process.
Table 2-1 lists the items provided in the Cisco MDS 9513 rack-mount kit.
Note The rack-mount kit for the Cisco MDS 9513 Director includes rack-mount support brackets, which are required for the duration of the installation and are not removable.
Table 2-1 Contents for the Rack Mount Support Bracket Kit
Quantity
|
Part Description
|
2
|
Rack mount support bracket
|
2
|
Rack mount support bar
|
20
|
12-24 x 3/4-in. Phillips screws
|
20
|
10-32 x 3/4-in. Phillips screws
|
To install the Cisco MDS 9513 chassis in a rack using the rack-mount kit provided with the switch, follow these steps:
Step 1 Adjust the distance between the front and rear cabinet vertical rack-mount rails to 26.56 ± 0.15 in. (67.46 cm). This step must be performed prior to installing the support rack-mount brackets.
Step 2 Position one of the support rack-mount brackets in the rack and adjust it to the depth of the cabinet rack. Repeat this step for the other side. Use the screws to secure the brackets but do not tighten them yet.
Note If you are using the cable management bracket shipped with the switch, do not install the top four screws into the front right of the bracket. However, you must install the bottom screw (see Figure 2-1). The top four screws will be used to install the cable management bracket to the rail.

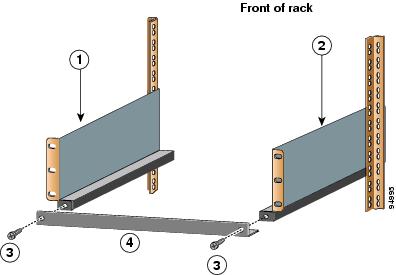

Figure 2-1 Positioning the Rack-Mount Support Brackets
Step 3 Install one rack mount support bar into the slots located on the rack-mount support brackets. Repeat this for the other support bar.

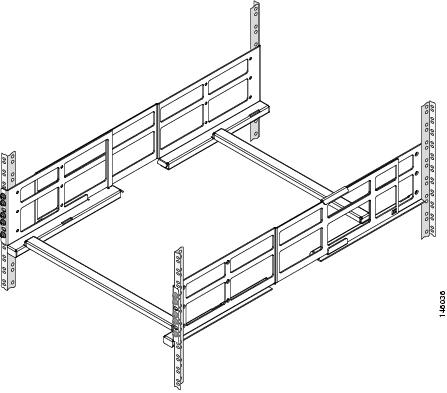

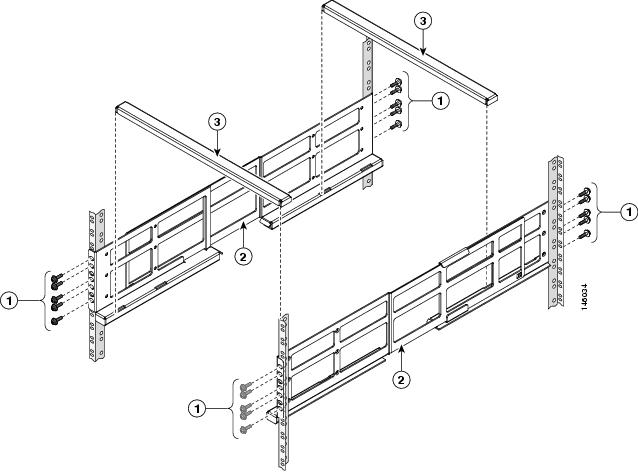

Figure 2-2 Positioning the Support Bars
1
|
Screws
|
3
|
Rack-mount support bar
|
2
|
Rack mount support bracket
|
|
|
Step 4 Once the support bars are installed, secure the rack-mount support brackets to the rack using the screws provided.
Note If you are using the cable management bracket shipped with the switch, do not install the top four screws to the front right side of the bracket. These will be installed after placing the cable management bracket along that side. The bottom screw should be installed to support the front of the rack-mount support bracket.

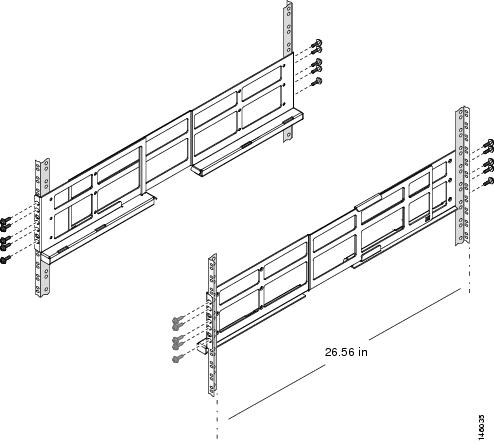

Figure 2-3 Securing the Rack-Mount Support Brackets
Step 5 Position a person at each side of the chassis and one at the mechanical lift. Place the chassis on the lift by lifting on the top front of rear of the chassis.
Step 6 Using the mechanical lift, lift the chassis up onto the rack-mount support brackets.
Step 7 Place the rear of the chassis on the rack-mount support brackets between the front mounting rails.
Step 8 Manually slide the chassis into the rack until it rests on the crossbar and the side rack-mount brackets.
Step 9 If you are installing the optional cable management brackets, place the cable management brackets in front of the right rack-mount brackets. Align the holes in the cable management brackets with the holes in the front rack-mount brackets on the right and mounting rails, and then insert the screws.
Step 10 Align the holes in the front rack-mount bracket with the holes in the mounting rails and insert the 12-24 x 3/4-inch or 10-32 x 3/4-inch screws, using six screws per side. (See Figure 2-4.)
Note Use a minimum of six screws to ensure that the switch is adequately supported.

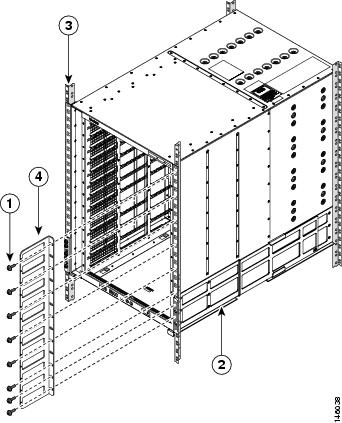

Figure 2-4 Installing the Cable Management Brackets on the MDS 9513 Chassis
1
|
Screws, 12-24 or 10-32
|
3
|
Mounting rail
|
2
|
Support bracket
|
4
|
Cable guide
|
Installing the Cisco MDS 9509 Director in a Rack
Caution If connecting a Cisco MDS 9509 Director to a 110-VAC power system, ensure that sufficient power is provided to meet the chassis power requirements for the number of modules installed.
When connected to 220 VAC, the 2500-W AC power supplies (DS-CAC-2500W) for the Cisco MDS 9509 Director are designed to provide an output power of 2331 W to power the modules and fans. When connected to a 110 VAC power system, the power supply provides approximately 1150 W. In this case, and if the power supplies are used in redundant rather than combined mode, they might not provide adequate power, depending on the number of modules loaded in the chassis.
If a 110-VAC input is chosen, a 110-VAC power cord (CAB-7513AC=) must be ordered separately.
Table 2-2 lists the items provided in the Cisco MDS 9509 rack-mount kit.
Note The rack-mount kit for the Cisco MDS 9509 Director includes side rack-mount brackets, which are required for the duration of the installation only and can be removed once the front rack-mount brackets are securely fastened to the rack-mounting rails.
Note The Cisco MDS 9500 Shelf Bracket Kit can be purchased as an optional shelf bracket kit for the Cisco MDS 9509 Director. See "Cisco MDS 9500 Shelf Bracket" section on page A-12.
Table 2-2 Contents of Cisco MDS 9509 Rack-Mount Kit
Quantity
|
Part Description
|
3 RU shelf bracket kit
|
6
|
12-24 x 3/4-inch Phillips binder-head screws
|
6
|
10-32 x 3/4-inch Phillips binder-head screws
|
2
|
M3 x 8-mm Phillips pan-head screws
|
2
|
Side rack-mount brackets
|
1
|
Crossbar bracket
|
Cable management bracket kit
|
2
|
Cable management brackets
|
18
|
12-24 x 3/4-inch Phillips binder-head screws
|
18
|
10-32 x 3/4-inch Phillips binder-head screws
|
To install the Cisco MDS 9509 chassis in a rack using the rack-mount kit provided with the switch, follow these steps:
Step 1 Position one of the side rack-mount brackets in the rack as shown in Figure 2-5. Secure the side rack-mount bracket to the rack using three of the 12-24 x 3/4-inch or 10-32 x 3/4-inch screws, depending on the type of holes in the mounting rails.
Step 2 Repeat for the second side rack-mount bracket, ensuring that the side rack-mount brackets are at the same height.

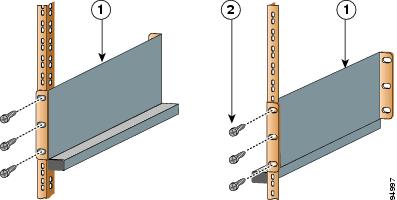

Figure 2-5 Installing the Side Rack-Mount Brackets for the Cisco MDS 9509 Chassis
1
|
Side rack-mount bracket
|
2
|
Screws, 12-24 or 10-32
|
Step 3 Attach the crossbar to the back of the side rack-mount brackets using one M3 x 8-mm screw per side as shown in Figure 2-6.
Figure 2-6 Attaching the Crossbar to the Side Rack-Mount Brackets (Rear View)
1
|
Side rack-mount bracket
|
3
|
Screws, M3
|
2
|
Side rack-mount bracket
|
4
|
Crossbar
|
Step 4 Position a person at each side of the chassis. Grasp the chassis handle with one hand and use the other hand near the back of the chassis for balance. Slowly lift the chassis in unison, avoiding sudden twists or moves to prevent injury. Place the rear of the chassis on the side rack-mount brackets between the front mounting rails, and slide it until it rests on the crossbar and the side rack-mount brackets (see Figure 2-7).

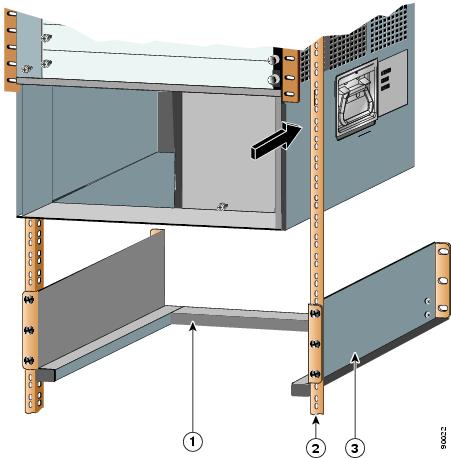

Figure 2-7 Installing the Cisco MDS 9509 Chassis in the Rack
1
|
Crossbar
|
3
|
Side rack-mount bracket
|
2
|
Mounting rail
|
|
|
Step 5 If you are installing the optional cable management bracket, place the cable management bracket in front of the front right rack-mount brackets. Align the holes in the cable management brackets with the holes in the front rack-mount brackets and mounting rails, and then insert the screws.
Note Because the fan tray is on the left side of the chassis, Cisco recommends using only the right side for cable management. Using the right side for cable management allows easy removal of the fan tray if you need to replace a fan.
Step 6 Align the holes in the front rack-mount bracket with the holes in the mounting rails and insert the 12-24 x 3/4-inch or 10-32 x 3/4-inch screws (see Figure 2-8), using six screws per side.
Note Use a minimum of six screws per side to ensure that the switch is adequately supported.

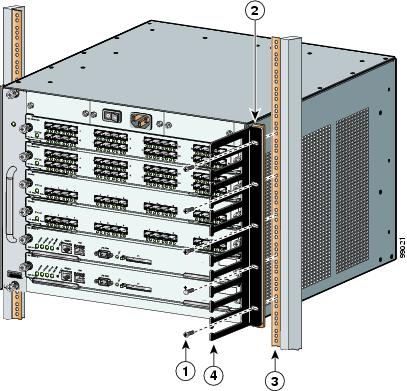

Figure 2-8 Installing the Cable Management Bracket on the MDS 9509 Chassis
1
|
Screws, 12-24 or 10-32
|
3
|
Mounting rail
|
2
|
Front rack-mount bracket (behind cable guide)
|
4
|
Cable guide
|
Installing the Cisco MDS 9506 Director in a Rack
Table 2-3 lists the items provided in the Cisco MDS 9506 rack-mount kit. The kit contains extra M4 screws in case the front rack-mount brackets were removed from the switch and must be reinstalled.
Note The rack-mount kit for the Cisco MDS 9506 Director does not include side rack-mount brackets, because they are not required to install the Cisco MDS 9506 Director.
Table 2-3 Contents of Cisco MDS 9506 Rack-Mount Kit
Quantity
|
Part Description
|
14
|
12-24 x 3/4-in. Phillips binder-head screws
|
14
|
10-32 x 3/4-in. Phillips binder-head screws
|
14
|
M4 x 6-mm Phillips pan-head screws
|
2
|
Cable management brackets
|
Figure 2-9 shows the installation of a Cisco MDS 9506 director into a rack, using the cable management bracket.
Figure 2-9 Installing the Cisco MDS 9506 Chassis in the Rack
1
|
Screws, 12-24 or 10-32
|
3
|
Mounting rail
|
2
|
Front rack-mount bracket (behind cable guide)
|
4
|
Cable management bracket
|
To install the Cisco MDS 9506 chassis in the rack using the rack-mount kit, follow these steps:
Step 1 Place all the parts and screwdrivers near the rack for easy access while attaching the switch to the rack.
Note The front rack-mount brackets are shipped installed on the switch. If they have been uninstalled, reinstall them on the switch using the M4 x 6-mm screws.
Step 2 Position a person at each side of the chassis. Grasp the bottom of the chassis and slowly lift the chassis in unison, avoiding sudden twists or moves to prevent injury. Insert the rear of the chassis between the front mounting rails (see Figure 2-9), supporting the switch inside the rack until the next step is complete.
Step 3 If you are installing the optional cable management bracket, align the holes in the cable management bracket with the holes in the front, right rack-mount brackets and the mounting rail. Ensure that the chassis is level, and pass the screws through the cable management brackets and front rack-mount bracket and into the mounting rail.
Note Because the fan tray is on the left side of the chassis, Cisco recommends using only the right side for cable management. This allows easy removal of the fan tray if you need to replace a fan.
Step 4 Align the holes in the front rack-mount bracket with the holes in the mounting rail, and ensure that the chassis is level. Insert the 12-24 x 3/4-inch or 10-32 x 3/4-inch screws (depending on the type of holes in the mounting rails) through the holes in the front rack-mount bracket and into the holes in the mounting rails, using four screws per side.
Caution Use a minimum of four screws per side to ensure that the switch is adequately supported by the front rack-mount brackets.
System Grounding
This section describes the need for system grounding and explains how to prevent damage from electrostatic discharge.
Proper Grounding Practices
Grounding is one of the most important parts of equipment installation. Proper grounding practices ensure that the buildings and the installed equipment within them have low-impedance connections and low-voltage differentials between chassis. When you properly ground systems during installation, you reduce or prevent shock hazards, equipment damage due to transients, and data corruption. Table 2-4 lists grounding best practices.
Table 2-4 Grounding Best Practices
Environment
|
Electromagnetic Noise Severity Level
|
Grounding Recommendations
|
Commercial building is subjected to direct lightning strikes.
For example, some places in the United States, such as Florida, are subject to more lightning strikes than other areas.
|
High
|
All lightning protection devices must be installed in strict accordance with manufacturer recommendations. Conductors carrying lightning current should be spaced away from power and data lines in accordance with applicable recommendations and codes. Appropriate grounding practices must be closely followed.
|
Commercial building is located in an area where lightning storms frequently occur but is not subject to direct lightning strikes.
|
High
|
Appropriate grounding practices must be closely followed.
|
Commercial building contains a mix of information technology equipment and industrial equipment, such as welding.
|
Medium to high
|
Appropriate grounding practices must be closely followed.
|
Existing commercial building is not subject to natural environmental noise or man-made industrial noise. This building contains a standard office environment. This installation has a history of malfunction due to electromagnetic noise.
|
Medium
|
Appropriate grounding practices must be closely followed. Determine source and cause of noise if possible, and mitigate as closely as possible at the noise source or reduce coupling from the noise source to the victim equipment.
|
New commercial building is not subject to natural environmental noise or man-made industrial noise. This building contains a standard office environment.
|
Low
|
Appropriate grounding practices should be followed as closely as possible. Electromagnetic noise problems are not anticipated, but installing a best practice grounding system in a new building is often the least expensive route and the best way to plan for the future.
|
Existing commercial building is not subject to natural environmental noise or man-made industrial noise. This building contains a standard office environment.
|
Low
|
Appropriate grounding practices should be followed as much as possible. Electromagnetic noise problems are not anticipated, but installing a best practice grounding system is always recommended.
|
Note In all situations, grounding practices must comply with local National Electric Code (NEC) requirements or local laws and regulations.
Note Always ensure that all of the modules are completely installed and that the captive installation screws are fully tightened. In addition, ensure that all I/O cables and power cords are properly seated. These practices are normal installation practices and must be followed in all installations.
Preventing Electrostatic Discharge Damage
Electrostatic discharge (ESD) damage, which can occur when modules or other FRUs are improperly handled, results in intermittent or complete failures. Modules consist of printed circuit boards that are fixed in metal carriers. Electromagnetic interference (EMI) shielding and connectors are integral components of the carrier. Although the metal carrier helps protect the board from ESD. Always wear an ESD grounding strap when handling modules.
Follow these guidelines for preventing ESD damage:
•Always wear an ESD wrist strap and ensure that it makes maximum contact with bare skin. ESD grounding straps are available with banana plugs, metal spring clips, or alligator clips. All MDS 9500 series chassis are equipped with a banana plug connector (identified by the ground symbol next to the connector) somewhere on the front panel. Cisco recommends that you use a personal ESD grounding strap equipped with a banana plug.
•If you choose to use the disposable ESD wrist strap supplied with most FRUs or an ESD wrist strap equipped with an alligator clip, you must attach the system ground lug to the chassis in order to provide a proper grounding point for the ESD wrist strap.
Note This system ground is also referred to as the network equipment building system (NEBS) ground.
•If your chassis does not have the system ground attached, you must install the system ground lug. For installation instructions and location of the chassis system ground pads, see "Establishing the System Ground" section.
Note You do not need to attach a supplemental system ground wire to the system ground lug; the lug provides a direct path to the bare metal of the chassis.
After you install the system ground lug, follow these steps to correctly attach the ESD wrist strap:
Step 1 Attach the ESD wrist strap to bare skin as follows:
a. If you are using the ESD wrist strap supplied with the FRUs, open the wrist strap package and unwrap the ESD wrist strap. Place the black conductive loop over your wrist and tighten the strap so that it makes good contact with your bare skin.
b. If you are using an ESD wrist strap equipped with an alligator clip, open the package and remove the ESD wrist strap. Locate the end of the wrist strap that attaches to your body and secure it to your bare skin.
Step 2 Grasp the spring or alligator clip on the ESD wrist strap and momentarily touch the clip to a bare metal spot (unpainted surface) on the rack. Cisco recommends that you touch the clip to an unpainted rack rail so that any built-up static charge is then safely dissipated to the entire rack.
Step 3 Attach either the spring clip or the alligator clip to the ground lug screw as follows (see Figure 2-10):
a. If you are using the ESD wrist strap that is supplied with the FRUs, squeeze the spring clip jaws open, position the spring clip to one side of the system ground lug screw head, and slide the spring clip over the lug screw head so that the spring clip jaws close behind the lug screw head.
Note The spring clip jaws do not open wide enough to fit directly over the head of the lug screw or the lug barrel.
b. If you are using an ESD wrist strap that is equipped with an alligator clip, attach the alligator clip directly over the head of the system ground lug screw or to the system ground lug barrel.

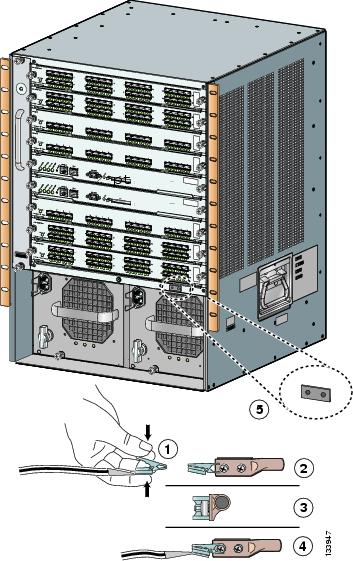

Figure 2-10 Attaching the ESD Wrist Strap to the System Ground Lug Screw
1
|
ESD ground strap
|
4
|
Clip installed (behind screw)
|
2
|
Clip and grounding lug
|
5
|
System ground connector
|
3
|
Side view of grounding lug (clip slid behind screw)
|
|
|
c. In addition, follow these guidelines when handling modules:
–Handle carriers by available handles or edges only; avoid touching the printed circuit boards or connectors.
–Place a removed component board-side-up on an antistatic surface or in a static shielding container. If you plan to return the component to the factory, immediately place it in a static shielding container.
–Never attempt to remove the printed circuit board from the metal carrier.
Caution For safety reasons, check the resistance value of the antistatic strap periodically. The measurement should be between 1 and 10 megohm (Mohm).
Establishing the System Ground
This section describes how to connect a system ground to the MDS 9500 series switches.
Note This system ground is also referred to as the network equipment building system (NEBS) ground.
You must use the system (NEBS) ground on both AC- and DC-powered systems if you are installing this equipment in a U.S. or European Central Office.
The system (NEBS) ground provides additional grounding for EMI shielding requirements and grounding for the low voltage supplies (DC-DC converters) on the modules and is intended to satisfy the Telcordia Technologies NEBS requirements for supplemental bonding and grounding connections. You must observe the following system grounding guidelines for your chassis:
•You must install the system (NEBS) ground connection with any other rack or system power ground connections that you make. The system ground connection is required if this equipment is installed in a U.S. or European Central Office.
•You must connect both the system (NEBS) ground connection and the power supply ground connection to an earth ground. The system (NEBS) ground connection is required if this equipment is installed in a U.S. or European Central Office.
•For MDS 9500 series chassis that are equipped with DC-input power supplies, you must install the system (NEBS) ground before you attach the source DC power cables to the DC PEM. If the chassis is powered up, you must power down the chassis before attaching the system (NEBS) ground. If you are installing the system (NEBS) ground on models of the MDS 9500 series chassis that are equipped with either AC-input or DC-input power supplies, you do not need to power down the chassis.
Note The system (NEBS) ground serves as the primary safety ground for the MDS 9500 series chassis that are equipped with DC-input PEMs. The DC-input power supplies for these chassis do not have a separate ground.
Required Tools and Equipment
To connect the ground system, you need the following tools and materials:
•Grounding lug—A two-hole standard barrel lug. Supports up to 6 AWG wire. Supplied as part of accessory kit.
•Grounding screws—Two M4 x 8mm (metric) pan-head screws. Supplied as part of the accessory kit.
•Grounding wire—Not supplied as part of accessory kit. The grounding wire should be sized according to local and national installation requirements. Depending on the power supply and system, a 12 AWG to 6 AWG copper conductor is required for U.S. installations. Commercially available 6 AWG wire is recommended. The length of the grounding wire depends on the proximity of the switch to proper grounding facilities.
•No. 1 Phillips screwdriver.
•Crimping tool to crimp the grounding wire to the grounding lug.
•Wire-stripping tool to remove the insulation from the grounding wire.
Grounding the Chassis
This section describes how to connect the Cisco MDS 9500 Series to earth ground.
You must complete this procedure before connecting system power or powering up your shelf.
Warning When installing or replacing the unit, the ground connection must always be made first and disconnected last. Statement 1046
Figure 2-11 shows the system ground location on the front panel of the Cisco MDS 9513 chassis.

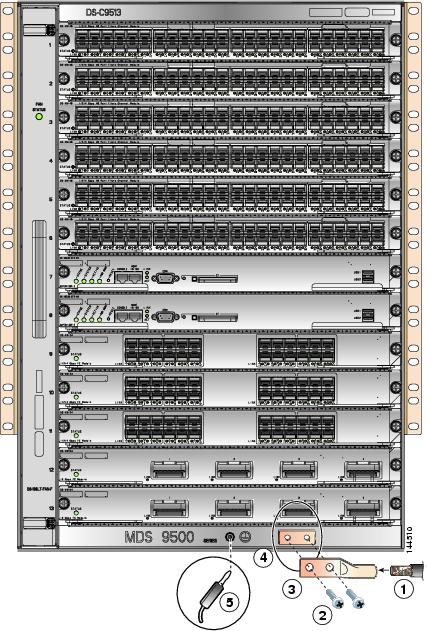

Figure 2-11 System Ground Location on the Cisco MDS 9513 Chassis (Front)
1
|
Grounding cable
|
4
|
Close-up of grounding pad on switch
|
2
|
Screws, M4, with square cone washers
|
5
|
ESD plug
|
3
|
NRTL listed grounding lug
|
|
|

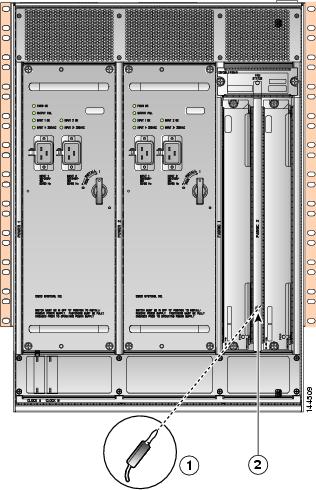

Figure 2-12 shows the ESD ground location on the rear panel of the Cisco MDS 9513 chassis.
Figure 2-12 ESD Ground Location on the Cisco MDS 9513 Chassis (Rear)
Caution All power supplies must be grounded. The receptacles of the AC power cables used to provide power to the chassis must be the grounding type, and the grounding conductors should connect to protective earth ground at the service equipment. For a Cisco MDS 9509 Director with a DC power supply, a grounding cable must be connected to the terminal block. For a Cisco MDS 9506 Director with a DC power supply, the chassis ground is required.
Figure 2-13 shows the system ground location on the Cisco MDS 9509 chassis.
Figure 2-13 System Ground Location on the Cisco MDS 9509 Chassis
1
|
ESD socket (on switch)
|
4
|
Screws, M4, with square cone washers
|
2
|
ESD plug
|
5
|
NRTL listed grounding lug
|
3
|
Grounding cable
|
6
|
Close-up of grounding pad on switch
|
Caution Grounding the chassis is required for Cisco MDS 9506 Directors that have DC power supplies, and Cisco recommends grounding for all other chassis types, although the rack is already grounded. A grounding pad with two threaded M4 holes is provided on the chassis for attaching a grounding lug. The ground lug must be NRTL listed. In addition, copper conductor (wires) must be used and the copper conductor must comply with the NEC code for ampacity.
Figure 2-14 shows the system ground location on the Cisco MDS 9506 chassis.
Figure 2-14 System Ground Location on the Cisco MDS 9506 Chassis
1
|
ESD socket (on switch)
|
4
|
Screws, M4, with square cone washers
|
2
|
ESD plug
|
5
|
NRTL listed grounding lug
|
3
|
Grounding cable
|
6
|
Close-up of grounding pad on switch
|
To attach the grounding lug and cable to the chassis, follow these steps:
Step 1 Locate the ESD socket on your chassis and attach the ESD plug.
Step 2 Use a wire-stripping tool to remove approximately 0.75 inches (19 mm) of the covering from the end of the grounding cable.
Step 3 Insert the stripped end of the grounding cable into the grounding lug.
Step 4 Use the crimping tool to secure the grounding cable in the grounding lug.
Step 5 Remove the adhesive label from the grounding pad on the chassis.
Step 6 Place the grounding lug against the grounding pad so that there is solid metal-to-metal contact, and insert the two M4 screws with washers through the holes in the grounding lug and into the grounding pad. Ensure that the lug and cable do not interfere with other equipment.
Step 7 Prepare the other end of the grounding cable and connect it to an appropriate grounding point in your site to ensure adequate earth ground.
Starting Up the Switch
This section provides the following information:
•Connecting the Power Supplies
•Powering Up the Switch and Verifying Component Installation
Warning Hazardous voltage or energy is present on the backplane when the system is operating. Use caution when servicing. Statement 1034
Caution During this procedure, wear grounding wrist straps to avoid ESD damage to the switch.
Note The 2500-W (DS-CAC-2500W) power supplies provide power according to the input voltage. If they are in redundant rather than combined mode at 110 VAC, they may be unable to provide adequate power to all modules present in the system. See Appendix B, "Technical Specifications".
Connecting the Power Supplies
The Cisco MDS 9513 Director uses a 6000-W power supply. The 6000-W AC power supplies for the Cisco MDS 9513 Director are designed to provide an output power for the modules and fans. Each power supply has two AC power connections and will provide power as follows:
•One AC power connection @110 VAC = No output
•Two AC power connection @110 VAC = 2900-W output
•One AC power connection @ 220 VAC = 2900-W output
•Two AC power connection @ 220 VAC = 6000-W output
Note Power output does not include the power used by the individual modules used in the chassis.
The Cisco MDS 9509 Director and Cisco MDS 9506 Director support both AC and DC power supplies.
The Cisco MDS 9506 Director uses power entry modules (PEMs) to provide power to its power supplies, whether they are AC or DC (there is no power connector on the power supplies). The left PEM (as viewed from the front of the switch) provides power to the upper power supply in the back of the Cisco MDS 9506 Director, and the right PEM provides power to the lower power supply.
This section provides the following topics:
•Providing Power to an AC Power Supply for the Cisco MDS 9513 Director
•Providing Power to an AC Power Supply for the Cisco MDS 9509 and Cisco MDS 9506 Directors
•Providing Power to a DC Power Supply in the Cisco MDS 9509 Director
•Providing Power to a DC Power Supply in the Cisco MDS 9506 Director
Providing Power to an AC Power Supply for the Cisco MDS 9513 Director
To provide power to an AC power supply in a Cisco MDS 9513 Director, follow these steps:
Step 1 Plug the power cable into the power supply, and tighten the screw on the cable retention device to ensure that the cable cannot be pulled out. Each power supply has two AC power connections (as shown in Figure 2-15).
Figure 2-15 Cable Retention on the Power Supply
1
|
Power switch
|
2
|
Cable retention
|
Step 2 Connect the other end of the power cable to an AC power source.
Step 3 Turn the power switch to the on (|) position on the power supply.
Step 4 Verify power supply operation by checking that the power supply LEDs are in the following states:
•INPUT OK LEDs are green.
•FAN OK LEDs are green.
•OUTPUT FAIL LED is off.
See Table 1-2 on page 1-11 for power supply LED details.
Providing Power to an AC Power Supply for the Cisco MDS 9509 and Cisco MDS 9506 Directors
The basic procedure for providing power to an AC power supply is the same for both a Cisco MDS 9509 Director and a Cisco MDS 9506 Director.
Figure 2-16 shows a 2500-W AC power supply for the Cisco MDS 9509 Director.
Figure 2-16 2500-W AC Power Supply for the Cisco MDS 9509 Director
1
|
AC power connection
|
4
|
Captive screws
|
2
|
Power cable retainer
|
5
|
Power supply LEDs
|
3
|
Power supply switch
|
|
|
Figure 2-17 shows a 4000-W AC power supply for the Cisco MDS 9509 Director.
Figure 2-17 4000-W AC Power Supply for the Cisco MDS 9509 Director
1
|
AC power connection
|
4
|
Power supply switch
|
2
|
Power supply LEDs
|
5
|
Permanent power cable
|
3
|
Captive screws
|
|
|
Caution The following applies to AC power supplies on the Cisco MDS 9506 only:
The DS-C9506 equipment is suitable for use on TN power systems and the IT-power system connection of Norway (max 230-V phase-phase). If connected to a 230- or 400-V IT power system, beware of high leakage current. Earth connection is essential before connecting power supply.
Figure 2-18 shows an AC PEM for a Cisco MDS 9506 Director.
Figure 2-18 AC PEM for Cisco MDS 9506 Director
1
|
Captive screws
|
3
|
AC power connection
|
2
|
PEM switch
|
|
|
Figure 2-19 shows a power supply for a Cisco MDS 9506 Director. The power supply has no power connector. The power connector is provided on the PEM. The AC and DC power supplies are similar in appearance except for the label, which indicates whether it is AC or DC.
Figure 2-19 Power Supply for Cisco MDS 9506 Director
1
|
Power supply LEDs
|
2
|
Captive screws
|
To provide power to an AC power supply in a Cisco MDS 9509 Director or a Cisco MDS 9506 Director, follow these steps:
Step 1 Plug the power cable into the switch as follows:
•For the Cisco MDS 9509 Director, plug the power cable into the power supply and tighten the screw on the power cable retainer to ensure that the cable cannot be pulled out.
Note The 4000-W AC power supply for the Cisco MDS 9509 Director has a permanent power cable attached.
•For the Cisco MDS 9506 Director, plug the power cable into the AC PEM on the front of the chassis.
Step 2 Connect the other end of the power cable to a power source.
Note Depending on the outlet receptacle on your power distribution unit, you may need the optional jumper power cord to connect the Cisco MDS 9500 Series director to your outlet receptacle. See the "Jumper Power Cord" section on page C-12.
Providing Power to a DC Power Supply in the Cisco MDS 9509 Director
Warning Before performing any of the following procedures, ensure that power is removed from the DC circuit. Statement 1003
Warning When installing or replacing the unit, the ground connection must always be made first and disconnected last. Statement 1046
For more information on DC power supply for the MDS 9509 Director, see the "System Grounding" section.
Figure 2-20 shows the 2500-W DC power supply.
Figure 2-20 2500-W DC Power Supply for the Cisco MDS 9509 Director
1
|
Terminal block cover
|
4
|
Power supply switch
|
2
|
Power supply LEDs
|
5
|
Terminal block
|
3
|
Captive screw
|
|
|
Note Use 90-degree C fine-stranded copper conductors for North American installations.
To provide power to a DC power supply in a Cisco MDS 9509 Director, follow these steps:
Step 1 Ensure that all power is off. Locate the circuit breaker on the panel board that services the DC circuit. Switch the circuit breaker to the off position, and then tape the switch handle of the circuit breaker in the off position.
Step 2 Ensure that the system (earth) ground connection is made. See the "System Grounding" section.
Step 3 Turn the power switch on the power supply to off (0).
Step 4 Unfasten the two screws securing the terminal block cover and pull the cover off the terminal block.
Step 5 Connect the DC power cables to the terminal block as follows:
a. Identify the ground, negative, and positive DC cables and verify that all are copper and sized per local and national installation requirements.
b. Strip the cable ends to allow for metal-to-metal contact.
c. Loosen the screws in the terminal block and connect the DC power cables to the terminal block in the following order:
–Ground
–Negative (-)
–Positive (+)
Caution The DC return connection (Negative (-)) to this system is to remain isolated from the system frame and chassis (DC-I). Loosen the captive screw on the power supply.
Warning When installing or replacing the unit, the ground connection must always be made first and disconnected last. Statement 1046
d. Secure the cables in place by tightening the terminal block screws.
e. Replace the terminal block cover and fasten the two screws attaching it to the chassis.
Caution To prevent a short circuit or shock hazard after wiring the DC power supply, reinstall the terminal block cover before restoring power to the DC circuit.
Step 6 If a second DC power supply is installed, repeat the procedure for the other power supply, using a separate power source to provide redundancy in case of a line failure and ensuring the related circuit is off.
Caution Leave the power to the DC circuit off until you are ready to provide power to the switch.
Step 7 If there are no other DC power cables to connect and you are ready to power the switch on, restore power to the DC circuit by removing the tape from the circuit breaker handle and flipping the handle to on.
Providing Power to a DC Power Supply in the Cisco MDS 9506 Director
Warning Before performing any of the following procedures, ensure that power is removed from the DC circuit. Statement 1003
Warning When installing or replacing the unit, the ground connection must always be made first and disconnected last. Statement 1046
For more information on DC power supply in the MDS 9506 Director, see the "System Grounding" section.
Figure 2-21 shows the location of the terminal block screws and how to insert the lugs through the holes in the front of the PEM to connect them to the screws.
Figure 2-21 DC PEM for a Cisco MDS 9506 Director
1
|
Terminal block screws (+ and -)
|
4
|
Exposed portion of positive cable
|
2
|
Captive screw
|
5
|
Insulated portion of negative cable
|
3
|
Ring lug
|
|
|
Note Use 90-degree C fine-stranded copper conductors for North American installations.
To provide power to a DC power supply in a Cisco MDS 9506 Director, follow these steps:
Step 1 Ensure that all power to the DC circuit is off by locating the circuit breaker on the panel board that services the DC circuit. Switch the circuit breaker to the off position, and tape the switch handle of the circuit breaker in the off position.
Step 2 Ensure that the system (earth) ground connection is made. See the "System Grounding" section.
Step 3 Loosen the captive screws on the DC PEM and pull the PEM partially out of the chassis to provide access to the PEM terminal block screws.
Step 4 Connect the positive and negative DC cables to the DC PEM using a 10-32 ring lug for each cable, as follows:
a. Identify the positive and negative DC cables and ensure that both are copper and sized per local and national installation requirements.
b. Strip the cable ends to allow for metal-to-metal contact. Insert each cable into a separate ring lug, and crimp the lugs around the cables.
c. Insert each cable and lug into the appropriate hole in the front of the PEM and fasten the lugs to the appropriate terminal block screws in the following order:
–Negative (-)
–Positive (+)
d. Secure the cables in place by tightening the terminal block screws.
Step 5 Ensure that all cable connections are secure before sliding the PEM back into the chassis, and then tighten the captive screws.
Caution The DC return connection (Negative (-)) to this system is to remain isolated from the system frame and chassis (DC-I). Loosen the captive screw on the power supply.
Warning When installing or replacing the unit, the ground connection must always be made first and disconnected last. Statement 1046
Step 6 If a second DC power supply is installed, repeat the procedure for the other DC PEM, using a separate power source to provide redundancy in case of a line failure, and ensuring the related circuit is off.
Caution Leave the power to the DC circuits off until you are ready to provide power to the switch.
Step 7 If there are no other DC power cables to connect and you are ready to power the switch on, restore power to the DC circuit by removing the tape from the circuit breaker handle and flipping the handle to on.
Powering Up the Switch and Verifying Component Installation
Warning Blank faceplates and cover panels serve three important functions: they prevent exposure to hazardous voltages and currents inside the chassis; they contain electromagnetic interference (EMI) that might disrupt other equipment; and they direct the flow of cooling air through the chassis. Do not operate the system unless all cards, faceplates, front covers, and rear covers are in place. Statement 1029
Note Do not connect the MGMT 10/100 Ethernet port to the LAN until the initial switch configuration has been performed. For instructions on configuring the switch, see the Cisco MDS 9000 Family CLI Configuration Guide or the Cisco MDS 9000 Family Fabric Manager Configuration Guide.
For instructions on connecting to the console port, see the "Connecting to the Console Port" section on page 3-2).
To power up the switch and verify hardware operation, follow these steps:
Step 1 Verify that the faceplates of all modules are flush with the front of the chassis, and the ejector levers are fully closed and approximately parallel to the faceplate of the module.
Step 2 Verify that any empty module slots have filler panels installed.
Step 3 Verify that both power supplies and the fan module are installed.
Step 4 If any optional CompactFlash cards are installed, verify that the ejector button is popped out.
Step 5 Check the captive screws of the power supplies, fan module, and all supervisor, switching, or services modules, and tighten any loose captive screws.
Step 6 Ensure that the switch is adequately grounded as described in the "System Grounding" section, and that the power cables are connected to outlets that have the required AC or DC power voltages. See Appendix B, "Technical Specifications," for the required voltages.
Step 7 Power on the switch by turning the power switches on the power supplies or PEMs to the on (|) position or restoring power to the DC circuit, as required. The switch boots automatically.
Step 8 Listen for the fans; they should begin operating as soon as the switch is powered on.
Caution Do not operate the switch without a functioning fan module except during the brief fan module replacement procedure. The Cisco MDS 9000 Family switches can operate for only a few minutes without a functioning fan module before they begin to overheat.
Step 9 After the switch has finished booting, verify that the LED behavior is as follows:
•Fan module: Status LED is green.
•Power supplies:
–Input OK LED is green.
–Fan OK LED is green.
–Output Fail LED is off.
•Supervisor, switching, or services modules:
–The System LED on the supervisor module is green, indicating that all chassis environmental monitors are reporting that the system is operational. If this LED is orange or red, then one or more environmental monitor is reporting a problem.
–The Status LED on the switching or services modules flashes orange once, remains orange during diagnostic boot tests, then turns green when the module is operational (online). If the system software cannot start up, this LED remains orange or turns red.
Note The LEDs for the Fibre Channel ports remain orange until the ports are enabled, and the LED for the MGMT 10/100 Ethernet port remains off until the port is connected.
If any LEDs other than the Fibre Channel port LEDs remain orange or red after the initial boot processes are complete, see Appendix B, "Technical Specifications."
Step 10 If a component is not operating correctly, try removing and reinstalling it. If it still does not operate correctly, contact your customer service representative for a replacement.
Note If you purchased this product through a Cisco reseller, contact the reseller directly for technical support. If you purchased this product directly from Cisco Systems, contact Cisco Technical Support at this URL: http://www.cisco.com/warp/public/687/Directory/DirTAC.shtml.
Step 11 Verify that the system software has booted and the switch has initialized without error messages. If any problems occur, see the Cisco MDS 9000 Family Troubleshooting Guide or the Cisco MDS 9000 Family System Messages Reference. If you cannot resolve an issue, contact your customer service representative.
Step 12 Complete the worksheets provided in Appendix D, "Site Planning and Maintenance Records," for future reference.
Note A setup utility automatically launches the first time you access the switch and guides you through the basic configuration. For instructions about how to configure the switch and check module connectivity, see the Cisco MDS 9000 Family CLI Configuration Guide or the Cisco MDS 9000 Family Fabric Manager Configuration Guide.
Removing, Installing, and Verifying Supervisor, Switching, and Services Modules
This section provides the following information:
•Removing Supervisor Modules
•Installing Supervisor Modules
•Removing a Caching Services Module
•Removing Other Switching and Services Modules
•Installing a Switching or Services Module, Including Caching Services Modules
•Verifying Installation of Supervisor, Switching, and Services Modules
•Removing and Installing a Crossbar Module
Warning Invisible laser radiation may be emitted from disconnected fibers or connectors. Do not stare into beams or view directly with optical instruments. Statement 1051
Warning Use of controls, adjustments, or performing procedures other than those specified may result in hazardous radiation exposure. Statement 1057
Warning Hazardous voltage or energy is present on the backplane when the system is operating. Use caution when servicing. Statement 1034
Caution To prevent ESD damage, wear grounding wrist straps during these procedures and handle modules by the carrier edges only.
Note Install the Cisco MDS 9500 Series chassis in the rack before installing modules. See the "Installing the Chassis in a Cabinet or Rack" section.
Note In systems with redundant supervisor modules, you can replace the faulty supervisor while the system is operating, provided that one supervisor is always operating.
Removing Supervisor Modules
To remove a Supervisor-1 or Supervisor-2 module from the chassis, follow these steps:
Step 1 Shut down the crossbar switching fabric functionality in the supervisor module of the Cisco MDS 9509 and 9506 Directors by using the out-of-service module slot command (where slot refers to the slot number for the Supervisor-1 or Supervisor-2 module where the integrated crossbar is located).
Step 2 Upload the current configuration to a server if the switch has only one supervisor module. For information about the correct command, see the Cisco MDS 9000 Family CLI Configuration Guide.
Step 3 Fail over to the standby supervisor if the switch has two supervisor modules and the supervisor you are removing is currently active. For information on how to fail over a supervisor module, see the Cisco MDS 9000 Family CLI Configuration Guide.
Step 4 Disconnect any network interface cables attached to the module.
Step 5 Loosen the two captive screws on the module being removed.
Step 6 Remove the module from the chassis as follows:
a. Place your thumbs on the left and right ejector levers and simultaneously rotate the levers outward to unseat the module from the backplane connector.
b. Grasp the front edge of the module and slide the module partially out of the slot. Place your other hand under the module to support the weight of the module. Do not touch the module circuitry.
Step 7 Place the module on an antistatic mat or antistatic foam, or immediately reinstall it in another slot.
Step 8 Install a filler panel on an empty slot to keep the chassis dust-free and to maintain proper airflow through the chassis.
Warning Blank faceplates and cover panels serve three important functions: they prevent exposure to hazardous voltages and currents inside the chassis; they contain electromagnetic interference (EMI) that might disrupt other equipment; and they direct the flow of cooling air through the chassis. Do not operate the system unless all cards, faceplates, front covers, and rear covers are in place. Statement 1029
Installing Supervisor Modules
In a Cisco MDS 9513 Director, slots 7 and 8 are reserved for the Supervisor-2 modules. In the Cisco MDS 9509 Director, slot 5 is reserved for the Supervisor-2 or Supervisor-1 module. In the Cisco MDS 9506 Director, slot 5 is reserved for the Supervisor-1 module. Slot 6 in the Cisco MDS 9509 and 9506 Directors is reserved for an additional redundant supervisor module in case the supervisor module in slot 5 fails. See Figure 1-3 on page 1-6 and Figure 1-4 on page 1-7 for slot locations.
Supervisor-1 modules and Supervisor-2 modules cannot be used in the same switch, except for migration purposes. Both the active and standby supervisor modules must be of the same type, either Supervisor-1 or Supervisor-2 modules. For Cisco MDS 9513 Directors, both supervisor modules must be Supervisor-2 modules.
Step 1 Before installing any modules in the chassis, Cisco recommends installing the chassis in the rack. See the "Installing the Chassis in a Cabinet or Rack" section.
Step 2 Verify that there is enough clearance to accommodate any cables or interface equipment that you want to connect to the module.
Step 3 Verify that the captive screws are tightened to 8 in-lb on all modules already installed in the chassis. This ensures that the EMI gaskets are fully compressed and maximizes the opening space for the module being installed.
Step 4 If a filler panel is installed, remove the two Phillips pan-head screws from the filler panel and remove the panel. To remove a currently installed module, see the "Removing Other Switching and Services Modules" section.
Step 5 Open both the ejector levers on the new or replacement module completely. (See Figure 2-22.)
Figure 2-22 Positioning a Module in the Chassis
1
|
Slot guides
|
3
|
EMI Gasket
|
2
|
EMI Gasket
|
4
|
Ejector level (fully extended)
|
Step 6 Position the module in the chassis as follows:
a. Slide the module carefully into the slot until the EMI gasket along the top edge of the module contacts the module in the slot above it and both ejector levers close to approximately 45 degrees with respect to the front of the module (see Figure 2-23).
Figure 2-23 Clearing the EMI Gasket
b. Grasp the two ejector levers using the thumb and forefinger of each hand, and press down to create a small 0.040-inch (1-mm) gap between the module's EMI gasket and the module above it. (See Figure 2-24.)

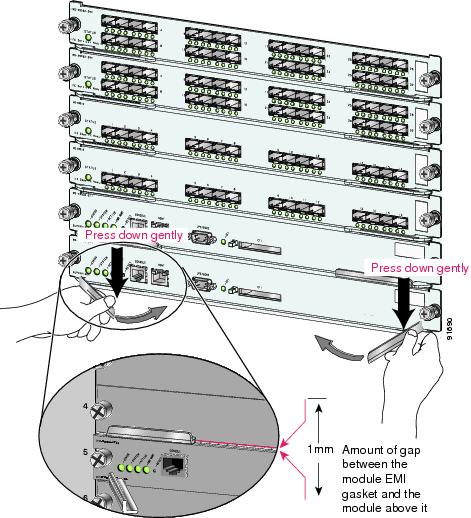

Figure 2-24 Closing the Ejector Levers
Caution Do not press down too forcefully on the levers because they can bend.
c. While pressing down, simultaneously close the left and right ejector levers to fully seat the supervisor module or switching module in the backplane connector. The ejector levers are fully closed when they are flush with the front of the module.

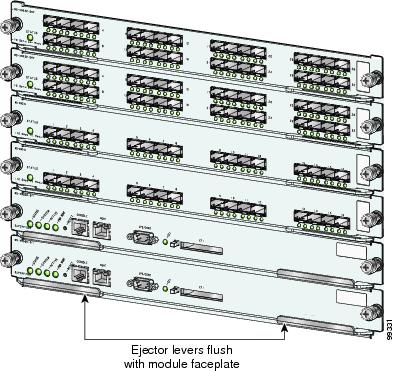

Note Ensure the ejector levers are fully closed before tightening the captive screws. Failure to fully seat the module in the backplane connector can result in error messages.
d. Tighten the two captive screws on the supervisor module or switching module to 8 in-lb.
Step 7 If you replaced the standby supervisor module in a switch that has two supervisors and is running Cisco MDS SAN-OS Release 1.2(2a) or earlier, enable the automatic synchronization feature, which is disabled by default. For information about the auto-sync option, see the Cisco MDS 9000 Family CLI Configuration Guide.
Step 8 If you replaced the supervisor in a switch that does not have a second supervisor or is running Cisco MDS SAN-OS Release 1.3(1) or later, download the configuration from the server to the nonvolatile memory of the supervisor. For more information, see the Cisco MDS 9000 Family CLI Configuration Guide.
Removing a Caching Services Module
Note A minimum of two CSMs in each fabric are required for redundancy and data backup.
Warning Do not touch or bridge the metal contacts on the battery. Unintentional discharge of the batteries can cause serious burns. Statement 341
Warning Ultimate disposal of this product should be handled according to all national laws and regulations. Statement 1040
Caution Wait for all LEDs to turn off before removing the module from the chassis. If the LEDs are on, the module still has power.
To remove a CSM module from the chassis, follow these steps:
Step 1 Power off the module from the CLI. For information about the correct command to use, see the Cisco MDS 9000 Family CLI Configuration Guide.
Step 2 Ensure that the backup process has completed by verifying that all LEDs on the module have turned off. This requires up to 10 minutes.
Step 3 Loosen the two captive screws on the module.
Step 4 Remove the module from the chassis as follows:
a. Place your thumbs on the left and right ejector levers (shown in Figure 2-22) and simultaneously rotate the levers outward to unseat the module from the backplane connector.
b. Grasp the front edge of the module and slide the module partially out of the slot. Place your other hand under the module to support the weight of the module. Do not touch the module circuitry.
Step 5 Place the module on an antistatic mat or antistatic foam if not immediately reinstalling it in another slot.
Step 6 If the slot will remain empty, install a filler panel to keep the chassis dust-free and to maintain consistent airflow.
Warning Blank faceplates and cover panels serve three important functions: they prevent exposure to hazardous voltages and currents inside the chassis; they contain electromagnetic interference (EMI) that might disrupt other equipment; and they direct the flow of cooling air through the chassis. Do not operate the system unless all cards, faceplates, front covers, and rear covers are in place. Statement 1029
Removing Other Switching and Services Modules
To remove a switching or services module from the chassis, follow these steps:
Step 1 Disconnect any network interface cables attached to the module.
Step 2 Loosen the two captive screws on the module being removed.
Step 3 Remove the module from the chassis as follows:
a. Place your thumbs on the left and right ejector levers and simultaneously rotate the levers outward to unseat the module from the backplane connector.
b. Grasp the front edge of the module and slide the module partially out of the slot. Place your other hand under the module to support the weight of the module. Do not touch the module circuitry.
Step 4 Place the module on an antistatic mat or antistatic foam, or immediately reinstall it in another slot.
Step 5 If the slot will remain empty, install a filler panel to keep the chassis dust-free and to maintain proper airflow through the chassis.
Warning Blank faceplates and cover panels serve three important functions: they prevent exposure to hazardous voltages and currents inside the chassis; they contain electromagnetic interference (EMI) that might disrupt other equipment; and they direct the flow of cooling air through the chassis. Do not operate the system unless all cards, faceplates, front covers, and rear covers are in place. Statement 1029
Installing a Switching or Services Module, Including Caching Services Modules
The following warning applies only to the Caching Services Module:
Warning Do not touch or bridge the metal contacts on the battery. Unintentional discharge of the batteries can cause serious burns. Statement 341
To install a switching or services module in the chassis, follow these steps:
Step 1 Before installing any modules in the chassis, Cisco recommends installing the chassis in the rack. See the "Installing the Chassis in a Cabinet or Rack" section.
Step 2 Before installing any switching modules, install at least one supervisor module.
Step 3 Choose a slot for the module and verify that there is enough clearance to accommodate any cables or interface equipment that you want to connect to the module. If possible, place modules between empty slots that contain filler panels.
Step 4 Verify that the captive screws are tightened to 8 in-lb on all modules already installed in the chassis. This ensures that the EMI gaskets are fully compressed and maximizes the opening space for the module being installed.
Step 5 If a filler panel is installed, remove the two Phillips pan-head screws from the filler panel and remove the panel. To remove a currently installed module, see the "Removing Other Switching and Services Modules" section.
Step 6 Open both the ejector levers on the new or replacement module completely. (See Figure 2-22.)
Step 7 Position the module in the chassis as follows:
a. Position the module in the slot. Ensure that you align the sides of the module carrier with the slot guides on each side of the slot.
b. Slide the module carefully into the slot until the EMI gasket along the top edge of the module contacts the module in the slot above it and both ejector levers close to approximately 45 degrees with respect to the front of the module. (See Figure 2-23.)
c. Grasp the two ejector levers using the thumb and forefinger of each hand, and press down to create a small 0.040-inch (1-mm) gap between the module's EMI gasket and the module above it. (See Figure 2-24.)
Caution Do not press down too forcefully on the levers because they can bend.
d. While pressing down, simultaneously close the left and right ejector levers to fully seat the supervisor module or switching module in the backplane connector. The ejector levers are fully closed when they are flush with the front of the module.
Note Ensure the ejector levers are fully closed before tightening the captive screws. Failure to fully seat the module in the backplane connector can result in error messages.
e. Tighten the two captive screws on the supervisor module or switching module to 8 in-lb.
Step 8 If you replaced the standby supervisor module in a switch that has two supervisors and is running Cisco MDS SAN-OS Release 1.2(2a) or earlier, enable the automatic synchronization feature, which is disabled by default. For information about the auto-sync option, see the Cisco MDS 9000 Family CLI Configuration Guide.
Step 9 If you replaced the supervisor in a switch that does not have a second supervisor or is running Cisco MDS SAN-OS Release 1.3(1) or later, download the configuration from the server to the nonvolatile memory of the supervisor. For more information, see the Cisco MDS 9000 Family CLI Configuration Guide.
Verifying Installation of Supervisor, Switching, and Services Modules
To verify the module installation, follow these steps:
Step 1 Verify that the ejector levers of each module are fully closed (parallel to the front of the module) to ensure that the supervisor module and all switching or services modules are fully seated in the backplane connectors.
Step 2 Check the captive screws of each module, the power supply, and the fan module. Tighten any loose captive screws to 8 in-lb.
Step 3 Verify that any empty module slots have filler panels installed and that the screws holding the panels in place are tight.
Step 4 Turn on the power supply switches to power up the system and check the LEDs on the modules.
Note For information about how to check connectivity of modules, see the Cisco MDS 9000 Family CLI Configuration Guide.
Removing and Installing a Crossbar Module
To remove a crossbar module from the Cisco MDS 9513 Director without compromising the integrity and availability of SANs when Generation 1 and Generation 2 modules are combined in the chassis, follow these steps:
Step 1 Shut down the crossbar module by using the out-of-service xbar slot command (where slot refers to the external crossbar module slot number).
Step 2 Loosen the two captive screws on the module being removed.
Step 3 Remove the module from the chassis as follows:
a. Place your thumbs on the top and bottom ejector levers and simultaneously rotate the levers outward to unseat the module from the midplane connector. (See Figure 2-25.)
b. Hold the front edge of the module and slide the module partially out of the slot. Do not touch the module circuitry.

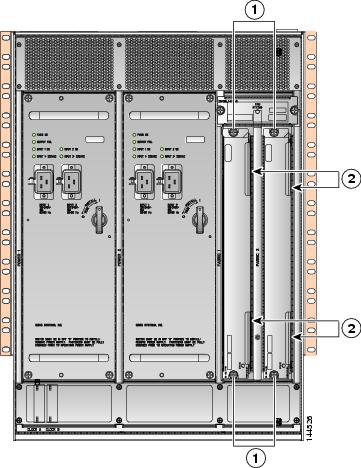

Figure 2-25 Captive Screws and Ejector Levers on the Crossbar Module
1
|
Captive screws
|
2
|
Ejector levers
|
Step 4 Place the module on an antistatic mat or antistatic foam, or immediately reinstall it in another slot.
Step 5 If the slot will remain empty, install a filler panel to keep the chassis dust-free and to maintain proper airflow through the chassis.
Warning Blank faceplates and cover panels serve three important functions: they prevent exposure to hazardous voltages and currents inside the chassis; they contain electromagnetic interference (EMI) that might disrupt other equipment; and they direct the flow of cooling air through the chassis. Do not operate the system unless all cards, faceplates, front covers, and rear covers are in place. Statement 1029
To install a crossbar module in the Cisco MDS 9513 Director, follow these steps:
Step 1 Before installing any modules, install at least one Supervisor-2 module.
Step 2 Open both the ejector levers on the new or replacement module completely.
Step 3 Position the module in the chassis as follows:
a. Position the module in the slot. Ensure that you align the sides of the module carrier with the slot guides on each side of the slot.
b. Slide the module carefully into the slot until the EMI gasket along the top edge of the module contacts the module in the slot above it and both ejector levers close to approximately 45 degrees with respect to the front of the module. (See Figure 2-26.)

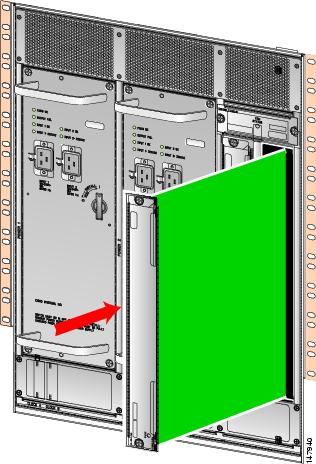

Figure 2-26 Installing the Crossbar Module
c. Grasp the two ejector levers using the thumb and forefinger of each hand, and press down to create a small 0.040-inch (1-mm) gap between the module's EMI gasket and the module above it.
Caution Do not press down too forcefully on the levers because they can bend.
d. While pressing down, simultaneously close the top and bottom ejector levers to completely seat the module in the midplane connector. The ejector levers are completely closed when they are flush with the front of the module.
Note Ensure the ejector levers are completely closed before tightening the captive screws. Failure to completely seat the module in the backplane connector can result in error messages.
e. Tighten the two captive screws on the module to 8 in-lb.
Maintaining a Caching Services Module
Caution Maintenance must be performed only by qualified service personnel.
Note A minimum of two CSMs in each fabric are required for redundancy and data backup.
This section provides the following information:
•Maintaining the Batteries on the Caching Services Module
•Maintaining the Disk Drives on the Caching Services Module
Maintaining the Batteries on the Caching Services Module
The CSM batteries last approximately three years. The following message displays in the system log when a battery fails:
Dec 5 17:14:36 sw-90.21% SVC_BATTERY-SLOT8-4-BATTERY_CAPACITY_LOW:
Battery capacity is below the required threshold.
If this message is displayed, contact your support provider for assistance. If a battery fails, the CSM must be replaced. The other CSMs in the fabric contain the same data, and they continue providing caching services during the replacement period.
Caution The CSM batteries are shipped fully charged and should be handled accordingly.
Warning Do not touch or bridge the metal contacts on the battery. Unintentional discharge of the batteries can cause serious burns. Statement 341
Warning Ultimate disposal of this product should be handled according to all national laws and regulations. Statement 1040
The batteries are automatically charged on a periodic basis with an SMBus-compliant Level III smart charger located on the CSM. The smart charger measures the charge and recharges the battery to full if it is less than 90 percent of capacity.
The batteries are also automatically reconditioned on a periodic basis, one battery at a time. During reconditioning all power is drained from the battery and the battery is completely recharged, requiring approximately 6 hours. The battery status LED flashes green during the reconditioning.
Maintaining the Disk Drives on the Caching Services Module
You see a message in the system log when a disk drive requires replacement. If you see this message, contact your support provider for assistance.
If a disk drive fails, the CSM must be replaced. The other CSM(s) in the fabric contain the same data, and they continue providing caching services during the replacement period.
Removing and Installing a Power Supply or PEM
This section provides the following information:
•Removing and Installing the Power Supplies on the Cisco MDS 9513 Director
•Removing an AC Power Supply from the Cisco MDS 9513 Director
•Installing an AC Power Supply in the Cisco MDS 9513 Director
•Removing an AC Power Supply from the Cisco MDS 9509 Director
•Installing an AC Power Supply in the Cisco MDS 9509 Director
•Removing a DC Power Supply from the Cisco MDS 9509 Director
•Installing a DC Power Supply in the Cisco MDS 9509 Director
•Removing and Installing the PEMs on the Cisco MDS 9506 Director
•Removing an AC or DC Power Supply from the Cisco MDS 9506 Director
•Installing an AC or DC Power Supply in the Cisco MDS 9506 Director
A flat-blade or number 2 Phillips-head screwdriver is required to perform these procedures.
Warning Voltage is present on the backplane when the system is operating. To reduce risk of an electric shock, keep hands and fingers out of the power supply bays and backplane areas. Statement 166
Warning Power supply captive installation screws must be tight to ensure protective grounding continuity. Statement 289
Caution Use both hands to install and remove power supplies. Each DC power supply for the Cisco MDS 9500 Series weighs between 22 lb (9.9 kg) and 28 lb (12.6 kg).
Note You can replace the faulty power supply while the system is operating if the other power supply is functioning.
Removing and Installing the Power Supplies on the Cisco MDS 9513 Director
The Cisco MDS 9513 power supplies are located at the rear of the chassis. The physical position of the chassis in a rack will determine how you handle the power supply when removing or installing.
Removing an AC Power Supply from the Cisco MDS 9513 Director
Warning Voltage is present on the backplane when the system is operating. To reduce risk of an electric shock, keep hands and fingers out of the power supply bays and backplane areas. Statement 166
To remove an AC power supply from the Cisco MDS 9513 Director, follow these steps:
Step 1 Turn the power switch on the power supply to the off (0) position. There is an internal lock mechanism that prevents you from removing the power supply if it is not set to the off position.
Step 2 Disconnect the power cable(s) from the power source.
Step 3 Loosen the screw on the cable retention device and disconnect the power cable from the power supply.
Figure 2-27 Cable Retention Device on the 6000W Power Supply
Step 4 Loosen all four 6-32 panel fasteners at the corners of the power supply.
Caution Use both hands to install and remove power supplies. Each power supply weighs 34.2 lbs (15.5 kg).
Step 5 Grasp the power supply handles and slide the power supply partially out of the chassis, about four to five inches. (See Figure 2-28.)
Step 6 If the power supply is at your waist or chest level, place your other hand underneath the power supply and slide the power supply completely out of the chassis. Use the two front handles if you are comfortable doing so.
Note There is a handle at the top rear of the power supply you can also use to lift the power supply out of the chassis.

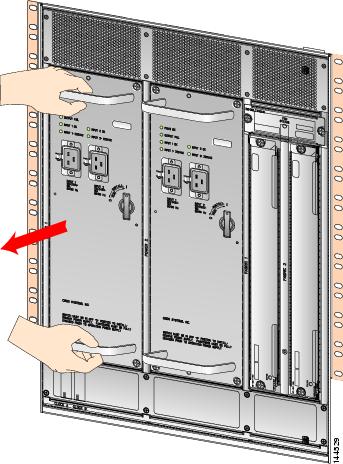

Figure 2-28 Handling a Power Supply for the Cisco MDS 9513 Director
Step 7 If the power supply is above your waist or chest height, use the lower front handle on the face plate and the other hand underneath the power supply. Assure adequate support with both hands on the unit at the designated support points, and slowly pull the power supply out of the chassis such that the weight of the unit will be fully supported once it is out.
Caution To avoid damage to the panel fasteners, do not place the power supply down on the perforated ends. Place the power supply down on the flat sheet metal sides or on the two brackets found on the rear of the power supply.
Step 8 Install a power supply filler panel over the opening and tighten the captive screws to 8 in-lb if the power supply bay that has to remain empty.
Installing an AC Power Supply in the Cisco MDS 9513 Director
Caution Use both hands to install and remove power supplies. Each Cisco MDS 9513 AC power supply weighs up to 34.2 lb (15.5 kg).
Caution To avoid damage to the panel fasteners, do not place the power supply down on the perforated ends. Place the the power supply down on the flat sheet metal sides or on the two brackets found on the rear of the supply.
To install an AC power supply in the Cisco MDS 9513 Director, follow these steps:
Step 1 Ensure that the system (earth) ground connection has been made. See the "System Grounding" section.
Step 2 If a filler panel is installed, remove the filler panel from the power supply bay by loosening the captive screw.
Step 3 Ensure that the power switch is in the off (0) position on the power supply you are installing. (See Figure 2-29.)
Figure 2-29 AC Power Supply for the Cisco MDS 9513 Director
1
|
Power supply switch
|
2
|
Power cable retainer
|
Step 4 Grasp the power supply handles, one with each hand. Orient the power supply and align it with the bay.
Note There is a handle at the top rear of the power supply you can also use to tilt the power supply into the bay.
Step 5 Slide the power supply into the power supply bay. Ensure that the power supply is fully seated in the bay.
Step 6 Secure all four 6-32 panel fasteners and tighten to 8 in-lbs.
Step 7 Plug the power cable into the power supply, and tighten the screw on the cable retention device to ensure that the cable cannot be pulled out.
Step 8 Connect the other end of the power cable to an AC power source.
Step 9 Turn the power switch to the on ( | ) position on the power supply.
Step 10 Verify power supply operation by checking that the power supply LEDs are in the following states:
•INPUT OK LEDs are green.
•FANs OK LED is green.
•OUTPUT FAIL LED is off.
See Table 1-2 on page 1-11 for power supply LED details.
Removing an AC Power Supply from the Cisco MDS 9509 Director
The procedure for removing an AC power supply from the Cisco MDS 9509 Director is the same for the 4000-W, 3000-W, and 2500-W power supplies, except the power cable for the 4000-W power supply is hard wired to the power supply.
Warning Voltage is present on the backplane when the system is operating. To reduce risk of an electric shock, keep hands and fingers out of the power supply bays and backplane areas. Statement 166
To remove an AC power supply from the Cisco MDS 9509 Director, follow these steps:
Step 1 Turn the power switch on the power supply to the off (0) position. Turning the power switch off also unlocks the power supply from the chassis.
Step 2 Disconnect the power cable from the power source.
Step 3 Loosen the screw on the cable retention device and disconnect the power cable from the power supply being removed.
Note The AC power cable for the 4000-W power supply is hard wired and cannot be removed from the power supply.
Step 4 Loosen the captive screw.
Caution Use both hands to install and remove power supplies. Each Cisco MDS 9500 Series AC power supply weighs between 22 lb (9.9 kg) and 28 lb (12.6 kg).
Step 5 Grasp the power supply handle with one hand, and slide the power supply partially out of the chassis. Place your other hand underneath the power supply, as shown in Figure 2-30, and slide the power supply completely out of the chassis.
Step 6 If the power supply bay is to remain empty, install a power supply filler panel over the opening, and tighten the captive screw to 8 in-lb

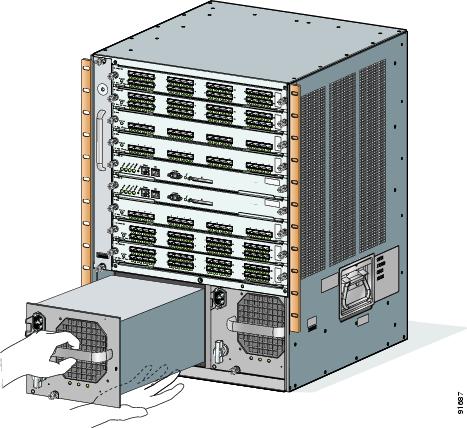

Figure 2-30 Handling a Power Supply for the Cisco MDS 9509 Director
Installing an AC Power Supply in the Cisco MDS 9509 Director
The procedure for installing an AC power supply in the Cisco MDS 9509 Director is the same for the 4000-W, 3000-W, and 2500-W power supplies, except that the power cable for the 4000-W power supply is hard-wired to the power supply.
Caution Use both hands to install and remove power supplies. Each Cisco MDS 9509 AC power supply weighs up to 28 lb (12.6 kg). The 4000-W and 2500-W power supplies weigh up to 28 lb (12.6 kg). The 3000-W power supply weighs up to 24 lb (11 kg)
To install an AC power supply in the Cisco MDS 9509 Director, follow these steps:
Step 1 Ensure that the system (earth) ground connection has been made. See the "System Grounding" section.
Step 2 If a filler panel is installed, remove the filler panel from the power supply bay by loosening the captive screw.
Step 3 Ensure that the power switch is in the off (0) position on the power supply you are installing. See Figure 2-33 and Figure 2-31 for the location of the switch.
Figure 2-31 4000-W AC Power Supply for the Cisco MDS 9509 Director
1
|
AC power connection
|
4
|
Power supply switch
|
2
|
Power supply LEDs
|
5
|
Permanent power cable
|
3
|
Captive screw
|
|
|
Figure 2-32 3000-W AC Power Supply for the Cisco MDS 9509 Director
1
|
AC power connection
|
4
|
Power supply LEDs
|
2
|
Power cable
|
5
|
Captive screws
|
3
|
Power supply switch
|
|
|
Figure 2-33 2500-W AC Power Supply for the Cisco MDS 9509 Director
1
|
AC power connection
|
4
|
Captive screw
|
2
|
Power cable retainer
|
5
|
Power supply LEDs
|
3
|
Power supply switch
|
|
|
Step 4 Grasp the power supply handle with one hand, place your other hand underneath the power supply, and slide the power supply into the power supply bay. Ensure that the power supply is fully seated in the bay.
Step 5 Tighten the power supply captive screw to 8 in-lb.
Step 6 Plug the power cable into the power supply, and tighten the screw on the cable retention device to ensure that the cable cannot be pulled out.
Note The AC power cable for the 4000-W power supply is hard wired to the power supply.
Step 7 Connect the other end of the power cable to an AC power source.
Step 8 Turn the power switch to the on (|) position on the power supply. Turning the power switch on also locks the power supply in the bay.
Step 9 Verify power supply operation by checking that the power supply LEDs are in the following states:
•INPUT OK LED is green.
•FAN OK LED is green.
•OUTPUT FAIL LED is off.
If the LEDs indicate a power problem, see the Cisco MDS 9000 Family Troubleshooting Guide. If you cannot resolve an issue, contact your customer service representative.
Removing a DC Power Supply from the Cisco MDS 9509 Director
The DC power supply for the Cisco MDS 9509 Director is 2500-W.
Note The DC return connection to this system is to remain isolated from the system frame and chassis (DC-I).
Warning Before performing any of the following procedures, ensure that power is removed from the DC circuit. Statement 1003
To remove a DC power supply from the Cisco MDS 9509 Director, follow these steps:
Step 1 Ensure that all power is off by locating the circuit breaker on the panel board that services the DC circuit. Switch the circuit breaker to the off position, and tape the switch handle of the circuit breaker in the off position.
Step 2 Remove the two screws securing the terminal block cover and slide the cover off the terminal block. (See Figure 2-34.)
Step 3 Disconnect the DC cables from the terminal block in the following order:
•Positive (+)
•Negative (-)
•Ground
Caution The DC return connection (Negative (-)) to this system is to remain isolated from the system frame and chassis (DC-I). Loosen the captive screw on the power supply.
Warning When installing or replacing the unit, the ground connection must always be made first and disconnected last. Statement 1046
Figure 2-34 Front Panel for the DC Power Supply of the Cisco MDS 9509 Director
1
|
Terminal block cover
|
4
|
Power supply switch
|
2
|
Power supply LEDs
|
5
|
Terminal block
|
3
|
Captive screw
|
|
|
Caution Use both hands to install and remove power supplies. Each Cisco MDS 9500 Series DC power supply weighs between 22 lb (9.9 kg) and 28 lb (12.6 kg).
Step 4 Grasp the power supply handle with one hand and slide the power supply halfway out of the chassis. Place your other hand underneath the power supply, as shown in Figure 2-34, and slide the power supply completely out of the chassis.
Step 5 If the power supply bay is to remain empty, install a power supply filler panel over the opening, and tighten the captive screw to 8 in-lb.
Installing a DC Power Supply in the Cisco MDS 9509 Director
The DC power supply for the Cisco MDS 9509 Director is 2500 W.
Note The DC return connection to this system is to remain isolated from the system frame and chassis (DC-I).
To install a DC power supply in the Cisco MDS 9509 Director, follow these steps:
Step 1 Ensure that all power is off by locating the circuit breaker on the panel board that services the DC circuit. Switch the circuit breaker to the off position, and tape the switch handle of the circuit breaker in the off position.
Step 2 Ensure that the system (earth) ground connection has been made. See the "System Grounding" section.
Step 3 Grasp the power supply handle with one hand, place your other hand underneath the power supply, and slide the power supply into the power supply bay, ensuring that it is fully seated in the bay.
Step 4 Tighten the captive screw on the power supply to 8 in-lb.
Step 5 Remove the two screws securing the terminal block cover and slide the cover off of the terminal block.
Note Use 90°C copper conductors for North American installations.
Step 6 Loosen the screws inside the terminal block and attach the DC cables to the screws. The wire must be copper, and sized per local and national installation requirements.
Step 7 Connect the DC cables to the terminal block in the following order:
•Ground
•Negative (-)
•Positive (+)
Warning When installing or replacing the unit, the ground connection must always be made first and disconnected last. Statement 1046
Caution The DC return connection (Negative (-)) to this system is to remain isolated from the system frame and chassis (DC-I).
Step 8 Reinstall the terminal block cover after ensuring that all cable connections are secure and tighten the screws holding the terminal block to the power supply.
Caution Reinstall the terminal block cover to prevent a short circuit or shock hazard.
Caution In a system with dual power supplies, connect each power supply to a separate source. In case of a line failure, the second source will most likely still be available.
Step 9 Remove the tape from the circuit breaker switch handle and provide power by moving the handle to the on (|) position.Turning the power switch on also locks the power supply in the chassis.
Step 10 Verify power supply operation by checking that the power supply LEDs are in the following states:
•INPUT OK LED is green.
•FAN OK LED is green.
•Output fail LED is off.
Removing and Installing the PEMs on the Cisco MDS 9506 Director
Note For instructions on connecting the cables to the PEMs, see the "Connecting the Power Supplies" section.
The Cisco MDS 9506 Director uses PEMs to provide an input power connection on the front of the chassis. In addition, the PEM provides current protection, surge and EMI suppression, and filtering functions. An AC PEM is required for each AC power supply, and a DC PEM for each DC power supply.
The PEM that is on the left when viewed from the front of the switch (PEM 1) connects the site power source to power supply 1 (upper power supply); the PEM on the right (PEM 2) connects the site power source to power supply 2 (lower power supply).
Note You need a flat-blade or number 2 Phillips-head screwdriver to perform these procedures.
Removing an AC PEM
To remove an AC PEM from a Cisco MDS 9506 chassis, follow these steps:
Step 1 Remove power from the PEM by pressing the power switch to off (0).
Step 2 Loosen the captive screws and pull the PEM of the chassis, supporting the PEM from underneath.
Step 3 If the PEM bay is to remain empty, install a filler panel over the opening and tighten the captive screws to 8 in-lb.
Removing a DC PEM
Warning Before performing any of the following procedures, ensure that power is removed from the DC circuit. Statement 1003
To remove a DC PEM from a Cisco MDS 9506 chassis, follow these steps:
Step 1 Ensure that all power is off by locating the circuit breaker on the panel board that services the DC circuit. Switch the circuit breaker to the off position, and tape the switch handle of the circuit breaker in the off position.
Step 2 Loosen the captive screws and pull the DC PEM from the chassis, holding it by the edges.
Step 3 Remove the cables from the DC PEM by removing the terminal block screws, and then removing the ring lugs from the screws. See Figure 2-35 for the location of the terminal block screws.
Figure 2-35 Connecting or Disconnecting the DC PEM
1
|
PEM terminal block screws (+ and -)
|
4
|
Stripped portion of positive cable
|
2
|
Captive screw
|
5
|
Insulated portion of negative cable
|
3
|
Ring lug
|
|
|
Step 4 If the PEM bay is to remain empty, install a PEM filler panel over the opening and tighten the captive screws to 8 in-lb.
Installing an AC PEM
To install an AC PEM in a Cisco MDS 9506 chassis, follow these steps:
Step 1 Ensure that the system (earth) ground connection has been made. See the "System Grounding" section.
Step 2 If a filler panel is installed, remove it from the PEM bay by loosening the captive screws and pulling it from the chassis.
Step 3 Slide the PEM into the PEM bay, ensuring that the PEM is fully seated in the bay.
Step 4 Tighten the PEM captive screws to 8 in-lb.
Step 5 Provide power to the PEM as described in the "Providing Power to an AC Power Supply for the Cisco MDS 9509 and Cisco MDS 9506 Directors" section.
Caution In a system with dual power supplies, connect each power supply to a separate power source. In case of a power source failure, the second source will most likely still be available.
Step 6 Verify PEM and power supply operation by checking the power supply LED states in the back of the chassis:
•INPUT OK LED is green.
•FAN OK LED is green.
•OUTPUT FAIL LED is off.
Installing a DC PEM
To install a DC PEM in a Cisco MDS 9506 chassis, follow these steps:
Step 1 Ensure that the system (earth) ground connection has been made. See the "System Grounding" section.
Step 2 If a filler panel is installed, remove it from the PEM bay by loosening the captive screws and pulling it from the chassis.
Step 3 Attach the DC power cables to the PEM as described in "Providing Power to a DC Power Supply in the Cisco MDS 9506 Director" section.
Step 4 Slide the PEM into the PEM bay, ensuring that the PEM is fully seated in the bay.
Step 5 Tighten the PEM captive screws to 8 in-lb.
Caution In a system with dual power supplies, connect each power supply to a separate power source. In case of a power source failure, the second source will most likely still be available.
Step 6 Verify PEM and power supply operation by checking the power supply LED states in the back of the chassis:
•INPUT OK LED is green.
•FAN OK LED is green.
•OUTPUT FAIL LED is off.
Removing an AC or DC Power Supply from the Cisco MDS 9506 Director
The procedure for removing a Cisco MDS 9506 power supply is the same for AC and DC power supplies.
To remove an AC or DC power supply from the Cisco MDS 9506 Director, follow these steps:
Step 1 Remove power from the PEM that corresponds to the power supply as follows:
•If the PEM is AC, press the power switch to off (0).
•If the PEM is DC, follow the instructions in the "Removing a DC PEM" section.
Step 2 Loosen the captive screws on the power supply.
Step 3 Grasp both power supply handles as shown in Figure 2-36 and slide the power supply completely out of the chassis.
Figure 2-36 Handling a Power Supply for the Cisco MDS 9506 Director
Step 4 If the power supply bay is to remain empty, install a filler panel over the opening and tighten the captive screws to 8 in-lb.
Installing an AC or DC Power Supply in the Cisco MDS 9506 Director
The procedure for installing a Cisco MDS 9506 power supply is the same for AC and DC power supplies.
To install an AC or DC power supply in the Cisco MDS 9506 Director, follow these steps:
Step 1 Ensure that the system (earth) ground connection has been made. See the "System Grounding" section.
Step 2 If a filler panel is installed, remove it from the power supply bay by loosening the captive screws and pulling the filler panel out of the bay.
Step 3 Grasp both power supply handles and slide the power supply into the power supply bay, ensuring that the power supply is fully seated in the bay.
Step 4 Tighten the captive screws on the power supply to 8 in-lb.
Step 5 Provide power to the PEM as described in the "Connecting the Power Supplies" section.
Caution In a system with dual power supplies, connect each power supply to a separate power source. In case of a power source failure, the second source will most likely still be available.
Step 6 Verify power supply operation by checking that the power supply LEDs are in the following states:
•INPUT OK LED is green.
•FAN OK LED is green.
•OUTPUT FAIL LED is off.
Removing and Installing Fan Modules
The fan module is designed to be removed and replaced while the system is operating without presenting an electrical hazard or damage to the system, provided the replacement is performed promptly.
The Cisco MDS 9513 fan module has 15 fans with an abrupt stop-to-fan rotation safety feature after power is disconnected or the fan tray is removed from the midplane. The Cisco MDS 9506 fan module has six fans and the Cisco MDS 9509 fan module has nine fans. The removal procedures differ slightly while the installation procedures are the same for all types of fan modules.
You need a flat-blade or number 2 Phillips screwdriver to perform these procedures.
Note Because the fan modules are located on the left side of the Cisco MDS 9500 Series, Cisco recommends guiding the cables for the system out of the right side of the chassis.
Caution The Cisco MDS 9000 Family switches have internal temperature sensors that are capable of shutting down the system if the temperature at different points within the chassis exceed certain safety thresholds. To be effective, the temperature sensors require the presence of airflow; therefore, in the event a fan module is removed from the chassis, the Cisco MDS 9000 Family switches will be shut down after five minutes to prevent potentially undetectable overheating. However, the switches will be shut down sooner if the higher-level temperature threshold is exceeded.
This section includes the following topics:
•Removing a Front Fan Module on the Cisco MDS 9513 Director
•Installing a Front Fan Module on the Cisco MDS 9513 Director
•Removing the Crossbar Module Fan Tray
•Installing the Crossbar Module Fan Tray
•Removing a Front Fan Module on the Cisco MDS 9509 Director
•Installing a Front Fan Module on the Cisco MDS 9509 Director
•Removing a Front Fan Module on the Cisco MDS 9506 Director
•Installing a Front Fan Module on the Cisco MDS 9506 Director
Removing a Front Fan Module on the Cisco MDS 9513 Director
To remove the fan module from the Cisco MDS 9513 director, follow these steps:
Step 1 Push the button on the top fan module latch to release the fan module from the midplane. Repeat this on the bottom fan module latch.
Step 2 Grasp the fan module with both hands and pull it outward; rock it gently, if necessary, to unseat the power connector from the backplane.
Step 3 Pull the fan module clear of the chassis. (See Figure 2-36.)

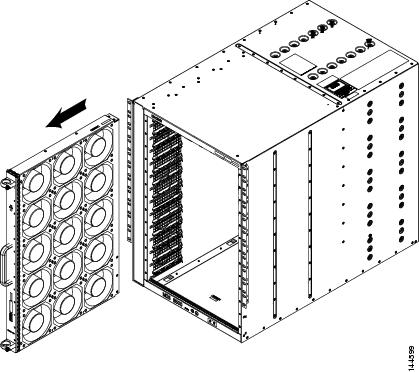

Figure 2-37 Removing the Fan Module for the Cisco MDS 9513 Director
Warning When removing the fan tray, keep your hands and fingers away from the spinning fan blades. Let the fan blades completely stop before you remove the fan tray. Statement 258
Installing a Front Fan Module on the Cisco MDS 9513 Director
To install a front fan module on the Cisco MDS 9513 Director, follow these steps:
Step 1 Hold the fan module so that the Fan Status LED is at the top. (See Figure 2-39.)
Step 2 Place the fan module into the front chassis cavity so it rests on the chassis, lift the fan module up slightly to align the top and bottom chassis guides, then push the fan module into the chassis until it seats in the backplane and the captive screws make contact with the chassis. The fan module will just snap in.
Step 3 If the switch is powered on, listen for the fans; you should immediately hear them operating. If you do not hear them, ensure that the fan module is inserted completely in the chassis and the outside surface of the fan module is flush with the outside surface of the chassis.
Step 4 Verify that the Fan Status LED is green. If the LED is not green, one or more fans are faulty. If this occurs, contact your customer service representative for a replacement part.
Note If you purchased this product through a Cisco reseller, contact the reseller directly for technical support. If you purchased this product directly from Cisco Systems, contact Cisco Technical Support at this URL: http://www.cisco.com/warp/public/687/Directory/DirTAC.shtml.
Removing the Crossbar Module Fan Tray
The crossbar module fan tray is designed to be removed and replaced while the system is operating without presenting an electrical hazard or damage to the system, provided the replacement is performed promptly. The crossbar module fan tray is used only in the Cisco MDS 9513 Director. It is installed at the rear of the chassis and plugs into the back side of the midplane just above the crossbar modules.
To remove a crossbar module fan tray, follow these steps:
Step 1 Loosen the two captive screws on the fan tray.
Step 2 Hold the two captive screws and pull the fan tray out of the chassis using both hands.
Step 3 Take one hand and hold the face of the fan tray while supporting it with the other hand.
Step 4 Pull the fan module clear of the chassis. (See Figure 2-37.)

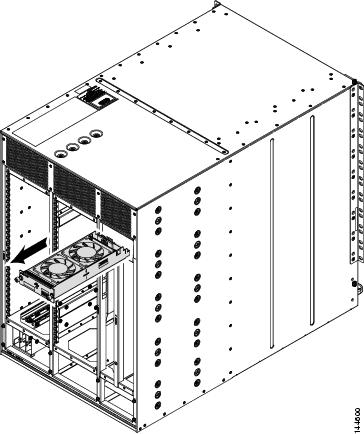

Figure 2-38 Removing a Crossbar Module Fan Tray
Installing the Crossbar Module Fan Tray
To install a crossbar module fan tray, follow these steps:
Step 1 Remove the crossbar module fan tray from the bag if necessary.
Step 2 Orient the crossbar module fan tray in the chassis as follows:
a. Position the module in the slot. (See Figure 2-38.)
b. Slide the module carefully into the slot until the the fan tray is fully inserted into the chassis.
c. Tighten the two captive screws on the crossbar module fan tray to 8 in-lb screws.
Removing a Front Fan Module on the Cisco MDS 9509 Director
To remove a fan module from the Cisco MDS 9509 or 9506 switch, follow these steps:
Step 1 Loosen the two captive screws on the fan module (see Figure 2-39) by turning them counterclockwise; use a flat-blade or number 2 Phillips screwdriver, if required.
Step 2 Grasp the fan module with both hands and pull it outward; rock it gently, if necessary, to unseat the power connector from the backplane.
Step 3 Pull the fan module clear of the chassis.
Figure 2-39 Handling the Fan Module for the Cisco MDS 9509 Director
Installing a Front Fan Module on the Cisco MDS 9509 Director
To install a front fan module on the Cisco MDS 9509 Director, follow these steps:
Step 1 Hold the fan module so that the Fan Status LED is at the top. (See Figure 2-39.)
Step 2 Place the fan module into the front chassis cavity so it rests on the chassis, lift the fan module up slightly to align the top and bottom chassis guides, then push the fan module into the chassis until it seats in the backplane and the captive screws make contact with the chassis.
Step 3 Tighten the captive screws to 8 in-lb.
Step 4 If the switch is powered on, listen for the fans; you should immediately hear them operating. If you do not hear them, ensure that the fan module is inserted completely in the chassis and the outside surface of the fan module is flush with the outside surface of the chassis.
Step 5 Verify that the Fan Status LED is green. If the LED is not green, one or more fans are faulty. If this occurs, contact your customer service representative for a replacement part.
Note If you purchased this product through a Cisco reseller, contact the reseller directly for technical support. If you purchased this product directly from Cisco Systems, contact Cisco Technical Support at this URL: http://www.cisco.com/warp/public/687/Directory/DirTAC.shtml.
Removing a Front Fan Module on the Cisco MDS 9506 Director
To remove a fan module from the Cisco MDS 9506 Director, follow these steps:
Step 1 Loosen the two captive screws on the fan module (see Figure 2-39) by turning them counterclockwise; use a flat-blade or number 2 Phillips screwdriver, if required.
Step 2 Grasp the fan module with both hands and pull it outward; rock it gently, if necessary, to unseat the power connector from the backplane.
Step 3 Pull the fan module clear of the chassis.
Installing a Front Fan Module on the Cisco MDS 9506 Director
To install a front fan module on the Cisco MDS 9506 Director, follow these steps:
Step 1 Hold the fan module so that the Fan Status LED is at the top.
Step 2 Place the fan module into the front chassis cavity so it rests on the chassis, lift the fan module up slightly to align the top and bottom chassis guides, then push the fan module into the chassis until it seats in the backplane and the captive screws make contact with the chassis.
Step 3 Tighten the captive screws to 8 in-lb.
Step 4 If the switch is powered on, listen for the fans; you should immediately hear them operating. If you do not hear them, ensure that the fan module is inserted completely in the chassis and the outside surface of the fan module is flush with the outside surface of the chassis.
Step 5 Verify that the Fan Status LED is green. If the LED is not green, one or more fans are faulty. If this occurs, contact your customer service representative for a replacement part.
Note If you purchased this product through a Cisco reseller, contact the reseller directly for technical support. If you purchased this product directly from Cisco Systems, contact Cisco Technical Support at this URL: http://www.cisco.com/warp/public/687/Directory/DirTAC.shtml.
Removing and Installing CompactFlash Cards
The supervisor module has one slot for an optional CompactFlash card. You can use this slot to install additional flash memory for storing and running software images and configuration files, or to serve as an I/O device.
Caution Only use CompactFlash devices that are certified for use with Cisco MDS switches and are formatted using Cisco MDS switches. Using CompactFlash devices that are uncertified or are formatted using other platforms may result in errors. For information on formatting the external CompactFlash, see the
Cisco MDS 9000 Family CLI Configuration Guide or the
Cisco MDS 9000 Family Fabric Manager Configuration Guide.
You can install and remove the CompactFlash card with the switch powered on.
Caution Do not remove the CompactFlash card while the access LED light is on or the file may be corrupted.
This section describes how to install and remove a CompactFlash card. For additional information about the CompactFlash card, see the Cisco MDS 9000 Family CLI Configuration Guide or the Cisco MDS 9000 Family Fabric Manager Configuration Guide.
Removing a CompactFlash Card
To remove a CompactFlash card, follow these steps:
Step 1 Verify that no operations are in progress by verifying that the LED is off.
Step 2 Press the ejector button until the card is free of the connector at the back.
Step 3 Remove the card from the slot and place it in an antistatic bag.
Installing a CompactFlash Card
To install a CompactFlash card, follow these steps:
Step 1 Position the CompactFlash card with the connector end of the card toward the slot. The connector end of the card is on the opposite side of the write-protection switch.
Step 2 Insert the card into the slot until the card is firmly seated in the connector at the back of the slot and the ejector button pops out toward you.
Caution The card does not insert all the way inside the slot; a portion of the card remains outside the slot. Do not attempt to force the card past this point or you could damage the connector pins.
Removing and Installing Clock Modules
The Cisco MDS 9500 Series includes one or more clock modules that are accessible from the back of the chassis. In the unlikely event of a clock module failure, Cisco recommends that the failed clock module be replaced during a maintenance window. The Cisco MDS 9513 and 9509 Directors have two field-replacable clock modules. The Cisco MDS 9506 Director has one field-replacable clock module. A separate procedure is provided for each type of director:
•Removing a Clock Module from the Cisco MDS 9513 Director
•Installing a Clock Module into the Cisco MDS 9513 Director
•Removing a Clock Module from the Cisco MDS 9509 Director
•Installing a Clock Module into the Cisco MDS 9509 Director
•Removing a Clock Module from the Cisco MDS 9506 Director
•Installing a Clock Module into the Cisco MDS 9506 Director
Before installing the clock module, check the contents of your kit. Table 2-5 lists the contents of the clock module replacement kit, part number DS-C9513-CL.
Table 2-5 Contents of Cisco MDS 9513 Clock Module Replacement Kits
Quantity
|
Part Description
|
1
|
Cisco MDS 9513 clock module
|
1
|
Disposable ESD wrist strap
|
These tools are required to remove or install a clock module:
•Number 2 Phillips screwdriver
•Your own ESD-prevention equipment or the disposable grounding wrist strap included with all upgrade kits, field-replaceable units (FRUs), and spares
Removing a Clock Module from the Cisco MDS 9513 Director
Clock modules are connected to the rear of the Cisco MDS 9513 Director and are not visible as they are located on the inside of the cover panel. Figure 2-40 shows the clock modules in a rear view of the Cisco MDS 9513 Director with the back panel removed. Cisco recommends that the failed clock module be replaced during a maintenance window.

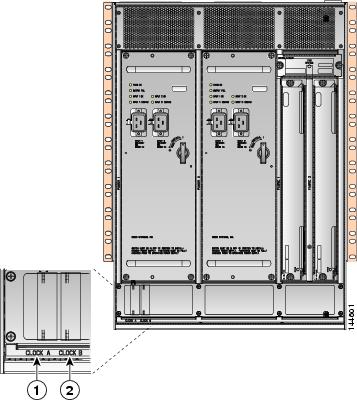

Figure 2-40 Clock Module Location on the Cisco MDS 9513 Director (Rear View)
1
|
Clock A (CLK A)
|
2
|
Clock B (CLK B)
|
On the the Cisco MDS 9513 Director, only the standby clock module is hot-swappable.
In the unlikely event of an active clock module failure, the Cisco MDS 9500 Series generates an error message and an automatic switchover occurs from one clock module to the other, causing the system to reset automatically. Once the failed active clock module becomes the standby module, it is hot-swappable. Cisco recommends that the failed clock module be replaced during a maintenance window.
If the active clock module needs to be replaced at a time other than when there is a clock module failure, then the switch must be powered down before the clock module is replaced.
Caution Always wear an ESD wrist strap when handling modules or coming into contact with internal components.
To remove a standby clock module, follow these steps:
Step 1 Note which clock module you are removing. Use the show environment clock command to verify which is active and standby.
Step 2 Use a Phillips screwdriver to remove the eight back panel screws from the rear of the Cisco MDS 9513 Director chassis.
Note Note the position and orientation of the clock module before you remove it from the director chassis because you must install the new clock module in the same position.
Step 3 Verify the LEDs on the clock modules.
Step 4 Disconnect and gently remove the module, placing it on an antistatic mat or foam. (See Figure 2-41.)

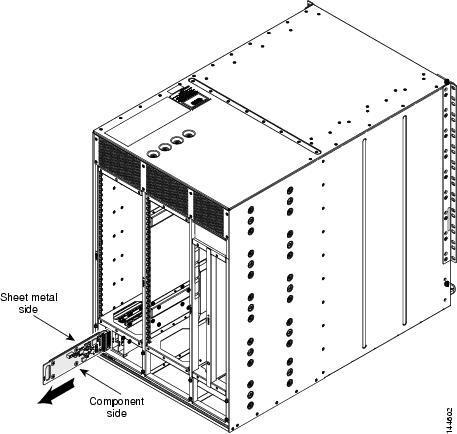

Figure 2-41 Clock Module Replacement on the Cisco MDS 9513 Director (Rear View)
Step 5 Repeat Step 3 and Step 4 to remove any additional clock modules.
Installing a Clock Module into the Cisco MDS 9513 Director
Caution Always wear an ESD wrist strap when handling modules or coming into contact with internal components.
To install the clock module, follow these steps:
Step 1 Remove the new clock module from the antistatic bag.
Step 2 Hold the module with the backplane connectors away from you and the circuit board facing the right.

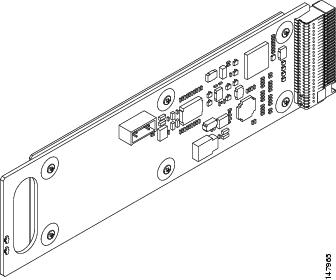

Figure 2-42 Clock Module for the Cisco MDS 9513 Director
Step 3 Carefully press the module onto the two matching connectors on the backplane.
Note You must install the new clock module in the same position that you removed it.
Step 4 Repeat Step 1 through Step 4 to install any additional clock modules.
Step 5 Replace the back panel safety cover using the eight screws.
Step 6 Provide power to the power supplies as described in the "Connecting the Power Supplies" section.
Caution In a system with dual power supplies, connect each power supply to a separate power source. In case of a power source failure, the second source will most likely still be available.
Step 7 Verify power supply operation by checking that the power supply LEDs are in the following states:
•INPUT OK LED is green.
•FAN OK LED is green.
•OUTPUT FAIL LED is off.
Removing a Clock Module from the Cisco MDS 9509 Director
Before installing the clock module, check the contents of your kit. Table 2-6 lists the contents of the clock module replacement kit, part number DS-C9509-CL=.
Table 2-6 Contents of Cisco MDS 9509 Clock Module Replacement Kits
Quantity
|
Part Description
|
1
|
Cisco MDS 9509 clock module
|
12
|
M3 x 6-mm Phillips pan-head screws
|
1
|
Disposable ESD wrist strap
|
These tools are required to remove or install a clock module:
•Number 1 Phillips screwdriver
•Your own ESD-prevention equipment or the disposable grounding wrist strap included with all upgrade kits, field-replaceable units (FRUs), and spares
Clock modules are connected to the rear of the Cisco MDS 9509 Director using two connectors. Figure 2-43 shows the clock modules in a rear view of the Cisco MDS 9509 Director with the back panel removed.

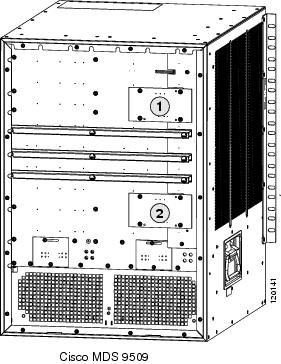

Figure 2-43 Clock Module Location on the Cisco MDS 9509 Director (Rear View)
1
|
Clock A (CLK A)
|
2
|
Clock B (CLK B)
|
Caution Always wear an ESD wrist strap when handling modules or coming into contact with internal components.
To remove the clock module, follow these steps:
Step 1 Remove power from both power supplies as follows:
•If the power supply is AC, press the power switch to off (0) and remove the power cable.
•If the power supply is DC, follow the instructions in the "Providing Power to a DC Power Supply in the Cisco MDS 9509 Director" section.
Caution Before working on a system that has an on/off switch, turn OFF the power and unplug the power cord.
Step 2 Use a Phillips screwdriver to remove the 18 back panel screws from the rear of the Cisco MDS 9509 Director chassis.
Note Note the position of the clock module before you remove it from the director chassis because you must install the new clock module in the same position.
Step 3 Remove the four screws that secure the clock module to the backplane. (See Figure 2-44.)

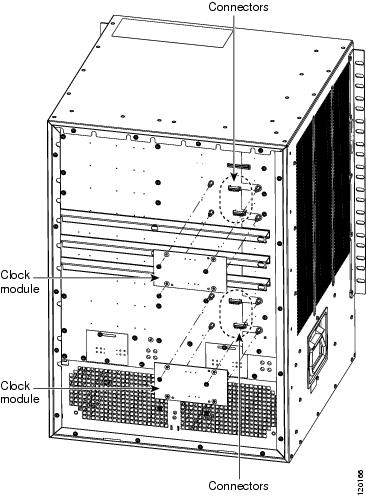

Figure 2-44 Clock Module Replacement on the Cisco MDS 9509 Director (Rear View)
Step 4 Disconnect and gently remove the module, placing it on an antistatic mat or foam.
Step 5 Repeat Step 3 and Step 4 to remove any additional clock modules.
Installing a Clock Module into the Cisco MDS 9509 Director
Caution Always wear an ESD wrist strap when handling modules or coming into contact with internal components.
To install the clock module, follow these steps:
Step 1 Remove the new clock module from the antistatic bag.
Step 2 Hold the module with the connectors away from you.
Step 3 Carefully press the module onto the two matching connectors on the backplane.
Note You must install the new clock module in the same position that you removed it.
Step 4 Replace the four screws to secure the clock module onto the backplane.
Step 5 Repeat Step 1 through Step 4 to install any additional clock modules.
Step 6 Replace the back panel safety cover using the 18 screws.
Step 7 Provide power to the power supplies as described in the "Connecting the Power Supplies" section.
Caution In a system with dual power supplies, connect each power supply to a separate power source. In case of a power source failure, the second source will most likely still be available.
Step 8 Verify power supply operation by checking that the power supply LEDs are in the following states:
•INPUT OK LED is green.
•FAN OK LED is green.
•OUTPUT FAIL LED is off.
Removing a Clock Module from the Cisco MDS 9506 Director
Before replacing the clock module, check the contents of your kit. Table 2-7 lists the contents of the clock module replacement kit, part number DS-C9506-CL=.
Table 2-7 Contents of Cisco MDS 9506 Clock Module Replacement Kit
Quantity
|
Part Description
|
1
|
Cisco MDS 9506 clock module
|
12
|
M3 x 6-mm Phillips pan-head screws
|
1
|
Disposable ESD wrist strap
|
These tools are required to remove and install a clock module:
•Number 1 Phillips screwdriver
•Your own ESD-prevention equipment or the disposable grounding wrist strap included with the clock module replacement kit
The clock module is located behind the top power supply in the rear of the Cisco MDS 9506 Director. Figure 2-45 shows the rear view of the Cisco MDS 9506 Director with both power supplies removed.
Figure 2-45 Clock Module Location on the Cisco MDS 9506 Director (Rear View)
Caution Always wear an ESD wrist strap when handling modules or coming into contact with internal components.
To remove the clock module, follow these steps:
Step 1 Remove power from both PEMs, accessed from the front of the chassis as follows:
•If the PEM is AC, press the power switch to off (0). Remove the power cord from the PEM.
•If the PEM is DC, follow the instructions in the "Removing a DC PEM" section.
Step 2 Loosen the four captive screws on the top power supply.
Step 3 Grasp both power supply handles and slide the top power supply completely out of the chassis.
Step 4 Remove the three screws that secure the clock module to the backplane (See Figure 2-46).

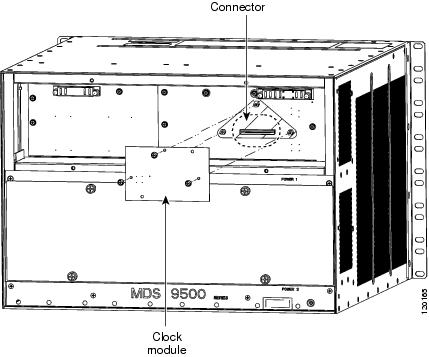

Figure 2-46 Clock Module Replacement on the Cisco MDS 9506 Director (Rear View)
Step 5 The clock module has one connector to the backplane. Gently disconnect and remove the clock module, placing it on an antistatic mat or foam.
Note Note the position of the clock module before you remove it from the director chassis because you must install the new clock module in the same position.
Installing a Clock Module into the Cisco MDS 9506 Director
Caution Always wear an ESD wrist strap when handling modules or coming into contact with internal components.
To install the clock module, follow these steps:
Step 1 Remove the new clock module from the antistatic bag.
Step 2 Hold the module with the connector away from you and carefully press the module onto the backplane connector.
Note You must install the new clock module in the same position that you removed it.
Step 3 Replace the three securing screws on the clock module.
Step 4 Grasp both power supply handles and slide the power supply into the power supply bay, ensuring that the power supply is fully seated in the bay.
Step 5 Tighten the captive screws on the power supply to 8 in-lb.
Step 6 Provide power to the PEMs as described in the "Connecting the Power Supplies" section.
Caution In a system with dual power supplies, connect each power supply to a separate power source. In case of a power source failure, the second source will most likely still be available.
Step 7 Verify power supply operation by checking that the power supply LEDs are in the following states:
•INPUT OK LED is green.
•FAN OK LED is green.
•OUTPUT FAIL LED is off.
