Release Notes for Cisco Network Boot Release 2.1.1
October 29, 2002
Note You can find the most current documentation on Cisco.com.
These release notes support Cisco Network Boot software release 2.1.1.
For a list of software caveats that apply to Release 2.1.1, see the "Open Caveats" section. The caveats are updated for every maintenance release and are located on Cisco.com and the Documentation CD-ROM.
These release notes describe the following topics:
Cisco Network Boot is a product that allows you to initiate a boot of Microsoft Windows 2000 Server or Advanced Server on a computer without an attached disk drive.
With Cisco Network Boot, a computer without a directly attached disk drive uses iSCSI protocol via an iSCSI driver to boot from an iSCSI disk through an IP network and a Cisco SN 5400 Series system (see Figure 1). As with any iSCSI disk, even though it is not directly attached to the computer accessing it, the disk appears to the computer as if it were directly attached.
Note The iSCSI protocol is an IETF-defined protocol for IP storage (ips). For more information about the iSCSI protocol, refer to the IETF standards for IP storage at http://www.ietf.org.

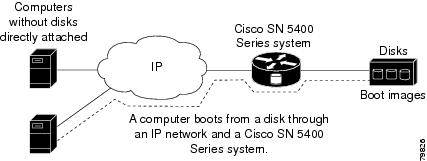

Figure 1 Cisco Network Boot Overview
Table 1 describes the system requirements for hosts, the DHCP/TFTP server, and the iSCSI targets that utilize Cisco Network Boot:
This section describes how to obtain updated Network Boot software, and includes the following information:
iSCSI Driver Version Support
Cisco Network Boot requires the Cisco iSCSI Driver version 2.2.1 (or later) for Microsoft Windows 2000.
Obtaining Updated Software and iSCSI Drivers
Registered Cisco.com users can download the most current SN 5400 Series system software, Cisco Network Boot software, Cisco iSCSI drivers, readme files, release notes and example configuration files from Cisco.com. In addition, information about driver compatibility and other relevant driver information is available on Cisco.com.
You can access software and related information by following these instructions:
Step 1 At http://www.cisco.com, log in to Cisco.com. Click Technical Support and Software Center.
Step 2 At the Software Center web page, under Software Products & Downloads, click Storage Networking Software.
Step 3 At the Storage Networking Software web page, click the appropriate link for your software.
Step 4 At the Software Download web page, click the file that you want to download. Another software download web page will be displayed with detailed information about the download file and Cisco's Software License Agreement. Follow the instructions on that and any subsequent web pages to download the software.
Step 5 To install and configure storage router software, see the appropriate storage router software configuration guide and release notes. To install and configure an iSCSI driver, see the readme file that accompanies the iSCSI driver (in the downloaded driver archive file) and the appropriate release notes.
Configuration guides and release notes are available online. You can access online documentation by following these instructions:
Step 1 At http://www.cisco.com, under Technical Documentation, click Technical Documentation on Cisco Connection Online.
Step 2 At the Cisco Documentation web page, under Cisco Product Documentation, click Storage Networking Products.
Step 3 At the Storage Networking Products documentation web page, click the appropriate links to access the appropriate documentation.
Installing Cisco Network Boot
Refer to the Cisco Network Boot Installation and Configuration Guide Release 2.1, for complete installation and configuration information and procedures. This document is available as an electronic document on Cisco.com and the Documentation CD-ROM.
Uninstalling Cisco Network Boot
To uninstall the Cisco Network Boot Administration utility, follow these instructions:
Step 1 Choose Start > Settings > Control Panel.
Step 2 Click Add/Remove Programs.
Step 3 Choose Network Boot Administration, and click Change/Remove.
Step 4 Select Remove.
Limitations and Restrictions
•The boot image must always be LUN 0.
•The storage device block size must be 512 bytes.
•All required host hardware should be identical; network interface and connections must be identical.
Caveats describe unexpected behavior or defects in Cisco Network Boot software releases. Severity 1 caveats are the most serious caveats; severity 2 caveats are less serious.
This document describes open severity 1 and 2 caveats, and selected caveats of other severities. For a more complete list of caveats against this release, access Cisco.com as described in the section "Cisco.com" at the end of this document.
Note If you have an account with Cisco.com, you can use Bug Navigator II to find caveats of any severity for any release. You can reach Bug Navigator II on Cisco.com at Service & Support:
The Cisco Network Boot replication process does not create a unique SID for the computer; replicating and booting multiple computers will result in each system having the same SID. Some applications use the computer SID for security (workgroups), and if the SID is not unique, the application will not be able to tell the computers apart.
Workaround: A utility named "newsid" is available from http://www.sysinternals.com. You can use this utility to assign a new SID.
Booting a Compaq DL380 with an Insight card using the CpqRib.sys driver version 188.8.131.52 may result in a Microsoft Windows "blue screen" and error code 0x00000050.
Workaround: Remove the Insight card from the computer.
If a user creates a directory on a server to be replicated, the replication utility will fail attempting to copy data from that directory. The log file shows data being copied from a user directory.
Workaround: Do not allow user directories on the master replication copy. If user directories are present, change the owner to Administrator prior to the replication process. After replication, change the owner back to the user.
Cisco Network Boot does not officially support configuring DHCP and TFTP servers at separate IP addresses.
Workaround: In the following example procedure, the DHCP server IP address will be 10.1.1.1 and the TFTP server IP address will be 10.1.1.2. It should not matter whether the TFTP and DHCP servers run the same operating system.
–Configure the DHCP server at 10.1.1.1.
–Configure the TFTP server at 10.1.1.2, and install inbp.com.
–If the DHCP server is running on a Microsoft Windows platform, add Option 66 "Boot Server Host Name" to the reservation(s) requiring it, or as a scope-wide option. Set the option value to the IP address of the TFTP server (in this example, 10.1.1.2).
–If the DHCP server is running on a Linux platform, set the tftp-server-name option.
Note This solution has worked on all machines on which it has been tried, but it has not been officially tested.
The following sections describe the related documentation available for Cisco Network Boot Release 2.1.1. These documents consist of an installation and configuration guide, release notes and readme file for Cisco Network Boot, release notes, readme and example configuration files for the Cisco iSCSI Driver Version 2.2.x for Microsoft Windows 2000, and the SN 5400 Series system hardware and software configuration guides.
The Cisco Network Boot Installation and Configuration Guide is available as an electronic document on Cisco.com and the Documentation CD-ROM. The SN 5400 Series system hardware installation and software configuration documentation sets are available as printed manuals or electronic documents. The Cisco Network Boot readme file, and the iSCSI driver readme file and example configuration file are available in electronic format, as part of the software download package. See the "Obtaining Updated Software and iSCSI Drivers" section for details.
This release notes document is the only document specific to Cisco Network Boot Release 2.1.1. It is only available as an electronic document on Cisco.com and the Documentation CD-ROM.
Each release of SN 5400 Series system software and iSCSI driver software includes an associated Release Notes document, which is also available as an electronic document on Cisco.com and the Documentation CD-ROM.
Platform-specific documents consist of the release notes, readme and example configuration files for the Cisco iSCSI Driver Version 2.2.x for Microsoft Windows 2000. The files are currently available in electronic format only. See the "Obtaining Updated Software and iSCSI Drivers" section for details.
Refer to the appropriate SN 5400 Series system hardware installation guide for hardware installation procedures. The Cisco SN 5420 Storage Router Hardware Installation Guide provides hardware installation procedures for SN 5420 Storage Routers. The Cisco SN 5428 Storage Router Hardware Installation Guide provides hardware installation procedures for SN 5428 Storage Routers. These documents are available as printed manuals. They are also available as electronic documents on Cisco.com and the Documentation CD-ROM.
Refer to the Cisco Network Boot Installation and Configuration Guide Release 2.1, for installation and configuration information and procedures. This document is available as an electronic document on Cisco.com and the Documentation CD-ROM.
Refer to the appropriate SN 5400 Series system software configuration guide for software configuration information. The Cisco SN 5420 Storage Router Software Configuration Guide Release 2.1 provides configuration information for SN 5420 Storage Routers. The Cisco SN 5428 Storage Router Software Configuration Guide Release 2.3 (or later) provides configuration information for SN 5428 Storage Routers. These documents are available as printed manuals. They are also available as electronic documents on Cisco.com and the Documentation CD-ROM.
For documentation on the SN 5400 Series system web-based GUI, refer to the SN 5400 Series system web-based GUI online Help system.
