Release Notes for Cisco SN 5420 Storage Router Release 2.1.1
February 27, 2002
Note You can find the most current documentation on Cisco.com. This set of electronic documents may contain updates and modifications made after the hard-copy documents were printed.
These release notes support Cisco SN 5420 Storage Router software release 2.1.1.
For a list of software caveats that apply to Release 2.1.1, see the "Caveats" section. The caveats are updated for every maintenance release and are located on Cisco.com and the Documentation CD-ROM.
These Release Notes describe the following topics:
The Cisco SN 5420 Storage Router provides universal access to storage over IP networks. The storage router software controls the operation of the Cisco SN 5420 Storage Router. You can configure the software to provide one of three types of access to storage over IP networks:
•Transparent SCSI routing
•iSCSI SAN interconnect
SCSI routing provides IP hosts with access to Fibre Channel (FC) storage devices, using iSCSI protocol.
Note The iSCSI protocol is an IETF-defined protocol for IP storage (ips). For more information about the iSCSI protocol, refer to the IETF standards for IP storage at http://www.ietf.org.
With SCSI routing, storage device access is managed primarily in the SN 5420. (See Figure 1.)

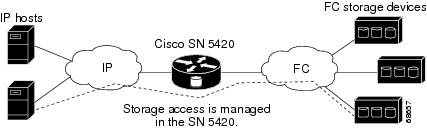

Figure 1 SCSI Routing
Transparent SCSI routing provides IP hosts with transparent access to intelligent storage arrays using iSCSI protocol; that is, each IP host is presented as an FC host to an intelligent storage array. With transparent SCSI routing, availability of storage devices is managed primarily in the intelligent storage array. (See Figure 2.)

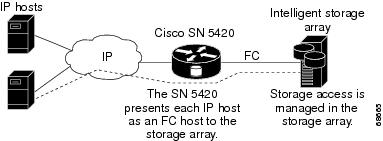

Figure 2 Transparent SCSI Routing
iSCSI SAN interconnect provides FC hosts with IP access to remote FC storage devices, using iSCSI protocol. With iSCSI SAN interconnect, storage device access is managed primarily in a remote SN 5420 Storage Router that is deployed for SCSI routing. Storage devices that are made available by a remote storage router are presented to FC hosts as if the storage devices are locally attached FC storage devices. (See Figure 3.)
Figure 3 iSCSI SAN Interconnect
In addition to providing services for accessing storage over IP networks, the SN 5420 Storage Router software provides the following services:
•VLAN Access Control—provides IP access control to storage based on a VLAN identifier (VID) number (in addition to access control through access lists)
•Authentication—provides iSCSI authentication using AAA authentication methods
•High Availability (HA)—provides the ability to group storage routers in a cluster for failover and other cluster-related functions (for SCSI routing only)
•SNMP/MIB support—provides network management of the SN 5420 through SNMP using selected MIBs; includes access through CiscoWorks
•A command-line interface (CLI) and a web-based GUI—provides user interfaces for configuration and maintenance of an SN 5420
Note The web-based GUI is not available in SN 5420s deployed for transparent SCSI routing.
This section describes the system requirements for Release 2.1.1 and includes the following information:
•The SN 5420 Storage Router's Gigabit Ethernet interface uses a flow control mechanism for stopping and starting traffic that prevents the loss of data. Flow control should also be turned on at the router's Gigabit Ethernet interface where the SN 5420 Storage Router is connected.
•If the SN 5420 Storage Router is participating in a cluster, and the HA or management interfaces are plugged into a switch that has Spanning Tree Protocol (STP) enabled, the storage router should be considered as an end station and the affected ports on the switch should be configured appropriately. For example, set "portfast" on Cisco switches to cause the ports to immediately switch from blocking mode to forwarding mode. This helps prevent time-outs, which can cause unexpected behavior when storage routers join a cluster.
To ensure the best performance for the iSCSI drivers, the extended windowing feature of TCP and the receive and transmit flow control feature of the Gigabit Ethernet driver should be enabled on all IP hosts connecting to the SN 5420. On the SN 5420 Storage Router, you can use the CLI show scsirouter connection tcp command to display the current and maximum TCP window size for each connected host.
Graphical User Interface
•If you are accessing the GUI from a browser running on a Microsoft Windows platform, Cisco recommends the use of Microsoft Internet Explorer version 5.5 with service pack 2 or Netscape Navigator 4.71, or later. Earlier versions of Microsoft Internet Explorer running on Microsoft Windows platforms may return an "Access Denied" message when attempting to restore files or make updated software available to the storage router. (This problem does not occur with Microsoft Internet Explorer version 5.0x running on UNIX or other platforms.)
iSCSI Driver Version Support
A Cisco SN 5420 Storage Router running software release 2.1.1 or later is compatible with an IP host running any Cisco Storage Networking iSCSI Driver version 2.1.1 or later; it is not compatible with an IP host running any Cisco Storage Networking iSCSI Driver version 1.1.x.
Obtaining Updated Software and iSCSI Drivers
From time to time, Cisco releases updated versions of SN 5420 Storage Router software and iSCSI drivers. Updated versions of storage router software and the Cisco Storage Networking iSCSI drivers, accompanying readme files, release notes and example configuration file are available for download.
If you are a registered Cisco.com user, you can download SN 5420 Storage Router software and iSCSI drivers. If you are a non-registered Cisco.com user, you can download only iSCSI drivers.
You can access software by following these instructions:
Step 2 At the Software Center web page, under Software Products & Downloads, click Storage Networking Software.
Step 3 At the Storage Networking Software web page, click the appropriate link for your software. For example, click Cisco SN 5420 Storage Router Software for SN 5420 software.
Step 4 At the software download web page, click the file that you want to download. Another software download web page will be displayed with detailed information about the download file and Cisco's Software License Agreement. Follow instructions on that page to download the software.
Step 5 To install and configure storage router software, see the appropriate storage router software configuration guide and release notes. To install and configure an iSCSI driver, see the readme file that accompanies the iSCSI driver (in the downloaded driver archive file) and the appropriate release notes.
Determining the SN 5420 Software Version
To determine the version of SN 5420 software running on the Cisco SN 5420 Storage Router, establish a Telnet or console port session with the storage router, and enter the CLI show version command. (See Example 1.)
Example 1 Determining the Software Version[SN5420-A01]$ show versionCISCO SN 5420 Storage RouterOperating System Software Ver: 2.1.1System Bootstrap Ver: 2.1.1Application Software Ver: 2.1.1CLI Version 2.1Copyright (c) 1986-2001 by Cisco Systems, Inc
The Application Software field displays the version of software currently running on the storage router. The System Bootstrap field displays the software version that will run the next time the storage router is restarted.
If the storage router is deployed for SCSI routing or iSCSI SAN interconnect, you can also check the version of the SN 5420 software by using the SN 5420 web-based GUI. Log in as Monitor to display the Processor and Software Information table, or click Processor and SW (under System) in the Monitor dynamic menu list in the left frame. The Software Version field contains the current software version information.
Upgrading from SN 5420 Software Release 1.1.8
This section describes the procedures to follow when upgrading a Cisco SN 5420 Storage Router from release 1.1.8 to release 2.1.x and includes the following information:
If you have questions or concerns about the upgrade process, see the "Obtaining Technical Assistance" section.
•Before upgrading to release 2.1.x, the storage router must be running software release 1.1.8 (or later). Follow the procedures in the section "Installing Updated Software" in Chapter 6, "Maintaining and Managing the SN 5420," of the Cisco SN 5420 Storage Router Software Configuration Guide Release 1.1.
•As a best practice, Cisco recommends that you back up the storage router configuration before beginning the upgrade process. Follow the procedures in the section "Backing Up System Configuration" in Chapter 6, "Maintaining and Managing the SN 5420," of the Cisco SN 5420 Storage Router Software Configuration Guide Release 1.1.
•Schedule a planned system downtime. The upgrade process from release 1.1.x software requires downtime because the SN 5420 and all IP hosts must be upgraded at the same time. The length of the system downtime depends on the number of storage routers and IP hosts to be upgraded.
Note Upgrading to release 2.1.x software automatically deploys the storage router for SCSI routing. If you want to choose another deployment option, use the clear conf command after a successful upgrade process to delete the existing storage router configuration. You will then be able to select another deployment option when the initial configuration script runs after the storage router is rebooted.
Upgrading a Standalone Storage Router
Follow these procedures to upgrade a standalone Cisco SN 5420 Storage Router running software release 1.1.8 (or later) to software release 2.1.x:
Step 1 Be sure there are no active connections from IP hosts to the storage router. For example, use the following command to display current connection activity:show scsirouter all connection
Step 2 Download the appropriate software release to the storage router. See the "Obtaining Updated Software and iSCSI Drivers" section for details.
Step 3 Verify the software download and set the downloaded software as the version to be run when the storage router reboots. Follow the procedures in the section "Installing Updated Software" in Chapter 6, "Maintaining and Managing the SN 5420," of the Cisco SN 5420 Storage Router Software Configuration Guide Release 1.1.
Step 4 Reboot the storage router. For example, use the following command:reboot
Note If the storage router did not have a system name, you will be prompted to add that information when the storage router restarts. A system name is now required, not optional.
Step 5 Verify that the appropriate software is running and that the SCSI routing instances are active. For example, enter the following commands:show software version allshow cluster
Step 6 (Optional) If zoning by WWPN or WWNN is active on the fabric network, you must change zoning configuration to reflect the new WWPN or WWNN presented by the SN 5420 Storage Router. The WWPN format for the Fibre Channel interface was changed from IEEE format (0x1) to IEEE extended format (0x2). WWNN format also changed from "0x2" to "0x1". The SN 5420 Storage Router running software release 2.1.1 presents WWPNs as "0x2" and WWNNs as "0x1".
Step 7 Download the appropriate iSCSI driver software for the IP hosts that access the storage router. See the "Obtaining Updated Software and iSCSI Drivers" section for details.
Step 8 Follow the procedures in the iSCSI driver readme files and the associated online Release Notes documents to complete the upgrade of the iSCSI driver software in the IP hosts. Once the new iSCSI driver is active on the IP host, iSCSI connections will be established and storage devices will become visible.
Note In release 2.1.1, the port number used for iSCSI traffic has been officially assigned by IANA as 3260. The port number 5003, previously used in release 1.1.8, is no longer is use for iSCSI traffic.
Upgrading a Storage Router in a Cluster
Follow these procedures to upgrade a high availability cluster of SN 5420 Storage Routers running software release 1.1.8 (or later) to software release 2.1.x. The second storage router to join the cluster is removed from the cluster and upgraded. The remaining storage router and IP hosts are upgraded, and then the storage routers are returned to a clustered configuration.
These steps use the example storage router names SN5420A and SN5420B. The storage router named SN5420A is the first storage router in the cluster.
Step 1 SN5420B will be updated first. Use the set cluster command on SN5420B to change the cluster name, effectively removing the storage router from the existing cluster. When prompted to merge or delete, select the "delete" option. The storage router will reboot.
Step 2 After SN5420B reboots, download the appropriate software release to the storage router. See the "Obtaining Updated Software and iSCSI Drivers" section for details.
Step 3 Reboot SN5420B. For example, use the following command:reboot
Step 4 Verify that the appropriate software is running. For example, use the following command on SN5420B:show software version all
Step 5 Upgrade SN5420A by following the steps for upgrading a standalone storage router in the "Upgrading a Standalone Storage Router" section.
Step 6 Add SN5420B back into the original cluster. For example, use the following command:setup cluster
When prompted for HA configuration, select "clustered." When prompted for cluster name, enter the original cluster name. When prompted to retain or delete configuration information, select "delete." The storage router will reboot.
Step 7 When SN 5420B reboots, verify that it is now a member of the original cluster. For example, use the following command:show cluster
Step 8 If necessary, failover one or more SCSI routing instances from SN 5420A to SN 5420B to return to the original cluster configuration.
Note Any SCSI routing instance that had previously used the primary attribute to assign a preferred storage router for the instance must be modified. The primary attribute now requires a storage router system name, rather than an IP address. See the scsirouter primary command in Chapter 11, "Command Line Interface Reference," of the Cisco SN 5420 Storage Router Software Configuration Guide Release 2.1.
Uninstalling an Upgrade
Schedule a planned system downtime. The uninstall process requires downtime because the software on the SN 5420 Storage Router and all IP hosts must be changed at the same time. The length of the system downtime depends on the number of storage routers and IP hosts involved.
To return to Cisco SN 5420 Storage Router software release 1.1.8 (or later) and remove the updated SN 5420 software release 2.1.x using the CLI, follow these instructions:
Step 1 Verify that release 1.1.8 (or later) of SN 5420 software is still available on the storage router. If it is not, see the section "Installing Updated Software" in Chapter 10, "Maintaining and Managing the SN 5420" of the Cisco SN 5420 Storage Router Software Configuration Guide Release 2.1.
Step 2 Verify that there are no active connections from IP hosts to the storage router. For example, use the following command to display current connection activity:show scsirouter all connection
Step 3 Set release 1.1.8 as the version to be run when the storage router reboots. For example, use the following command:software version 1.1.8
Step 4 Reboot the storage router. For example, use the following command:reboot
Step 5 Verify that release 1.1.8 software is running and that the SCSI routing instances are active. For example, enter the following commands:show softwareshow cluster
Step 6 (Optional) If zoning by WWPN or WWNN (world-wide node name) is active on the fabric network, you must change zoning configuration to reflect the original WWPN or WWNN format presented by the SN 5420 Storage Router. The SN 5420 Storage Router running software release 1.1.8 presents WWPNs as "0x1" and WWNNs as "0x2".
Step 7 Follow the procedures in the iSCSI driver readme files and the associated online Release Notes documents to uninstall the upgrade of iSCSI driver software in the IP hosts. Once the previous iSCSI driver is active on the IP host, iSCSI connections will be established and storage devices will become visible.
Note In release 1.1.8, the port number used for iSCSI traffic will be 5003.
Limitations and Restrictions on SN 5420 Storage Router Clusters
•A storage router cluster can contain up to four SN 5420 Storage Routers.
•A cluster can contain up to 12 SCSI routing instances.
•A cluster can support up to 100 iSCSI targets.
Caveats describe unexpected behavior or defects in SN 5420 software releases. Severity 1 caveats are the most serious caveats; severity 2 caveats are less serious.
This document describes open and resolved severity 1 and 2 caveats and selected caveats of other severities:
•The "Open Caveats" section lists caveats that are open in the current release and may be open in previous releases.
•The "Resolved Caveats" section list caveats resolved in this release, but open in previous releases.
Within the sections the caveats are sorted alphanumerically by caveat number.
Note If you have an account with Cisco.com, you can use Bug Navigator II to find caveats of any severity for any release. You can reach Bug Navigator II on Cisco.com at Service & Support:
All the caveats listed in this section are open in SN 5420 software release 2.1.1.
Using the CLI command delete scsirouter all may cause the HA application monitor task to suspend with a data exception error. This results from a synchronization problem between the HA application control task and the HA monitor task, which causes the HA monitor task to try accessing structures for a SCSI routing instance that no longer exists. The SN 5420 Storage Router will have to reboot to recover from this state.
Workaround: Instead of using the delete scsirouter all command, delete each SCSI routing instance individually.
The Cisco SN 5420 Storage Router does not obtain the VLAN domain information via VTP from a directly connected Cisco Cat4K switch that is running the Catalyst OS software. The problem only occurs when the VTP mode setting in the switch is set to Client.
Workaround: Change the VTP mode setting in the switch to VTP server.
All of the caveats listed in this section are resolved in SN 5420 software release 2.1.1.
If the Gigabit Ethernet interface goes down while SCSI routing instances are being failed over, there is a very intermittent chance that all SCSI routing instances will not be failed over appropriately. One or more SCSI routing instances may be stuck in a terminating state.
Workaround: The problem has been resolved by flushing the driver's buffers when the Gigabit Ethernet interface goes down.
When adding a new host route to the SN 5420 Storage Router routing table, routes may not available to the storage router until it is rebooted.
Workaround: The problem has been resolved by flushing cached routes when changes are made to the SN 5420 Storage Router routing table. Any routing table changes that affect existing connections are flagged with a warning message.
This section describes changes to the Cisco SN 5420 Storage Router documentation set since initial publication.
•Fibre Channel Port Cabling Specifications
On page B-2 of the Cisco SN 5420 Storage Router Hardware Installation Guide, Table, B-2, "Fibre Channel Port Cabling Specifications," the values in the Maximum Cable Distance column should be changed as follows:
–Row 1: Change 300 ft (91 m) to 984 ft (300 m).
–Row 2: Change 500 ft (152 m) to 1640 ft (500 m).
•References to iSCSI driver CD
On page 1-1 of the Cisco SN 5420 Storage Router Hardware Installation Guide, there is a reference to a Cisco Storage Networking iSCSI Drivers CD. The iSCSI drivers, readme and example configuration files referenced there are currently available only through the Cisco.com website. The Cisco SN 5420 Storage Router does not currently ship with a Cisco Storage Networking iSCSI Drivers CD.
See the "Obtaining Updated Software and iSCSI Drivers" section for details on obtaining iSCSI drivers.
•Incorrect syntax shown for the save scsirouter command
On page 10-22 of the Cisco SN 5420 Storage Router Software Configuration Guide Release 2.1, the command shown in Step 4 of the first table is incorrect. The description of the command is correct as stated.
The command should be updated to read as follows:
save scsirouter scsi2 bootconfig
The following sections describe the related documentation available for Cisco SN 5420 Storage Router Release 2.1.1. These documents consist of hardware installation and software configuration guides, and platform-specific release notes, readme and example configuration files for the Cisco Storage Networking iSCSI drivers.
This Release Notes document is the only document specific to SN 5420 Release 2.1.1. It is only available as an electronic document on Cisco.com and the Documentation CD-ROM.
Platform-specific documents consist of the release notes, readme and example configuration files for Cisco Storage Networking iSCSI drivers, version 2.1.1. The files are currently available in electronic format only. See the "Obtaining Updated Software and iSCSI Drivers" section for details.
Refer to the Cisco SN 5420 Storage Router Hardware Installation Guide for hardware installation procedures. This document is available as a printed manual. It is also available as an electronic document on Cisco.com and the Documentation CD-ROM.
Refer to the Cisco SN 5420 Storage Router Software Configuration Guide Release 2.1 for configuration information and procedures. This document is available as a printed manual. It is also available as an electronic document on Cisco.com and the Documentation CD-ROM.
For documentation on the SN 5420 web-based GUI, refer to the SN 5420 Storage Router web-based GUI online Help system.
