10/100 Ethernet Management and HA Ports
Cable and Port Pinouts
This appendix provides cabling and port pinout information for the SN 5420 storage router. This appendix includes the following sections:
•
10/100 Ethernet Management and HA Ports
Gigabit Ethernet Port
Table B-1 describes cabling specifications for the Gigabit Ethernet port. The minimum cable distance is 6.5 feet (2 meters).
Table B-1 Gigabit Ethernet Port Cabling Specifications
(nm1 )SX3
850
Duplex SC
MMF4
62.5
62.5
50.0
50.0
160
200
400
500
722 ft (220 m)
902 ft (275 m)
1640 ft (500 m)
1804 ft (550 m)
1 nm = nanometers
2 MHz-km = modal bandwidth in MHz transmitted over a distance of 1 km
3 SX = short wavelength
4 MMF = multimode fiber
Fibre Channel Port
Table B-2 describes cabling specifications for the Fibre Channel port. The minimum cable distance is 6.5 feet (2 meters).
Table B-2 Fibre Channel Port Cabling Specifications
(nm1 )SN3
850
Duplex SC
MMF4
62.5
50.0
160
400
984 ft (300 m)
1640 ft (500 m)
1 nm = nanometers
2 MHz-km = modal bandwidth in MHz transmitted over a distance of 1 km
3 SN = short wave laser without Open Fibre Control
4 MMF = multimode fiber
10/100 Ethernet Management and HA Ports
Use modular, RJ-45, straight-through UTP cables to connect the 10/100 Fast Ethernet ports to end systems. Use modular, RJ-45 cross-connect cables to connect to external switches and routers. Figure B-1 shows straight-through cables and Figure B-2 shows cross-connect cables.

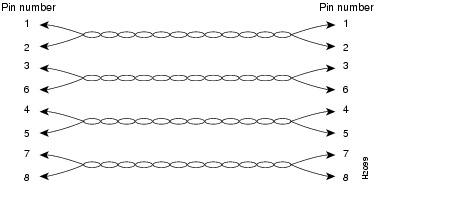

Figure B-1 Straight-Through Cables
Figure B-2 Cross-Connect Cables
The 10/100 Fast Ethernet ports support RJ-45 connectors. Table B-3 lists the signals for RJ-45 connector pinouts.
RS-232 Management Port
The RS-232 management port is a male DB-9 receptacle. Data Terminal Ready (DTR) and Data Set Ready (DSR) handshake signals are supported by this port. Table B-4 lists the RS-232 management port pinouts.
