Solution Overview
Executive Summary
Cisco Collaborative Customer Experience—Digital Image Management (Cisco CCE—Digital Image Management) optimizes the institution's current WAN connection so as to avoid a network upgrade after deploying Check 21 functionality. By adding Unified Communications, security, a redundant network connection and Wide Area Application Services, the institution will be able to increase service offerings, increase the amount of application traffic, provide high availability for the network at a lower cost, and obtain more throughput across the network without upgrading the existing connection.
Challenges Experienced in Branch Retail Banks
In today's competitive marketplace, one of the main business drivers in bank operating plans is cost reduction. However financial institutions no longer assess IT investments simply in terms of cost. Instead, there is a shift towards achieving better alignment between the key business goals and the capabilities of the underpinning IT to enable future agility. While lean/thin client computing can be demonstrably justified by return on investment and total cost of ownership analysis alone, the case for deployment becomes even more compelling when its contribution to the primary business drivers is measured by:
•
Customer retention—Competition has led to the introduction of many new financial providers offering a wide range of products and services. Loyalty to traditional providers is declining, making customer retention a highly-valued strategy. The point at which customer and supplier meet, and therefore a major source of competitive differentiation, is the delivery of the core customer applications that set the scene for the relationship. Innovative, rapid, and consistent customer experience has been identified as key to improving retention levels. Older network infrastructures, with their limited bandwidth, do not allow banks to implement the more advanced teller and platform functionality that they are seeking to enable more effective servicing and selling to customers.
•
•
•
Solution Description
Cisco CCE—Digital Image Management is based upon Cisco and partner technologies to provide an enhanced solution for retail bank branches. The addition of check image capture to the existing Argo Platform Branch application is more bandwidth intensive than originally anticipated. Cisco CCE—Digital Image Management is being developed to accelerate the existing WAN so that it can accommodate the additional bandwidth requirements of check image capture as well as additional features/functions/services without a network upgrade. Additionally, Cisco CCE—Digital Image Management provides the base architecture for enhanced functionality and services in future releases.
Cisco CCE—Digital Image Management includes data center, MAN/WAN, and branch technologies and network connectivity is enhanced to provide an always-on connection, increasing reliability and reducing costs over existing technologies currently deployed.
Solution Benefits
Retail banking branch optimization has two main drivers:
•
•
Cisco CCE—Digital Image Management is purpose-built to specifically resolve these needs.
Cisco's core message to the financial services marketplace is that the Cisco CCE—Digital Image Management solution, which is part of its Customer Collaborative Experience initiative, supports the key elements of efficiency and customer satisfaction that are so crucial to continued organic growth and profitability.
The Cisco CCE—Digital Image Management solution offers a compelling opportunity to reduce the total cost of ownership of branch networks. Significant savings are made possible via reduction in costs associated with hardware acquisition, software, and ongoing support and maintenance. Taking guidance from industry studies conducted by Gartner (2004) and IDC (2005), TCO reductions in excess of 40% can be expected.
Cisco CCE—Digital Image Management increases network manageability, security, administrative control, and system uptime while significantly reducing branch capital and operational expenditures. Cisco CCE—Digital Image Management also facilitates ease of application upgrades. Finally, Cisco CCE—Digital Image Management is part of an institution's "green initiative," reducing the branch carbon footprint by reducing energy consumption.
Cisco CCE—Digital Image Management offers a broad range of values to our target market. Retail banks must grow, must respond to competition, and must satisfy customers who have become accustomed to a very high standard of service and consideration. In pursuit of these objectives, banks will find that Cisco CCE—Digital Image Management:
•
•
•
•
•
•
Solution Scope
The overall scope of the Collaborative Customer Experience Architecture is to provide a reference architecture that supports the aggregation of voice, video, and data across the Wide Area Network for retail branch banks.
The scope of the Cisco CCE—Digital Image Management solution is limited to:
•
•
•
•
The devices used in this solution represent what was required to perform only functional testing. Any implementation of this solution would require proper sizing of the various devices based on the individual needs of the customer.
High Level Architecture

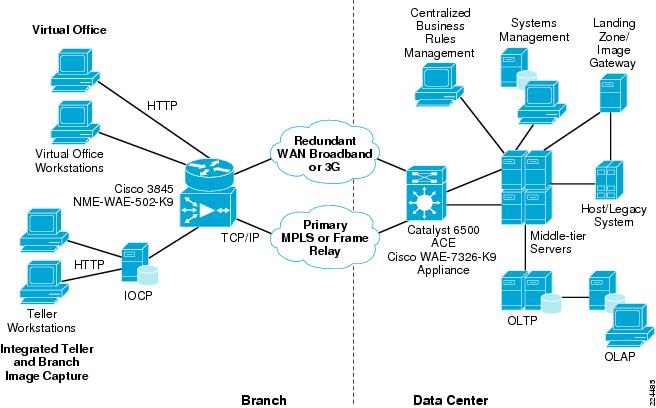

Figure 1 Cisco CCE—Digital Image Management High Level Architecture
Solution Services
Cisco CCE—Digital Image Management Services
WAN Optimization
The Cisco Wide Area Application Services (WAAS) system consists of a set of devices called wide area application engines (WAE) that work together to optimize TCP traffic over the WAN. The WAEs examine the traffic and use built-in application policies to determine whether to optimize the traffic or allow it to pass through the WAN un-optimized. WAAS not only reduces latency, but also reduces the amount of traffic carried over the WAN links. Cisco WAAS deployments are transparent to the network and the applications running on them. The applications do not need to be aware of the added functionalities and continue to work as-is. In addition, common TCP ports are already configured in the built-in application policies; no further configuration in the Cisco WAE is necessary unless the application requires ports that are not part of the default application profile.
With the recommended design of Cisco WAAS at the WAN edge, client data only traverses the Cisco WAEs once, at the ingress and egress of the data center. Further application communication between the Web servers, application servers, and database servers are within the data center and are not affected by Cisco WAAS.
Transport Flow Optimization (TFO), Data Redundancy Elimination (DRE), and Lempel-Ziv (LZ)-compression, the three key technologies of Cisco WAAS, are enabled by default. You can enable them one by one to see which technology plays a significant role in optimizing a particular application.
Cisco uses disk encryption to ensure that data at rest stored on the WAE is secure. Encryption of all optimized data on the remote Cisco Wide Area Application Engine (WAE) Appliance or network module prevents unauthorized data access or theft. Federal Information Processing Standard (FIPS) 197 approved technologies and Advanced Encryption Standard (AES) 256-bit encryption are used to encrypt data on the Cisco WAE disk drives. The automated centralized key management service, integrated within the Cisco WAAS Central Manager, simplifies management of encryption keys, provides centralized failover capability for high availability, and supports backup and restoration of keys to offline vaults for disaster recovery purposes.
VPN
Assuming a frame relay WAN is used, each bank branch must have secure connectivity to the data center over the Internet Redundant connection. For this purpose, each branch is deployed with a VPN tunnel that terminates at the edge router at the branch as well as at the WAN aggregation mid-range router at the data center. The choice of a VPN protocol (direct IPSec, IPSec-Protected GRE, Point-to-Point GRE, DMVPN, WebVPN, etc.) should be made during the design and deployment phase of any implementation. The following branch reference design guides may be used to make that determination:
•
•
When choosing the tunneling protocol, some of the questions you should consider include:
•
•
•
•
DMVPN was chosen for this solution for its support of hub-and-spoke deployments as well as for its ease of configuration. Depending on the deployment, multipoint or point-to-point GRE tunneling can be used. For further information on the DMVPN deployment options best for a specific environment, consult the "Dynamic Multipoint VPN (DMVPN) Design Guide."
Redundant Network Connectivity
Each bank branch has a redundant network connection over a simulated Internet to the data center. The WAN edge router is configured with two links, frame relay over the enterprise WAN and representative DSL over the simulated Internet, which consists of a single router. The solution may require that an MPLS WAN be included. Dynamic routing is configured to have weighted routes for the primary and backup links to force redirection of traffic to the backup when the primary is unavailable.
Baseline setting and performance testing of a single branch across its primary WAN link to the datacenter uses the Application Network Services (ANSwer) setup, which makes use of the Pageant WAN simulator to introduce the appropriate latency and packet loss.
Validation of the redundant network connectivity to prove that stateful failover is supported also includes the ANSwer setup with the Pageant WAN simulator used to enforce the appropriate delays on both links.
Voice Services
Branch office locations support integrated voice functions. With Cisco Unified Communication Manager and IP phones, employees at a branch can make calls over the WAN and hence save cost.
The branch router uses an IOS image that contains communication manager express (CME). If the headquarters has CUCM, but the WAN link between the headquarter and the branch is down, IP phones can fall back to the branch router to obtain basic telephony services, such as off-net calls to 911, calls within a branch office, or calls between branch offices through the public switched telephone network (PSTN). This feature is called Cisco Unified Survivable Remote Site Telephony (SRST). A branch can choose either Cisco Unified SRST or Cisco Unified CME in SRST fallback mode to provide survivability when the WAN link fails.
With a foreign exchange station (FXS) voice interface card, or a T1 card, a branch can use existing PBX as backup or load sharing. These interface cards enable employees at the branch to call local customers who use regular phones.
A retail bank branch typically has ten employees and about half of them are tellers. A 2-port or 4-port FXS card can be used. For a branch with large number of employees, a T1 card can be used. A T1 card can support 24 calls at the same time.
While FXS or T1 is used to connect IP phone to private branch exchange (PBX), a foreign exchange office (FXO) voice interface card is used to connect analog telephone handsets, fax machines, and (analog) modems.
Load Balancing
There are two types of load balancing being performed:
•
•
Quality of Service
Quality of Service (QoS) classifies network traffic into different classes and then gives them different treatment. Different types of traffic have different levels of importance. Routing protocols and Layer 2 control packets are critical for a router to perform well. For example, if a router does not respond to a Layer 2 keepalive message, its peer may think that it has gone down. In contrast, if a router drops traffic generated during teller training when the network is congested, the teller training can be done at a later time when network is not busy.
To use QoS, we first identify different types of traffic and then decide how to treat them in the QoS hierarchy. In a typical branch store, you would see the following types of traffic:
•
•
•
•
•
•
The network must ensure that the video and data transmission reach their destinations in a timely manner, with minimal loss and delay. The network engineer can instruct the network to treat voice and video with priority, i.e., transport voice and video traffic as soon as they arrive.
If the network is congested, we should guarantee the transport of transaction data by allocating a fixed percentage of bandwidth to it. For traffic generated during teller training, we do not allocate a fixed bandwidth to it and transport only when the network does not have more important traffic to transport.
The following policy map shows how this could be done:
Policy-map p0Class-map voicePriority 10 percentClass-map videoPriority 20 percentClass-map control_trafficBandwidth 2 percentClass-map transaction_dataBandwidth 20 percentClass-map check_imagesBandwidth 10 percentClass-map teller_trainingShape average 10 percentWith the above policy, if the network is busy, teller_training traffic is not transported. Of course, if the network is not busy, teller_training traffic is transported. If customers want, they can specify teller training traffic not to exceed 10 percent of the WAN link even if the network is not busy.
Security Services
Several security features are configured on the branch router to ensure that the Redundant Internet link is protected against untrusted access. Access control lists are configured on the router to allow only traffic between the branch and data center and explicitly deny traffic from any other source than the data center. The IOS Firewall on the branch router is configured to inspect standard application protocol traffic to ensure no malicious traffic gets through. Cisco IOS Firewall Application Inspection and Control minimizes threats on desirable network services, such as Web traffic and mail protocols, by enforcing protocol conformance and blocking unwanted application activity. Network bandwidth and employee time waste is limited by the Cisco IOS Firewall blocking unwanted applications, such as instant messaging traffic, peer-to-peer file-sharing traffic, and http-tunneling applications. In addition, as time permits, other security features like IOS Intrusion Protection Services and IOS Network Address Translation may be implemented to enhance perimeter security around the backup Internet connection.
In addition to protecting the perimeter, the edge router is configured with security measures to protect the device itself, according the security best practices as described in the Enterprise Branch Security Design Guide and the reference guides referred to within that document. Such security measures include use of non-default login parameters, disabling unnecessary services, and ensuring that all management traffic to the device is over a secure protocol (e.g., SSH instead of Telnet).
Management Services
In a real-world deployment, hundreds to thousands of branches may need to be configured with the same type of policies for security, QoS, and application acceleration, to name a few.
For this solution, Cisco Security Manager can be used to manage security on the branch and data center infrastructure devices. While there is only one branch and one data center in this solution, the implementation and design guidance developed in this solution is applicable to larger-scale networks.
Cisco Security Manager is suitable for efficiently managing networks that range from a few devices to thousands of devices. Scalability is achieved through powerful policy-based management techniques, which allow settings to be defined once and then optionally assigning the settings to individual devices, groups of devices, or across the enterprise. When a setting is changed, Cisco Security Manager automatically applies the change to all affected network devices. The firewall or VPN policies are platform-neutral, and can be applied across different device platforms such as Cisco routers, security appliances, or services modules. Cisco Security Manager also provides flexible device-level overrides; this allows policy re-use and sharing while retaining the ability to customize device-specific settings as necessary.
While the deployment of Cisco Security Manager was outside the scope of solution validation, the following link provides more information on how to deploy the Cisco Security Manager for your network:
Solution Architecture
Cisco CCE—Digital Image Management Architecture
Figure 2 provides a high level overview of the network used to validate this design architecture.

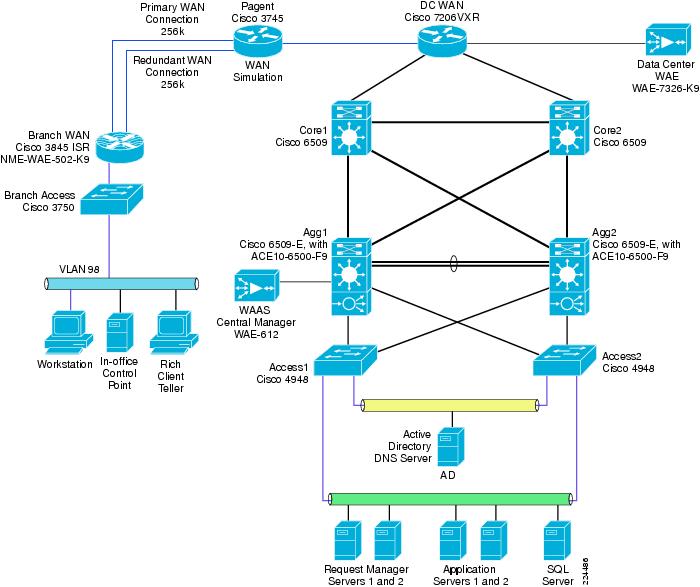

Figure 2 Cisco CCE—Digital Image Management Architecture
ARGO Data Application Scope
In April 2008, Argo Data acquired Gilson Information Systems to replace the existing check image capture software. As a result, BANKPRO Teller has been completely re-engineered and includes end-to-end payments processing. Teller transactions are streamlined and faster with the enhanced Branch Payments capability. Fewer keystrokes and reduced errors translates into improved customer service. Teller Payments is a complete teller and payments processing solution that completely replaces legacy payment processing systems and allows for straight through processing in seconds from presentment to posting.
This phase of the solution was tested using the new BANKPRO Teller with check image capture.
The scope of the Argo system deployed in this solution consists of the minimal installation of the thin-client, middle-tier servers, back-end servers, and database required to generate enough standard teller transactions and check-imaging traffic to simulate the traffic types and amount of load expected from a typical branch with 3-5 tellers. While the thick client is installed on the teller client, whether it is tested depends on available time, as the highest priority is testing the thin-client with IOCP.
Application Architecture
Figure 3 ARGO Data Application Architecture
Banking System Components
This section describes the Argo products that make up the retail banking system included in this solution and explains the functionality of each. The following client and servers compose the Argo banking system in this solution.
Teller Client
The teller client can be either thick or thin-client. The thin-client uses Internet Explorer as the user interface. Teller transactions as well as check image transfers are sent from the teller client across the WAN to the data center.
In-Office Control Point
The In-Office Control Point (IOCP) allows operations at the branch office to continue in spite of a WAN outage. Teller transactions as well as check image transfers are handled by the IOCP in this case. Under normal operation when the WAN is available, the IOCP processes the teller transaction sand queues up those transactions to be transferred over the WAN to the data center. The check images, however, bypass the IOCP and are sent directly to the branch edge router for forwarding across the WAN.
Request Manager
Request Manager Servers are used to control and process in-coming requests and subsequent responses from and to the IOCP/Teller Clients. Business function requests are sent to the ECS Request Manager from the branch and back office workstations. There are a minimum of two request managers in the data center for redundancy and load-balancing.
The functions provided by the Request Manager Servers include:
•
•
•
•
•
Application Server
The Application Servers provide business logic processing for transaction requests received from the workstations via the ECS Request Managers. In addition, the application servers provide the integration point for third-party systems such as mainframe data, check order vendors, and valuation sources. Requests to the Application Server are load-balanced by the Request Manager. There is a single persistent TCP session between each Request Manager and each Application Server and the Application Server makes ODBC connections to the SQL database. There are a minimum of two application servers in the datacenter for redundancy and load-balancing.
Services provided by the application servers include:
•
•
ARGO's security can also be integrated with host security systems such as RACF and Top Secret.
•
•
Store & Forward is automatically invoked when host connectivity is lost, which ensures transactions are uploaded to the host. Store & Forward transactions are stored in the middle tier and are forwarded to the host asynchronously. Store and Forward systematically checks for host availability and subsequently paces transactions once the host is available. Configurable pacing parameters are available to avoid host overload. These pacing parameters include the frequency at which to check for host availability, inter-transaction delay, and time of day.
•
•
SQL Database
The online transaction processing (OLTP) SQL database is used to store configuration, event, operational, and security profiles and limits as well as Check 21 images. For example, data such as a an Electronic Journal of all of the teller's activities, the cashbox position for every teller in the enterprise, and the name and number of threads configured for the server are all stored in the SQL database.
Testing Results
Figure 4 shows the results of the testing that was performed for the solution. For the scope of the testing completed, the test setup used a 256k WAN link that simulated 0.1% packet loss and 100ms latency.
The Argo teller application was used for the interactive traffic and the digital check images were simulated.
The test consisted of 152 individual transactions which resulted in 712 unique requests. The check image traffic was queued up for the test and consisted of 234 unique check images.
Note in Figure 4 that the addition of QoS did not have any effect on the test results because we did not generate enough traffic to saturate the link and, as a result, no QoS was applied. Additional testing on this will be performed in future phases.
What testing demonstrates is that by implementing WAAS on the WAN, bandwidth consumption can be reducd significantly, which allows for the addition of other IP-based services, such as voice, video, Web, etc. The addition of QoS lets you deploy these additional services and still be able to guarantee your SLAs on the interactive traffic.

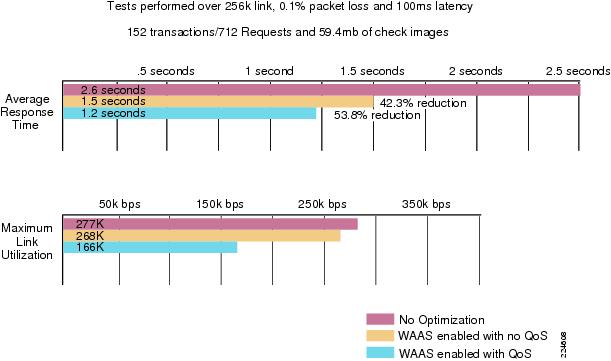

Figure 4 Testing Results
Solution Components
The solution components required for Cisco CCE—Digital Image Management span across several key technologies. These technologies, used in combination, address the requirements to improve communication flow between a retail branch store and the data center.
Data Center Components
Branch Components
Partner Components
Reference Design Guides
The Digital Image Management solution is layered on several foundational design guidelines which are often referred to as places in the network (PINS). The PINs that should be followed are listed in Table 4.
Table 4 PINS and Design Guides
Branch Design Guides
http://www.cisco.com/application/pdf/en/us/guest/netsol/ns171/c649/ccmigration_09186a00807593b6.pdf
http://www.cisco.com/en/US/solutions/ns340/ns414/ns742/ns656/net_design_guidance0900aecd80488134.pdf
http://www.cisco.com/application/pdf/en/us/guest/netsol/ns171/c649/ccmigration_09186a00807593b6.pdf
http://www.cisco.com/application/pdf/en/us/guest/netsol/ns171/c649/ccmigration_09186a00807593b7.pdf
Data Center Design Guides
http://cisco.com/application/pdf/en/us/guest/netsol/ns107/c649/ccmigration_09186a008073377d.pdf
Next Gen Metro and WAN Design
http://www.cisco.com/application/pdf/en/us/guest/netsol/ns264/c649/ccmigration_09186a00808c77d9.pdf
Designing the Solution
WAN Optimization
WAAS optimizes performance of any TCP-based application in a WAN or MAN environment. A typical bank branch has a private WAN link of 256 Kbps or 512 Kbps. Optimizing the traffic over WAN enables banks to do more with their WAN link. WAAS consists of the following hardware components:
•
•
In this design, two WAEs are installed on the branch side and data center side respectively. Cisco NM-WAE is placed at the branch; Cisco high-end WAE appliance WAE-7326 is placed at the data center/WAN edge for aggregation of WAAS services. Install the WAE at the WAN edge to increase optimization coverage to all hosts in the network. In addition, placing data center WAE at the WAN edge would relieve the WAE from the internal traffic of the data center.
One CM is installed to configure the WAE via the Web interface and obtain centralized reporting, such as total traffic reduction, application mix, and pass-through traffic. WAAS continues to function in the event of CM failure, but configuration changes via the CM are prohibited.
Optimizations are performed between the branch WAE and the data center WAE after configuring interceptions on routers and application policies on WAEs:
1.
2.
For ARGO teller application, check images use TCP port 9311 and transaction data use TCP port 5008. To check if the port is already configured in the default policy, type show run | in <port>.
ANS-CoreWAE#sh run | in 9311ANS-CoreWAE#sh run | in 5008No output from the commands indicates that neither port 9311 nor port 5008 are defined.
When you choose a TCP port for customized application, avoid using a well-known port. For example, the default policies on a WAE includes "for traffic destined to port 5007, let it pass through." If you use port 5007 and modify default policy to "for traffic destined to port 5007, use full optimization," then the original application with port 5007 would be changed to use optimization.
We need to configure "for traffic destined to port 9311, apply full optimization" as well as "for traffic destined to port 5008, apply full optimization" through WAAS CM.
Use show tfo conn summary for verification.
WAE-ARGO#sh tfo conn sumOptimized Connection ListPolicy summary order: Our's, Peer's, Negotiated, AppliedF: Full optimization, D: DRE only, L: LZ Compression, T: TCP OptimizationLocal-IP:Port Remote-IP:Port ConId PeerId Policy11.1.1.2:1447 10.1.190.10:5008 7 00:14:5e:a4:52:34 F,F,F,F11.1.1.2:1450 11.1.2.6:9311 9 00:14:5e:a4:52:34 F,F,F,FUse show stat tfo to see percentage improvement or check stats through central manager.
Virtual Private Network Services
The recommended configuration is to use 802.1x key management. This mandates the use of an external RADIUS server to authenticate end user devices. By using Extensible Authentication Protocol-Flexible Authentication via Secure Tunneling (EAP-FAST), unlike Lightweight Extensible Authentication Protocol (LEAP) authentication, the entire authentication stream is encrypted end-to-end. This approach provides a high level of security across the wireless network during the authentication process.
Redundant Network Connectivity
The recommended configuration is to use 802.1x key management. This mandates the use of an external RADIUS server to authenticate end user devices. By using Extensible Authentication Protocol-Flexible Authentication via Secure Tunneling (EAP-FAST), unlike Lightweight Extensible Authentication Protocol (LEAP) authentication, the entire authentication stream is encrypted end-to-end. This approach provides a high level of security across the wireless network during the authentication process.
Voice Services
Voice services were not tested with this version of the solution. However, we chose an IOS image for the 3845 that has been tested to support voice services. Refer to Services Ready Large Branch Foundation CVD (currently in draft format).
Quality of Service
Quality of Service (QoS) policies are similar to rules for balancing work and life. While humans set up a rule to balance work and life, such as "spend 8 hours at work and 8 hours for personal life," QoS enables a router to act according to a policy when it can not transport everything it receives, such as "allocate 30% of capacity on transaction data; allocate 20% of capacity on check images."
We need to consider three things when designing quality of service:
1.
In a typical branch and data center design, congestion usually happens at the branch WAN router because of the limited capacity of WAN link. A bank branch usually has a 256K or 512K private WAN link. So we need to instruct branch WAN router what to do when traffic is larger than the link capacity. We also need to apply QoS among the routers inside the wide area network.
2.
There are three types of traffic in this phase I design:
–
–
–
We can identify transaction data and check imaging through TCP ports. Transaction data uses TCP port 5008 and check imaging uses TCP port 9311. After identifying or classifying traffic, we often mark them by setting the type of service (ToS) byte in a packet so downstream routers can identify them by looking at the ToS byte in a packet.
3.
There are three kinds of treatment:
–
–
–
For an in-depth design guide on QoS, refer to http://www.cisco.com/go/srnd. This publicly available Web site provides excellent Solution Reference Network Design material.
•
High Availability (HA) Considerations
The goal of a highly-available system is to eliminate and automate as much as possible all aspects of the solution. A signal point of failure anywhere in the system can lead to unscheduled outages as well as possibly sporadic availability. Monitoring of the overall system end-to-end is also a critical component to determine just how available the system is. Since there are a number of different technologies used in the solution, we break down each component part to identify possible HA architectures. For each major grouping of components, we also include suggested monitoring systems and techniques that can be employed in order to validate the availability.
Application Load Balancing
The Cisco Application Control Engine (ACE) is a service module that provides advanced load balancing and protocol control for data center applications. It scales up to 16 Gbps and four million concurrent TCP connections. In addition to performing Layer 3, 4-7 load balancing, SSL off-load, and deep packet inspection, ACE can be partitioned to multiple contexts, with each context acting like an independent ACE.
We can create one context "argo" to load balance for teller application; select one request manager to process transaction data entered by tellers. We can create another context "users" to load balance traffic for customer access; select one Web server to process online banking requests. These two contexts are independent. Modifying one does not affect the other. For example, we can configure the "users" context with deep packet inspection (possible because ACE contexts are placed outside the WAAS optimization path.)
The ARGO browser teller application establishes a connection from each branch, regardless of how many tellers are in the branch. ACE load balances on a per-connection basis. For ARGO transaction data, we configure ACE to perform Layer 4 load balancing, identifying traffic through the unique TCP port number. ACE supports multiple load balancing algorithms. We selected the "Least connections" algorithm for this design.
Refer to Figure 2. A pagent router simulates a WAN. Branch devices are on the left side of the pagent router and data center devices are on the right side of the pagent router. ACE is a module in the aggregation router in the data center.
If the teller workstation sends a request to the address of request manager 1, ACE lets the traffic go through without taking any action. For ACE to do load balancing, there are two requirements:
•
•
For the ARGO teller application, we configured the following policy: for TCP traffic destined to VIP address with port 5008, forward it to request manager 1 or request manager 2, depending on which server has the least number of connections.
For example, when five branches sent traffic to data center, show rserver displays that ACE sends connections from three branches to request manager 1 and sends connections from the other two branches to request manager 2.
ACE1-Slot3/argo# sh rserverrserver : RM1, type: HOSTstate : OPERATIONAL (verified by arp response)-------------------------------------------connections-----------real weight state current total---+---------------------+------+------------+----------+--------------------serverfarm: ARGO_FARM11.1.2.2:0 8 OPERATIONAL 3 106rserver : RM2, type: HOSTstate : OPERATIONAL (verified by arp response)-------------------------------------------connections-----------real weight state current total---+---------------------+------+------------+----------+--------------------serverfarm: ARGO_FARM11.1.2.3:0 8 OPERATIONAL 2 5Cisco Infrastructure
The Cisco infrastructure required to deliver the Cisco CCE—Digital Image Management solution can be broken down into a number of horizontal technologies which are described in the subsections below. It is beyond the scope of this document to describe in detail the various high availability aspects of each technology used. For an in-depth discussion, it is recommended that the Solution Reference Network Designs and Cisco Validated Designs (CVDs) be referenced. The SRND and CVDs can be downloaded from http://www.cisco.com/go/srnd and http://www.cisco.com/go/cvd respectively.
In summary, the overall availability of Cisco CCE—Digital Image Management depends upon the infrastructure on which it is deployed. Items that should be considered in the high availability planning process include:
•
•
•
•
–
–
–
•
•
•
•
•
Although only a summary, this lists items that must be considered during the GAP analysis phase.
Network Components
The network components include the Layer 2 and Layer 3 devices that compose the campus network and specifically include access, distribution, and core layers. There are a number of Solution Reference Network Design guides (SRNDs) available. The key documentation that is recommended for Cisco CCE—Digital Image Management include:
•
•
•
•
After reviewing these SRNDs, it is recommended that a GAP analysis or readiness check be performed. To help facilitate this step, it may be helpful to engage a third-party Cisco Certified implementation partner for each of the areas where a GAP was identified. In general, and in line with eliminating all single points of failure in the design, the following are mandatory for achieving a highly available network architecture which is capable of delivering between 99.99% and 99.999% availability. These levels of availability represent between 52.33 and 5.35 minutes of downtime per year, a goal that is highly desirable for any network delivering critical services such as those found in Cisco CCE—Digital Image Management.
Security
General Notes/Best Practices for the Integrated Service Router
In addition to configuring the edge router to secure the network perimeter, there are several device-hardening measures that can be taken on an ISR to minimize the risk of illegitimate access to the device.
The following are general best practices for configuration of the ISR router for perimeter security:
•
•
The following are general best practices for securing management access to the ISR router itself:
•
•
•
•
•
•
Cisco CCE—Digital Image Management Implementation
This section provides implementation details for the services enabled by Cisco CCE—Digital Image Management and includes configuration examples. This section describes the steps required to configure features across the components to enable the services. Some design concepts and limitations are provided that you should keep in mind during implementation.
Test Method
Configuration and testing was conducted in this order:
1.
2.
3.
4.
5.
The primary link is 256Kbps. WAN simulation is 0.1% packet loss and 100ms latency.
Data Center
Data Center Servers
Data center servers and their IP addresses:
•
•
•
•
•
•
Each server has two network connections. Local Area Connection is used for remote desktop access and Local Area Connection 2 connects to the c4948. For these servers, set default gateway 11.1.2.1 on Local Area Connection 2.
Access Router C4948
The access router connects to the aggregation router through a trunk port and connects to a data center server through an access port.
The connection between c4948 and aggregation router 1:
c4948 (TenGigabitEthernet1/49) --- (TenGigabitEthernet4/6) aggregation router 1
Step 1
int TenGigabitEthernet1/49description this goes to aggregation router 1switchport trunk encapsulation dot1qswitchport trunk allowed vlan 191switchport mode trunkconf tvlan 191Step 2
interface GigabitEthernet1/1switchport access vlan 191switchport mode access
Aggregation Router 1 (C6509)
On its ACE module, create an argo context. On the argo context, server side VLAN 191 is Layer 2 and client side VLAN 190 is Layer 3. On the MSFC console, create interface VLAN 190 so the ACE argo context and MSFC can route.
The connections of the aggregation router:
Core router --- MSFC of aggregation router --- ACE (vlan 191) --- branch access router
On the MSFC, configure 10.1.3.2 as the IP address of the interface connecting to the core router.
Also configure an IP address for connecting to ACE: int VLAN 190, 10.1.190.2.
On the ACE, configure: int VLAN 190, 10.1.190.4.
Also configure an IP address for connecting to branch access router: VLAN 191, 11.1.2.4.
Step 1
interface TenGigabitEthernet4/6switchportswitchport trunk encapsulation dot1qswitchport trunk allowed vlan 190,191switchport mode trunkno ip addressrmon collection stats 6054 owner monitorStep 2
svclc module 3 vlan-group 1svclc vlan-group 1 190,191vlan 190name argo-clientvlan 191name argo-serverStep 3
interface Vlan190description ARGO Testing - ACE client side connectionip address 10.1.190.2 255.255.255.0ip nat insideStep 4
router eigrp 10network 10.0.40.0 0.0.0.255network 10.1.2.0 0.0.0.255network 10.1.3.0 0.0.0.255network 10.1.7.0 0.0.0.255network 10.1.21.0 0.0.0.255 ! for WAAS central managernetwork 10.1.40.0 0.0.0.255network 10.1.50.0 0.0.0.255network 10.1.100.0 0.0.0.255network 10.1.190.0 0.0.0.255no auto-summaryStep 5
ip route 11.1.2.0 255.255.255.0 10.1.190.4Step 6
interface Port-channel1switchportswitchport trunk encapsulation dot1qswitchport trunk allowed vlan 190,191,220,221,230,231,240,241switchport mode trunkno ip addressspanning-tree guard loop!interface TenGigabitEthernet4/1description To ANS1-AGG-2switchportswitchport trunk encapsulation dot1qswitchport trunk allowed vlan 190,191,220,221,230,231,240,241switchport mode trunkno ip addressrmon collection stats 6049 owner monitorchannel-protocol lacpchannel-group 1 mode activeinterface TenGigabitEthernet4/2description To ANS1-AGG-2switchportswitchport trunk encapsulation dot1qswitchport trunk allowed vlan 190,191,220,221,230,231,240,241switchport mode trunkno ip addressrmon collection stats 6050 owner monitorchannel-protocol lacpchannel-group 1 mode active!Step 7
ip nat inside source static 10.1.21.2 172.28.196.251ntp masterinterface GigabitEthernet2/3description to WAAS Central Managerswitchportswitchport access vlan 21switchport mode accessno ip addressspeed 1000duplex fullrmon collection stats 6002 owner monitorspanning-tree portfastendinterface Vlan21description to WAAS Central Managerip address 10.1.21.1 255.255.255.0ip nat insideendStep 8
context argodescription financial services applicationallocate-interface vlan 82allocate-interface vlan 190-191member GoldStep 9
access-list ANYONE line 10 extended permit ip any anyaccess-list ANYONE line 20 extended permit icmp any anyprobe icmp PINGinterval 5passdetect interval 2passdetect count 1probe tcp PROBE-TCPport 5007interval 2faildetect 2passdetect interval 10passdetect count 2rserver host RM1ip address 11.1.2.2inservicerserver host RM2ip address 11.1.2.3inserviceserverfarm host ARGO_FARMpredictor leastconnsprobe PINGprobe PROBE-TCPrserver RM1inservicerserver RM2inserviceclass-map type management match-any REMOTE-MANAGEMENT2 match protocol telnet any3 match protocol icmp any4 match protocol ssh any5 match protocol snmp any6 match protocol http any7 match protocol https anyclass-map match-any VIP-TCP2 match virtual-address 10.1.190.10 tcp eq 50073 match virtual-address 10.1.190.10 tcp eq 4098policy-map type management first-match REMOTE-MANAGEMENTclass REMOTE-MANAGEMENTpermitpolicy-map type loadbalance first-match VIP-POLICY-10class class-defaultserverfarm ARGO_FARMpolicy-map multi-match LB-VIPclass VIP-TCPloadbalance vip inserviceloadbalance policy VIP-POLICY-10loadbalance vip icmp-reply! peer ip address refers to the address of the other ACE! when access ACE, we use alias address which includes addresses for both ACEsinterface vlan 190description Client side vlanip address 10.1.190.4 255.255.255.0access-group input ANYONEservice-policy input LB-VIPservice-policy input REMOTE-MANAGEMENTno shutdowninterface vlan 191description Server side vlanip address 11.1.2.1 255.255.255.0access-group input ANYONEservice-policy input REMOTE-MANAGEMENTno shutdownThe default route on the argo context should point to the addr of int VLAN 190 on the MSFC:
ip route 0.0.0.0 0.0.0.0 10.1.190.2
WAAS Central Manager (WAE-612)
Every WAAS device uses ntp server 10.1.3.2 (IP address on aggregation router 1).
device mode central-managerprimary-interface GigabitEthernet 1/0interface GigabitEthernet 1/0ip address 10.1.21.2 255.255.255.0exitip default-gateway 10.1.21.1cms enableCore Router 1 (C6509)
Configure router:
router eigrp 10network 10.1.190.0 0.0.0.255ip route 11.1.2.0 255.255.255.0 10.1.190.4ip route 10.1.191.0 255.255.255.0 10.1.190.4Data Center WAE (WAE-7326)
device mode application-acceleratorprimary-interface GigabitEthernet 1/0!interface GigabitEthernet 1/0ip address 10.1.20.2 255.255.255.0exitip default-gateway 10.1.20.1wccp router-list 1 10.1.20.1wccp tcp-promiscuous router-list-num 1wccp version 2central-manager address 10.1.21.2cms enableflow monitor tcpstat-v1 host 10.1.70.11flow monitor tcpstat-v1 enable!tfo tcp optimized-send-buffer 2048tfo tcp optimized-receive-buffer 2048DC WAN Router (C7206VXR)
Step 1
ip wccp 61ip wccp 62ip wccp 61 redirect inip wccp 62 redirect outinterface Serial1/2:1ip wccp 61 redirect ininterface Gi0/1ip wccp 62 redirect ininterface Gi0/2ip wccp 62 redirect ininterface GigabitEthernet2/0description to ANS Core WAE 7326ip address 10.1.20.1 255.255.255.0ip flow egressnegotiation autoendStep 2
router eigrp 10network 10.1.8.0 0.0.0.255 ! for core 1network 10.1.9.0 0.0.0.255 ! for core 2network 10.1.20.0 0.0.0.255 ! for data center WAEnetwork 12.1.1.0 0.0.0.255 ! for branch WAN route (go through L2 pagent)no auto-summaryinterface GigabitEthernet2/0description to ANS Core WAE 7326ip address 10.1.20.1 255.255.255.0ip flow egressnegotiation autoStep 3
dc_wan(config)#controller T1 1/2dc_wan(config-controller)#channel-group 1 timeslots 1-4pagent Router (C3745)
The pagent router is configured as a Layer 2 device (pass-through mode).
interface Serial0/0description link to serial1/3:1 on DC WAN 7206 Routerno ip addressno keepaliveno fair-queueservice-module t1 timeslots 1-24endinterface Serial0/1description Link to FS-ISR-2 Branch 3845no ip addressno keepaliveno fair-queueservice-module t1 timeslots 1-24endbr3_pagent#pmodbr3_pag(PMOD:Vo0:0/0)#show configbr3_pag(PMOD:Vo0:0/0)#show interfaceadmin operational filters PMOD PMOD# interface state state created state peer5 Vo0 up up 0 inactive2 Se0/0 up up 0 inactive4 Se0/1 up up 0 inactive1 Fa0/0 up down 0 inactive3 Fa0/1 up down 0 inactivebr3_pag(PMOD:Vo0:0/0)#se0/0br3_pag(PMOD:Se0/0:0/0)#activebr3_pag(PMOD:Se0/0:0/0)#se0/1br3_pag(PMOD:Se0/1:0/0)#active***Interfaces Serial0/0 and Serial0/1are now internally connected by Passthru Modify.br3_pag(PMOD:OFF:Se0/1:0/0)#show interfaceadmin operational filters PMOD PMOD# interface state state created state peer5 Vo0 up up 0 inactive2 Se0/0 up up 0 active Se0/14 Se0/1 up up 0 active Se0/01 Fa0/0 up down 0 inactive3 Fa0/1 up down 0 inactivebr3_pag(PMOD:OFF:Se0/1:0/0)#endlatency = 100ms, packet loss = 0.1%br3_pag(PMOD:ON:Se0/1:0/0)#stopbr3_pag(PMOD:OFF:Se0/1:0/0)#delay onbr3_pag(PMOD:OFF:Se0/1:0/0)#delay duration 100br3_pag(PMOD:OFF:Se0/1:0/0)#drop onbr3_pag(PMOD:OFF:Se0/1:0/0)#drop one-in 1000br3_pag(PMOD:OFF:Se0/1:0/0)#startConfigure fractional T1:
br3_pagent(config)#interface Serial0/0br3_pagent(config-if)#service-module t1 timeslots 1-4br3_pagent(config-if)#interface Serial0/1br3_pagent(config-if)#service-module t1 timeslots 1-4
Branch
The following represents portions of the code for the branch devices pertinent to this implementation and testing.
Branch WAN Router (C3845 ISR)
Step 1
ip access-list extended datapermit tcp any any eq 5007exitip access-list extended imagespermit tcp any any eq 9311exitclass-map transactionsmatch access-group name dataexitclass-map check_imagesmatch access-group name imagespolicy-map p0class transactionsbandwidth percent 80class check_imagesbandwidth percent 10shape average percent 60int Serial0/1/0:0!by default the maximum reservable bandwidth on any interface is 75%max-reserved-bandwidth 90service-policy out p0Step 2
interface GigabitEthernet0/0no ip addressduplex autospeed automedia-type rj45!interface GigabitEthernet0/0.98description ARGO data VLANencapsulation dot1Q 98ip address 11.1.1.1 255.255.255.0policy-map p0class class-defaultpolice 256000interface Serial0/1/0:0ip address 12.1.1.2 255.255.255.0service-policy input p0service-policy output p0router eigrp 10network 11.1.1.0 0.0.0.255network 12.1.1.0 0.0.0.255no auto-summaryStep 3
ip wccp 61ip wccp 62interface Gi0/0.90ip wccp 61 redirect ininterface se0/1/0:0ip wccp 62 redirect inStep 4
FS-ISR-branch(config)#controller T1 0/1/0FS-ISR-branch(config-controller)#channel-group 0 timeslots 1-4sh int Serial0/1/0:0Serial0/1/0:0 is up, line protocol is up...BW 256 Kbitint Serial0/1/0:0load-interval 30Step 5
interface Integrated-Service-Engine2/0description Branch WAAS moduleip address 11.1.10.1 255.255.255.0no ip redirectsno ip unreachablesno ip proxy-arpip nbar protocol-discoveryip route-cache flowservice-module ip address 11.1.10.3 255.255.255.0service-module ip default-gateway 11.1.10.1no keepaliveinterface GigabitEthernet0/0.90description WAAS moduleencapsulation dot1Q 90no ip redirectsno ip unreachablesno ip proxy-arpinterface GigabitEthernet0/0.98description ARGO data VLANencapsulation dot1Q 98ip address 11.1.1.1 255.255.255.0no ip redirectsno ip unreachablesno ip proxy-arpStep 6
conf trouter eigrp 10network 11.1.10.0 0.0.0.255no auto-summaryWAE Module (NM-WAE-502-K9)
hostname WAE-ARGOclock timezone US/Pacific -7 0ip domain-name cisco.comprimary-interface GigabitEthernet 1/0interface GigabitEthernet 1/0ip address 11.1.10.3 255.255.255.0no autosensebandwidth 1000full-duplexexitip default-gateway 11.1.10.1!no auto-register enable!! ip path-mtu-discovery is disabled in WAAS by defaultntp server 10.1.3.2!!wccp router-list 1 11.1.10.1wccp tcp-promiscuous router-list-num 1wccp version 2central-manager address 10.1.21.2cms enable
Branch Access Switch (C3750)
Interface gi1/0/13 connects to IOCP (IP address is 11.1.1.3).
interface GigabitEthernet1/0/48switchport trunk encapsulation dot1qswitchport trunk allowed vlan 98switchport mode trunkinterface GigabitEthernet1/0/13switchport access vlan 98switchport mode access!interface GigabitEthernet1/0/14switchport access vlan 98switchport mode accessBranch Client Machines (Windows-Based Workstations)
Branch client machines and their IP address are:
•
•
Each machine has two network connections. Local Area Connection is used for remote desktop access and Local Area Connection 2 connects to the branch access switch. For these machines, set default gateway 11.1.1.1 on Local Area Connection 2.
Partner Configuration Considerations
The changes in the ARGO Teller application for this deployment are minimal:
•
•
Cisco Validated Design
The Cisco Validated Design Program consists of systems and solutions designed, tested, and documented to facilitate faster, more reliable, and more predictable customer deployments. For more information visit:
http://www.cisco.com/go/validateddesigns
ALL DESIGNS, SPECIFICATIONS, STATEMENTS, INFORMATION, AND RECOMMENDATIONS (COLLECTIVELY, "DESIGNS") IN THIS MANUAL ARE PRESENTED "AS IS," WITH ALL FAULTS. CISCO AND ITS SUPPLIERS DISCLAIM ALL WARRANTIES, INCLUDING, WITHOUT LIMITATION, THE WARRANTY OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT OR ARISING FROM A COURSE OF DEALING, USAGE, OR TRADE PRACTICE. IN NO EVENT SHALL CISCO OR ITS SUPPLIERS BE LIABLE FOR ANY INDIRECT, SPECIAL, CONSEQUENTIAL, OR INCIDENTAL DAMAGES, INCLUDING, WITHOUT LIMITATION, LOST PROFITS OR LOSS OR DAMAGE TO DATA ARISING OUT OF THE USE OR INABILITY TO USE THE DESIGNS, EVEN IF CISCO OR ITS SUPPLIERS HAVE BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.
THE DESIGNS ARE SUBJECT TO CHANGE WITHOUT NOTICE. USERS ARE SOLELY RESPONSIBLE FOR THEIR APPLICATION OF THE DESIGNS. THE DESIGNS DO NOT CONSTITUTE THE TECHNICAL OR OTHER PROFESSIONAL ADVICE OF CISCO, ITS SUPPLIERS OR PARTNERS. USERS SHOULD CONSULT THEIR OWN TECHNICAL ADVISORS BEFORE IMPLEMENTING THE DESIGNS. RESULTS MAY VARY DEPENDING ON FACTORS NOT TESTED BY CISCO.
Guest
