Small Branch—Wireless Broadband Deployment

This chapter describes the use of wireless broadband service offerings for small office and home office (SOHO) deployments, including the documentation of the performance characteristics of encrypted voice over IP (VoIP) and the configuration of the remote router to use the services as either a primary or backup WAN.

This chapter includes the following sections:

•Solution Characteristics

•Topology

•Failover/Recovery Time

•Performance Results

•Wireless Broadband Hardware Components

•Verification

•Configuration

•Cisco IOS Versions Tested

•Caveats

•Summary

Solution Characteristics

This section describes the characteristics of the small branch wireless broadband deployment solution, and includes the following topics:

•Advantages

•Disadvantages

Advantages

DSL deployments require the phone line to be less than 2.5 miles from the central office of the carrier. To use cable, the residence must be serviced by a cable provider. Both these cases require physical wires, either twisted pair or coaxial cable. A primary advantage of wireless broadband is mobility; the ability to connect to the Internet without using a physical circuit.

Broadband wireless is ideal for a SOHO deployment when cable or DSL are not available, or when the lead time to install is inconvenient, as in the banking and hospitality sectors. Banks are commonly co-located in supermarkets or high traffic areas, so the network manager of the bank must provide connectivity for a cash machine or branch office with short lead times. Hotels need basic connectivity at new locations to handle reservations and credit card transactions. Delays in circuit installation can mean lost business.

Wireless broadband is also advantageous to an enterprise customer as a backup or alternative means of connectivity. As an example, this chapter describes a configuration using a Cisco 1711 router with three WAN interfaces: DSL, wireless broadband, and Async dial-up. If the DSL circuit fails, the wireless broadband is the preferred path. If both DSL and wireless broadband fail, the router creates an encrypted tunnel using dial backup.

Disadvantages

One disadvantage of wireless broadband is the lack of coverage guarantee at all times and all locations within the service area. For example, one location tested by Cisco and described in this chapter was between two antenna towers, with each tower less that two miles from the residence. Signal strength to one of the tower locations was limited by terrain and buildings, and was impaired by foliage for the other.

Note The wireless broadband service provider offers the following caveat: "Wireless broadband coverage is impacted by, among other things, terrain, weather, antenna location, system modification, foliage, and man-made structures (such as buildings), and can therefore not be predicted precisely at all times."

The wireless modem management software has a signal quality and strength scale of 0-4. Signal quality is a more important indicator than signal strength. Using either the built-in antenna or an external reverse polarity Yagi antenna (purchased separately), testing revealed that quality and strength are in the range of 1-2 on a scale of 0-4.

The wireless broadband service tested offered impressive average latency, meeting or exceeding cable or DSL performance. The packet loss rate and jitter are generally much higher. For most data applications, this is not noticeable. In testing, a Linksys web server (camera) is accessed using the wireless broadband service and the images are of acceptable quality.

Packet loss and jitter can impact the quality of VoIP, and the test results indicated that the voice quality ranged from very good to very poor. Test results are provided later in this chapter.

Topology

This section describes the following two topologies:

•Single WAN Interface

•Multi-WAN Interface

The single WAN interface topology uses the wireless broadband as the only WAN interface. The multi-WAN interface uses the wireless broadband network as an alternate path to the primary DSL network. The single WAN configuration is used for VoIP performance testing. The standard Chariot teleworker traffic profile is used. Chariot endpoints are located at the employee residence and Cisco lab. The test results use the Internet and are representative of a typical deployment and configuration.

For the multi-WAN configuration, a Linksys web camera was the client/host used to answer pings and to generate network traffic for testing and demonstration.

Note The Linksys web camera was not deployed or in use during the VoIP testing.

Single WAN Interface

The single WAN interface topology is shown in Figure 7-1:

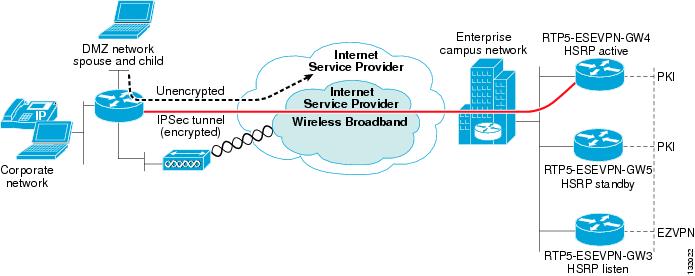

Figure 7-1 Wireless Broadband—Single WAN

The single WAN topology is used for the VoIP performance testing. Only one IPSec peer is defined in the remote router, and failover and recovery was not a test objective.

Two inside VLANs were defined to implement a physical split tunnel configuration. During the performance testing, no spouse and child traffic was included in the profile.

Multi-WAN Interface

The multi-WAN interface is shown in Figure 7-2:

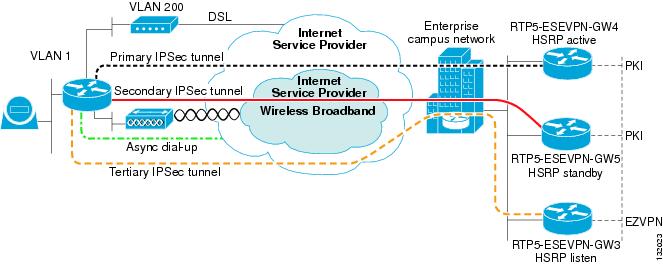

Figure 7-2 Wireless Broadband—Multi-WAN

The multi-WAN topology takes advantage of key features of the Cisco 1711 router. The Async interface is configured as dial backup to a head-end Cisco 7200 EZVPN server. The Fast Ethernet 0 interface is configured to obtain an IP address from the wireless broadband modem using DHCP. The crypto map on this interface uses RSA keys and a Public-Key Infrastructure (PKI) and Certificate Authority (CA) for authentication. The primary outside interface is defined as a VLAN (200) to the switch module of the Cisco 1711. This interface connects to a DSL router and uses a static IP address. DHCP cannot be used to obtain addresses for a VLAN interface. Authentication also uses RSA keys and a PKI/CA.

A Linksys web camera is attached to the inside or VLAN 1 interface and is used to verify connectivity and to generate sample network traffic. Both the DSL and wireless broadband links have active IPSec tunnels and can pass traffic. The Service Assurance Agent (SAA) probes are generating ICMP packets periodically through their respective tunnels. The Async interface dials the access server of the ISPs only in the event that both the DSL and wireless broadband links are down.

Failover/Recovery Time

The Cisco IOS Reliable Static Routing Backup Using Object Tracking feature was used to monitor and control the backup interface function. How quickly a secondary or tertiary interface is brought online is a function of the configured "down" value of the track command. In testing, the following parameters were used:
track 200 rtr 200
 delay down 60 up 5
Recovery from a path failure takes at least 60 seconds with these values. They are, however, configurable.

Note Enabling debug track can provide a visual indication of the quality of the wireless broadband link. Assuming the delay down is configured at 60 and the frequency of the SAA object is 15 seconds, four consecutive SAA packets must be lost for the tracked route to be removed from the routing table. As probes are lost, the debug track provides a log message indicating this. If subsequent probes are lost or are successful, this is also logged by debug track. During periods of high packet loss, the number of logged messages increases accordingly.

Performance Results

The wireless broadband service tested is the wireless broadband service in the Research Triangle Park, North Carolina, USA area.

The test locations are Cisco employee residences in the Raleigh-Durham, North Carolina area using the same IPSec equipment and infrastructure supporting teleworkers over cable and DSL.

These tests results are from a Cisco 1711 router deployed at the employee residence. Cable service provider -Cable-Business Class Service 3 Mbps/768 kbps is used as a reference. The uplink (or branch-to-head-end leg) is shaped to 600 kbps.

Also installed is the wireless broadband (Platinum Class) shaped 256 kbps up and unlimited down. The antenna tower is less than two miles from the residence. Two tests were run; a best case and a worst case. The best case uses the external Yagi antenna.

The signal strength is 3 of 4 and the signal quality is 4 of 4, on the 0-4 scale, as displayed by the Mobility Manager software, not the external LEDs.

The worst case used the supplied antenna (sometimes called a "popsicle-stick" antenna) shown on the product literature photo of the modem in Wireless Broadband Modem. In testing, the signal strength with this antenna is 0 to 1 and signal quality is 0 to 2. The modem is inside the residence.

There are two goal lines on the following performance results charts:

•Lab goal—Value in lab testing that the performance characteristic should not exceed in a lab environment with no appreciable impact because of WAN. Jitter target is less than 8 ms and the latency target is less than 50 ms. Voice packet loss is to be less than 1/2 of one percent.

•Internet goal—Higher than the lab goal values because there is some ISP-associated loss, latency, and jitter. These target values are jitter at less than 20 ms, latency at less than 100 ms, and voice packet loss at less than 1 percent.

Note The ITU value is 150 ms or less. Latency even up to 250 ms can be acceptable. Latency was not an issue in any of these tests.

These tests are conducted at a first adopter stage in the wireless broadband service. There is little or no contention for bandwidth by other subscribers. Results can vary based on a variety of factors, including environmental or terrain interference. The same holds true for the cable tests; results are influenced by contention from other subscribers as well as varying degrees of Internet backbone and enterprise campus traffic.

These test results are intended to represent what a typical user may encounter.

Note For best results, an external antenna is recommended.

Average Jitter Comparison

The average jitter between cable and wireless broadband is compared in Figure 7-3:

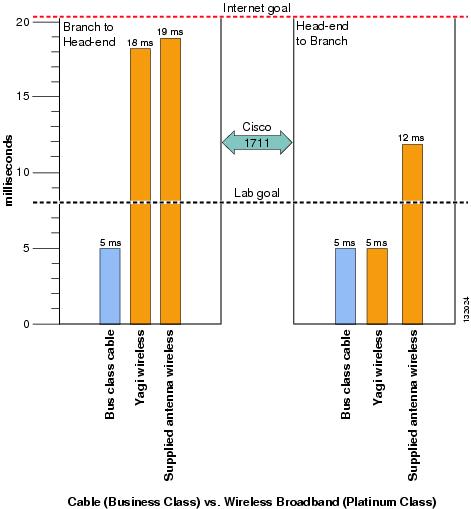

Figure 7-3 Average Jitter

The uplink, or branch-to-head-end jitter values are substantially higher than the baseline using cable. However, the router on the cable connection was using hierarchical class-based weighted fair queuing (CBWFQ) and shaped at 600 kbps on the uplink, and the wireless broadband link is shaped at 256 kbps.

Both the cable and wireless broadband link have no service provider guarantee for uplink speed. The values advertised are for burst or maximum uplink speed. In this environment, both the cable and wireless broadband links are tested with VoIP and also with a TCP-based throughput utility and a shaped value is selected that can be conservatively expected to be available most of the time. The goal is not to overrun a modem or head-end infrastructure and drop packets indiscriminately. Packets should be intelligently queued within a shaped rate by the remote router.

To add to the objective data, actual VoIP calls are placed using the wireless broadband to subjectively verify that the voice quality is good.

Voice Loss

The voice loss is compared between cable and wireless broadband in Figure 7-4:

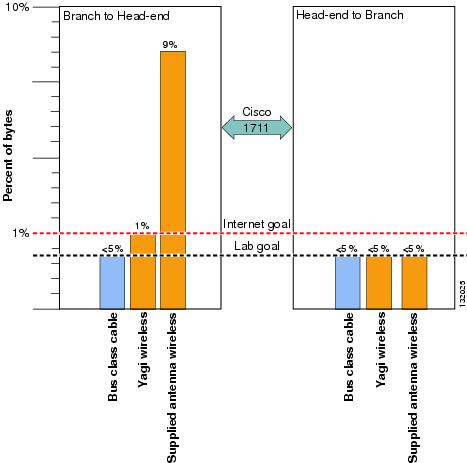

Figure 7-4 Voice Loss

The percent of bytes lost for the G.729 voice stream is acceptable for cable and wireless broadband using the Yagi antenna. Voice loss using the supplied antenna exceeds the target threshold. Nine percent loss for voice is excessive. Nine percent loss is high even for data-only applications.

Note Voice codecs can manage single packet loss with concealment algorithms. If consecutive packets are lost, it is noticeable to the listener.

Average Latency

The average latency is compared between cable and wireless broadband in Figure 7-5:

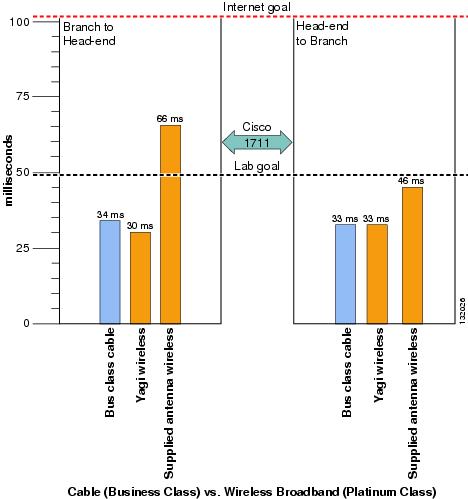

Figure 7-5 Latency

The average latency is very good in all configurations. These values are equivalent to what is typically seen in broadband deployments.

Mission Critical Response Time

The Chariot traffic profile also includes data that is marked with Differentiated Services Code Point (DSCP) value of AF21. While many of the tests include a transactional data class allocated a minimum bandwidth of 22 percent, the wireless broadband tests did not include a separate class. Therefore, these packets are in the class default class.The Yagi and supplied antenna tests report .2 seconds and .5 seconds for mission critical response time. The cable value is .1 second. All are reasonably good values.

Wireless Broadband Hardware Components

This section describes the hardware components of the wireless broadband solution, and includes the following topics:

•Wireless Broadband Modem

•Yagi Antenna and Cables

•Cisco 1711 and Cabling

•Yagi Antenna Aiming

•Mobility Manager

Wireless Broadband Modem

The MT-1000 wireless broadband modem (see Figure 7-6) is tested using the included antenna as well as an external Yagi antenna. The plastic side panel of the MT-100 needed to be removed to securely connect the cables for the external antenna.

Figure 7-6 MT-1000 Wireless Broadband Modem

Note The Ethernet interface is a 10/100 interface but was tested with Cisco 1711s and not tested with the Cisco 831. The Cisco 831 Ethernet 1 (outside) interface is a 10 Mbps interface and is not a 100 Mbps FastEthernet interface.

Yagi Antenna and Cables

The information of the external antenna is as follows:

•HyperGain® HG1910Y
High Performance 1850-1970 MHz 10 dBi Radome Enclosed Yagi Antenna

•Standard Connector—Yagi N-female

•Part Number—HG1910Y-NF

•Wireless LAN Radio Pigtails—RP-MMCX Type to N-female 19 in. (LMR/WBC100 cable) part number CA-PHCABLE2

An N-male to N-male connector is required between the standard Yagi N-female connector and the N-female pigtail cable that attaches to the MT-1000. Cable length depends on the distance between the Yagi antenna and the MT-1000.

Cisco 1711 and Cabling

Figure 7-7 shows the remote Cisco 1711 router with the physical cabling and connections.

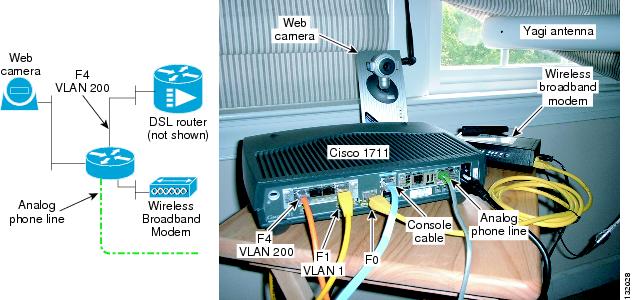

Figure 7-7 Cisco 1711 and Cabling

The F4 (interface Fa4) switch port is configured as VLAN 200 and is connected to a Cisco 837 DSL router (not shown). The F1 (interface Fa1) switch port is configured as VLAN 1 and is connected to the Linksys Web Camera. The F0 (interface Fa0) port is connected to the wireless broadband modem. The analog phone line is connected to the DSL splitter.

Yagi Antenna Aiming

These instructions on aiming the antenna assume that the consumer or an installer knows the location of the nearest antennas.

Yagi antenna are directional antenna and must be aimed at the radio tower for best signal strength and quality. In testing, a vendor contact provided a map marked with the two nearest tower locations and the residence location.

The map did not contain a reference line for either true or magnetic north. A global positioning system (GPS) receiver and the coordinates for the residence are available. By driving to one of the antenna locations and marking its location, the GOTO function on the GPS is used to determine the degrees azimuth. These two values should have a difference of 180 degrees. A GPS receiver when at rest provides no bearing information, but it does indicate the azimuth you must travel to reach the desired location.

To orient the map, the compass base is aligned between the two known points, and the map and compass are rotated until the index line (which is parallel with the base) is over the desired number of degrees. While the map remains in this position, orient the compass base so that the stationary index line is aligned with north, or 0 degrees, and draw a reference line using the compass base as a straight-edge. This puts a magnetic north reference line on the map assuming the number of degrees between the two known positions can be obtained by a GPS set to magnetic declination. Most GPS units can be set to true north or magnetic north with either auto or manual declination.

With the map remaining facing North, the compass base can be aligned between the Yagi antenna location and the second tower. The number of degrees indicated by the index mark is the azimuth the antenna must face (80 degrees in this test). The azimuth between the residence and the first tower is 301 degrees and from the tower to the house is 121 degrees. These values must be 180 degrees different to be correct.

Figure 7-8 shows the Yagi antenna pointed approximately 80 degrees to the second tower with the compass and map.

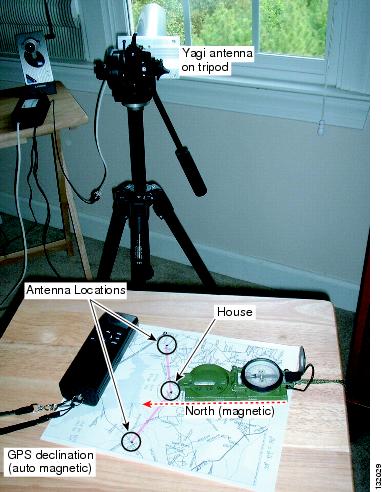

Figure 7-8 Aiming the Yagi

Ideally, the Yagi is attached outside the structure. It saves time by first testing on a tripod or temporary support before permanently mounting.

Mobility Manager

The wireless broadband service includes Mobility Manager software. This software is installed on a PC, and the PC Ethernet interface and the wireless broadband modem are connected with a straight-through Ethernet CAT5 cable. Signal strength and quality are displayed on their own four-point scale to fine-tune the Yagi antenna.

You can also use the software to upload firmware updates to the modem and to determine its status. You should also use this software to verify the connection before connecting to a router. Because the modem contains its own DHCP server, there is no problem moving the cable between a PC and the router interface configured as a DHCP client. Samples of best and worst case signal strength and quality are shown in Figure 7-9:

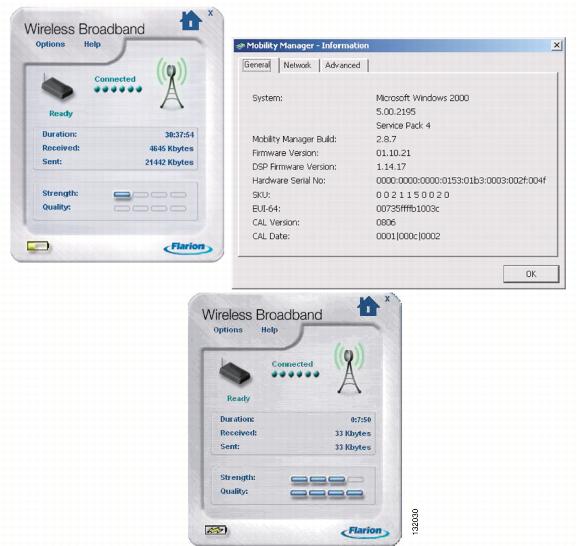

Figure 7-9 Mobility Manager

Verification

For usability with visual and audible confirmation, live voice calls are placed over the wireless broadband link and a Linksys web camera is viewed. The performance charts for the Chariot test scripts are described in the performance section. Figure 7-10 shows a screen print of the image from the camera.

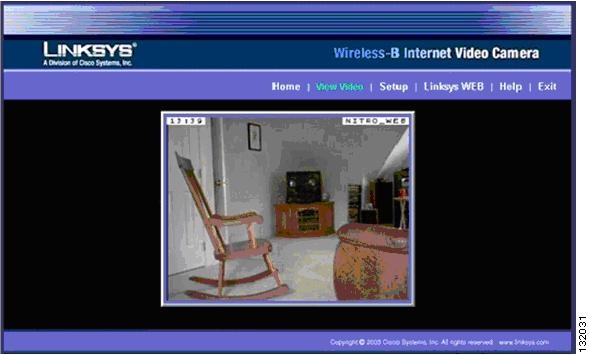

Figure 7-10 Video Image over Wireless Broadband

In the multi-WAN configuration, the DSL and wireless broadband links are failed, forcing the Cisco 1711 into a dial-up mode. From a head-end campus, the IP address of the web camera is the target of a ping during the failure scenarios to verify that IKE Keepalive/DPD/RRI is removing routes from the routing table and also from EIGRP advertisements between the three IPSec head-end routers.

Note The three IPSec head-end routers exchange routes using the 192.168.82.0 network.

Configuration

This section describes the configurations for the various components of the wireless broadband solution, and includes the following topics:

•Multi-WAN Cisco 1711 Router

•Single WAN Remote Router

•EZPVN Head-end Server

•Primary IPSec Head-end

•Secondary IPSec Head-end

Multi-WAN Cisco 1711 Router

The configuration for the multi-WAN Cisco 1711 router is as follows:
!!
version 12.3
no service pad
service timestamps debug datetime msec localtime show-timezone
service timestamps log datetime msec localtime show-timezone
service password-encryption
service tcp-small-servers
!
hostname vpn-jk2-1711-1
!
boot-start-marker
boot system flash c1700-k9o3sy7-mz.123-2.XF
boot-end-marker
!
logging buffered 2048000 debugging
enable secret 5 $xxxxvvvvvvvvv
!
username ese_vpn_team privilege 15 secret 5 vvvvvvvvvvvv.
clock timezone est -5
clock summer-time edt recurring
mmi polling-interval 60
no mmi auto-configure
no mmi pvc
mmi snmp-timeout 180
no aaa new-model
ip subnet-zero
!
!
!
!
ip tftp source-interface Vlan1
no ip domain lookup
ip domain name cisco.com
ip host harry 172.26.129.252
ip host rtp5-esevpn-ios-ca 10.81.0.27
ip name-server 207.69.188.185
ip name-server xx.xxx.6.247
ip name-server 171.68.226.120
ip cef
ip inspect name CBAC tcp
ip inspect name CBAC udp
ip inspect name CBAC ftp
ip audit notify log
ip audit po max-events 100
ip dhcp-client default-router distance 222
!
track 150 rtr 150
 delay down 60 up 5
!
track 200 rtr 200
 delay down 60 up 5
no ftp-server write-enable
chat-script MODEM "" "atdt\T" TIMEOUT 60 CONNECT \c
!
!
crypto ca trustpoint rtp5-esevpn-ios-ca
 enrollment url http://rtp5-esevpn-ios-ca:80
 revocation-check none
 source interface Vlan1
 auto-enroll 70
!
!
crypto ca certificate chain rtp5-esevpn-ios-ca
 certificate 23
  quit
 certificate ca 01
  quit
!
!				Refer to status of CSCef87216
crypto isakmp policy 10
 encr 3des
 group 2
crypto isakmp keepalive 10
crypto isakmp nat keepalive 10
!
!
crypto ipsec transform-set TUNNEL_3DES_SHA esp-3des esp-sha-hmac
!
!
!
crypto ipsec client ezvpn RTP5-ESEVPN-GW3
 connect auto
 group EZVPN_Group key [must_match_Group_in_Head-end]
 mode network-extension
 peer xx.xxx.223.24
 username vpn-jk2-1711-1 password [must_match_PW_in_Head-end]
!
!
crypto map RTP5-ESEVPN-GW4 10 ipsec-isakmp
 description IPsec Peer for DSL Link
 set peer xx.xxx.223.24
 set transform-set TUNNEL_3DES_SHA
 match address CRYPTO_MAP_ACL
 qos pre-classify
!
crypto map RTP5-ESEVPN-GW5 10 ipsec-isakmp
 description IPsec Peer for Broadband Wireless
 set peer xx.xxx.223.25
 set transform-set TUNNEL_3DES_SHA
 match address CRYPTO_MAP_ACL
 qos pre-classify
!
!
!
class-map match-all VOICE
 match ip dscp ef
class-map match-any CALL-SETUP
 match ip dscp af31
 match ip dscp cs3
class-map match-any INTERNETWORK-CONTROL
 match ip dscp cs6
 match access-group name IKE
class-map match-all TRANSACTIONAL-DATA
 match ip dscp af21
!
!			See policy-map BLOCK_VoIP there will be no VoIP on the backup links
!
policy-map BACKUP-INTERFACES
 class INTERNETWORK-CONTROL
  bandwidth percent 5
  set dscp cs6
 class TRANSACTIONAL-DATA
  bandwidth percent 22
 class class-default
  fair-queue
  random-detect
!
policy-map Shaper-WIRELESS
 class class-default
  shape average 102400				# Interval not set to 10ms as no VoIP on this link.
  fair-queue
  random-detect
  service-policy BACKUP-INTERFACES
!
policy-map BLOCK_VoIP
description Prevent an IP Phone from registering on this link
 class VOICE
   police 8000 conform-action drop  exceed-action drop
 class CALL-SETUP
   police 8000 conform-action drop  exceed-action drop
policy-map V3PN-teleworker
description Note LLQ for ATM/DSL G.729=64K, G.711=128K
 class CALL-SETUP
  bandwidth percent 2
 class INTERNETWORK-CONTROL
  bandwidth percent 5
  set dscp cs6
 class VOICE
  priority 128
 class TRANSACTIONAL-DATA
  bandwidth percent 22
 class class-default
  fair-queue
  random-detect
policy-map Shaper-DSL
 class class-default
  shape average 182400 1824
  service-policy V3PN-teleworker
!
!
!
interface FastEthernet0
 description Outside to MT-1000 Wireless Broadband MODEM
 ip dhcp client route track 150
 ip address dhcp
 ip access-group INPUT_ACL in
 service-policy input BLOCK_VoIP
 service-policy output Shaper-WIRELESS
 ip route-cache flow
 load-interval 30
 duplex auto
 speed auto
 no cdp enable
 crypto map RTP5-ESEVPN-GW5
!
interface FastEthernet1
 description Inside to WEB Camera
 no ip address
 vlan-id dot1q 1
  exit-vlan-config
 !
!
interface FastEthernet2
 no ip address
 vlan-id dot1q 1
  exit-vlan-config
 !
!
interface FastEthernet3
 no ip address
 vlan-id dot1q 1
  exit-vlan-config
 !
!
interface FastEthernet4
 description Outside to DSL Router
 switchport access vlan 200
 no ip address
!
interface Vlan1
 description Inside
 ip address 10.81.7.225 255.255.255.248
 ip inspect CBAC in
 ip route-cache flow
 ip tcp adjust-mss 542
 crypto ipsec client ezvpn RTP5-ESEVPN-GW3 inside
!
interface Vlan200
 description Outside to DSL Router
 ip address 192.168.2.211 255.255.255.0
 ip access-group INPUT_ACL in
 service-policy output Shaper-DSL
 ip route-cache flow
 crypto map RTP5-ESEVPN-GW4
!
interface Async1
 description EarthLink Dialup Service V34/LAPM/V42B/24000:TX/26400:RX
 bandwidth 24
 ip address negotiated
 ip access-group INPUT_ACL in
 service-policy input BLOCK_VoIP
 service-policy output BACKUP-INTERFACES
 encapsulation ppp
 ip route-cache flow
 load-interval 30
 dialer in-band
 dialer string 6550070
 dialer-group 21
 async mode dedicated
 ppp authentication pap callin
 ppp pap sent-username xxxxxx@mindspring.com password 7 vvvvvvvvvvvvvvvv
 crypto ipsec client ezvpn RTP5-ESEVPN-GW3
!
ip classless
!
! A default route will be available via DHCP with an administrative distance of 222,
! based on the ip dhcp-client default-router distance 222 command.
!
! The DSL router's IP address is 192.168.2.1
!
ip route 0.0.0.0 0.0.0.0 192.168.2.1 200 name Quad_Zero_via_DSL track 200
ip route 0.0.0.0 0.0.0.0 Async1 240 name DIAL_BACKUP
!
!
! The EZVPN IOS Head-end Server is xx.xxx.223.23
!
ip route xx.xxx.223.23 255.255.255.255 Async1 name DIAL_BACKUP_IPSEC_peer
ip route xx.xxx.223.23 255.255.255.255 Null0 223 name DUMP_when_int_down
!
! The IPSec peer for the DSL link
!
ip route xx.xxx.223.24 255.255.255.255 Vlan200 192.168.2.1 permanent name DSL_router
!
!
!  The IPSec peer for the Wireless Broadband link
!
ip route xx.xxx.223.25 255.255.255.255 FastEthernet0 dhcp 222
ip route xx.xxx.223.25 255.255.255.255 Null0 223 name DUMP_when_int_down
!
!
ip route 172.30.30.128 255.255.255.255 FastEthernet0 dhcp								# Host route to Wirless MODEM
!								# DHCP Server, See Caveats.
no ip http server
no ip http secure-server
ip flow-export version 5
!
!
!
ip access-list extended CRYPTO_MAP_ACL
 permit ip 10.81.7.224 0.0.0.7 any
ip access-list extended IKE
 permit udp any eq isakmp any eq isakmp
ip access-list extended INPUT_ACL
 remark Allow IKE and ESP from the RTP headends
 permit udp xx.xxx.16 0.0.0.15 any eq isakmp
 permit udp xx.xxx.223.16 0.0.0.15 any eq non500-isakmp
 permit esp xx.xxx.223.16 0.0.0.15 any
 remark Cisco Corporate Subnets (not complete)
 permit ip xxx.44.0.0 0.0.255.255 10.81.7.224 0.0.0.7
 permit ip xxx.68.0.0 0.3.255.255 10.81.7.224 0.0.0.7
 permit ip xxx.16.0.0 0.15.255.255 10.81.7.224 0.0.0.7
 permit ip xxx.168.0.0 0.0.255.255 10.81.7.224 0.0.0.7
 permit ip xxx.107.0.0 0.0.255.255 10.81.7.224 0.0.0.7
 permit ip xx.100.0.0 0.3.255.255 10.81.7.224 0.0.0.7
 permit ip xx.104.0.0 0.0.255.255 10.81.7.224 0.0.0.7
 permit ip xx.0.0.0 0.255.255.255 10.81.7.224 0.0.0.7
 permit udp any any eq bootpc
 remark NTP ACLs
 permit udp 192.5.41.40 0.0.0.1 eq ntp any
 permit udp host 216.210.169.40 eq ntp any
 remark SSH from RTP Ridge
 permit tcp xx.xxx.87.0 0.0.0.255 any eq 22
 permit icmp any any
 deny   ip any any
access-list 121 remark Define Interesting Traffic
access-list 121 permit ip any any
dialer-list 21 protocol ip list 121
!
control-plane
!
rtr responder
rtr 12
 type echo protocol ipIcmpEcho xxx.26.129.252 source-ipaddr 10.81.7.225
 request-data-size 164
 tos 192
 frequency 90
 lives-of-history-kept 1
 buckets-of-history-kept 60
 filter-for-history all
rtr schedule 12 life forever start-time now
rtr 150
 type echo protocol ipIcmpEcho xx.102.223.25 source-ipaddr 10.81.7.225
 tos 192
 timeout 500
 owner vpn-jk2-1711-1
 tag TRACKING_PROBE_FOR_WIRELESS_BROADBAND
 frequency 15
 lives-of-history-kept 1
 buckets-of-history-kept 20
 filter-for-history failures
rtr schedule 150 life forever start-time now
!
rtr 200
 type echo protocol ipIcmpEcho xx.xxx.223.24 source-ipaddr 10.81.7.225
 tos 192
 timeout 200
 owner vpn-jk2-1711-1
 tag TRACKING_PROBE_FOR_DSL
 frequency 15
 lives-of-history-kept 1
 buckets-of-history-kept 20
 filter-for-history failures
rtr schedule 200 life forever start-time now
!
alias exec vlandata vlan database
!
line con 0
 exec-timeout 60 0
 login local
 stopbits 1
line 1
 script dialer MODEM
 modem InOut
 modem autoconfigure discovery
 transport input all
 transport output pad udptn telnet rlogin ssh
 stopbits 1
 speed 115200
 flowcontrol hardware
line aux 0
 stopbits 1
line vty 0 4
 login local
 transport input ssh
!
exception memory minimum 786432
ntp clock-period 17179979
ntp server 192.5.41.41
ntp server 192.5.41.40
ntp server 216.210.169.40
ntp server 10.81.254.202 source Vlan1
end
Single WAN Remote Router

This Cisco 1711 router is configured with a "physical" split tunnel. The spouse and child computers are on the VLAN 2 logical interface and their addresses are available via NAT/pNAT to the Internet unencrypted. All corporate traffic is encrypted and sent to the corporate head-end. During performance testing, no spouse and child traffic is present in the Chariot traffic profile.
!
version 12.3
no service pad
service timestamps debug datetime msec localtime show-timezone
service timestamps log datetime msec localtime show-timezone
service password-encryption
!
hostname steve-vpn-1711
!
boot-start-marker
boot system flash:c1700-k9o3sy7-mz.123-8.T3.bin
boot-end-marker
!
logging buffered 200000 debugging
!
username ese_vpn_team privilege 15 secret 5 xxxx
clock timezone est -5
clock summer-time edt recurring
mmi polling-interval 60
no mmi auto-configure
no mmi pvc
mmi snmp-timeout 180
no aaa new-model
ip subnet-zero
!
!
ip dhcp excluded-address 192.168.1.1 192.168.1.10
!
ip dhcp pool Client						# Corporate Network Address space, not NAT
   network 10.81.7.168 255.255.255.248
   default-router 10.81.7.169
   dns-server xx.xxx.6.247 171.68.226.120
   domain-name cisco.com
   option 150 ip xx.xxx.2.93
   netbios-name-server 171.68.235.228 171.68.235.229
!
ip dhcp pool SpouseChild						# Spouse and Child will be NAT/pNAT'ed
   import all
   network 192.168.1.0 255.255.255.0
   default-router 192.168.1.1
!
!
ip telnet source-interface Vlan1
ip tftp source-interface Vlan1
no ip domain lookup
ip domain name cisco.com
ip host harry 172.26.129.252
ip host rtp5-esevpn-ios-ca 10.81.0.27
ip name-server 207.69.188.185
ip name-server xx.xxx.6.247
ip cef
ip inspect max-incomplete high 1400
ip inspect one-minute high 1400
ip inspect name CBAC tcp
ip inspect name CBAC udp
ip inspect name CBAC ftp
ip ips po max-events 100
ip ssh source-interface Vlan1
!
!
crypto pki trustpoint rtp5-esevpn-ios-ca
 enrollment url http://rtp5-esevpn-ios-ca:80
 revocation-check none
 source interface Vlan1
 auto-enroll 70
!
!
crypto pki certificate chain rtp5-esevpn-ios-ca
 certificate 16
 certificate ca 01
!
!
class-map match-all VOICE
 match ip dscp ef
class-map match-any CALL-SETUP
 match ip dscp af31
 match ip dscp cs3
class-map match-any INTERNETWORK-CONTROL
 match ip dscp cs6
 match access-group name IKE
!
policy-map V3PN-teleworker
description Note LLQ for ATM/DSL G.729=64K, G.711=128K
 class CALL-SETUP
  bandwidth percent 2
 class INTERNETWORK-CONTROL
  bandwidth percent 5
 class VOICE
  priority 128
 class class-default
  fair-queue
  random-detect
policy-map Shaper-wireless
description (real is wireless-Platinum) assume 256kbps up
 class class-default
  shape average 256000 2560 0
  service-policy V3PN-teleworker
!
crypto isakmp policy 1
 encr 3des
 group 2
crypto isakmp keepalive 10
!
!
crypto ipsec transform-set REPLAY esp-3des esp-sha-hmac
no crypto ipsec nat-transparency udp-encaps
!
crypto map RTP 1 ipsec-isakmp
 description RTP Enterprise Class Teleworker
 set peer xx.xxx.223.24
 set peer xx.xxx.223.25			# A Second peer could be defined
 set security-association lifetime seconds 14400
 set transform-set REPLAY
 match address CRYPTO_MAP_ACL
 qos pre-classify
!
interface FastEthernet0
 description Outside
 bandwidth 256
 ip address dhcp
 ip access-group INPUT_ACL in
 ip access-group INPUT_ACL_out out
 ip nat outside
 ip virtual-reassembly
 service-policy output Shaper-wireless
 load-interval 30
 duplex auto
 speed auto
 no cdp enable
 crypto map RTP
!
interface FastEthernet1
 description SPOUSECHILD-ONLY-VLAN2-ONLY
 switchport access vlan 2
 no ip address
 load-interval 30
!
interface FastEthernet2
 description CORPUSER-ONLY-VLAN1-ONLY
 no ip address
 load-interval 30
!
interface FastEthernet3
 description CORPUSER-ONLY-VLAN1-ONLY
 no ip address
 load-interval 30
!
interface FastEthernet4
 description TO-AP-VLAN1or2 based off of AP login
 switchport mode trunk
 no ip address
 load-interval 30
 vlan-range dot1q 1 2
  description this port can be VLAN 1 or 2
  exit-vlan-config
 !
!
!  Inside Interface 			ip tcp adjust-mss 542 was not defined
!
interface Vlan1
 description Inside
 ip address 10.81.7.169 255.255.255.248
 ip inspect CBAC in
 load-interval 30
!
!
!
!  This address space will be NAT/pNAT'ed and is unencrypted to the Internet
!
interface Vlan2
 description SpouseChild lanside
 ip address 192.168.1.1 255.255.255.0
 ip nat inside
 ip inspect CBAC in
 ip virtual-reassembly
 load-interval 30
!
!
interface Async1
 no ip address
 shutdown
!
ip classless
!
!  This address 172.30.30.128 is the DHCP server on the MODEM
!
ip route 172.30.30.128 255.255.255.255 FastEthernet0 65.76.244.213
!
ip nat inside source list pNAT_ACL interface FastEthernet0 overload
!
!
ip access-list extended CRYPTO_MAP_ACL
 permit ip 10.81.7.168 0.0.0.7 any
ip access-list extended IKE
 permit udp any eq isakmp any eq isakmp
ip access-list extended INPUT_ACL
 remark Allow IKE and ESP from the RTP headends
 permit udp xx.xxx.223.16 0.0.0.15 any eq isakmp
 permit udp xx.xxx.223.16 0.0.0.15 eq isakmp any
 permit esp xx.xxx.223.16 0.0.0.15 any
 remark double ACL check not applicable in this IOS version
 permit udp any any eq bootpc
 remark NTP ACLs
 permit udp 192.5.41.40 0.0.0.1 eq ntp any
 permit udp host 216.210.169.40 eq ntp any
 remark SSH from RTP Ridge
 permit tcp xx.xxx.87.0 0.0.0.255 any eq 22
 permit icmp any any
 deny   ip any any
ip access-list extended INPUT_ACL_out
 permit esp any any
 permit ip any any
ip access-list extended pNAT_ACL
 permit ip 192.168.1.0 0.0.0.255 any
logging source-interface Vlan1
!
rtr responder
!
ntp server 192.5.41.41
ntp server 192.5.41.40
ntp server 216.210.169.40
ntp server 10.81.254.202 source Vlan1
end
EZPVN Head-end Server

The configuration for the EZVPN head-end server is as follows:
!
version 12.3
service timestamps debug datetime localtime show-timezone
service timestamps log datetime localtime show-timezone
service password-encryption
!
hostname rtp5-esevpn-gw3
!
boot-start-marker
boot system disk0:c7200-ik9o3s-mz.123-4.T3
boot-end-marker
!
logging queue-limit 100
logging buffered 100000 debugging
enable secret 5 xxxx
!
username vpn-jk2-1711-1 secret 5 [must_match_PW_in_remote]
clock timezone est -5
clock summer-time edt recurring
aaa new-model
!
!
aaa authentication login default group tacacs+ enable
aaa authentication login RTP_ezvpn_user local
aaa authentication ppp default if-needed group radius
aaa authorization network RTP_ezvpn_group local
aaa session-id common
ip subnet-zero
!
!
ip cef
ip domain name cisco.com
ip host harry.cisco.com 172.26.129.252
ip host rtp5-esevpn-ios-ca 10.81.0.27
ip name-server xx.xxx.6.247
!
!
crypto ca trustpoint rtp5-esevpn-ios-ca
 enrollment url http://rtp5-esevpn-ios-ca:80
 revocation-check crl
 auto-enroll 70
!
!
crypto ca certificate chain rtp5-esevpn-ios-ca
 certificate 21
 certificate ca 01
!
!
crypto isakmp policy 10
 encr 3des
 authentication pre-share
 group 2
crypto isakmp keepalive 10
crypto isakmp client configuration address-pool local dynpool
crypto isakmp xauth timeout 60
!
crypto isakmp client configuration group EZVPN_Group
 key [must_match_Group_in_remote]
 dns xx.xxx.6.247 171.68.226.120
 domain cisco.com
 pool dynpool
 save-password
!
!
crypto ipsec transform-set 3DES_SHA_TUNNEL esp-3des esp-sha-hmac
!
crypto dynamic-map DYNOMAP 10
 set transform-set 3DES_SHA_TUNNEL
 reverse-route
!
!
crypto map EZmap local-address Loopback0
crypto map EZmap client authentication list RTP_ezvpn_user
crypto map EZmap isakmp authorization list RTP_ezvpn_group
crypto map EZmap client configuration address respond
crypto map EZmap 10 ipsec-isakmp dynamic DYNOMAP
!
!
!
controller ISA 2/1
!
!
!
interface Loopback0
 description Public address
 ip address xx.xxx.223.23 255.255.255.255
!
interface FastEthernet0/0
 no ip address
 shutdown
 duplex half
!
interface FastEthernet1/0
 description Private
 ip address 10.81.0.23 255.255.255.240
 ip access-group DoS_Input_Queue_Wedge in
 ip route-cache same-interface
 ip route-cache flow
 duplex full
 speed 100
 standby 1 ip 10.81.0.20
 standby 1 priority 90				# This router has the least favorable priority.
 standby 1 preempt
 standby 1 authentication eSeVpN
 crypto map EZmap
!
interface FastEthernet1/1
 description VLAN 101 RTP5-ALPHA-GW1
 ip address 192.168.82.23 255.255.255.0
 ip route-cache flow
 duplex full
 speed 100
!
interface Virtual-Template1
 no ip address
 ppp authentication chap callin
!
router eigrp 64
 redistribute static metric 1000 100 255 1 1500 route-map RRI
 network 192.168.82.0
 no auto-summary
 no eigrp log-neighbor-warnings
!
ip local pool dynpool 10.81.7.241 10.81.7.246
ip classless
ip route 0.0.0.0 0.0.0.0 10.81.0.17
no ip http server
no ip http secure-server
!
!
!
ip access-list extended DoS_Input_Queue_Wedge
 remark http://www.cisco.com/warp/public/707/cisco-sa-20030717-blocked.shtml
 deny   53 any any
 deny   55 any any
 deny   77 any any
 deny   pim any any
 permit ip any any
ip radius source-interface Loopback0
access-list 1 permit 10.81.7.0 0.0.0.255
access-list 1 deny   any
access-list 1 remark Home user address pool(s)
snmp-server location Creeksize RTP building 5
snmp-server contact cisco789@cisco.com 919-123-4567
snmp-server enable traps tty
!
route-map RRI permit 10
 description Redistribute remote subnets from RRI
 match ip address 1
!
!	# some config items removed
!
end
Primary IPSec Head-end

The following is an abbreviated configuration of the primary IPSec head-end router:
version 12.3
!
hostname rtp5-esevpn-gw4
!
boot-start-marker
!	System image file is "flash:c3725-adventerprisek9-mz.123-7.11.T"
boot-end-marker
!
ip cef
!
crypto pki trustpoint rtp5-esevpn-ios-ca
 enrollment url http://rtp5-esevpn-ios-ca:80
 revocation-check crl
 auto-enroll 70
!
!
crypto pki certificate chain rtp5-esevpn-ios-ca
 certificate 15
 certificate ca 01
!
!
!
crypto isakmp policy 10
 encr 3des
 group 2
crypto isakmp keepalive 10
!
!
crypto ipsec transform-set 3DES_SHA_TUNNEL esp-3des esp-sha-hmac
crypto ipsec transform-set 3DES_SHA_TRANSPORT esp-3des esp-sha-hmac
 mode transport
!
!
crypto dynamic-map RTP_DYNO 10
 set security-association lifetime seconds 28800
 set transform-set 3DES_SHA_TUNNEL
 reverse-route
 qos pre-classify
!
!
crypto map RTP local-address Loopback0
crypto map RTP 1 ipsec-isakmp dynamic RTP_DYNO
!
interface Loopback0
 description Public address
 ip address xx.xxx.223.24 255.255.255.255
!
interface FastEthernet0/0
 description VLAN 100 RTP5-Alpha-GW1
 ip address 10.81.0.24 255.255.255.240
 ip access-group DoS_Input_Queue_Wedge in
 no ip redirects
 ip route-cache same-interface
 ip route-cache flow
 load-interval 30
 speed 100
 full-duplex
 standby 1 ip 10.81.0.20
 standby 1 priority 110								# This is the highest or most favored of the three
 standby 1 preempt
 standby 1 authentication eSeVpN
 crypto map RTP
!
interface FastEthernet0/1
 description VLAN 101 RTP5-Alpha-GW1
 ip address 192.168.82.24 255.255.255.0
 speed 100
 full-duplex
!
router eigrp 64
 redistribute static metric 1000 100 255 1 1500 route-map RRI
 network 192.168.82.0
 no auto-summary
 no eigrp log-neighbor-warnings
!
ip classless
ip route 0.0.0.0 0.0.0.0 10.81.0.17
ip route 10.81.7.0 255.255.255.0 Null0
access-list 1 permit 10.81.7.0 0.0.0.255
access-list 1 deny   any log
!
route-map RRI permit 10
 description Redistribute remote subnets from RRI
 match ip address 1
!
end
Secondary IPSec Head-end

The following is an abbreviated configuration of the secondary IPSec head-end router:
!
hostname rtp5-esevpn-gw5
!
boot-start-marker
boot system flash c3725-advsecurityk9-mz.123-7.11.T
boot-end-marker
!
ip cef
!
!
crypto pki trustpoint rtp5-esevpn-ios-ca
 enrollment url http://rtp5-esevpn-ios-ca:80
 revocation-check crl
 auto-enroll 70
!
!
crypto pki certificate chain rtp5-esevpn-ios-ca
 certificate 04
 certificate ca 01
!
crypto isakmp policy 10
 encr 3des
 group 2
crypto isakmp keepalive 10
!
!
crypto ipsec transform-set 3DES_SHA_TUNNEL esp-3des esp-sha-hmac
crypto ipsec transform-set 3DES_SHA_TRANSPORT esp-3des esp-sha-hmac
 mode transport
!
!
crypto dynamic-map RTP_DYNO 10
 set security-association lifetime seconds 28800
 set transform-set 3DES_SHA_TUNNEL
 reverse-route
 qos pre-classify
!
!
crypto map RTP local-address Loopback0
crypto map RTP 1 ipsec-isakmp dynamic RTP_DYNO
!
!
interface Loopback0
 description Public address
 ip address xx.xxx.223.25 255.255.255.255
!
interface FastEthernet0/0
 description Private
 ip address 10.81.0.25 255.255.255.240
 ip access-group DoS_Input_Queue_Wedge in
 no ip redirects
 service-policy input INGRESS_POLICY
 ip route-cache same-interface
 ip route-cache flow
 load-interval 30
 speed 100
 full-duplex
 standby 1 ip 10.81.0.20
 standby 1 preempt					# Default HSRP priority is 100
 standby 1 authentication eSeVpN
 crypto map RTP
!
interface FastEthernet0/1
 description VLAN 101 RTP5-Alpha-GW1
 ip address 192.168.82.25 255.255.255.0
 speed 100
 full-duplex
!
router eigrp 64
 redistribute static metric 1000 100 255 1 1500 route-map RRI
 network 192.168.82.0
 no auto-summary
 no eigrp log-neighbor-warnings
!
ip classless
ip route 0.0.0.0 0.0.0.0 10.81.0.17
ip route 10.81.7.0 255.255.255.0 Null0
!
access-list 1 permit 10.81.7.0 0.0.0.255
access-list 1 deny   any log
!
route-map RRI permit 10
 description Redistribute remote subnets from RRI
 match ip address 1
!
end
Cisco IOS Versions Tested

The following Cisco IOS versions were used in testing:

•vpn-jk2-1711-1—c1700-k9o3sy7-mz.123-2.XF (see Caveats, regarding CSCef87216 (multi-WAN)

•steve-vpn-1711—c1700-k9o3sy7-mz.123-8.T3 (single WAN)

•DSL router—c837-k9o3sy6-mz.123-4.T3

•rtp5-esevpn-gw3—c7200-ik9o3s-mz.123-4.T3

•rtp5-esevpn-gw4—c3725-adventerprisek9-mz.123-7.11.T

•rtp5-esevpn-gw5—c3725-adventerprisek9-mz.123-7.11.T

Caveats

Cisco no longer supports the use, or need for, LAN Access Mobility (LAM), and it was not used in these configurations and tests with the wireless modem.

This section describes the issues encountered during testing, and includes the following sections:

•EZVPN

•DHCP Server

EZVPN

Initially, Cisco IOS version 12.3(8)T4 was installed on the Cisco 1711 router, but because of a software issue, an IKE policy could not be present in the router configuration if EZVPN was also being used as an authentication method. Cisco IOS version 12.3(2)XF did not exhibit this issue.

DHCP Server

The wireless broadband modem provides a local DHCP server to supply an IP address to the host or router attached. Although the IP address provided for the default gateway and the DHCP client is an Internet routable address, (in this example 65.76.244.214), the IP address of the DHCP server is not. The address of the DHCP server is always 172.30.30.128, as shown in the following display.
vpn-jk2-1711-1#show dhcp lease
Temp IP addr: 65.76.244.214  for peer on Interface: FastEthernet0
Temp  sub net mask: 255.0.0.0
   DHCP Lease server: 172.30.30.128, state: 3 Bound
   DHCP transaction id: 2324
   Lease: 60 secs,  Renewal: 30 secs,  Rebind: 52 secs
Temp default-gateway addr: 65.76.244.213
   Next timer fires after: 00:00:27
   Retry count: 0   Client-ID: cisco-000d.bd64.8aa4-Fa0
   Client-ID hex dump: 636973636F2D303030642E626436342E
                       386161342D466130
   Hostname: vpn-jk2-1711-1
On a multi-WAN configuration, for the router to use the correct interface to reach the DHCP server address, a static host route is required as shown:
ip route  172.30.30.128 255.255.255.255 FastEthernet0 dhcp
vpn-jk2-1711-1#show ip route 172.30.30.128
Routing entry for 172.30.30.128/32
  Known via "static", distance 1, metric 0
  Routing Descriptor Blocks:
  * 65.76.244.213
      Route metric is 0, traffic share count is 1
The assigned address has a short lease time of 60 seconds, meaning that the router or PC must request a renewal every 30 seconds, as shown in the following debug.
vpn-jk2-1711-1#debug dhcp
DHCP client activity debugging is on
vpn-jk2-1711-1#
Oct  1 14:19:56.762 edt: DHCP: SRequest attempt # 1 for entry:
Oct  1 14:19:56.762 edt: DHCP: SRequest - ciaddr: 65.76.244.214
Oct  1 14:19:56.762 edt: DHCP: SRequest placed lease len option: 60
Oct  1 14:19:56.762 edt: DHCP: SRequest: 307 bytes
Oct  1 14:19:56.762 edt: DHCP: SRequest: 307 bytes
Oct  1 14:19:56.766 edt: DHCP: Received a BOOTREP pkt
Oct  1 14:19:56.766 edt: DHCP Client Pooling: ***Allocated IP address: 65.76.244.214
------- every thirty seconds -------------------
Oct  1 14:20:26.766 edt: DHCP: SRequest attempt # 1 for entry:
Oct  1 14:20:26.766 edt: DHCP: SRequest - ciaddr: 65.76.244.214
Oct  1 14:20:26.766 edt: DHCP: SRequest placed lease len option: 60
Oct  1 14:20:26.766 edt: DHCP: SRequest: 307 bytes
Oct  1 14:20:26.766 edt: DHCP: SRequest: 307 bytes
Oct  1 14:20:26.770 edt: DHCP: Received a BOOTREP pkt
Oct  1 14:20:26.770 edt: DHCP Client Pooling: ***Allocated IP address: 65.76.244.214
Without the host route to the DHCP lease server, the DHCP request follows the default route to the DSL link. Because the address is an RFC 1918 address, it is not routed over the Internet. The end result is that the DHCP lease is not renewed and the router outside interface flaps continuously.

Summary

Wireless broadband is best suited for its target market of providing mobility to a single PC with either an external or PCMCIA modem. This chapter focused on using an external modem with an attached router. Likely deployment situations are small offices seeking rapid deployment of equipment or multiple WAN interfaces for availability. Voice was also tested to determine the viability of deployments for teleworkers. If sufficient signal strength and quality are available and interference because of environmental or terrain is not an issue, voice quality ranges from good to very good. However, like all wireless media, consistency and availability are often an issue.

	V3PN: Redundancy and Load Sharing Design Guide
	Small BranchWireless Broadband Deployment
V3PN: Redundancy and Load Sharing Design Guide V3PN: Redundancy and Load-Sharing Introduction Small BranchDSL with ISDN Backup Small BranchCable with DSL Backup Small BranchDSL with Async Backup Small BranchDial Backup to Cisco VPN 3000 Concentrator Small BranchLoad Sharing on Dual Broadband Links Small BranchWireless Broadband Deployment Small BranchDual Hub/Dual DMVPN Large BranchFrame Relay/Broadband Load Sharing and Backup Large Branch--Multilink PPP Large BranchInverse Multiplexing over ATM (IMA) Lab Topology References and Reading Acronyms and Definitions	Download this chapter Small BranchWireless Broadband Deployment Download the complete book V3PN_Red_Load.pdf (PDF - 4 MB) Table Of Contents Small Branch—Wireless Broadband Deployment Solution Characteristics Advantages Disadvantages Topology Single WAN Interface Multi-WAN Interface Failover/Recovery Time Performance Results Average Jitter Comparison Voice Loss Average Latency Mission Critical Response Time Wireless Broadband Hardware Components Wireless Broadband Modem Yagi Antenna and Cables Cisco 1711 and Cabling Yagi Antenna Aiming Mobility Manager Verification Configuration Multi-WAN Cisco 1711 Router Single WAN Remote Router EZPVN Head-end Server Primary IPSec Head-end Secondary IPSec Head-end Cisco IOS Versions Tested Caveats EZVPN DHCP Server Summary Small Branch—Wireless Broadband Deployment This chapter describes the use of wireless broadband service offerings for small office and home office (SOHO) deployments, including the documentation of the performance characteristics of encrypted voice over IP (VoIP) and the configuration of the remote router to use the services as either a primary or backup WAN. This chapter includes the following sections: •Solution Characteristics •Topology •Failover/Recovery Time •Performance Results •Wireless Broadband Hardware Components •Verification •Configuration •Cisco IOS Versions Tested •Caveats •Summary Solution Characteristics This section describes the characteristics of the small branch wireless broadband deployment solution, and includes the following topics: •Advantages •Disadvantages Advantages DSL deployments require the phone line to be less than 2.5 miles from the central office of the carrier. To use cable, the residence must be serviced by a cable provider. Both these cases require physical wires, either twisted pair or coaxial cable. A primary advantage of wireless broadband is mobility; the ability to connect to the Internet without using a physical circuit. Broadband wireless is ideal for a SOHO deployment when cable or DSL are not available, or when the lead time to install is inconvenient, as in the banking and hospitality sectors. Banks are commonly co-located in supermarkets or high traffic areas, so the network manager of the bank must provide connectivity for a cash machine or branch office with short lead times. Hotels need basic connectivity at new locations to handle reservations and credit card transactions. Delays in circuit installation can mean lost business. Wireless broadband is also advantageous to an enterprise customer as a backup or alternative means of connectivity. As an example, this chapter describes a configuration using a Cisco 1711 router with three WAN interfaces: DSL, wireless broadband, and Async dial-up. If the DSL circuit fails, the wireless broadband is the preferred path. If both DSL and wireless broadband fail, the router creates an encrypted tunnel using dial backup. Disadvantages One disadvantage of wireless broadband is the lack of coverage guarantee at all times and all locations within the service area. For example, one location tested by Cisco and described in this chapter was between two antenna towers, with each tower less that two miles from the residence. Signal strength to one of the tower locations was limited by terrain and buildings, and was impaired by foliage for the other. Note The wireless broadband service provider offers the following caveat: "Wireless broadband coverage is impacted by, among other things, terrain, weather, antenna location, system modification, foliage, and man-made structures (such as buildings), and can therefore not be predicted precisely at all times." The wireless modem management software has a signal quality and strength scale of 0-4. Signal quality is a more important indicator than signal strength. Using either the built-in antenna or an external reverse polarity Yagi antenna (purchased separately), testing revealed that quality and strength are in the range of 1-2 on a scale of 0-4. The wireless broadband service tested offered impressive average latency, meeting or exceeding cable or DSL performance. The packet loss rate and jitter are generally much higher. For most data applications, this is not noticeable. In testing, a Linksys web server (camera) is accessed using the wireless broadband service and the images are of acceptable quality. Packet loss and jitter can impact the quality of VoIP, and the test results indicated that the voice quality ranged from very good to very poor. Test results are provided later in this chapter. Topology This section describes the following two topologies: •Single WAN Interface •Multi-WAN Interface The single WAN interface topology uses the wireless broadband as the only WAN interface. The multi-WAN interface uses the wireless broadband network as an alternate path to the primary DSL network. The single WAN configuration is used for VoIP performance testing. The standard Chariot teleworker traffic profile is used. Chariot endpoints are located at the employee residence and Cisco lab. The test results use the Internet and are representative of a typical deployment and configuration. For the multi-WAN configuration, a Linksys web camera was the client/host used to answer pings and to generate network traffic for testing and demonstration. Note The Linksys web camera was not deployed or in use during the VoIP testing. Single WAN Interface The single WAN interface topology is shown in Figure 7-1: Figure 7-1 Wireless Broadband—Single WAN The single WAN topology is used for the VoIP performance testing. Only one IPSec peer is defined in the remote router, and failover and recovery was not a test objective. Two inside VLANs were defined to implement a physical split tunnel configuration. During the performance testing, no spouse and child traffic was included in the profile. Multi-WAN Interface The multi-WAN interface is shown in Figure 7-2: Figure 7-2 Wireless Broadband—Multi-WAN The multi-WAN topology takes advantage of key features of the Cisco 1711 router. The Async interface is configured as dial backup to a head-end Cisco 7200 EZVPN server. The Fast Ethernet 0 interface is configured to obtain an IP address from the wireless broadband modem using DHCP. The crypto map on this interface uses RSA keys and a Public-Key Infrastructure (PKI) and Certificate Authority (CA) for authentication. The primary outside interface is defined as a VLAN (200) to the switch module of the Cisco 1711. This interface connects to a DSL router and uses a static IP address. DHCP cannot be used to obtain addresses for a VLAN interface. Authentication also uses RSA keys and a PKI/CA. A Linksys web camera is attached to the inside or VLAN 1 interface and is used to verify connectivity and to generate sample network traffic. Both the DSL and wireless broadband links have active IPSec tunnels and can pass traffic. The Service Assurance Agent (SAA) probes are generating ICMP packets periodically through their respective tunnels. The Async interface dials the access server of the ISPs only in the event that both the DSL and wireless broadband links are down. Failover/Recovery Time The Cisco IOS Reliable Static Routing Backup Using Object Tracking feature was used to monitor and control the backup interface function. How quickly a secondary or tertiary interface is brought online is a function of the configured "down" value of the track command. In testing, the following parameters were used: track 200 rtr 200 delay down 60 up 5 Recovery from a path failure takes at least 60 seconds with these values. They are, however, configurable. Note Enabling debug track can provide a visual indication of the quality of the wireless broadband link. Assuming the delay down is configured at 60 and the frequency of the SAA object is 15 seconds, four consecutive SAA packets must be lost for the tracked route to be removed from the routing table. As probes are lost, the debug track provides a log message indicating this. If subsequent probes are lost or are successful, this is also logged by debug track. During periods of high packet loss, the number of logged messages increases accordingly. Performance Results The wireless broadband service tested is the wireless broadband service in the Research Triangle Park, North Carolina, USA area. The test locations are Cisco employee residences in the Raleigh-Durham, North Carolina area using the same IPSec equipment and infrastructure supporting teleworkers over cable and DSL. These tests results are from a Cisco 1711 router deployed at the employee residence. Cable service provider -Cable-Business Class Service 3 Mbps/768 kbps is used as a reference. The uplink (or branch-to-head-end leg) is shaped to 600 kbps. Also installed is the wireless broadband (Platinum Class) shaped 256 kbps up and unlimited down. The antenna tower is less than two miles from the residence. Two tests were run; a best case and a worst case. The best case uses the external Yagi antenna. The signal strength is 3 of 4 and the signal quality is 4 of 4, on the 0-4 scale, as displayed by the Mobility Manager software, not the external LEDs. The worst case used the supplied antenna (sometimes called a "popsicle-stick" antenna) shown on the product literature photo of the modem in Wireless Broadband Modem. In testing, the signal strength with this antenna is 0 to 1 and signal quality is 0 to 2. The modem is inside the residence. There are two goal lines on the following performance results charts: •Lab goal—Value in lab testing that the performance characteristic should not exceed in a lab environment with no appreciable impact because of WAN. Jitter target is less than 8 ms and the latency target is less than 50 ms. Voice packet loss is to be less than 1/2 of one percent. •Internet goal—Higher than the lab goal values because there is some ISP-associated loss, latency, and jitter. These target values are jitter at less than 20 ms, latency at less than 100 ms, and voice packet loss at less than 1 percent. Note The ITU value is 150 ms or less. Latency even up to 250 ms can be acceptable. Latency was not an issue in any of these tests. These tests are conducted at a first adopter stage in the wireless broadband service. There is little or no contention for bandwidth by other subscribers. Results can vary based on a variety of factors, including environmental or terrain interference. The same holds true for the cable tests; results are influenced by contention from other subscribers as well as varying degrees of Internet backbone and enterprise campus traffic. These test results are intended to represent what a typical user may encounter. Note For best results, an external antenna is recommended. Average Jitter Comparison The average jitter between cable and wireless broadband is compared in Figure 7-3: Figure 7-3 Average Jitter The uplink, or branch-to-head-end jitter values are substantially higher than the baseline using cable. However, the router on the cable connection was using hierarchical class-based weighted fair queuing (CBWFQ) and shaped at 600 kbps on the uplink, and the wireless broadband link is shaped at 256 kbps. Both the cable and wireless broadband link have no service provider guarantee for uplink speed. The values advertised are for burst or maximum uplink speed. In this environment, both the cable and wireless broadband links are tested with VoIP and also with a TCP-based throughput utility and a shaped value is selected that can be conservatively expected to be available most of the time. The goal is not to overrun a modem or head-end infrastructure and drop packets indiscriminately. Packets should be intelligently queued within a shaped rate by the remote router. To add to the objective data, actual VoIP calls are placed using the wireless broadband to subjectively verify that the voice quality is good. Voice Loss The voice loss is compared between cable and wireless broadband in Figure 7-4: Figure 7-4 Voice Loss The percent of bytes lost for the G.729 voice stream is acceptable for cable and wireless broadband using the Yagi antenna. Voice loss using the supplied antenna exceeds the target threshold. Nine percent loss for voice is excessive. Nine percent loss is high even for data-only applications. Note Voice codecs can manage single packet loss with concealment algorithms. If consecutive packets are lost, it is noticeable to the listener. Average Latency The average latency is compared between cable and wireless broadband in Figure 7-5: Figure 7-5 Latency The average latency is very good in all configurations. These values are equivalent to what is typically seen in broadband deployments. Mission Critical Response Time The Chariot traffic profile also includes data that is marked with Differentiated Services Code Point (DSCP) value of AF21. While many of the tests include a transactional data class allocated a minimum bandwidth of 22 percent, the wireless broadband tests did not include a separate class. Therefore, these packets are in the class default class.The Yagi and supplied antenna tests report .2 seconds and .5 seconds for mission critical response time. The cable value is .1 second. All are reasonably good values. Wireless Broadband Hardware Components This section describes the hardware components of the wireless broadband solution, and includes the following topics: •Wireless Broadband Modem •Yagi Antenna and Cables •Cisco 1711 and Cabling •Yagi Antenna Aiming •Mobility Manager Wireless Broadband Modem The MT-1000 wireless broadband modem (see Figure 7-6) is tested using the included antenna as well as an external Yagi antenna. The plastic side panel of the MT-100 needed to be removed to securely connect the cables for the external antenna. Figure 7-6 MT-1000 Wireless Broadband Modem Note The Ethernet interface is a 10/100 interface but was tested with Cisco 1711s and not tested with the Cisco 831. The Cisco 831 Ethernet 1 (outside) interface is a 10 Mbps interface and is not a 100 Mbps FastEthernet interface. Yagi Antenna and Cables The information of the external antenna is as follows: •HyperGain® HG1910Y High Performance 1850-1970 MHz 10 dBi Radome Enclosed Yagi Antenna •Standard Connector—Yagi N-female •Part Number—HG1910Y-NF •Wireless LAN Radio Pigtails—RP-MMCX Type to N-female 19 in. (LMR/WBC100 cable) part number CA-PHCABLE2 An N-male to N-male connector is required between the standard Yagi N-female connector and the N-female pigtail cable that attaches to the MT-1000. Cable length depends on the distance between the Yagi antenna and the MT-1000. Cisco 1711 and Cabling Figure 7-7 shows the remote Cisco 1711 router with the physical cabling and connections. Figure 7-7 Cisco 1711 and Cabling The F4 (interface Fa4) switch port is configured as VLAN 200 and is connected to a Cisco 837 DSL router (not shown). The F1 (interface Fa1) switch port is configured as VLAN 1 and is connected to the Linksys Web Camera. The F0 (interface Fa0) port is connected to the wireless broadband modem. The analog phone line is connected to the DSL splitter. Yagi Antenna Aiming These instructions on aiming the antenna assume that the consumer or an installer knows the location of the nearest antennas. Yagi antenna are directional antenna and must be aimed at the radio tower for best signal strength and quality. In testing, a vendor contact provided a map marked with the two nearest tower locations and the residence location. The map did not contain a reference line for either true or magnetic north. A global positioning system (GPS) receiver and the coordinates for the residence are available. By driving to one of the antenna locations and marking its location, the GOTO function on the GPS is used to determine the degrees azimuth. These two values should have a difference of 180 degrees. A GPS receiver when at rest provides no bearing information, but it does indicate the azimuth you must travel to reach the desired location. To orient the map, the compass base is aligned between the two known points, and the map and compass are rotated until the index line (which is parallel with the base) is over the desired number of degrees. While the map remains in this position, orient the compass base so that the stationary index line is aligned with north, or 0 degrees, and draw a reference line using the compass base as a straight-edge. This puts a magnetic north reference line on the map assuming the number of degrees between the two known positions can be obtained by a GPS set to magnetic declination. Most GPS units can be set to true north or magnetic north with either auto or manual declination. With the map remaining facing North, the compass base can be aligned between the Yagi antenna location and the second tower. The number of degrees indicated by the index mark is the azimuth the antenna must face (80 degrees in this test). The azimuth between the residence and the first tower is 301 degrees and from the tower to the house is 121 degrees. These values must be 180 degrees different to be correct. Figure 7-8 shows the Yagi antenna pointed approximately 80 degrees to the second tower with the compass and map. Figure 7-8 Aiming the Yagi Ideally, the Yagi is attached outside the structure. It saves time by first testing on a tripod or temporary support before permanently mounting. Mobility Manager The wireless broadband service includes Mobility Manager software. This software is installed on a PC, and the PC Ethernet interface and the wireless broadband modem are connected with a straight-through Ethernet CAT5 cable. Signal strength and quality are displayed on their own four-point scale to fine-tune the Yagi antenna. You can also use the software to upload firmware updates to the modem and to determine its status. You should also use this software to verify the connection before connecting to a router. Because the modem contains its own DHCP server, there is no problem moving the cable between a PC and the router interface configured as a DHCP client. Samples of best and worst case signal strength and quality are shown in Figure 7-9: Figure 7-9 Mobility Manager Verification For usability with visual and audible confirmation, live voice calls are placed over the wireless broadband link and a Linksys web camera is viewed. The performance charts for the Chariot test scripts are described in the performance section. Figure 7-10 shows a screen print of the image from the camera. Figure 7-10 Video Image over Wireless Broadband In the multi-WAN configuration, the DSL and wireless broadband links are failed, forcing the Cisco 1711 into a dial-up mode. From a head-end campus, the IP address of the web camera is the target of a ping during the failure scenarios to verify that IKE Keepalive/DPD/RRI is removing routes from the routing table and also from EIGRP advertisements between the three IPSec head-end routers. Note The three IPSec head-end routers exchange routes using the 192.168.82.0 network. Configuration This section describes the configurations for the various components of the wireless broadband solution, and includes the following topics: •Multi-WAN Cisco 1711 Router •Single WAN Remote Router •EZPVN Head-end Server •Primary IPSec Head-end •Secondary IPSec Head-end Multi-WAN Cisco 1711 Router The configuration for the multi-WAN Cisco 1711 router is as follows: !! version 12.3 no service pad service timestamps debug datetime msec localtime show-timezone service timestamps log datetime msec localtime show-timezone service password-encryption service tcp-small-servers ! hostname vpn-jk2-1711-1 ! boot-start-marker boot system flash c1700-k9o3sy7-mz.123-2.XF boot-end-marker ! logging buffered 2048000 debugging enable secret 5 $xxxxvvvvvvvvv ! username ese_vpn_team privilege 15 secret 5 vvvvvvvvvvvv. clock timezone est -5 clock summer-time edt recurring mmi polling-interval 60 no mmi auto-configure no mmi pvc mmi snmp-timeout 180 no aaa new-model ip subnet-zero ! ! ! ! ip tftp source-interface Vlan1 no ip domain lookup ip domain name cisco.com ip host harry 172.26.129.252 ip host rtp5-esevpn-ios-ca 10.81.0.27 ip name-server 207.69.188.185 ip name-server xx.xxx.6.247 ip name-server 171.68.226.120 ip cef ip inspect name CBAC tcp ip inspect name CBAC udp ip inspect name CBAC ftp ip audit notify log ip audit po max-events 100 ip dhcp-client default-router distance 222 ! track 150 rtr 150 delay down 60 up 5 ! track 200 rtr 200 delay down 60 up 5 no ftp-server write-enable chat-script MODEM "" "atdt\T" TIMEOUT 60 CONNECT \c ! ! crypto ca trustpoint rtp5-esevpn-ios-ca enrollment url http://rtp5-esevpn-ios-ca:80 revocation-check none source interface Vlan1 auto-enroll 70 ! ! crypto ca certificate chain rtp5-esevpn-ios-ca certificate 23 quit certificate ca 01 quit ! ! Refer to status of CSCef87216 crypto isakmp policy 10 encr 3des group 2 crypto isakmp keepalive 10 crypto isakmp nat keepalive 10 ! ! crypto ipsec transform-set TUNNEL_3DES_SHA esp-3des esp-sha-hmac ! ! ! crypto ipsec client ezvpn RTP5-ESEVPN-GW3 connect auto group EZVPN_Group key [must_match_Group_in_Head-end] mode network-extension peer xx.xxx.223.24 username vpn-jk2-1711-1 password [must_match_PW_in_Head-end] ! ! crypto map RTP5-ESEVPN-GW4 10 ipsec-isakmp description IPsec Peer for DSL Link set peer xx.xxx.223.24 set transform-set TUNNEL_3DES_SHA match address CRYPTO_MAP_ACL qos pre-classify ! crypto map RTP5-ESEVPN-GW5 10 ipsec-isakmp description IPsec Peer for Broadband Wireless set peer xx.xxx.223.25 set transform-set TUNNEL_3DES_SHA match address CRYPTO_MAP_ACL qos pre-classify ! ! ! class-map match-all VOICE match ip dscp ef class-map match-any CALL-SETUP match ip dscp af31 match ip dscp cs3 class-map match-any INTERNETWORK-CONTROL match ip dscp cs6 match access-group name IKE class-map match-all TRANSACTIONAL-DATA match ip dscp af21 ! ! See policy-map BLOCK_VoIP there will be no VoIP on the backup links ! policy-map BACKUP-INTERFACES class INTERNETWORK-CONTROL bandwidth percent 5 set dscp cs6 class TRANSACTIONAL-DATA bandwidth percent 22 class class-default fair-queue random-detect ! policy-map Shaper-WIRELESS class class-default shape average 102400 # Interval not set to 10ms as no VoIP on this link. fair-queue random-detect service-policy BACKUP-INTERFACES ! policy-map BLOCK_VoIP description Prevent an IP Phone from registering on this link class VOICE police 8000 conform-action drop exceed-action drop class CALL-SETUP police 8000 conform-action drop exceed-action drop policy-map V3PN-teleworker description Note LLQ for ATM/DSL G.729=64K, G.711=128K class CALL-SETUP bandwidth percent 2 class INTERNETWORK-CONTROL bandwidth percent 5 set dscp cs6 class VOICE priority 128 class TRANSACTIONAL-DATA bandwidth percent 22 class class-default fair-queue random-detect policy-map Shaper-DSL class class-default shape average 182400 1824 service-policy V3PN-teleworker ! ! ! interface FastEthernet0 description Outside to MT-1000 Wireless Broadband MODEM ip dhcp client route track 150 ip address dhcp ip access-group INPUT_ACL in service-policy input BLOCK_VoIP service-policy output Shaper-WIRELESS ip route-cache flow load-interval 30 duplex auto speed auto no cdp enable crypto map RTP5-ESEVPN-GW5 ! interface FastEthernet1 description Inside to WEB Camera no ip address vlan-id dot1q 1 exit-vlan-config ! ! interface FastEthernet2 no ip address vlan-id dot1q 1 exit-vlan-config ! ! interface FastEthernet3 no ip address vlan-id dot1q 1 exit-vlan-config ! ! interface FastEthernet4 description Outside to DSL Router switchport access vlan 200 no ip address ! interface Vlan1 description Inside ip address 10.81.7.225 255.255.255.248 ip inspect CBAC in ip route-cache flow ip tcp adjust-mss 542 crypto ipsec client ezvpn RTP5-ESEVPN-GW3 inside ! interface Vlan200 description Outside to DSL Router ip address 192.168.2.211 255.255.255.0 ip access-group INPUT_ACL in service-policy output Shaper-DSL ip route-cache flow crypto map RTP5-ESEVPN-GW4 ! interface Async1 description EarthLink Dialup Service V34/LAPM/V42B/24000:TX/26400:RX bandwidth 24 ip address negotiated ip access-group INPUT_ACL in service-policy input BLOCK_VoIP service-policy output BACKUP-INTERFACES encapsulation ppp ip route-cache flow load-interval 30 dialer in-band dialer string 6550070 dialer-group 21 async mode dedicated ppp authentication pap callin ppp pap sent-username xxxxxx@mindspring.com password 7 vvvvvvvvvvvvvvvv crypto ipsec client ezvpn RTP5-ESEVPN-GW3 ! ip classless ! ! A default route will be available via DHCP with an administrative distance of 222, ! based on the ip dhcp-client default-router distance 222 command. ! ! The DSL router's IP address is 192.168.2.1 ! ip route 0.0.0.0 0.0.0.0 192.168.2.1 200 name Quad_Zero_via_DSL track 200 ip route 0.0.0.0 0.0.0.0 Async1 240 name DIAL_BACKUP ! ! ! The EZVPN IOS Head-end Server is xx.xxx.223.23 ! ip route xx.xxx.223.23 255.255.255.255 Async1 name DIAL_BACKUP_IPSEC_peer ip route xx.xxx.223.23 255.255.255.255 Null0 223 name DUMP_when_int_down ! ! The IPSec peer for the DSL link ! ip route xx.xxx.223.24 255.255.255.255 Vlan200 192.168.2.1 permanent name DSL_router ! ! ! The IPSec peer for the Wireless Broadband link ! ip route xx.xxx.223.25 255.255.255.255 FastEthernet0 dhcp 222 ip route xx.xxx.223.25 255.255.255.255 Null0 223 name DUMP_when_int_down ! ! ip route 172.30.30.128 255.255.255.255 FastEthernet0 dhcp # Host route to Wirless MODEM ! # DHCP Server, See Caveats. no ip http server no ip http secure-server ip flow-export version 5 ! ! ! ip access-list extended CRYPTO_MAP_ACL permit ip 10.81.7.224 0.0.0.7 any ip access-list extended IKE permit udp any eq isakmp any eq isakmp ip access-list extended INPUT_ACL remark Allow IKE and ESP from the RTP headends permit udp xx.xxx.16 0.0.0.15 any eq isakmp permit udp xx.xxx.223.16 0.0.0.15 any eq non500-isakmp permit esp xx.xxx.223.16 0.0.0.15 any remark Cisco Corporate Subnets (not complete) permit ip xxx.44.0.0 0.0.255.255 10.81.7.224 0.0.0.7 permit ip xxx.68.0.0 0.3.255.255 10.81.7.224 0.0.0.7 permit ip xxx.16.0.0 0.15.255.255 10.81.7.224 0.0.0.7 permit ip xxx.168.0.0 0.0.255.255 10.81.7.224 0.0.0.7 permit ip xxx.107.0.0 0.0.255.255 10.81.7.224 0.0.0.7 permit ip xx.100.0.0 0.3.255.255 10.81.7.224 0.0.0.7 permit ip xx.104.0.0 0.0.255.255 10.81.7.224 0.0.0.7 permit ip xx.0.0.0 0.255.255.255 10.81.7.224 0.0.0.7 permit udp any any eq bootpc remark NTP ACLs permit udp 192.5.41.40 0.0.0.1 eq ntp any permit udp host 216.210.169.40 eq ntp any remark SSH from RTP Ridge permit tcp xx.xxx.87.0 0.0.0.255 any eq 22 permit icmp any any deny ip any any access-list 121 remark Define Interesting Traffic access-list 121 permit ip any any dialer-list 21 protocol ip list 121 ! control-plane ! rtr responder rtr 12 type echo protocol ipIcmpEcho xxx.26.129.252 source-ipaddr 10.81.7.225 request-data-size 164 tos 192 frequency 90 lives-of-history-kept 1 buckets-of-history-kept 60 filter-for-history all rtr schedule 12 life forever start-time now rtr 150 type echo protocol ipIcmpEcho xx.102.223.25 source-ipaddr 10.81.7.225 tos 192 timeout 500 owner vpn-jk2-1711-1 tag TRACKING_PROBE_FOR_WIRELESS_BROADBAND frequency 15 lives-of-history-kept 1 buckets-of-history-kept 20 filter-for-history failures rtr schedule 150 life forever start-time now ! rtr 200 type echo protocol ipIcmpEcho xx.xxx.223.24 source-ipaddr 10.81.7.225 tos 192 timeout 200 owner vpn-jk2-1711-1 tag TRACKING_PROBE_FOR_DSL frequency 15 lives-of-history-kept 1 buckets-of-history-kept 20 filter-for-history failures rtr schedule 200 life forever start-time now ! alias exec vlandata vlan database ! line con 0 exec-timeout 60 0 login local stopbits 1 line 1 script dialer MODEM modem InOut modem autoconfigure discovery transport input all transport output pad udptn telnet rlogin ssh stopbits 1 speed 115200 flowcontrol hardware line aux 0 stopbits 1 line vty 0 4 login local transport input ssh ! exception memory minimum 786432 ntp clock-period 17179979 ntp server 192.5.41.41 ntp server 192.5.41.40 ntp server 216.210.169.40 ntp server 10.81.254.202 source Vlan1 end Single WAN Remote Router This Cisco 1711 router is configured with a "physical" split tunnel. The spouse and child computers are on the VLAN 2 logical interface and their addresses are available via NAT/pNAT to the Internet unencrypted. All corporate traffic is encrypted and sent to the corporate head-end. During performance testing, no spouse and child traffic is present in the Chariot traffic profile. ! version 12.3 no service pad service timestamps debug datetime msec localtime show-timezone service timestamps log datetime msec localtime show-timezone service password-encryption ! hostname steve-vpn-1711 ! boot-start-marker boot system flash:c1700-k9o3sy7-mz.123-8.T3.bin boot-end-marker ! logging buffered 200000 debugging ! username ese_vpn_team privilege 15 secret 5 xxxx clock timezone est -5 clock summer-time edt recurring mmi polling-interval 60 no mmi auto-configure no mmi pvc mmi snmp-timeout 180 no aaa new-model ip subnet-zero ! ! ip dhcp excluded-address 192.168.1.1 192.168.1.10 ! ip dhcp pool Client # Corporate Network Address space, not NAT network 10.81.7.168 255.255.255.248 default-router 10.81.7.169 dns-server xx.xxx.6.247 171.68.226.120 domain-name cisco.com option 150 ip xx.xxx.2.93 netbios-name-server 171.68.235.228 171.68.235.229 ! ip dhcp pool SpouseChild # Spouse and Child will be NAT/pNAT'ed import all network 192.168.1.0 255.255.255.0 default-router 192.168.1.1 ! ! ip telnet source-interface Vlan1 ip tftp source-interface Vlan1 no ip domain lookup ip domain name cisco.com ip host harry 172.26.129.252 ip host rtp5-esevpn-ios-ca 10.81.0.27 ip name-server 207.69.188.185 ip name-server xx.xxx.6.247 ip cef ip inspect max-incomplete high 1400 ip inspect one-minute high 1400 ip inspect name CBAC tcp ip inspect name CBAC udp ip inspect name CBAC ftp ip ips po max-events 100 ip ssh source-interface Vlan1 ! ! crypto pki trustpoint rtp5-esevpn-ios-ca enrollment url http://rtp5-esevpn-ios-ca:80 revocation-check none source interface Vlan1 auto-enroll 70 ! ! crypto pki certificate chain rtp5-esevpn-ios-ca certificate 16 certificate ca 01 ! ! class-map match-all VOICE match ip dscp ef class-map match-any CALL-SETUP match ip dscp af31 match ip dscp cs3 class-map match-any INTERNETWORK-CONTROL match ip dscp cs6 match access-group name IKE ! policy-map V3PN-teleworker description Note LLQ for ATM/DSL G.729=64K, G.711=128K class CALL-SETUP bandwidth percent 2 class INTERNETWORK-CONTROL bandwidth percent 5 class VOICE priority 128 class class-default fair-queue random-detect policy-map Shaper-wireless description (real is wireless-Platinum) assume 256kbps up class class-default shape average 256000 2560 0 service-policy V3PN-teleworker ! crypto isakmp policy 1 encr 3des group 2 crypto isakmp keepalive 10 ! ! crypto ipsec transform-set REPLAY esp-3des esp-sha-hmac no crypto ipsec nat-transparency udp-encaps ! crypto map RTP 1 ipsec-isakmp description RTP Enterprise Class Teleworker set peer xx.xxx.223.24 set peer xx.xxx.223.25 # A Second peer could be defined set security-association lifetime seconds 14400 set transform-set REPLAY match address CRYPTO_MAP_ACL qos pre-classify ! interface FastEthernet0 description Outside bandwidth 256 ip address dhcp ip access-group INPUT_ACL in ip access-group INPUT_ACL_out out ip nat outside ip virtual-reassembly service-policy output Shaper-wireless load-interval 30 duplex auto speed auto no cdp enable crypto map RTP ! interface FastEthernet1 description SPOUSECHILD-ONLY-VLAN2-ONLY switchport access vlan 2 no ip address load-interval 30 ! interface FastEthernet2 description CORPUSER-ONLY-VLAN1-ONLY no ip address load-interval 30 ! interface FastEthernet3 description CORPUSER-ONLY-VLAN1-ONLY no ip address load-interval 30 ! interface FastEthernet4 description TO-AP-VLAN1or2 based off of AP login switchport mode trunk no ip address load-interval 30 vlan-range dot1q 1 2 description this port can be VLAN 1 or 2 exit-vlan-config ! ! ! Inside Interface ip tcp adjust-mss 542 was not defined ! interface Vlan1 description Inside ip address 10.81.7.169 255.255.255.248 ip inspect CBAC in load-interval 30 ! ! ! ! This address space will be NAT/pNAT'ed and is unencrypted to the Internet ! interface Vlan2 description SpouseChild lanside ip address 192.168.1.1 255.255.255.0 ip nat inside ip inspect CBAC in ip virtual-reassembly load-interval 30 ! ! interface Async1 no ip address shutdown ! ip classless ! ! This address 172.30.30.128 is the DHCP server on the MODEM ! ip route 172.30.30.128 255.255.255.255 FastEthernet0 65.76.244.213 ! ip nat inside source list pNAT_ACL interface FastEthernet0 overload ! ! ip access-list extended CRYPTO_MAP_ACL permit ip 10.81.7.168 0.0.0.7 any ip access-list extended IKE permit udp any eq isakmp any eq isakmp ip access-list extended INPUT_ACL remark Allow IKE and ESP from the RTP headends permit udp xx.xxx.223.16 0.0.0.15 any eq isakmp permit udp xx.xxx.223.16 0.0.0.15 eq isakmp any permit esp xx.xxx.223.16 0.0.0.15 any remark double ACL check not applicable in this IOS version permit udp any any eq bootpc remark NTP ACLs permit udp 192.5.41.40 0.0.0.1 eq ntp any permit udp host 216.210.169.40 eq ntp any remark SSH from RTP Ridge permit tcp xx.xxx.87.0 0.0.0.255 any eq 22 permit icmp any any deny ip any any ip access-list extended INPUT_ACL_out permit esp any any permit ip any any ip access-list extended pNAT_ACL permit ip 192.168.1.0 0.0.0.255 any logging source-interface Vlan1 ! rtr responder ! ntp server 192.5.41.41 ntp server 192.5.41.40 ntp server 216.210.169.40 ntp server 10.81.254.202 source Vlan1 end EZPVN Head-end Server The configuration for the EZVPN head-end server is as follows: ! version 12.3 service timestamps debug datetime localtime show-timezone service timestamps log datetime localtime show-timezone service password-encryption ! hostname rtp5-esevpn-gw3 ! boot-start-marker boot system disk0:c7200-ik9o3s-mz.123-4.T3 boot-end-marker ! logging queue-limit 100 logging buffered 100000 debugging enable secret 5 xxxx ! username vpn-jk2-1711-1 secret 5 [must_match_PW_in_remote] clock timezone est -5 clock summer-time edt recurring aaa new-model ! ! aaa authentication login default group tacacs+ enable aaa authentication login RTP_ezvpn_user local aaa authentication ppp default if-needed group radius aaa authorization network RTP_ezvpn_group local aaa session-id common ip subnet-zero ! ! ip cef ip domain name cisco.com ip host harry.cisco.com 172.26.129.252 ip host rtp5-esevpn-ios-ca 10.81.0.27 ip name-server xx.xxx.6.247 ! ! crypto ca trustpoint rtp5-esevpn-ios-ca enrollment url http://rtp5-esevpn-ios-ca:80 revocation-check crl auto-enroll 70 ! ! crypto ca certificate chain rtp5-esevpn-ios-ca certificate 21 certificate ca 01 ! ! crypto isakmp policy 10 encr 3des authentication pre-share group 2 crypto isakmp keepalive 10 crypto isakmp client configuration address-pool local dynpool crypto isakmp xauth timeout 60 ! crypto isakmp client configuration group EZVPN_Group key [must_match_Group_in_remote] dns xx.xxx.6.247 171.68.226.120 domain cisco.com pool dynpool save-password ! ! crypto ipsec transform-set 3DES_SHA_TUNNEL esp-3des esp-sha-hmac ! crypto dynamic-map DYNOMAP 10 set transform-set 3DES_SHA_TUNNEL reverse-route ! ! crypto map EZmap local-address Loopback0 crypto map EZmap client authentication list RTP_ezvpn_user crypto map EZmap isakmp authorization list RTP_ezvpn_group crypto map EZmap client configuration address respond crypto map EZmap 10 ipsec-isakmp dynamic DYNOMAP ! ! ! controller ISA 2/1 ! ! ! interface Loopback0 description Public address ip address xx.xxx.223.23 255.255.255.255 ! interface FastEthernet0/0 no ip address shutdown duplex half ! interface FastEthernet1/0 description Private ip address 10.81.0.23 255.255.255.240 ip access-group DoS_Input_Queue_Wedge in ip route-cache same-interface ip route-cache flow duplex full speed 100 standby 1 ip 10.81.0.20 standby 1 priority 90 # This router has the least favorable priority. standby 1 preempt standby 1 authentication eSeVpN crypto map EZmap ! interface FastEthernet1/1 description VLAN 101 RTP5-ALPHA-GW1 ip address 192.168.82.23 255.255.255.0 ip route-cache flow duplex full speed 100 ! interface Virtual-Template1 no ip address ppp authentication chap callin ! router eigrp 64 redistribute static metric 1000 100 255 1 1500 route-map RRI network 192.168.82.0 no auto-summary no eigrp log-neighbor-warnings ! ip local pool dynpool 10.81.7.241 10.81.7.246 ip classless ip route 0.0.0.0 0.0.0.0 10.81.0.17 no ip http server no ip http secure-server ! ! ! ip access-list extended DoS_Input_Queue_Wedge remark http://www.cisco.com/warp/public/707/cisco-sa-20030717-blocked.shtml deny 53 any any deny 55 any any deny 77 any any deny pim any any permit ip any any ip radius source-interface Loopback0 access-list 1 permit 10.81.7.0 0.0.0.255 access-list 1 deny any access-list 1 remark Home user address pool(s) snmp-server location Creeksize RTP building 5 snmp-server contact cisco789@cisco.com 919-123-4567 snmp-server enable traps tty ! route-map RRI permit 10 description Redistribute remote subnets from RRI match ip address 1 ! ! # some config items removed ! end Primary IPSec Head-end The following is an abbreviated configuration of the primary IPSec head-end router: version 12.3 ! hostname rtp5-esevpn-gw4 ! boot-start-marker ! System image file is "flash:c3725-adventerprisek9-mz.123-7.11.T" boot-end-marker ! ip cef ! crypto pki trustpoint rtp5-esevpn-ios-ca enrollment url http://rtp5-esevpn-ios-ca:80 revocation-check crl auto-enroll 70 ! ! crypto pki certificate chain rtp5-esevpn-ios-ca certificate 15 certificate ca 01 ! ! ! crypto isakmp policy 10 encr 3des group 2 crypto isakmp keepalive 10 ! ! crypto ipsec transform-set 3DES_SHA_TUNNEL esp-3des esp-sha-hmac crypto ipsec transform-set 3DES_SHA_TRANSPORT esp-3des esp-sha-hmac mode transport ! ! crypto dynamic-map RTP_DYNO 10 set security-association lifetime seconds 28800 set transform-set 3DES_SHA_TUNNEL reverse-route qos pre-classify ! ! crypto map RTP local-address Loopback0 crypto map RTP 1 ipsec-isakmp dynamic RTP_DYNO ! interface Loopback0 description Public address ip address xx.xxx.223.24 255.255.255.255 ! interface FastEthernet0/0 description VLAN 100 RTP5-Alpha-GW1 ip address 10.81.0.24 255.255.255.240 ip access-group DoS_Input_Queue_Wedge in no ip redirects ip route-cache same-interface ip route-cache flow load-interval 30 speed 100 full-duplex standby 1 ip 10.81.0.20 standby 1 priority 110 # This is the highest or most favored of the three standby 1 preempt standby 1 authentication eSeVpN crypto map RTP ! interface FastEthernet0/1 description VLAN 101 RTP5-Alpha-GW1 ip address 192.168.82.24 255.255.255.0 speed 100 full-duplex ! router eigrp 64 redistribute static metric 1000 100 255 1 1500 route-map RRI network 192.168.82.0 no auto-summary no eigrp log-neighbor-warnings ! ip classless ip route 0.0.0.0 0.0.0.0 10.81.0.17 ip route 10.81.7.0 255.255.255.0 Null0 access-list 1 permit 10.81.7.0 0.0.0.255 access-list 1 deny any log ! route-map RRI permit 10 description Redistribute remote subnets from RRI match ip address 1 ! end Secondary IPSec Head-end The following is an abbreviated configuration of the secondary IPSec head-end router: ! hostname rtp5-esevpn-gw5 ! boot-start-marker boot system flash c3725-advsecurityk9-mz.123-7.11.T boot-end-marker ! ip cef ! ! crypto pki trustpoint rtp5-esevpn-ios-ca enrollment url http://rtp5-esevpn-ios-ca:80 revocation-check crl auto-enroll 70 ! ! crypto pki certificate chain rtp5-esevpn-ios-ca certificate 04 certificate ca 01 ! crypto isakmp policy 10 encr 3des group 2 crypto isakmp keepalive 10 ! ! crypto ipsec transform-set 3DES_SHA_TUNNEL esp-3des esp-sha-hmac crypto ipsec transform-set 3DES_SHA_TRANSPORT esp-3des esp-sha-hmac mode transport ! ! crypto dynamic-map RTP_DYNO 10 set security-association lifetime seconds 28800 set transform-set 3DES_SHA_TUNNEL reverse-route qos pre-classify ! ! crypto map RTP local-address Loopback0 crypto map RTP 1 ipsec-isakmp dynamic RTP_DYNO ! ! interface Loopback0 description Public address ip address xx.xxx.223.25 255.255.255.255 ! interface FastEthernet0/0 description Private ip address 10.81.0.25 255.255.255.240 ip access-group DoS_Input_Queue_Wedge in no ip redirects service-policy input INGRESS_POLICY ip route-cache same-interface ip route-cache flow load-interval 30 speed 100 full-duplex standby 1 ip 10.81.0.20 standby 1 preempt # Default HSRP priority is 100 standby 1 authentication eSeVpN crypto map RTP ! interface FastEthernet0/1 description VLAN 101 RTP5-Alpha-GW1 ip address 192.168.82.25 255.255.255.0 speed 100 full-duplex ! router eigrp 64 redistribute static metric 1000 100 255 1 1500 route-map RRI network 192.168.82.0 no auto-summary no eigrp log-neighbor-warnings ! ip classless ip route 0.0.0.0 0.0.0.0 10.81.0.17 ip route 10.81.7.0 255.255.255.0 Null0 ! access-list 1 permit 10.81.7.0 0.0.0.255 access-list 1 deny any log ! route-map RRI permit 10 description Redistribute remote subnets from RRI match ip address 1 ! end Cisco IOS Versions Tested The following Cisco IOS versions were used in testing: •vpn-jk2-1711-1—c1700-k9o3sy7-mz.123-2.XF (see Caveats, regarding CSCef87216 (multi-WAN) •steve-vpn-1711—c1700-k9o3sy7-mz.123-8.T3 (single WAN) •DSL router—c837-k9o3sy6-mz.123-4.T3 •rtp5-esevpn-gw3—c7200-ik9o3s-mz.123-4.T3 •rtp5-esevpn-gw4—c3725-adventerprisek9-mz.123-7.11.T •rtp5-esevpn-gw5—c3725-adventerprisek9-mz.123-7.11.T Caveats Cisco no longer supports the use, or need for, LAN Access Mobility (LAM), and it was not used in these configurations and tests with the wireless modem. This section describes the issues encountered during testing, and includes the following sections: •EZVPN •DHCP Server EZVPN Initially, Cisco IOS version 12.3(8)T4 was installed on the Cisco 1711 router, but because of a software issue, an IKE policy could not be present in the router configuration if EZVPN was also being used as an authentication method. Cisco IOS version 12.3(2)XF did not exhibit this issue. DHCP Server The wireless broadband modem provides a local DHCP server to supply an IP address to the host or router attached. Although the IP address provided for the default gateway and the DHCP client is an Internet routable address, (in this example 65.76.244.214), the IP address of the DHCP server is not. The address of the DHCP server is always 172.30.30.128, as shown in the following display. vpn-jk2-1711-1#show dhcp lease Temp IP addr: 65.76.244.214 for peer on Interface: FastEthernet0 Temp sub net mask: 255.0.0.0 DHCP Lease server: 172.30.30.128, state: 3 Bound DHCP transaction id: 2324 Lease: 60 secs, Renewal: 30 secs, Rebind: 52 secs Temp default-gateway addr: 65.76.244.213 Next timer fires after: 00:00:27 Retry count: 0 Client-ID: cisco-000d.bd64.8aa4-Fa0 Client-ID hex dump: 636973636F2D303030642E626436342E 386161342D466130 Hostname: vpn-jk2-1711-1 On a multi-WAN configuration, for the router to use the correct interface to reach the DHCP server address, a static host route is required as shown: ip route 172.30.30.128 255.255.255.255 FastEthernet0 dhcp vpn-jk2-1711-1#show ip route 172.30.30.128 Routing entry for 172.30.30.128/32 Known via "static", distance 1, metric 0 Routing Descriptor Blocks: * 65.76.244.213 Route metric is 0, traffic share count is 1 The assigned address has a short lease time of 60 seconds, meaning that the router or PC must request a renewal every 30 seconds, as shown in the following debug. vpn-jk2-1711-1#debug dhcp DHCP client activity debugging is on vpn-jk2-1711-1# Oct 1 14:19:56.762 edt: DHCP: SRequest attempt # 1 for entry: Oct 1 14:19:56.762 edt: DHCP: SRequest - ciaddr: 65.76.244.214 Oct 1 14:19:56.762 edt: DHCP: SRequest placed lease len option: 60 Oct 1 14:19:56.762 edt: DHCP: SRequest: 307 bytes Oct 1 14:19:56.762 edt: DHCP: SRequest: 307 bytes Oct 1 14:19:56.766 edt: DHCP: Received a BOOTREP pkt Oct 1 14:19:56.766 edt: DHCP Client Pooling: *Allocated IP address: 65.76.244.214 ------- every thirty seconds ------------------- Oct 1 14:20:26.766 edt: DHCP: SRequest attempt # 1 for entry: Oct 1 14:20:26.766 edt: DHCP: SRequest - ciaddr: 65.76.244.214 Oct 1 14:20:26.766 edt: DHCP: SRequest placed lease len option: 60 Oct 1 14:20:26.766 edt: DHCP: SRequest: 307 bytes Oct 1 14:20:26.766 edt: DHCP: SRequest: 307 bytes Oct 1 14:20:26.770 edt: DHCP: Received a BOOTREP pkt Oct 1 14:20:26.770 edt: DHCP Client Pooling: *Allocated IP address: 65.76.244.214 Without the host route to the DHCP lease server, the DHCP request follows the default route to the DSL link. Because the address is an RFC 1918 address, it is not routed over the Internet. The end result is that the DHCP lease is not renewed and the router outside interface flaps continuously. Summary Wireless broadband is best suited for its target market of providing mobility to a single PC with either an external or PCMCIA modem. This chapter focused on using an external modem with an attached router. Likely deployment situations are small offices seeking rapid deployment of equipment or multiple WAN interfaces for availability. Voice was also tested to determine the viability of deployments for teleworkers. If sufficient signal strength and quality are available and interference because of environmental or terrain is not an issue, voice quality ranges from good to very good. However, like all wireless media, consistency and availability are often an issue.
	© 1992-2009 Cisco Systems, Inc. All rights reserved. Terms & Conditions \| Privacy Statement \| Cookie Policy \| Trademarks of Cisco Systems, Inc.
