System Configuration

Configuration | System

System Configuration

---

System configuration means configuring parameters for system-wide functions in the VPN Concentrator.

Configuration | System

You begin by clicking the System link on the Configuration screen. The System screen opens.

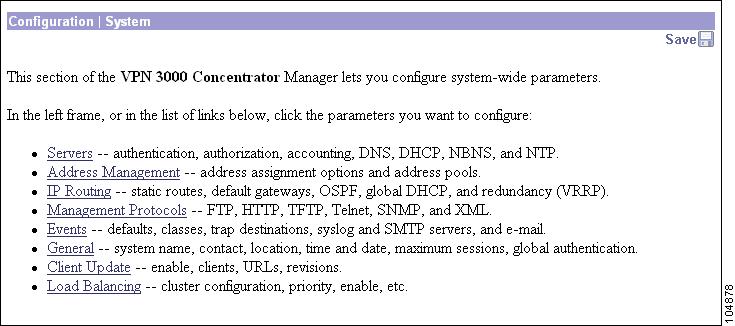

Figure 4-1 Configuration | System Screen

This section of the Manager lets you configure parameters for VPN Concentrator system-wide functions.

•Servers: Identifying servers for authentication, authorization, accounting, DNS, DHCP, firewall, and NTP.

•Address Management: Assigning addresses to clients as a tunnel is established.

•IP Routing: Configuring static routes, default gateways, OSPF, global DHCP, DHCP Relay, redundancy (VRRP), and Reverse Route Injection (RRI).

•Management Protocols: Configuring and enabling built-in servers for FTP, HTTP/HTTPS, TFTP, Telnet, SNMP, SSL, SSH, and XML.

•Events: Handling system events via logs, FTP backup, SNMP traps, syslog, SMTP, and e-mail.

•General: Identifying the system, setting the time and date, changing the maximum session limit, and configuring global authentication parameters.

•Client Update: Automatically updates client software.

•Load Balancing Cisco VPN Clients: Configuring virtual clusters and individual devices within virtual clusters.

See the appropriate chapter in this manual or the online help for each section.
