Reboot Status

---

Administration | Reboot Status

This screen displays reboot status for the VPN Concentrator. It has various options, shown in the figures that follow.

Reboot Now

When you choose the Reboot/Shutdown Now option on the Administration | System Reboot screen, this screen displays.

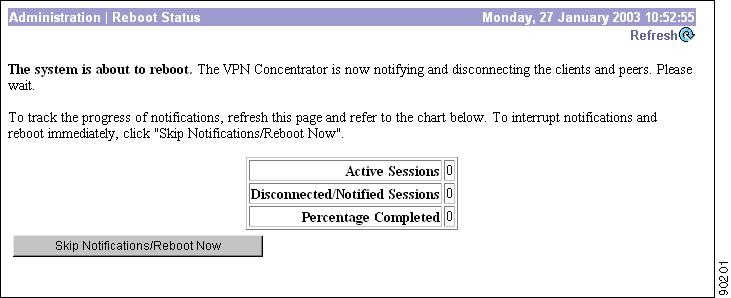

Figure 5-1 Administration | Reboot Status Screen, Reboot Now

Screen Elements

•Active Sessions — Total number of active sessions prior to this reboot.

•Disconnected/Notified Sessions — Number of sessions notified and disconnected.

•Percentage Completed — Percentage of active sessions notified and disconnected.

•Skip Notifications/Shutdown Now — Click this button to shutdown all sessions immediately, without notification.

Reboot in <n> Minutes

When you choose the Reboot/Shutdown Delayed by <n> minutes option on the Administration | System Reboot screen, this screen displays.

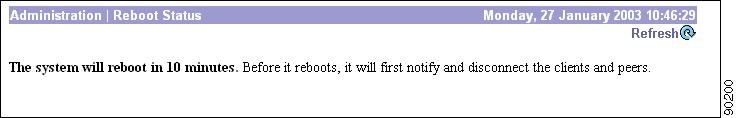

Figure 5-2 Administration | Reboot Status Screen, Reboot in 10 Minutes

No Reboot

When you choose to have no scheduled reboot, or when you cancel a scheduled reboot, this screen displays.

Figure 5-3 Administration | Reboot Status Screen, No Reboot Scheduled
