Monitoring Refresh

---

Administration | Monitoring Refresh

This screen lets you enable automatic refresh of all status and statistics screens in the Monitoring section of the VPN Concentrator Manager except the Event Log.

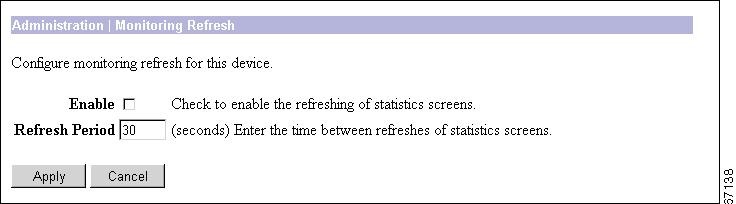

Figure 8-1 Administration | Monitoring Refresh Screen

Screen Elements

•Enable — Check to enable automatic refresh. The box is unchecked by default.

•Refresh Period — Enter the refresh period in seconds. The minimum period is 1 second. The default period is 30 seconds. The maximum period is 2000000000 seconds (about 63 years). Very short periods may affect system performance.

The refresh period timer begins after the Manager fully displays a given screen.

•Apply — Click to save your settings in the active configuration. The Manager goes to the main Administration screen.

•Cancel — Click to discard your settings. The Manager goes to the main Administration screen.

Reminder:

To save the active configuration and make it the boot configuration, click the Save Needed icon at the top of the Manager window.
