Monitoring

Monitoring Screen

Screen Elements

Monitoring

---

The VPN 3000 Concentrator tracks many statistics and the status of many items essential to system administration and management. Use the VPN Concentrator Manager Monitoring windows to view all those status items and statistics. You can even see the state of LEDs that show the status of hardware subsystems in the device. You can also see statistics that are stored and available in standard MIB-II data objects.

Monitoring Screen

The Monitoring screen opens when you click Monitoring in the Concentrator Manager table of contents. This section of the Manager lets you view VPN Concentrator status, sessions, statistics, and event logs.

These Manager screens are read-only "snapshots" of data or status at the time the screen displays. Most screens have a Refresh button that you can click to get a fresh snapshot and update the screen, but you cannot modify the data on the screen.

You can also configure the Manager to automatically refresh all the screens in this section except the Event Log. See Administration | Monitoring Refresh.

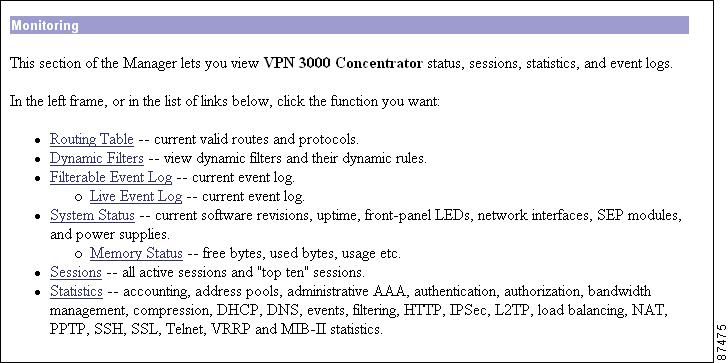

Figure 12-1 Monitoring Screen

Screen Elements

•Routing Table — Current valid routes, protocols, and metrics.

•Dynamic Filters — Filters applied to current user connections, as specified by RADIUS at connection time.

•Filterable Event Log — Current event log in memory, filterable by event class, severity, IP address, etc.

–Live Event Log: Current event log, continuously updated.

•System Status — Current software revisions, uptime, SEP modules, system power supplies, Ethernet interfaces, front-panel LEDs, memory status, and hardware sensors.

–LED Status: Current status of the VPN Concentrator front-panel LED indicators.

–Memory Status: Current status of the VPN Concentrator memory use, measured in block size, free blocks and used blocks.

•Sessions — Currently active sessions sorted by protocol, SEP, and encryption. "Top ten" sessions sorted by data, duration, and throughput.

•Statistics — PPTP, L2TP, IPSec, HTTP, events, Telnet, DNS, authentication, accounting, filtering, VRRP, SSL, DHCP, address pools, SSH, load balancing, and data compression. MIB-II statistics for interfaces, TCP/UDP, IP, RIP, OSPF, ICMP, the ARP table, Ethernet traffic, and SNMP.
