Testing the VPN Concentrator
Before You Begin
Testing the VPN Concentrator
Testing the VPN Concentrator
To test if you are able to connect to the VPN Concentrator and reach the private network, it is not necessary to install a software client. You can use either of the following methods.
•
On a remote PC, connect to an ISP and use PPTP to create a secure tunnel through the Internet to the VPN Concentrator's public interface.
•Connect a PC to the network on the public side of the VPN Concentrator. Use Microsoft Dial-Up Networking to create a tunnel to the public interface of the VPN Concentrator.
This example steps you through the latter method. It uses Microsoft Dial-Up Networking on Windows 2000. If you are using a different operating system, your procedure might differ from the one shown here.
Note These instructions describe a typical installation. Please consult your ISP and your network system administrator for specific settings and instructions.
Before You Begin
To set up the test, follow these steps.
Step 1 Configure the VPN Concentrator with the following settings:
•Ethernet 2 (Public) interface with appropriate IP address (for example, 192.168.12.34) and default public filter.
•Appropriate DNS server, domain name, and default gateway.
•PPTP tunneling protocol with encryption required (MSCHAP).
•Address assignment from an appropriate configured pool of IP addresses.
•User authentication from the internal server.
•Client username (for example, simonz) and password (for example, 9se7pt14) added to the internal server user database.
Step 2 Connect a Windows 2000 PC to your network on the public side of the VPN Concentrator.
Testing the VPN Concentrator
Follow these steps to create and test a secure connection from a Windows 2000 PC client to the VPN Concentrator.
Step 1 On the client PC, choose Start > Settings > Network and Dial-up Connections > Make a New Connection from the Windows 2000 Start menu. The Network Connection Wizard window appears. (See Figure 5-1.)

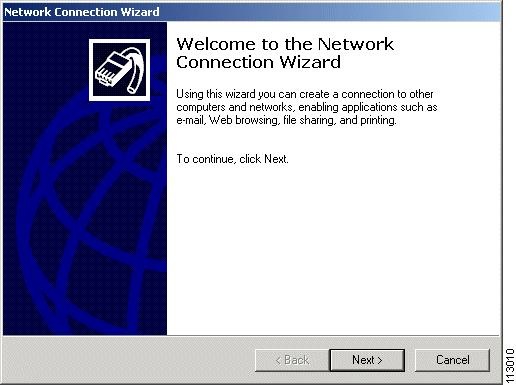

Figure 5-1 The Network Connection Wizard Window
Step 2 Click Next. The Network Connection Type window appears. (See Figure 5-2.)

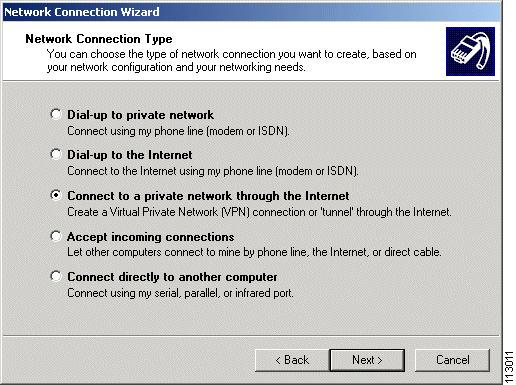

Figure 5-2 Network Connection Type Window
Step 3 Choose Connect to a private network through the Internet.
Step 4 Click Next. The Public Network window appears. (See Figure 5-3.)

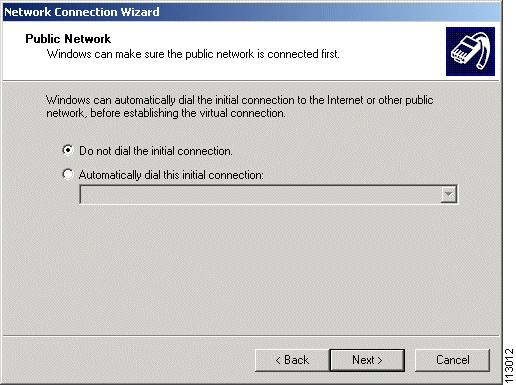

Figure 5-3 Public Network Window
Step 5 Choose Do Not Dial the Initial Connection.
Step 6 Click Next. The Destination Address window appears. (See Figure 5-4.)

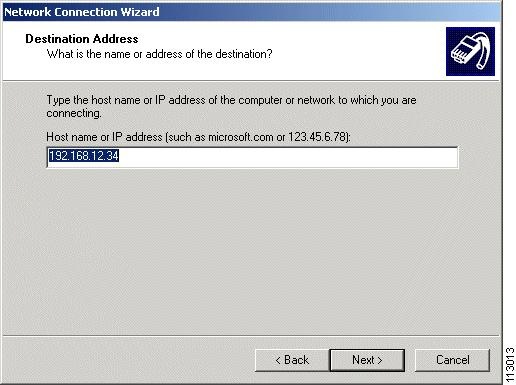

Figure 5-4 Destination Address Window
Step 7 Enter the public interface address of your VPN Concentrator.

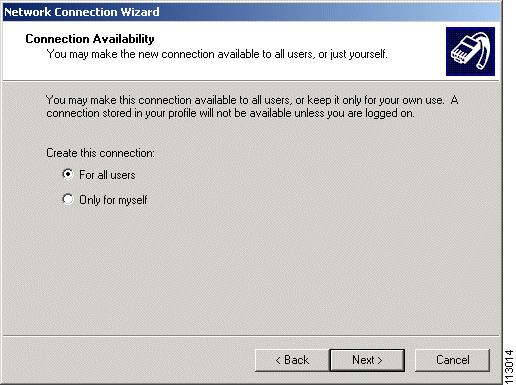

Step 8 Click Next. The Connection Availability window appears. (See Figure 5-5.)
Figure 5-5 Connection Availability Window
Step 9 Choose For all Users.
Step 10 Click Next. The Completing the Network Connection Wizard window appears. (See Figure 5-6.)

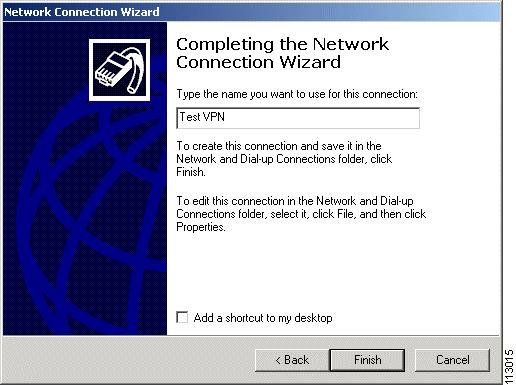

Figure 5-6 Completing the Network Connection Wizard Window
Step 11 Enter a name for the connection, for example: TestVPN.
Step 12 Click Finish. The Connect window appears. (See Figure 5-7.)

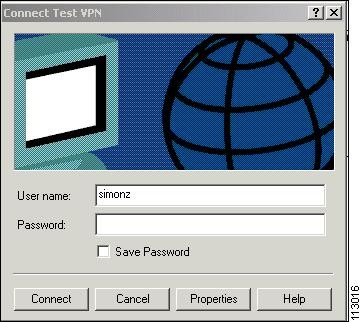

Figure 5-7 Connect Window
Step 13 Enter the username you previously added to the internal server user database. (See "Before You Begin.")
Step 14 Click the Properties button. The Properties dialog box appears.
Step 15 Choose the Networking tab.

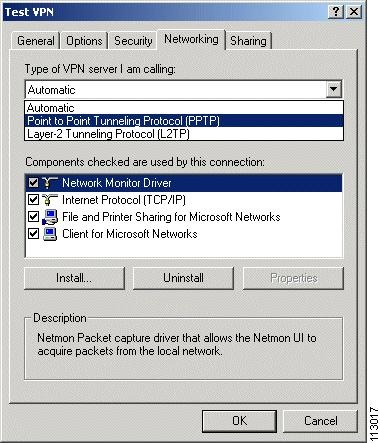

Figure 5-8 Properties Dialog Box, Networking Tab
Step 16 Select Point to Point Tunneling Protocol (PPTP) from the Type of VPN Server I am Calling drop-down menu. (See Figure 5-8.) Click OK. The Properties dialog box disappears.
Step 17 In the Connect window, enter the password.
Step 18 Click Connect. If the connection is successful, the Connection Complete window appears. (See Figure 5-9.) The PC is now connected to the VPN Concentrator via a secure PPTP connection.

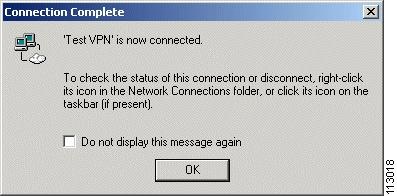

Figure 5-9 Connection Complete
Step 19 Click OK to dismiss the window.
If you receive an error message, check your connections and VPN Concentrator settings, then run the test again.
