Global Controller Network Summary Page Concepts
Global Controller Technologies
Navigation within the MARS Appliance
Setting the GUI and CLI Timeout Interval
Global Controller Activation Considerations
Automatic Activation Settings Page
Procedure to Set the Activation Interval
Network Summary
This chapter describes the web interface and the components of the Summary tab of the web interface and contains the following sections:
•
Navigation within the MARS Appliance
•
Global Controller Network Summary Page Concepts
The Global Controller Summary page differs from the Local Controller summary page in the following ways:
•
•
Global Controller Technologies
The Global Controller is a complete threat mitigation Global Controller that combines network intelligence, ContextCorrelation™, SureVector™ analysis, and AutoMitigate™ capability in a high performance Global Controller indispensable to subvert real security incidents.
ContextCorrelation groups multiple events and network behavior across NAT boundaries in a session. System and user-defined correlation rules are then applied to multiple sessions to identify valid incidents - significantly reducing raw event data and prioritizing response.
SureVector analysis processes incidents to determine if threats are valid or have been countered by assessing the attack path components - end to end. The result eliminates false positives and resolved threats, and enables full path drill-down visualization and investigation.
AutoMitigate capability identifies available choke point devices along the attack vector and allows you to automate appropriate device commands that can mitigate the threat. The result responsively and accurately prevents or contains an attack by leveraging the infrastructure.
Navigation within the MARS Appliance
The MARS web interface runs within a single brower window. The MARS product functions are categorized with labeled tabs, each tab subdivided with subtabs.
Note
Logging In
Step 1
Figure 4-1 Global Controller Login Box
Step 2
Step 3
The first page to appear after a login is the Summary tab Dashboard page. The duration of the delay in displaying information results from a combination of the following causes:
•
•
•
•
•
For most networks, the Summary page populates shortly after configuration. Some values are only relevant after an interval of time. For example, the values in the 24 Hour Events and 24 Hour Incidents tables.
Basic Navigation
The Global Controller uses a tab-based, hyperlinked user interface. When you mouse over an alphanumeric string or an icon that is a clickable hyper-link, the mouse cursor changes to a pointing finger cursor
. Figure 4-2 shows some of the clickable objects on the Dashboard page.
Figure 4-2 Links, Icons, and Filters
-
Click any of the seven tabs to navigate to the pages relevant to the tab's sub-tabs, as shown in Figure 4-3 though Figure 4-8.
Note
Figure 4-3 Summary Tab
Figure 4-4 Incidents Tab
Figure 4-5 Query/Reports Tab
Figure 4-6 Rules Tab
Figure 4-7 Management Tab
Figure 4-8 Administration Tab
Figure 4-9 Help Tab
Help Page
The Help page, as shown in Figure 4-10, provides URLs to online documentation and a feedback form to submit constructive comments to the MARS development engineering team.
Figure 4-10 Help Page
Click About to display the software version number running on the MARS.
Click Documentation to display URLs to MARS documentation on the Cisco Systems, Inc. website (http://www.cisco.com).
Your Suggestions Welcomed
The Feedback button appears at the bottom of most pages, a shown in Figure 4-10.
When you click the feedback button, or navigate to the Feedback page, the feedback dialog box appears, as shown in Figure 4-11.
Figure 4-11 Feedback Dialog Box
To send your comments to the MARS development engineering team, type in your email address and comments then click Submit. When you click the Include log file a MARS log file is sent with your message.
Setting the GUI and CLI Timeout Interval
When a user is inactive on the GUI or CLI for a duration exceeding the timeout interval, that user is logged out and must login again to continue accessing the MARS Appliance. The settings for the timeout interval are Never (indefinite duration) 15, 30, 45, and 60 minutes.
In general, GUI activities that initiate access to the MARS webserver restart the timeout interval. Table 4-1 lists GUI activities that do not restart the timeout interval.
To set the timeout interval, do the following:
Step 1
Step 2
The timeout interval for the Administrator, Security Analyst, and Operator roles are set separately. The Admin timeout setting is also the timeout interval for the CLI.
Figure 4-12 Timeout Interval Configuration Page
Step 3
End of Procedure
Activate Button
This section discusses the Activate button and contains the following subsections:
•
•
•
•
Activate Button Color and Activation Interval Features
3.x
The Activate button was introduced.
4.3.2 and 5.3.2
Activate button color change and activation setting page were introduced
Changes made to MARS configurations and settings, (most notably to devices, rules, and reports) must be passed to the MARS background processes by clicking Activate, or by scheduling an automatic activation process.
Note
Activate Button Color Changes
The Activate button displays red with bold italic writing when a configuration change requires activation, as shown in Figure 4-13. The Activate button is on all tabs.

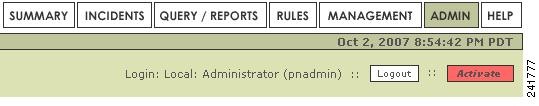

Figure 4-13 Activate Button Turns Red When GUI Configuration Change is Submitted
For the user account that made the changes, the Activate button displays red in every new session or already open session of that account. It does not display red in any sessions of any other accounts. When you click the red Activate button, a pop-up window appears displaying the time, login name, user role, and activation status, as shown in Figure 4-14. The Status field can display Ok, or Error. The action for Error is to try again later.

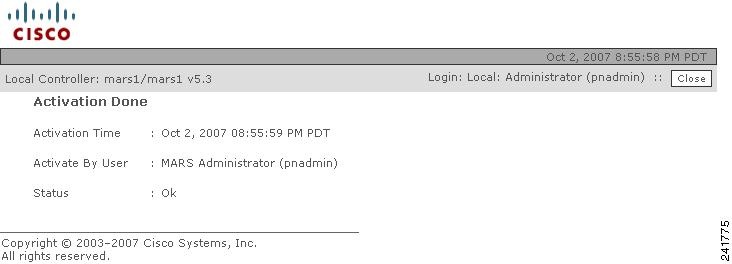

Figure 4-14 Popup Message Received when Activation Completed

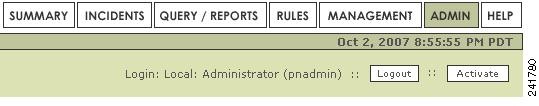

When an Activation is complete, the Activate button displays white in all open and subsequently launched sessions, as shown in Figure 4-15.
Figure 4-15 Activate Button Resets to White When Activation Completes
Multiple Logged-in Users Making Changes at the Same Time
Clicking Activate, activates all changes made by all user accounts. If two different accounts both make changes, the red Activate button displays in both of their session GUIs. If one account clicks Activate, the changes of all other accounts are also activated, and the Activate button displays white in the GUI of all accounts (after a page refresh, or when clicking another tab).
Clicking the White Activate Button

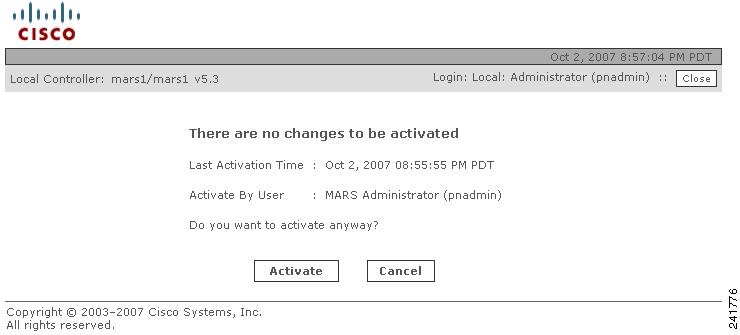

Clicking the white Activate button launches a pop-up message window displaying the last activation event time, the login name and role of the initiator, and an activate option as shown in Figure 4-16. Clicking the Activate option in the pop-up window forces an activation process. Any changes made by other accounts are activated, and an Activation Done pop-up window appears, as shown in Figure 4-14.
Figure 4-16 Popup Message When White Activate Button is Clicked
Global Controller Activation Considerations
A topology synchronization occurs between Global and Local Controllers when an activation process is initiated on either platform.
Automatic Activation Settings Page
A scheduler daemon that wakes up every minute can be configured to execute automatic activations.
The Activations Setting Page sets the time interval between automatic activations executed by the scheduler (Admin > System Parameters > Activation Settings). There is no CLI command for the scheduler.The time intervals are Never (default), 15, 30, 45, and 60 minutes.
Procedure to Set the Activation Interval
Complete the following steps to set the automatic activation schedule:
Step 1

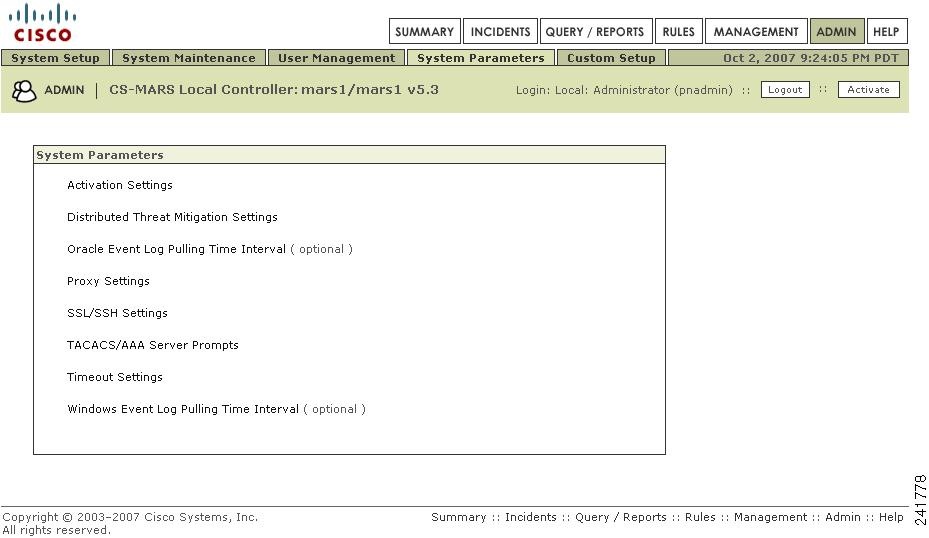

Figure 4-17 Systems Parameters Page
Step 2
The Activation Interval page appears, as shown in Figure 4-18.

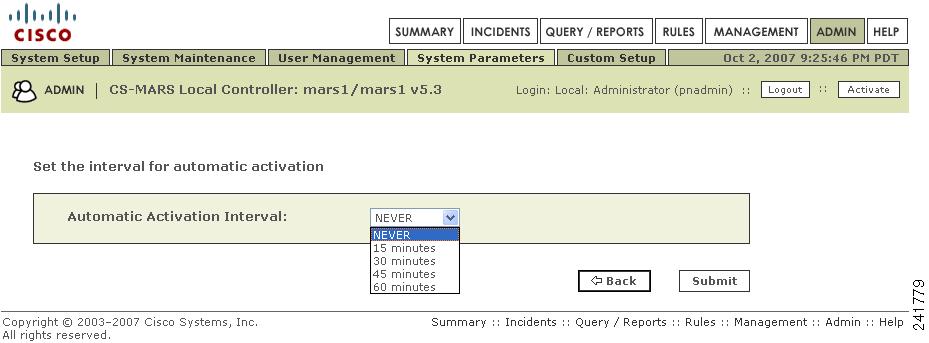

Figure 4-18 Automatic Activation Interval Page
Step 3
The possible values are NEVER (default), 15 minutes, 30 minutes, 45 minutes, and 60 minutes.
Step 4
End of Procedure to Set the Activation Interval.
Summary Page
This section contains the following subsections:
From the Summary pages, you can very quickly evaluate the state of the network. The Summary pages include the Dashboard, Network Status, HotSpot Diagrams, and My Reports, a shown in Figure 4-19.
Figure 4-19 Summary Tab
Dashboard
This subsection contains the following subsections:
Note
Figure 4-20 The Working Areas on the Dashboard
Subtabs
Tabs
Case Bar (Local Controller only)
Recent incidents information
Links to Cases assigned to you.
HotSpot and Attack diagrams
Charts
Recent Incidents
The first feature to notice about the Dashboard are the recent incidents that have fired. The Global Controller comes with pre-defined rules, and these incidents are the result of those rules firing. These rules are generic, globally applicable, and should serve you well as a starting point once you begin to tune the Global Controller.
Figure 4-21 Drilling-down into Incidents
Sessions and Events
Within a given time window, a session is a collection of events that all share a common end-to-end:
•
•
•
Event sessionization aggregates event data making it easier to sort and examine. Event sessionization lets the system treat events as single units of information and helps you understand if an attack truly has materialized. It gives you the context of the attack by giving you all the events on that session.
Sessionization works across NAT (network address translation) boundaries - if a session traverses a device that does NAT on that session, the Global Controller is able to sessionize events even if they are reported by two devices on either side of that firewall.
Networks start to show immediate action in the events and sessions categories. Note that the 24 Hour Events table and the Events and Sessions chart are different ways of presenting the same information.
Inactive Device Events
MARS generates an inactive device event for any device that does not report an event within 1 hour of the last received event. Inactive device events are generated for all security and monitoring devices except MARS, CSA, Symantec AntiVirus, FoundScan, eEye REM, QualysGuard, and Security Manager.
Data Reduction
Data Reduction is a representation of how much event data the Global Controller collapsed into sessions. For example a data reduction of 66% measures three events per session on the average - this number is dependent on many variables particular to your network.
Figure 4-22 Data Reduction
Page Refresh
The Page Refresh Rate polls the Global Controller according to the setting you assign. The default setting is fifteen minutes. The refresh setting remains the same until you log out. This setting only applies to the pages that have the Page Refresh pull-down.
Figure 4-23 Page Refresh
Note
Diagrams
This subsection contains the following subsections:
The Summary page has two diagrams: the Hot Spot Graph and the Attack Diagram. Global Controller uses the configuration and topology discovery information that were propagated up from the Local Controllers. The following table shows you the icons used in the diagrams.
You can start drilling-down into the diagrams by clicking any of the icons listed in Table 4-2. You can start drilling-down attack paths in the Attack Diagram by clicking the Path icon
. Drilling-down into these diagrams is one of the fastest ways to uncover real-time information about your network.
Figure 4-24 Clickable Hot Spots: Brown = Attackers & Red = Compromised
Note
To see the diagrams, you need the Adobe SVG viewer plug-in. The Adobe SVG viewer plug-in should automatically install.
Note
Figure 4-25 The Hot Spot Graph and Attack Diagram
Manipulating the Diagrams
•
•
•
•
•
•
Note
Display Devices in Topology
You can specify how to display a reporting device in the HotSpot Graph. By clicking the icon in the Device Display column, you can specify whether to display the device as an individual node on the graph or collapse it within a cloud. By having a device "hidden" in a cloud, you can cut down on the number of devices displayed in the graph, thus making it easier to read at a higher level.
A cloud identifies a collection of networks for which you do not want to define the complete physical topology. Much like when you draw a network diagram on a piece of paper, you can use a cloud to depict networks in which you have no direct interest, but which are needed to represent to complete the diagram. For example, you may want to display only gateway devices or mitigation devices, representing other reporting devices as part of a cloud.
To toggle the display status of a device, follow these steps:
Step 1
Step 2
Figure 4-26 The Device Display icons
The icon changes from a host icon to a host within a cloud or vice versa.
Step 3
Network Status
The Network Status page is where you come to get the big picture. On the Network Status page, you can see the charts for:
· IncidentsRated by severity.
· Attacks: All - Top Rules FiredRated by the highest number of incidents fired.
· Activity: All - Top Event TypesRated by the highest numbers of events of that type.
· Activity: All - Top Reporting DevicesRated by the total number of events reported by each security device.
· Activity: All - Top SourcesThe top IP addresses that appear as session sources, ranked by session count.
· Activity: All - Top DestinationsThe top IP addresses that appear as session destinations, ranked by session count.

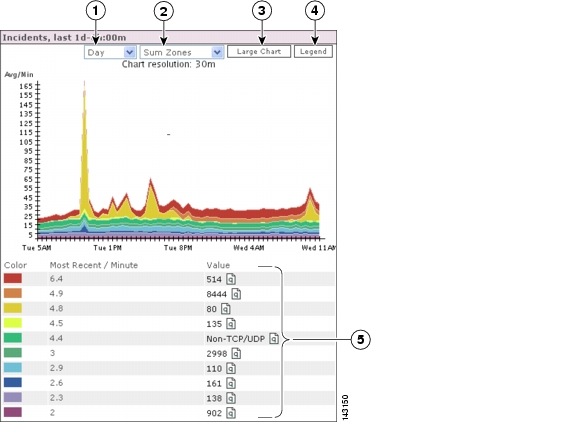

For all of the charts on this page, you can set different time frames, the size of the chart, view the latest report, and so on, by clicking on the buttons in the chart's window.
Reading Charts
These are stacked charts. You can tell which severity of incident your network has most experienced for the day by looking for the dominant shade. In the figure below, low priority green incidents cover less area than high priority red incidents because they have occurred less often.
Figure 4-27 A Day's Events and Netflow with the Legend Displayed
To read the charts most efficiently, note that it is solely the thickness of a particular color that determines its value at that point - and that a spike (or drop) in any particular color could be caused by a spike (or drop) of a different color lower down in the stack.
A perfectly flat line indicates that Global Controller received no data during that time period.

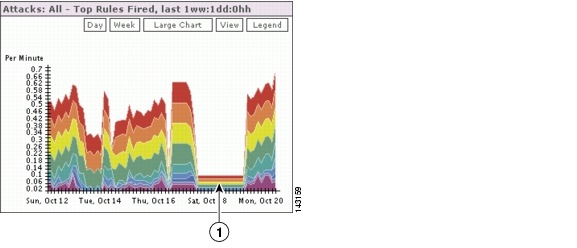

Figure 4-28 A Flat Line in a Week's Top Rules Fired

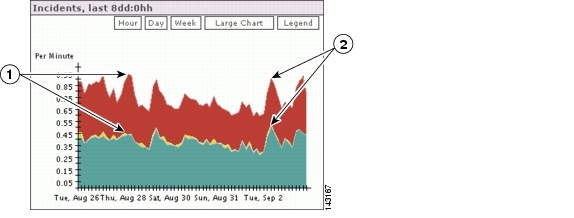

In the following Incidents chart, you can see the top incidents for the week, starting eight days in the past.
Figure 4-29 Eight Days of Incidents
A more drastic spike in red is not offset by the green incident
Incident spikes are built upon each other
Hotspots
The Hotspots page contains topology graphs of the hotspots on each of the Local Controllers connected to your Global Controller. You can use the pull-down menu to select whether to view the hotspot for a single Local Controller or combined hotspots for all the Local Controllers connected to your Global Controller.
Clicking on the Full Topo Graph button displays a detailed graph of the topology; clicking the Large Graph button displays the attack on a full page. Clicking the Details button logs you into the Local Controller and displaysthe hotspot graph there.
My Reports
The My Reports page is where you can choose the reports that you want to view. As long as you are using the Global Controller with your log in name, the reports that you have selected appear here.
To set up reports for viewing
Step 1
Step 2
Step 3
Global Controller now displays the chart that you selected on the My Reports page.
Note
You can display any number of charts on the My Reports page, however expect slower loading times for large numbers of charts.
The reports that you can select from are pre-defined. When you create your own reports, you can select those to display. See Reports, page 7-19 for more information.
