Quick Start Guide
Cisco PIX 501 Firewall

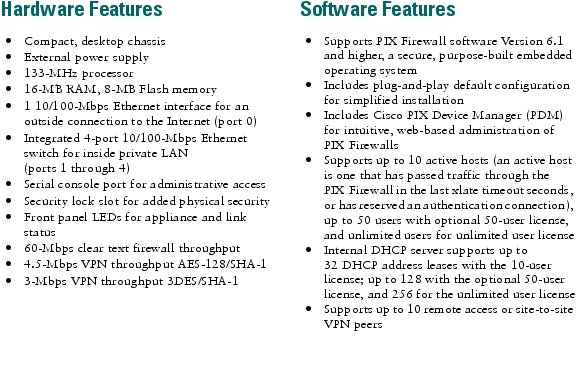

About the Cisco PIX 501 Firewall
The PIX 501 delivers enterprise-class security for small offices and telecommuters in a reliable, plug-and-play security appliance. Ideal for securing high-speed "always on" broadband environments, the PIX 501, part of the world-leading Cisco PIX Firewall Series, provides robust security capabilities, small office networking features, and powerful remote management capabilities in a compact, all-in-one solution:
•Stateful inspection security based on state-of-the-art Adaptive Security Algorithm (ASA)
•Supports over 100 predefined applications, services, and protocols for flexible access control
•Virtual Private Networking (VPN) for secure remote network access using IKE/IPSec standards
•In-line intrusion protection from over 55 different network-based attacks
•URL filtering of outbound web traffic via industry-leading, third-party URL filtering products
•Integrated switch allows multiple users to share a single broadband connection

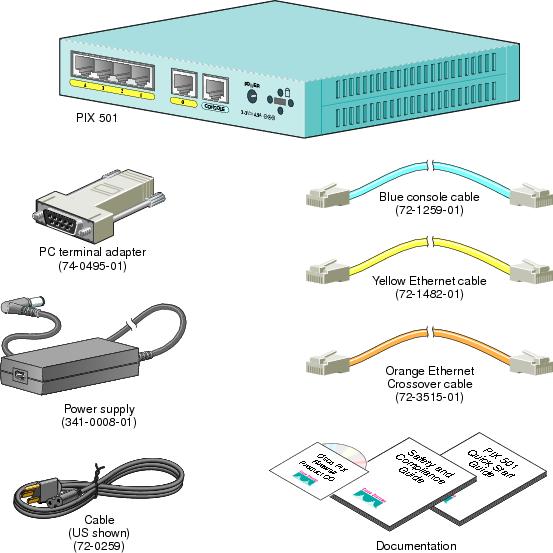

1 Check Items Included
2 Installing the PIX 501
Follow these steps to connect the cables:
Step 1 Place the chassis on a flat, stable surface. The chassis is not rack mountable.
Step 2 Connect Port 0, the outside Ethernet port, to the public network, that is, the Internet:
a. Use the yellow Ethernet cable (72-1482-01) to connect the device to a switch or hub.
b. Use the orange Ethernet crossover cable (72-3515-01) to connect the device to a cable/DSL/ISDN modem.
Step 3 Connect your PC or other network devices with an Ethernet cable to one of the four switched inside ports (numbered 1 through 4).
Note Make sure that one of the PCs has TCP/IP installed and is configured to obtain an IP address automatically through DHCP. Installing TCP/IP and configuring DHCP allows the PC to communicate with the PIX 501 and the Internet as well as run the PDM Startup Wizard.
Make sure the PC interface connected to the PIX 501 inside port, numbered 1 through 4, is set to autonegotiate for best performance. If autonegotiate is not an option for the PC interface, set the speed to either 10 or 100 Mbps half duplex. Setting the interface to full duplex causes a duplex mismatch that significantly impacts the total throughput capabilities of the interface.

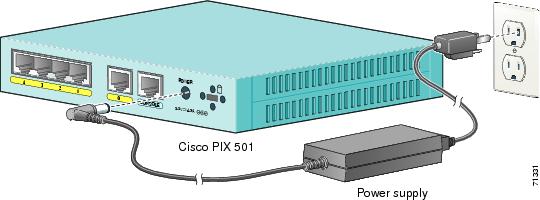

Follow these steps to power on the PIX Firewall:
Step 1 Connect the power supply (341-0008-01) with the power cable (72-0259).
Step 2 Connect the small, round connector of the power supply cable to the power connector on the rear panel.
Step 3 Connect the AC power connector of the power supply input cable to an electrical outlet.
Note The PIX 501 does not have a power switch. Completing Step 3 powers on the device.
Step 4 Check the power LED, if it is solid green, then the device is powered on. For more information, refer to the "Check the LEDs" section.
3 Configuring the PIX 501
The PIX 501 comes with a factory default configuration that meets the needs of most broadband networking environments. The factory default configuration on the PIX 501 protects your inside network from any unsolicited traffic. It is configured to use DHCP on the outside interface to acquire its IP address. A default DHCP server address pool is included for hosts on the inside interface.
By default, the PIX Firewall denies all inbound traffic through the outside interface. Based on your network security policy, you should consider configuring the PIX Firewall to deny all ICMP traffic to the outside interface, or any other interface you deem necessary, by entering the icmp command. The icmp command controls responses to ICMP traffic that is directed at one of the PIX Firewall interfaces. If no ICMP control list is configured, then the PIX Firewall will respond to all ICMP requests received on any interface (including the outside interface).
For more information about the icmp command, refer to the Cisco PIX Firewall Command Reference.
Instances in which it might be necessary to change or make additional changes to the default configuration include the following:
•To create administrative and Telnet passwords
Note We highly recommend that you change the administrative and Telnet passwords from their default settings (no password) to secure the administration of your PIX Firewall.
•To configure Point-to-Point Protocol over Ethernet (PPPoE) or a static IP address for an outside interface
•To configure VPN and Auto Update features
The PIX 501 contains an integrated configuration utility called Cisco PIX Device Manager (PDM). PDM is a web browser-based configuration tool designed to help you set up, configure, and monitor the PIX Firewall.
PDM Version 2.0 and higher releases include a Startup Wizard for initial configuration. Follow these steps to use the Startup Wizard:
Step 1 If you have not already done so, use an Ethernet cable to connect your PC to one of the four switched inside ports (numbered 1 through 4) on the rear panel of the PIX Firewall.
Note Ethernet1 interface in the PIX 501 is the internal interface connecting the PIX Firewall to the four switched inside ports with a fixed speed of 100 Mbps full duplex. The PIX Firewall automatically negotiates the inside interface speed, and this is not configurable.
Step 2 Configure your PC to use DHCP (to receive an IP address automatically from the PIX Firewall) or assign a static IP address to your PC by selecting an address outside of the 192.168.1.0 network.
Note The inside interface of the PIX Firewall is assigned 192.168.1.1, so choose a different IP address.
Step 3 Check the LINK LED to verify that your PC has basic connectivity to the PIX Firewall on one of the inside ports (numbered 1 through 4). When connectivity occurs, the LINK LED on the front panel of the PIX Firewall lights up solid green.
Step 4 To access the Startup Wizard, use a PC connected to one of the PIX Firewall switch ports and enter the URL https://192.168.1.1/startup.html into your browser.
Note Remember to add the "s" to "https" or the connection fails. HTTPS (HTTP over SSL) provides a secure connection between your browser and the PIX Firewall that you are using PDM to configure or monitor.
Step 5 Leave both the userword and password boxes empty. Press Enter.
Step 6 Accept the certificates and follow the instructions in the Startup Wizard. For online Help, click the Help button at the bottom of the Startup Wizard window.
4 Optional Maintenance and Upgrade Procedures
Upgrade to DES, 3DES/AES, or the User Licenses
Note The following instructions apply to PIX Firewall Version 6.2 and higher releases. If you are not running PIX Firewall Version 6.2 or higher, refer to the Quick Start Guide for the version of software installed on your Cisco PIX Firewall.
To upgrade features you did not specify at the time of purchase, you need to use an activation key. The activation key lets you add software features to the PIX Firewall, such as DES (Free) or 3DES/AES, or upgrade the user license at an additional cost.
If you are a registered user of Cisco Connection Online and would like to obtain a DES or a 3DES/AES license key, or upgrade your user license for the PIX Firewall, go to the following website:
If you are not a registered user of Cisco Connection Online, go to the following website:
Note If you are unable to access this form because you do not have a CCO login, send an e-mail to firstname.lastname@example.org. In the e-mail include the PIX Firewall serial number, as it appears in the show version command output, and request a 56-bit DES or a 168-bit 3 DES license key.
You must also purchase or have a service contract to download PIX Firewall software.
Note You can verify if you have DES, 3DES/AES, or the user license by entering the show activation-key command.
To obtain an activation key, you need a Product Authorization Key, which you can purchase from your Cisco account representative. After obtaining the Product Authorization Key, register it on the web to obtain an activation key by performing the following steps:
Step 1 Connect a web browser to one of the following websites (the URLs are case-sensitive):
•Go to the following website if you are a registered user of Cisco Connection Online: http://www.cisco.com/pcgi-bin/Software/FormManager/formgenerator.pl
•Go to the following website if you are not a registered user of Cisco Connection Online: http://www.cisco.com/pcgi-bin/Software/FormManager/formgenerator.pl
Step 2 Obtain the serial number for your PIX Firewall by entering the show version command.
Step 3 Enter the following information, when prompted:
•Your Product Authorization Key
•The serial number for your PIX Firewall
•Your e-mail address
The activation key is generated automatically and sent to the e-mail address that you provide.
Follow these steps to use the activation key:
Step 1 Ensure that the image in Flash memory and the running image are the same.
Step 2 From the command-line interface (CLI) enter the configure terminal command to start configuration mode.
Step 3 Enter the activation-key activation-key-four-tuple command. Replace activation-key-four-tuple with the activation key you obtained with your new license.
Step 4 Use the exit command to exit configuration mode. This command is the same as the quit command.
Step 5 Enter the write memory command to save the configuration.
Step 6 To use the new activation key, reboot the PIX Firewall.
For more information on activation key examples or upgrading software, refer to the Cisco PIX Firewall and VPN Configuration Guide.
Active Host Limitation
The PIX 501 supports up to 32 DHCP address leases with a 10-user license, up to 128 with an optional 50-user license, and 256 with an unlimited user license. A host is considered active when any of the following statements are true:
•The host has passed traffic through the PIX Firewall during the time configured for the xlate timeout interval
•The host has an established NAT/PAT translation through the PIX Firewall
•The host has an established TCP connection or UDP session through the PIX Firewall
•The host has an established user authentication through the PIX Firewall
Refer to the System Properties>Advanced>Timeouts online Help topic within PDM for the default inactivity timeout values associated with each of the preceding bulleted items.
Restore the Default Configuration
You can restore your configuration back to the factory default values in one of the following ways:
•You can start the Startup Wizard at: https://192.168.1.1/startup.html
•Enter the following CLI commands:
configure factory-default [inside ip address [address_mask]] 1
Erases the running configuration and replaces it with the factory default configuration.
Writes the factory default configuration to Flash memory.
1 If the optional inside IP address and address mask are specified, the factory-default configuration will reflect the specified IP address.
Note The config factory-default command considers both licensing and platform in creating DHCP pool sizes of 32, 128, or 253 for the PIX 501. A user with an unlimited license can manually change the IP address and netmask to increase the DHCP pool size to 256.
Caution Entering the config factory-default command erases the current running configuration.
Refer to the following website for detailed command information and configuration examples:
The Cisco TAC website is available to all customers who need technical assistance. To access the TAC website, go to:
Alternative Ways to Access the PIX 501
You can access the CLI for administration using the console port on the PIX Firewall. To do so, you must run a serial terminal emulator on a PC or workstation.

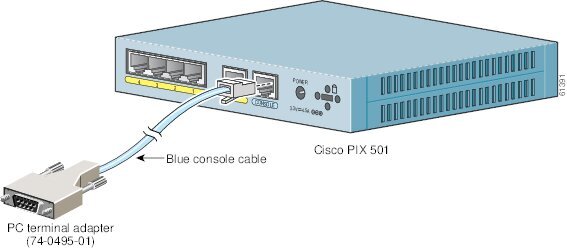

Follow these steps to connect a console for local administrative access:
Step 1 Plug one end of the PC terminal adapter (74-0495-01) into a standard 9-pin PC serial port.
Step 2 Plug one end of the blue console cable (72-1259-01) into the PC terminal adapter.
Step 3 Plug the other end of the blue console cable into the Console port.
Step 4 Configure the PC terminal emulation software or terminal for 9600 baud, 8 data bits, no parity, and 1 stop bit.
For information on how to access the PIX Firewall configuration mode, refer to the "Accessing Configuration Mode" section in Chapter 1, "Getting Started" of the Cisco PIX Firewall and VPN Configuration Guide.
You can also access the CLI using SSH/Telnet to the PIX Firewall. By default, SSH/Telnet access is not permitted. Use PDM or the console to configure SSH/Telnet access to the PIX Firewall. To Telnet to the PIX Firewall from the outside perimeter of the PIX Firewall, configure an outside IP address and IPSec for a secure Telnet session. Refer to the Cisco PIX Firewall and VPN Configuration Guide for more information about how to use the CLI.
Check the LEDs
The LINK/ACT LED indicators on the front panel of the PIX Firewall are normally solid green when a link is established and flashing green when the ports are active. Each inside Ethernet interface (numbered 1 through 4) has two LEDs to indicate the operating speed and that the physical link is established.
Note If all LEDs are operating as expected (see Table 1), this concludes the hardware installation.

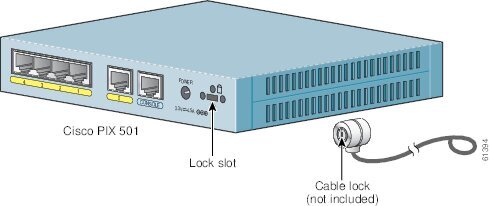

Install a Cable Lock
The PIX 501 includes a slot that accepts standard desktop cable locks to provide physical security for small portable equipment, such as a laptop computer. The cable lock is not included.
Follow these steps to install a cable lock:
Step 1 Follow the directions from the manufacturer for attaching the other end of the cable for securing the PIX Firewall.
Step 2 Attach the cable lock to the lock slot on the back panel of the PIX 501.
