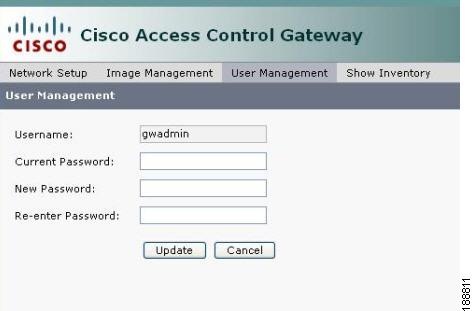

Changing the User Password

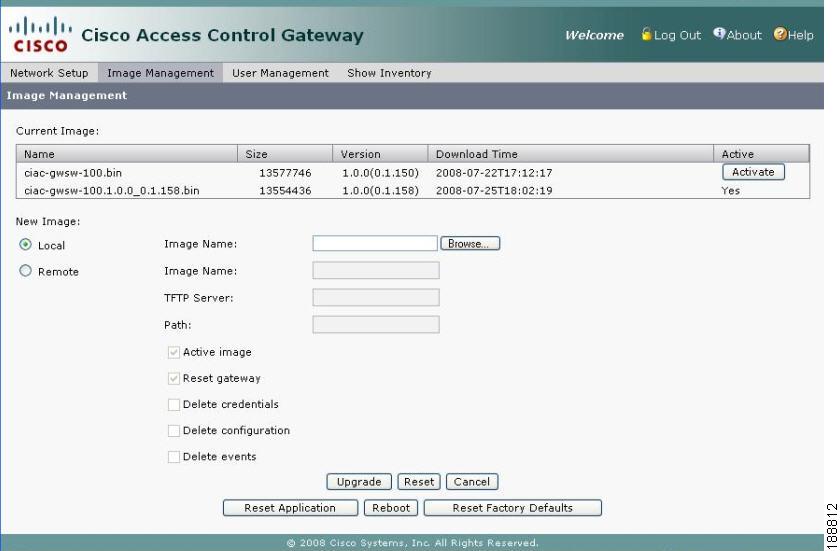

Upgrading the Gateway Firmware Using a Direct Connection

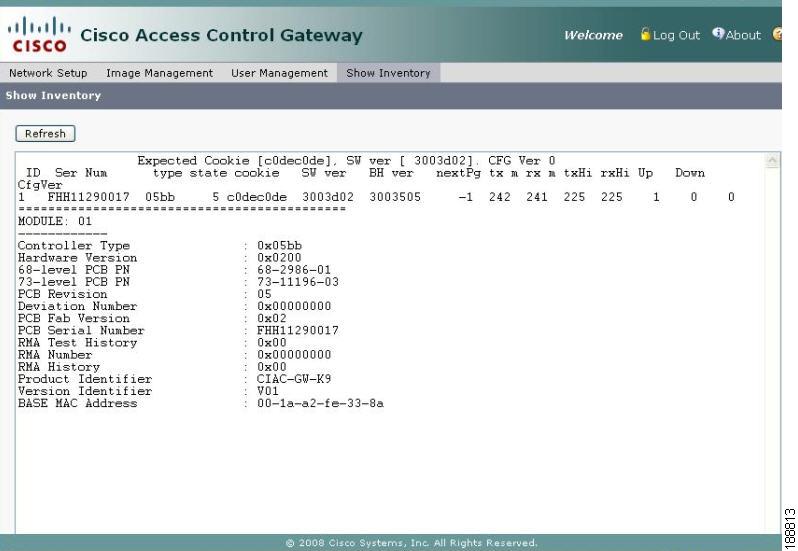

Displaying Serial Numbers and Other Information
Configuring the Gateway Using Cisco Physical Access Manager
Resetting the Cisco Physical Access Gateway
Soft Reset (Powercycle)
Hard Reset (Restore Factory Defaults)
Installing and Configuring the Cisco Physical Access Gateway
Contents
This chapter includes the following information:
•
Overview
•Package Contents
•Physical Overview and Port Description
•Installing the Cisco Physical Access Gateway
•Configuring and Managing the Gateway Using a Direct Connection
–Connecting a PC to the Gateway
–Entering the Gateway Network Settings
–Changing the User Password
–Upgrading the Gateway Firmware Using a Direct Connection
–Displaying Serial Numbers and Other Information
•Configuring the Gateway Using Cisco Physical Access Manager
•Resetting the Cisco Physical Access Gateway
Overview
The Cisco Physical Access Gateway (Figure 2-1) is installed near each door to provide access control and connections for card readers, door locks and other input and output devices. The Gateway is connected to the Cisco Physical Access Manager using an Ethernet connection to the IP network. Power is supplied through a Power over Ethernet (PoE) connection, or using a DC power source. Each Gateway includes connections for up to two Weigand door readers, three input devices, and three output devices. Optional expansion modules are available to add additional doors and devices to the Gateway.
Figure 2-1 Cisco Physical Access Gateway
Package Contents
Each Cisco Physical Access Gateway includes the following:
•Six End-Of-Line (EOL) 1K termination resistors (used for supervised input interfaces)
•Two mounting brackets, with 4 screws for each bracket
•Regulatory compliance and safety information
•Quick Start guide
•Connector plugs, including the following:
Type
|
Quantity
|
10 Pin
|
1
|
3 Pin
|
4
|
2 Pin
|
6
|
Physical Overview and Port Description
Figure 2-2 and Figure 2-3 show the location of each port, including connections for power, Ethernet, door readers and other input and output devices.

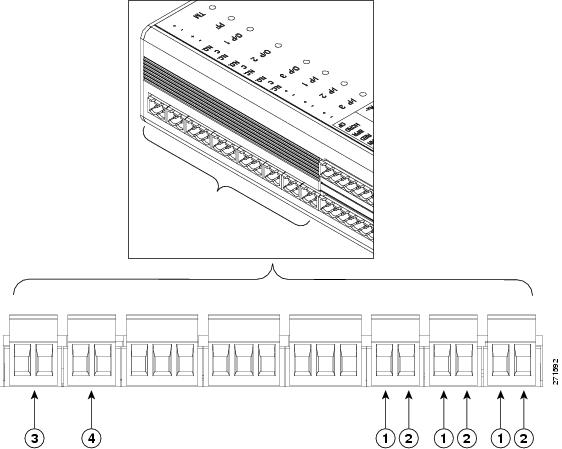

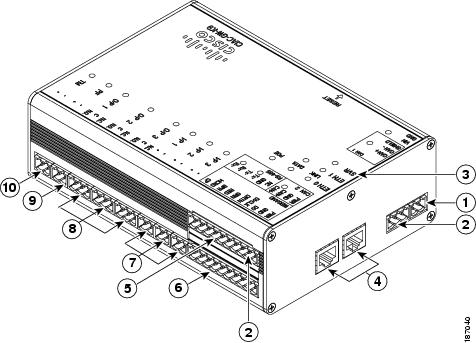

Figure 2-2 Cisco Physical Access Gateway Ports and Connectors: Side View
Figure 2-3 Cisco Physical Access Gateway Ports and Connectors: Top View
The following items are shown in Figure 2-2 and Figure 2-3:
| |
Type
|
Description
|
1
|
Power
|
Two-pin connector for Voltage In (VIN) and Ground (GND) to connect a 12 to 24 VDC external power source.
|
2
|
CAN
|
A three-wire CAN bus is used to connect additional modules, including the Cisco Reader Module, Cisco Input Module, and Cisco Output Module.
Note Modules are connected using the CAN1 interface. The CAN2 interface is not supported in this release.
|
3
|
SVR (Server)
|
When the LED is steady green, the Gateway is connected to a Cisco PAM appliance.
|
4
|
Fast Ethernet interfaces
|
There are two 10/100 BASE-TX RJ-45 connectors:
•ETH 0: connects the Gateway to the network. ETH 0 also supports Power over Ethernet (PoE) for the device (optional).
•ETH 1: connects the device to a PC to access the device configuration web page.
|
5
|
Serial interface
|
The RS-485 interface is not supported in this release.
|
6
|
Weigand interface
|
This interface can be configured as the following:
•One 10-pin Weigand/clock and data reader interface to connect a single door reader.
•Two 5-pin Weigand/clock and data interfaces to connect two door readers (for installations where a 5-pin interface is sufficient).
|
7
|
Input interfaces
|
Three input interfaces used to sense the contact closure. Each input can be configured as supervised or unsupervised and can be configured to sense a Normally Open (NO) or Normally Closed (NC) contact.
•An unsupervised input senses a simple contact closure state, including Normal or Alarm. When connected to open contacts, the terminal voltage range is 4V to 5V. For closed contacts, the voltage range is 0V to 0.7V.
•A supervised input senses four contact states, including Normal, Alarm, Open and Short. These inputs require 1K End-Of-Line (EOL) termination resistors installed at the contacts (two resistors are included in the accessory kits for each Input port).
|
8
|
Output interfaces
|
Three Form C (5A @ 30V) relay output interfaces. Each output connection can be configured as either Normally Closed (NC) or Normally Open (NO).
•C & NO connection: The relay is normally open. The circuit is closed when triggered.
•C & NC connection: The relay is normally closed. The circuit is opened when triggered.
Note Common (C) is always used, and either NC or NO is used to complete the connection.
|
9
|
PF
|
Power fail input: an unsupervised input that raises a "power fail" alarm when the circuit is open. Can be configured as an additional unsupervised port. An unsupervised input indicates only normal or alarm. The corresponding LED is red when circuit is open (when no input is connected).
|
10
|
TM
|
Tamper input: an unsupervised input that raises a "tamper" alarm when the circuit is open. Can be configured as an additional unsupervised port. An unsupervised input indicates only normal or alarm. The corresponding LED is red when circuit is open (when no input is connected).
|
11
|
Reset
|
Resets the device. See Resetting the Cisco Physical Access Gateway for more information.
|
LED Status
Table 2-1 describes the Gateway module status LEDs:
Table 2-1 Gateway LEDs
Status
|
Description
|
SVR
|
Steady Green
|
The Gateway is connected to a Cisco PAM appliance.
|
Input Port LEDs
|
OFF
|
Input is not configured
|
GREEN
|
Input is configured and in normal state
|
BLINKING GREEN
|
Input is configured, and is receiving and alarm or other data.
|
BLINKING RED
|
Input is configured, short
|
RED
|
Input is configured, open
|
Output Port LEDs
|
Off
|
Output not configured
|
Solid Green
|
Output configured and in default state
|
Blinking Green
|
Output configured and active
|
Installing the Cisco Physical Access Gateway
•Before You Begin
•Installation Procedure
Before You Begin
Before you install a Cisco Physical Access Gateway, verify the following:
•Verify that the module has access to a power source. See Power Options and Requirements, page 1-10 for more information.
•Verify that you have the necessary mounting brackets or other hardware. See Mounting a Gateway or Optional Module, page 1-11.
Installation Procedure
To install the Cisco Physical Access Gateway, perform the following procedure:
Step 1 Mount the Gateway to a wall. See Mounting a Gateway or Optional Module, page 1-11 for more information.
Step 2 Connect the Gateway to a power source.
•If using a DC power source, insert a two-pin connector plug into the DC power port (Figure 2-4), and connect the Voltage In (VIN) and ground (GND) wires.
•If using PoE, connect an Ethernet cable from the IP network to the ETH0 port (Figure 2-4).
See Power Options and Requirements, page 1-10 for more information.

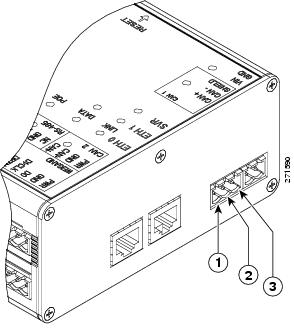

Figure 2-4 Power Connections for the Cisco Physical Access Gateway
The following items are shown in Figure 2-4:
| |
Configuration
|
Description
|
1
|
DC power
GND (ground)
|
Connects the DC ground wire to the Gateway.
|
2
|
DC power
Voltage In (VIN)
|
Connects the DC Voltage In (VIN) wire to the Gateway.
|
3
|
ETH0
for PoE
|
Connects the Ethernet cable from the Layer 2 switch to the Gateway. To use this power option, the switch must support PoE.
|
Step 3 Connect one or two door reader devices to the Weigand interface using one of the following configurations:
•Connect a single door reader using all 10 Weigand interface pins.
•Connect one or two door readers using 5-pin Weigand interface connections (for installations where a 5-pin interface is sufficient).
Figure 2-5 shows the location of the Weigand interface connections.
Table 2-2 describes the connections for 10-pin and 5-pin reader interface connections. The wire connectors from the reader device are shown in parentheses. If attaching a second reader, use the alternative connections shown in the column on the far right.

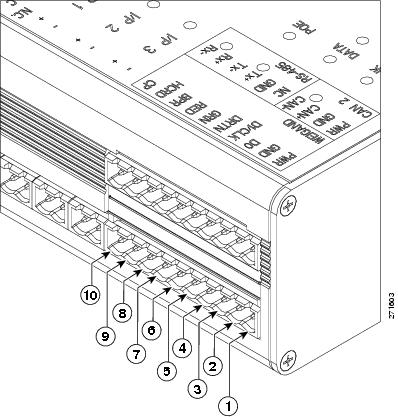

Figure 2-5 Weigand Interface on the Gateway and Reader Modules
Table 2-2 Weigand Reader Wiring for 10 or 5 Pin Connections
| |
Chassis Label
|
Description
|
One Reader
10 Wire Connection
|
First Reader in a
5 Wire Connection
|
Second Reader in a
5 Wire Connection
|
1
|
PWR
|
+12v
|
PWR (red) 1
|
PWR (red)
|
PWR (red)
|
2
|
GND
|
Ground
|
GND (black)
|
GND (black)
|
GND (black)
|
3
|
D0
|
Data 0
|
D0 (green)
|
D0 (green)
|
----------
|
4
|
D1/CLCK
|
Data 1
|
D1/CLCK (white)
|
D1/CLCK (white)
|
----------
|
5
|
DRTN
|
Shield
|
DRTN (shield)
|
DRTN (shield)
|
DRTN (shield)
|
6
|
GRN
|
Output 2
|
GRN (orange)
|
GRN (orange)
|
----------
|
7
|
RED
|
Output
|
RED (brown)
|
---------- 3
|
GRN (orange)
|
8
|
BPR
|
Output (Beeper)
|
BPR (yellow)
|
----------
|
----------
|
9
|
HCRD
|
Hold Control
|
HCRD (blue)
|
----------
|
D1/CLCK (white)
|
10
|
CP
|
Card Present
|
CP (purple)
|
----------
|
D0 (green)
|
Step 4 Connect input devices to the Gateway:
a. Insert two-pin connector plugs into the input ports (see Figure 2-7).
b. (Optional, for supervised input connections only). Install two End-Of-Line (EOL) 1K termination resistors in each supervised input interface (one terminator in each connector). Figure 2-6 shows the terminator installation for a Normally Closed (NC) and Normally Open (NO) input connection.
Figure 2-6 Input Connections: Cisco Physical Access Gateway and Reader Module
c. Connect the wires from the input devices (see Figure 2-7).
Note Each of the input connections can be configured as supervised or unsupervised. The tamper and power fail inputs can be configured as additional unsupervised ports. A supervised input supports four states: normal, alarm, open and short. An unsupervised input indicates only normal or alarm.
Figure 2-7 Input Connections: Cisco Physical Access Gateway and Reader Module
The following items are shown in Figure 2-7:
| |
Configuration
|
Description
|
1
|
Positive Input Connections
|
Positive connection to an Input device.
|
2
|
Ground Input Connections
|
Ground connection to an Input device.
|
3
|
TM
|
Tamper input: an unsupervised input that raises a "tamper" alarm when the circuit is open. Can be configured as a general input device using the Cisco Physical Access Manager. An unsupervised input indicates only normal or alarm. The corresponding LED is red when circuit is open (when no input is connected).
|
4
|
PF
|
Power fail input: an unsupervised input that raises a "power fail" alarm when the circuit is open. Can be configured as an additional unsupervised port. An unsupervised input indicates only normal or alarm. The corresponding LED is red when circuit is open (when no input is connected).
|
Step 5 Connect output devices to the Gateway (Figure 2-8). Each of the three Form C (5A @ 30V) relay output connections can be configured as either Normally Closed (NC) or Normally Open (NO).
a. Insert three-pin connector plugs into the output ports.
b. Connect the wires from the output devices.
–Common (C) is always used, and either NC or NO is used to complete the connection.
–If the relay is normally open, use the C & NO connections. The circuit is closed when triggered.
–If the relay is normally closed, use the C & NC connections. The circuit is opened when triggered.
Figure 2-8 Output Connections: Cisco Physical Access Gateway and Reader Module

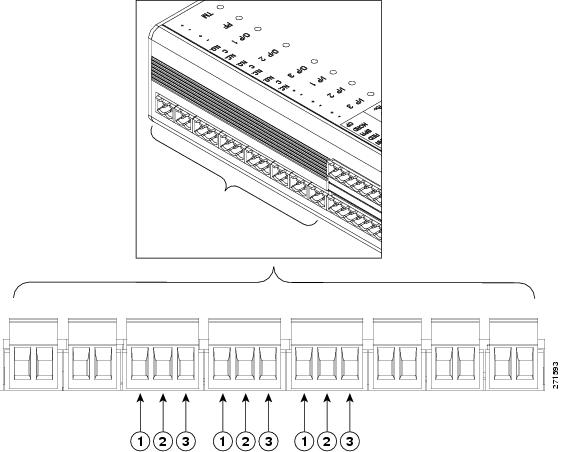

The following items are shown in Figure 2-8:
1
|
Normally Open (N.O.) connection
|
3
|
Normally Closed (N.O.) connection
|
2
|
C
|
|
|
Step 6 Connect optional expansion modules to the Gateway, if necessary:
a. Insert a three-pin connector plug into the CAN1 port, as shown in Figure 2-9.
b. Connect the CAN wires to the CAN bus, as shown in Figure 2-10.
c. On the last device in the CAN bus, set the CAN terminator switch to ON. The CAN terminator switch in included on the Reader, Input and Output modules only (the Gateway is always the first device in the CAN bus). Set the terminator switch to OFF for all other modules in the CAN bus.
Note Modules are connected using the CAN1 interface. The CAN2 interface is not supported in this release.
Figure 2-9 CAN1 Connections: Cisco Physical Access Gateway and Reader Module
The following items are shown in Figure 2-9:
| |
Connection
|
Description
|
1
|
CAN+
|
Connects to the positive terminal of the CAN bus.
|
2
|
CAN-
|
Connects to the negative terminal of the CAN bus.
|
3
|
Shield
|
Connects to GND and/or Shield.
|

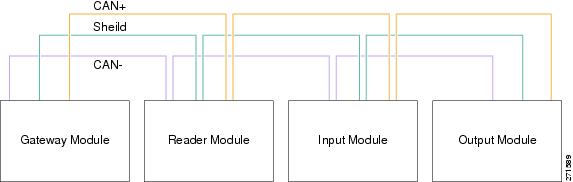

Figure 2-10 CAN Bus Wiring
Note On the last device in the CAN bus, set the CAN terminator switch to ON. The CAN terminator switch in included on the Reader, Input and Output modules only (the Gateway is always the first device in the CAN bus).
Step 7 Connect the Gateway to the IP network by connecting an Ethernet cable to the ETH0 port, as shown in Figure 2-11.

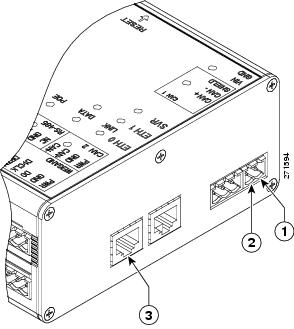

Figure 2-11 ETH 0 Ethernet Connection for the Cisco Physical Access Gateway
The following items are shown in Figure 2-11:
| |
Port
|
Description
|
1
|
ETH0
|
Ethernet port for connecting the Gateway to the IP network.
Note The ETH0 connection can also be used for Power over Ethernet.
Note The ETH1 port is used to connect a PC to the Gateway for configuration and monitoring. See Configuring and Managing the Gateway Using a Direct Connection for more information.
|
Step 8 Continue to Configuring the Gateway Using Cisco Physical Access Manager.
Configuring and Managing the Gateway Using a Direct Connection
To enable the Gateway communication with the Cisco PAM appliance, connect a PC to the ETH1 port and use a web browser to enter basic network settings, as described in this section. You can also use the web administration tool to perform basic administration and monitoring tasks, such as upgrading the module firmware or displaying the module serial number.
This section includes the following information:
•Connecting a PC to the Gateway
•Entering the Gateway Network Settings
•Changing the User Password
•Upgrading the Gateway Firmware Using a Direct Connection
•Displaying Serial Numbers and Other Information
Connecting a PC to the Gateway
To enter the initial Gateway settings or perform other administration tasks, connect a PC to the Gateway Eth1 port and use a web browser to access the administration pages, as described in the following steps:
•Before You Begin
•Log On to the Gateway Administration Tool
Before You Begin
To configure a Cisco Physical Access Gateway, you need the following:
•A PC and web browser.
The Cisco Physical Access Gateway supports Internet Explorer 6.0 and higher, or Mozilla Firefox 2.0 and higher.
•A Ethernet cable to connect your PC to the Gateway.
Cross-over and straight-through cables are supported.
•Your PC must be configured to connect to the 192.168.1.0 network using Ethernet. Use any static host address on the network other than 192.168.1.42.
•Power connected to the Cisco Physical Access Gateway.
See Installing the Cisco Physical Access Gateway for more information.
In addition, gather the following information:
•The IP Address of the Cisco PAM appliance.
•You can use a DHCP server to assign an IP address for the Gateway.
If a DHCP server is not used, gather the Cisco Physical Access Gateway IP address, IP gateway, subnet mask.
•The domain name server (DNS) for the Gateway if names (not IP addresses) are used for the NTP or CPAM addresses.
Log On to the Gateway Administration Tool
Step 1 Connect an Ethernet cable from a PC to the ETH1 interface on the Gateway module.
•See Physical Overview and Port Description for the port location.
•Be sure to connect your PC to the ETH1 port. The ETH0 port is used for network communication.
•Your PC must be configured to connect to the 192.168.1.0 network using Ethernet. Use any static host address on the network other than 192.168.1.42.
Step 2 Open a web browser on your PC and enter https://192.168.1.42. to access the web-based administration pages.

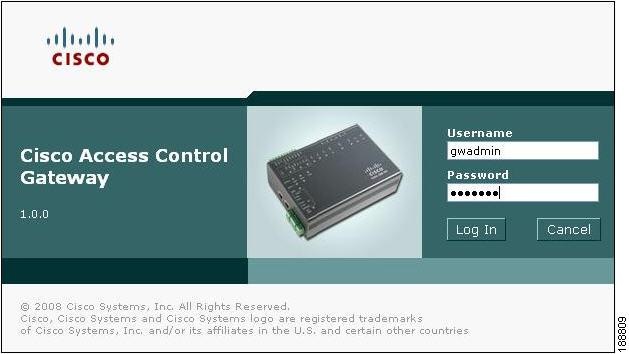

Step 3 Enter the default username and password (Figure 2-12).
default username: gwadmin
default password: gwadmin
Figure 2-12 Initial Setup for the Cisco Physical Access Gateway
The web administration pages appear, and are described in the following sections.
Entering the Gateway Network Settings
Enter the network settings to enable IP communication between the Gateway and the Cisco PAM appliance. Network settings include the following:
•Eth0 Configuration for IP network connectivity with the Cisco PAM appliance.
•DNS Configuration if names (not IP addresses) are used for the NTP or CPAM addresses.
•Cisco PAM Configuration to define the IP address and port of the Cisco PAM appliance used to manage the Gateway.
Tip Gateway modules can be added to the IP network before or after the full module configuration is entered in Cisco PAM. For more information, see the User Guide for Cisco Physical Access Manager.
Complete the following steps for each Gateway in the system.
Enter the Network settings, as shown in Figure 2-13.

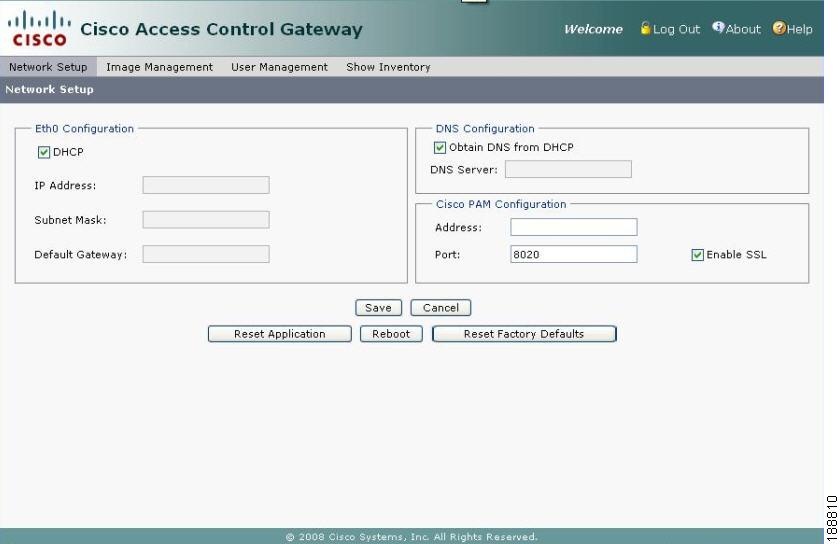

Figure 2-13 Network Settings for the Cisco Physical Access Gateway
Step 1 Enter the ETH0 Configuration settings. The ETH0 port is used for network communications with the Cisco PAM appliance.
a. If a Dynamic Host Configuration Protocol (DHCP) server is configured on your IP network, select the DHCP check box for ETH0 to automatically configure the required IP network settings, including IP address, Subnet Mask, and Gateway. The DHCP check box is selected by default.
b. (Optional) If a DHCP server is not used to assign IP address settings, enter the following information in the ETH0 fields:
–IP address: Enter the IP address of the Cisco Physical Access Gateway.
–Subnet Mask: Enter the subnet mask.
–Gateway: Enter the IP gateway address.
Step 2 (Optional) Enter the DNS Configuration settings if names (not IP addresses) are used for the CPAM address.
a. Select the checkbox for Obtain DNS from DHCP.
b. Enter the DHCP Server address.
Step 3 Enter the Cisco PAM Configuration:
a. Enter the Cisco PAM IP address (IP address or name) to enable Gateway communication with the appliance.
b. Enter the port number for the Cisco PAM appliance. The port number must be greater than 1024 and less 65535. The default is 8020.
Tip DHCP can also be configured to supply the Gateway with the IP address of the Cisco PAM appliance by configuring option 150 in the DHCP response. The Cisco PAM appliance TCP port number can be provided by DHCP option 151 of the DHCP response.
c. Enable SSL: The secure socket layer (SSL) is enabled for secure communication between the Gateway and Cisco PAM appliance by default. If necessary SSL can be disabled by deselecting the Enable SSL check box.
Note SSL is enabled or disabled for all Gateways and the Cisco PAM appliance. Cisco Systems recommends that SSL always be enabled to ensure secure communications. If the SSL settings are changed, you must reset all Gateways and the Cisco PAM appliance.
Step 4 Click Save to save the settings. Wait until the Gateway resets and the web browser displays the screen Network Settings Applied.
Note Changes do not take effect until saved.
Step 5 Repeat these steps for each Gateway in the system.
Step 6 Perform additional configuration, verification, and monitoring tasks as described in the User Guide for Cisco Physical Access Manager.
Changing the User Password
To change the user password used to log in to the web administration tool, do the following:
Note The Username cannot be changed.
Step 1 Select the User Management tab, as shown in Figure 2-14.
Figure 2-14 User Management for the Cisco Physical Access Gateway
Step 2 Enter the Current Password.
Step 3 Enter the New Password.
Step 4 Re-enter the new password to verify the setting.
Step 5 Click Update to save the changes.
Upgrading the Gateway Firmware Using a Direct Connection
This section includes instructions to upgradethe Gateway firmware using a PC directly connected to the Gateway module. For instructions to upgrade firmware from the Cisco PAM appliance. See User Guide for Cisco Physical Access Manager for more information.
To upgrade the Gateway firmware from a PC directly connected to the module, do the following:
Step 1 Log on to the Gateway administration tool, as described in Connecting a PC to the Gateway.
Step 2 Select the Image Management tab, as shown in Figure 2-15.
Figure 2-15 Image Management for the Cisco Physical Access Gateway
Step 3 The Current Image field displays a list of the firmware images currently loaded on the Gateway module. The image marked Yes in the Active column is the currently active image. To change the active image, click the Activate button for a different firmware image.
Step 4 Upload a new firmware image from a file located on a local disk or on a remote TFTP server:
Option 1: Local Disk
To upload a firmware file from a local on the connected PC:
a. Select the Local radio button under New Image.
b. Click the Browse button to navigate the local drive and select a file. The file appears in the top Image Name field. You can also enter the directory path and filename manually.
Option 2: Remote TFTP Server
To upload a firmware file from a remote TFTP server:
a. Select the Remote radio button under New Image.
b. Enter the TFTP Server IP address.
c. Enter the directory Path on the TFTP server for the firmware image. Be sure the path and filename are valid. The administration tool does not verify remote server paths.
Tip The directory path and filename for the remote image displays in the second Image Name field. You can also enter the path and filename manually.
d. Select the options that will occur after the image is loaded to the Gateway:
–Active image: (check by default) make the firmware file new active image.
–Reset Gateway: (checked by default) perform a soft reset to powercycle the module. See Soft Reset (Powercycle) for more information.
–Delete credentials: delete the module credentials.
–Delete configuration: delete the module configuration. The configuration is automatically reloaded when the module established communication with the Cisco PAM appliance.
–Delete events: delete all events stored on the module.
Step 5 Click Upgrade to copy the firmware image to the Gateway module and perform the selected options (if any).
Displaying Serial Numbers and Other Information
Use the Show Inventory window to display the module serial number and other information.
Step 1 Log on to the Gateway administration tool, as described in Connecting a PC to the Gateway.
Step 2 Select the Show Inventory tab, as shown in Figure 2-16.
Figure 2-16 Show Inventory Window for the Cisco Physical Access Gateway
Tip The serial number is also displayed on the back of the module. To view the serial number in Cisco PAM, open the Hardware module device view, right-click on the Gateway Controller, and select Edit to view the module properties.
Configuring the Gateway Using Cisco Physical Access Manager
After the initial Gateway configuration is complete, use the The Cisco Physical Access Manager appliance for advanced configuration of all Gateways and other components in the system.
Tip You can configure the Gateway modules in Cisco PAM before or after they are added to the IP network. For more information, see the User Guide for Cisco Physical Access Manager.
Resetting the Cisco Physical Access Gateway
Reset the Gateway to powercycle the module, restore the factory settings, or delete the stored logs and other data. The effect of the restart depends on the type of restart your perform, as described in the following sections. You can reset the module using the physical button on the side of the module, or in software using either the web administration tool or the Hardware device view in Cisco PAM.
•Soft Reset (Powercycle)
•Hard Reset (Restore Factory Defaults)
Note See Physical Overview and Port Description for the location of the Reset button.
Tip You can also use the to reset the device or restore the factory default settings.
Soft Reset (Powercycle)
Use the soft reset to powercycle the Cisco Physical Access Gateway. A soft reset reloads the device firmware to clear any software issues, but does not impact stored data. The password, logs and other information are retained.
Use one of the following methods to perform a soft reset:
•Hardware reset button: Press and release the reset button once. See Figure 2-2 ("Cisco Physical Access Gateway Ports and Connectors: Side View").
•Gateway web administration tool: Follow the instructions in Configuring and Managing the Gateway Using a Direct Connection to connect a PC to the Gateway, and click the Reset button at the bottom of the screen.
•Cisco PAM: Open the Hardware module from the Doors menu and right-click on the Gateway Controller (blue icon). Select Reset from the menu.
Hard Reset (Restore Factory Defaults)
A hard reset deletes all information on the device, including log and event data, and resets the password and all other configurations to the factory default. Any custom configurations previously entered on the device are removed.
Note the following:
•Allow five to 10 minutes for the hard reset erase operation to complete.
•Do not disconnect power from the module until the hard reset erase process is complete. Loss of power during a hard reset can result in equipment malfunction.
•The SVR LED flashes throughout the erase operation.
•The module reboots with the existing firmware image after the hard reset is complete.
Use one of the following methods to perform a hard reset:
•Hardware reset button: Press reset button three times in succession. See Figure 2-2 ("Cisco Physical Access Gateway Ports and Connectors: Side View").
•Gateway web administration tool: Follow the instructions in Configuring and Managing the Gateway Using a Direct Connection to connect a PC to the Gateway, and click the Restore Factory Defaults button at the bottom of the screen.
Feedback
