Delegated Administration


This section of the PAP console is used to delegate all or any of the activities performed by the superuser to one or more PAP Users. This chapter the explains various operations that you can perform under the Delegated Administration section in the PAP administration console, such as:

PAP User Management—Create PAP users, delegate authority, and assign responsibilities to them.

PAP Group Management—Create PAP group and define the group's composition by mapping users to the group.

PAP Role Management—Create PAP roles and describe the functions of each role.

Manage Entitlements—Configure authorization policies on the various PAP functionalities.

Delegate Operation—Delegate PAP roles to utilize all or any PAP features for a selected application group or application.

You can create users equivalent to superuser or users with limited administrative authority over the PAP console under this section. After creating PAP users other than the superuser, the superuser can distribute the PAP administration authority among multiple PAP users either directly or indirectly by defining a group or role. For example, you can create a PAP user called Mary with partial authority to administer only the Auditing and Reporting section of the PAP for an application group or application. This is possible when Mary is mapped to one of the default roles called Auditor before delegating this role to the appropriate application. When Mary logs in to the PAP console, Mary can only access the Auditing and Reporting section. In this way, you can create and update any number of user profile under this section.


Note Concurrent PAP Access by two or more PAP Users: This note explains the expected behavior of the PAP when two PAP users with equal privileges make concurrent login to the PAP in two different browsers. For example, consider a situation where two PAP Superusers, User1 and User2 access the PAP from two different browsers, Browser1 and Browser2. User1 adds an application in Browser1. At the same time, User2 cannot view the newly created application in the `Select Application' drop-down box in Browser2, but User2 can view that new application in the List Application page. To perform any task under the new application, User2 must re-login to the PAP in Browser2.


PAP User Management

A PAP user is an administrator who can have full or partial control over managing the PAP console. The superuser can carry out the following functions related to the management of PAP users:

Search for users

Create or update user

Delete a user

Clone a user

View roles and groups to which the user belongs

Import users

Export users

Listing or Searching for Users

To view a list of PAP users or search for a PAP user, you must:


Step 1 Choose Delegated Administration > Users.

User Management page is displayed, which contains a list of PAP users.

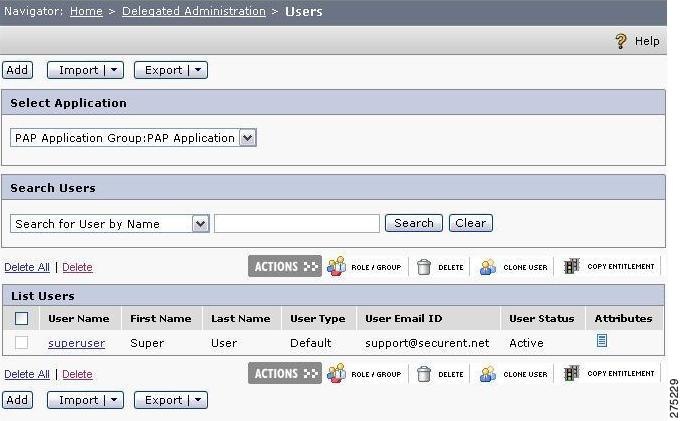

Figure 8-1 Delegated Administration - Users

Step 2 Search for a particular user in the Search section.

Figure 8-2 Search User

This section allows you to search for specific users depending upon the search criteria that can be selected from the list box on the left and the search value that can be entered in the text box beside the search criteria list. You can use any of the following search criteria to search for users:

Search for User by User Name

Search for User by First Name

Search for User by Last Name

Search for User by Email Id

Enter the value to search in the text box that is next to the search criteria list. You can also use the asterisk wild card character (*), as part of the search value.

For example, to get a list of all the users having M as the first character in their first name, select the search criteria, Search for User by First Name, enter a search value of M*, and click Search. The list of users who match the search criteria and search value is displayed in the List Users section. The following is a sample search result.

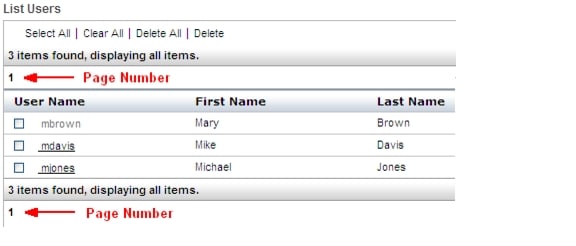

Figure 8-3 Sample search result

If the search result contains more than 50 users, then the list of users span more than one page. In that case, the list will show multiple page numbers in a sequence starting from 1 (1 2 3...). You can navigate to a particular page by clicking the page number (see the red arrow in the preceding figure).

Step 3 Click Clear to clear the value entered in the search value text box.


Creating or Updating a User

To create/update a PAP user, you must:


Step 1 Choose Delegated Administration > Users.

The User Management page is displayed.

Step 2 To create a new user, click Add. To edit the information of an existing user, click the user name.

The Create/Update User page is displayed.

Figure 8-4 Create User

Step 3 Enter the following information in this page for creating the user:

User Name—Unique name for this user. It is important to note that no user can be created with the same name as that of a PEP user created under the Global level, application group, or application level. For example, if a user called Mary is created under an application in Home > Manage Entities > User > Create User, you cannot create a PAP user with the same name Mary in Home > Delegated Administration > User > Create User.


Note The user names have a limitation of 100 characters and the special characters allowed are hash(#), dollar($), ampersand(&), parenthesis[()], less than(<), greater than(>), tilde(~), apostrophe('), plus(+), slash(/), asterisk(*), hypen(-), underscore(_), and at sign(@).


First Name—First name of the user.

Last Name—Last name of the user.

User Status—Set it to Active. If set to InActive, then this user is not allowed to access any of the resources.

Email ID—Email Id of the user.

Password and Re-type Password—Password for the user.

Step 4 Click Save to save the information in the PAP.

Step 5 To assign this user to a role, group, or resource on this page, click Next or click the appropriate tab, Assign Roles, Assign Groups, or Assign Resources.

Step 6 Click Done after you have created/updated the user information and assigned it to appropriate roles, groups, or resources.


Note Assigning a new user to roles, groups or resources is not mandatory on this page. This operation can also be done later using any of the following methods after the user is successfully created in the PAP.


1. Choose Delegated Administration > Users, check the check box that is beside the user name for which you want to assign roles, groups, or resources. Click Edit. The Create/Update User page is displayed. Click the appropriate tab, Assign Roles, Assign Groups, or Assign Resources, to assign this user to appropriate roles, groups, or resources. You can also click Next to navigate through these tabs one by one.

2. Choose Delegated Administration > Entity Assignments page. Click the Add Users to Roles and Add Users to Groups links to add the users to the appropriate roles and groups respectively.


Assigning Groups to a User

After creating a user, you can assign groups to it.

To assign groups to a user, you must:


Step 1 On the Create/Update Users page, click the Assign Groups tab.

The Assign Groups page is displayed.

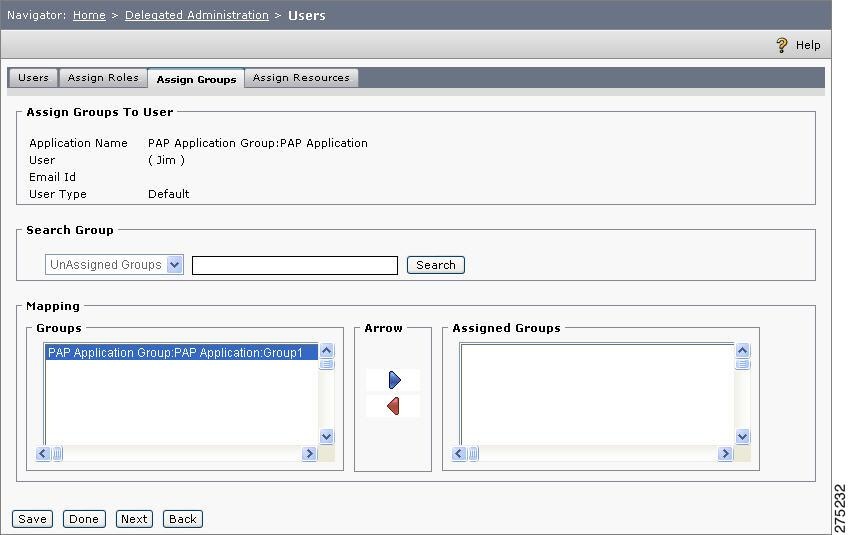

Figure 8-5 Assign Groups to Users

The Assign Group page contains two list boxes. The Groups list box contains the groups that are not assigned to the user. The Assigned Groups list box contains the groups that are assigned to the user.

Step 2 To assign a group to the user, select that group in the Groups list box and click the Assign icon. The selected group is moved from the Groups list to the Assigned Groups list.

Step 3 To unassign the assigned groups in the Assigned Groups list box, click the group name and click the Unassign icon. The selected group is unassigned and it moves from the Assigned Groups list to the Groups list.

Step 4 Click Save or Done to complete the user-group association operation.


Assigning Roles to a User

After creating a user, you can assign roles to the user. To assign roles to a user, you must:


Step 1 On the Create/Update Users page, click the Assign Roles tab.

The Assign Roles page is displayed.

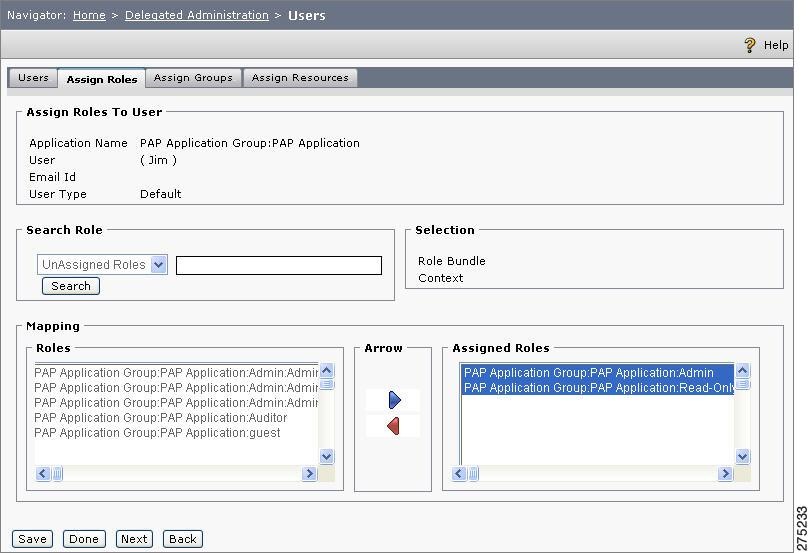

Figure 8-6 Assign Roles to Users

The Assign Role page contains two list boxes. The Roles list box contains the roles that are not assigned to the user. The Assigned Roles list box contains the roles that are assigned to the user.

Step 2 To assign a role to the user, select that role in the Roles list box and click the Assign icon. The selected role is moved from the Roles list to the Assigned Roles list.

Step 3 To unassign the assigned roles in the Assigned Roles list box, click the role name and click the Unassign icon. The selected role is unassigned and it moves from the Assigned Roles list to the Roles list.

Step 4 Click Save or Done to complete the user-role association operation.

In Delegated Administration, if a user is mapped to a role that has a parent role, the user inherits all the permissions granted to the parent role. For example, if a PAP Role, Role1 has view, create, delete, and update actions allowed on the following:

PAP Application Group

PAP Application

Delegated Administration

Entity Assignment

Add User To Role

This allowed permission is given at resource level and not at action level. Another PAP Role "Role2" is defined under the role "Role1". This role has only View actions allowed on Add User To Role functionality in DA Entity Assignment. A PAP user "Mary" is assigned to role, "Role2". When "Mary" logs in to the PAP-GUI and clicks on Add Users To Roles link, Mary can map users to any Role. Even though Role2 has only view permission, Mary is able to map User to Role because Role2 inherits this permission from Role1.


Assigning Resources to a User

After creating a user, you can assign resources to the user.

To assign resources to a user, you must:


Step 1 On the Create/Update Users page, click the Assign Resources tab.

The Assign Resources page is displayed.

Figure 8-7 Assigning Resources to a User

The Assign Resources page contains three list boxes. The Resources list box contains the resources that are not assigned to the user. On the right side, the Allowed Resources and Denied Resources list boxes contain the resources that are assigned to the user, with the Allowed permission or the Denied permission.

Step 2 To assign a resource to the user with Allowed permission, select that resource in the Resources list box and click the Assign Allowed Resources icon. The selected resource is moved from the Resources list to the Allowed Resources list.

Step 3 To assign a resource to the user with Denied permission, select that resource in the Resources list box and click the Assign Denied Resources icon. The selected resource is moved from the Resources list to the Denied Resources list.

Step 4 To unassign the assigned resources in the Allowed Resources or Denied Resources list box, click the resource name and click the Unassign icon. The selected resource is unassigned and is moved from the Allowed Resources or Denied Resources list to the Resources list.

Step 5 To configure the Policy Combining Algorithm and edit the existing policy, select the assigned resource and click the appropriate icon near the actions label:

a. Edit Policy: Click the Edit Policy icon. The pop-up page for editing the policy information is displayed. For more information, refer to Edit Policy Configurations, page 5-7.

b. Configure Policy Combining Algorithm: Click the Policy Combining Algorithm icon. The pop-up page for configuring the Policy Combining Algorithm is displayed. For more information, refer to Policy Combining Algorithm, page 5-4.

Step 6 Click Save or Done to complete the user-resource association operation.


Assigning Multiple Users to Roles

You can assign multiple users to a role in the PAP.

To assign multiple users to a role in the PAP, you must:


Step 1 Choose Delegated Administration > Entity Assignments > Add Users to Roles.

The Assign Users to Roles page is displayed.

All the PAP users and PAP roles are displayed in the Users section and Roles section respectively. You can click the expand link to view all the users and roles that are in the list.

Figure 8-8 Add Multiple Users to Roles

Step 2 Search for a particular user or for a particular role by entering the appropriate search criteria and search value in the Search section for Users and Roles.

Step 3 From the Users list, check the check boxes for the users for whom the roles need to be assigned.

Step 4 In the Roles list, click the Map Users icon next to the role name to which you want to assign the selected users.

This completes the mapping of the selected users to the selected roles.

You can also view the users that are assigned to a role by clicking the List Users icon near that role name.


Assigning Multiple Users to Groups

You can assign multiple users to a group in the PAP.

To assign multiple users to a group in the PAP, you must:


Step 1 Choose Delegated Administration > Entity Assignments > Add Users to Groups.

The Assign Users to Groups page is displayed.

All the PAP users and PAP groups are displayed in the Users section and Groups section respectively. You can click the expand link to view all the users and groups that are in the list.

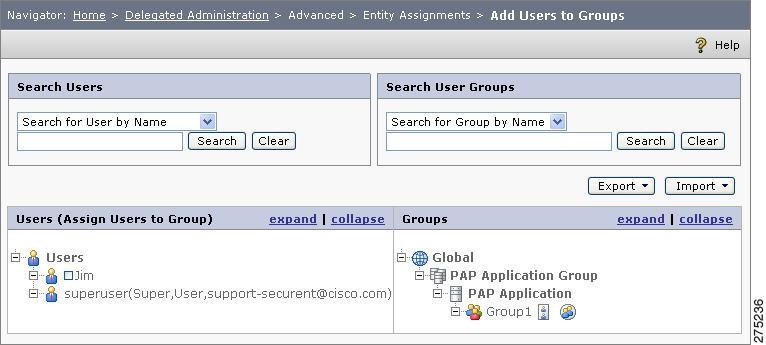

Figure 8-9 Assigning Multiple Users to Groups

Step 2 Search for a particular user or for a particular group by entering the appropriate search criteria and search value in the Search section for users and groups.

Step 3 From the Users list, check the check boxes for the users for whom the groups need to be assigned.

Step 4 In the Groups list, click the Map Users icon next to the group name to which you want to assign the selected users.

This completes the mapping of the selected users to the selected groups.

You can also view the users that are assigned to a group by clicking the List Users icon near that group name.


Deleting a User

PAP User Management allows you to delete PAP users from the PAP console:

A single user can be deleted by checking the check box next to the user name and clicking either the Delete button or the Delete link.

Multiple users can be deleted by selecting the check boxes next to each user and clicking the Delete button/link.

All the users on the List Users page can be deleted by clicking the Select All link and clicking the Delete button/link.

All the users can be deleted by clicking the Delete All link.

Click the Clear All link to unselect all the check boxes that are adjacent to all the user names.

Cloning a User

A cloned user inherits the membership of all the user groups and roles to which the parent user belongs. All the attributes and properties of the parent user get copied to the cloned user. But the policies created on the parent user's role and parent user's group are not inherited by the cloned user.

To create a clone of an existing user in the User Management page, you must:


Step 1 Choose Delegated Administration > Users.

The User Management page is displayed.

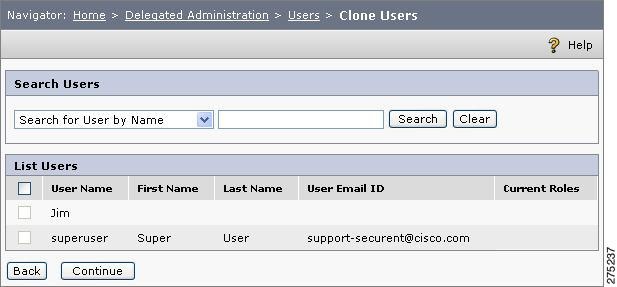

Figure 8-10 Clone Users

A list of all the PAP users is displayed. Search for the user that you want to clone.

Step 2 From the List Users section, check the user's check box whose clone you want to create (parent user) and then click the Clone User icon.

A page is displayed where you can search of the user whom you want to make as a clone of the parent user.

Step 3 From the List Users section, check the check box for the user whom you want to make as the clone of the parent user and click Continue.

The Clone Confirmation page is displayed containing the summary of the users who are selected for the cloning process. This page also provides you with an option to override existing roles. If you select Yes for the OverRide Existing Roles, the cloned user's existing role memberships are deleted and the parent user's role memberships are copied to the cloned user. If you select No, for the OverRide Existing Roles, the cloned user retains the existing role memberships and in addition also inherits the parent user's role memberships.

Step 4 Click Save to complete the cloning process or click Back to modify the users that are selected for the cloning process.


Viewing Role and Group Memberships of a User

You can view the role and group memberships of a user in the PAP User Management page.

To view the role and group memberships of a user, you must:


Step 1 Choose Delegated Administration > Users.

The User Management page is displayed.

A list of all the PAP users is displayed. Search for the user whose role and group memberships you want to see.

Step 2 From the List Users section, click the user name link for the user whose role and group memberships you want to see.


Importing Users

In the Delegated Administration tab, you can import PAP users from an XML file or from an LDAP server into the PAP Application Group or PAP Application.

To import the users, choose Delegated Administration > Users.

The User Management page is displayed, which contains the Import button for importing users.

Figure 8-11 Importing Users

The PAP provides the functionality of importing the users information from:

XML file

LDAP/AD

Import Users from an XML file

You must enable LDAP Authentication in the pap_config.xml file so that users who are imported from an LDAP server can log in to CEPM. Refer to the CEPM PAP Configuration Guide for more information on LDAP Authentication. To import users from an XML file, you must:


Step 1 On the User Management page, from the Import menu, choose From XML. A dialog box for importing the users Information from XML file is displayed.

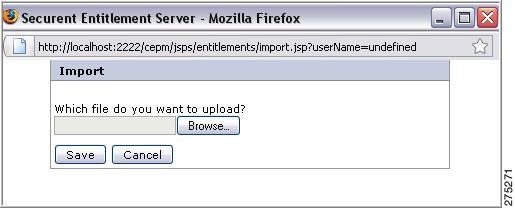

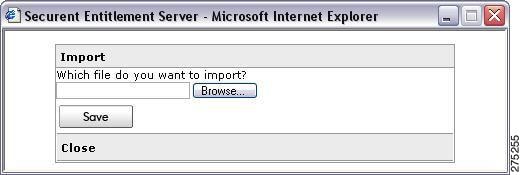

Figure 8-12 Importing Users from XML File

Step 2 Browse for the XML file, select it, and click Save. This will create the users into PAP.


Import Users from LDAP/AD

When PAP users are imported from LDAP, the passwords (values stored in LDAP) do not get imported. CEPM uses the username as password. When the PAP users log in to the PAP console, user authentication is done through LDAP or CEPM DB. To make use of the former, enable LDAP Authentication feature using <uiauth type="ldap"> tag available in the pap_config.xml. (Refer to Appendix B, "PAP User Login Authentication Using LDAP and SSO" for more information). If this feature is not enabled, you can use the default password or reset the password by editing the PAP Users.


Note Before importing users into PAP, a user attribute source needs to be created. Refer to Delegated Administration > External Attribute Sources > User Attribute Sources for more details about creating the user store.


To import users from an LDAP/AD server, you must:


Step 1 On the User Management page, from the Import menu, choose From LDAP/AD.

The User Import page for selecting the user store for importing users is displayed.

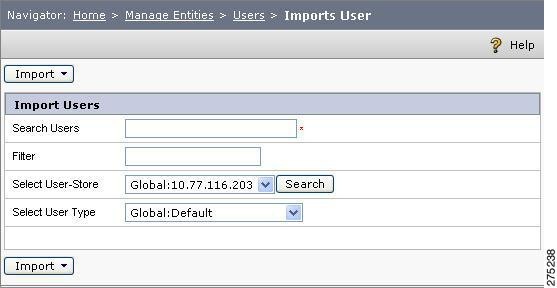

Figure 8-13 Import Users from LDAP/AD

Step 2 Select the user type (by default Global:Default is selected) and the appropriate user store.

Step 3 Enter the LDAP tree structure for user identification in the Search Users text box and enter the value for Filter parameters.


Tip Different tree structures and filter parameters prescribed for different types of LDAP servers are given below.


Sun One Server:

Search Users: ou=people,ou=external,dc=cepm,dc=in

Filter: &(uid=p*)(mail=p*)) or uid=p*

Novell eDirectory Server:

Search Users: cn=people,o=cepm-net

Filter: cn=b*

Active Directory 2000 Server:

Search Users: ou=people,ou=users, dc=win2k-ad,dc=cepm,dc=net

Filter: cn=p* or sAMAccountName=* or sAMAccountName=v* Dont Specify the '(' or ')' or '&'

In the Search Users, field base directory to search, for example, ou=people,ou=external,dc=cepm,dc=net. For a refined search, you can also specify the filter as uid=s* in the Filter field.

Step 4 Click Search. All the users who match these Search and Filter criteria are displayed in the List Users section.

Step 5 Click Import > All, to import all the displayed users into the PAP. To import a few users, select the users in the List Users section and click Import > Import Selected.


Export Users

From the User Management page, you can export PAP users to a Microsoft Excel file or to an XML file.

To export users, choose Delegated Administration > Users.

The User Management page is displayed.

The User Management page contains the Export button for exporting users.

Figure 8-14 Export Users

The PAP provides the functionality of exporting the user information to:

Microsoft Excel file

XML file


Export Users to an MS Excel File

To export users to an Excel file, you must:


Step 1 On the User Management page, from the Export menu, choose To Excel. A dialog box for opening/saving the users information in Microsoft Excel format is displayed.

Step 2 Click Save to save the Users.xls file to appropriate location.


Export Users to an XML File

To export users to an XML file, you must:


Step 1 On the User Management page, from the Export menu, choose To XML. A dialog box for opening/saving the users information in XML format is displayed.

Step 2 Click Save to save the Users.xml file to appropriate location.


PAP Group Management

The administration console simplifies the complex security administration by use of user groups to organize access privileges. CEPM uses PAP group hierarchies and constraints to configure a wide range of security policies. In the administration console, rights can be granted to an individual user as well as to multiple users in a group to access the PAP resources in the PAP application.

The Group Management functionality allows you to carry out the following functions related to the management of user groups:

List or search for groups

Create or edit group

Delete a user

Import groups

Listing or Searching for Groups

To view a list of PAP groups or search for a PAP group, you must:


Step 1 Choose Delegated Administration > Groups.

Group Management page is displayed.

Step 2 You can click the expand link to view all the groups that are in the list.

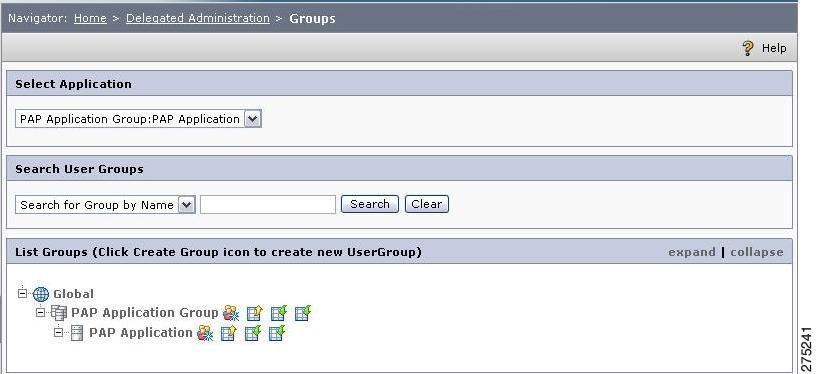

Figure 8-15 Delegated Administration - Groups

Step 3 Search for a particular group in the Search section by group name.

Figure 8-16 Search Groups

Enter the value to search in the text box. You can also use the asterisk wild card character (*), as part of the search value.

For example, to get the list of all the groups having 'M' as the first character in their name, enter search value of M*, and click Search. The list of groups that match the search criteria and search value is displayed in the List Groups section.

Click Clear to clear the value entered in the search value text box.


Creating or Updating a Group

To create/update a PAP group, you must:


Step 1 Choose Delegated Administration > Groups.

The Group Management page is displayed.

Step 2 In the List Groups section, click the Create Group icon next to the application, application group, existing user group, or Global under which you want to create the group. To update an existing group information, click the Edit Group icon that is next to the group name.

The Create/Update Group page is displayed.

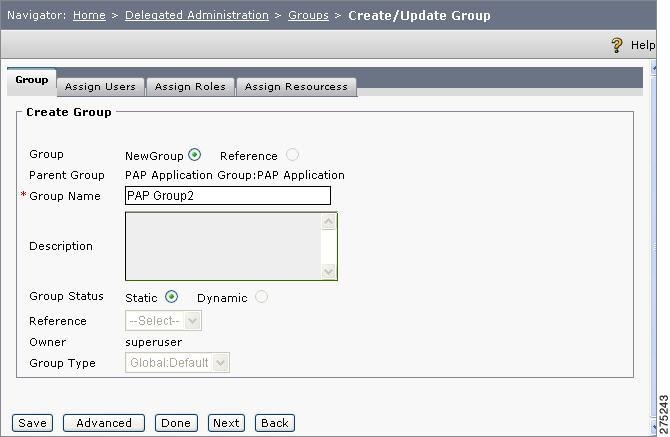

Figure 8-17 Create or Update Group

Step 3 Enter the following information in this page for creating the group.

Group—Select either New Group or Reference.

Group Name—Name of the group.


Note The user names have a limitation of 100 characters and the special characters allowed are hash(#), dollar($), ampersand(&), parenthesis[()], less than(<), greater than(>), tilde(~), apostrophe('), plus(+), slash(/), asterisk(*), hypen(-), underscore(_), and at sign(@).


Description—Description of the group.

Group Status—Select either Static or Dynamic.

Reference—You must enable this option if you create a reference group. Select the appropriate reference group from this list.

Step 4 Click Save to save the above information in the PAP.

Step 5 To assign this group to users, roles, and resources on this page, click Next or click the appropriate tab, Assign Roles, Assign Groups, or Assign Resources, to assign this group to appropriate roles, groups, or resources.

Step 6 Click Done after you have created/updated the group information and assigned it to appropriate roles, groups, or resources.


Note Assigning the new group to users, roles, and resources is not mandatory on this page. This operation can also be done later using any of the following methods, after the group is successfully created in the PAP.


a. In the Group Management page, click the Edit icon that is next to the group name for which you want to assign users, roles, or resources. The Create/Update Group page is displayed. On this page, you can click the appropriate tab, Assign Users, Assign Roles, or Assign Resources to assign this group to the appropriate users, roles, or resources. You can also click Next to navigate through these tabs one by one.

b. In the Entity Assignments section under Delegated Administration, click the Add Groups to Roles and Add Users to Groups to add groups to roles and to add users to groups respectively.


Assigning Users to a Group

After creating a group, you can assign users to the group.

To assign users to a group, you must:


Step 1 On the Create/Update Groups page, click the Assign Users tab.

The Assign Users page is displayed.

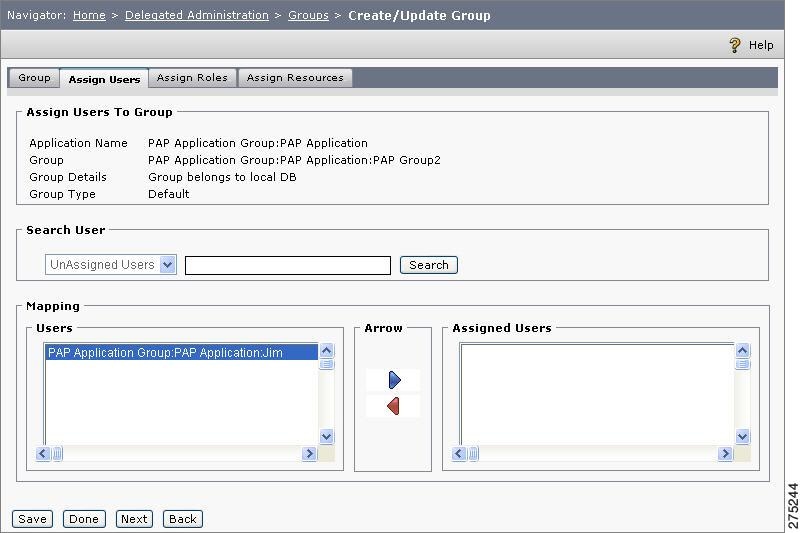

Figure 8-18 Assign Users to Groups

The Assign Users page contains two list boxes. The Users list box contains the users that are not assigned to the group. The Assigned Users list box contains the users that are assigned to the group.

Step 2 To assign a user to the group, select that user in the Users list box and click the Assign icon. The selected user is moved from the Users list to the Assigned Users list.

Step 3 To unassign the assigned users in the Assigned Users list box, click the user name and click the Unassign icon. The selected user is unassigned and it is moved from the Assigned Users list to the Users list.

Step 4 Click Save or Done to complete the user-group association.


Assigning Roles to a Group

After creating a group, you can assign roles to the group.

To assign roles to a group, you must:


Step 1 On the Create/Update Groups page, click the Assign Roles tab.

The Assign Roles page is displayed.

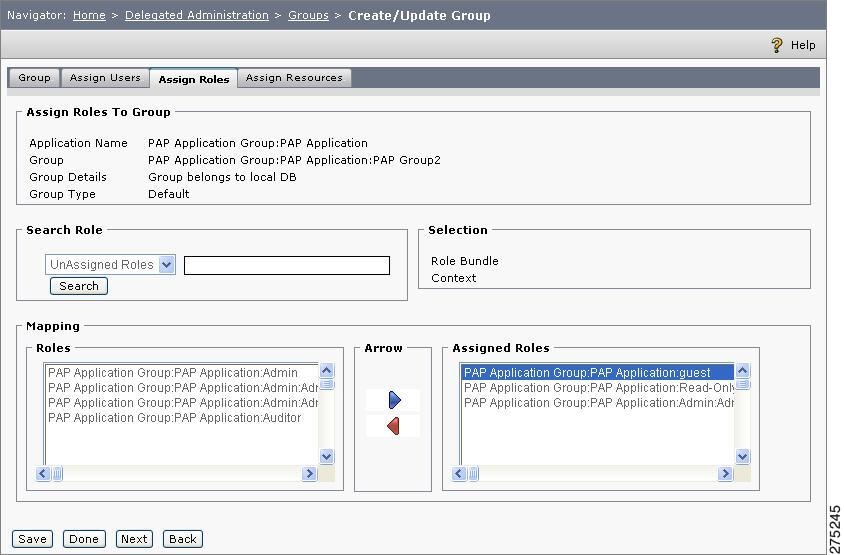

Figure 8-19 Assign Roles to Groups

The Assign Role page contains two list boxes. The Roles list box contains the roles that are not assigned to the group. The Assigned Roles list box contains the roles that are assigned to the group.

Step 2 To assign a role to the group, select that role in the Roles list box and click the Assign icon. The selected role is moved from the Roles list to the Assigned Roles list.

Step 3 To unassign the assigned roles in the Assigned Roles list box, click the role name and click the Unassign icon. The selected role is unassigned and it is moved from the Assigned Roles list to the Roles list.

Step 4 Click Save or Done to complete the group-role association.


Assigning Resources to a Group

After creating a group, you can assign resources to the group

To assign resources to a group, you must:


Step 1 On the Create/Update Groups page, click the Assign Resources tab.

The Assign Resources page is displayed.

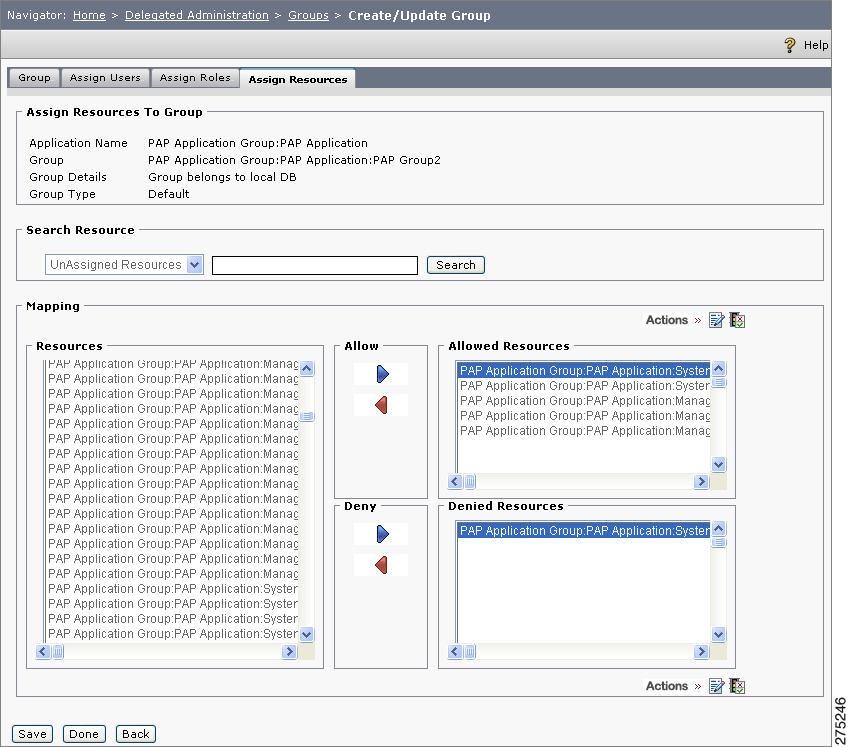

Figure 8-20 Assign Resources to Group

The Assign Resources page contains three list boxes. The Resources list box contains the resources that are not assigned to the group. On the right side, the Allowed Resources and Denied Resources list boxes contain the resources that are assigned to the group, with either the Allowed permission or the Denied permission.

Step 2 To assign a resource to the group with Allowed permission, select that resource in the Resources list box and click the Assign Allowed Resources icon. The selected resource is moved from the Resources list to the Allowed Resources list.

Step 3 To assign a resource to the group with Denied permission, select that resource in the Resources list box and click the Assign Denied Resources icon. The selected resource is moved from the Resources list to the Denied Resources list.

Step 4 To unassign the assigned resources in the Allowed Resources or Denied Resources list box, click the resource name and click the Unassign icon. The selected resource is unassigned and it is moved from the Allowed Resources or Denied Resources list to the Resources list.

Step 5 To configure the Policy Combining Algorithm and edit the existing policy, select the assigned resource and click the appropriate icon near the actions label:

a. Edit policy: Click the Edit Policy icon. The pop-up page for editing the policy information is displayed. For more information, refer to Edit Policy Configurations, page 5-7.

b. Configure the Policy Combining Algorithm: Click the Configure Policy Combining Algorithm icon. The pop-up page for configuring the Policy Combining Algorithm is displayed. For more information, refer to Policy Combining Algorithm, page 5-4.

Step 6 Click Save or Done to complete the group-resource association.


Assigning Multiple Users to a Group

Refer to Assigning Multiple Users to Groups, page 8-10.

Assigning Multiple Groups to a Role

You can assign multiple groups to a role in the PAP.

To assign multiple groups to a role in the PAP, you must:


Step 1 Choose Delegated Administration > Entity Assignments > Add Groups to Roles. The Assign Groups to Roles page is displayed.

All the groups and roles are displayed in the Groups section and Roles section respectively. You can click the expand link to view all the groups and roles that are in the respective lists.

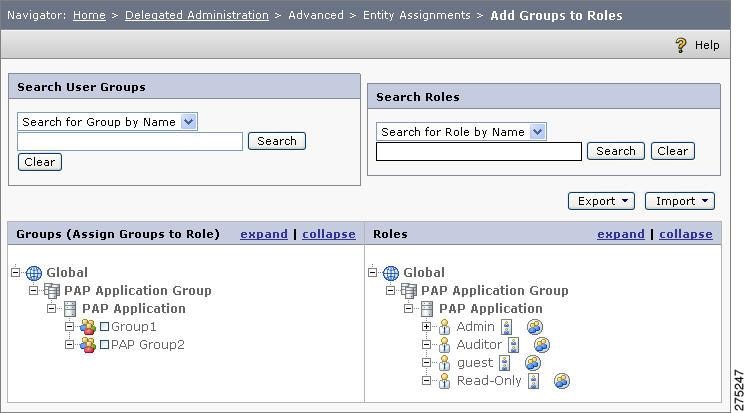

Figure 8-21 Assigning Multiple Groups to Role

Step 2 Search for a particular group or for a particular role by entering the appropriate search criteria and search value in the Search section for groups and roles.

Step 3 From the Groups list, check the check boxes for the groups for which you want to assign roles.

Step 4 In the Roles list, click the Map Groups icon next to the role name to which you want to assign the selected groups.

This completes the mapping of the groups to the roles.

You can also view the groups that are assigned to a role by clicking the List Groups icon next to that role name.


Deleting a Group

The Group Management page allows you to delete groups which are already created in the PAP. Click the Delete icon next to the group name to delete that group from the PAP.

Importing Groups

The CEPM provides the functionality of importing groups into PAP from LDAP Servers, such as Sun One Server, Novell eDirectory Server, and Active Directory Server.


Note Before importing groups into PAP, a user attribute source needs to be created. Refer to User Attribute Sources for more details about creating the user store.


To import the groups in to the PAP, you must:


Step 1 Choose Delegated Administration > Groups.

The Group Management page is displayed.

Step 2 In the List Groups section, click the Import icon nest to the PAP application or PAP application group under which you want to import the groups.

The Import Groups page is displayed.

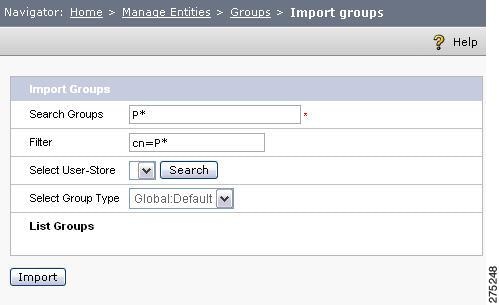

Figure 8-22 Import Groups

Step 3 Select the appropriate user store.

Step 4 Enter the LDAP tree structure for group identification in the Search Groups text box and enter the value for Filter parameters.


Tip Different tree structures and filter parameters prescribed for different types of LDAP servers are given here:


Sun One Server:

Search Groups: ou=people,ou=external,dc=cepm,dc=in

Filter: cn=p*

Novell eDirectory Server:

Search Groups: cn=people,o=cepm-net

Filter: cn=p*

Active Directory 2000 Server:

Search Groups: ou=people,ou=users, dc=win2k-ad,dc=cepm,dc=net

Filter: cn=p*

In the Search Group field, you can type in the base directory to search, for example, ou=people,ou=external,dc=cepm,dc=in. For a refined search, you can also specify the filter as cn=p* in the Filter field.

Step 5 Click Search. All the groups that match these Search and Filter criteria are displayed in the List Groups section.

Step 6 Click Import. The groups displayed in the List Groups section are created in the PAP.


PAP Role Management

The administration console simplifies the complex security administration by use of roles to organize access privileges. This operation is performed by using role hierarchies and constraints to configure a wide range of security policies. In the administration console, rights can be granted to an individual PAP user as well as multiple users in a group or to a role to access various resources in the application.

CEPM provides two default roles under the PAP application group, such as,

External Users—All users who are not in the CEPM database are by default mapped to this role. As a result, when you create an allow policy for this role on a PAP resource, all external users can access that resource.

Known Users—All users who are in the CEPM database are by default mapped to this role. If you create an allow policy for this role on a PAP resource, all known users can access that resource.


Note You cannot map a role or assign users or groups to the default roles, such as, External User and Known User. When you try to edit these roles by clicking the edit button, you find the Role, Assign Users, and Assign Groups tabs become inactive.


CEPM also provides three default roles under the PAP application, such as,

Auditor—PAP Users mapped to this role can access the Auditing and Reporting tab by default.

Guest—Like any regular role, PAP Users mapped to this role can have all the permissions to access the PAP resources that are applicable to the Guest role.

Read-only—PAP users mapped to this role can have the read-only permission to view all the tabs except the Delegated Administration tab.

The PAP role management functionality allows you to carry out the following functions related to the management of PAP roles:

List or search for roles

Create or edit a role

Delete a role

Import roles

Export roles

View delegation information

Listing or Searching for Roles

To view a list of roles or search for a role in a particular application, application group, or Global, you must:


Step 1 Choose Delegated Administration > Roles.

The Role Management page is displayed.

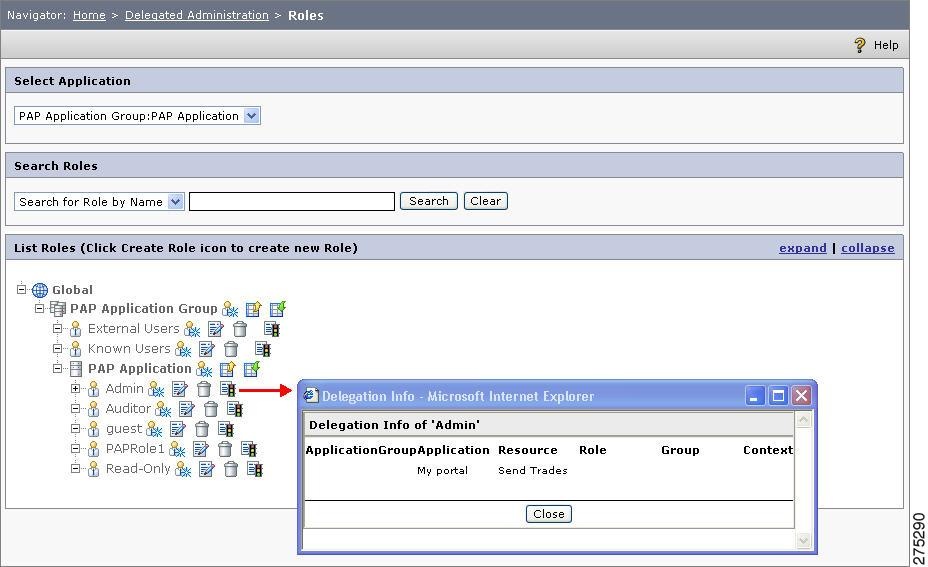

A list of PAP roles is displayed in the List Roles section. You can click the expand link to view all the roles that are in the list.

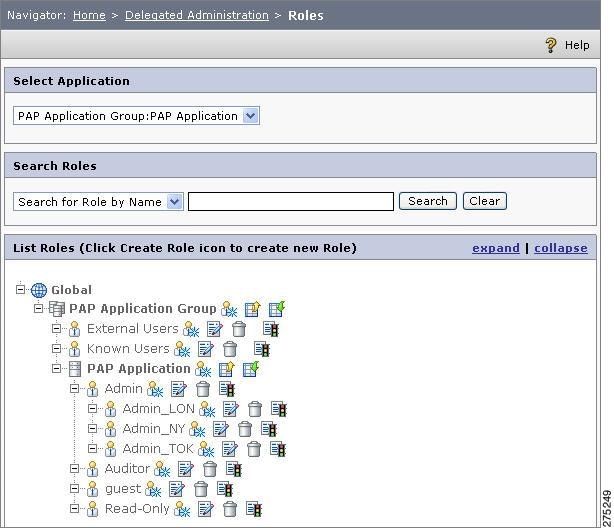

Figure 8-23 Roles List

Step 2 To search for a particular role by the role name, choose the Search for Role by role Name option in the drop-down list, enter the value to search in the text box, and Click Search.

Figure 8-24 Search Roles

For example, to get the list of all the roles having M as the first character in their name, enter a search value of M*, and click Search. The list of roles that match the search criteria and search value is displayed in the List Roles section.

Step 3 Click Clear to clear the search value.


Creating or Updating a Role

To create/update a role in a particular application/application group/role/Global, you must:


Step 1 Choose Delegated Administration > Roles. The Role Management page is displayed.

Step 2 To create a new role, in the List Roles section, click the Create Role icon next to the application, application group, or existing role under which you want to create the role. To edit an existing role, click the Edit Role icon that is next to the role name.

The Create/Update Role page is displayed.

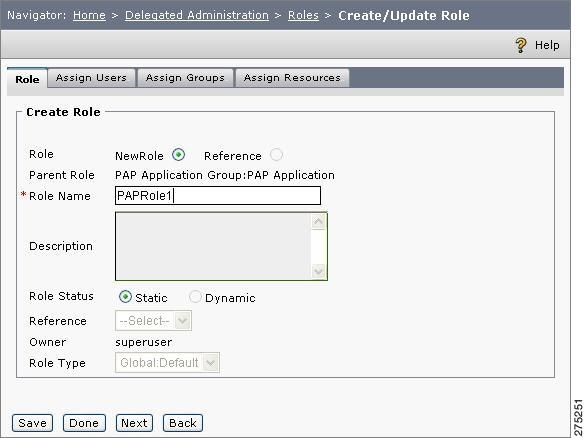

Figure 8-25 Create or Update Role

Step 3 Enter the following information for creating/updating the role:

Role Name—Name for the role.


Note The user names have a limitation of 100 characters and the special characters allowed are hash(#), dollar($), ampersand(&), parenthesis[()], less than(<), greater than(>), tilde(~), apostrophe('), plus(+), slash(/), asterisk(*), hypen(-), underscore(_) and at sign(@).


Description—Description of the role.

Step 4 Click Save to save the above information in the PAP.

Step 5 To assign this role to users, roles, and resources on this page, click Next or click the appropriate tab, Assign Users, Assign Groups, or Assign Resources.

Step 6 Click Done after you have created/updated the role information and assigned it to the appropriate users, groups, or resources.


Note Assigning the new role to users, groups, and resources is not mandatory on this page. This operation can also be done later using any of the following methods, after the role is successfully created in the PAP.


a. On the Role Management page, click the Edit icon next to the role name, for which you want to assign users, groups, or resources. The Create/Update Role page is displayed. You can click the appropriate tab, Assign Users, Assign Groups, or Assign Resources, to assign this role to the appropriate users, groups, or resources. You can also click Next to navigate through these tabs one by one.

b. In the Entity Assignments page under Delegated Administration, click the Add Groups to Roles and Add Users to Groups to add groups to roles and to add users to groups respectively.


Assigning Users to Roles

After creating a role, you can assign users to the role.

To assign users to a role, you must:


Step 1 On the Create/Update Roles page, click the Assign Users tab.

The Assign Users page is displayed.

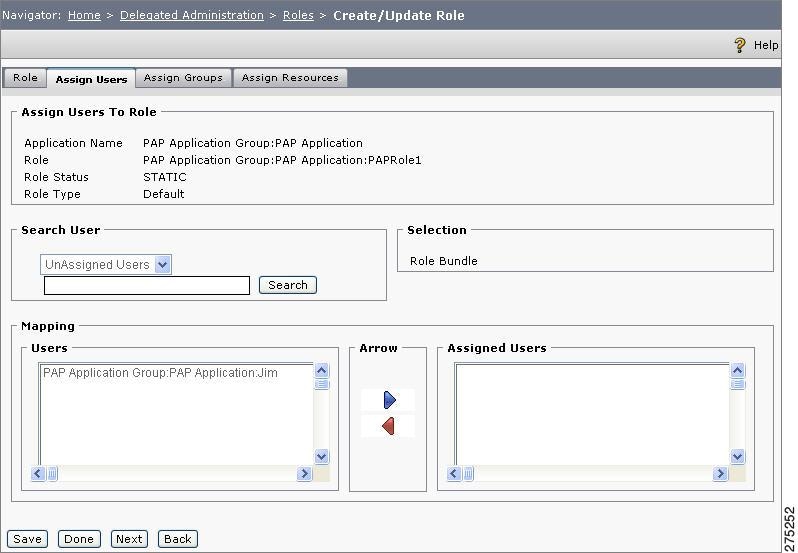

Figure 8-26 Assign Users to Role

The Assign Users page contains two list boxes. The Users list box contains the users that are not assigned to the role. The Assigned Users list box contains the users that are assigned to the role.

Step 2 To assign a user to the role, select that user in the Users list box and then click the Assign icon. The selected user is moved from the Users list to the Assigned Users list.

Step 3 To unassign the assigned users in the Assigned Users list box, click the user name and click the Unassign icon. The selected user is unassigned and is moved from the Assigned Users list to the Users list.

Step 4 Click Save or Done to complete the user-role association.


Assigning Groups to Roles

After creating a role, you can assign groups to the role.

To assign groups to a role, you must:


Step 1 On the Create/Update Roles page, click the Assign Groups tab.

The Assign Groups page is displayed.

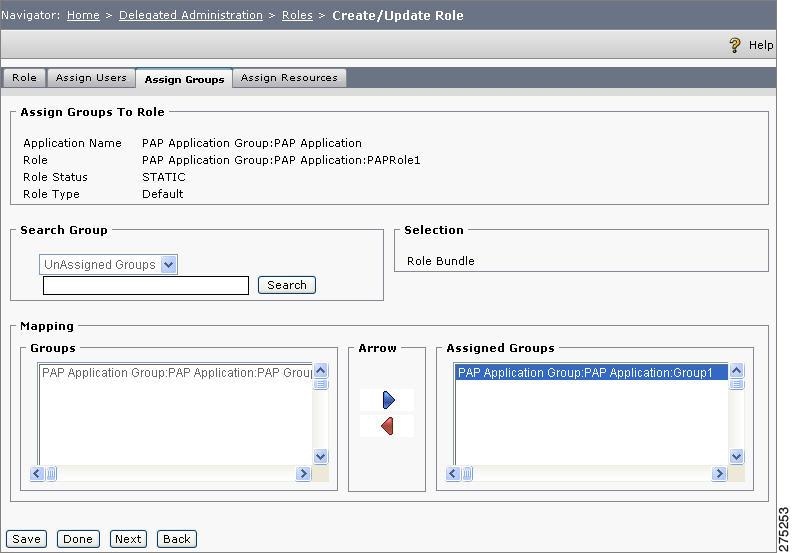

Figure 8-27 Assign Groups to Roles

The Assign Group page contains two list boxes. The Groups list box contains the groups that are not assigned to the role. The Assigned Groups list box contains the groups that are assigned to the role.

Step 2 To assign a group to the role, select that group in the Groups list box and click the Assign icon. The selected group is moved from the Groups list to the Assigned Groups list.

Step 3 To unassign the assigned groups in the Assigned Groups list box, click the group name and click the Unassign icon. The selected group is unassigned and is moved from the Assigned Groups list to the Groups list.

Step 4 Click Save or Done to complete the role-group association.


Assigning Resources to a Role

After creating a role, you can assign resources to the role.

To assign resources to a role, you must:


Step 1 On the Create/Update Roles page, click the Assign Resources tab.

The Assign Resources page is displayed.

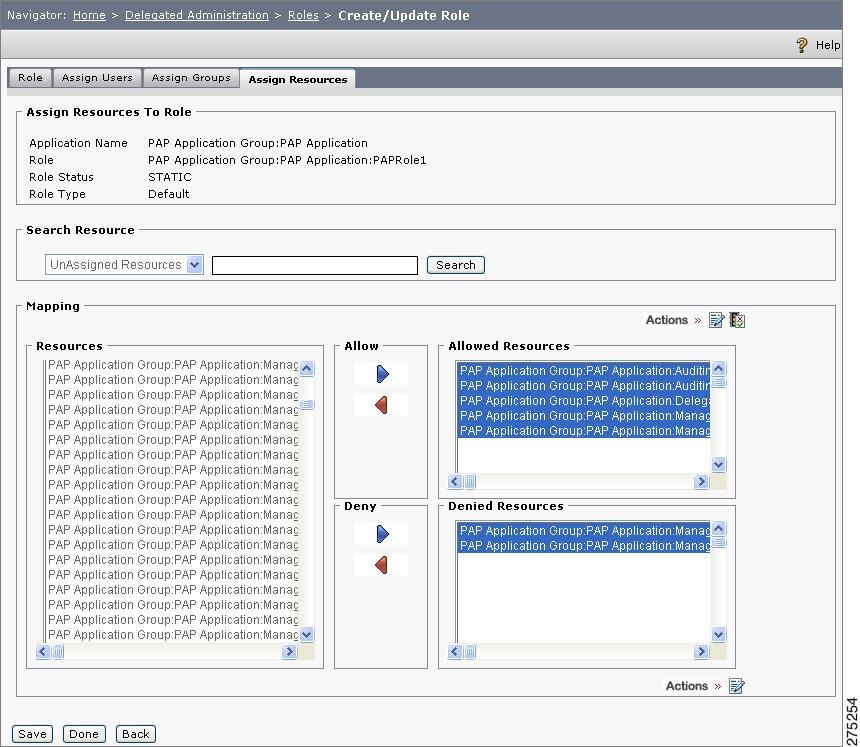

Figure 8-28 Assign Resources to a Role

The Assign Resources page contains three list boxes. The Resources list box contains the resources that are not assigned to the role. On the right side, the Allowed Resources and Denied Resources list boxes contain the resources that are assigned to the role, with either the Allowed permission or the Denied permission.

Step 2 To assign a resource to the role with Allowed permission, select that resource in the Resources list box and click the Assign Allowed Resources icon. The selected resource is moved from the Resources list to the Allowed Resources list.

Step 3 To assign a resource to the role with Denied permission, select that resource in the Resources list box and click the Assign Denied Resources icon. The selected resource is moved from the Resources list to the Denied Resources list.

Step 4 To unassign the assigned resources in the Allowed Resources or Denied Resources list box, click the resource name and click the Unassign icon. The selected resource is unassigned and it is moved from the Allowed Resources or Denied Resources list to the Resources list.

Step 5 To configure the Policy Combining Algorithm and edit the existing policy, select the assigned resource and click the appropriate icon next to the action labels:

a. Edit policy: Click the Edit Policy icon. The pop-up page for editing the policy information is displayed. For more information, refer to Edit Policy Configurations, page 5-7.

b. Configure Policy Combining Algorithm: Click the Configure Policy Combining Algorithm icon. The pop-up page for configuring the Policy Combining Algorithm is displayed. For more information, refer to Policy Combining Algorithm, page 5-4.

Step 6 Click Save or Done to complete the role-resource association.


Assigning Multiple Users to a Role

Refer to Assigning Multiple Users to a Role, page 4-11.

Assigning Multiple Groups to a Role

Refer to Assigning Multiple Groups to a Role, page 4-38.

Deleting a Role

The PAP Role Management page allows you to delete the PAP roles that are already created in the PAP. Click the Delete icon next to the role name to delete that role from the PAP.

Importing Roles

You can import roles from an XML file into a PAP application group or PAP application.

To import the roles in to the PAP, you must:


Step 1 Choose Delegated Administration > Roles. The Role Management page is displayed.

Step 2 In the List Roles section, click the Import icon next to the PAP application/PAP application group under which you want to import the roles.

A dialog box for importing the roles information from the XML file is displayed.

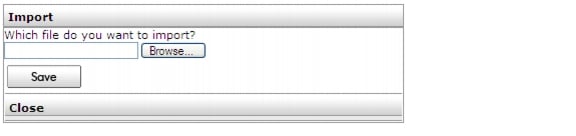

Figure 8-29 Importing Roles

Step 3 Browse for the XML file, select it, and click Save. This imports the roles into PAP.


Exporting Roles

You can export roles from PAP application group or PAP application to an XML file.

To export the roles from PAP, you must:


Step 1 Choose Delegated Administration > Roles. The Role Management page is displayed.

Step 2 In the List Roles section, click the Export icon next to the PAP application or PAP application group from which you want to export the roles.

A dialog box for opening/saving the roles information in XML format is displayed.

Step 3 Click Save to save the Roles.xml file to an appropriate location.


Viewing PAP Role Delegation Information

To view the delegation information for a particular PAP role, you must:


Step 1 Choose Delegated Administration > Roles.

The Role Management page is displayed. The list of roles is displayed in the List Roles section.

Step 2 Click the Delegation Info icon next to the role name for which you want to view the delegation information.

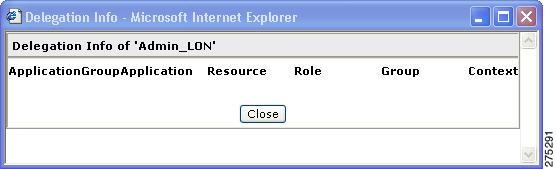

The Delegation Info page is displayed that lists the application groups, applications, resources, roles, groups, and contexts that are delegated to the selected role.

Figure 8-30 PAP Role Delegation Information

PAP Resource Management

A PAP resource is a navigation link in the PAP console that may have an associated action. These resources (PAP navigation links) and actions can be protected from unauthorized access using authorization policies. Resources are hierarchical and child resources inherit policies from their parent in the resource hierarchy.

To view all the PAP resources and their actions, you must:


Step 1 Choose Delegated Administration > Resources.

The Resource Management page is displayed.

You can click the expand link to view all the PAP resources that are in the list.

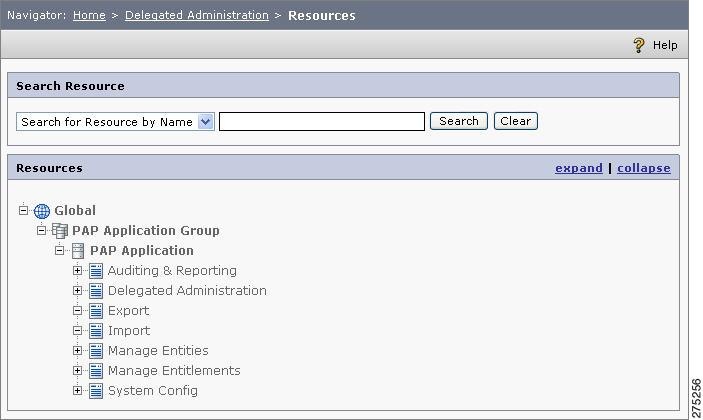

Figure 8-31 Resource Management

The actions are denoted by Green arrows next to their names.

Step 2 Search for a particular resource in the Search section by resource name.

Figure 8-32 Search Resource

Enter the value to search in the text box. You can also use the asterisk wild card character (*), as part of the search value.

For example, to get the list of all the resources having M as the first character in their name, enter a search value of M*, and click Search. A list of resources having M as the first character in their name will be displayed in the List Resources section.

Step 3 Click Clear to clear the search value.


Manage Entitlements

The PAP console provides the functionality to create entitlements for the PAP administrators.

This section describes the various entitlement operations that you can perform for various PAP entities, such as PAP users, PAP groups, and PAP roles.

Entitlement management by PAP users—Create policies for users, edit policies, configure Policy Combining Algorithm and obligations, add attributes to return, add policy attributes, and configure rules for policies.

Entitlement management by PAP groups—Create policies for groups, edit policies, configure Policy Combining Algorithm and obligations, add attributes to return, add policy attributes, and configure rules for policies.

Entitlement management by PAP policies—Create policies for entities such as users, groups, and roles at a single place, edit policies, configure Policy Combining Algorithm and obligations, add attributes to return, add policy attributes, and configure rules for policies.

Entitlement management by PAP roles—Create policies for roles, edit policy, configure Policy Combining Algorithm and obligations, add attributes to return, add policies attributes, and configure rules for policies.

Entitlement management by PAP resources—Create policies for roles, edit policies, configure Policy Combining Algorithm and obligations, add attributes to return, add policy attributes, and configure rules for policies.

Assigning multiple PAP resources to a PAP role—Create policies for roles in bulk, edit policies, configure Policy Combining Algorithm and obligations, add attributes to return, add policy attributes, and configure rules for policies.

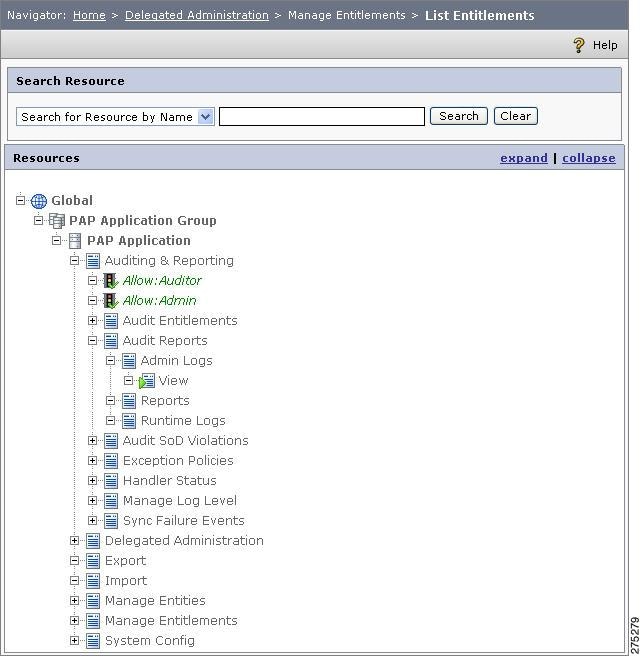

List entitlements—Displays a list of all PAP entitlements for the selected application group/application.

Entitlement Management by Users

To create entitlements for a user, you must:

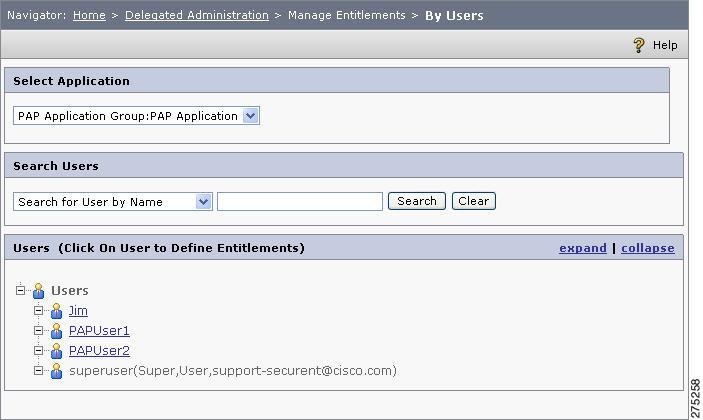

Step 1 Choose Delegated Administration > Manage Entitlements > By Users. The Policy Management By User page is displayed.

A list of all the PAP users is displayed in the List Users section. You can click the expand link to view all the users who are in the list.

Step 2 Search for a particular user in the Search section.

Figure 8-33 Search Users

You can search for specific users depending upon the search criteria that can be selected from the list box and the search value that can be entered in the text box. The following search criteria can be used for searching the users:

Search for User by User Name

Search for User by First Name

Search for User by Last Name

Search for User by Email Id

For example, to get a list of all users having M as the first character in their First Name, select the search criteria of Search for User by First Name and enter a search value of M*, and click Search. A list of users who match the search criteria and search value is displayed in the List Users section.

Click Clear to clear the search value.

Step 3 Click the user name link of the user for whom the entitlements are to be created.

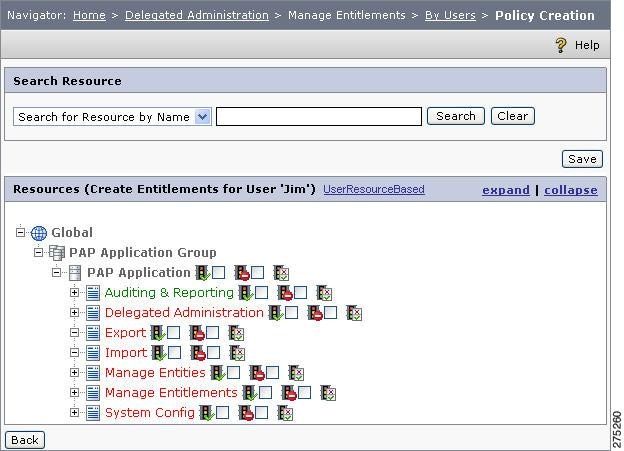

A list of all the PAP resources is displayed. You can click the expand link to view all the resources that are in the list.

Figure 8-34 Policy Creation for Resources

Step 4 To assign an Allow policy to the selected user for a particular resource, check the check box near the Allow icon for that resource.

Step 5 To assign a Deny policy to the selected user for a particular resource, check the check box next to the Deny icon for that resource.

Step 6 To configure the Policy Combining Algorithm for the policy, click the Configure Policy Combining Algorithm icon. For more information, refer to Policy Combining Algorithm, page 5-4.

Step 7 Click Save. This will create the policies for the user and selected resources. Also, the Edit Policy icon will appear next to the resource.

You can configure the basic policy settings by clicking the Edit Policy icon. For more information, refer to Edit Policy Configurations, page 5-7.


Entitlement Management by Groups

To create entitlements for a group, you must:


Step 1 Choose Delegated Administration > Manage Entitlements > By Groups. The Policy Management By Group page is displayed.

A list of all the PAP groups is displayed in the List Groups section. You can click the expand link to view all the groups that are in the list.

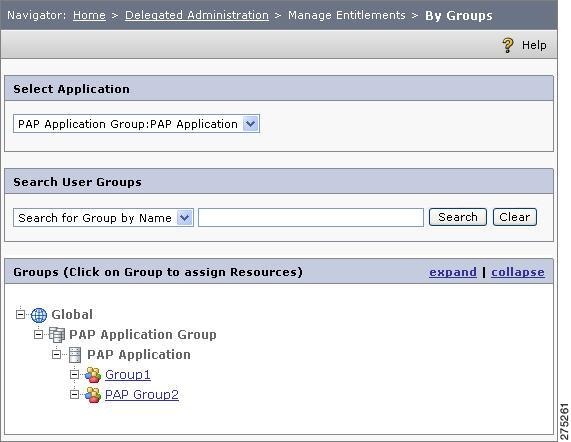

Figure 8-35 Entitlement Management by Groups

Step 2 To search for a particular group by name, choose Search for Group by Name in the search criteria list box, enter the value to search in the text box, and click Search. You can also use the asterisk wild card character (*) as part of the search value.

Figure 8-36 Search Groups

T o example, to get a list of all the groups having M as the first character in their names, enter a search value of M*, and click Search. The list of groups that match the search are displayed in the List Groups section.

Click Clear to clear the valuesearch.

Step 3 Click the group name link of the group for which you want to create entitlements.

A list of all the PAP resources is displayed. You can click the expand link to view all the resources that are in the list.

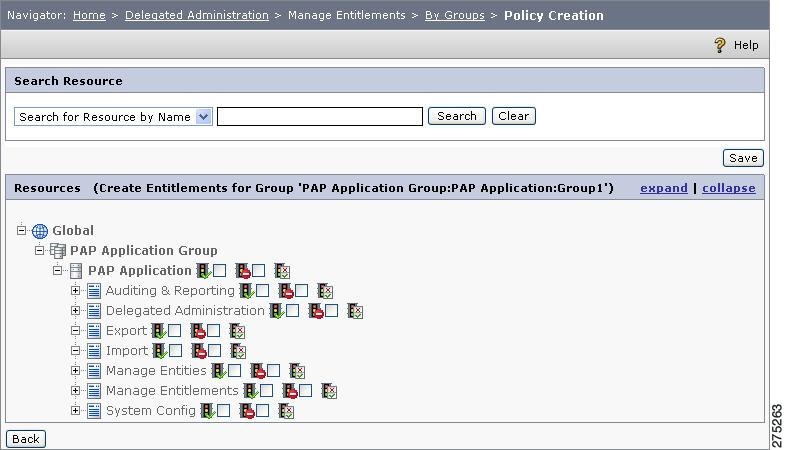

Figure 8-37 Policy Creation by Groups

Step 4 To assign an Allow policy to the selected group for a particular resource, select the check box near the Allow icon for that resource.

Step 5 To assign a Deny policy to the selected group for a particular resource, select the check box near the Deny icon for that resource.

Step 6 To configure the Policy Combining Algorithm for the policy, click the Configure Policy Combining Algorithm icon. For more information, For more information, refer to Policy Combining Algorithm, page 5-4.

Step 7 Click Save. This will create the policies for the selected group and selected resources. Also, the Edit Policy icon will appear near the resource.

You can configure the basic policy settings by clicking Edit Policy icon. For more information, refer to Edit Policy Configurations, page 5-7.


Entitlement Management by Roles

To create entitlements for a role, you must:


Step 1 Choose Delegated Administration > Manage Entitlements > By Roles. The Policy Management By Role page is displayed.

A list of all the PAP roles is displayed in the List Roles section.

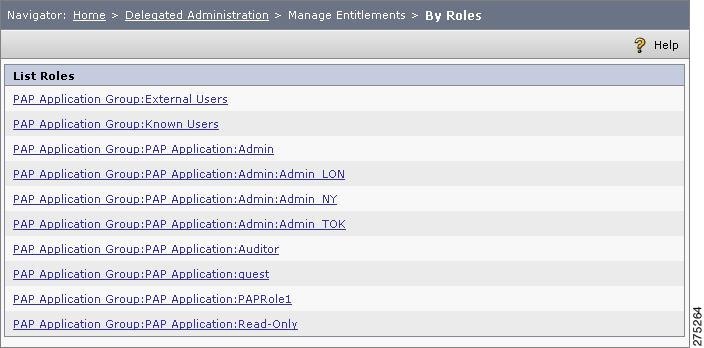

Figure 8-38 Entitlement Management by Roles

Step 2 Click the role name link for the role for whom the entitlements are to be created.

A list of all the PAP resources is displayed in the Resources list.

Figure 8-39 PAP Resource List

The page contains three list boxes. The Resources list box contains the resources that are not assigned to the role. On the right side, the Allow and Deny list boxes contain the resources that are assigned to the role, with the Allowed permission and Denied permission respectively.

Step 3 To assign a resource to the role with Allowed permission, select that resource in the Resources list box and click the Assign Allow icon. The selected resource is moved from the Resources list to the Allow list.

Step 4 To assign a resource to the role with Denied permission, select that resource in the Resources list box and click the Assign Deny icon. The selected resource is moved from the Resources list to the Deny list.

Step 5 To unassign the assigned resources in the Allow or Deny list box, click the resource name and click the Unassign icon. The selected resource is unassigned and it is moved from the Allow or Deny list to the Resources list.

Step 6 To configure the Policy Combining Algorithm and edit the existing policy, select the assigned resource and click the appropriate icon next to the actions label:

a. Edit policy—Click the Edit Policy icon. The pop-up page for editing the policy information is displayed. For more information, refer to Edit Policy Configurations, page 5-7.

b. Configure the Policy Combining Algorithm—Click the Configure Policy Combining Algorithm icon. The pop-up page for configuring the Policy Combining Algorithm is displayed. For more information, refer to Policy Combining Algorithm, page 5-4.

Step 7 Click OK to complete the role-based policy creation.


Entitlement Management by Resources

This page allows you do the role-to-resources mapping. To create entitlements by resource (basically resource-based policy creation), you must:


Step 1 Choose Delegated Administration > Manage Entitlements > By Resource. The Policy Management By Resource page is displayed.

A list of all the PAP roles and PAP resources is displayed. You can click the expand link in the upper-right corner of there list boxes to view all the roles and resources.

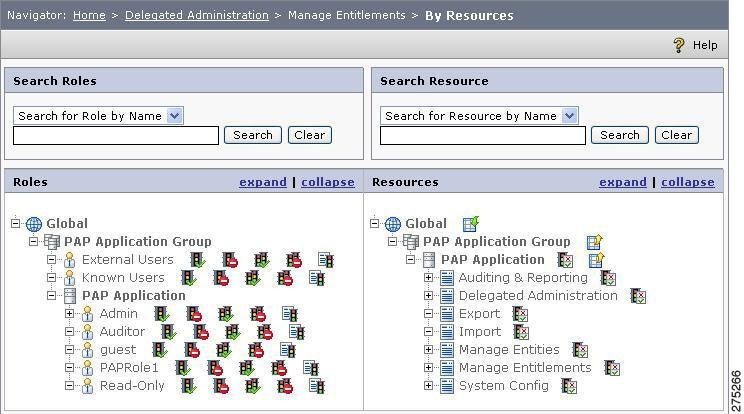

Figure 8-40 Entitlement Management by Resources

Step 2 To create Allow policy, double-click the Map Allow Policy button next to the role name for which you want to create the Allow policy for a particular resource. A blue label is displayed next to the cursor and moves with the cursor.

To create Deny policy, double-click the Map Deny Policy button next to the role name for which you want to create the Deny policy for a particular resource. A blue label is displayed next to the cursor and moves with the cursor.

Step 3 Click the resource name for which you want to create a policy. The policy is created under the selected resource. Policy name is in the following format.

For Allow policy—Allow: [Role for which this policy is created]

For Deny policy—Deny: [Role for which this policy is created]

The following figure shows a sample Allow policy created by role, PAP Role 1 for the resource Manage Entities.

Figure 8-41 Roles and Resources

Step 4 To configure the Policy Combining Algorithm, edit the existing policy, and delete the existing policy, select the appropriate icon next to the resource name for which the policy is created or select the icons near the policy name:

a. Edit policy—Click the Edit Policy icon next to the policy name. The pop-up page for editing the policy information is displayed. For more information, refer to Edit Policy Configurations, page 5-7.

b. Configure the Policy Combining Algorithm—Click the Configure Policy Combining Algorithm icon next to the resource name. The pop-up page for configuring the Policy Combining Algorithm is displayed. For more information, refer to Policy Combining Algorithm, page 5-4.

c. Revoke policy—Click the Delete icon that is next to the policy name. A dialog box is displayed that asks for confirmation to delete the selected policy.

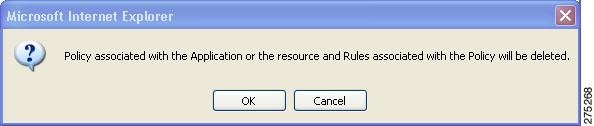

Figure 8-42 Delete Confirmation

Step 5 Click OK to delete or revoke the selected policy.


Creating Multiple Policies for a Role Using Map Expression

CEPM allows you to create multiple policies (Allow or Deny) for a role by executing a single map expression, that avoids the process of repeatedly creating policies for every single role for multiple resources in the resource hierarchy.

To create policies using a map expression for a role, you must:


Step 1 Choose Delegated Administration > Manage Entitlements > By Resource. The Policy Management By Resource page is displayed.

Figure 8-43 Creating Multiple Policies for a Role Using Map Expression

Step 2 Search for the role for which you want to create multiple policies using the map expression.

Step 3 To define the map expression for creating Allow policies, click the icon next to the role name for which you want to create multiple Allow policies. To define a map expression for creating Deny policies, click the icon.

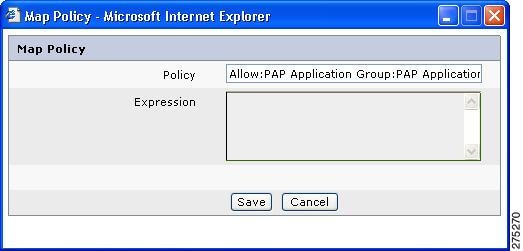

A pop-up page appears where you can enter the policy creation expression. The Following figure shows the sample Allow Policy Map Expression page.

Figure 8-44 Map Policy

Examples of map expression:

Example 8-1 Consider the Allow Expression value, Prime group:Prime portal:*, configured for Role1. This results in the creation of Allow: Role1 policies for all the resources and their child resources under the Prime portal application.

Example 8-2 Consider the Allow Expression value, Prime group:Prime portal:*:Report 6, configured for Role1. This results in the creation of Allow: Role1 policies for all the resources having the name Report 6. Here * means all resources.

Example 8-3 Consider the Allow Expression value, Send Trades:#:Report 1, configured for Role1. Only resource names can be mentioned before and after #. This results in the creation of Allow: Role1 policies for the immediate level of the given resources, that is, all subresources with the name Report 1 under the resource Send Trades.

Step 4 After you configure the required map expression, click Save. This will create the Allow/Deny policies for the selected role for the specified resources.


Importing Policies into PAP from XML File

The PAP provides the functionality to import policies from an XML file into the PAP.

To import the policies into the PAP, you must:


Step 1 Choose Delegated Administration > Manage Entitlements > By Resource. The Policy Management By Resource page is displayed.

Step 2 In the Resources list section, click the Import icon next to Global.

A pop-up page is displayed where you can select the XML file name that contains the policies to be imported.

Figure 8-45 Importing Policies into PAP from XML File

Step 3 Click Save. The policies in the XML file gets created in the PAP application.


Exporting Policies from PAP to XML File

The PAP provides the functionality to export policies from PAP application or application group to an XML file.

To export the policies from the PAP, you must:


Step 1 Choose Delegated Administration > Manage Entitlements > By Resource. The Policy Management By Resource page is displayed.

Step 2 In the Resources list section, click the Export icon next to the PAP application group or application for which the policies need to be exported to an XML file.

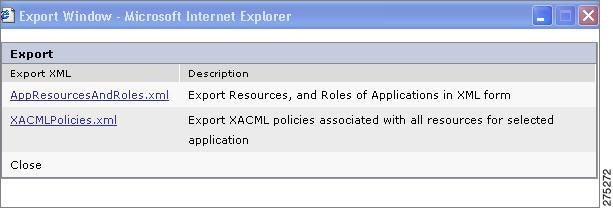

A pop-up page is displayed that contains the AppResourcesndRoles.xml and XACMLPolicies.xml.

Figure 8-46 Export Policy

AppResourcesAndRoles.xml—Click this link to export the resources and roles of PAP application group/PAP application to XML file.

XACMLPolicies.xml—Click this link to export the XACML policies associated with all resources for PAP application group or application to XML file.

Step 3 Click Close, when you are done with the export process.


Entitlement Management by Policies

The PAP provides the functionality to create policies for PAP users, PAP groups, and PAP roles at a single place.

To create policy for any of these entities (PAP users, PAP groups, and PAP roles) in a single place, you must:


Step 1 Choose Delegated Administration > Manage Entitlements > By Policies. The Policy Management By Policies page is displayed.

A list of all the PAP resources is displayed in the List Resources section in the same page. You can click the expand link to view all the resources that are in the list.

Figure 8-47 Manage Entitlement by Policies

Step 2 To search for a particular resource by name, choose the Search for Resource by Name option in the Search list box, enter the search value in the text box, and click Search.

You can also use the asterisk wild card character (*) as part of the search value.

Figure 8-48 Search Resource

For example, to get a list of all the resources having M as the first character in their name, enter a search value of M*, and click Search. A list of all the resources that match the search criteria in the List Resources section.

Click Clear to clear the search value.

Step 3 Click the PAP resource name link for which you want to create entitlements.

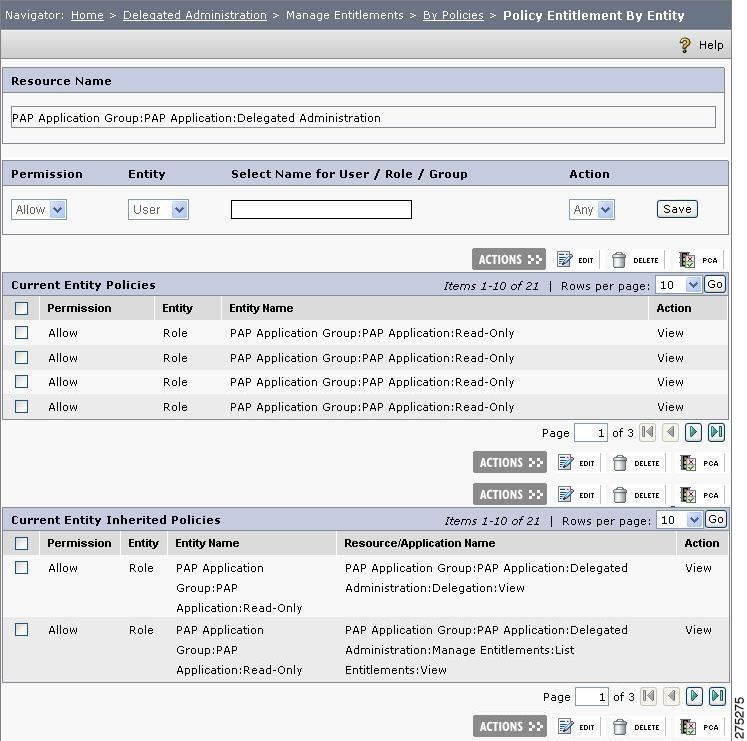

The Policy Entitlement By Entity page is displayed. The page displays a list of all the policies for all the PAP users, PAP groups, and PAP roles for the selected PAP resource.

Figure 8-49 Policy Entitlement by Entity

Step 4 To update an existing policy, check the check box that is next to the policy Permission (Allow/Deny) and click any of the following icons:

Table 8-1 Policy Icons

Icon
Description

Click the Edit Policy icon to edit the policy. For more information, refer to "Edit Policy Configurations"

Click the Delete icon to delete/revoke the policy.

Click the PCA icon to configure Policy Combining Algorithm and Obligations for the policy. For more information, refer to "Policy Combining Algorithm"


Step 5 To create a new policy in this page for a user, a group, or a role for the selected resource, you must:

Figure 8-50 Create New Policy

a. Select an appropriate permission for the policy: Allow or Deny.

b. Select the entity for which you want to create the policy: User, Group, Role.

c. Enter the name of the selected entity, name of the user (for example, Mary), name of the group (for example, Systems Group), or name of the role (for example, Internal Dev).

d. Select the appropriate action of the selected resource for which the policy is created.

e. Click Save. The new policy with this information is created.


Assigning Multiple Resources to a Role

You can assign multiple resources to a role in PAP.

To assign multiple resources to a role in the PAP, you must:


Step 1 Choose Delegated Administration > Manage Entitlements > Bulk Resources to a Role. The Policy Management By Role page is displayed.

A list of all the PAP roles is displayed in the List Roles section. You can click the expand link to view all the roles that are in the list.

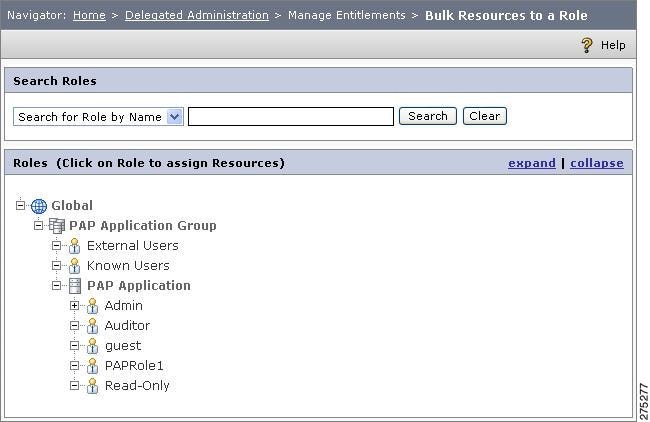

Figure 8-51 Bulk Resources to Role

Step 2 Click the role name for which you want to assign multiple resources or create multiple policies.

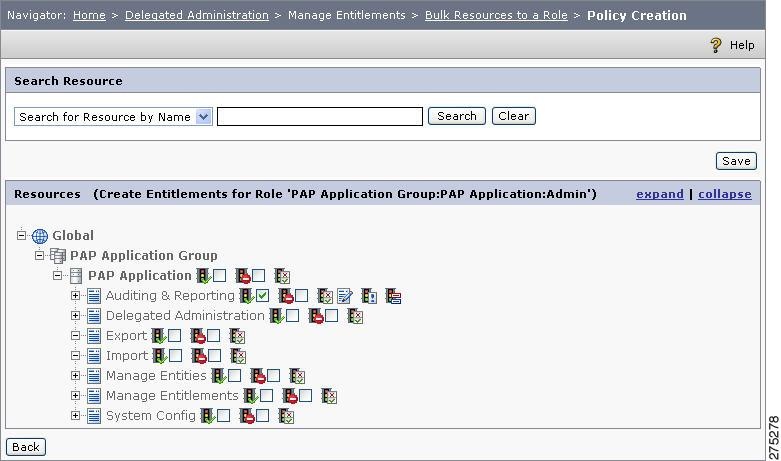

The Policy Management By Role page is displayed, that contains a list of all the PAP resources. You can click the expand link to view all the resources that are in the list.

Figure 8-52 Policy Management by Role

Step 3 To assign an Allow policy to the selected role for a particular resource, check the check box near the Allow icon for that resource.

Step 4 To assign a Deny policy to the selected role for a particular resource, check the check box next to the Deny icon for that resource.

Step 5 To configure the Policy Combining Algorithm for the policy, click the Configure Policy Combining Algorithm icon. For more information, refer to Policy Combining Algorithm, page 5-4.

Step 6 Click Save. CEPM creates the policies for the selected role and resources. The Edit Policy icon appears next to the resource.

Step 7 You can configure basic policy settings by clicking the Edit Policy icon. For more information, refer to Edit Policy Configurations, page 5-7.


Listing the Entitlements

The PAP provides the functionality to view a list of all the PAP entitlements for all the resources in the PAP application.

To view the list of PAP entitlements, choose Delegated Administration > Manage Entitlements > List Entitlements. The List Entitlements page is displayed.

A list of all the PAP resources is displayed with their entitlements in the List Resources section.

Figure 8-53 List Entitlements

User Attribute Source

CEPM allows you to import PAP users and groups from an LDAP directory service. User attribute source (also called as user store) is a virtual store of users and user groups created in the PAP and is configured to refer to the users and user groups in the LDAP directory.

This feature is useful when the application to be secured already contains a large number of users and user groups stored in an LDAP directory. Instead of creating these users and user groups again in the PAP, you can import them from the existing LDAP directory.

CEPM supports the following LDAP directory services for importing external users and user groups into the PAP application:

Sun One Server 5.2

Novel eDirectory Server 8.7.3

Active Directory 2000 Server

In the administration console, you can create, update, view, and delete the user stores for an application or for an application group.

For more information, refer to User Attribute Sources, page 7-26.

Delegate Operation

With central IT departments struggling to meet the service needs of existing applications, any new application that you introduce must have provisions to reduce help desk expenses. CEPM is designed to deliver smart delegation of access control policy administration to line-of-business owners, which significantly reduces the help desk load and improves the organization's responsiveness to changing market conditions.

Since there are multiple applications, resources, and groups of subjects that are all being managed from the same administration environment, there is a need to allow delegated administration of these entities. CEPM supports the capability to delegate administration up to an individual resource level, and individual subject group level enabling multiple administrator ownership even within the same user population and application.

In addition to delegated administration of resources and groups, for applications that are hosted in a multitenant model, wherein an application is offered as a service to multiple partners/customers, there is a need to create the notion of a hierarchical delegated context allowing autonomous delegated control to administrators to create mappings of subjects to roles, and association of privileges to roles. This model supports a default context in which roles and their associated privileges are defined, and allows delegated administrators to inherit / override these default mappings and privileges for their domain. CEPM supports delegated administration through the context construct.

CEPM is enhanced with a composite delegate functionality. You can delegate global level, application group, and application. under teach head delegation of resources, roles, groups, and context.

Delegation of resources, roles, groups, application groups, and application enables an authorized PAP user-role to delegate these components to other PAP roles if it owns them. Owning means authorization by the superuser to access the particular component. For example, considering the resource delegation, a user can delegate a resource to other roles if and only if that user is entitled by the Superuser to access that resource.

After an application group is delegated, the delegated role is authorized to access all the applications under that application group as well as every resources and child resources that constitutes it. Similarly, if the owner delegates only an application from an application group, the delegated role can access all the resources and subresources under that application only. The delegation is not available to remaining applications that constitute the application group.

When the owner delegates any resource, the delegated role is considered to be the deemed owner of that resource. For example, even though a role has a Deny policy configured for a particular resource, it is denounced when the owner of that particular resource delegates the same to the said role.

Delegate operation is divided into five types:

1. Delegate Global (Global delegation)

2. Delegate application group

3. Delegate an application

4. Delegate resource

5. Delegate roles

6. Delegate groups

7. Delegate context


Note With the Policy Cache enabled, when you delegate anything to the Non-Superuser using the Delegation feature, the policy cache does not get updated with the delegation information until and unless the PDP server is restarted.


Global Delegation

The superuser can delegate the authority for functions, tasks, and decisions to other PAP users right from the Global level in the resource hierarchy. This is called Global delegation. By doing this, the superuser transfers the authority to undertake specific activities or decisions that the delegated user can perform across the whole resource hierarchy. After the Global delegation, the delegated user is considered to be at par with the superuser. Applying this technique, the delegated user can perform all the operations that the superuser can perform. This user, in return, can navigate the resource hierarchy right from Global to the leaf level resources to forge strategic entitlement management.

To perform Global delegation, you must:


Step 1 Choose Home > Delegated Administration > Delegate.

The Delegation page is displayed.

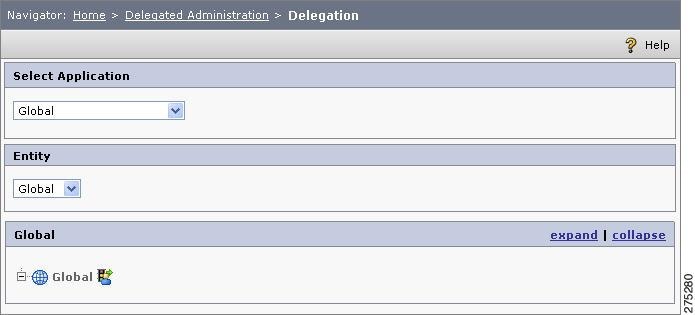

Figure 8-54 Global Delegation

Step 2 Select Global from the Application drop-down menu. (To maintain the resource hierarchy, when you select Global as the application, you cannot find application group or application in the Delegate drop-down menu, which will contain only Global, roles, and groups).

Step 3 Click the Delegate icon of Global.

The Delegate Ownership page is displayed.

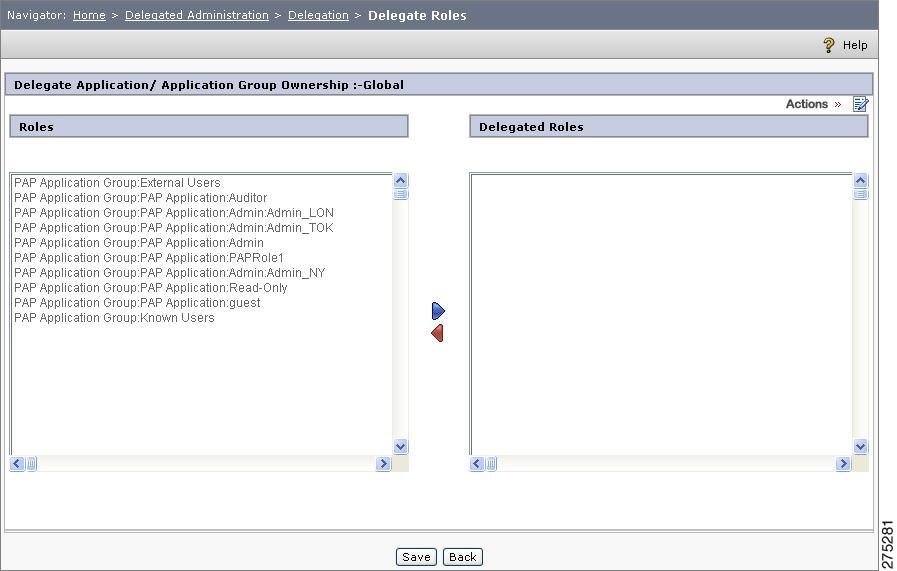

Figure 8-55 Delegate Role

Step 4 Select any role from the Roles table and click the right arrow. You can see the selected role in the Delegated Roles box. Similarly, you can delegate the Global level to many roles.

Step 5 To remove the delegate role from the list, select the role in the Delegate Role list and click the left arrow. This will remove the role from the Delegated Roles list.

Step 6 Set the Delegation Time Range during which you want the delegation to be in effect. Select a role from the Delegated Roles box and click the Action button at the top-right corner of the Delegated Roles box. The Specify Date & Time page is displayed.

Figure 8-56 Date and Time

Click the Calendar button and set the date and time.

Define the recurrence period for the selected delegation.


Note The recurrence period is in effect unless and until anything contrary to it is defined. You can disable recurrence by selecting Clear Recurrence from this list.


The following recurrence period can be defined for this purpose:

Daily—This enables the recurrence of the copied entitlements on a daily basis. Either you can assign your entitlements to the copied user on every weekday or only for the weekends by selecting the corresponding option.

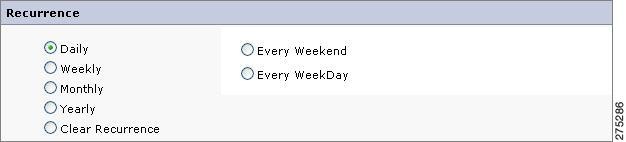

Figure 8-57 Recurrence-Daily

Weekly—If the From Time and To Time falls within the same week and Weekly is selected, the copy entitlement is in effect on a weekly basis during the defined recurrence time period.

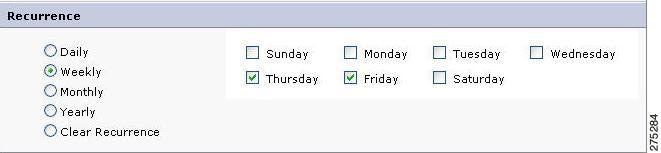

Figure 8-58 Recurrence-Weekly

You can select multiple days of a week on which the copied user can use your entitlements.

Monthly—You can set the recurrence of the copy entitlement on a monthly basis in two ways.

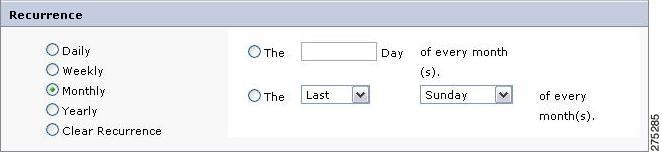

Figure 8-59 Recurrence-Monthly

You get two options for this purpose:

One particular day of the month: You can set the monthly recurrence period to a particular day of every month. For this you must select the first option and enter a number between 1 and 31 on which all your entitlements are available for the copied user on the specified day every month.

With the second option, you can select first/second/third/fourth/last day (Monday to Sunday) of the month for recurrence of the copied entitlements.

Yearly—You can set the recurrence of the copy entitlement on a yearly basis.

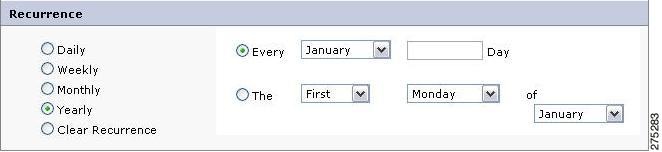

Figure 8-60 Recurrence-Yearly

This enables the delegated role(s) to inherit all the rights of the owner to deal with the specified resources within the specified time frame.

Step 7 After selecting all the required delegated roles and defining the time range and recurrence period, click Done to complete the Global Delegation process.


Delegating a Resource

When a user other than the superuser logs in to the PAP console, the Home page displays all applications groups and applications that the user owns along with the delegated application groups and applications. As a result of delegation, the delegated owner can carry on all activities, such as defining entitlements and administering entitlements for the delegated resource and its child resources as the owner does.

To delegate a resource to other roles, you must:


Step 1 Choose Home > Delegated Administration > Delegate.

The Delegate page is displayed.

Step 2 Select Application drop-down list and select the resource from the Entity drop-down list.

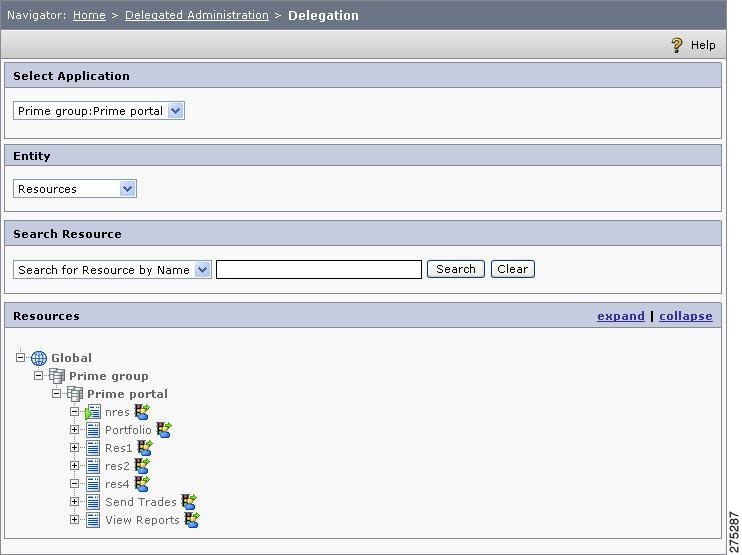

Figure 8-61 Delegating a Resource

It is important to note that though the resource tree displays all the resources with their parent resources, the user can delegate only those resources that are owned by the user. For example Mary, an admin user, is the delegated owner of Buy Trades and Sell Trades, but not Send Trade. On logging in, Mary can view Send Trades in the resource tree. While trying to define a policy on Send Trades, Mary will get an "Unauthorized Access" message. The user can also search for a particular resource from the resource tree by using the search option.

Step 3 Click the Delegate icon of the corresponding resource. The Delegate Ownership page is displayed.

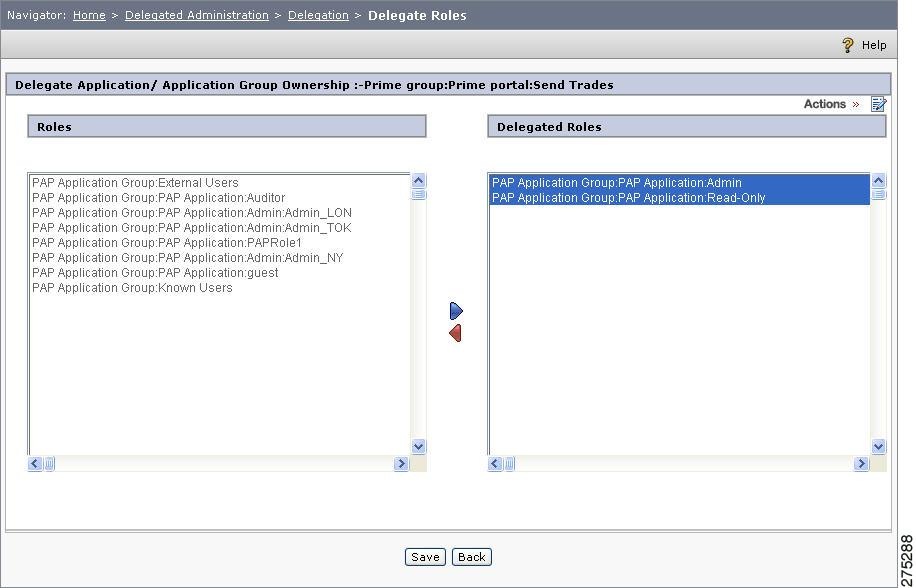

Figure 8-62 Delegate Roles

This page contains the Roles and Delegated Roles lists. The Roles list contains all the PAP roles created by the superuser. To delegate entitlement to a role:

a. Select the role and click the right arrow. The selected role is transferred to the Delegated Role box. The Delegated Roles list contains the delegated role or roles. The delegated new roles to deal with the selected application or application group.

b. Similarly, to remove a delegated role from the list, select that role in the Delegated Role list and click the left arrow. This will remove the role from the Delegated Role list.

c. Set the time range and recurrence period for the delegated role as mentioned previously in Step 6 of the Global Delegation process.

d. Click Done to save the setting. You are returned to the Delegate Role page.

Step 4 Click Done to complete.

This enables the delegated role(s) to inherit all the rights of the owner to deal with the specified resources within the specified time frame.


Delegating Roles

An authorized user can delegate any PEP role to a PAP role by using the Delegated Role function. When a role is delegated to a PAP role, the delegated owner can perform all the operations as the owner does, such as creating a child role for the role, defining a policy for that role on a resource, and mapping users to the role. All the child roles of the selected parent role come under delegation, unless and until anything to the contrary has been defined. When a child role is delegated, its child roles are also delegated to the delegated owner.

After logging in, the delegated owner can view all the roles with their parent application and roles in the roles tree whether or not authorized. While trying to perform any operation on the parent roles, the owner gets an "Unauthorized access" message. For example, Mary, an admin user, is the delegated owner of the role Internal Dev London, but not of its parent role Internal Dev. On logging in Mary can view both Internal Dev and Internal Dev London in the roles tree but while trying to map a user to Internal Dev, Mary gets the "Unauthorized access" message.

The superuser can delegate all the roles registered within the application. All other users can delegate only those roles that they are authorized to delegate.

To delete roles, any user other than the superuser must:

Choose Home > Delegated Administration > Delegate.

The Delegate page appears.

Select the required application from the Application drop-down list.

Select the required role or roles from the Delegate drop-down list.

Please refer to Delegating a Resource section for the rest of the steps.

Delegating Groups

User groups come under the purview of Delegate function. Any PAP role can delegate any PEP group to a PAP role. For delegation purpose, the PAP role that delegates a group must be the owner of that group. After delegation, the delegated owner can perform all operations on the delegated group, such as adding user to a user group and mapping group to role. The delegation is extended to all the child groups of the specified group, but not its parent.

When delegation is done for a group, all the delegated owner can perform all activities as the real owner does, such as creating child group, mapping users to the group, and mapping roles to the group.

On logging in, the delegated owner can view all the delegated groups along with their parent groups whether or not delegated. If the delegated owner tries to perform any operation on the parent groups that are not delegated, the "Unauthorized access" message is displayed.

To delegate groups, any user other than the superuser must:

Choose Home > Delegated Administration > Delegate.

In the Delegate page, select the required application from the Application drop-down list and select Groups from the Delegate drop-down menu.

Click the Delegate icon of the corresponding application group, which displays the Delegate Ownership page.

Please refer to Delegating a Resource, page 8-57 section for the rest of the steps.

Delegating Application Groups

A PAP role can delegate an application group, which it owns, to any other PAP role. This renders the delegated owner a complete control over the application group right from creating applications, creating resource and creating roles, to creating and deleting policies.

To delegate application groups, any user other than the superuser you must:

Choose Home > Delegated Administration > Delegate.

In the Delegate page, select the required application group from the Application drop-down list and select Roles from the Delegate drop-down menu. The resource tree will display the application groups only.

Click the Delegate icon of the corresponding application group, which displays the Delegate Ownership page.

Please refer to Delegating a Resource, page 8-57 section for the rest of the steps.

Delegating Application

A PAP user can delegate an application to any other PAP role. This provides the delegated owner authority over the application group to create resources and subresources, create application specific roles, create user-role map, create policies, and so on.

To delegate application groups, any user other than the superuser you must:

Choose Home > Delegated Administration > Delegate.

In the Delegate page, select the required application group from the Application drop-down list and select Roles from the Delegate drop-down menu. The resource tree will display applications and their parent application groups.

Click the Delegate icon of the corresponding application, which displays the Delegate Ownership page.

Please refer to Delegating a Resource, page 8-57 section for the rest of the steps.

Delegating Context

A PAP user can delegate context to roles which enables that the roles to access all the resources available within the delegated context.

To delegate context, you must:

Choose Home > Delegated Administration > Delegate.

In the Delegate page, select the required application group from the Application drop-down list and select Context from the Delegate drop-down list.

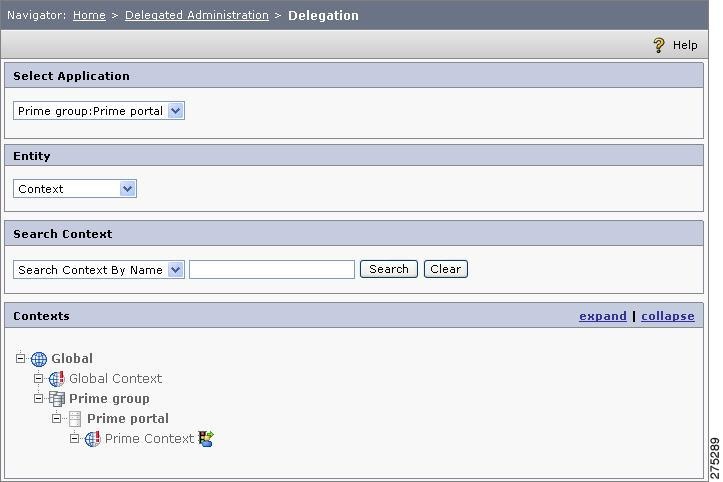

Figure 8-63 Delegation Context

Click the Delegate icon of the corresponding context in the context tree, which displays the Delegate Ownership page.

Reviewing the Delegated Components of a PAP Role

To review all the resources, roles, groups, application groups, and applications delegated to a PAP role:

Choose Home > Delegated Administration > Roles. In the Roles tree, click the Delegate Info button of the selected role. All the delegated components are displayed in a single page.

Figure 8-64 Delegation Information
