Installing the CSD Software

Installing CSD on the VPN 3000 Concentrator Series

Installing CSD on the Catalyst 6500 Series WebVPN Services Module

Installing the CSD Software

Refer to the section that names the CSD platform:

•Installing CSD on the VPN 3000 Concentrator Series

•Installing CSD on the Catalyst 6500 Series WebVPN Services Module

Installing CSD on the VPN 3000 Concentrator Series

CSD Release 3.1 requires that you install VPN 3000 Series Concentrator Release 4.7.1 or later. Install the CSD software on a VPN 3000 Concentrator as follows:

Step 1 Use your Internet browser to access the following URL and download the securedesktop_con_3_1*.pkg file to any location on your PC:

http://www.cisco.com/pcgi-bin/tablebuild.pl/securedesktop

Step 2 Establish a browser connection to the VPN Concentrator Manager.

Step 3 Choose Configuration | System | General | Identification and assign a value to the System Name attribute to specify the host name of the VPN Concentrator.

Step 4 Choose Configuration | System | Servers | DNS and enable DNS to facilitate client installation in all deployments.

Step 5 Choose Configuration | Tunneling and Security | WebVPN | Secure Desktop | Setup.

The Configuration | Tunneling and Security | WebVPN | Secure Desktop | Setup window opens (Figure 1-1).

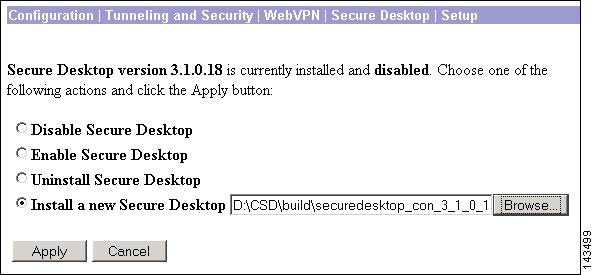

Figure 1-1 VPN 3000 Concentrator Installation

Note This window identifies the currently installed version of Secure Desktop, and indicates whether it is enabled or disabled.

Step 6 Click Install a new Secure Desktop.

Step 7 Click Browse.

The File Upload window displays the contents of the latest, local folder you accessed (Figure 1-2).

Figure 1-2 File Upload Window

Step 8 Choose the latest securedesktop_con_3_1*.pkg file, and click Open.

Step 9 Click Apply.

The VPN 3000 Concentrator uploads the image and displays the results of the transfer (Figure 1-3).

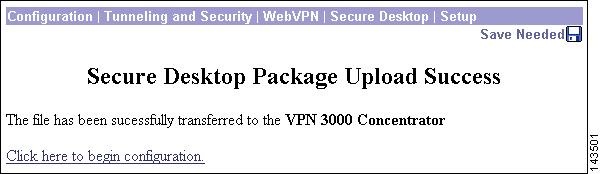

Figure 1-3 Upload Success Window

Step 10 Click Click here to begin configuration.

The Configuration | Tunneling and Security | WebVPN | Secure Desktop | Manager window opens (Figure 1-4).

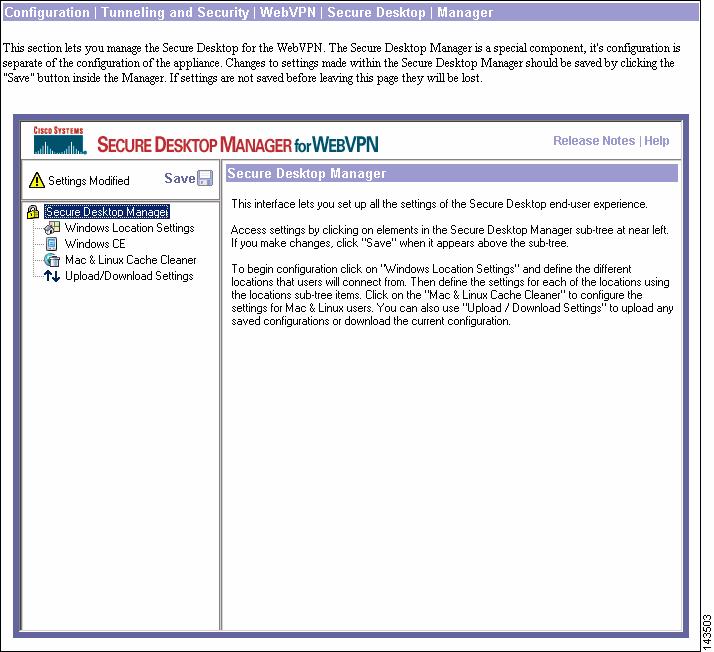

Figure 1-4 Configuration | Tunneling and Security | WebVPN | Secure Desktop | Manager Window

This window also opens when you choose the menu path identified in the figure caption above.

On the VPN 3000 Concentrator Series, you can enable CSD for clients, as described in "Enabling and Disabling CSD," before or after you configure CSD. Refer to "Establishing a Management Session" to prepare to configure CSD.

Installing CSD on the Catalyst 6500 Series WebVPN Services Module

Note Refer to Configuring the WebVPN Services Module for detailed instructions; refer to the Catalyst 6500 Series WebVPN Services Module Command Reference for complete command syntax and usage guidelines.

Remote users attempting to download CSD from the gateway while you are upgrading CSD might receive a "503 Service Unavailable" message suggesting that they try again later. The console or other logging device also displays a log message.

CSD Release 3.1 requires that you install WebVPN Services Module Release 1.2 or later. Install the CSD software on a WebVPN Services Module as follows:

Step 1 Use your Internet browser to access the following URL and download the securedesktop_ios_3_1*.pkg file to any location on your PC:

http://www.cisco.com/pcgi-bin/tablebuild.pl/securedesktop

Step 2 Enter the copy tftp: flash command in global configuration mode to copy the CSD package to the flash device on the WebVPN Services Module.

Step 3 At the prompts, enter the address or name of the remote host and the source filename (securedesktop_ios_3_1*.pkg).

Step 4 Enter the dir flash: command and confirm that the CSD package file is present.

Step 5 Enter the configure terminal command to enter configuration mode, selecting the terminal option.

Step 6 Enter the webvpn install csd flash:path/filename command to install the CSD package.

The installation software extracts the files to the flash:/webvpn directory and deletes the securedesktop_ios_3_1*.pkg file from the flash directory.

Note The no webvpn install csd command uninstalls CSD. However, the *.pkg files remain on the Flash device; you can reinstall CSD on the gateway by entering the following command:
webvpn install csd flash:/webvpn/sdesktop.pkg

The delete flash:/webvpn/sdesktop.pkg command deletes the package from flash, but it does not affect the existing installation.

Step 7 Enter the end command to exit configuration mode.

Step 8 Enter the dir flash:/webvpn command to display the contents of the Flash: device on the WebVPN Services Module. Confirm that the CSD package file is present and renamed sdesktop.pkg.

Step 9 Enter the show webvpn package csd status command to display the status of the installed CSD package.

This example shows how to download and install the CSD package:
webvpn# copy tftp: flash
Address or name of remote host [10.1.1.1]?
Source filename []? <username>/securedesktop_ios_3_1*.pkg
Destination filename [/securedesktop_ios_3_1*.pkg]?
Accessing tftp://10.1.1.1/<username>/securedesktop_ios_3_1*.pkg...
Loading <username>/securedesktop_ios_3_1*.pkg from 10.1.1.1 (via
WebVPN0.1):!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
[OK - 1996130 bytes]
1996130 bytes copied in 33.948 secs (58800 bytes/sec)
webvpn# dir flash:
Directory of flash:
    4  -rwx      352117  Sep 14 2005 13:06:15 -08:00  svc.pkg
    5  -rwx     1996130  Sep 15 2005 15:14:04 -08:00  securedesktop_ios_3_1*.pkg
16386048 bytes total (14020608 bytes free)
webvpn# configure terminal
Enter configuration commands, one per line.  End with CNTL/Z.
webvpn(config)# webvpn install csd flash:/webvpn/securedesktop_ios_3_1*.pkg
SSLVPN Package Cisco-Secure-Desktop : installed successfully
webvpn(config)#end
webvpn# dir flash:/webvpn
Directory of flash:/webvpn/
    4  -rwx      352117  Sep 14 2005 13:06:15 -08:00  svc.pkg
    5  -rwx     1996130  Sep 15 2005 15:14:04 -08:00  sdesktop.pkg
16386048 bytes total (14020608 bytes free)
webvpn# show webvpn package csd status
SSLVPN Package Cisco-Secure-Desktop version installed:
CISCO CSD CAT6K
3,1,*
Mon 09/12/2005 11:58:25.31
