Enabling and Disabling CSD

Using CLI to Enable or Disable CSD

Using ASDM to Enable or Disable CSD

Enabling and Disabling CSD

---

You can use CLI or ASDM to enable or disable CSD. Refer to the section that names your preference.

•Using CLI to Enable or Disable CSD

•Using ASDM to Enable or Disable CSD

Using CLI to Enable or Disable CSD

Enabling CSD loads the CSD configuration file (data.xml) from the flash device to the running configuration. If you transfer or replace the data.xml file, disable and then enable CSD to load the file.

You can enter the following CLI command in privileged EXEC mode to display the status of the CSD image:

show webvpn csd

EXAMPLE

F1-asa1(config)# show webvpn csd

Secure Desktop version 3.1.0.25 is currently installed and enabled.

---

Note Disabling CSD does not alter the CSD configuration.

---

Use the CLI to enable or disable CSD as follows:

---

Step 1 Log in to the CLI and enter the config t command.

Step 2 Enter webvpn to access the webvpn command mode.

For example,

F1-asa1(config)# webvpn

Step 3 Enter the following command to identify the disk that contains the securedesktop_asa_<Version>.pkg file and display the name of the that file.

For example,

F1-asa1(config-webvpn)# show disk all

-#- --length-- -----date/time------ path

  6 8543616    Nov 02 2005 08:25:36 PDM

  9 6414336    Nov 02 2005 08:49:50 cdisk.bin

 10 4634       Sep 17 2004 15:32:48 first-backup

 11 4096       Sep 21 2004 10:55:02 fsck-2451

 12 4096       Sep 21 2004 10:55:02 fsck-2505

 13 21601      Nov 23 2004 15:51:46 shirley.cfg

 14 9367       Nov 01 2004 17:15:34 still.jpg

 15 6594064    Nov 04 2005 09:48:14 asdmfile.510106.rls

 16 21601      Dec 17 2004 14:20:40 tftp

 17 21601      Dec 17 2004 14:23:02 bingo.cfg

 18 9625       May 03 2005 11:06:14 wally.cfg

 19 16984      Oct 19 2005 03:48:46 tomm_backup.cfg

 20 319662     Jul 29 2005 09:51:28 sslclient-win-1.0.2.127.pkg

 21 0          Oct 07 2005 17:33:48 sdesktop

 22 5352       Oct 28 2005 15:09:20 sdesktop/data.xml

 23 369182     Oct 10 2005 05:27:58 sslclient-win-1.1.0.133.pkg

 24 1836392    Oct 26 2005 09:15:26 securedesktop_asa_3_1_0_24.pkg

38600704 bytes available (24281088 bytes used)

******** Flash Card Geometry/Format Info ********

COMPACT FLASH CARD GEOMETRY

   Number of Heads:            4

   Number of Cylinders       978

   Sectors per Cylinder       32

   Sector Size               512

   Total Sectors          125184

COMPACT FLASH CARD FORMAT

   Number of FAT Sectors      61

   Sectors Per Cluster         8

   Number of Clusters      15352

   Number of Data Sectors 122976

   Base Root Sector          123

   Base FAT Sector             1

   Base Data Sector          155

F1-asa1(config-webvpn)#

Step 4 To install the image, enter the following command:

csd image securedesktop_asa_<Version>.pkg

For example,

F1-asa1(config-webvpn)# csd image securedesktop_asa_3_1_0_25.pkg

Step 5 Enter one of the following commands:

•csd enable to enable CSD

•no csd enable to disable CSD

For example,

F1-asa1(config-webvpn)# csd enable

F1-asa1(config-webvpn)#

Step 6 Enter write memory to save the running configuration.

For example,

F1-asa1(config-webvpn)# F1-asa1(config-webvpn)# write memory

Building configuration...

Cryptochecksum: 71fa1950 45b7f82f 12b4e7c1 934111bb

15585 bytes copied in 3.710 secs (5195 bytes/sec)

[OK]

F1-asa1(config-webvpn)#

---

Using ASDM to Enable or Disable CSD

Enabling CSD loads the CSD configuration file (data.xml) from the flash device to the running configuration. If you transfer or replace the data.xml, disable and then enable CSD to load the file.

Disabling CSD does not alter the CSD configuration.

Use ASDM to enable or disable CSD as follows:

---

Step 1 Choose Configuration > VPN > WebVPN > CSD Setup.

The CSD Setup pane opens (Figure 2-1).

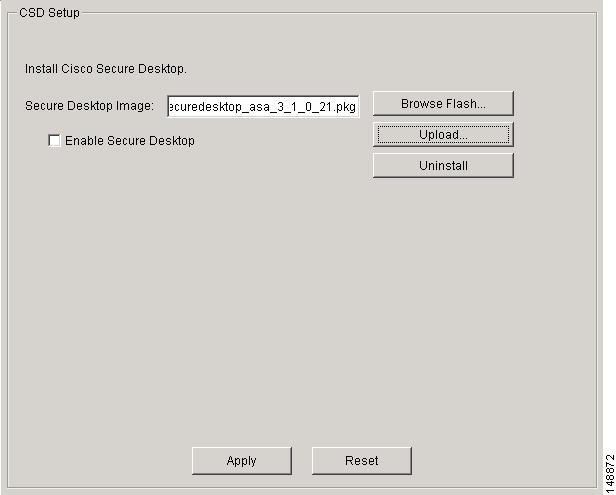

Figure 2-1 CSD Setup (Enable/Disable)

---

Note The Secure Desktop Image field displays the image (and version) that is currently installed. The Enable Secure Desktop check box indicates whether CSD is enabled.

---

Step 2 Check or uncheck Enable Secure Desktop and click Apply.

ASDM enables or disables CSD.

---
