Cisco Security Agent Overview
Overview
This chapter describes the agent and provides information on the agent user interface. There is no configuration necessary on the part of the end user in order to run the agent software. Optionally, as the administrator, you can provide end users with an advanced UI that allows them to control their security settings and to use other added features.
If you have configured Query User rules, users should know how to respond to query pop-up boxes. This information and additional advanced UI configuration information is included in the Help provided with the agent user interface. You may want to refer end users to this agent help.
This section contains the following topics.
–
Agent User Interface Control Rule
–
•
•
•
•
•
•
•
•
Downloading and Installing
Once you build an agent kit on CSA MC, you deliver the generated URL, via email for example, to end users so that they can download and install the Cisco Security Agent. They access the URL to download and then install the kit. This is the recommended method of agent kit distribution.
But you may also point users to a URL for the Management Center for the Cisco Security Agent (CSA MC). This URL will allow them to see all kits that are available. That URL is:
https://<CSA MC name>/csamc60/kitsIf you are pointing users to the "kits" URL and you have multiple agent kits listed here, be sure to tell users which kits to download.
End users must have administrator privileges on their systems to install the agent. Systems on which agents are installed must meet the following requirements:
Table A-1 Agent Requirements (Windows
Note
Note
Caution
To run the Cisco Security Agent on your Solaris server systems, the requirements are as follows:
Table A-2 Agent Requirements (Solaris)
Note
To run the Cisco Security Agent on your Linux systems, the requirements are as follows:
Table A-3 Agent Requirements (Linux)
Note
Caution
Once users install agents on their systems, they are asked if they want to perform a reboot. (if Automatic reboot is not selected at kit creation time). Whether a system is rebooted or not, the agent service starts immediately and the system is protected.
If a system is not rebooted following the agent installation, the following functionality is not immediately available. (This functionality becomes available the next time the system is rebooted.)
Windows agents, when no reboot occurs after install, the following caveats exist
•
•
•
Solaris and Linux agents, when no reboot occurs after install, the following caveats exist
•
•
•
•
At this time, the agent automatically and transparently registers with CSA MC.
You can see which hosts have successfully registered by clicking the Hosts link available from the Systems category in the menu bar. This displays the hosts list view. All registered host system names appear here. Agents are now ready to receive policies.
The Agent User Interface
Note
Agent User Interface Control Rule
As the administrator, you decide which agent UI options to provide to the end user. These options are controlled by the Agent UI control rule. See Agent UI Control, page 6-4. Available options are as follows:
•
•
•
•
•
•
–
–
–
–
Note
Agent User Interface Screens
To open the agent user interface, users can double-click on the agent icon in their system trays. The user interface opens on their desktop. The options available in the agent UI depend upon the features selected in the Agent UI control rule governing the agent in question. All possible agent features are described here.
Status
The Status screen shows users basic information about the Cisco Security Agent and provides users with information about software updates.

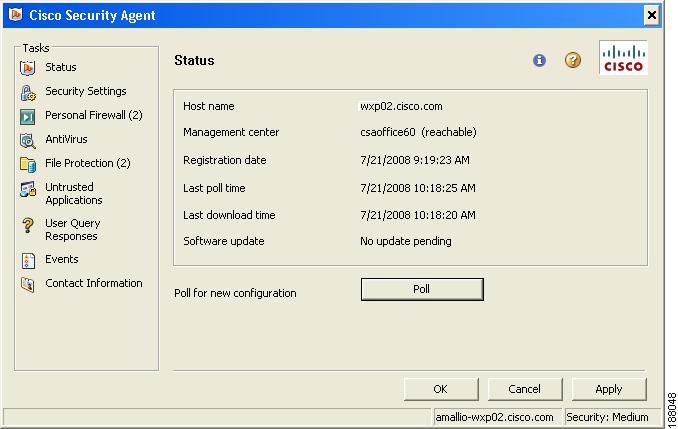

Figure A-1 Agent Status Screen
•
•
Generally, when the Management Center for Cisco Security Agents is in the "reachable" state, agents can send events to the MC and receive software and policy updates from the MC. The MC reachable state is reported in the Management Center field on the Status pane of the agent interface.
This is how the MC Reachable state is determined: Remote agents are initially in the MC "not reachable" state. CSA re-evaluates its MC Reachable state whenever the agent machine's routing table changes. Once the routing table changes, CSA tries to poll. If the poll is successful, the MC is "reachable" and if the poll is unsuccessful, the MC is "not reachable."
The MC Reachable state does not indicate whether the MC is "pingable" from the agent. Rather, the reachable state changes as the result of a routing table or IP address change that forces a new poll.
•
•
•
•
•
Installing Software Updates
Occasionally, software updates are provided for agents. Administrators configure the central server to distribute the appropriate software updates to specified agents across the network. If there is a software update available for an agent, the agent will receive the update the next time it polls in. If the administrator has configured the update to prompt users before installing, users are notified when an update is available. Users can update at that time or postpone the update.
On Windows agents, after an update has taken place, users may be required to reboot their system within 5 minutes time. They cannot stop this reboot. They have 5 minutes to save any open documents.
On Linux agents, if the update requires a system reboot, a broadcast message will appear informing users that their system will be rebooted in 5 minutes.
See Modify Groups With Hosts That Meet a Search Criteria, page 3-32 for CSA MC configuration details.
Note
Poll for New configuration
Clicking the Poll button forces the agent to poll the management center immediately rather than waiting for the configured time interval to trigger a poll. This way, the agent receives any rule changes right away. Administrators may advise users to implement this fast polling if new rules are being deployed and tested.
Security Settings
The Security Settings screen allows users to manage their agent's security level, some aspects of its network connections, and its behavior following a local installation or uninstallation of software.

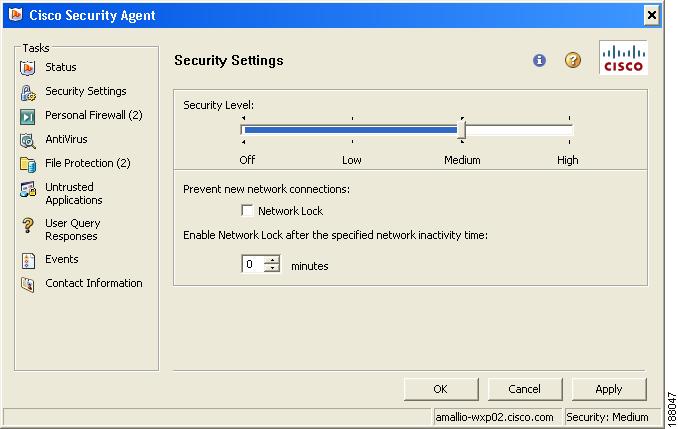

Figure A-2 Agent Security Settings Screen
Security Level
The Low, Medium, and High security levels allow users to select an administratively defined security policy. Each setting maps to a specified system state configured on the central management center. If administrators have not defined different levels of security states for the agents, moving the slidebar between security levels will not alter their security.
Some examples of how administrators might define various configuration levels are as follows:
A High security setting may cause the agent to detect a wide range of both known attacks and potential attack behavior. With high security enabled, these actions could be automatically denied when they are detected rather than giving you the option of allowing them via a query user pop-up box (as might be available in lower settings).
A Medium security setting may cause the agent to detect a wide range of attacks similar to those detected at the high setting. But this level might cause you to be presented with more query pop-up boxes to ensure that the action taking place is intended by you and not a type of attack.
A Low security setting may cause the agent to detect the more commonly known attacks that are easily distinguished from normal system behavior. In most cases, you could be queried as to whether the detected action should be allowed or not.
The Off security setting disables all agent security.
Caution
Caution
Preventing New Network Connections
When the Network Lock checkbox is enabled, the agent will not allow any new network connections on the system. Disabling the checkbox disables the network lock.
Alternatively, users can set a time frame of 0-60 minutes of network access inactivity, before the agent automatically enforces a network lock on the system. When that time frame is reached, the Network Lock checkbox is automatically selected by the agent itself. Unselect the checkbox to turn it off again.
When a network lock is enforced on the system, existing network connections are not lost, but no new connections (in or out) are allowed.
Note
Install / Uninstall Detected
The Cisco Security Agent temporarily suspends certain security settings when users are installing or uninstalling software that was downloaded over the network. If users select "Yes" when they are queried whether to allow an installation to proceed, an additional Resume button appears in the Security Settings window. If the agent doesn't automatically detect that the install has completed, users can click the Resume button to inform the agent when the install or uninstall process has finished. This way, the agent knows the process is done and it can reinstate all suspended security immediately. If users do not click the Resume button, the agent automatically reinstates suspended security after a certain period of time.
If the install/uninstall requires you to reboot the system when it completes, all agent security settings suspended during that time are reinstated at boot time whether users answered the agent installation completion query or not before rebooting.
Note
Personal Firewall
Personal Firewall settings restrict certain applications from making certain types of network connections.

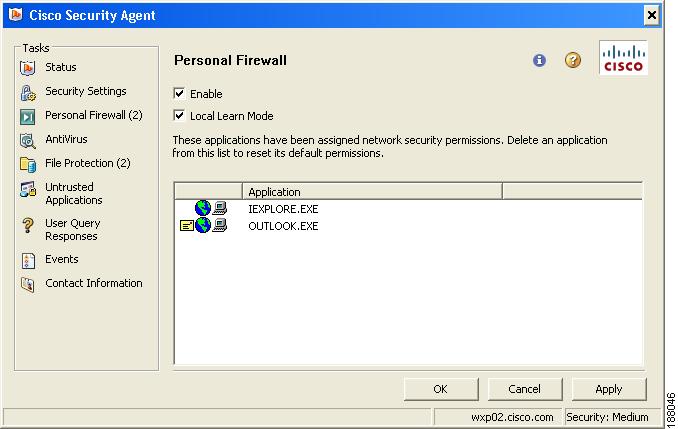

Figure A-3 Agent Personal Firewall Screen
The Personal Firewall feature gives users the ability to add restrictions to the security policies created by system administrators. It is not possible to use this functionality to make security policies more permissive.
To use the Personal Firewall, click the Enable checkbox. If Local Learn Mode is not checked, then each time a new application attempts to connect to the network, users will be asked whether this connection should be permitted. If they respond no, then connections of this type will be denied in the future. If they respond yes, then future connections of this type will be allowed, assuming that they are not denied by other security policies.
After Enabling the Personal Firewall, users may find that they get a lot of query dialogs. By clicking the Local Learn Mode checkbox, users instruct CSA to assume that all network connections not otherwise denied by CSA policies are permitted. The application list on this screen will be populated and will indicate that these applications are allowed to make certain connections. In effect, the Local Learn Mode checkbox allows users to bypass the query boxes while CSA learns what connections are permissible. After a certain period of time, though, users should uncheck the Local Learn Mode box so that they will be queried when applications they use infrequently attempt to access the network.
Users can see what permissions have been assigned to specific applications based on the graphic that appears beside the application name in the edit box. If there is no graphic present for an application, that network permission type has not yet been assigned. An application can have up to 4 permission types assigned to it. Refer to the Permission Key below for a description of each possible network service graphic.
If users want to change the assigned permissions of a given application, they select it in the edit box and press the Delete key. When they click the Apply button, the delete takes effect on the system. When users next invoke the application, they will be queried. They should respond to the query accordingly to reset permissions for the application.
On Windows systems, users can remove items or choose a sorting order by right-clicking in the personal firewall window.
Note
Note
Table A-4 Permission Key
AntiVirus Protection
The AntiVirus screen allows users to update their local signature database, perform on-demand virus scans, and manage quarantined files.

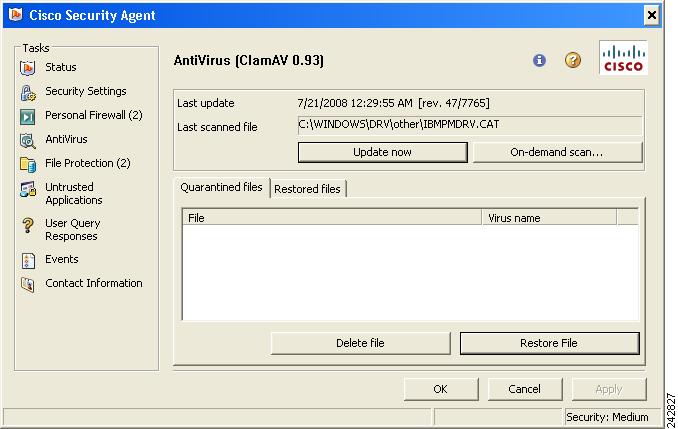

Figure A-4 Agent AntiVirus Screen
Updating Signature Database
The AV signature update field indicates the last time that local signature database was updated. <Never> indicates that the local signature database installed with the agent has not been updated.
Clicking Update now manually retrieves updates to the signature database.
Last scanned file
The Last scanned file field shows the path to the last file scanned as a result of a CSA rule triggering the virus scan. The last file scanned after an On-demand scan does not appear in this field.
On-demand Scan
Clicking On-demand scan opens the AntiVirus On-demand scan window. To configure an on-demand scan, follow this procedure:
Step 1
Note
Note
Step 2
–
–
–
Step 3
The Scan progress area displays the directory and file being scanned and a summary of the number of files scanned, files found to be infected, and elapsed time of the scan. When the scan is complete, the tile bar of the window will read, "AntiVirus On-demand scan [complete]."
Note
Quarantined Files Tab
If a file is found to have a virus, it is quarantined in place and listed in the Quarantined files tab. A quarantined file is rendered inert by the CSA AntiVirus rules installed on the host.
You can delete quarantined files by selecting them from the list and clicking the Delete file(s) button. If you feel that a file has been quarantined erroneously, you can move it to the Restored files tab by selecting the file and clicking the Restore File(s) button. If a quarantined file is deleted from your computer for any reason, it is also removed from the Quarantined files list.
Caution
Caution
Restored Files Tab
A file listed in the Restored files tab was once quarantined, you determined that the file was not malicious and "restored" your access to it. Restoring a file does not give you additional access to it. For example, if you had read-only access to a file before it was quarantined, you will have read-only access to it after it is restored.
If you want to quarantine a file in the Restored files list, select it from the list and click Quarantine File(s). If a file in the Quarantined Files list is deleted from your computer for any reason, it is also removed from the Restored files list.
Caution
File Protection
Through some simple configuration, the agent can protect specified local files and directories on your system from certain types of network access. This is useful if you have sensitive personal information stored on your system. Entering the name of the file or directory that you want to protect limits network access to that resource.
Windows users can add directories and files to the file protection field by browsing for them or by entering them in the edit field using proper syntax. Linux users can add individual files to the file protection field by entering them in the edit field.
Generally, if an application attempts to open a file and make a network connection, CSA queries the user to allow or deny the application from editing the file and from making the network connection. File protection also denies a protected file from being accessed from a mapped drive if you are in the Medium or High security state; if you are in a Low security state, you receive a query. File protection is built in to CSA, it is not defined by security policies.
Note

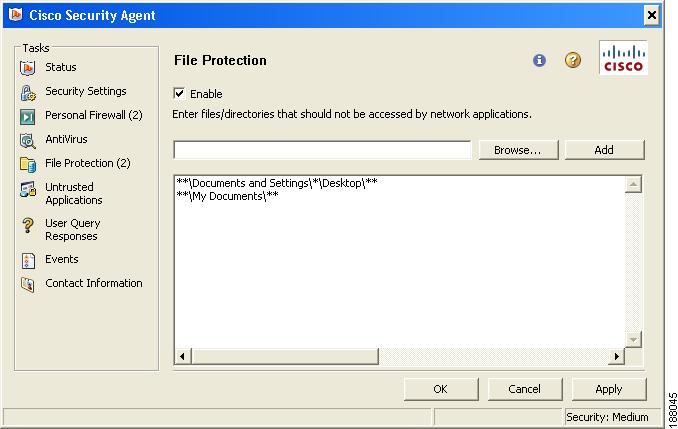

Figure A-5 File Protection
Selecting a Directory to Protect
Windows users may browse to a directory and select it for protection.
Step 1
Step 2
Step 3
Step 4
Step 5
Step 6
Step 7
Entering Files and Directories to Protect
Linux and Windows users can enter the path of a directory or file for protection.
Step 1
Step 2
Step 3
Step 4
Step 5
Removing File Protection from Files and Directories (Windows)
Step 1
Step 2
Step 3
Step 4
Removing File Protection from Files and Directories (Linux)
Step 1
Step 2
Step 3
Step 4
Disabling File Protection
To disable file protection, uncheck the Enable checkbox in the file protection window.
The contents of the file protection pane are saved for when you want to turn file protection on again.
Untrusted Applications
The Cisco Security Agent can keep track of downloaded files that are either applications or that could contain programmatic content such as scripts or macros. Depending on how the agent was configured by the system administrator, these files are considered Untrusted and their filenames are displayed in the Untrusted Applications edit box. The consequences of being labeled Untrusted are defined by the system administrator, but in general files listed here continue to operate, but under restrictions greater than those of trusted files. For example, untrusted applications may not be able to write to system executables or to registry keys that are typically targeted by viruses.
Note

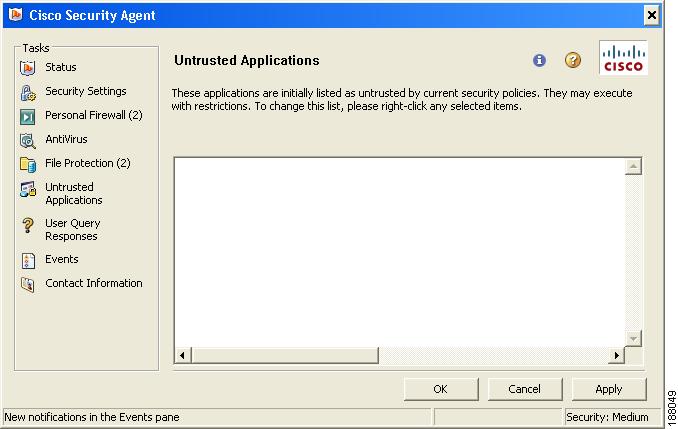

Figure A-6 Agent Untrusted Applications Screen
For Windows agents, if users want to remove a file or program from the list of untrusted applications in the Untrusted Applications window, they right-click on the selected entry in the edit box and select Mark As Trusted. This removes the application from the untrusted list, making it trusted.
For Linux agents, if users want to remove a file or program from the list of untrusted applications in the Untrusted Applications window, they select the entry in the edit box and press the Delete key. When they click the Apply button, the delete takes effect on the system.
User Query Responses
This screen allows you to manage your responses to user queries.

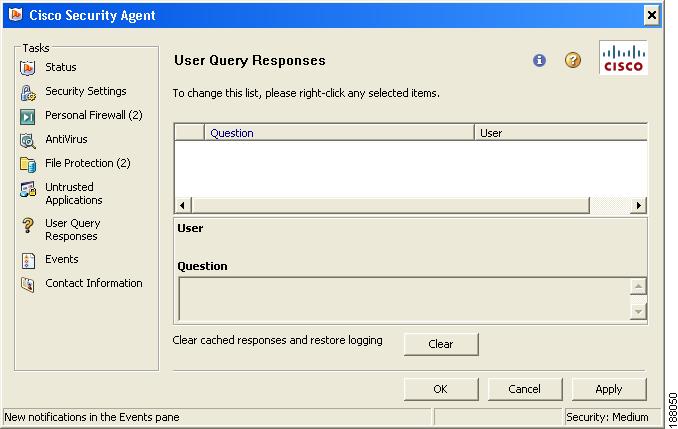

Figure A-7 Agent User Query Responses Screen
Responding to Pop-up Query Boxes
The management center administrator can create rules that prompt users to allow or deny an action, or terminate a process, when an attempt is made by a process, to access resources on their system. In this case, if the rule in question is triggered, a pop-up box appears prompting users to select from several possible radio buttons and click Apply as follows:
•
•
•
Default Action - If users do not respond to the query within 5 minutes, an administrator-determined default action is automatically taken.
Don't ask again - The administrator can optionally display a "Don't ask again" checkbox on the query so that the user's response is remembered. If users select that checkbox when responding to the query, and the same query is triggered on the system, the remembered response is automatically taken and they are not queried again.
Query challenge - For added security, the administrator can optionally issue a query challenge on the query pop-up box. This ensures that the local user is answering the query and not a malicious remote user or program. To pass the challenge, users simply enter the information displayed in a graphic on the pop-up box itself.
Remembering and Caching Query Responses
When users are queried, the agent can remember their response permanently or temporarily. This way, if the same query is triggered again, the action is allowed, denied, or terminated based on what they answered previously without a pop-up query box appearing again either permanently, or for some period of time. In order to reduce the number of queries users must respond to, it is generally advantageous for them to permanently remember query responses.
For example, if users are queried as to whether an application can talk on the network and they respond by selecting the Yes radio button, clicking the Don't ask me again checkbox, and then clicking Apply, the Yes response is remembered permanently and that response appears in the edit field in this window. But if users are queried as to whether setup.exe can install software on their system and they respond by clicking the Yes radio button, but there is no Don't ask me again checkbox or it is there but they do not select it, this response is remembered temporarily and it does not appear in the edit field. It is the Don't ask me again checkbox that controls whether a query response is remembered permanently. The administrator decides whether or not users have the option to choose Don't ask me again.
Note
Note
Note
"Undoing" or Deleting Your Response to a Query
If a response is only cached temporarily (for approximately an hour) users can click the Clear button in this window to delete all temporarily cached responses.
On Windows agents, to clear permanent responses listed in the agent User Query Responses window edit field, users right-click on a selected response in the edit field and select Remove. On Linux agents, to clear permanent responses listed in the agent User Query Responses window edit field, users select the response in the edit field and press the Delete key. When they click the Apply button, the delete takes effect on the system.
Events
The Events window displays security-related messages, system errors, and system status messages generated by Cisco Security Agent.

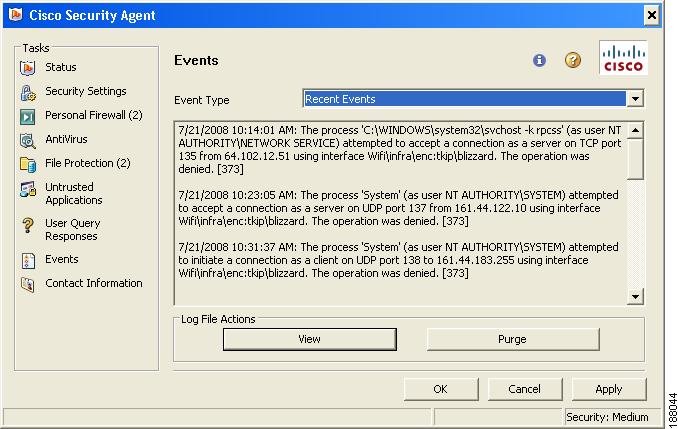

Figure A-8 Agent Events Screen
To view events, follow this procedure:
Step 1
Step 2
•
•
•
Clicking the View button launches a text file containing more detailed information than the event type you have chosen to display.
Clicking the Purge button clears the messages displayed by the Recent Events or All Logged Security Events event types. You can not purge the messages displayed by the All Logged Events & Debug Messages event type.
Contact Information
This window allows you to provide contact information to the administrator, including your name, telephone number, location, and email address. If your system administrator has requested that you enter this information, do so here and click the Apply button.
CSA MC receives this contact data and the administrator can now quickly locate you if your agent indicates that there is a problem.

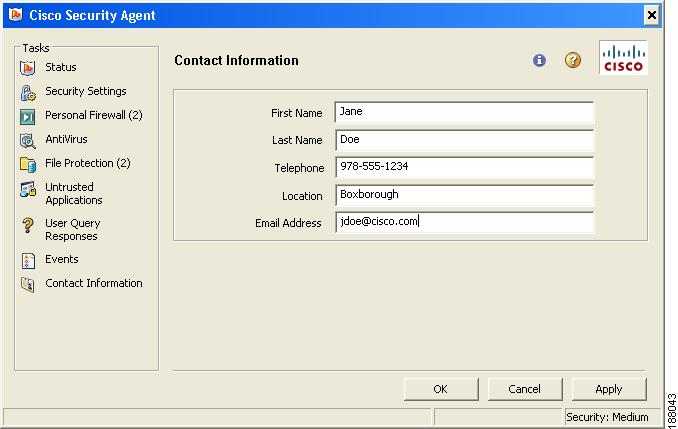

Figure A-9 Agent Contact Information Screen
Assigning Sounds to Agent Events
Different sounds can be assigned to different agent events on Windows systems. Through your Windows operating system's Sounds and Multimedia Properties window, accessible from the Start>Settings>Control Panel window, you can assign specific sounds to Cisco Security Agent events. In the Sounds and Audio Devices Properties window, users scroll through the list of Sound Events in the Sounds tab to locate Cisco Security Agent and the list of available sound event assignments.
As an example, users can configure their system to generate a sound when the flag in the system tray begins flapping because a rule has been triggered. They can also have a sound occur when a Query User pop-up window appears and then have another sound occur when the countdown to respond to this query is down to 1 minute. Users must have a sound card installed to play these sounds.
Cisco Security Agent Diagnostics
This feature allows the agent to gather self-describing diagnostic information about the agent and about the system on which the agent runs. Generally, users should only select this if the administrator has requested that they do so. It may take some time to collect this data. Cisco Security Agent Diagnostics are available for Windows, Solaris, and Linux platforms.
On Windows systems, this setting is available from the Start>Programs>Cisco>Cisco Security Agent menu when the agent is installed. Selecting Cisco Security Agent Diagnostics causes the agent to gather information on the system and on the agent itself. When the collection is complete, a "csa-diagnostics.zip" file is created in the user's system temp directory. They should send this file to their administrator.
Host diagnostics are available locally to the Solaris and Linux end user by executing the ./diag shell script from the /opt/CSCOcsa/bin directory. This creates a csa-diagnostic.gz file in the /tmp directory.
Note
Resetting Cisco Security Agent
Selecting the "Reset Cisco Security Agent" option puts all agent settings back to their original states and clears almost all other user-configured settings. This does not clear configured Firewall Settings or File Protection settings. But if Firewall Settings or File Protection settings are enabled, they are disabled after a reset as this is the default factory setting. The information entered into the edit boxes for these features is not lost.
On Windows systems, this setting is available from the Start>Programs>Cisco>Cisco Security Agent menu on systems where the agent is installed. On Linux systems, this setting is available from the Red Hat Application Menu>Cisco Security Agent menu on systems where the agent is installed.
Cisco Security Agent Shortcut Menu
Right-click the CSA icon in the system tray to view the agent's shortcut menu. These are the menu items and their functions:
Note
Disabling and Enabling Agent Security
Provided there is not an Agent service control rule or Agent UI control rule (See Agent Service Control, page 6-2 and Agent UI Control, page 6-4 for rule details) that denies this action, all users can stop the security the agent provides on a Windows or Linux host by accessing the agent UI and clicking on the flag in the menu bar. If users move the slidebar (if present) to the Off setting, agent security enforcement stops.
Note
Provided there is not an Agent service control rule that denies this action, Windows administrators can run the following commands from a command prompt window on the agent host system to stop and start the agent service:
net stop csagent
net start csagent
Note
Provided there is not an Agent service control rule that denies this action, administrators can stop and start the agent service on a UNIX (Solaris and Linux) host by running the following commands from a command prompt window on the agent host system:
/etc/init.d/ciscosec stop
/etc/init.d/ciscosec start
Caution
Installing the Windows Agent
The Windows agent kit is a self-extracting executable. You can save the agent kit to disk and install it from there by double-clicking on the file, or you can choose to install it over the network from CSA MC.
Follow the installation prompts, clicking Next when appropriate. You can install to the default directory Program Files\Cisco\CSAgent or you can choose another directory.
Agent kits may be configured to require a reboot after the agent is installed, otherwise users are given the option to reboot. Some security is provided immediately after the agent is installed and before the machine is rebooted.
The following functionality is available only after the system has been rebooted:
•
•
•
See also Manual Agent Data Filter Installation, page 12-8 if you are installing a web server on the same server as the Windows agent.
See also Agent Interaction with Windows Security Settings for descriptions of how the agent interacts with the Windows Firewall and the Windows Security Center.
Uninstalling the Windows Agent
To uninstall the Cisco Security Agent, do the following:
Step 1
Step 2
Agent Interaction with Windows Security Settings
The Cisco Security Agent automatically disables the Windows firewall and CSA's status will not be visible in the Windows Security Center if the host is joined to a domain.
Agent Disables Windows Firewall
The Cisco Security Agent automatically disables the Windows XP and Windows 2003 firewall. This is done per recommendation of Microsoft in their HELP guide for their firewall. If you want to read this recommendation, you can access the "Windows Security Center" console from a Windows XP or Windows 2003 installation, click on "Windows Firewall", and select "on." The firewall status will warn you as follows: "Two or more firewalls running at the same time can conflict with each other. For more information see Why you should only use one firewall."
Because the Cisco Security Agent, in part, utilizes firewall-like components, the agent disables the Windows firewall per the recommendation from Microsoft.
If Cisco Security Agent is uninstalled, the Windows Firewall is automatically re-enabled.
Agent Status is not Reported in the Security Center
If Cisco Security Agent is installed on a computer that is not joined to a domain, then the Windows Security Center provides a status message about CSA in the Firewall Programs status area. The message indicates if Cisco Security Agent is on or off.
If Cisco Security Agent is installed on a computer that is joined to a domain, then the Windows Security Center does not provide status messages about CSA.
If the system administrators for your enterprise want users to see status messages in the Windows Security Center about CSA, they will need to set this node to "on" in the Group Policy Object Editor (Gpedit.msc.):
Computer Configuration\Administrative Templates\Windows Components\Security Center
Common Windows Cisco Security Agent Error Codes
The following are the most commonly seen error codes for Windows agent installations.
2029 - OKENA_STATUS_DB_ERROR. This message usually indicates that the database is down or busy.
2030 - OKENA_STATUS_LICENSE_REACHED_LIMIT.
2031 - OKENA_STATUS_REGISTRATION_NOT_ALLOWED. This indicates that the CSA MC registration control is actively denying agent registration.
2035 - OKENA_STATUS_INVALID_LICENSE. This indicates that the license is corrupt or expired.
2037 - OKENA_STATUS_REGISTRATION_BACKOFF. This indicates that an agent with the same IP address has already registered with CSA MC in the past hour.
Installing the Solaris Agent
This section details the commands you enter and the subsequent output that is displayed when you install the Cisco Security Agent on Solaris systems. After you download the agent kit from CSA MC, do the following to unpack and install it. (Note that you can put the downloaded tar file in any temp directory. Do not put it in the opt directory; however, as you may then experience problems with the installation.)
Step 1
$ suStep 2
# tar xf CSA-Server_6.0.1.100-setup.tarStep 3
# pkgadd -a CSCOcsa/reloc/cfg/admin -d . CSCOcsaWhen the install is complete, the following is displayed:
The agent installed cleanly, but has not yet been started. The command: /etc/init.d/ciscosec start will start the agent. The agent will also start automatically upon reboot. A reboot is recommended to ensure complete system protection.Step 4
# shutdown -y -i6 -g0
Note
Note
svc.startd[7]:system/csaservice : default failed: transitioned to maintenance (see 'svcs -xv for more details')svc.startd[7]:system/webconsole :console failed: transitioned to maintenance (see 'svcs -xv for more details')After second reboot, you will not receive any other messages and regarding CSA and CSA will be fully functional.
The agent installs into the following directory:
/opt/CSCOcsaSome files are put into additional directories such as
/kernel/strmod/sparcv9, usr/lib/csa, /etc/init.d and /etc/rc?.d.
Note
Note
Uninstalling the Solaris Agent
When uninstalling the Solaris Agent you must be in a session which has permission to disable CSA. The Agent Service Control rules in the Base - CSA service control (Solaris) rule module provided with this release, define the sessions given permission to disable CSA.
While running the default Base - CSA service control (Solaris) rule module, booting directly into multi-user mode using the Command Line Login option or booting directly into single-user mode gives you the permission to uninstall CSA.
Note
To uninstall CSA:
Step 1
Step 2
Step 3
# pkgrm CSCOcsaStep 4
Note
A shipped UNIX policy allows secured management applications to stop the agent service. For example, after having logged in by selecting Command Line Login in the options menu of the login screen, all login applications are considered secure management applications. You can now run the pkgrm command to uninstall the agent.
UNIX Agent csactl Utility
Because the Solaris Cisco Security Agent has no user interface, a utility is provided which allows you to check the Solaris agent status, poll in to CSA MC and re-enable logging. The command you enter to perform these functions is csactl.
Note
Enter the csactl command as follows:
# /opt/CSCOcsa/bin/csactl <command>Available commands are:
The commands listed above are only available to root.
For example, poll in to CSA MC by entering the following:
# /opt/CSCOcsa/bin/csactl pollPoll of management center succeeded
For example, check the status of the agent by entering the following:# /opt/CSCOcsa/bin/csactl statusStatus:Management center: stormcenterRegistration time: 2006-11-20 15:19:16Host id: {FG9DA858-6131-46E9-18BD-EE32BA2D0676}Last download time: 2006-11-20 15:19:23Last poll time: 2006-11-20 15:20:42Software update: newer version is availableFor example, to perform a software update:
# /opt/CSCOcsa/bin/csactl swupdate
Note
For example, re-enable logging if duplicate messages are being throttled:
# /opt/CSCOcsa/bin/csactl resetlogReset Log throttle sent to kernelInstalling the Linux Agent
This section details the commands you enter and the subsequent output that is displayed when you install the Cisco Security Agent on Linux systems.
When you download the Cisco Security Agent kit from CSA MC, do the following to unpack and install it.
Step 1
$ mv CSA-Server_V5.2.0.218-lin-setup-1a969c667ddb0a2d2a8da3e7959a30b2.tar /tmpStep 2
$ cd /tmp$ tar xvf CSA-Server_V5.2.0.218-lin-setup-1a969c667ddb0a2d2a8da3e7959a30b2.tarStep 3
$ cd /tmp/CSCOcsaStep 4
# ./install_rpm.shThe package will be installed to /opt/CSCOcsa, with some files being put into directories such as /lib/modules/CSCOcsa, /lib/csa, /etc/init.d and /etc/rc?.d.
Note
Caution
Note
Uninstall Linux Agent
Cisco Security Agent can only be uninstalled by the "root" user. You can uninstall Cisco Security Agent through a command line or GUI interface.
Caution
You can uninstall the linux agent regardless of policies if you login using single user mode.
Command line method
Step 1
Step 2
Step 3
# cd /opt/CSCOcsa/bin
Step 4
# sh ./uninstall
Step 5
Cisco Security Agent has been uninstalled.
Step 6
Step 7
GUI method
Step 1
Step 2
From the SUSE Computer menu, click More Applications and then click Uninstall Cisco Security Agent.
Step 3
Step 4
Step 5
Step 6
