Preparing to Install
How the Cisco Security Agent Works
The Cisco Security Agent provides distributed security to your enterprise by deploying agents that defend against the proliferation of attacks across networks and systems. These agents operate using a set of rules provided by the Management Center for Cisco Security Agents and selectively assigned to each client node on your network by the network administrator.
This section includes the following topics.
•
Cisco Security Agent Overview
•Before Proceeding
•System Requirements
•Environment Requirements
•DNS and WINS Environments
•Browser Requirements
•Time and Date Requirements
•Port Availability
•Windows Cluster Support
•Internationalization Support
•Internationalization Support Tables
•About CSA MC
Cisco Security Agent Overview
Cisco Security Agent contains two components:
•The Management Center for Cisco Security Agents (CSA MC)- installs on a secured server and includes a web server, a configuration database, and a web-based user interface.
•The Cisco Security Agent (the agent)- installs on desktops and servers across your enterprise and enforces security policies on those systems.
Administrators configure security policies on CSA MC using the web-based interface. They distribute these policies to agents installed on end user systems and servers. Policies can allow or deny specific system actions. The agents check policies before allowing applications access to system resources.
Figure 1-1 Product Deployment
Before Proceeding
Before installing CSA MC software, refer to the Release Notes for up-to-date information. Not doing so can result in the misconfiguration of your system.
Make sure that your system is compatible with the Cisco product you are installing and that it has the appropriate software installed.
Read through the following information before installing the CSA MC software.
System Requirements
Note The acronym CSA MC is used to represent the Management Center for Cisco Security Agents.
Table 1-1 shows the minimum CSA MC server requirements for Windows 2003 systems. These requirements are sufficient if you are running a pilot of the product or for deployments up to 1.000 agents. If you are planning to deploy CSA MC with more than 1.000 agents, these requirements are insufficient. See Scalable Deployments for more detailed system requirements.
Table 1-1 Minimum Server Requirements
System Component
|
Requirement
|
Hardware
|
• IBM PC-compatible computer
• Color monitor with video card capable of 16-bit
|
Processor
|
1 GHz or faster Pentium processor
|
Operating System
|
Windows 2003 R2 Standard or Enterprise Editions, Service Pack 0 , 1, or 2
Note To run terminal services on the CSA MC system, you must edit the MC policy.
|
File System
|
NTFS
|
Memory
|
1 GB minimum memory
|
Virtual Memory
|
2 GB virtual memory
|
Hard Drive Space
|
9 GB minimum available disk drive space
|
•Pager alerts require a Hayes Compatible Modem.
•For optimal viewing of the CSA MC UI, you should set your display to a resolution of 1024x768 or higher.
•On a system where CSA MC has never been installed, the CSA MC setup program first installs Microsoft SQL Server Express and the required .NET environment. If the CSA MC installation detects any other database type attached to an existing installation of Microsoft SQL Server Express, the installation will abort. This database configuration is not supported.
If you are planning to deploy no more than 1,000 agents, the shipped version of Microsoft SQL Server Express should be adequate. For a larger deployment, you also have the option of installing Microsoft SQL Server 2005 or Microsoft SQL Server 2000 instead of using the Microsoft SQL Server Express database that is provided. Note that of you are using SQL Server 2005 or 2000, it must be licensed separately and it must be installed on the system before you begin the CSA MC installation. See "Installing the Management Center for Cisco Security Agents" for details.
We also recommend that you format the disk to which you are installing CSA MC as NTFS. FAT32 limits all file sizes to 4 GB.
To run the Cisco Security Agent on Windows servers and desktop systems, the requirements are as follows:
Table 1-2 Agent Requirements (Windows)
System Component
|
Requirement
|
Processor
|
Intel Pentium 200 MHz or higher
Note Up to eight physical processors are supported.
|
Operating Systems
|
•Windows Server 2003 R2 (Standard, Enterprise, Web, or Small Business Editions) Service Pack 0, 1, or 2
•Windows XP (Professional, Tablet PC Edition 2005, or Home Edition) Service Pack 0, 1, or 2
•Windows 2000 (Professional, Server or Advanced Server) with Service Pack 0, 1, 2, 3, or 4
•Windows NT (Workstation, Server or Enterprise Server) with Service Pack 6a
Note Citrix Metaframe and Citrix XP are supported. Terminal Services are supported on Windows 2003, Windows XP, and Windows 2000 (Terminal Services are not supported on Windows NT.)
Supported language versions are as follows:
•For Windows 2003, XP, and 2000, all language versions, except Arabic and Hebrew, are supported.
•For Windows NT, US English is the only supported language version.
|
Memory
|
128 MB minimum—all supported Windows platforms
|
Hard Drive Space
|
50 MB or higher
Note This includes program and data.
|
Network
|
Ethernet or Dial up
Note Maximum of 64 IP addresses supported on a system.
|
To run the Cisco Security Agent on your Solaris server systems, the requirements are as follows:
Table 1-3 Agent Requirements (Solaris)
System Component
|
Requirement
|
Processor
|
UltraSPARC 400 MHz or higher
Note Uni-processor, dual processor, and quad processor systems are supported.
|
Operating Systems
|
Solaris 9, 64 bit, patch version 111711-11 or higher, and 111712-11 or higher installed.
Solaris 8, 64 bit 12/02 Edition or higher (This corresponds to kernel Generic_108528-18 or higher.)
Note If you have the minimal Sun Solaris 8 installation (Core group) on the system to which you are installing the agent, the Solaris machine will be missing certain libraries and utilities the agent requires. Before you install the agent, you must install the "SUNWlibCx" library which can be found on the Solaris 8 Software disc (1 of 2) in the /Solaris_8/Product directory. Install using the pkgadd -d . SUNWlibCx command.
|
Memory
|
256 MB minimum
|
Hard Drive Space
|
50 MB or higher
Note This includes program and data.
|
Network
|
Ethernet
Note Maximum of 64 IP addresses supported on a system.
|
Caution On Solaris systems running Cisco Security Agents, if you add a new type of Ethernet interface to the system, you must reboot that system twice for the agent to detect it and apply rules to it accordingly.
To run the Cisco Security Agent on your Linux systems, the requirements are as follows:
Table 1-4 Agent Requirements (Linux)
System Component
|
Requirement
|
Processor
|
500 MHz or faster x86 processor (32 bits only)
Note Uni-processor, dual processor, and quad processor systems are supported.
|
Operating Systems
|
RedHat Enterprise Linux 4.0 WS, ES, or AS
RedHat Enterprise Linux 3.0 WS, ES, or AS
|
Memory
|
256 MB minimum
|
Hard Drive Space
|
50 MB or higher
Note This includes program and data.
|
Network
|
Ethernet
Note Maximum of 64 IP addresses supported on a system.
|
Note Agent systems must be able to communicate with CSA MC over HTTPS.
Note The Cisco Security Agent uses approximately 30 MB of memory. This applies to agents running on all supported Windows and UNIX platforms.
Caution When upgrading or changing operating systems, uninstall the agent first. When the new operating system is in place, you can install a new agent kit. Because the agent installation examines the operating system at install time and copies components accordingly, existing agent components may not be compatible with operating system changes.
Environment Requirements
The following are recommendations for a secure setup and deployment of CSA MC.
•The system on which you are installing the CSA MC software should be placed in a physically secure, locked down location with restricted access.
•Do not install any software on the CSA MC system that is not required by the product itself.
•You must have administrator privileges on the system in question to perform the installation.
•The CSA MC system must have a static IP address or a fixed DHCP address.
DNS and WINS Environments
For agents and browsers to successfully communicate with CSA MC, the CSA MC machine name must be resolvable through DNS (Domain Name Service) or WINS (Windows Internet Naming Service).
Browser Requirements
You use a web browser to access CSA MC either locally or from a remote system. Browser requirements are as follows:
Internet Explorer:
•Version 6.0 or later
•You must have cookies enabled. This means using a maximum setting of "medium" as your Internet security setting. Locate this feature from the following menu, Tools>Internet Options. Click the Security tab.
•JavaScript must be enabled.
•If you are using Internet Explorer Version 6.0 SP1 or higher, your CSA MC FQDN cannot contain non-alphanumeric characters other than '-' and '.' . For example, if the server system name contains an underscore "_", CSA MC will not work properly.
FireFox:
•Version 1.5.0.x or higher
•You must have cookies enabled. Locate this feature from the following menu, Tools>Options>Privacy>Cookies.
•JavaScript must be enabled.
Time and Date Requirements
Before you install CSA MC, make sure that the system to which you plan install the software has the correct and current time, date, and time zone settings. If these settings are not current, you will encounter MC/agent certificate issues.
Port Availability
CSA MC acts as a web server and requires that no other web server software is running on the CSA MC system. Having multiple web servers running on the same system causes port conflicts.
Caution By default, Windows 2003 has the World Wide Web Publishing service running. If the CSA MC installation detects this service running, the CSA MC installation will disable all Web publishing services in order for its own installation to proceed.
Windows Cluster Support
Cisco Security Agent supports Network Load Balancing and Server Cluster for Windows 2003 and 2000 Server platforms. Cluster support may require certain network permissions to operate. As with other network services, your CSA MC policies must account for these network permissions. (Component Load Balancing, and Solaris and Linux Clusters are not officially supported in this release.)
Internationalization Support
All Cisco Security Agent kits contain localized support for English, French, German, Italian, Japanese, Korean, Simplified Chinese, and Spanish language desktops. This support is automatic in each agent kit and no action is required by the administrator. The agent UI, events, and help system will appear in the language of the end user's desktop.
The following table lists CSA localized support and qualification for various OS types.
Table 1-5 CSA Localizations
Language
|
Operating System
|
Localized
|
Qualified
|
Chinese (Simplified)
|
Windows 2000
|
Yes
|
Yes
|
| |
Windows XP
|
Yes
|
Yes
|
| |
Windows 2003
|
Yes
|
Yes
|
French
|
Windows 2000
|
Yes
|
Yes
|
| |
Windows XP
|
Yes
|
Yes
|
| |
Windows 2003
|
Yes
|
Yes
|
German
|
Windows 2000
|
Yes
|
Yes
|
| |
Windows XP
|
Yes
|
Yes
|
| |
Windows 2003
|
Yes
|
Yes
|
Italian
|
Windows 2000
|
Yes
|
Yes
|
| |
Windows XP
|
Yes
|
Yes
|
| |
Windows 2003
|
Yes
|
Yes
|
Japanese
|
Windows 2000
|
Yes
|
Yes
|
| |
Windows XP
|
Yes
|
Yes
|
| |
Windows 2003
|
Yes
|
Yes
|
Korean
|
Windows 2000
|
Yes
|
Yes
|
| |
Windows XP
|
Yes
|
Yes
|
| |
Windows 2003
|
Yes
|
Yes
|
Spanish
|
Windows 2000
|
Yes
|
Yes
|
| |
Windows XP
|
Yes
|
Yes
|
| |
Windows 2003
|
Yes
|
Yes
|
Explanation of terms:
Localized: Cisco Security Agent kits contain localized support for the languages identified in Table 1-5. This support is automatic in each agent kit and no action is required by the administrator. The agent UI, events, and help system will appear in the language of the end user's desktop. All localized languages are agent qualified and supported. (CSA MC is not localized.)
Qualified: The Cisco Security Agent was tested on these language platforms. Cisco security agent drivers are able to handle the local characters in file paths and registry paths. All qualified languages are supported.
Supported: The Cisco Security Agent is suitable to run on these language platforms. The localized characters are supported by all agent functions.
Refer to the following tables.
Internationalization Support Tables
The following tables detail the level of support for each localized version of Windows operating systems. Note that support for a localized operating system is different from localized agent. A localized operating system may be supported even though the corresponding language is not translated in the agent. In this case, the dialogs will appear in English. The tables below define the operating system support, not agent language support. Note, for Multilingual User Interface (MUI) supported languages, installs are always in English (Installshield does not support MUI), and the UI/dialogs are in English unless the desktop is Chinese (Simplified), French, German, Italian, Japanese, Korean, or Spanish.
Any Windows 2000, Windows XP or Windows 2003 platforms/versions not mentioned in the tables below should be treated as not supported.
The following letter combinations are used to describe the level of support:
Table 1-6
L
|
Agent localized, supported and qualified. (Note: L(S) - Localized and supported only)
|
T
|
Supported and qualified.
|
S
|
Supported but not qualified - Bugs will be fixed when reported by customers, but the exact configuration was not tested.
|
NA
|
Not applicable - Microsoft does not ship this combination.
|
NS
|
Not supported.
|
Support Level Key
Table 1-7 Windows 2000 Support
| |
Professional
|
Server
|
Advanced Server
|
MUI
|
T
|
S
|
S
|
Arabic
|
NS
|
NA
|
NA
|
Chinese (Simplified)
|
L
|
L(S)
|
L(S)
|
Chinese (Traditional)
|
T
|
S
|
S
|
Czech
|
S
|
S
|
NA
|
Danish
|
T
|
NA
|
NA
|
Dutch
|
S
|
S
|
NA
|
English
|
L
|
L
|
L
|
Finnish
|
S
|
NA
|
NA
|
French
|
L
|
L(S)
|
L(S)
|
German
|
L
|
L(S)
|
L(S)
|
Greek
|
S
|
NA
|
NA
|
Hebrew
|
NS
|
NA
|
NA
|
Hungarian
|
S
|
S
|
NA
|
Italian
|
L
|
L(S)
|
NA
|
Japanese
|
L
|
L(S)
|
L(S)
|
Korean
|
L
|
L(S)
|
L(S)
|
Norwegian
|
S
|
NA
|
NA
|
Polish
|
T
|
T
|
NA
|
Portuguese
|
S
|
S
|
NA
|
Russian
|
S
|
S
|
NA
|
Spanish
|
L
|
L(S)
|
L(S)
|
Swedish
|
S
|
S
|
NA
|
Turkish
|
S
|
S
|
NA
|
Table 1-8 Windows XP Support
| |
Professional
|
Home
|
Arabic
|
NS
|
NS
|
Chinese (Simplified)
|
L
|
L(S)
|
Chinese (Traditional)
|
T
|
S
|
Chinese (Hong Kong)
|
S
|
S
|
Czech
|
S
|
S
|
Danish
|
T
|
S
|
Dutch
|
S
|
S
|
English
|
L
|
L
|
Finnish
|
S
|
S
|
French
|
L
|
L(S)
|
German
|
L
|
L(S)
|
Greek
|
S
|
S
|
Hebrew
|
NS
|
NS
|
Hungarian
|
S
|
S
|
Italian
|
L
|
L(S)
|
Japanese
|
L
|
L(S)
|
Korean
|
L
|
L(S)
|
Norwegian
|
S
|
S
|
Polish
|
T
|
T
|
Portuguese
|
S
|
S
|
Russian
|
S
|
S
|
Spanish
|
L
|
L(S)
|
Swedish
|
S
|
S
|
Turkish
|
S
|
S
|
Table 1-9 Windows 2003 Support
| |
Standard
|
Web
|
Enterprise
|
Chinese (Simplified)
|
L
|
L(S)
|
L(S)
|
Chinese (Traditional)
|
T
|
S
|
S
|
Chinese (Hong Kong)
|
S
|
S
|
S
|
Czech
|
S
|
S
|
S
|
Dutch
|
S
|
NA
|
NA
|
English
|
L
|
L
|
L
|
French
|
L
|
L(S)
|
L(S)
|
German
|
L
|
L(S)
|
L(S)
|
Hungarian
|
S
|
S
|
S
|
Italian
|
L
|
L(S)
|
L(S)
|
Japanese
|
L
|
L(S)
|
L(S)
|
Korean
|
L
|
L(S)
|
L(S)
|
Polish
|
T
|
T
|
T
|
Portuguese
|
S
|
S
|
S
|
Russian
|
S
|
S
|
S
|
Spanish
|
L
|
L(S)
|
L(S)
|
Swedish
|
S
|
S
|
S
|
Turkish
|
S
|
S
|
S
|
On non-localized but tested and supported language platforms, the administrator is responsible for policy changes arising from directory naming variations between languages.
If the previous operating system tables do not indicate that CSA is localized (L) then the system administrator is responsible for checking to ensure that the tokens are in the language they expect and the directory path is the one they intend to protect.
To determine if language tokens are correct, follow this procedure:
Step 1 Move your mouse over Systems in the menu bar and select Hosts from the drop-down menu.
Step 2 Click the link to the host name using the language you want to verify.
Step 3 In the Host Status area, click the Detailed Status and Diagnostics link.
Step 4 Click the Diagnose button.
Look at the folder information in the Data area of the Diagnosis Data page. (See Figure 1-2.) These are the values of the directory tokens CSA needs for localization. Make sure that the folder paths are in the language you expect and that they protect the correct directory.
Figure 1-2 Diagnosis for Localized Host
About CSA MC
The CSA MC user interface installs as part of the overall Cisco Security Agent solution installation. It is through a web-based interface that all security policies are configured and distributed to agents. CSA MC provides monitoring and reporting tools, letting you generate reports with varying views of your network enterprise health and status. Providing this web-based user interface allows an administrator to access CSA MC from any machine running a web browser.
See the User Guide for further details.

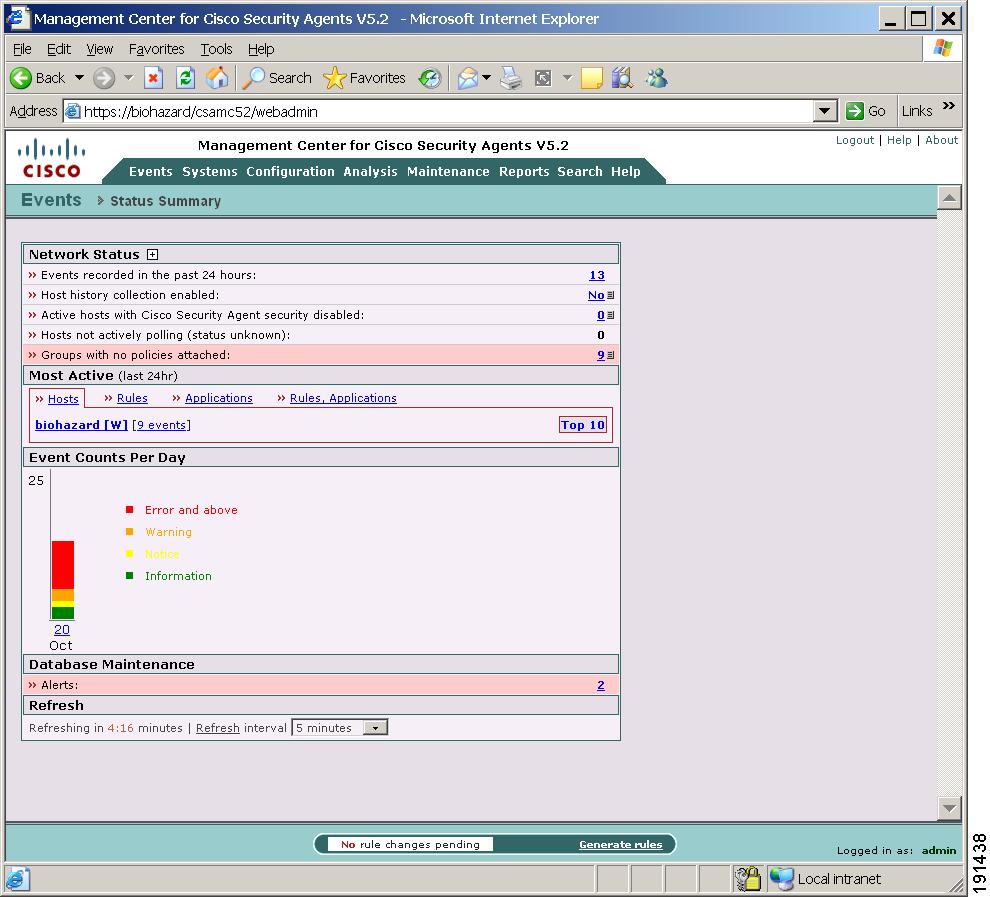

Figure 1-3 CSA MC, Top Level View
