Event Logging and Alerts
Overview
Events and messages logged by Cisco Security Agents can be viewed from CSA MC. You can also control the type of alert sent out based on the severity level of the logged event, the specific event, and the host that generated the alert. You can configure CSA MC to send email, issue SNMP traps, log to a text file, and execute custom programs.
Note
Cisco Security Agent events are also stored in the NT event log on an agent system in a localized format.
This section contains the following topics.
•
•
•
•
The Event Log
The Event Log view, available from the Events category in the menu bar, lets you view system events provided by registered agents according to designated time frames, event severity levels, and the system that generated the event.
The information displayed at the top of the Event Log page (controlled by the settings in the Change Filter window, see next section) tells you the following:
•
or Define a filter with the following parameters:
•
•
•
•
•
•
•
•
Start date and End date

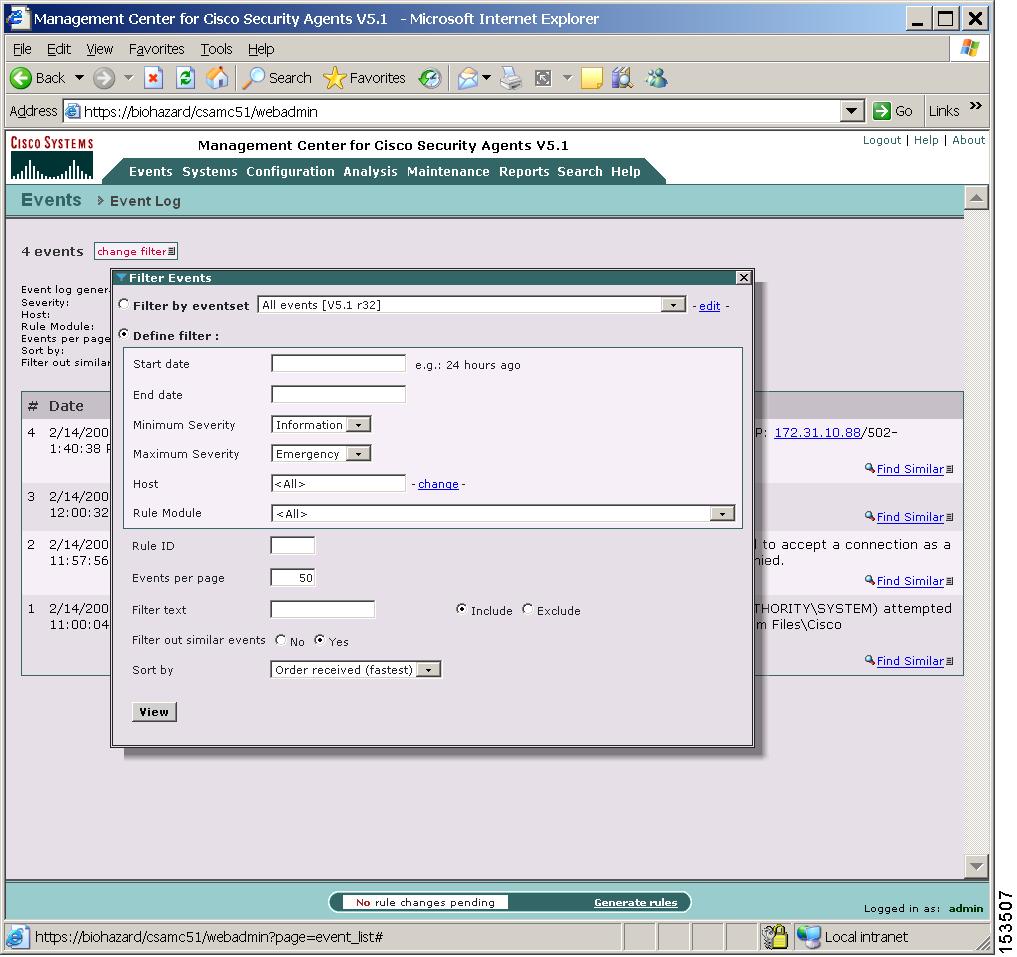

To search events, click the Change Filter link to access a pop-up window from which you can enter search criteria such as Start and End Date time frames. You can refer to the following points for entering time frame information, but note that most reasonable time frames are recognized by CSA MC:
•
•
•
•
Minimum and Maximum Severity Settings
From the Minimum and Maximum Severity pulldown list, select a severity level and click the View button to see all events within the designated severity levels that have been logged within the time frame you've specified. Select from the following.
•
•
•
•
•
•
•
Host
You can filter the Event Log by host systems. All is the default here. All events generated by systems registered with the server are displayed. You can enter a specific host name to search for that host. Click the change link beside the Host field for a host selection box.
Events / page
Enter the number of events per page you want to display up to a maximum of 500 events per page. The event log displays the most recent number of events based on the value you enter. You can page forward through links to view additional pages matching the query.
Note
Filter out similar events
When event filtering is enabled (it's enabled by default), the event log displays an aggregation of events. This aggregation means that one representative event is displayed for all events that are considered similar on the MC. Similar events are defined as having the same rule ID and the same application name and path (excluding drive letter). When similar events are filtered from the event log view in this way, there is italicized text below the viewable representative event. This text displays the number of filtered events that are not visible. Clicking the Find Similar link below the event causes all events of this similar type to be displayed in a new event log window.
Note

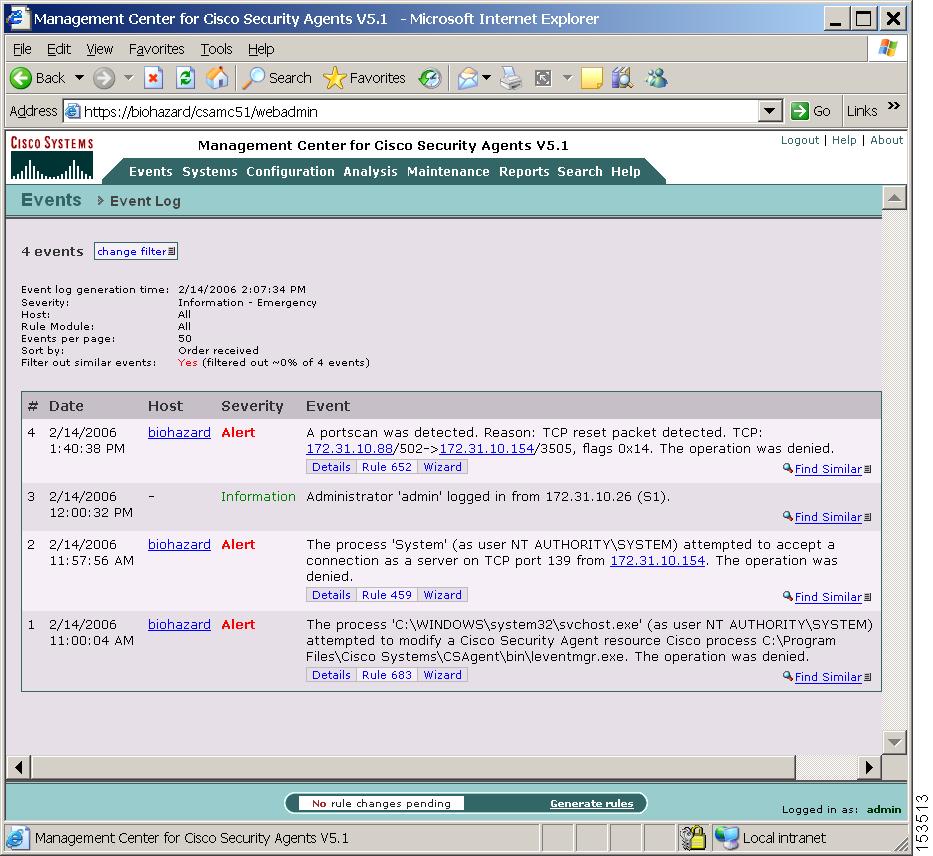

Figure 10-1 Event Log View

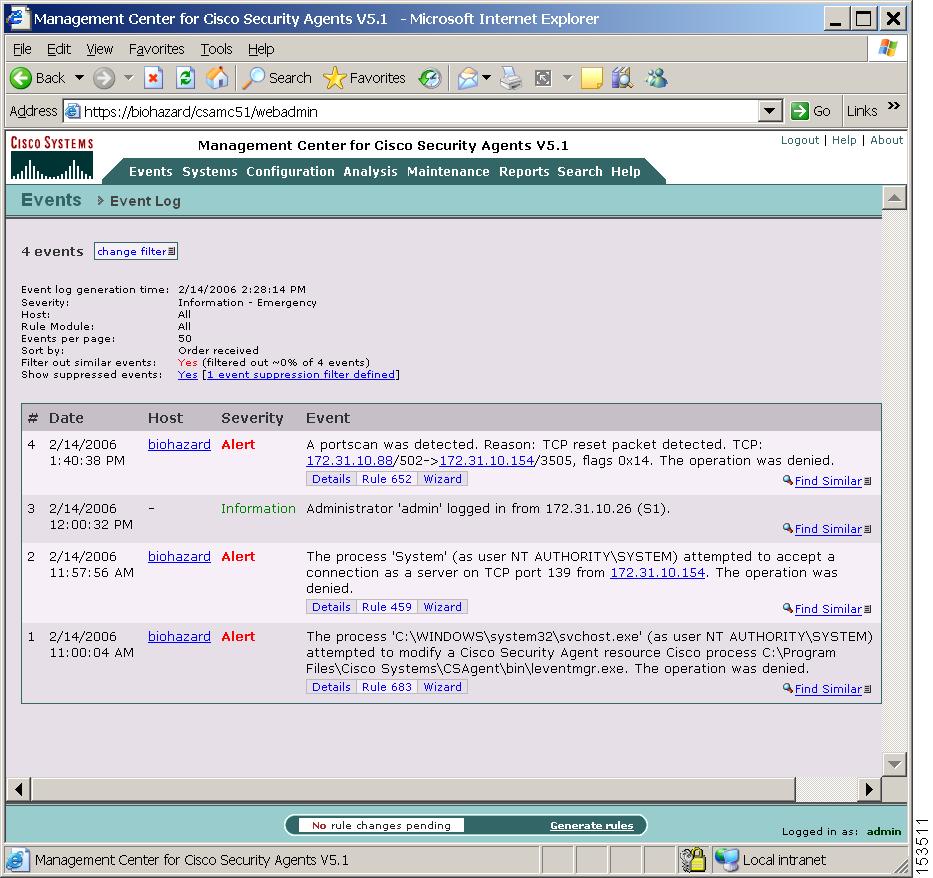

The event log screen (see Figure 10-1) displays event messages within the time frame and severity level you specify and optionally by a specific host. These event messages explain the event that occurred and they provide a link to the rule that triggered the event. It also provides the exact time the event was recorded and a link to the registered host view for the host that generated the event.
Some Event Log messages contain a Details link you can click to view more information on the event that generated the message. (The details contained here can be useful to customer support.) Log messages also contain a Rule number link. Clicking a Rule number link takes you to the rule that was triggered when the message in question logged.
Some Event Log messages contain a Details link you can click to view more information about the event that generated the message. (The details contained here can be useful to customer support.) Read Reading Event Details, for more information. The Details link also provides packet information when appropriate. By installing Ethereal (http://www.ethereal.com) on the same server in which CSA MC is installed, you will be able to read the contents of a packet in a human-readable form rather than in hexadecimal notation. Read Reading Packet Details for more information.
Log messages also contain a Rule number link. Clicking a Rule number link takes you to the rule that was triggered when the message in question logged.
Use the Wizard link where available, to edit the rule that caused the event. See About the Event Management Wizard for details.
Event Aggregation and Suppression
When first deploying rules to agents, it is not unusual to have an overwhelming flurry of events appearing in the event log. In some cases, most of these events are similar events or simply "noisy", not useful events to view. If this is the case, the event log provides two mechanisms for paring down the number of events that appear. They are as follows:
•
When event filtering is enabled, the event log displays an aggregation of events. This aggregation means that one representative event is displayed for all events that are considered similar on the MC. Similar events are defined as having the same rule ID and the same application name and path (excluding drive letter). When similar events are filtered from the event log view in this way, there is italicized text below the viewable, representative event. This text displays the number of filtered events that are not visible. Clicking the Find Similar link allows you to view all events of this similar type in a new event log window.

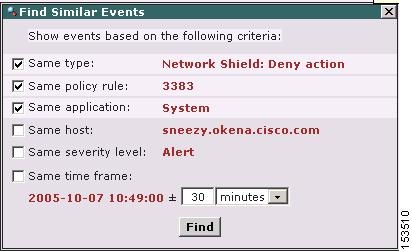

Figure 10-2 Event Log Find Similar
Note
A "similar" event is defined as follows (The event must meet all of the following criteria.):
–
–
–
•
When event suppression is enabled, all chosen events are no longer displayed in the event log. Event suppression is best used when you have a reoccurring event that is more noisy than useful to you. This is something you are aware of, but no longer wish to see. Suppressing the event removes all viewable instances of that event and causes further events of the same type to be hidden. Note that these events remain in the database, they are simply not displayed. The visibility of the suppressed events is controlled by Administrator Preference settings. Refer to Configuring Role-Based Administration, page 2-5.
Note
Reading Event Details
To view the details of an Event Log entry, follow this procedure:
Step 1
Step 2
Step 3
•
•
Reading Packet Details
CSA MC provides a mechanism which allows you to use "Ethereal" software to translate packets into a readable format. Ethereal is a third-party tool that analyzes protocols and works with WinPcap to analyze packets. Before you can view packet information in readable form, you must first install Ethereal on the same server that runs CSA MC.
After you have installed Ethereal, you can read packet details by following this procedure:
Step 1
Step 2
Step 3
Event Monitor
Similar to the Event Log, the Event Monitor, available from the Events category in the menu bar, lets you view system events provided by registered agents according to designated severity levels, and the host that generated the event. You can also enter the number of events to be displayed (default value is the last 50 events). Click the Change link to access a pop-up window from which you can edit these values and change the event filter. Refer back to The Event Log for more information on these fields.
Unlike the Event Log page, the Event Monitor page automatically refreshes itself at set intervals. The event list is updated with the latest events each time the page refreshes.
The footer of this page provides a Refresh button and a Pause button. Use the Refresh button to refresh the page immediately without waiting for the set refresh interval to occur. Use the Pause button to immediately stop the page from refreshing. The set refresh interval will then stop at wherever it is in the countdown. This pause feature is useful when you are testing policies and you want to mark a certain place as a starting point for receiving new events. When you click it, the Pause button becomes a Resume button.
Note
The Event Monitor will continue to refresh even after the timeout expires. However, you will not be able to navigate to any other page. This allows you to leave the Event Monitor on screen without worrying about anyone being able to access CSA MC after the session timeout.
Event Log Management
The Event Log Management feature, available from the Events category in the menu bar, lets you create event database management tasks to manage the size of your event log. As your event log grows, specifying parameters for deleting events will help prevent this log from growing too large and from maintaining stale information.
Note
To access the global Event Insertion Tasks page:
Step 1
Step 2
This page displays the total number of events in the Event Log. It also breaks events out to the number of events that exist for each severity level. Beneath this graphical event display are the default threshold settings for each event level. These thresholds represent the upper limit of events which must be reached for each severity level before no more events of this type will log. Event pruning must occur in order for these event types to once again be written to the Event Log.
To configure an event auto-pruning task, do the following. See Figure 10-3.
Step 1
Step 2
Step 3
Step 4
Step 5
Step 6
Step 7
Step 8
Note

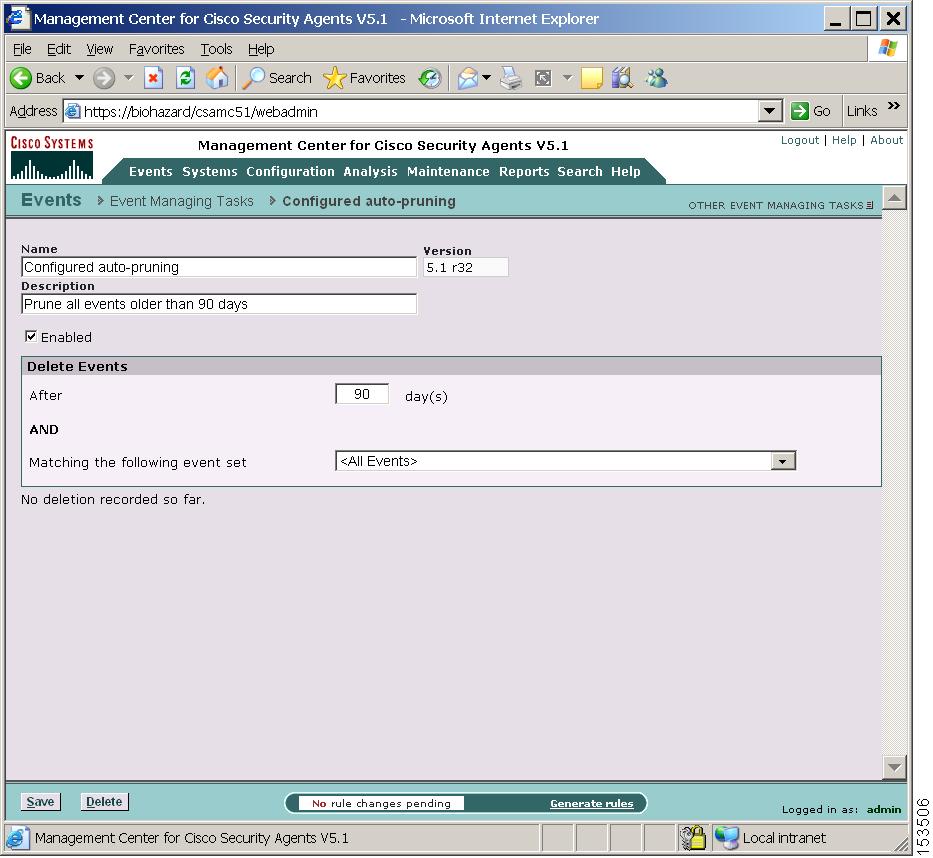

Figure 10-3 Event Auto-Pruning

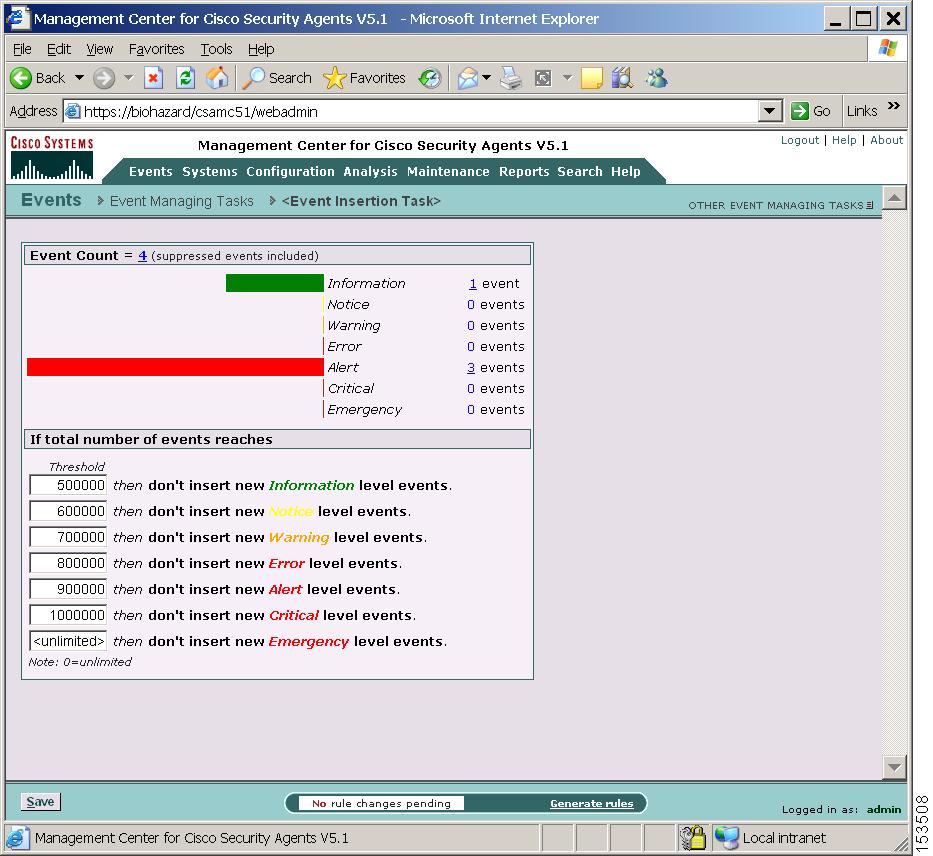

Figure 10-4 Event Insertion Task
How Logging Works
The CSA MC Event Log does not contain every occurrence of an event from a system. Duplicate events are not logged for an hour after the first occurrence.
Caution
The following information is logged for each rule type.
•
•
Note
•
•
A duplicate event is defined as follows:
•
•
•
•
Verbose Logging
Enable Verbose Logging Mode in the Group configuration view to change the event log timer to log all recurring events rather than only logging recurring events once every hour. Verbose logging applies to all policies that are attached to the group that have logging turned on.
For normal operations, you would not want to enable Verbose logging. Verbose logging is useful for troubleshooting and for analyzing how applications work with rule sets, i.e. related processes and subprocesses. In the latter case, using Verbose logging with Test Mode can be very useful for monitoring how a rule set would work before deploying it.
Note
Logging and Query User Rules
When a user responds to a Query User box (by pressing Yes, No, or Terminate), the agent remembers the response and caches it for an hour. This way, if the same rule is triggered again within that hour, the action is allowed or denied based on what the user answered previously, with no pop-up query box appearing again. When the user responds to a triggered Query User pop-up box, the system action that triggered the pop-up, as well as the user's response, are logged in the CSA MC event log. With Verbose logging turned on, all subsequent automatic allows or denies are logged as well. Otherwise, the one hour logging timer prevents agents from logging the automatic allowed or denied system action if it occurs again within the hour.
About the Event Management Wizard
Use the Event Management Wizard to accomplish the following:
•
•
•
•

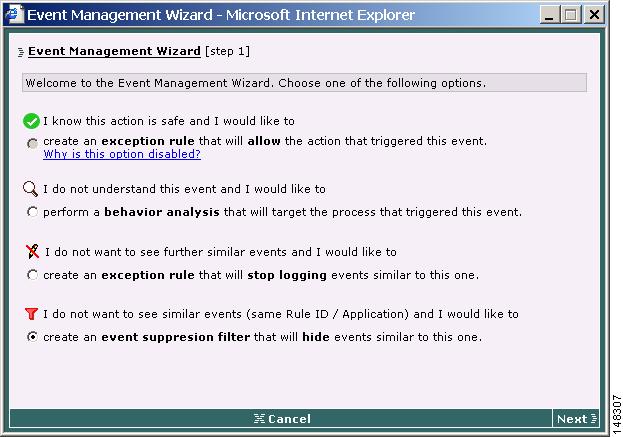

Figure 10-5 Event Management Wizard Link
Creating an Exception Rule
When you click the Wizard link from the Event Log page, you can choose to create an exception rule, an exception logging rule, or to configure a behavior analysis (see Figure 10-6). If you select to create an exception rule, when you click Next you are shown a summary of the rule that triggered the event. You click Next to continue to create the rule. The exception rule is an Allow rule that will be added to an existing rule module or to a new rule module and it will take precedence over the Deny or Query User rule that caused the event.
You can create exception rules for the following rule types:
•
•
•
•
•
•
•
•
The wizard then takes you through a step by step procedure for affecting the changes you wish to make.

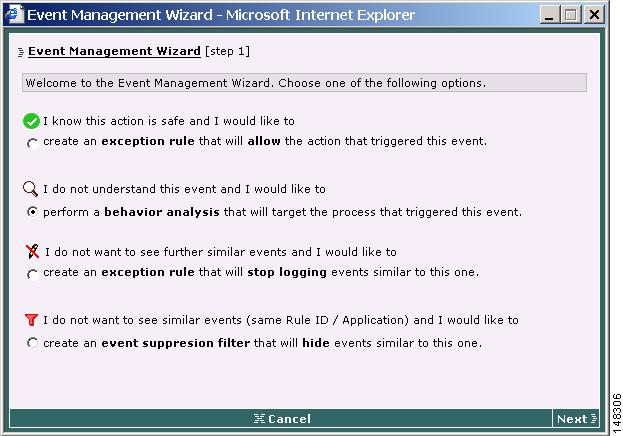

Figure 10-6 Exception Wizard Step 1
The next wizard page prompts you to optionally apply your changes to state conditions.

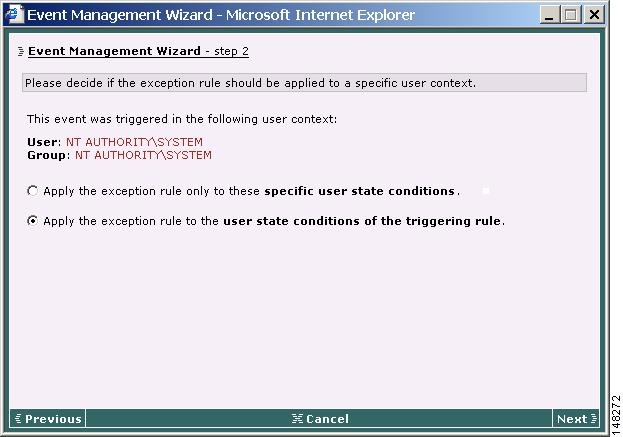

Figure 10-7 Exception Wizard Step 2

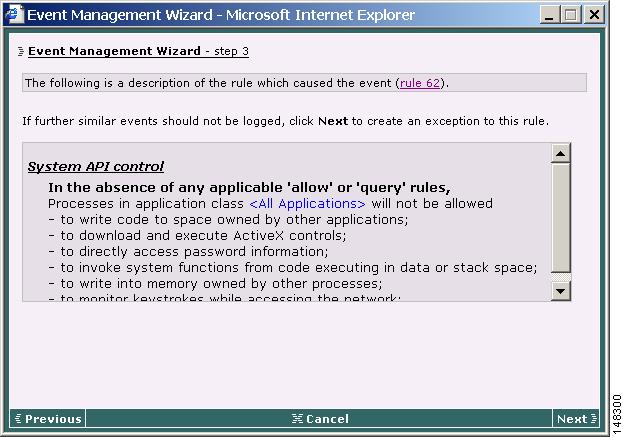

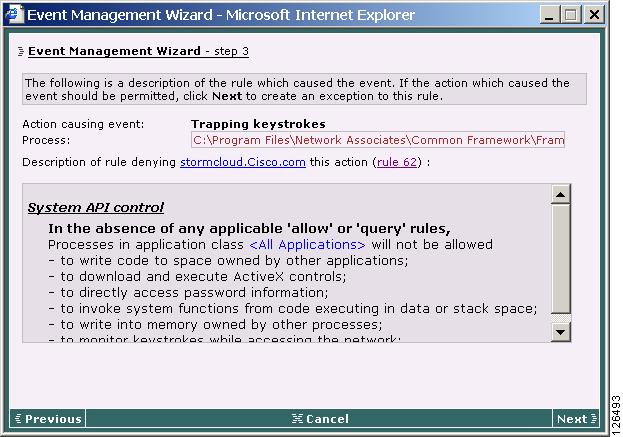

The third step provides a summary of the rule for which you are creating an exception.
Figure 10-8 Exception Wizard Step 3

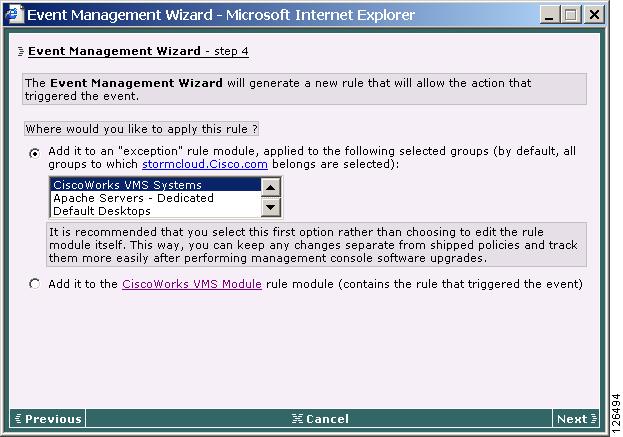

In the fourth step (see Figure 10-9), you are given two choices as to where you would like to apply this new rule. You can create a new rule module (an "exception rule module") which would contain the new exception rule. (This is the default and recommended choice.)
This new module would be attached to a new exception policy which is then attached to the group(s) containing the host from which the event was received. If you choose to create this exception module, all subsequent exception rules you create through the wizard will be added to the same exception module and policy if the group it is to be applied to is also the same. Therefore, a group could only have one exception policy, but contain an exception rule module with any number of exception allow rules created through the wizard.
Your second choice is to add this new exception rule directly to the module which contains the rule that caused the event. This would be a change to the module itself.
Figure 10-9 Exception Wizard Step 4
As you continue through the wizard, you can simply click Next and accept the defaults which create an allow rule for the exact application and resource named in the event. You can also select to include more groups to receive the exception and edit the process path of the application and/or include more application classes in the rule (see Figure 10-10).
When the wizard completes, it takes you to the new rule as it appears in CSA MC.

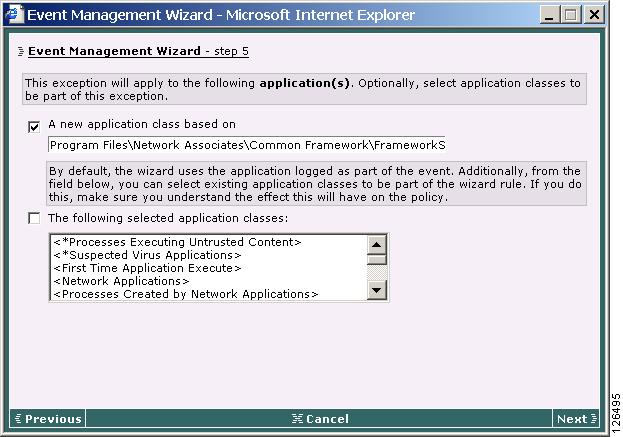

Figure 10-10 Exception Wizard Step 5
Creating a Logging Exception Rule
The Wizard makes use of the Take precedence over other <action type> rules feature available in some rule types to manipulate rule precedence and prevent the logging of an event. The following rule types make use of precedence manipulation: File access control, Network access control, Registry access control, COM component access control, Application control, and System API control.
See Rules: Manipulating Precedence, page 5-41 for more information on the manipulating precedence feature.
If you select to create an exception logging rule (see Figure 10-11), when you click Next you are shown a summary of the rule that triggered the event. You click Next to continue to create the exception logging rule.
Figure 10-11 Exception Logging Wizard Step 1
The next wizard page prompts you to optionally apply your changes to state conditions.
Figure 10-12 Exception Logging Wizard Step 2
The exception logging rule is a rule that is added to an existing policy or to a new policy. This rule is an exact copy of the rule that triggered the event. The one difference is that the rule created by the wizard has the Take precedence over other <action type> rules checkbox selected and the Log checkbox is unselected. This causes the rule created by the wizard to remain in effect, in the correct precedence within the policy, but not log an event when triggered.
Figure 10-13 Exception Logging Wizard Step 3
Perform a Behavior Analysis
When you click the Wizard link from the Event Log page, you can choose to configure a behavior analysis to investigate the application that triggered the event (see Figure 10-6).
If you select to create a behavior analysis, optionally you can choose to Disable policy rule enforcement for the time frame of the analysis. Otherwise, the analysis takes place only within the confines of enforced policies. In that case, some events may be denied by rules during the analysis and therefore the analysis may not be complete.
If you select the Disable policy rule enforcement checkbox, when the logging agent receives an analysis, any policies relevant to the application being analyzed are disabled on the selected host until the behavior analysis is completed. You should understand that if the application being analyzed is untrusted or potentially a virus, you will allow it to run unimpeded during the analysis if you disable policy rule enforcement.

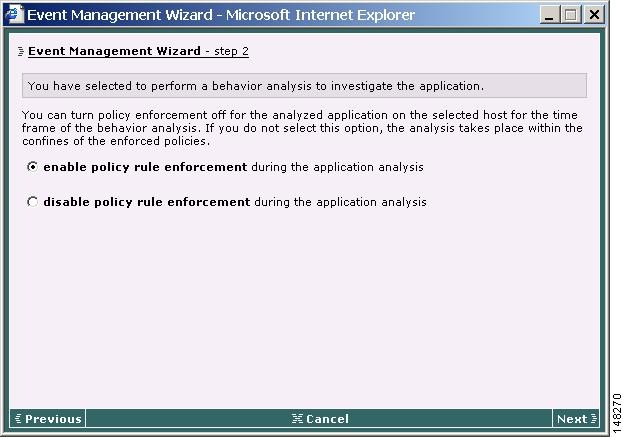

Figure 10-14 Behavior Analysis Wizard Step 2
If you decide that the application is not dangerous and it can run without any policy restrictions, you can begin to configure the behavior analysis.

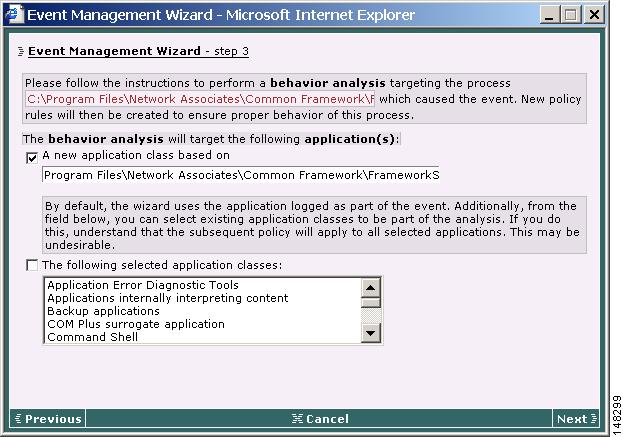

Figure 10-15 Behavior Analysis Wizard Step 3
The next behavior analysis wizard page (see Figure 10-15) displays the application that triggered the event. This is the application the behavior analysis will investigate. Optionally, you can select other application classes to be analyzed. But in that case, the policy created would apply equally to all applications included in the analysis. For example, if the application class you are analyzing contains both Microsoft Word and Microsoft Outlook, the policy generated by the behavior analysis would be a combination of the resources required by both applications.
Continuing to click the Next button through the behavior analysis wizard configures the analysis with chosen defaults for analysis workstation and time frame. You can choose to edit these defaults or to accept them by making no changes.
When the wizard completes, it takes you to the new behavior analysis configuration page as it appears in CSA MC. You can edit it at this time or you can deploy the analysis by doing the following:
•
•
•
•
Create an Event Suppression Filter
When you click the Wizard link from the Event Log page, you can choose to create an event suppression filter based on the event from which you click the Wizard link (see Figure 10-16). Event suppression is best used when you have a reoccurring event that is more noisy than useful to you. This is something you are aware of, but no longer wish to see. Suppressing the event removes all viewable instances of that event and causes further events of the same type to be hidden. Note that these events remain in the database, they are simply not displayed.
Figure 10-16 Event Suppression Filter Wizard Step1
Click the Next button through the event suppression wizard to configure the event filter with the chosen defaults.

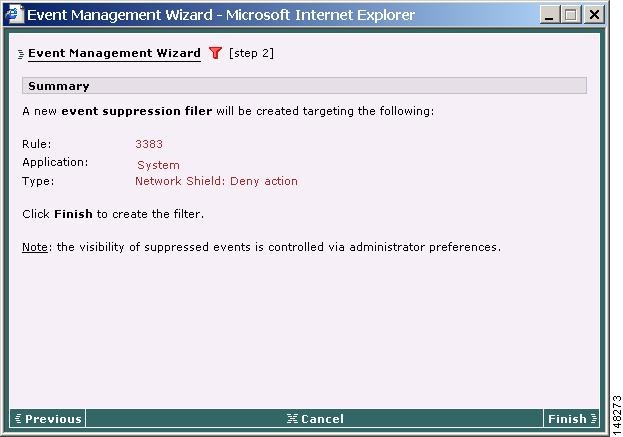

Figure 10-17 Event Suppression Filter Wizard Step 2
Click Finish to create the filter based on the criteria viewable in the Summary section, including Rule ID, Application, and Rule type.
View an Event Suppression Filter
Once you create the event suppression filter using the Wizard, that filter is viewable from a pop-up window accessible from the Show suppressed events: Yes <#> event suppression filters defined link at the top of the Event Log page. See Figure 10-18.
Figure 10-18 Show suppressed events link

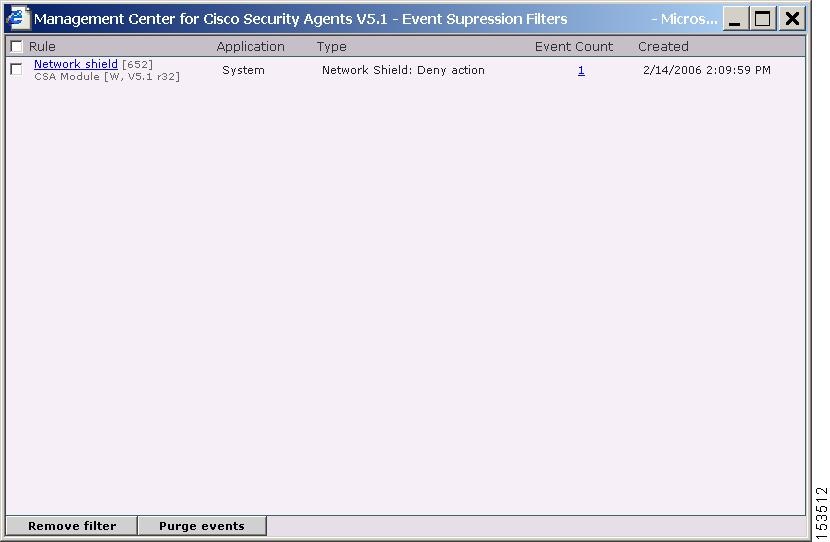

When you click the Show suppressed event <#> event suppression filters defined link, a pop-up window appears from which you can either remove the filter to once again show all the events or purge all the events that have been filtered out. See Figure 10-19.
Figure 10-19 Remove Filter or Purge Events Pop-up
Event Sets
Configure event sets for use in alerts, reports, and event logs. When configuring alerts, event sets cause CSA MC to trigger alerts based on specified events. Once configured, these event set configurations become available in corresponding alert selection fields.
Note
When creating your event sets, it's a good idea to adopt a naming convention that lets you quickly recognize event sets in your Alert configuration view.
Note
To configure event sets, do the following.
Step 1
Step 2
Step 3
•
•
Under the Event Specification section, enter optional filtering parameters.
Note
Step 4
Leave the Include all event types radio button selected to have events of all types included or select the Include only the following selected event types radio button. If you select the second radio button, then you must also select specific event log messages to filter by. These messages represent the spectrum of generated events that appear in the Event Log view.
Step 5
Leave the Include all severity levels radio button selected to have events of all severity levels included or select the Include only the following selected severity levels radio button. If you select the second radio button, then you must also select the severity level(s) that will trigger an alert for this event set. Available levels are: Information, Notice, Warning, Error, Alert, Critical, Emergency.
Step 6
Leave the Include all hosts radio button selected to have events generated by all hosts included or select the Include only hosts in the following selected groups radio button. If you select the second radio button, then you must select the group(s) that trigger an alert for this event set. Any groups selected here that log the event in question will trigger an alert.
Step 7
Leave the Include all rule modules radio button selected to have events generated by all rules modules included or select the Include only rules in the following selected rule modules radio button. If you select the second radio button, then you must select the rule module(s) that trigger an alert for this event set. Any rule modules selected here that log the event in question will trigger an alert.
Step 8
Note
Leave the Include all timestamps radio button selected to have events generated at all times included or select the Include only these timestamps radio button. If you select the second radio button, then you can create a custom time here or select from available times, Today, Last 24 hours, Last 7 days, Last 30 days, and Events older than <you specify #> days to trigger an alert when an event occurs with the specified time range.
You can also enter Custom start and Custom end times in the following manner:
•
•
•
Note
Step 9
In the Event Sets configuration page, the CSA MC frame at the bottom of the page provides a View button and a Purge events button.
•
Caution
Figure 10-20 Event Set Configuration View
Third Party Access to Events
To access events in the database for exporting to a different format (or for your own reports), connect to the database using ODBC DSN "csamc50dsn."
You can access events through the database view EventListView. (This is a SQL server view.) The columns defined in this view are as follows:
Note
Table 10-1 EventList View Fields
Configuring Alerts
You can configure CSA MC to send various types of alerts to specified recipients when a policy triggers an event. Available alert types include: Email, SNMP, Log to file, Named pipes and a Custom program that you provide.
Each alert type requires you to enter specific information. See Table 10-2 for details.
To configure CSA MC to issue alerts when specified system events occur, do the following.
Step 1
Step 2
Step 3
Step 4
Note
To select multiple items in a list box, hold down the Ctrl key as you select each item. To unselect a single item, hold down the Ctrl key when you click on the item in question. Press the Shift key to select multiple successive items.
If the available options here do not meet your needs, you can configure event set variables which become selectable in this field.Step 5
For each alert type you want to send, select the corresponding checkbox and enter the required alert-specific information.
Note
Step 6
Note
Figure 10-21 Alert Configuration View
Table 10-2
Recipient
Sender address to use
Address of SMTP serverEnter the email address of the mail recipient. Using brackets is optional. CSA MC will automatically enter them if you do not. You can enter multiple addresses separated by commas:
<dpaul@example.com>
Enter the mail sender in brackets. Some mail servers require this to be specified:<jsmith@example.com >
Enter the IP address or DNS name of the SMTP server.Community Name
Manager IP Address
Enter the community name. This is a text string agreed upon by the SNMP manager:
publicEnter IP address of the system where the SNMP trap should be sent. Optionally, you can put a colon and a port number (":<port number>) after the IP address if you are using a non-standard port. (Standard port is 162.)
Refer to the CSAMC-SNMPv2.mib document in the
CSAMC\CSAMC51\docdirectory for SNMP-MIB definitions for Cisco specific objects.Also see Third Party Access to Events for third party event management details.
Log file name (using full path)
Enter a name for the flat logging file that events will be written to.
c:\alerts\logfile.txt
This file can then be used by third party event management applications. See Third Party Access to Events for details.
*In a distributed configuration, the path must correspond to the polling server system.
Custom Program
Enter a custom alert program name here.
The server calls the program as it appears in this field. You must enter the full pathname so that CSA MC can locate the program.
Your custom program must be an executable file.
c:\Program Files\Cisco Systems\CSAMC\CSAMC51\program.exeThe program passes the event message in a file whose name is passed to the program as its first parameter. Alternately, the program can also read the event message from its standard input. The file containing the event is automatically deleted when the program exits or closes its standard input.
FEATURE NOTES:
* The custom program must exist on the same system as CSA MC in the CSAMC51 directory or subdirectory.
*Custom programs cannot require any user input.
*If a custom program is triggered and fails for some reason, it could take several minutes before the program closes itself and attempts to launch again. (If you are testing custom program alerts, one way to tell if the program has launched and is running, is to watch for it in the Task Manager.)
*In a distributed configuration, the path must correspond to the polling server system.
Named Pipe
A named pipe is a form of internal communication. This alert type allows the integration of third party software for the purpose of receiving alerts over Windows named pipes. Consult your third party documentation for further configuration details.
Note that this feature is for use with third party vendors that support alerts over Windows named pipes.
Alert Type Descriptions
Generate an Alert Log File for Third Party Applications
Using the Log checkbox and the Log file edit field in the Alerts configuration page (see Figure 10-21), you can have CSA MC generate a flat logging file to which events are written. Third party event management applications can then parse the information found in this file.
To generate this file, select the Log checkbox and enter the Log file name, using the full path that you want to write event data to. For example, enter
c:\alerts\logfile.txtEvent data is written to this file as follows:
EventId,EventTime,HostId,HostName,
CurrentHostIPAddress,HostOSType,Severity,EventType,
EventText,EventCodeTag,FileName,ProcessName,
SourceIPAddress,DestinationIPAddress,SourcePort,
DestinationPort,RuleId,RuleDescription,RulePriority,
RuleModuleId,RuleModuleName,ButtonCode,UserNameEntry fields are separated by a delimiter of a comma. Event entries themselves are separated by a carriage return/line feed (ASCII Hex 0D 0A).
Once a log file exceeds 1 MB, it is closed and its name is suffixed with a time stamp. A new file, using the same file name entered in the CSA MC Alerts Log file field, is then created. Events continue to be written to this new file until it reaches 1 MB.
Note
