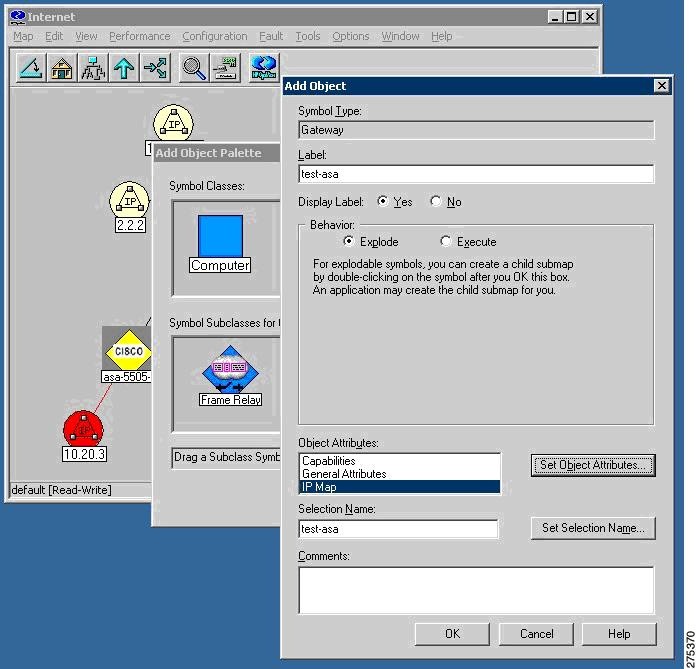

Adding a Network to the Current Map

Configuring Specific SNMP Version 3 Parameters

Setting Global SNMP Version 3 Credentials

Setting Specific SNMP Version 3 Credentials

Viewing Node Information

Configuring the NNM MIB Browser

Configuring SNMP Version 3 No-auth/No-priv Connections

Configuring SNMP Version 3 MD5 Auth/No-priv Connections

Configuring SNMP Version 3 SHA Auth/No-priv Connections

Configuring SNMP Version 3 MD5 Auth/Priv Connections

Configuring SNMP Version 3 SHA Auth/Priv Connections

Browsing a MIB

Running a MIB Browser Packet Trace

Using the NNM SNMP Version 3 Trap Viewer

Using the HP OpenView NNM Web Application

CiscoWorks

Starting CiscoWorks

Getting Started with the CiscoWorks LMS Portal

Using the Device Center

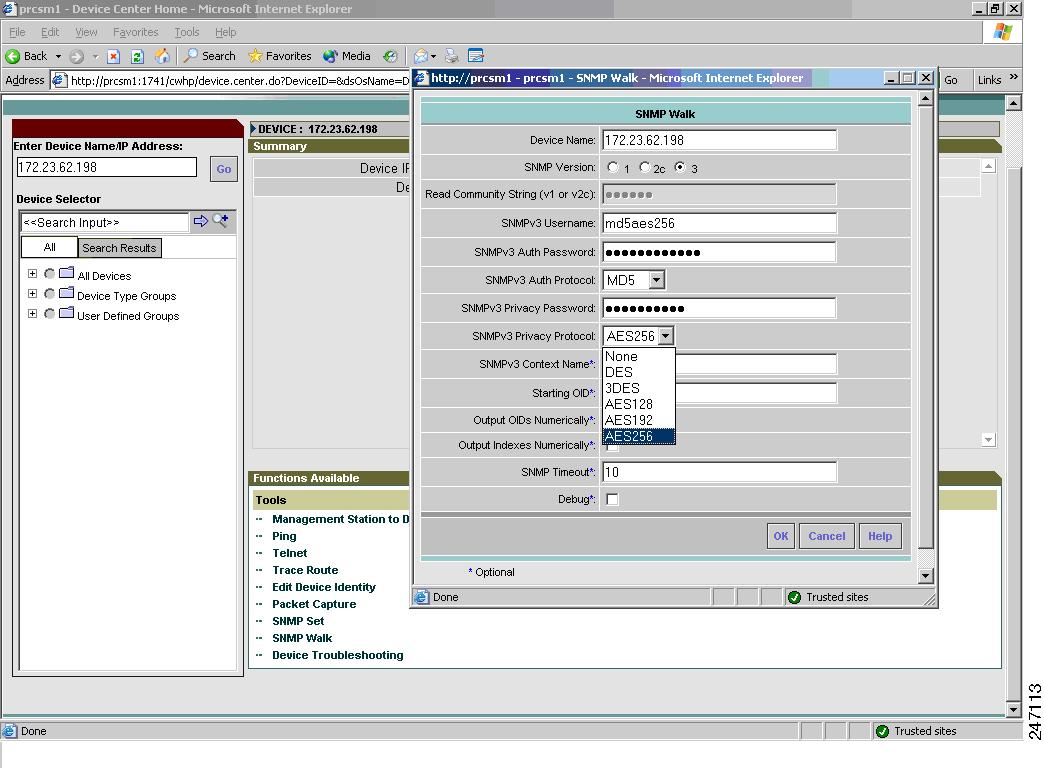

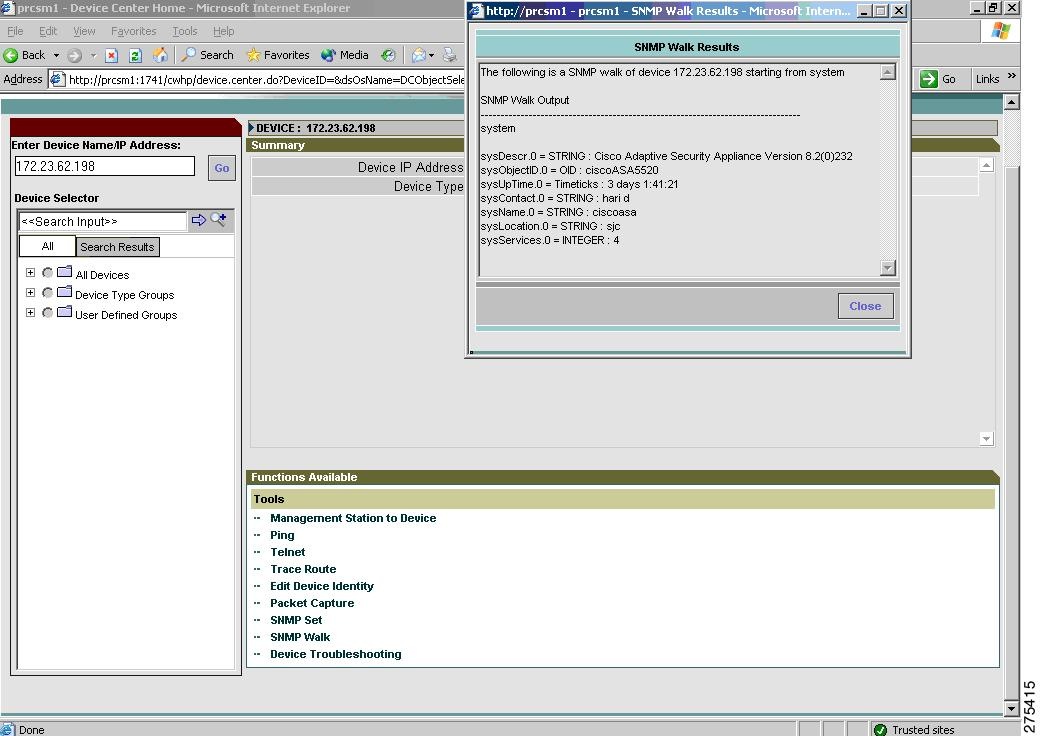

Performing an SNMP Walk

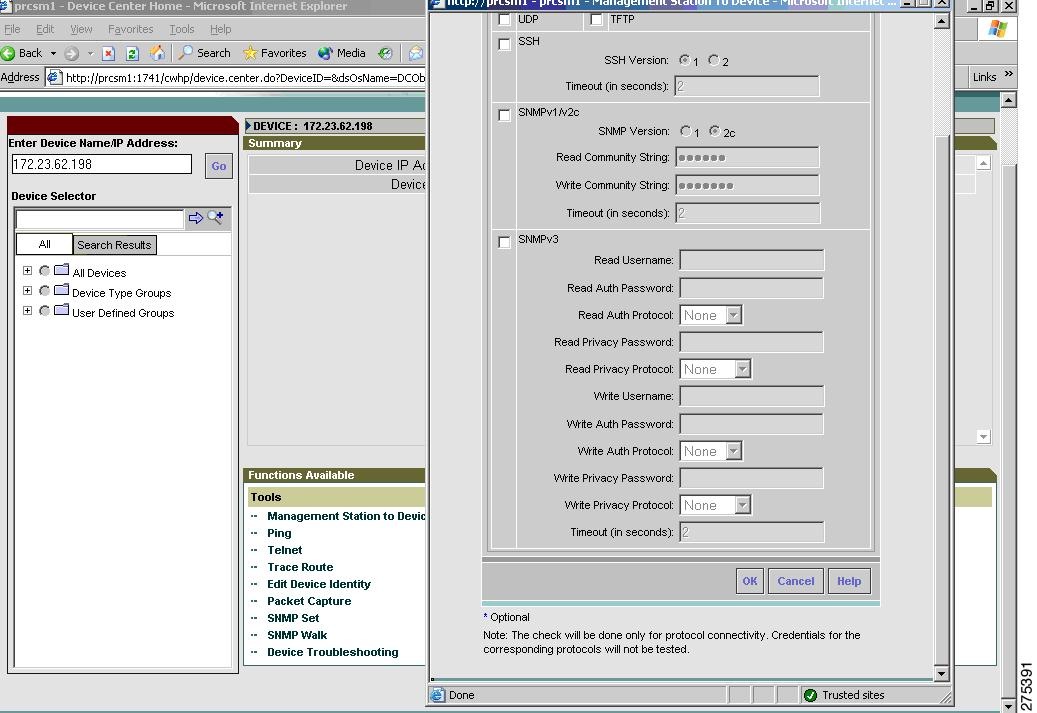

Using the Management Station to Device Tool

Using Network Management Tools

This chapter describes CiscoWorks and several third-party network management tools, and includes the following sections:

•Net-SNMP

•SilverCreek SNMP Test Suite

•Ipswitch WhatsUp Gold

•HP OpenView Network Node Manager

•CiscoWorks

Net-SNMP

Net-SNMP Version 5.1.2 provides the following tools and libraries:

•An extensible agent

•An SNMP library

•Tools to request or set information from SNMP agents

•Tools to generate and handle SNMP traps

You can download the Net-SNMP network management tool from the following URL:

http://sourceforge.net/projects/net-snmp/

This section includes the following topics:

•Polling a MIB

•Sending a Trap

Polling a MIB

To poll a MIB, after you have finished configuring the adaptive security appliance, run the snmpwalk command from the NMS to the adaptive security appliance:

Note No specific configuration is required for Net-SNMP on Linux when you run the snmpwalk command.
[root@iLinux2 ~]# snmpwalk -v3 -u md5des -l authPriv -a MD5 -A mysecretpass -x des -X
passphrase 10.31.8.254 1.3.6.1.2.1.1
The following is sample output from the snmpwalk command:
SNMPv2-MIB::sysDescr.0 = STRING: Cisco Adaptive Security Appliance Version 8.2(0)227
SNMPv2-MIB::sysObjectID.0 = OID: SNMPv2-SMI::enterprises.9.1.915
SNMPv2-MIB::sysUpTime.0 = Timeticks: (486600) 1:21:06.00
SNMPv2-MIB::sysContact.0 = STRING: admin admin
SNMPv2-MIB::sysName.0 = STRING: ciscoasa
SNMPv2-MIB::sysLocation.0 = STRING: sjc - 190 W Tasman Drive, San Jose, CA 95134
 USA
SNMPv2-MIB::sysServices.0 = INTEGER: 4
Sending a Trap

When the adaptive security appliance sends a trap, it is authoritative, which means that the user created within the snmptrapd command must be associated with the EngineID sending the trap.

To establish this association, perform the following steps:

Step 1 In the /var/net-snmp/snmptrapd.conf file, enter the following statement:
createUser -e ENGINEID myuser authentication protocol "my authentication pass" AES "my
privacy pass"
For this statement, define the listed parameters, which include the following:

–ENGINEID—The EngineID of the application that is going to be sending the trap

–myuser—The USM username that is going to be sending the trap

–authentication protocol—The authentication type (SHA or MD5, with SHA the preferred setting.)

–"my authentication pass"—The authentication pass-phrase to use to generate the secret authentication key. Enclose the pass-phrase in quotation marks if it includes spaces.

–privacy protocol—The encryption type to use (AES or DES, with AES the preferred setting)

–"my privacy pass"—The encryption pass-phrase to use to generate the secret encryption key. Enclose the pass-phrase in quotation marks if it includes spaces. If you do not enclose the encryption pass-phrase in quotation marks, it is set to the same value as the authentication pass-phrase.

Step 2 In the /tmp/snmptrapd.conf file, enter the following statement:
createUser -e 80000009fe8949e0b20319e2d175b93fe7dc24af0dff7db915 md5des MD5 mysecretpass
DES passphrase
Step 3 Run the snmptrapd command, pointing to that file.

Note This process runs in the foreground, uses only the specified configuration file, and logs messages to the stderr file.
[root@iLinux2 net-snmp]# snmptrapd -f -C -c /tmp/snmptrapd.conf -Le
Step 4 Run the snmptrap command from the adaptive security appliance to send a linkdown or linkup trap by entering the following commands:
hostname (config)# int g3/1.391
hostname (config-if)# shut
hostname (config-if)# no shut
The following is sample output from the snmptrap command:
2009-03-18 23:52:06 NET-SNMP version 5.1.2 Started.
2009-03-18 23:52:20 10.31.8.254 [10.31.8.254]:
SNMPv2-MIB::sysUpTime.0 = Timeticks: (938700) 2:36:27.00        SNMPv2-MIB::snmp
TrapOID.0 = OID: IF-MIB::linkDown       IF-MIB::ifIndex.1 = INTEGER: 1  IF-MIB::
ifAdminStatus.1 = INTEGER: down(2)      IF-MIB::ifOperStatus.1 = INTEGER: down(2
)
2009-03-18 23:52:22 10.31.8.254 [10.31.8.254]:
SNMPv2-MIB::sysUpTime.0 = Timeticks: (939000) 2:36:30.00        SNMPv2-MIB::snmp
TrapOID.0 = OID: IF-MIB::linkUp IF-MIB::ifIndex.1 = INTEGER: 1  IF-MIB::ifAdminS
tatus.1 = INTEGER: up(1)        IF-MIB::ifOperStatus.1 = INTEGER: up(1)
SilverCreek SNMP Test Suite

The SilverCreek SNMP test suite enables the detection of SNMP compliance problems and implementation errors in private and standard MIBs. You can download a free version of the software from the following URL:

http://www.iwl.com/trial-downloads/silvercreek-trial.html?Itemid=

This section includes the following topics:

•Running SilverCreek

•Setting Up an SNMP Version 3 Agent

•Loading and Deleting MIBs

•Running a Test Suite

•Enabling Debugging

•Testing MIBs

•Receiving Notification Trap Messages

•Testing Performance

Running SilverCreek

To run the SilverCreek software, choose Start > All Programs > SilverCreekMx Evaluation > Run Test Suite and Tools (Start Here).

When the application starts, along with the SilverCreek main window (see Figure 2-1), a console window (see Figure 2-2) appears that shows the following information:

•Logging messages

•Debugging messages

•Other message exchanges that occur between the NMS and the SNMP Version 3 agent

•MIBs that are loaded

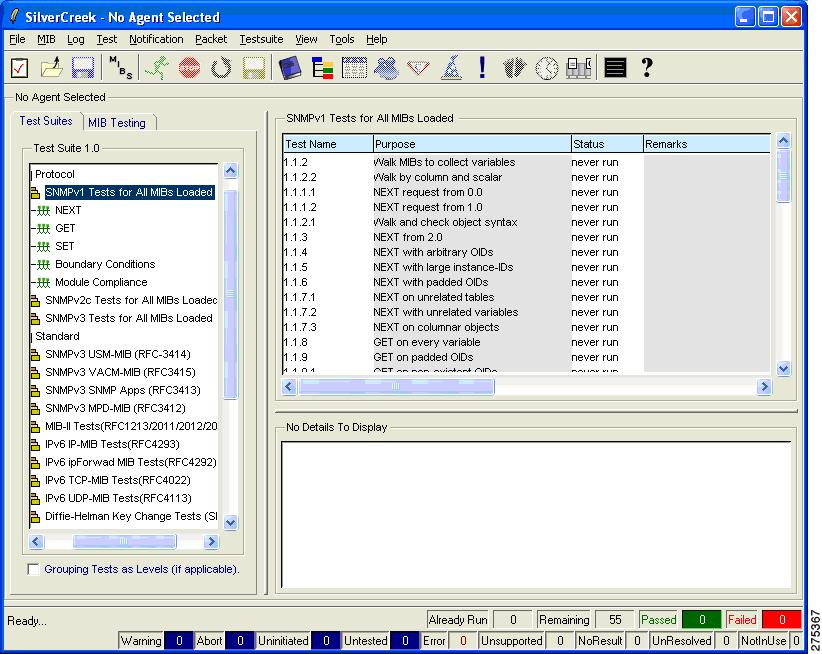

Figure 2-1 SilverCreek Main Window

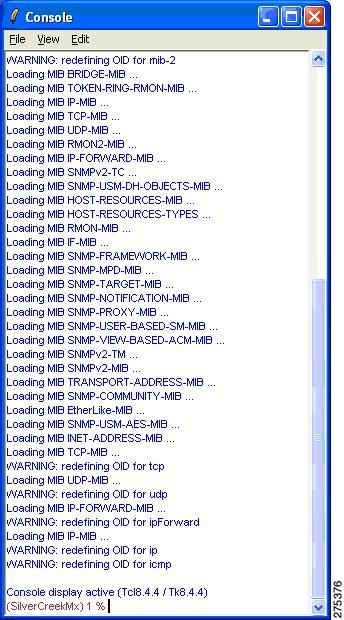

Figure 2-2 SilverCreek Console Window

Setting Up an SNMP Version 3 Agent

To set up the SNMP Version 3 agent, perform the following steps:

Step 1 Choose File > New Agent Setup.

Figure 2-3 shows how the new agent must be configured.

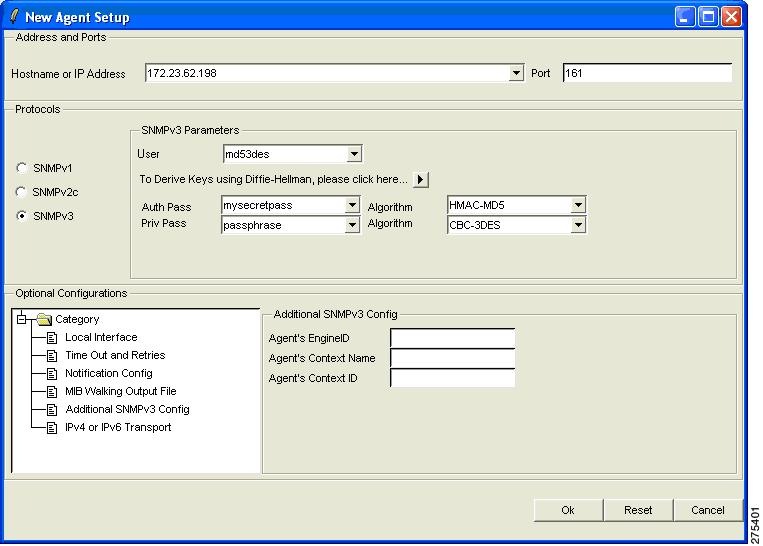

Figure 2-3 New Agent Setup Dialog Box

Step 2 Enter the hostname or the IP address, port number, and SNMP Version 3 parameters.

After the agent is connected, as shown in Figure 2-4, you can run SNMP test suites from the Test Suites tab in the left pane.

Figure 2-4 SilverCreek Main Window Showing Connected SNMP Agent

Loading and Deleting MIBs

To load and delete MIBs, perform the following steps:

Step 1 To manually load and delete MIBs, choose MIB > Load | Delete MIBs.

Step 2 To view the loaded MIBs, click View Loaded Modules (see Figure 2-5).

You can maintain all the MIB files in the default mibs directory, which is defined by the environment variable, MIB_PATH.

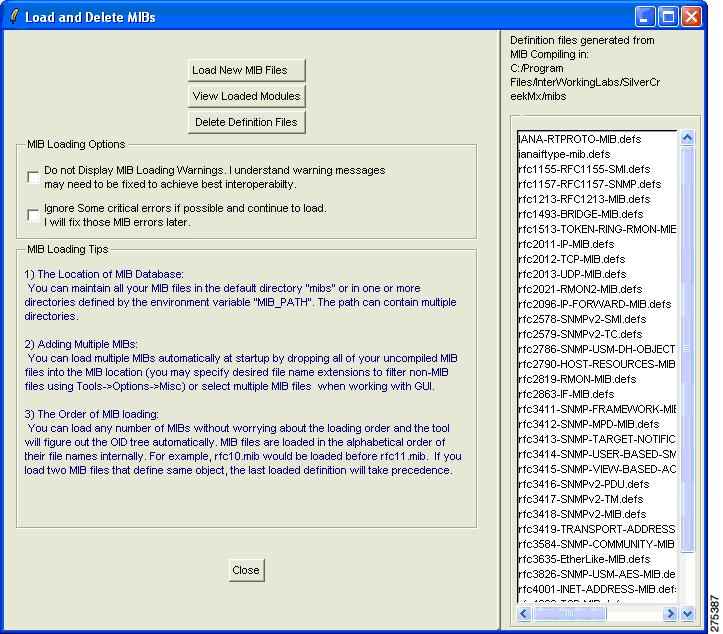

Figure 2-5 Load and Delete MIBs Dialog Box

Running a Test Suite

To run a test suite, perform the following steps:

Step 1 In the main window, select a test category (for example, MIB-II tests) in the left pane (see Figure 2-6).

The list of available tests for the selected test category appears in the right pane, and test details appear in the bottom pane.

Step 2 Select a single test or multiple tests, and click Run All or Selected Tests.

The test status appears in the Status column. The total number of tests run, passed, failed, and so on appears at the bottom of the window.

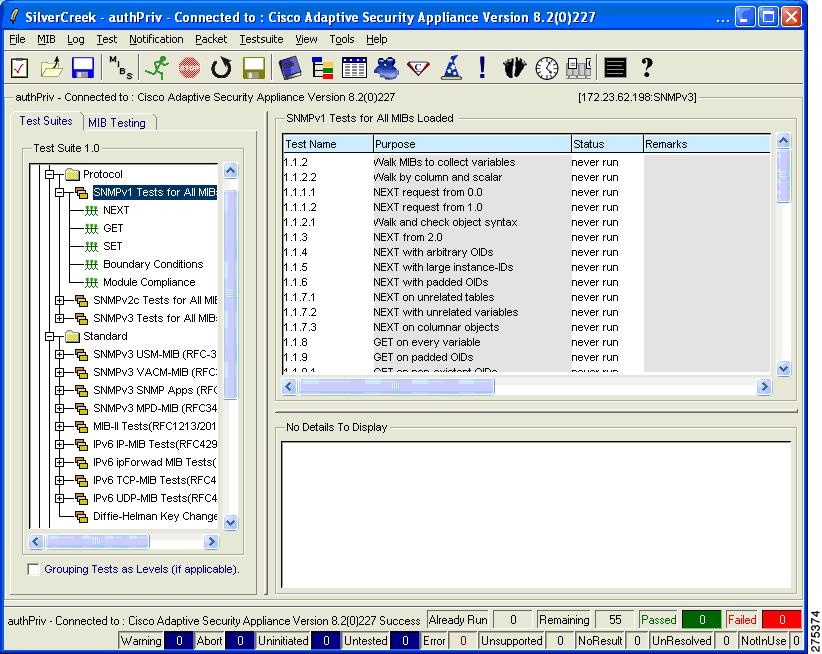

Figure 2-6 SilverCreek Main Window Showing Selected Tests

Enabling Debugging

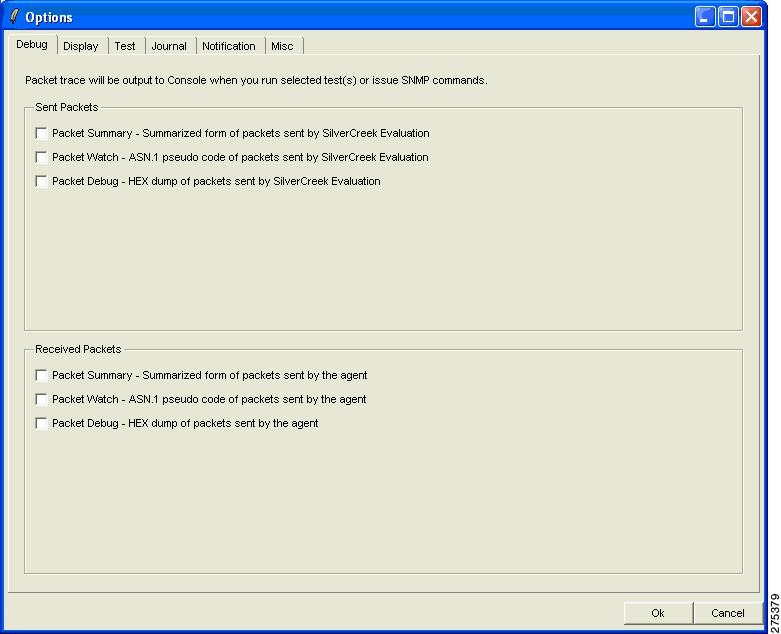

To enable debugging, choose Tools > Options (see Figure 2-7).

Figure 2-7 Debug Tab of the Options Dialog Box

Figure 2-8 shows the warning message that appears to indicate that the test runs more slowly with debugging turned on.

Figure 2-8 Warning Notes Dialog Box

Figure 2-9 shows the console dialog box that lists the debugging messages, which appear when you run a test.

Figure 2-9 Console Dialog Box Listing Debugging Messages

Testing MIBs

To test MIBs, perform the following steps:

Step 1 In the left pane of the main window, click the MIB Testing tab.

All the MIB modules that are loaded and available for testing appear (see Figure 2-10).

Step 2 Click the radio buttons for the MIBs that need to be tested.

Step 3 In the right pane, select the tests that need to be run.

The purpose and details of the tests appear in the bottom pane.

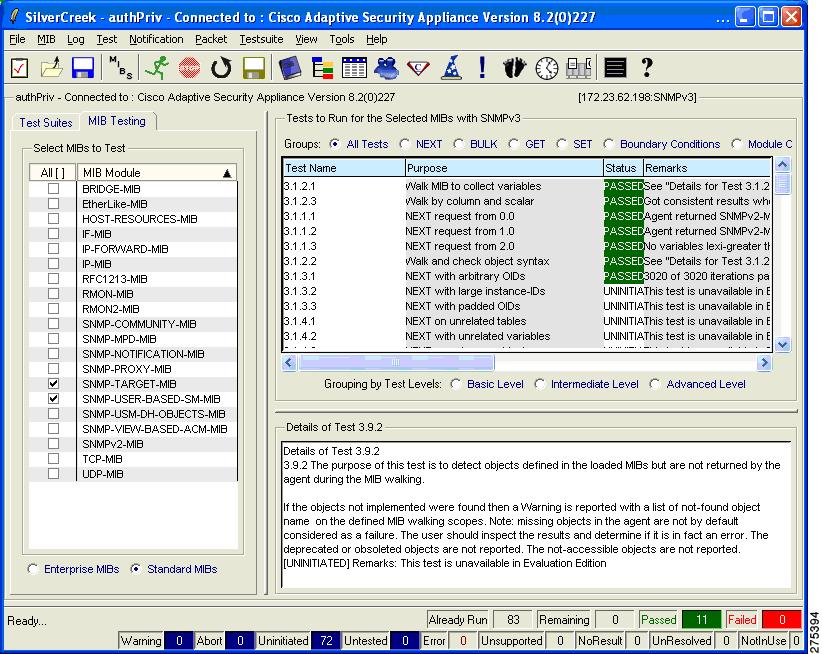

Figure 2-10 SilverCreek Main Window Showing MIB Testing Details

Accessing the MIB Browser

To access the MIB Browser, perform the following steps:

Step 1 In the main window, choose MIB > MIB Browser.

The MIB Browser (see Figure 2-11) provides more detailed access to the agent MIBs, including the ability to poll an individual MIB, walk a selected tree, and so on.

Figure 2-11 MIB Browser: Local MIB Tree Mode Dialog Box

Step 2 Scroll down to the OID, .iso.org.dod.internet.mgmt.mib-2.system and right-click system; then choose the option to walk this tree.

The MIB browsing results appear in the right pane, as shown in Figure 2-12.

Figure 2-12 MIB Browser: Local MIB Tree Mode Dialog Box Showing MIB Results

Note See the Release Notes for the Cisco ASA 5500 Series Version 8.2(1) for a list of the open caveats that apply to SNMP MIBs.

Receiving Notification Trap Messages

To receive notification trap messages, perform the following steps:

Step 1 In the main window, choose Notifications >Notifications Monitor.

Step 2 To configure the agent-specific information, click V3 Inform.

The Received Notifications dialog box (see Figure 2-13) shows the trap messages that are received, along with the notification details displayed at the bottom.

Note SNMP Version 3 does not send authentication failure traps; an SNMP Version 3 agent sends a PDU report instead.

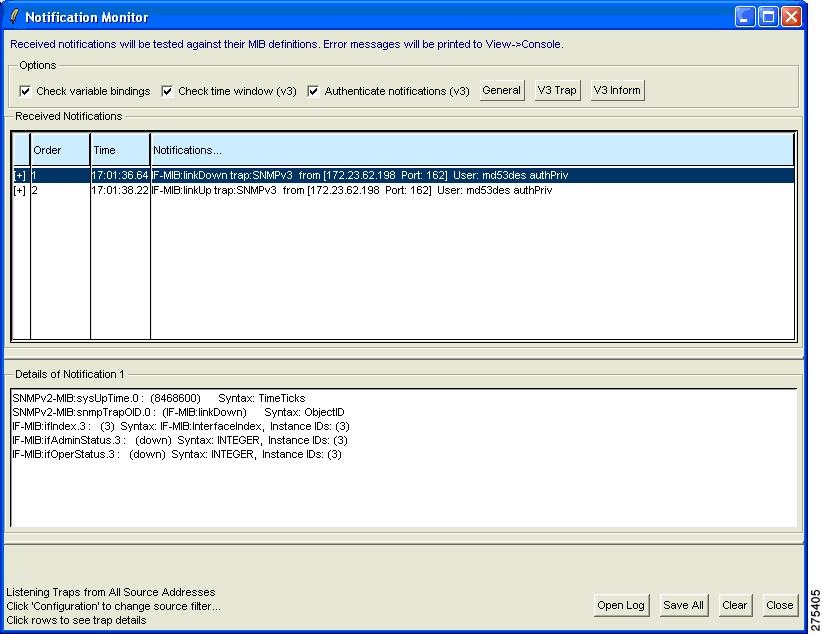

Figure 2-13 Notification Monitor Dialog Box

Testing Performance

To test performance, perform the following steps:

Step 1 Choose Tools > Performance Monitoring Tool, select an operation that you want to perform (for example, Walk (get-bulks), and provide an Object name. You can run various commands multiple times.

Step 2 Click Send Synchronously.

The selected SNMP operations start. Results appear in a separate window.

The following example (see Figure 2-14) uses ifType, asks how many times you want to repeat the operation, and uses the value, 10.

Figure 2-14 Performance Measuring Dialog Box

Ipswitch WhatsUp Gold

Ipswitch WhatsUp Gold is network management software that enables network discovery, and SNMP monitoring and polling. You can download a free version of the software at the following URL:

http://www.whatsupgold.com/products/download/

This section includes the following topics:

•Starting Ipswitch WhatsUp Gold

•Adding a New SNMP Agent

•Adding SNMP Version 3 Credentials

•Using the WhatsUp Gold Web Interface

•Walking an SNMP MIB or an OID

•Configuring SNMP Traps

Starting Ipswitch WhatsUp Gold

To start the Ipswitch WhatsUp Gold application, choose Start > Programs > Ipswitch WhatsUp Gold 12.3 > WhatsUp Gold.

The main network explorer window appears (see Figure 2-15).

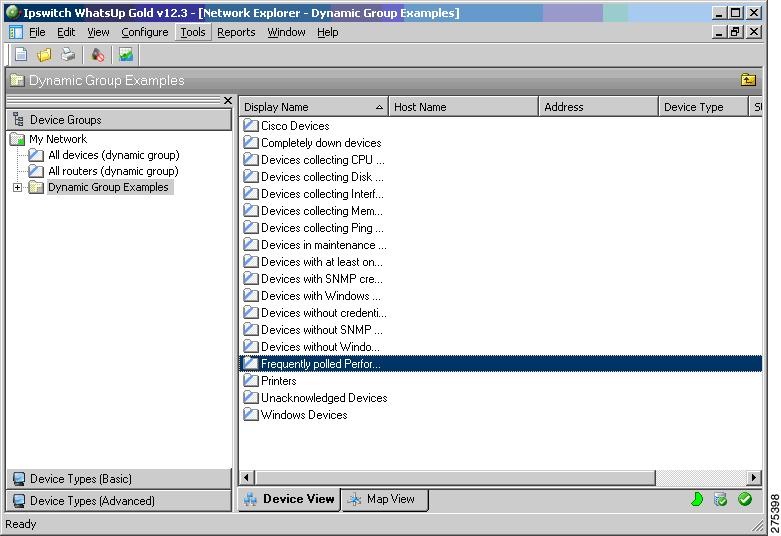

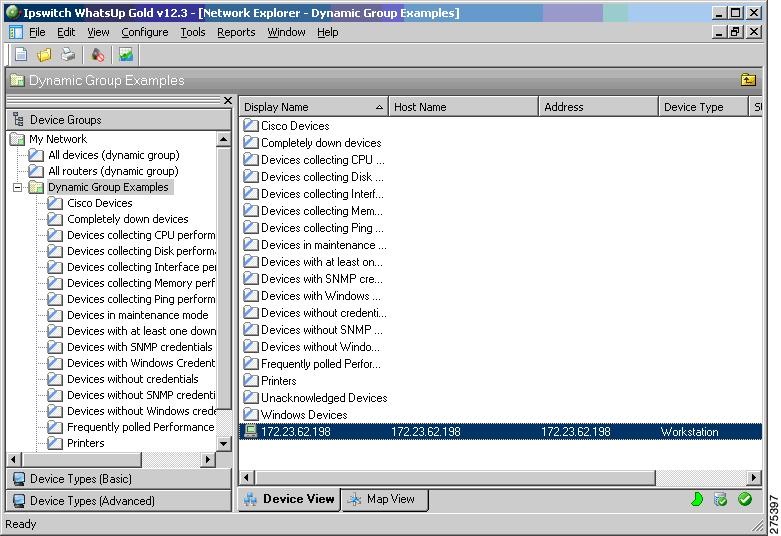

Figure 2-15 Network Explorer Main Window

Adding a New SNMP Agent

To add a new SNMP agent, perform the following steps:

Step 1 Choose File > New > New Device.

The Add New Device dialog box appears (see Figure 2-16).

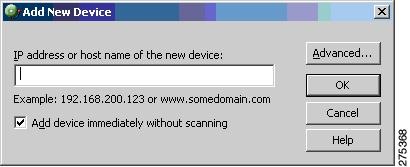

Figure 2-16 Add New Device Dialog Box

Step 2 Enter the IP address or hostname.

Step 3 After the device has been added, enter device properties in the General pane, as shown in Figure 2-17.

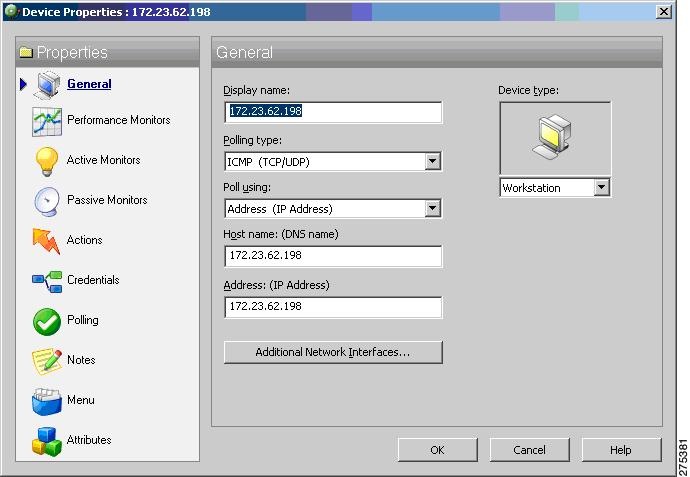

Figure 2-17 Device Properties Dialog Box

Adding SNMP Version 3 Credentials

To add SNMP Version 3 credentials, perform the following steps:

Step 1 Click the Credentials link (see Figure 2-18), and enter the SNMP device object ID information.

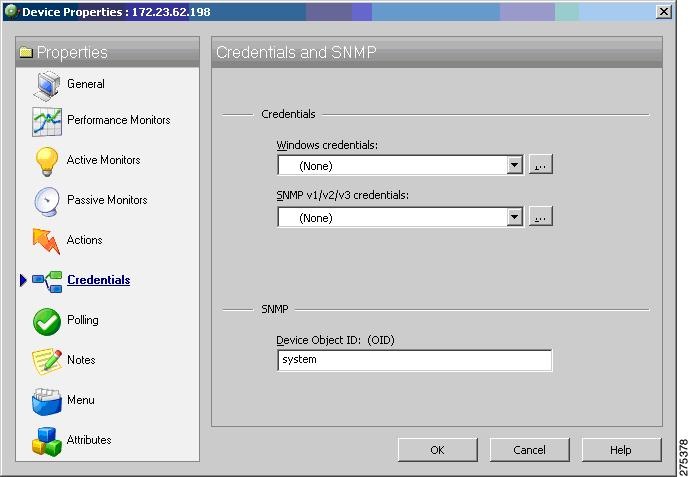

Figure 2-18 Device Properties Dialog Box Showing SNMP Credentials

Step 2 Click the button next to the SNMP v1/v2/v3 credentials drop-down list and enter the username, authentication and encryption algorithms, and corresponding passwords, then click OK (see Figure 2-19 and Figure 2-20).

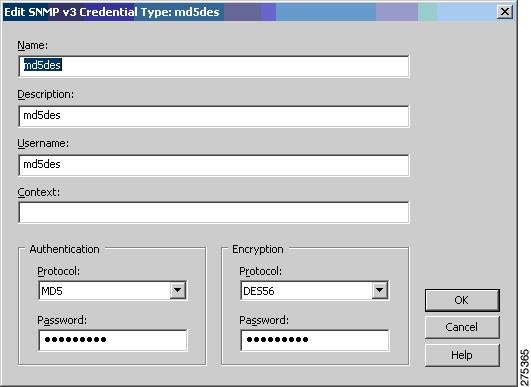

Figure 2-19 Edit SNMP v3 Credential Type Dialog Box

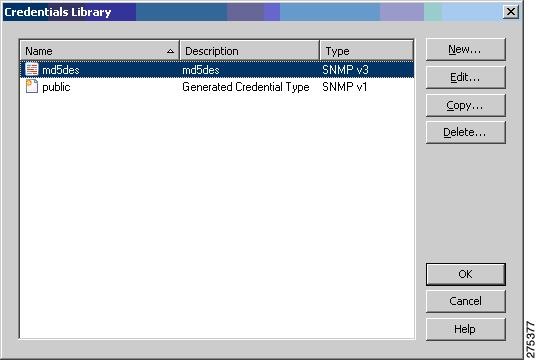

Figure 2-20 Credentials Library Dialog Box

Figure 2-21 shows the added SNMP Version 3 node on the network.

Figure 2-21 Network Explorer Window with Added SNMP Version 3 Node

Using the WhatsUp Gold Web Interface

To start the WhatsUp Gold application, perform the following steps:

Step 1 Choose Start > Programs >IpSwitch WhatsUp Gold v12.3 > WhatsUp Web Interface. You can perform SNMP Version 3 walks and polls from this location.

Step 2 Figure 2-22 shows the initial login window. Enter the default username and password, which is "admin."

Figure 2-22 WhatsUp Gold Login Window for Web Interface

Figure 2-23 shows the Home Workspace pane that appears after the user logs in.

Figure 2-23 WhatsUp Gold Home Workspace Pane

Walking an SNMP MIB or an OID

To walk a MIB or an OID, perform the following steps:

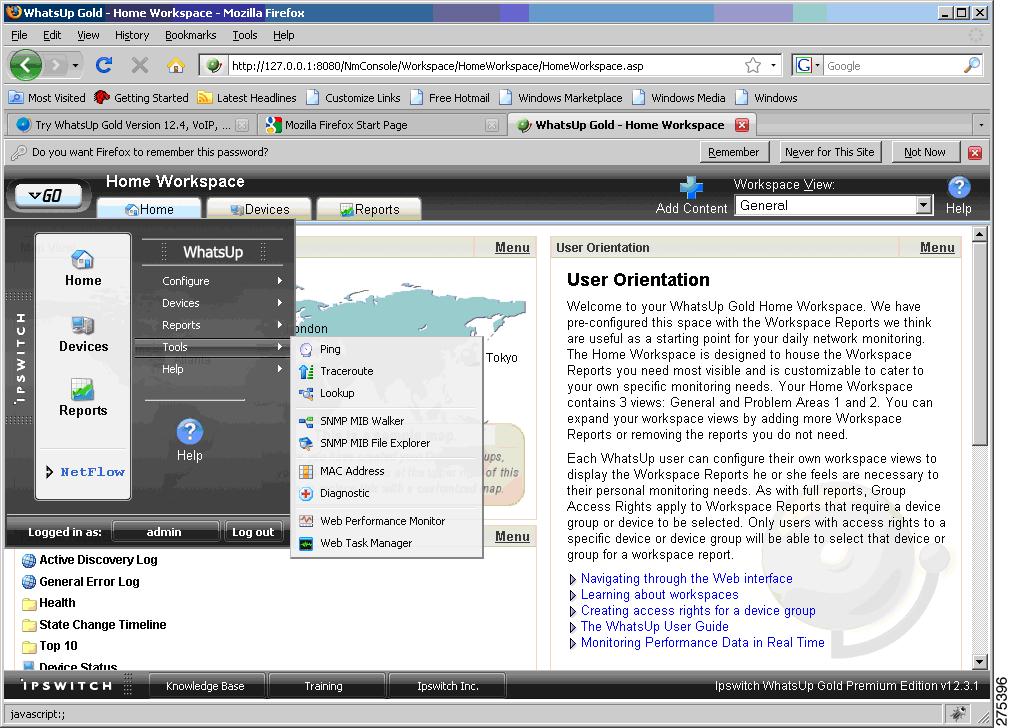

Step 1 Choose GO > Tools > SNMP MIB Walker (see Figure 2-24).

Figure 2-24 SNMP MIB Walker Menu Option

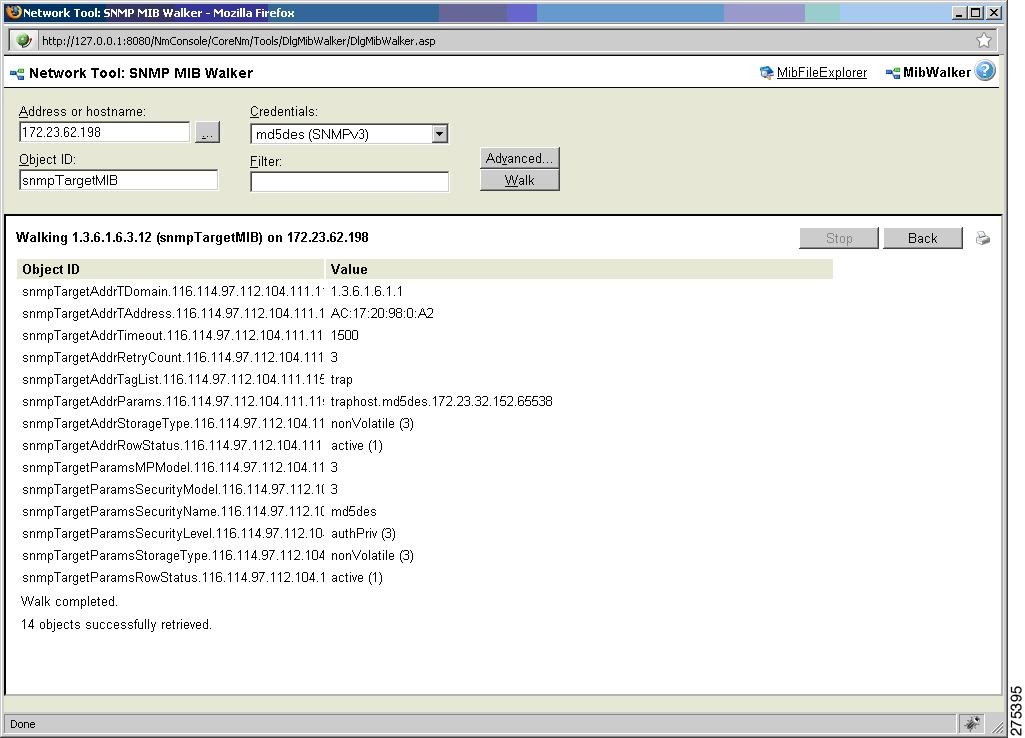

Step 2 In the Network Tool: SNMP MIB Walker dialog box (see Figure 2-25), enter the following information:

•The agent IP address or hostname

•The OID or MIB that needs to be walked

•The SNMP Version 3 credentials

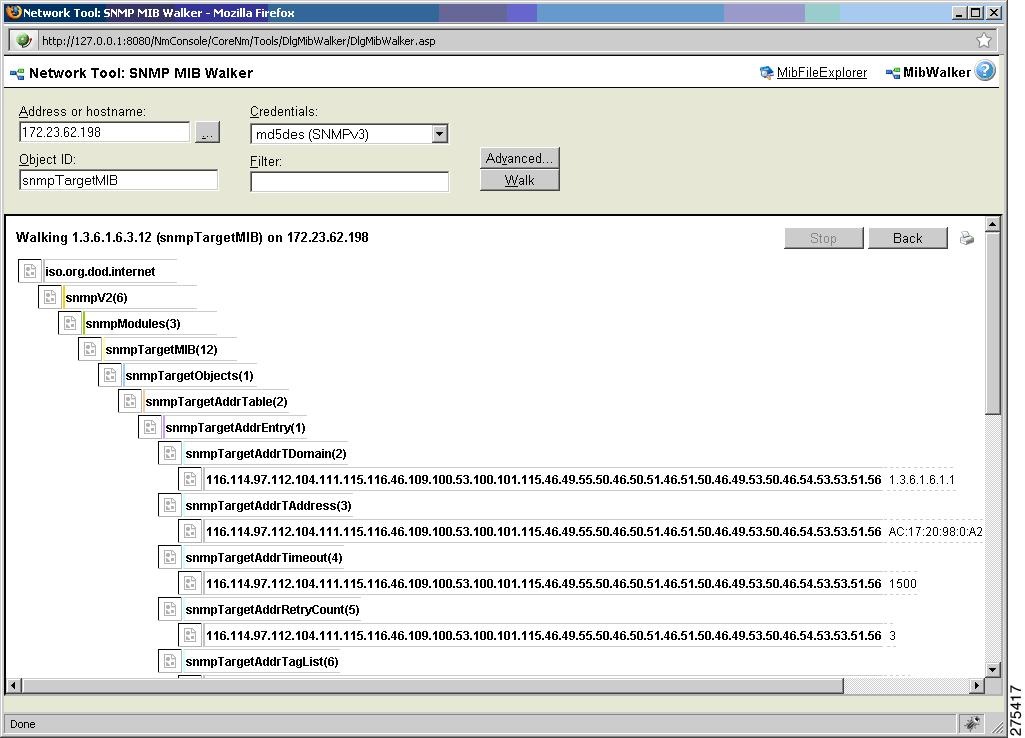

Figure 2-25 Network Tool: SNMP MIB Walker Dialog Box

Step 3 Click Walk.

Figure 2-26 shows the walk results in a tree format.

Figure 2-26 Network Tool: SNMP MIB Walker Results - Tree View

Figure 2-27 shows the results in sequence.

Figure 2-27 Network Tool: SNMP MIB Walker Results Window

Configuring SNMP Traps

To configure SNMP traps, perform the following steps:

Step 1 Choose Program Options > Passive Monitor Listeners > SNMP Trap > Configure (see Figure 2-28).

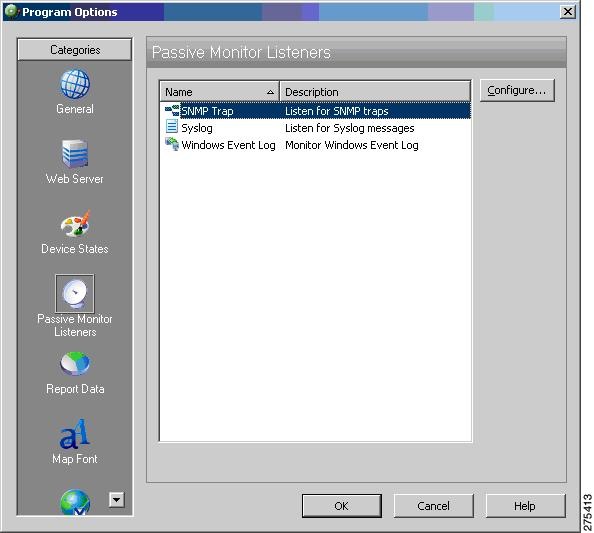

Figure 2-28 Program Options - Passive Monitor Listeners Dialog Box

The SNMP Listener Configuration dialog box appears (see Figure 2-29). From here you can configure the listener port and forward traps to a host.

Figure 2-29 SNMP Listener Configuration Dialog Box

Step 2 Click the Reports tab and select SNMP Trap Log (see Figure 2-30).

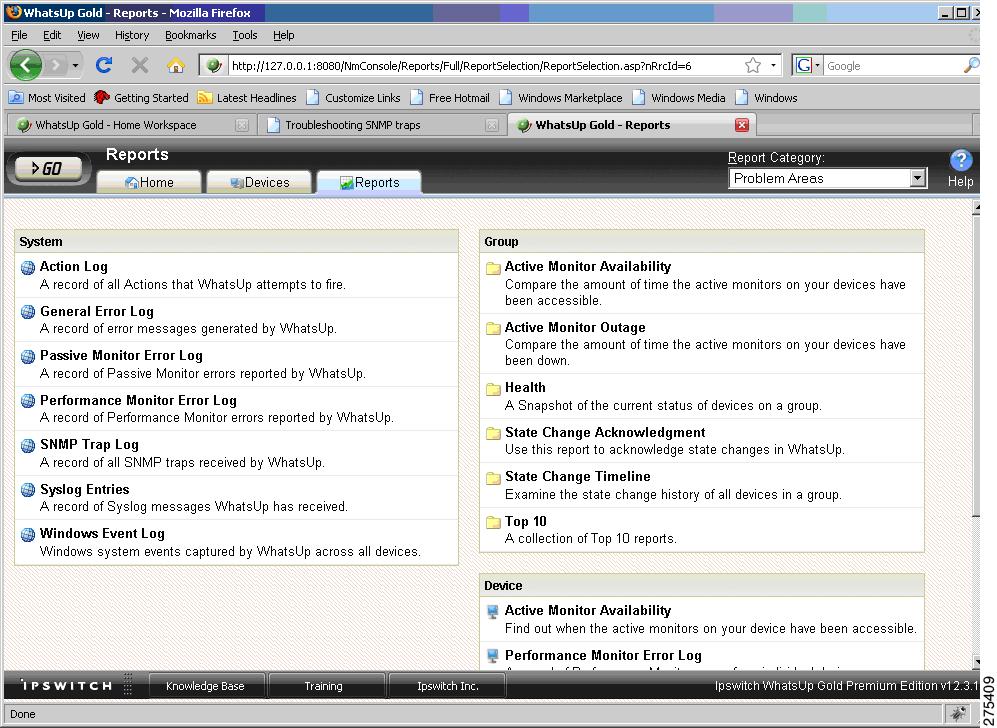

Figure 2-30 SNMP Reports Pane

Figure 2-31 shows the SNMP trap log.

Figure 2-31 SNMP Trap Log Pane

HP OpenView Network Node Manager

HP OpenView Network Node Manager (NNM) 7.53 is a management tool that is used to automatically create network topologies, manage devices, and monitor device health. The adaptive security appliance is integrated into the HP NNM device topology, and communicates device statistics and SNMP traps using SNMP Version 3.

Note See the Cisco ASA 5500 Series Adaptive Security Appliance Version 8.2(1) Release Notes for a list of the open caveats that apply to NNM 8.x.

This section includes the following topics:

•Installing NNM

•Starting the NNM

•Loading MIBs

•Adding a Network to the Current Map

•Configuring Specific SNMP Version 3 Parameters

•Setting Global SNMP Version 3 Credentials

•Viewing Node Information

•Configuring the NNM MIB Browser

•Using the HP OpenView NNM Web Application

Installing NNM

NNM 7.53 was tested on the Windows 2003 Server platform. A trial version with the required installation instructions is available at the following URL:

https://h10078.www1.hp.com/cda/hpms/display/main/hpms_content.jsp?zn=bto&cp=1-11-15-119^1155_4000_100__

Starting the NNM

To start the NNM, perform the following steps:

Step 1 From the command prompt of the NNM server, choose one of the following:

•Start > Programs > HP OpenView > Network Node Manager Admin > Network Node Manager.

•Double-click the ovw.exe file, located in C:\Program Files\HP OpenView\bin.

The Root window appears, with the Internet map icon displayed (see Figure 2-32).

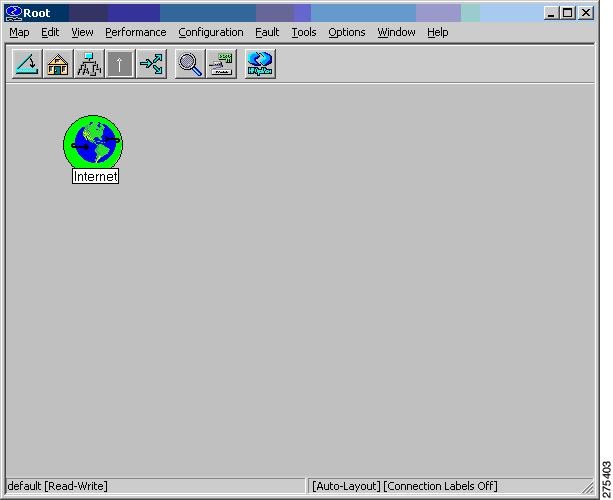

Figure 2-32 NNM Console Root Window

Step 2 Double-click the Internet map icon.

The Internet window appears, with the network nodes displayed (see Figure 2-33).

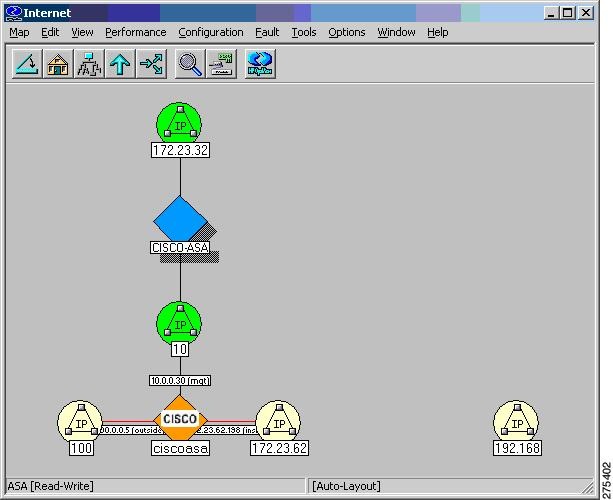

Figure 2-33 NNM Console Internet Window Showing Network Nodes

Loading MIBs

To load MIBs, perform the following steps:

Step 1 In the NNM main window, choose Options > Load/Unload MIBs: SNMP.

A list of currently loaded MIBs appears.

Step 2 Click Load to select additional MIBs from the server file system (see Figure 2-34).

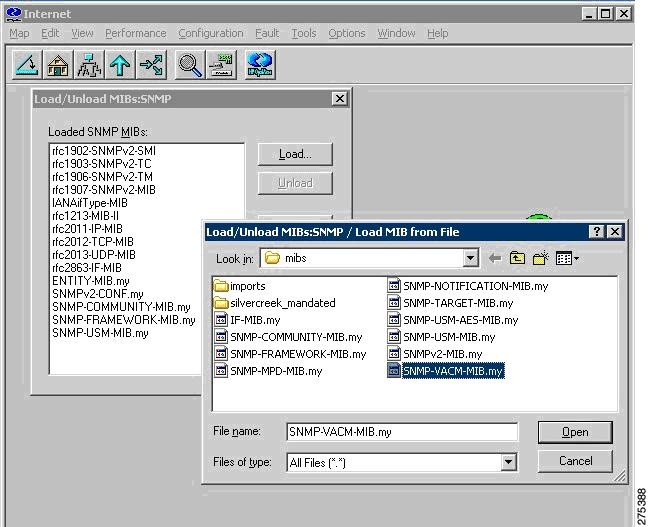

Figure 2-34 Load/Unload MIBs: SNMP Dialog Box

Adding a Network to the Current Map

To add a network to the current map, perform the following steps:

Step 1 Find the IP address and hostname of at least one high-traffic device within the network that you want to add.

Step 2 In the Internet-level submap, choose Edit > Add Objects.

The Add Object Palette dialog box appears (see Figure 2-35).

Figure 2-35 Add Object Palette Dialog Box

Step 3 Click the Connector Symbol Class icon, and drag the Gateway Symbol Subclass icon onto the Internet-level submap. Choose this gateway connector, regardless of the type of device you are using to start the discovery.

The Add Object dialog box appears (see Figure 2-36).

Figure 2-36 Add Object Dialog Box

Step 4 Double-click IP Map.

The Add Object - Set Attributes dialog box appears (see Figure 2-37).

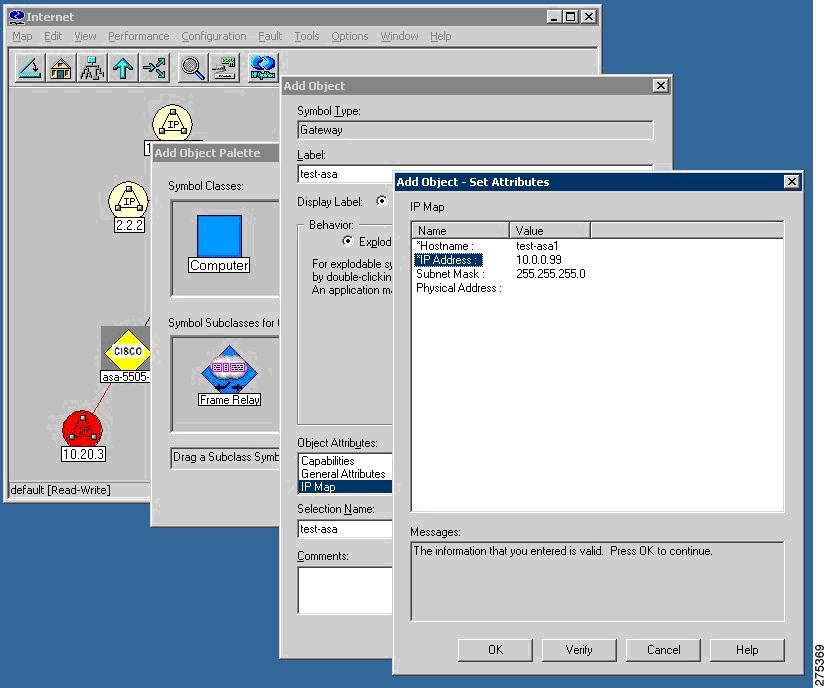

Figure 2-37 Add Object - Set Attributes Dialog Box

Step 5 Type the IP address and hostname of an SNMP-enabled device within the network that you want to add to your management domain, and click Verify.

Step 6 After NNM checks the configuration, NNM corrects the symbol choice and (if necessary) its placement for you. The device is now configured to be managed by NNM and should be visible on the Internet map.

Configuring Specific SNMP Version 3 Parameters

To configure credentials for specific SNMP nodes, perform the following steps:

Step 1 Double-click the xnmsnmpconf.exe file, located in C:\Program Files\HP OpenView\bin.

Step 2 In the NNM main window, choose Options > SNMP Configuration.

A configuration pane appears.

Note When you set SNMP Version 3 credentials, you must use the overloaded SNMP string. For more information, see Step 2 in the "Configuring the NNM MIB Browser" section.

Setting Global SNMP Version 3 Credentials

To set global SNMP Version 3 credentials, in the Global Settings section, enter an SNMPv3 user and password to be used for default communication (see Figure 2-38). For the format of the community string, see Step 2 in the "Configuring the NNM MIB Browser" section.

Figure 2-38 SNMP Configuration

Setting Specific SNMP Version 3 Credentials

To set specific SNMP Version 3 credentials, enter SNMP Version 3 users and passwords for individual SNMP nodes by clicking the Specific Nodes tab (see Figure 2-39).

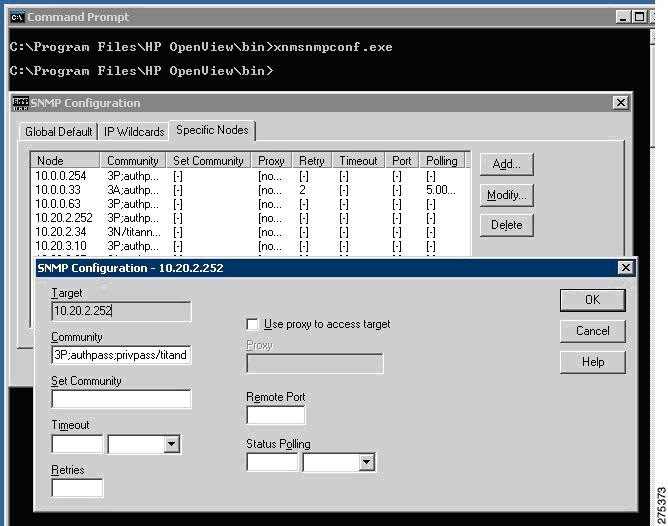

Figure 2-39 SNMP Configuration Dialog Box

Viewing Node Information

To view node information, perform the following steps:

Step 1 From the Internet map, drill down to a specific node for a view of all available interfaces.

Step 2 To view additional interface information, right-click an interface, then choose Interface Properties or Interface Status.

The Network Interface Properties dialog box appears (see Figure 2-40).

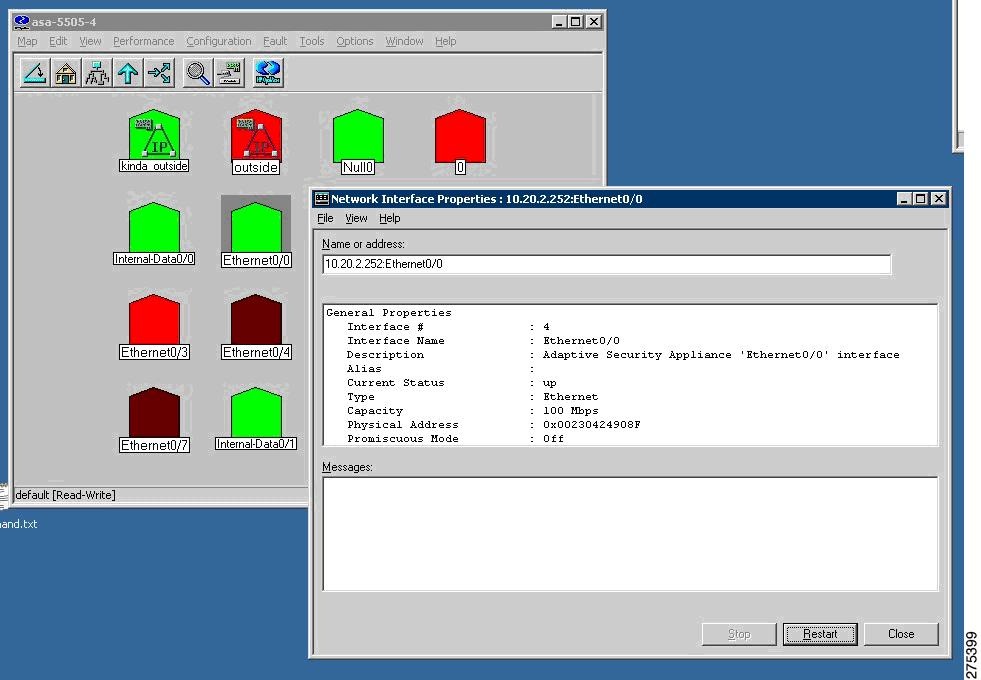

Figure 2-40 Network Interface Properties Dialog Box

Configuring the NNM MIB Browser

To configure the NNM MIB Browser, perform the following steps:

Step 1 From the NNM server command prompt, start the MIB Browser, located in C:\Program Files\HP OpenView\bin\xnmbrowser.exe.

Step 2 Enter the IP address of the SNMP host and the community string. For SNMP Version 3 connections, the community string uses the syntax for the overloaded community string.

The following is an example of the syntax used for the overloaded community string:
SNMPv3 noAuthNoPriv
3N[/KEEP]/[ [contextEngineID] [-contextName]/ ]username
SNMPv3 authNoPriv
3A[;[MD5ˆ|SHAˆ]authKey[/KEEP]]/[ [contextEngineID] [-contextName]/
]username
SNMPv3 authPriv
3P[;[MD5ˆ|SHAˆ]authKey[;[DESˆ|AESˆ|3DESˆ]privKey][/KEEP]]/[
[contextEngineID] [-contextName]/ ]username
Note The default authentication is MD5, and the default encryption is DES.

This section includes the following topics:

•Configuring SNMP Version 3 No-auth/No-priv Connections

•Configuring SNMP Version 3 MD5 Auth/No-priv Connections

•Configuring SNMP Version 3 SHA Auth/No-priv Connections

•Configuring SNMP Version 3 MD5 Auth/Priv Connections

•Configuring SNMP Version 3 SHA Auth/Priv Connections

•Browsing a MIB

•Running a MIB Browser Packet Trace

•Using the NNM SNMP Version 3 Trap Viewer

Configuring SNMP Version 3 No-auth/No-priv Connections

To configure SNMP Version 3 No-auth/No-priv connections, perform the following steps:

Step 1 To configure the UUT group, enter the snmp-server group asanoauth v3 noauth command.

Step 2 To configure the UUT user, enter the snmp-server user titannoauth asanoauth v3 command.

Step 3 For the community name, enter 3N/titannoauth.

Configuring SNMP Version 3 MD5 Auth/No-priv Connections

To configure SNMP Version 3 MD5 Auth/No-priv connections, perform the following steps:

Step 1 To configure the UUT group, enter the snmp-server group asaauth v3 auth command.

Step 2 To configure the UUT user, enter the snmp-server user titanauth asaauth v3 auth md5 authpass command.

Step 3 For the community name, enter 3A:authpass/titanauth.

Configuring SNMP Version 3 SHA Auth/No-priv Connections

To configure SNMP Version 3 SHA Auth/No-priv connections, perform the following steps:

Step 1 To configure the UUT group, enter the snmp-server group asaauth v3 auth command.

Step 2 To configure the UUT user, enter the snmp-server user titanshaauth asaauth v3 auth sha authpass command.

Step 3 For the community name, enter 3A:SHA^authpass/titanshaauth.

Configuring SNMP Version 3 MD5 Auth/Priv Connections

To configure SNMP Version 3 MD5 Auth/Priv connections, perform the following steps:

Step 1 To configure the UUT group, enter the snmp-server group asapriv v3 priv command.

Step 2 To configure the UUT user, enter the snmp-server user titandes asapriv v3 auth md5 authpass priv des privpass command.

Step 3 For the community name, enter one of the following:

•3P:authpass:privpass/titandes

•3P:MD5^authpass:DES^privpass/titandes

Configuring SNMP Version 3 SHA Auth/Priv Connections

To configure SNMP Version 3 SHA Auth/Priv connections, perform the following steps:

Step 1 To configure the UUT group, enter the snmp-server group asapriv v3 priv command.

Step 2 To configure the UUT user, enter the snmp-server user titanshades asapriv v3 auth sha authpass priv des privpass command.

Step 3 For the community name, enter 3P:SHA^authpass:DES^privpass/titanshades.

Browsing a MIB

To browse a MIB, perform the following steps:

Step 1 Drill down to the OID, .iso.org.dod.internet.mgmt.mib-2.system, and select the system object.

Step 2 Click Start Query to fill in the MIB Values field with the DUT description (see Figure 2-41).

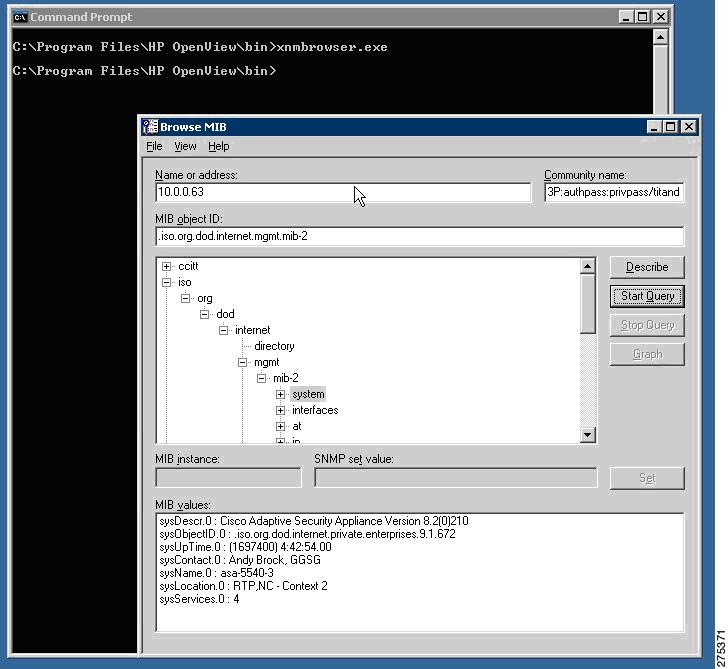

Figure 2-41 Browse MIB Dialog Box

Running a MIB Browser Packet Trace

To run a MIB Browser packet trace, in the MIB Browser dialog box, choose View > SNMP Packet Trace.

The Messages dialog box appears (see Figure 2-42), which shows the packet contents of the SNMP communication between the MIB Browser and the SNMP agent. This information is helpful for debugging.

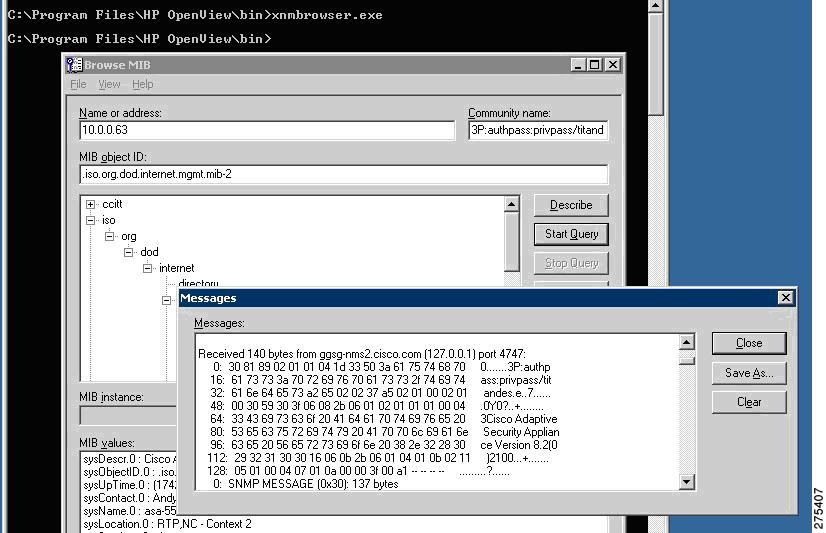

Figure 2-42 Packet Trace in the Messages Dialog Box

Using the NNM SNMP Version 3 Trap Viewer

When using the NNM SNMP Version 3 Trap Viewer, perform the following steps:

Step 1 Make sure that the SNMP Version 3 credentials of a user on the SNMP agent are cached in the NNM.

Step 2 When using the MIB Browser to query an SNMP agent, enter the following community string:
3P:authpass:privpass/KEEP/titandes
Note By using the KEEP parameter in the overloaded community string, you save the user credentials in the NNM configuration file, which is required because secure SNMP Version 3 traps and inform requests are sent from the SNMP agent to the NNM, and authentication must occur. The user information is included in the configuration file, located in C:\etc\srconf\mgr\mgr.cnf. You can modify this file directly. For instructions, see the NNM SPI SNMP Version 7.53 documentation.

Alternatively, you can use the snmpget command, as shown in the following example:
C:\Program Files\HP OpenView\bin>snmpget -c "3P;MD5^authpass;DES^privpass/KEEP/titandes"
10.0.0.33 sysDescr.0
Step 3 To configure the SNMP agent to send traps, enter the following command on the adaptive security appliance:
hostname (config)# snmp-server host inside 10.0.0.10 traps version 3 titandes
Note The command syntax may differ slightly between adaptive security appliance platforms. The user configured in this example is the same as the user defined in the community string in the "Configuring the NNM MIB Browser" section.

The NNM traprcv utility is a command-line tool that receives SNMP trap messages and responds to SNMP inform requests from remote SNMP entities. It binds to the SNMP trap port (udp/162) to listen for notifications, and as a result, must be run as root. It prints standard output messages about the notifications that it has received. The traprcv utility can receive SNMP Version 1 traps, SNMP Version 2c traps, SNMP Version 2c inform requests, SNMP Version 3 traps, and SNMP Version 3 inform requests. For more information, see the NNM SPI SNMP Version 7.53 documentation.

Step 4 Run the traprcv utility and wait for traps on the SNMP agent. The utility is available at the following location (see Figure 2-43): C:\Program Files\HP OpenView\snmpv3\utils\traprcv.exe.

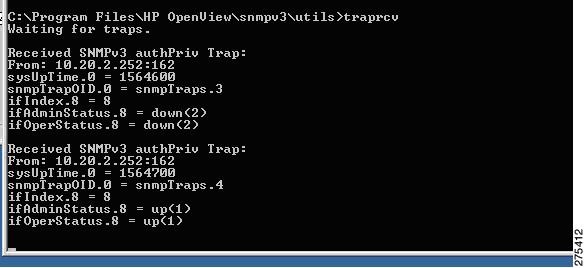

Figure 2-43 SNMP Trap Receiver

Using the HP OpenView NNM Web Application

To start the NNM web application, perform the following steps:

Step 1 In a web browser, go to the following URL:

http://<NNM-Server-IP-Address>:7510/topology/home

Step 2 To view SNMP nodes, from the drop-down menu, choose Internet View (see Figure 2-44).

The Internet View window appears (see Figure 2-45).

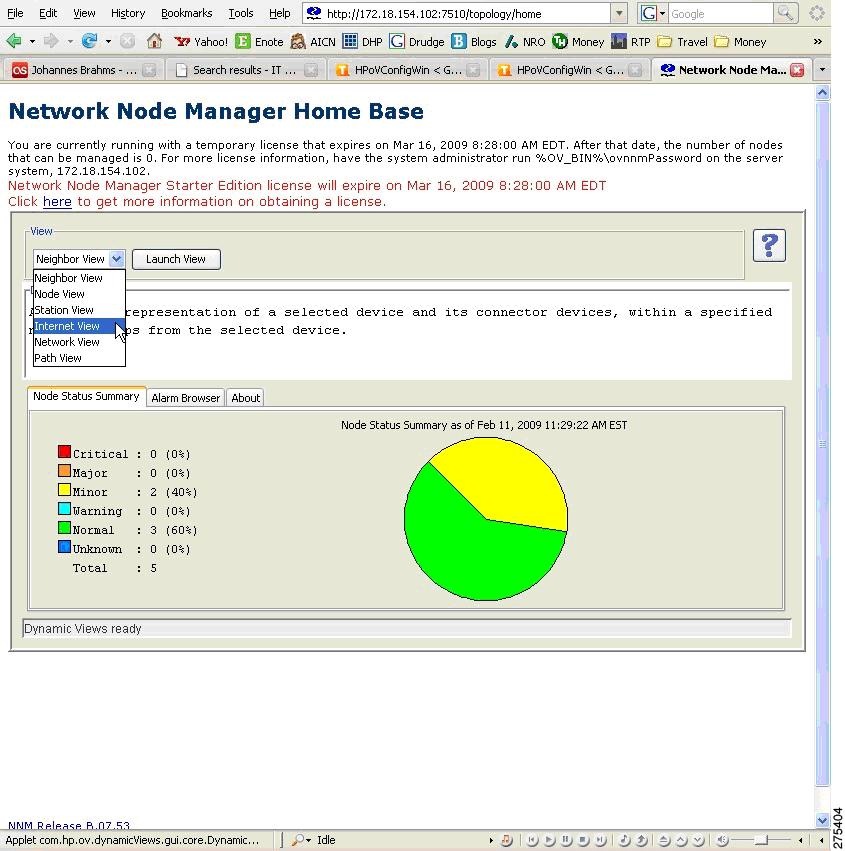

Figure 2-44 NNM Home Base Window

Step 3 To view node properties, double-click the selected node to open a new browser window with the node information.

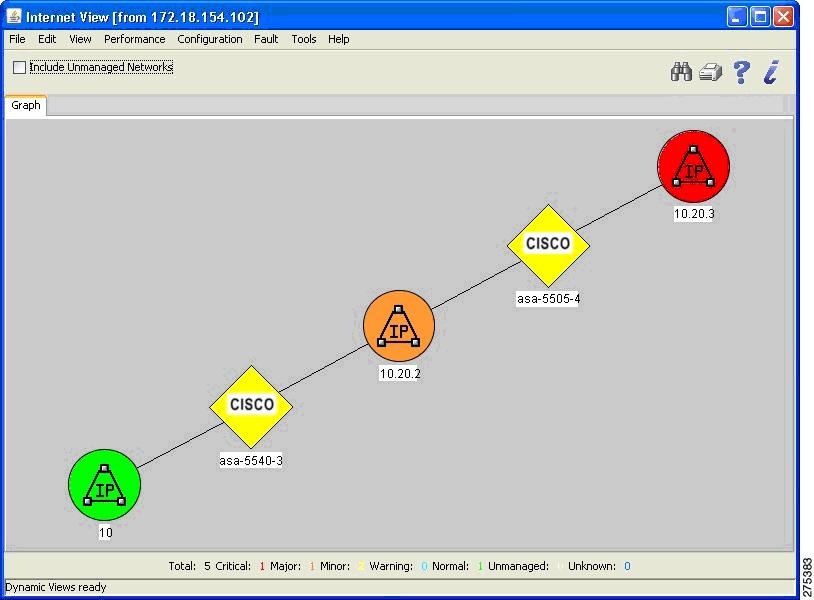

Figure 2-45 Internet View Window

CiscoWorks

CiscoWorks LAN Management Solution (LMS) is a suite of powerful management tools that simplify the configuration, administration, monitoring, and troubleshooting of Cisco networks. For more information, see the following URL:

http://www.cisco.com/en/US/products/sw/cscowork/ps2425/index.html

This section includes the following topics:

•Starting CiscoWorks

•Getting Started with the CiscoWorks LMS Portal

•Using the Device Center

•Performing an SNMP Walk

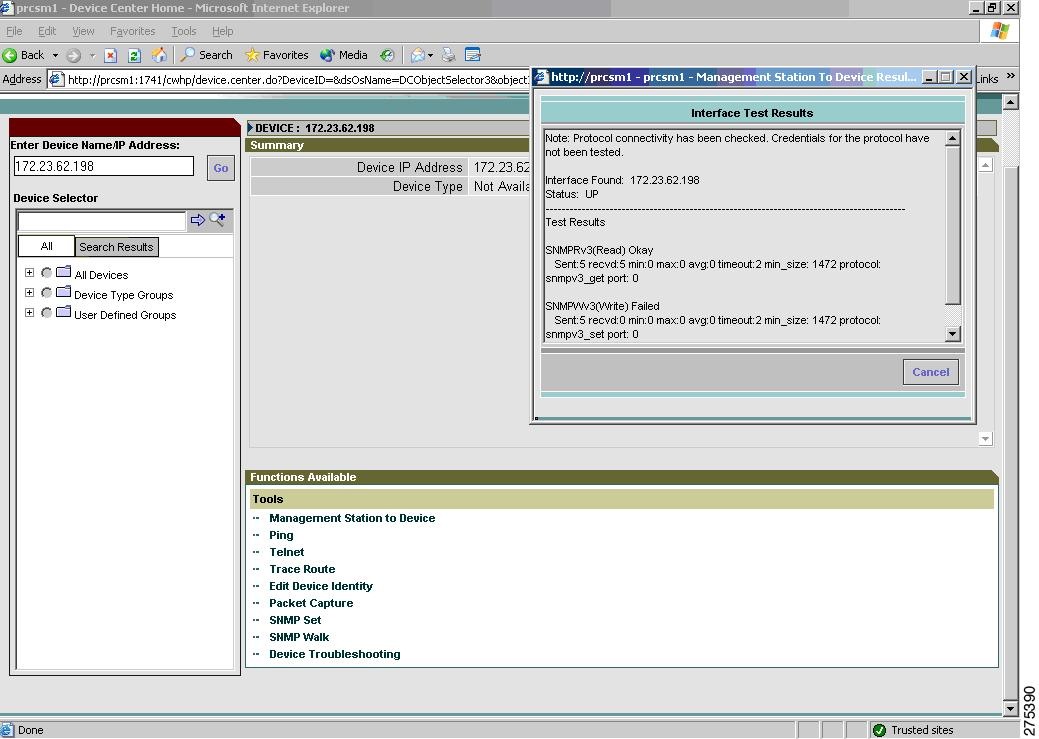

•Using the Management Station to Device Tool

Starting CiscoWorks

To start CiscoWorks on a Windows 2003 server, perform the following steps:

Choose Start >All Programs > CiscoWorks > CiscoWorks. Figure 2-46 shows the login page.

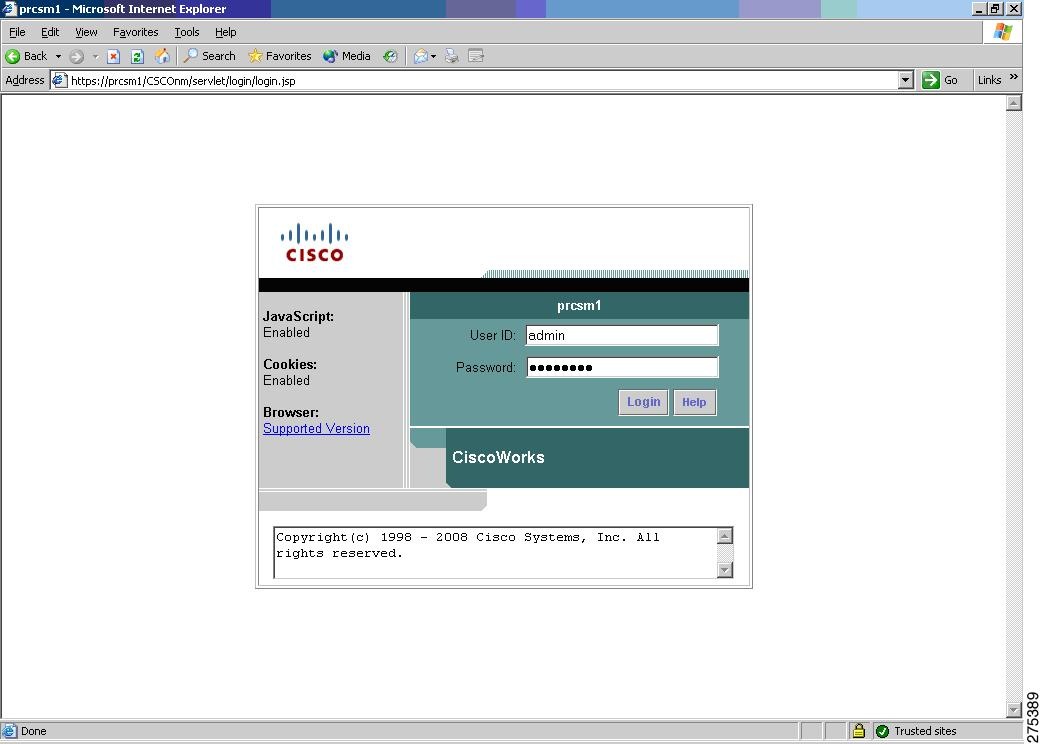

Figure 2-46 Login Page

Getting Started with the CiscoWorks LMS Portal

The CiscoWorks LMS Portal is the first page (see Figure 2-47) that appears when you start the LMS application. This page serves as the interface, starting point, and top-level navigation for the frequently used functions in the application.

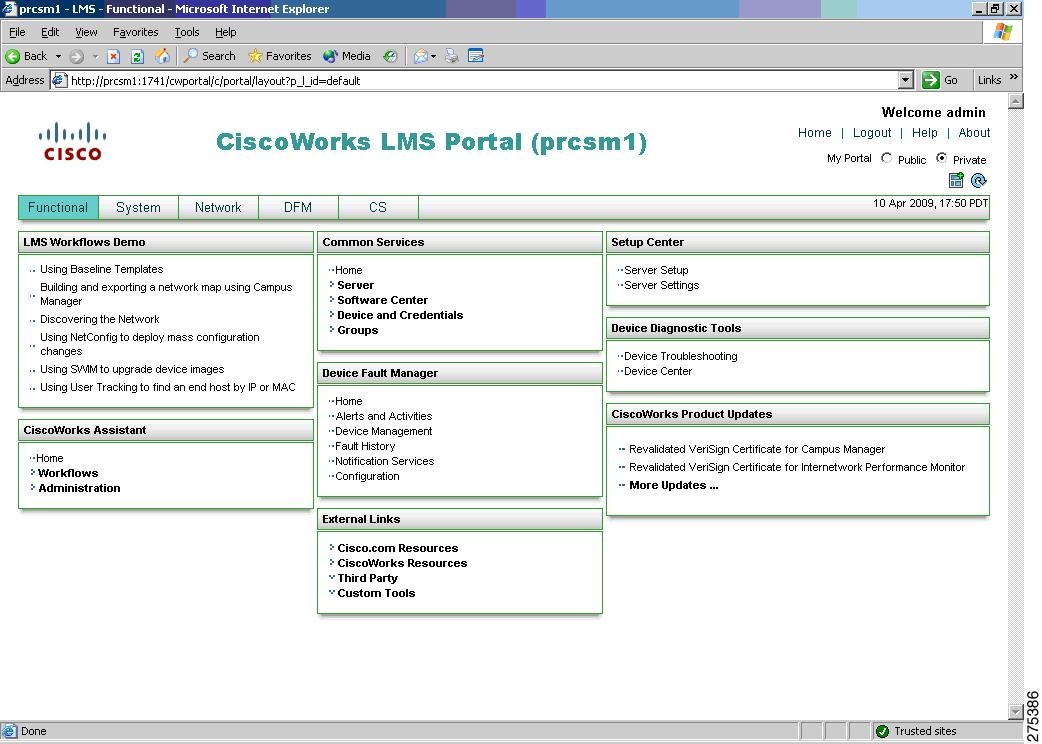

Figure 2-47 CiscoWorks LMS Portal Page

Using the Device Center

To manage devices, perform the following steps:

Step 1 Choose Device Diagnostic Tools > Device Center (see Figure 2-48).

The Device Center Home page appears with the Device Selector in the left pane and Device Center summary information in the right pane.

Step 2 Enter the IP address or device name or choose a device from the list in the Device Selector pane, and click Go.

Figure 2-48 Device Center Home Window

Performing an SNMP Walk

To perform an SNMP walk, perform the following steps:

Step 1 In the Functions Available pane, click the SNMP Walk link.

The SNMP Walk dialog box appears (see Figure 2-49).

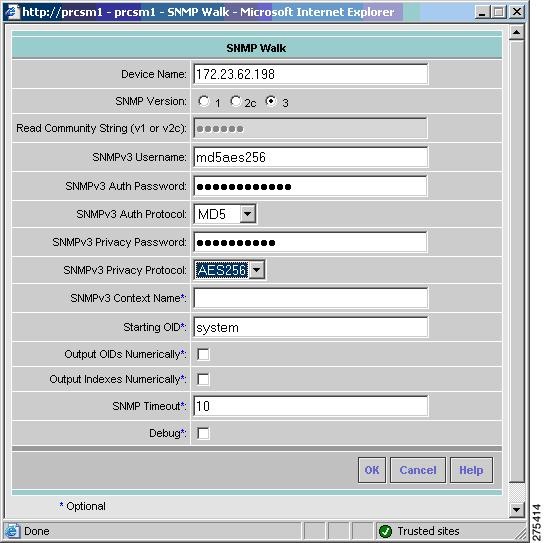

Figure 2-49 SNMP Walk Dialog Box

Step 2 Choose the SNMP version to use from the following options:

•For SNMP Version 3 (NoAuthNoPriv and AuthNoPriv Security Levels)

a. Enter the SNMPv3 Username.

b. Enter the SNMPv3 Auth Password.

c. Choose the SNMP v3 Auth Protocol from the drop-down list (either MD5 or SHA).

d. Enter the SNMP Context Name.

Note Because the adaptive security appliance does not support contexts, you must leave the SNMP Context Name blank.

•For SNMP Version 3 (AuthPriv Security Level)

a. Enter the SNMPv3 Username.

b. Enter the SNMPv3 Auth Password.

c. Specify the SNMP v3 Auth Protocol. Choose either MD5 or SHA.

d. Enter the Privacy Password.

e. Choose a privacy protocol from the drop-down list. The available values are DES, 3DES, AES128, AES192, and AES256.

f. Enter the SNMP Context Name.

Note Because the adaptive security appliance does not support contexts, you must leave the SNMP Context Name blank.

g. (Optional) Enter the starting OID. If you leave this field blank, the tool starts from 1.

h. Enter the SNMP Timeout. The default value is 10 seconds.

i. (Optional) Check the Output OIDs Numerically check box to print the output OIDs numerically.

j. By default, the corresponding OID name is printed in the output window.

k. (Optional) Check the Output Indexes Numerically check box to show the output index numerically.

l. (Optional) Check the Debug check box to enable the debugging option. All the fields are case-sensitive.

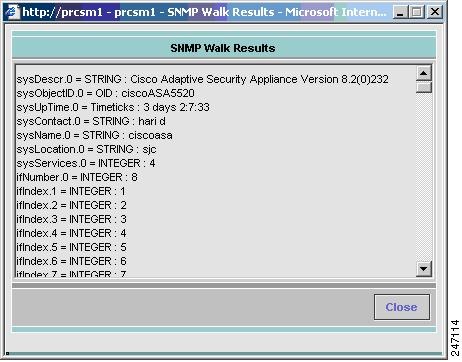

m. Click OK to obtain the results, which are based on the parameters that you entered.

n. When the walk is complete, save it as a text file (see Figure 2-50).

Note A full walk may take a long time to finish.

Figure 2-50 SNMP Walk Results Example

The read-write username and password for SNMP Version 3 and the read-write community string for SNMP Versions 1 and 2c are case sensitive. The SNMP Walk dialog box displays the credentials (SNMP Versions 1, 2c, and 3) for the device from the Device and Credential Repository (DCR), if they are available. Otherwise, the default values for the respective SNMP versions appear.

If you use the SNMP Walk feature with Network Operator/Help Desk access privileges, device credential fetching fails and the fields of the read/write community strings for SNMP Versions 1, 2c, and 3 credentials are set to default values.

Figure 2-49 shows the list of privacy protocols supported. You must manually enter SNMP Versions 1, 2c, and 3 credentials (see Figure 2-52).

Figure 2-51 SNMP Walk Dialog Box

Figure 2-52 SNMP Version 3 Parameters

Figure 2-53 shows the SNMP walk results for the MD5 authentication and AES256 encryption algorithm settings.

Figure 2-53 SNMP Walk Results Dialog Box

Using the Management Station to Device Tool

To troubleshoot problems with unmanaged or unresponsive devices, you can check the device connectivity by protocol. The Management Station to Device tool helps you diagnose Layer 4 (application) connectivity problems.

Layer 4 tests include the following key services essentials that are needed to manage network devices:

•Debugging and measurement tools (UDP and TCP)

•Web server (HTTP)

•File transfer (TFTP)

•Terminal (Telnet)

•Read-write access (SNMP)

The management station to device check occurs only for protocol connectivity. Credentials for the corresponding protocols are not tested or verified. If you enter a hostname instead of an IP address, the tool performs a name lookup to discover the address. This task fails if the tool cannot find an address.

You can use this tool to send an SNMP GET request to the destination device for an SNMP read test (SNMPR). The tool also sends an SNMP SET request to the device for an SNMP write test (SNMPW). This protocol is supported for SNMP Versions 1, 2c, and 3.

If you start the Management Station to Device tool with Network Operator/Help Desk access privileges, device credential fetching fails and the fields of the read-write community strings for SNMP Versions 1, 2c, and 3 credentials are set to default values. You must manually enter SNMP Versions 1, 2c, and 3 credentials.

To start the Management Station to Device tool, perform the following steps:

Step 1 Choose Device Diagnostic Tools > Device Center.

Step 2 Enter the name or IP address, fully qualified domain name, or hostname of the device that you want to check in the Device Selector field or select the device from the list, and click Go.

The Summary and Functions Available panes appear.

Step 3 Click Management Station to Device in the Functions Available pane.

The Management Station to Device dialog box appears (see Figure 2-54).

Figure 2-54 Management Station to Device Dialog Box

Step 4 Choose the connectivity applications that you want to include from the following options. All fields are case sensitive.

•If you choose SNMP v3 (NoAuthNoPriv Security Level), enter the following information:

–Read Username.

–Write Username.

–Timeout (in seconds). The default value is two seconds.

•If you choose SNMP v3 (AuthNoPriv Security Level), enter the following information:

–Read Username.

–Read Auth Password.

–Read Auth Protocol. Choose either MD5 or SHA from the drop-down list.

–Write Username.

–Write Auth Password.

–Write Auth Protocol. Choose MD5 or SHA from the drop-down list.

–Timeout (in seconds). The default value is two seconds.

•If you choose SNMP v3 (AuthPriv Security Level), enter the following information:

–Read Username.

–Read Auth Password.

–Read Auth Protocol. Choose MD5 or SHA from the drop-down list.

–Read Privacy Password.

–Read Privacy Protocol. Choose a privacy protocol from the drop-down list. The available protocols are DES, 3DES, AES128, AES192, and AES256.

–Write Username.

–Write Auth Password.

–Write Auth Protocol. Choose MD5 or SHA from the drop-down list.

–Write Privacy Password.

–Write Privacy Protocol. Choose a privacy protocol from the drop-down list. The available protocols are DES, 3DES, AES128, AES192, and AES256.

–Timeout (in seconds). The default value is two seconds.

The Interface Test Results dialog box displays the results (see Figure 2-55). The Interface Details Results dialog box shows the interfaces tested and the test results for each option.

Note The read-write username and password for SNMP Version 3 and the read-write community string for SNMP Versions 1 and 2c are case sensitive.

Figure 2-55 Management Station Device Results Dialog Box

	SNMP Version 3 Tools Implementation Guide
	Using Network Management Tools
SNMP Version 3 Tools Implementation Guide Preface Overview of SNMP Version 3 Using Network Management Tools Index	Download this chapter Using Network Management Tools Download the complete book Whole-Book PDF (PDF - 2 MB) Table Of Contents Using Network Management Tools Net-SNMP Polling a MIB Sending a Trap SilverCreek SNMP Test Suite Running SilverCreek Setting Up an SNMP Version 3 Agent Loading and Deleting MIBs Running a Test Suite Enabling Debugging Testing MIBs Accessing the MIB Browser Receiving Notification Trap Messages Testing Performance Ipswitch WhatsUp Gold Starting Ipswitch WhatsUp Gold Adding a New SNMP Agent Adding SNMP Version 3 Credentials Using the WhatsUp Gold Web Interface Walking an SNMP MIB or an OID Configuring SNMP Traps HP OpenView Network Node Manager Installing NNM Starting the NNM Loading MIBs Adding a Network to the Current Map Configuring Specific SNMP Version 3 Parameters Setting Global SNMP Version 3 Credentials Setting Specific SNMP Version 3 Credentials Viewing Node Information Configuring the NNM MIB Browser Configuring SNMP Version 3 No-auth/No-priv Connections Configuring SNMP Version 3 MD5 Auth/No-priv Connections Configuring SNMP Version 3 SHA Auth/No-priv Connections Configuring SNMP Version 3 MD5 Auth/Priv Connections Configuring SNMP Version 3 SHA Auth/Priv Connections Browsing a MIB Running a MIB Browser Packet Trace Using the NNM SNMP Version 3 Trap Viewer Using the HP OpenView NNM Web Application CiscoWorks Starting CiscoWorks Getting Started with the CiscoWorks LMS Portal Using the Device Center Performing an SNMP Walk Using the Management Station to Device Tool Using Network Management Tools This chapter describes CiscoWorks and several third-party network management tools, and includes the following sections: •Net-SNMP •SilverCreek SNMP Test Suite •Ipswitch WhatsUp Gold •HP OpenView Network Node Manager •CiscoWorks Net-SNMP Net-SNMP Version 5.1.2 provides the following tools and libraries: •An extensible agent •An SNMP library •Tools to request or set information from SNMP agents •Tools to generate and handle SNMP traps You can download the Net-SNMP network management tool from the following URL: http://sourceforge.net/projects/net-snmp/ This section includes the following topics: •Polling a MIB •Sending a Trap Polling a MIB To poll a MIB, after you have finished configuring the adaptive security appliance, run the snmpwalk command from the NMS to the adaptive security appliance: Note No specific configuration is required for Net-SNMP on Linux when you run the snmpwalk command. [root@iLinux2 ~]# snmpwalk -v3 -u md5des -l authPriv -a MD5 -A mysecretpass -x des -X passphrase 10.31.8.254 1.3.6.1.2.1.1 The following is sample output from the snmpwalk command: SNMPv2-MIB::sysDescr.0 = STRING: Cisco Adaptive Security Appliance Version 8.2(0)227 SNMPv2-MIB::sysObjectID.0 = OID: SNMPv2-SMI::enterprises.9.1.915 SNMPv2-MIB::sysUpTime.0 = Timeticks: (486600) 1:21:06.00 SNMPv2-MIB::sysContact.0 = STRING: admin admin SNMPv2-MIB::sysName.0 = STRING: ciscoasa SNMPv2-MIB::sysLocation.0 = STRING: sjc - 190 W Tasman Drive, San Jose, CA 95134 USA SNMPv2-MIB::sysServices.0 = INTEGER: 4 Sending a Trap When the adaptive security appliance sends a trap, it is authoritative, which means that the user created within the snmptrapd command must be associated with the EngineID sending the trap. To establish this association, perform the following steps: Step 1 In the /var/net-snmp/snmptrapd.conf file, enter the following statement: createUser -e ENGINEID myuser authentication protocol "my authentication pass" AES "my privacy pass" For this statement, define the listed parameters, which include the following: –ENGINEID—The EngineID of the application that is going to be sending the trap –myuser—The USM username that is going to be sending the trap –authentication protocol—The authentication type (SHA or MD5, with SHA the preferred setting.) –"my authentication pass"—The authentication pass-phrase to use to generate the secret authentication key. Enclose the pass-phrase in quotation marks if it includes spaces. –privacy protocol—The encryption type to use (AES or DES, with AES the preferred setting) –"my privacy pass"—The encryption pass-phrase to use to generate the secret encryption key. Enclose the pass-phrase in quotation marks if it includes spaces. If you do not enclose the encryption pass-phrase in quotation marks, it is set to the same value as the authentication pass-phrase. Step 2 In the /tmp/snmptrapd.conf file, enter the following statement: createUser -e 80000009fe8949e0b20319e2d175b93fe7dc24af0dff7db915 md5des MD5 mysecretpass DES passphrase Step 3 Run the snmptrapd command, pointing to that file. Note This process runs in the foreground, uses only the specified configuration file, and logs messages to the stderr file. [root@iLinux2 net-snmp]# snmptrapd -f -C -c /tmp/snmptrapd.conf -Le Step 4 Run the snmptrap command from the adaptive security appliance to send a linkdown or linkup trap by entering the following commands: hostname (config)# int g3/1.391 hostname (config-if)# shut hostname (config-if)# no shut The following is sample output from the snmptrap command: 2009-03-18 23:52:06 NET-SNMP version 5.1.2 Started. 2009-03-18 23:52:20 10.31.8.254 [10.31.8.254]: SNMPv2-MIB::sysUpTime.0 = Timeticks: (938700) 2:36:27.00 SNMPv2-MIB::snmp TrapOID.0 = OID: IF-MIB::linkDown IF-MIB::ifIndex.1 = INTEGER: 1 IF-MIB:: ifAdminStatus.1 = INTEGER: down(2) IF-MIB::ifOperStatus.1 = INTEGER: down(2 ) 2009-03-18 23:52:22 10.31.8.254 [10.31.8.254]: SNMPv2-MIB::sysUpTime.0 = Timeticks: (939000) 2:36:30.00 SNMPv2-MIB::snmp TrapOID.0 = OID: IF-MIB::linkUp IF-MIB::ifIndex.1 = INTEGER: 1 IF-MIB::ifAdminS tatus.1 = INTEGER: up(1) IF-MIB::ifOperStatus.1 = INTEGER: up(1) SilverCreek SNMP Test Suite The SilverCreek SNMP test suite enables the detection of SNMP compliance problems and implementation errors in private and standard MIBs. You can download a free version of the software from the following URL: http://www.iwl.com/trial-downloads/silvercreek-trial.html?Itemid= This section includes the following topics: •Running SilverCreek •Setting Up an SNMP Version 3 Agent •Loading and Deleting MIBs •Running a Test Suite •Enabling Debugging •Testing MIBs •Receiving Notification Trap Messages •Testing Performance Running SilverCreek To run the SilverCreek software, choose Start > All Programs > SilverCreekMx Evaluation > Run Test Suite and Tools (Start Here). When the application starts, along with the SilverCreek main window (see Figure 2-1), a console window (see Figure 2-2) appears that shows the following information: •Logging messages •Debugging messages •Other message exchanges that occur between the NMS and the SNMP Version 3 agent •MIBs that are loaded Figure 2-1 SilverCreek Main Window Figure 2-2 SilverCreek Console Window Setting Up an SNMP Version 3 Agent To set up the SNMP Version 3 agent, perform the following steps: Step 1 Choose File > New Agent Setup. Figure 2-3 shows how the new agent must be configured. Figure 2-3 New Agent Setup Dialog Box Step 2 Enter the hostname or the IP address, port number, and SNMP Version 3 parameters. After the agent is connected, as shown in Figure 2-4, you can run SNMP test suites from the Test Suites tab in the left pane. Figure 2-4 SilverCreek Main Window Showing Connected SNMP Agent Loading and Deleting MIBs To load and delete MIBs, perform the following steps: Step 1 To manually load and delete MIBs, choose MIB > Load \| Delete MIBs. Step 2 To view the loaded MIBs, click View Loaded Modules (see Figure 2-5). You can maintain all the MIB files in the default mibs directory, which is defined by the environment variable, MIB_PATH. Figure 2-5 Load and Delete MIBs Dialog Box Running a Test Suite To run a test suite, perform the following steps: Step 1 In the main window, select a test category (for example, MIB-II tests) in the left pane (see Figure 2-6). The list of available tests for the selected test category appears in the right pane, and test details appear in the bottom pane. Step 2 Select a single test or multiple tests, and click Run All or Selected Tests. The test status appears in the Status column. The total number of tests run, passed, failed, and so on appears at the bottom of the window. Figure 2-6 SilverCreek Main Window Showing Selected Tests Enabling Debugging To enable debugging, choose Tools > Options (see Figure 2-7). Figure 2-7 Debug Tab of the Options Dialog Box Figure 2-8 shows the warning message that appears to indicate that the test runs more slowly with debugging turned on. Figure 2-8 Warning Notes Dialog Box Figure 2-9 shows the console dialog box that lists the debugging messages, which appear when you run a test. Figure 2-9 Console Dialog Box Listing Debugging Messages Testing MIBs To test MIBs, perform the following steps: Step 1 In the left pane of the main window, click the MIB Testing tab. All the MIB modules that are loaded and available for testing appear (see Figure 2-10). Step 2 Click the radio buttons for the MIBs that need to be tested. Step 3 In the right pane, select the tests that need to be run. The purpose and details of the tests appear in the bottom pane. Figure 2-10 SilverCreek Main Window Showing MIB Testing Details Accessing the MIB Browser To access the MIB Browser, perform the following steps: Step 1 In the main window, choose MIB > MIB Browser. The MIB Browser (see Figure 2-11) provides more detailed access to the agent MIBs, including the ability to poll an individual MIB, walk a selected tree, and so on. Figure 2-11 MIB Browser: Local MIB Tree Mode Dialog Box Step 2 Scroll down to the OID, .iso.org.dod.internet.mgmt.mib-2.system and right-click system; then choose the option to walk this tree. The MIB browsing results appear in the right pane, as shown in Figure 2-12. Figure 2-12 MIB Browser: Local MIB Tree Mode Dialog Box Showing MIB Results Note See the Release Notes for the Cisco ASA 5500 Series Version 8.2(1) for a list of the open caveats that apply to SNMP MIBs. Receiving Notification Trap Messages To receive notification trap messages, perform the following steps: Step 1 In the main window, choose Notifications >Notifications Monitor. Step 2 To configure the agent-specific information, click V3 Inform. The Received Notifications dialog box (see Figure 2-13) shows the trap messages that are received, along with the notification details displayed at the bottom. Note SNMP Version 3 does not send authentication failure traps; an SNMP Version 3 agent sends a PDU report instead. Figure 2-13 Notification Monitor Dialog Box Testing Performance To test performance, perform the following steps: Step 1 Choose Tools > Performance Monitoring Tool, select an operation that you want to perform (for example, Walk (get-bulks), and provide an Object name. You can run various commands multiple times. Step 2 Click Send Synchronously. The selected SNMP operations start. Results appear in a separate window. The following example (see Figure 2-14) uses ifType, asks how many times you want to repeat the operation, and uses the value, 10. Figure 2-14 Performance Measuring Dialog Box Ipswitch WhatsUp Gold Ipswitch WhatsUp Gold is network management software that enables network discovery, and SNMP monitoring and polling. You can download a free version of the software at the following URL: http://www.whatsupgold.com/products/download/ This section includes the following topics: •Starting Ipswitch WhatsUp Gold •Adding a New SNMP Agent •Adding SNMP Version 3 Credentials •Using the WhatsUp Gold Web Interface •Walking an SNMP MIB or an OID •Configuring SNMP Traps Starting Ipswitch WhatsUp Gold To start the Ipswitch WhatsUp Gold application, choose Start > Programs > Ipswitch WhatsUp Gold 12.3 > WhatsUp Gold. The main network explorer window appears (see Figure 2-15). Figure 2-15 Network Explorer Main Window Adding a New SNMP Agent To add a new SNMP agent, perform the following steps: Step 1 Choose File > New > New Device. The Add New Device dialog box appears (see Figure 2-16). Figure 2-16 Add New Device Dialog Box Step 2 Enter the IP address or hostname. Step 3 After the device has been added, enter device properties in the General pane, as shown in Figure 2-17. Figure 2-17 Device Properties Dialog Box Adding SNMP Version 3 Credentials To add SNMP Version 3 credentials, perform the following steps: Step 1 Click the Credentials link (see Figure 2-18), and enter the SNMP device object ID information. Figure 2-18 Device Properties Dialog Box Showing SNMP Credentials Step 2 Click the button next to the SNMP v1/v2/v3 credentials drop-down list and enter the username, authentication and encryption algorithms, and corresponding passwords, then click OK (see Figure 2-19 and Figure 2-20). Figure 2-19 Edit SNMP v3 Credential Type Dialog Box Figure 2-20 Credentials Library Dialog Box Figure 2-21 shows the added SNMP Version 3 node on the network. Figure 2-21 Network Explorer Window with Added SNMP Version 3 Node Using the WhatsUp Gold Web Interface To start the WhatsUp Gold application, perform the following steps: Step 1 Choose Start > Programs >IpSwitch WhatsUp Gold v12.3 > WhatsUp Web Interface. You can perform SNMP Version 3 walks and polls from this location. Step 2 Figure 2-22 shows the initial login window. Enter the default username and password, which is "admin." Figure 2-22 WhatsUp Gold Login Window for Web Interface Figure 2-23 shows the Home Workspace pane that appears after the user logs in. Figure 2-23 WhatsUp Gold Home Workspace Pane Walking an SNMP MIB or an OID To walk a MIB or an OID, perform the following steps: Step 1 Choose GO > Tools > SNMP MIB Walker (see Figure 2-24). Figure 2-24 SNMP MIB Walker Menu Option Step 2 In the Network Tool: SNMP MIB Walker dialog box (see Figure 2-25), enter the following information: •The agent IP address or hostname •The OID or MIB that needs to be walked •The SNMP Version 3 credentials Figure 2-25 Network Tool: SNMP MIB Walker Dialog Box Step 3 Click Walk. Figure 2-26 shows the walk results in a tree format. Figure 2-26 Network Tool: SNMP MIB Walker Results - Tree View Figure 2-27 shows the results in sequence. Figure 2-27 Network Tool: SNMP MIB Walker Results Window Configuring SNMP Traps To configure SNMP traps, perform the following steps: Step 1 Choose Program Options > Passive Monitor Listeners > SNMP Trap > Configure (see Figure 2-28). Figure 2-28 Program Options - Passive Monitor Listeners Dialog Box The SNMP Listener Configuration dialog box appears (see Figure 2-29). From here you can configure the listener port and forward traps to a host. Figure 2-29 SNMP Listener Configuration Dialog Box Step 2 Click the Reports tab and select SNMP Trap Log (see Figure 2-30). Figure 2-30 SNMP Reports Pane Figure 2-31 shows the SNMP trap log. Figure 2-31 SNMP Trap Log Pane HP OpenView Network Node Manager HP OpenView Network Node Manager (NNM) 7.53 is a management tool that is used to automatically create network topologies, manage devices, and monitor device health. The adaptive security appliance is integrated into the HP NNM device topology, and communicates device statistics and SNMP traps using SNMP Version 3. Note See the Cisco ASA 5500 Series Adaptive Security Appliance Version 8.2(1) Release Notes for a list of the open caveats that apply to NNM 8.x. This section includes the following topics: •Installing NNM •Starting the NNM •Loading MIBs •Adding a Network to the Current Map •Configuring Specific SNMP Version 3 Parameters •Setting Global SNMP Version 3 Credentials •Viewing Node Information •Configuring the NNM MIB Browser •Using the HP OpenView NNM Web Application Installing NNM NNM 7.53 was tested on the Windows 2003 Server platform. A trial version with the required installation instructions is available at the following URL: https://h10078.www1.hp.com/cda/hpms/display/main/hpms_content.jsp?zn=bto&cp=1-11-15-119^1155_4000_100__ Starting the NNM To start the NNM, perform the following steps: Step 1 From the command prompt of the NNM server, choose one of the following: •Start > Programs > HP OpenView > Network Node Manager Admin > Network Node Manager. •Double-click the ovw.exe file, located in C:\Program Files\HP OpenView\bin. The Root window appears, with the Internet map icon displayed (see Figure 2-32). Figure 2-32 NNM Console Root Window Step 2 Double-click the Internet map icon. The Internet window appears, with the network nodes displayed (see Figure 2-33). Figure 2-33 NNM Console Internet Window Showing Network Nodes Loading MIBs To load MIBs, perform the following steps: Step 1 In the NNM main window, choose Options > Load/Unload MIBs: SNMP. A list of currently loaded MIBs appears. Step 2 Click Load to select additional MIBs from the server file system (see Figure 2-34). Figure 2-34 Load/Unload MIBs: SNMP Dialog Box Adding a Network to the Current Map To add a network to the current map, perform the following steps: Step 1 Find the IP address and hostname of at least one high-traffic device within the network that you want to add. Step 2 In the Internet-level submap, choose Edit > Add Objects. The Add Object Palette dialog box appears (see Figure 2-35). Figure 2-35 Add Object Palette Dialog Box Step 3 Click the Connector Symbol Class icon, and drag the Gateway Symbol Subclass icon onto the Internet-level submap. Choose this gateway connector, regardless of the type of device you are using to start the discovery. The Add Object dialog box appears (see Figure 2-36). Figure 2-36 Add Object Dialog Box Step 4 Double-click IP Map. The Add Object - Set Attributes dialog box appears (see Figure 2-37). Figure 2-37 Add Object - Set Attributes Dialog Box Step 5 Type the IP address and hostname of an SNMP-enabled device within the network that you want to add to your management domain, and click Verify. Step 6 After NNM checks the configuration, NNM corrects the symbol choice and (if necessary) its placement for you. The device is now configured to be managed by NNM and should be visible on the Internet map. Configuring Specific SNMP Version 3 Parameters To configure credentials for specific SNMP nodes, perform the following steps: Step 1 Double-click the xnmsnmpconf.exe file, located in C:\Program Files\HP OpenView\bin. Step 2 In the NNM main window, choose Options > SNMP Configuration. A configuration pane appears. Note When you set SNMP Version 3 credentials, you must use the overloaded SNMP string. For more information, see Step 2 in the "Configuring the NNM MIB Browser" section. Setting Global SNMP Version 3 Credentials To set global SNMP Version 3 credentials, in the Global Settings section, enter an SNMPv3 user and password to be used for default communication (see Figure 2-38). For the format of the community string, see Step 2 in the "Configuring the NNM MIB Browser" section. Figure 2-38 SNMP Configuration Setting Specific SNMP Version 3 Credentials To set specific SNMP Version 3 credentials, enter SNMP Version 3 users and passwords for individual SNMP nodes by clicking the Specific Nodes tab (see Figure 2-39). Figure 2-39 SNMP Configuration Dialog Box Viewing Node Information To view node information, perform the following steps: Step 1 From the Internet map, drill down to a specific node for a view of all available interfaces. Step 2 To view additional interface information, right-click an interface, then choose Interface Properties or Interface Status. The Network Interface Properties dialog box appears (see Figure 2-40). Figure 2-40 Network Interface Properties Dialog Box Configuring the NNM MIB Browser To configure the NNM MIB Browser, perform the following steps: Step 1 From the NNM server command prompt, start the MIB Browser, located in C:\Program Files\HP OpenView\bin\xnmbrowser.exe. Step 2 Enter the IP address of the SNMP host and the community string. For SNMP Version 3 connections, the community string uses the syntax for the overloaded community string. The following is an example of the syntax used for the overloaded community string: SNMPv3 noAuthNoPriv 3N[/KEEP]/[ [contextEngineID] [-contextName]/ ]username SNMPv3 authNoPriv 3A[;[MD5ˆ\|SHAˆ]authKey[/KEEP]]/[ [contextEngineID] [-contextName]/ ]username SNMPv3 authPriv 3P[;[MD5ˆ\|SHAˆ]authKey[;[DESˆ\|AESˆ\|3DESˆ]privKey][/KEEP]]/[ [contextEngineID] [-contextName]/ ]username Note The default authentication is MD5, and the default encryption is DES. This section includes the following topics: •Configuring SNMP Version 3 No-auth/No-priv Connections •Configuring SNMP Version 3 MD5 Auth/No-priv Connections •Configuring SNMP Version 3 SHA Auth/No-priv Connections •Configuring SNMP Version 3 MD5 Auth/Priv Connections •Configuring SNMP Version 3 SHA Auth/Priv Connections •Browsing a MIB •Running a MIB Browser Packet Trace •Using the NNM SNMP Version 3 Trap Viewer Configuring SNMP Version 3 No-auth/No-priv Connections To configure SNMP Version 3 No-auth/No-priv connections, perform the following steps: Step 1 To configure the UUT group, enter the snmp-server group asanoauth v3 noauth command. Step 2 To configure the UUT user, enter the snmp-server user titannoauth asanoauth v3 command. Step 3 For the community name, enter 3N/titannoauth. Configuring SNMP Version 3 MD5 Auth/No-priv Connections To configure SNMP Version 3 MD5 Auth/No-priv connections, perform the following steps: Step 1 To configure the UUT group, enter the snmp-server group asaauth v3 auth command. Step 2 To configure the UUT user, enter the snmp-server user titanauth asaauth v3 auth md5 authpass command. Step 3 For the community name, enter 3A:authpass/titanauth. Configuring SNMP Version 3 SHA Auth/No-priv Connections To configure SNMP Version 3 SHA Auth/No-priv connections, perform the following steps: Step 1 To configure the UUT group, enter the snmp-server group asaauth v3 auth command. Step 2 To configure the UUT user, enter the snmp-server user titanshaauth asaauth v3 auth sha authpass command. Step 3 For the community name, enter 3A:SHA^authpass/titanshaauth. Configuring SNMP Version 3 MD5 Auth/Priv Connections To configure SNMP Version 3 MD5 Auth/Priv connections, perform the following steps: Step 1 To configure the UUT group, enter the snmp-server group asapriv v3 priv command. Step 2 To configure the UUT user, enter the snmp-server user titandes asapriv v3 auth md5 authpass priv des privpass command. Step 3 For the community name, enter one of the following: •3P:authpass:privpass/titandes •3P:MD5^authpass:DES^privpass/titandes Configuring SNMP Version 3 SHA Auth/Priv Connections To configure SNMP Version 3 SHA Auth/Priv connections, perform the following steps: Step 1 To configure the UUT group, enter the snmp-server group asapriv v3 priv command. Step 2 To configure the UUT user, enter the snmp-server user titanshades asapriv v3 auth sha authpass priv des privpass command. Step 3 For the community name, enter 3P:SHA^authpass:DES^privpass/titanshades. Browsing a MIB To browse a MIB, perform the following steps: Step 1 Drill down to the OID, .iso.org.dod.internet.mgmt.mib-2.system, and select the system object. Step 2 Click Start Query to fill in the MIB Values field with the DUT description (see Figure 2-41). Figure 2-41 Browse MIB Dialog Box Running a MIB Browser Packet Trace To run a MIB Browser packet trace, in the MIB Browser dialog box, choose View > SNMP Packet Trace. The Messages dialog box appears (see Figure 2-42), which shows the packet contents of the SNMP communication between the MIB Browser and the SNMP agent. This information is helpful for debugging. Figure 2-42 Packet Trace in the Messages Dialog Box Using the NNM SNMP Version 3 Trap Viewer When using the NNM SNMP Version 3 Trap Viewer, perform the following steps: Step 1 Make sure that the SNMP Version 3 credentials of a user on the SNMP agent are cached in the NNM. Step 2 When using the MIB Browser to query an SNMP agent, enter the following community string: 3P:authpass:privpass/KEEP/titandes Note By using the KEEP parameter in the overloaded community string, you save the user credentials in the NNM configuration file, which is required because secure SNMP Version 3 traps and inform requests are sent from the SNMP agent to the NNM, and authentication must occur. The user information is included in the configuration file, located in C:\etc\srconf\mgr\mgr.cnf. You can modify this file directly. For instructions, see the NNM SPI SNMP Version 7.53 documentation. Alternatively, you can use the snmpget command, as shown in the following example: C:\Program Files\HP OpenView\bin>snmpget -c "3P;MD5^authpass;DES^privpass/KEEP/titandes" 10.0.0.33 sysDescr.0 Step 3 To configure the SNMP agent to send traps, enter the following command on the adaptive security appliance: hostname (config)# snmp-server host inside 10.0.0.10 traps version 3 titandes Note The command syntax may differ slightly between adaptive security appliance platforms. The user configured in this example is the same as the user defined in the community string in the "Configuring the NNM MIB Browser" section. The NNM traprcv utility is a command-line tool that receives SNMP trap messages and responds to SNMP inform requests from remote SNMP entities. It binds to the SNMP trap port (udp/162) to listen for notifications, and as a result, must be run as root. It prints standard output messages about the notifications that it has received. The traprcv utility can receive SNMP Version 1 traps, SNMP Version 2c traps, SNMP Version 2c inform requests, SNMP Version 3 traps, and SNMP Version 3 inform requests. For more information, see the NNM SPI SNMP Version 7.53 documentation. Step 4 Run the traprcv utility and wait for traps on the SNMP agent. The utility is available at the following location (see Figure 2-43): C:\Program Files\HP OpenView\snmpv3\utils\traprcv.exe. Figure 2-43 SNMP Trap Receiver Using the HP OpenView NNM Web Application To start the NNM web application, perform the following steps: Step 1 In a web browser, go to the following URL: http://<NNM-Server-IP-Address>:7510/topology/home Step 2 To view SNMP nodes, from the drop-down menu, choose Internet View (see Figure 2-44). The Internet View window appears (see Figure 2-45). Figure 2-44 NNM Home Base Window Step 3 To view node properties, double-click the selected node to open a new browser window with the node information. Figure 2-45 Internet View Window CiscoWorks CiscoWorks LAN Management Solution (LMS) is a suite of powerful management tools that simplify the configuration, administration, monitoring, and troubleshooting of Cisco networks. For more information, see the following URL: http://www.cisco.com/en/US/products/sw/cscowork/ps2425/index.html This section includes the following topics: •Starting CiscoWorks •Getting Started with the CiscoWorks LMS Portal •Using the Device Center •Performing an SNMP Walk •Using the Management Station to Device Tool Starting CiscoWorks To start CiscoWorks on a Windows 2003 server, perform the following steps: Choose Start >All Programs > CiscoWorks > CiscoWorks. Figure 2-46 shows the login page. Figure 2-46 Login Page Getting Started with the CiscoWorks LMS Portal The CiscoWorks LMS Portal is the first page (see Figure 2-47) that appears when you start the LMS application. This page serves as the interface, starting point, and top-level navigation for the frequently used functions in the application. Figure 2-47 CiscoWorks LMS Portal Page Using the Device Center To manage devices, perform the following steps: Step 1 Choose Device Diagnostic Tools > Device Center (see Figure 2-48). The Device Center Home page appears with the Device Selector in the left pane and Device Center summary information in the right pane. Step 2 Enter the IP address or device name or choose a device from the list in the Device Selector pane, and click Go. Figure 2-48 Device Center Home Window Performing an SNMP Walk To perform an SNMP walk, perform the following steps: Step 1 In the Functions Available pane, click the SNMP Walk link. The SNMP Walk dialog box appears (see Figure 2-49). Figure 2-49 SNMP Walk Dialog Box Step 2 Choose the SNMP version to use from the following options: •For SNMP Version 3 (NoAuthNoPriv and AuthNoPriv Security Levels) a. Enter the SNMPv3 Username. b. Enter the SNMPv3 Auth Password. c. Choose the SNMP v3 Auth Protocol from the drop-down list (either MD5 or SHA). d. Enter the SNMP Context Name. Note Because the adaptive security appliance does not support contexts, you must leave the SNMP Context Name blank. •For SNMP Version 3 (AuthPriv Security Level) a. Enter the SNMPv3 Username. b. Enter the SNMPv3 Auth Password. c. Specify the SNMP v3 Auth Protocol. Choose either MD5 or SHA. d. Enter the Privacy Password. e. Choose a privacy protocol from the drop-down list. The available values are DES, 3DES, AES128, AES192, and AES256. f. Enter the SNMP Context Name. Note Because the adaptive security appliance does not support contexts, you must leave the SNMP Context Name blank. g. (Optional) Enter the starting OID. If you leave this field blank, the tool starts from 1. h. Enter the SNMP Timeout. The default value is 10 seconds. i. (Optional) Check the Output OIDs Numerically check box to print the output OIDs numerically. j. By default, the corresponding OID name is printed in the output window. k. (Optional) Check the Output Indexes Numerically check box to show the output index numerically. l. (Optional) Check the Debug check box to enable the debugging option. All the fields are case-sensitive. m. Click OK to obtain the results, which are based on the parameters that you entered. n. When the walk is complete, save it as a text file (see Figure 2-50). Note A full walk may take a long time to finish. Figure 2-50 SNMP Walk Results Example The read-write username and password for SNMP Version 3 and the read-write community string for SNMP Versions 1 and 2c are case sensitive. The SNMP Walk dialog box displays the credentials (SNMP Versions 1, 2c, and 3) for the device from the Device and Credential Repository (DCR), if they are available. Otherwise, the default values for the respective SNMP versions appear. If you use the SNMP Walk feature with Network Operator/Help Desk access privileges, device credential fetching fails and the fields of the read/write community strings for SNMP Versions 1, 2c, and 3 credentials are set to default values. Figure 2-49 shows the list of privacy protocols supported. You must manually enter SNMP Versions 1, 2c, and 3 credentials (see Figure 2-52). Figure 2-51 SNMP Walk Dialog Box Figure 2-52 SNMP Version 3 Parameters Figure 2-53 shows the SNMP walk results for the MD5 authentication and AES256 encryption algorithm settings. Figure 2-53 SNMP Walk Results Dialog Box Using the Management Station to Device Tool To troubleshoot problems with unmanaged or unresponsive devices, you can check the device connectivity by protocol. The Management Station to Device tool helps you diagnose Layer 4 (application) connectivity problems. Layer 4 tests include the following key services essentials that are needed to manage network devices: •Debugging and measurement tools (UDP and TCP) •Web server (HTTP) •File transfer (TFTP) •Terminal (Telnet) •Read-write access (SNMP) The management station to device check occurs only for protocol connectivity. Credentials for the corresponding protocols are not tested or verified. If you enter a hostname instead of an IP address, the tool performs a name lookup to discover the address. This task fails if the tool cannot find an address. You can use this tool to send an SNMP GET request to the destination device for an SNMP read test (SNMPR). The tool also sends an SNMP SET request to the device for an SNMP write test (SNMPW). This protocol is supported for SNMP Versions 1, 2c, and 3. If you start the Management Station to Device tool with Network Operator/Help Desk access privileges, device credential fetching fails and the fields of the read-write community strings for SNMP Versions 1, 2c, and 3 credentials are set to default values. You must manually enter SNMP Versions 1, 2c, and 3 credentials. To start the Management Station to Device tool, perform the following steps: Step 1 Choose Device Diagnostic Tools > Device Center. Step 2 Enter the name or IP address, fully qualified domain name, or hostname of the device that you want to check in the Device Selector field or select the device from the list, and click Go. The Summary and Functions Available panes appear. Step 3 Click Management Station to Device in the Functions Available pane. The Management Station to Device dialog box appears (see Figure 2-54). Figure 2-54 Management Station to Device Dialog Box Step 4 Choose the connectivity applications that you want to include from the following options. All fields are case sensitive. •If you choose SNMP v3 (NoAuthNoPriv Security Level), enter the following information: –Read Username. –Write Username. –Timeout (in seconds). The default value is two seconds. •If you choose SNMP v3 (AuthNoPriv Security Level), enter the following information: –Read Username. –Read Auth Password. –Read Auth Protocol. Choose either MD5 or SHA from the drop-down list. –Write Username. –Write Auth Password. –Write Auth Protocol. Choose MD5 or SHA from the drop-down list. –Timeout (in seconds). The default value is two seconds. •If you choose SNMP v3 (AuthPriv Security Level), enter the following information: –Read Username. –Read Auth Password. –Read Auth Protocol. Choose MD5 or SHA from the drop-down list. –Read Privacy Password. –Read Privacy Protocol. Choose a privacy protocol from the drop-down list. The available protocols are DES, 3DES, AES128, AES192, and AES256. –Write Username. –Write Auth Password. –Write Auth Protocol. Choose MD5 or SHA from the drop-down list. –Write Privacy Password. –Write Privacy Protocol. Choose a privacy protocol from the drop-down list. The available protocols are DES, 3DES, AES128, AES192, and AES256. –Timeout (in seconds). The default value is two seconds. The Interface Test Results dialog box displays the results (see Figure 2-55). The Interface Details Results dialog box shows the interfaces tested and the test results for each option. Note The read-write username and password for SNMP Version 3 and the read-write community string for SNMP Versions 1 and 2c are case sensitive. Figure 2-55 Management Station Device Results Dialog Box
	© 1992-2009 Cisco Systems, Inc. All rights reserved. Terms & Conditions \| Privacy Statement \| Cookie Policy \| Trademarks of Cisco Systems, Inc.
