Enforcing Microsoft Active Directory Policies Using LDAP Attribute Maps

This document describes using the Adaptive Security Device Manager (ASDM) to configure the ASA 5500 Series Adaptive Security Appliance to enforce Microsoft Active Directory (AD) access policies using LDAP attribute maps.

The examples in this document pertain to Microsoft AD. However, LDAP attribute maps can be used to support other directory servers, such as Novell eDirectory, OpenLDAP, and Sun Directory Server.

This document includes the following sections:

•How LDAP Attribute Maps Work

•LDAP Attribute Map Configuration Examples

•Supported Cisco Attributes for LDAP Authorization

How LDAP Attribute Maps Work

LDAP is a powerful and flexible protocol for communication with AAA servers. LDAP attribute maps provide a method to cross-reference the attributes retrieved from a directory server to Cisco attributes supported by the security appliance.

When a user authenticates to the security appliance, the security appliance, in turn, authenticates to the server and uses the LDAP protocol to retrieve the record for that user. The record consists of LDAP attributes associated with fields displayed on the user interface of the server. Each attribute retrieved includes a value that was entered by the admin who updates the user records.

Figure 1 shows the Properties window displayed by Microsoft AD for a single user. We have entered Chicago in the Office field, which uses the attribute physicalDeliveryOfficeName. Therefore, when the security appliance retrieves the LDAP record from the server, it includes the attribute physicalDeliveryOfficeName, and its value Chicago.

Unlike support for RADIUS, the security appliance has no hard-coded information about the LDAP attributes it retrieves. You must create an attribute map that maps each LDAP attribute to a Cisco attribute.

Figure 1 LDAP User Properties Window

LDAP Attribute Map Configuration Examples

The following sections provide configuration examples for creating attribute maps:

•User-Based Attributes Policy Enforcement

•Placing Users in a Specific Group-Policy

•Enforcing Static IP Address Assignment for AnyConnect Tunnels

•Enforcing Dial-in Allow or Deny Access

•Enforcing Logon Hours and Time-of-Day Rules

User-Based Attributes Policy Enforcement

In this example, we configure the security appliance to enforce a simple banner for a user configured on an AD LDAP server. On the server, we use the Office field in the General tab to enter the banner text. This field uses the attribute named physicalDeliveryOfficeName. On the security appliance, we create an attribute map that maps physicalDeliveryOfficeName to the Cisco attribute Banner1. During authentication, the security appliance retrieves the value of physicalDeliveryOfficeName from the server, maps the value to the Cisco attribute Banner1, and displays the banner to the user.

This example applies to any VPN connection type, including the IPSec client, AnyConnect SSL client, or clientless SSL. For our example, User1 is connecting through a clientless SSL connection.

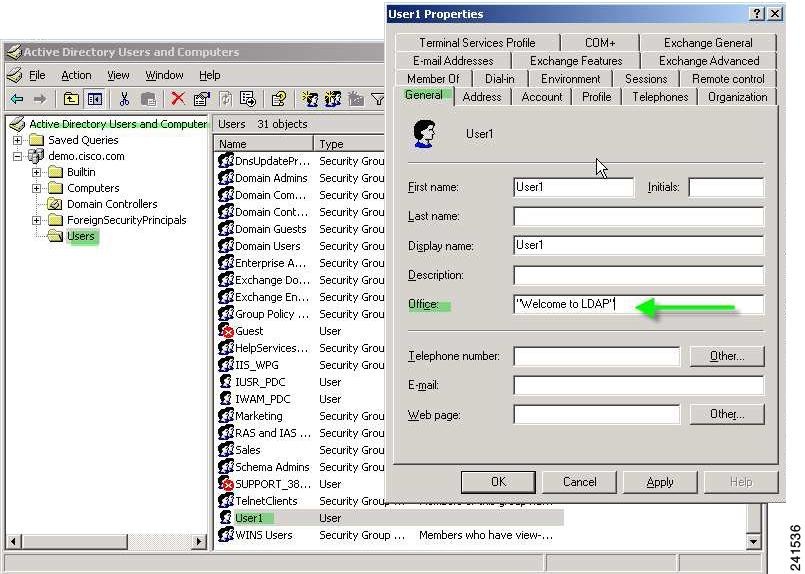

Step 1 Configure the attributes for a user on the AD/LDAP server. Right-click a user. The Properties window displays (Figure 2). Click the General tab and enter some banner text in the Office field. The Office field uses AD/LDAP attribute physicalDeliveryOfficeName.

Figure 2 LDAP User configuration

Step 2 Create an LDAP attribute map on the security appliance:

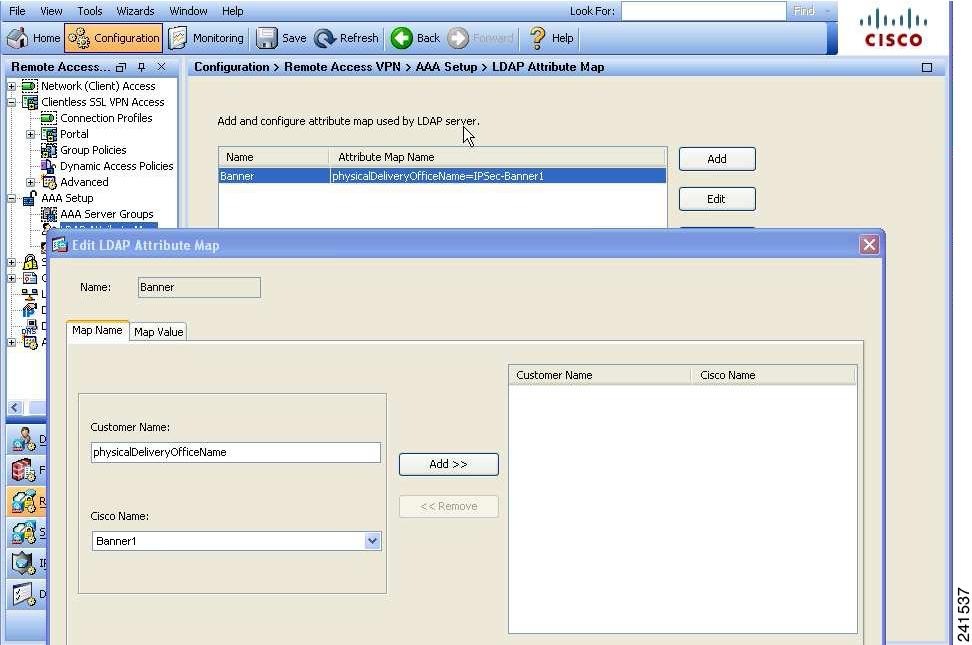

In Figure 3, we create the map Banner, and map the AD/LDAP attribute physicalDeliveryOfficeName to the Cisco attribute Banner1:

Figure 3 Create an LDAP Attribute Map

Step 3 Associate the LDAP attribute map to the AAA server.

In Figure 4, we select the server group MS_LDAP, and the host 3.3.3.4 in that group, and click Edit. Then we enter Banner as the LDAP Attribute Map:

Figure 4 Associate the LDAP Attribute Map to the AAA Server

Figure 5 shows the banner enforced by our attribute map:

Figure 5 Banner Displayed

Placing Users in a Specific Group-Policy

In this example, we authenticate User1 on the AD LDAP server to a specific group policy on the security appliance. On the server, we use the Department field of the Organization tab to enter the name of the group policy. Then we create an attribute map and map Department to the Cisco attribute IETF-Radius-Class. During authentication, the security appliance retrieves the value of Department from the server, maps the value to the IETF-Radius-Class, and places User1 in the group policy.

This case applies to any VPN connection type, including the IPSec client, AnyConnect SSL client, or clientless SSL. For this example, user1 is connecting through a clientless SSL connection.

Step 1 Configure the attributes for the user on the AD LDAP Server.

Right-click the user. The Properties window displays (Figure 6). Click the Organization tab and enter Group-Policy-1 in the Department field.

Figure 6 AD LDAP Department attribute

Step 2 Create an attribute map for the LDAP configuration shown in Step 1.

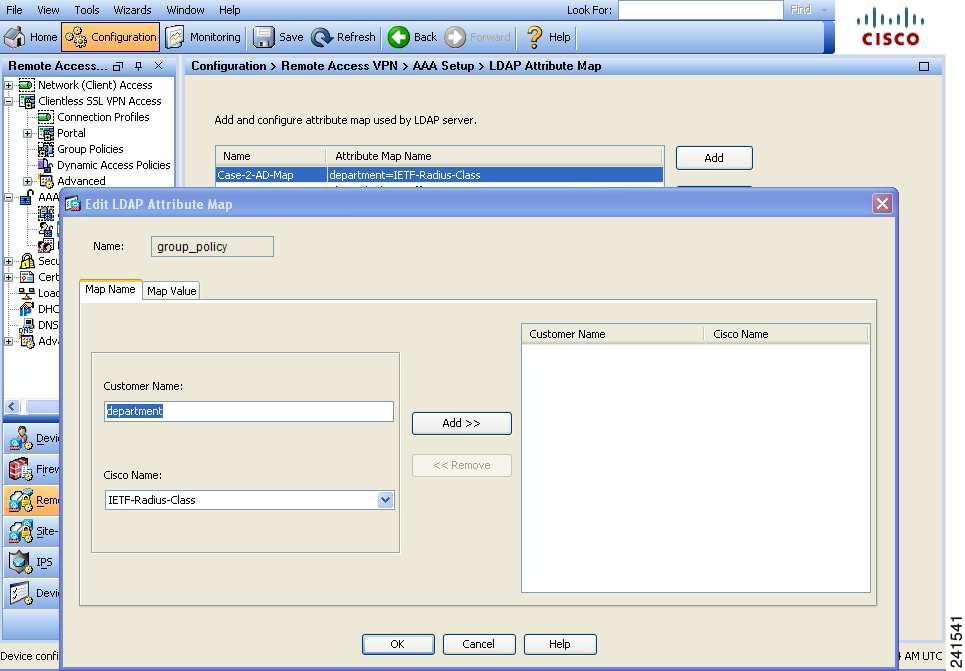

In Figure 7 we create the map named group_policy and we map the AD attribute Department to the Cisco attribute IETF-Radius-Class:

Figure 7 Create an Attribute Map

Step 3 Associate the LDAP attribute map to the AAA server.

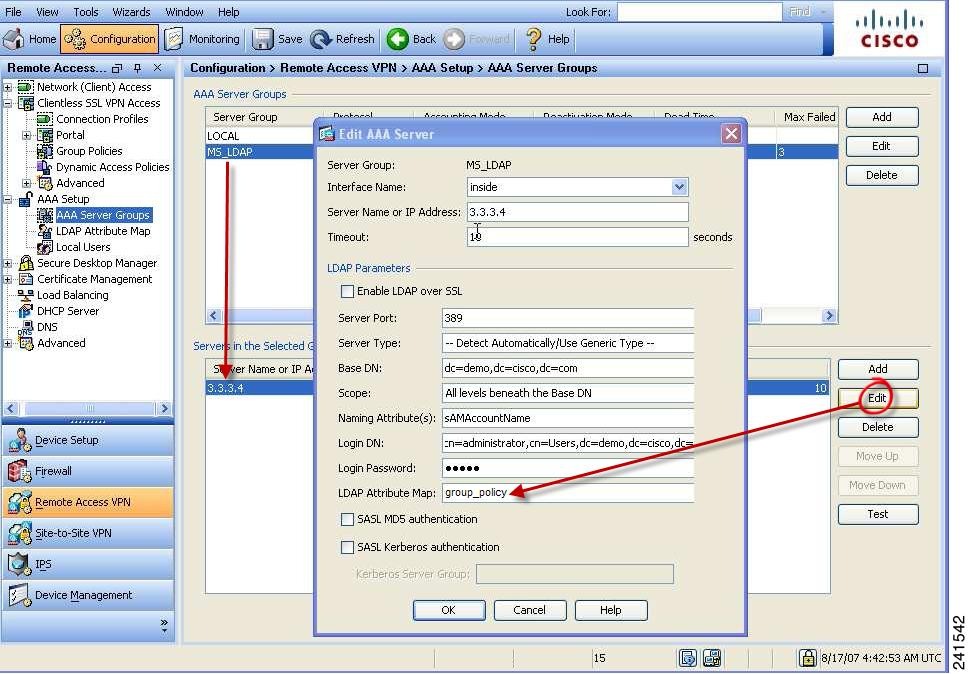

In Figure 8 we select host 3.3.3.4, in the AAA server group MS_LDAP, and enter the name of our attribute map, group_policy:

Figure 8 Associate the LDAP Attribute Map to the AAA Server

Step 4 Add the new group-policy on the security appliance and configure the required policy attributes that will be assigned to the user.

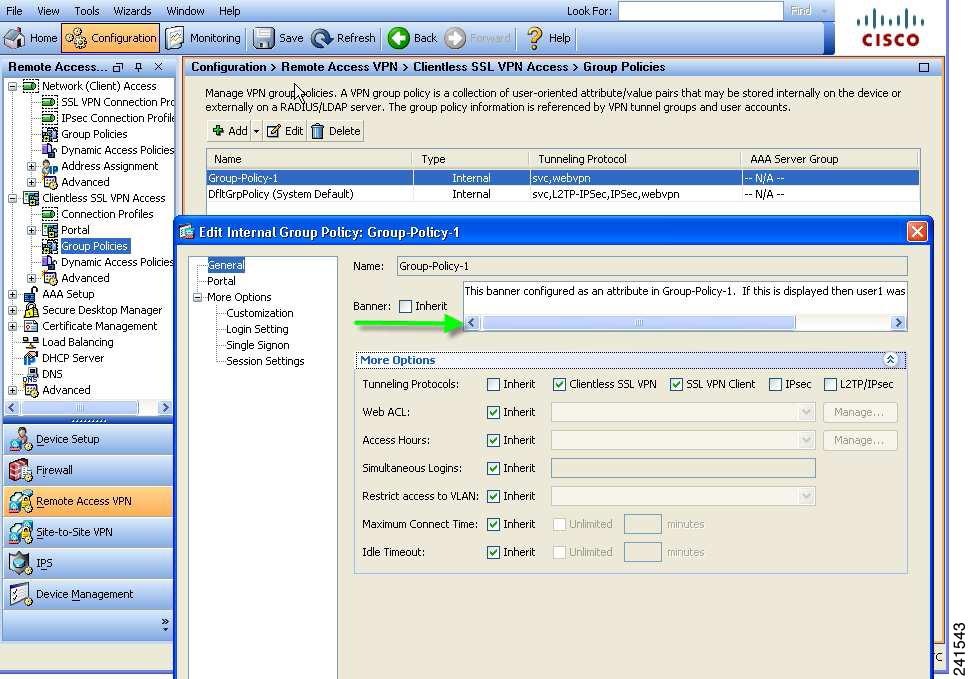

In Figure 9 we create the group policy group-policy-1, the name entered in the Department field on the server:

Figure 9 Create a Group Policy

You can use CLI to monitor the communication between the security appliance and the server by enabling the debug ldap 255 command from privileged EXEC mode. Below is sample output of this command. The output has been edited to provide the key messages:

[29] Authentication successful for user1 to 3.3.3.4

[29] Retrieving user attributes from server 3.3.3.4

[29] Retrieved Attributes:

[29] department: value = Group-Policy-1

[29] mapped to IETF-Radius-Class: value = Group-Policy-1

Enforcing Static IP Address Assignment for AnyConnect Tunnels

In this example, we configure the AnyConnect client user Web1 to receive a static IP Address. We enter the address in the Assign Static IP Address field of the Dialin tab on the AD LDAP server. This field uses the msRADIUSFramedIPAddress attribute. We create an attribute map that maps it to the Cisco attribute IETF-Radius-Framed-IP-Address.

During authentication, the security appliance retrieves the value of msRADIUSFramedIPAddress from the server, maps the value to the Cisco attribute IETF-Radius-Framed-IP-Address, and provides the static address to User1.

This example applies to full-tunnel clients, including the IPSec client and the SSL VPN clients (AnyConnect client 2.x and the legacy SSL VPN client).

Step 1 Configure the user attributes on the AD LDAP server.

Right-click on the user name. The Properties window displays (Figure 10). Click the Dialin tab, check Assign Static IP Address, and enter an IP address. For our example, we use 3.3.3.233.

Figure 10 Assign Static IP Address

Step 2 Create an attribute map for the LDAP configuration shown in Step 1.

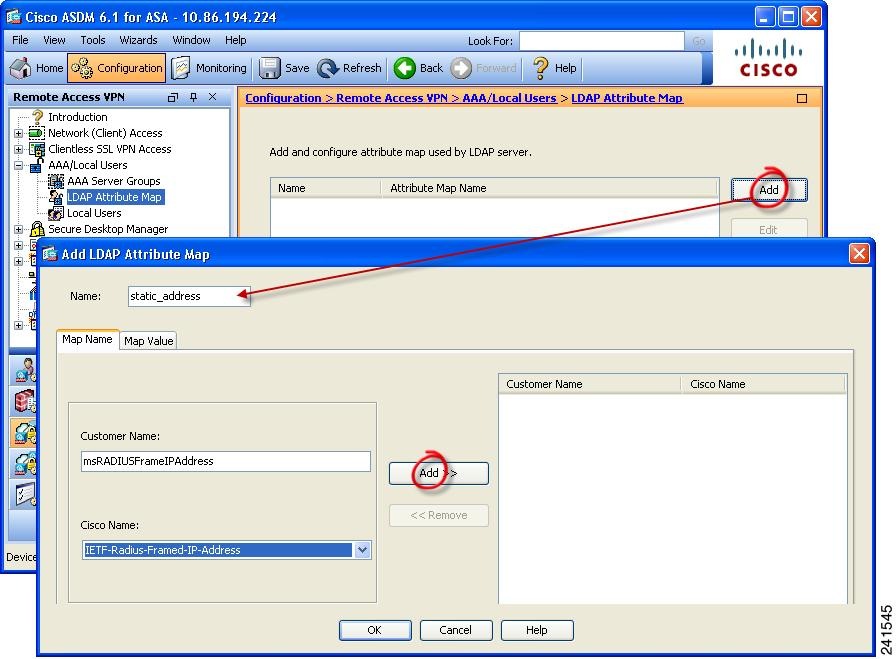

In this case we map the AD attribute msRADIUSFrameIPAddress used by the Static Address field to the Cisco attribute IETF-Radius-Framed-IP-Address.

Figure 11 Create an Attribute Map

Step 3 Associate the LDAP attribute map to the AAA server.

In Figure 12 we select the host 3.3.3.4, in the AAA server group MS_LDAP, and associate the attribute map static_address:

Figure 12 Associate the LDAP Attribute Map to the AAA Server

If you establish a connection to the security appliance with the AnyConnect client, you can observe the following:

•The banner is received in the same sequence as a clientless connection (Figure 13).

•The user receives the IP address configured on the server and mapped to the security appliance (Figure 14).

Figure 13 Verify the Banner for the AnyConnect Session

Figure 14 AnyConnect Session Established

You can use CLI to view the session details and verify the address assigned using the show vpn-sessiondb svc command:
hostname# show vpn-sessiondb svc
Session Type: SVC
Username     : web1                   Index        : 31
Assigned IP  : 3.3.3.233              Public IP    : 10.86.181.70
Protocol     : Clientless SSL-Tunnel DTLS-Tunnel
Encryption   : RC4 AES128             Hashing      : SHA1
Bytes Tx     : 304140                 Bytes Rx     : 470506
Group Policy : VPN_User_Group         Tunnel Group : UseCase3_TunnelGroup
Login Time   : 11:13:05 UTC Tue Aug 28 2007
Duration     : 0h:01m:48s
NAC Result   : Unknown
VLAN Mapping : N/A                    VLAN         : none
BXB-ASA5540#
Enforcing Dial-in Allow or Deny Access

In this example, we create an LDAP attribute map that specifies the tunneling protocols allowed for the user. We map the Allow Access and Deny Access settings on the Dialin tab to the Cisco attribute Tunneling-Protocols. The Cisco Tunneling-Protocols supports the map values shown in Table 1:

Table 1 Bitmap Values for Cisco Tunneling-Protocol Attribute

Map Value

Tunneling Protocol

1

PPTP

2

L2TP

4¹

IPSec

8²

L2TP/IPSEC

16

clientless SSL

32

SSL Client—AnyConnect or legacy SSL VPN client

¹IPSec and L2TP over IPSec are not supported simultaneously. Therefore, the values 4 and 8 are mutually exclusive.

²See note 1.

Using this attribute, we create an Allow Access (TRUE) or a Deny (FALSE) condition for the protocols and enforce what method the user is allowed access with.

For this simplified example, by mapping the tunnel-protocol IPSec (4), we can create an allow (true) condition for the IPSec Client. We also map WebVPN (16) and SVC/AC (32) which is mapped as value of 48 (16+32) and create a deny (false) condition. This allows the user to connect to the security appliance using IPSec, but any attempt to connect using clientless SSL or the AnyConnect client is denied.

Step 1 Configure the user attributes on the AD LDAP server.

Right-click on the user. The Properties window displays. Click the Dial-in tab. Select Allow Access (Figure 16).

Figure 15 Configure the User Attributes on the AD LDAP Server

Note If you select Control access through Remote Access Policy, a value is not returned from the server and the permissions are enforced based on the internal group policy settings.

Step 2 Create an attribute map to allow both an IPSec and AnyConnect connection, but deny a clientless SSL connection.

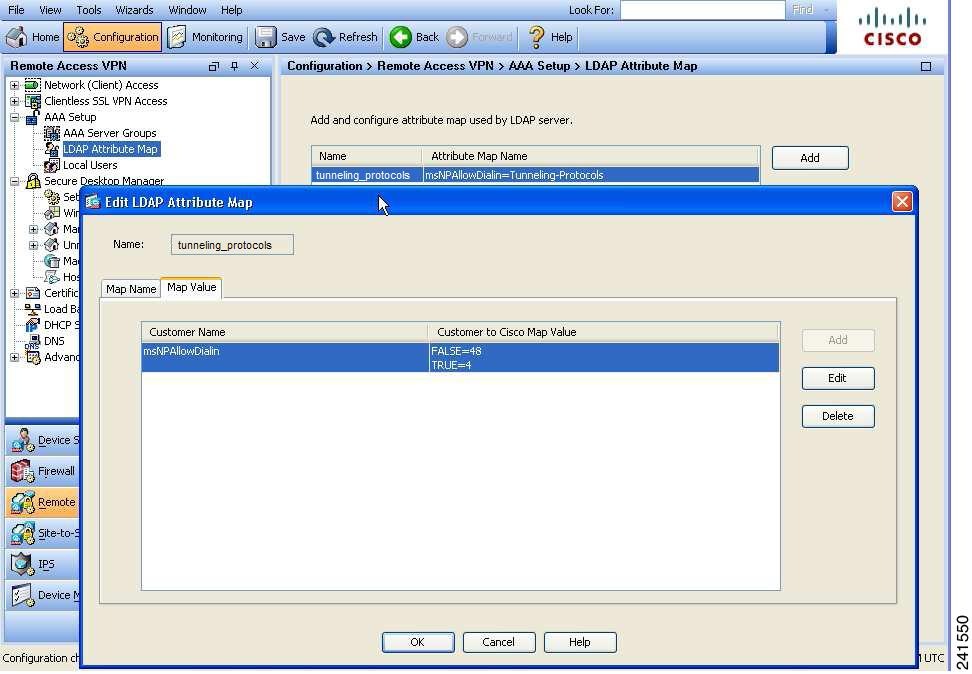

In Figure 16 we create the map tunneling_protocols, and enter map values for the AD attribute msNPAllowDialin used by the Allow Access setting to the Cisco attribute Tunneling-Protocols:

Figure 16 Create an Attribute Map

Step 3 Associate the LDAP attribute map to the AAA server.

In Figure 17 we edit the AAA server settings for the host 3.3.3.4, in the AAA server group MS_LDAP, and associate the attribute map tunneling_protocols that we created in step 2:

Figure 17 Associate the LDAP Attribute Map to the AAA Server

If you connect to the security appliance using a PC as a remote user would, a clientless or AnyConnect connection fails and the user is informed that an unauthorized connection mechanism was the reason for the failed connection (Figure 18 and Figure 19). An IPSec client connects because IPSec is an allowed tunneling protocol according to attribute map.

Figure 18 Login Denied Message for Clientless User

Figure 19 Login Denied Message for AnyConnect Client User.

Enforcing Logon Hours and Time-of-Day Rules

In this example, we configure and enforce the hours that a clientless SSL user is allowed to access the network. A good example of this is when you want to allow a business partner access to the network only during normal business hours.

For our example, on the AD server, we use the Office field to enter the name of the partner. This field uses the physicalDeliveryOfficeName attribute. Then we create an attribute map on the security appliance to map that attribute to the Cisco attribute Access-Hours. During authentication, the security appliance retrieves the value of physicalDeliveryOfficeName (the Office field) and maps it to Access-Hours.

Step 1 Configure the user attributes on the AD LDAP server.

Select the user. Right click on Properties. The Properties window displays (Figure 20). Enter the partner name in the Office field of the General tab:

Figure 20 Active Directory - Time-range

Step 2 Create an attribute map.

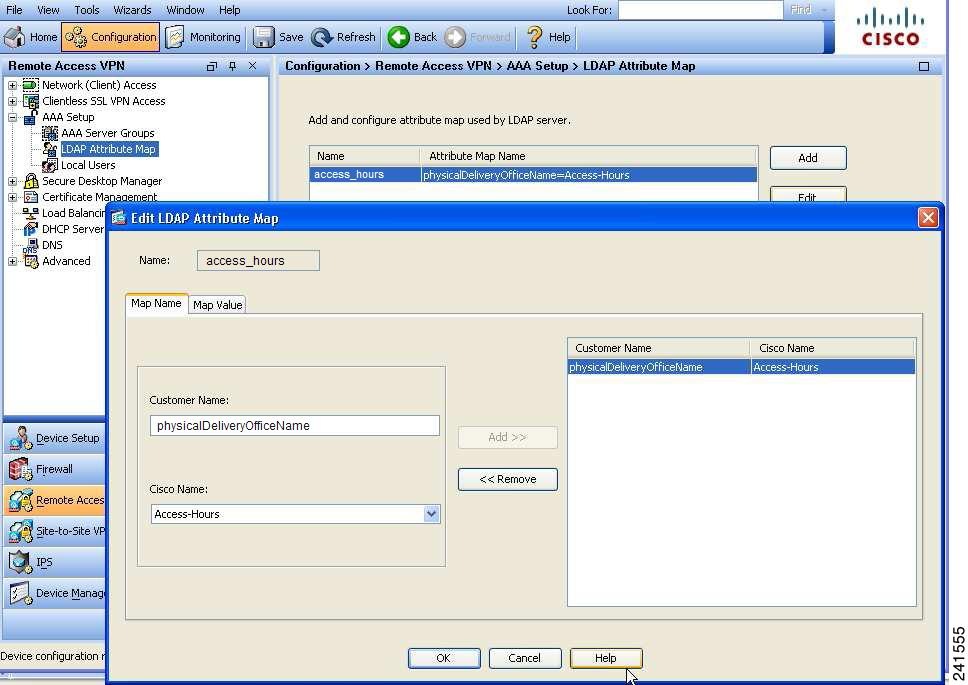

In this example, we create the attribute map access_hours and map the AD attribute physicalDeliveryOfficeName used by the Office field to the Cisco attribute Access-Hours.

Figure 21 Create an Attribute Map

Step 3 Associate the LDAP attribute map to the AAA server.

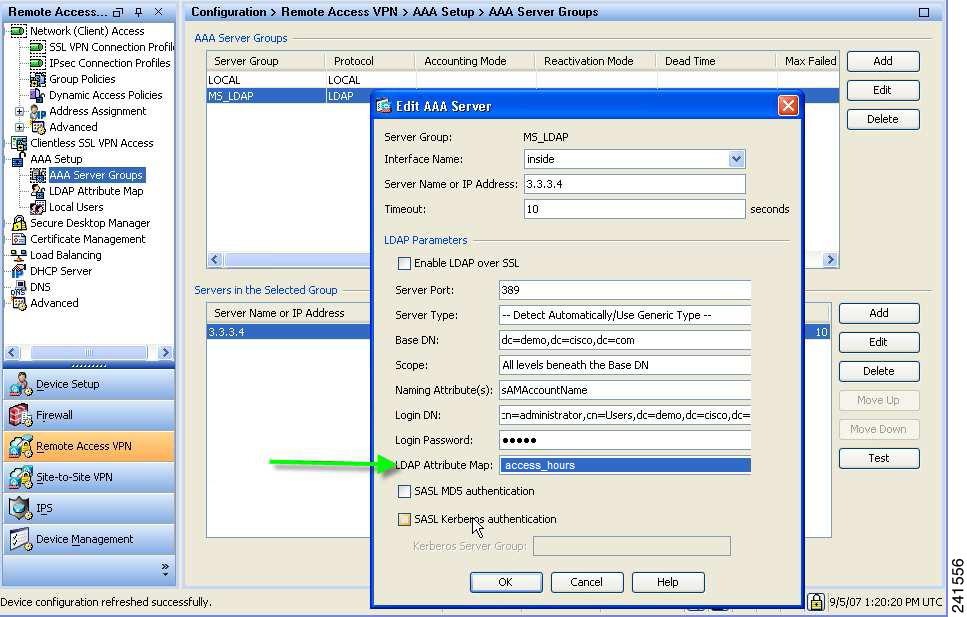

In Figure 22 we edit the AAA server configuration host 3.3.3.4, in the AAA server group MS_LDAP, and associate the attribute map access_hours that we created in step 2:

Figure 22 Associate the LDAP Attribute Map to the AAA Server

Step 4 Configure time ranges for each value allowed on the server. In this case, we entered Partner in the Office field for User1. Therefore, there must be a time range configured for Partner.

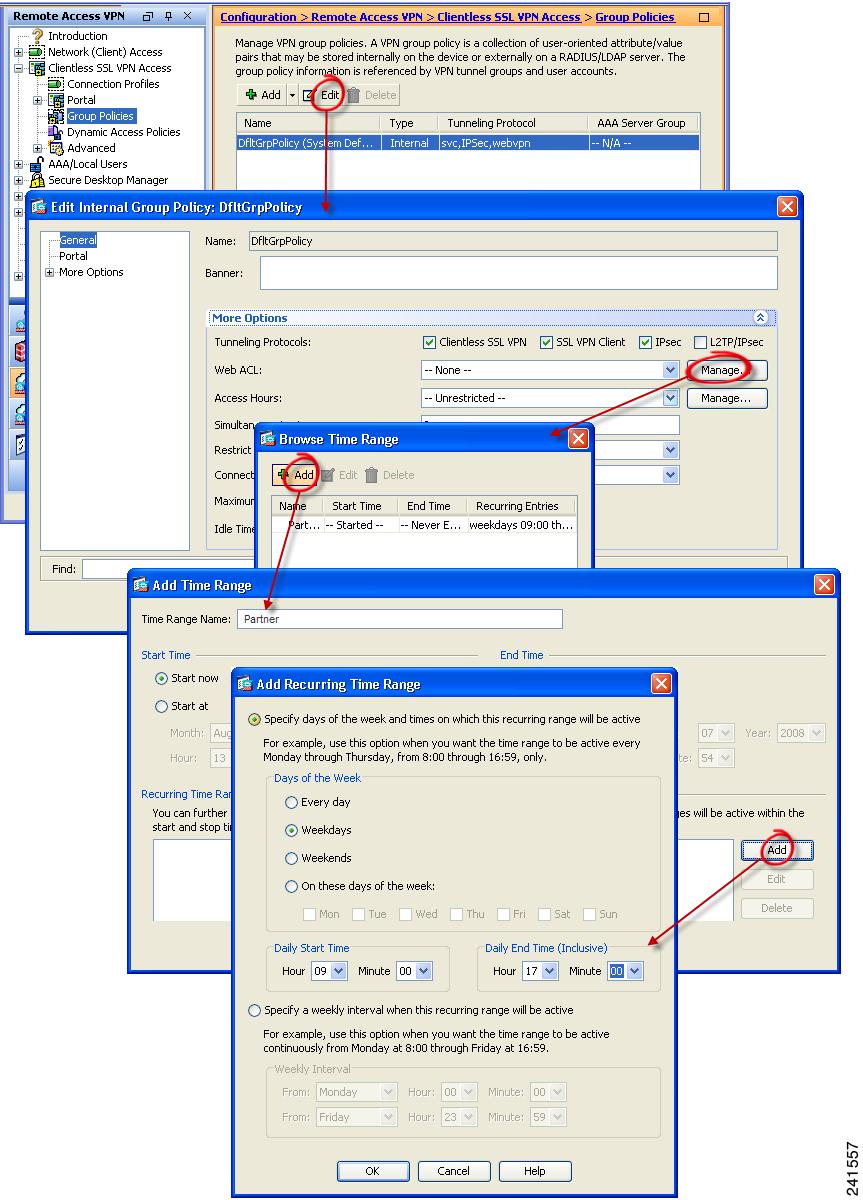

In Figure 23 we configure Partner access hours from 9am to 5pm Monday through Friday:

Figure 23 Configure Time Ranges for Each Value Allowed on the Server

Supported Cisco Attributes for LDAP Authorization

This section provides a complete list of attributes (Table 2) for the ASA 5500, VPN 3000, and PIX 500 series security appliances. The table includes attribute support information for the VPN 3000 and PIX 500 series to assist you in configuring networks with a mixture of these security appliances.

Table 2 Security Appliance Supported Cisco Attributes for LDAP Authorization

Attribute Name/

VPN 3000

ASA

PIX

Syntax/
Type

Single or Multi-Valued

Possible Values

Access-Hours

Y

Y

Y

String

Single

Name of the time-range
(for example, Business-Hours)

Allow-Network-Extension- Mode

Y

Y

Y

Boolean

Single

0 = Disabled
1 = Enabled

Authenticated-User-Idle- Timeout

Y

Y

Y

Integer

Single

1 - 35791394 minutes

Authorization-Required

Y

Integer

Single

0 = No
1 = Yes

Authorization-Type

Y

Integer

Single

0 = None
1 = RADIUS
2 = LDAP

Auth-Service-Type

Banner1

Y

Y

Y

String

Single

Banner string

Banner2

Y

Y

Y

String

Single

Banner string

Cisco-AV-Pair

Y

Y

Y

String

Multi

An octet string in the following format:

[Prefix] [Action] [Protocol] [Source] [Source Wildcard Mask] [Destination] [Destination Wildcard Mask] [Established] [Log] [Operator] [Port]

For more information, see "Cisco-AV-Pair Attribute Syntax."

Cisco-IP-Phone-Bypass

Y

Y

Y

Integer

Single

0 = Disabled
1 = Enabled

Cisco-LEAP-Bypass

Y

Y

Y

Integer

Single

0 = Disabled
1 = Enabled

Client-Intercept-DHCP- Configure-Msg

Y

Y

Y

Boolean

Single

0 = Disabled
1 = Enabled

Client-Type-Version-Limiting

Y

Y

Y

String

Single

IPSec VPN client version number string

Confidence-Interval

Y

Y

Y

Integer

Single

10 - 300 seconds

DHCP-Network-Scope

Y

Y

Y

String

Single

IP address

DN-Field

Y

Y

Y

String

Single

Possible values: UID, OU, O, CN, L, SP, C, EA, T, N, GN, SN, I, GENQ, DNQ, SER, use-entire-name.

Firewall-ACL-In

Y

Y

String

Single

Access list ID

Firewall-ACL-Out

Y

Y

String

Single

Access list ID

IE-Proxy-Bypass-Local

Boolean

Single

0=Disabled
1=Enabled

IE-Proxy-Exception-List

String

Single

A list of DNS domains. Entries must be separated by the new line character sequence (\n).

IE-Proxy-Method

Y

Y

Y

Integer

Single

1 = Do not modify proxy settings
2 = Do not use proxy
3 = Auto detect
4 = Use security appliance setting

IE-Proxy-Server

Y

Y

Y

Integer

Single

IP Address

IETF-Radius-Class

Y

Y

Y

Single

Sets the group policy for the remote access VPN session

IETF-Radius-Filter-Id

Y

Y

Y

String

Single

access list name that is defined on the security appliance

IETF-Radius-Framed-IP-Address

Y

Y

Y

String

Single

An IP address

IETF-Radius-Framed-IP-Netmask

Y

Y

Y

String

Single

An IP address mask

IETF-Radius-Idle-Timeout

Y

Y

Y

Integer

Single

minutes

IETF-Radius-Service-Type

Y

Y

Y

Integer

Single

IETF-Radius-Session-Timeout

Y

Y

Y

Integer

Single

IKE-Keep-Alives

Y

Y

Y

Boolean

Single

0 = Disabled
1 = Enabled

IPSec-Allow-Passwd-Store

Y

Y

Y

Boolean

Single

0 = Disabled
1 = Enabled

IPSec-Authentication

Y

Y

Y

Integer

Single

0 = None
1 = RADIUS
2 = LDAP (authorization only)
3 = NT Domain
4 = SDI (RSA)
5 = Internal
6 = RADIUS with Expiry
7 = Kerberos/Active Directory

IPSec-Auth-On-Rekey

Y

Y

Y

Boolean

Single

0 = Disabled
1 = Enabled

IPSec-Backup-Server-List

Y

Y

Y

String

Single

Server Addresses (space delimited)

IPSec-Backup-Servers

Y

Y

Y

String

Single

1 = Use Client-Configured list
2 = Disabled and clear client list
3 = Use Backup Server list

IPSec-Client-Firewall-Filter- Name

Y

String

Single

Specifies the name of the filter to be pushed to the client as firewall policy.

IPSec-Client-Firewall-Filter- Optional

Y

Y

Y

Integer

Single

0 = Required
1 = Optional

IPSec-Default-Domain

Y

Y

Y

String

Single

Specifies the single default domain name to send to the client (1 - 255 characters).

IPSec-IKE-Peer-ID-Check

Y

Y

Y

Integer

Single

1 = Required
2 = If supported by peer certificate
3 = Do not check

IPSec-IP-Compression

Y

Y

Y

Integer

Single

0 = Disabled
1 = Enabled

IPSec-Mode-Config

Y

Y

Y

Boolean

Single

0 = Disabled
1 = Enabled

IPSec-Over-UDP

Y

Y

Y

Boolean

Single

0 = Disabled
1 = Enabled

IPSec-Over-UDP-Port

Y

Y

Y

Integer

Single

4001 - 49151; default = 10000

IPSec-Required-Client-Firewall-
Capability

Y

Y

Y

Integer

Single

0 = None
1 = Policy defined by remote FW Are-You-There (AYT)
2 = Policy pushed CPP
4 = Policy from server

IPSec-Sec-Association

Y

String

Single

Name of the security association

IPSec-Split-DNS-Names

Y

Y

Y

String

Single

Specifies the list of secondary domain names to send to the client (1 - 255 characters).

IPSec-Split-Tunneling-Policy

Y

Y

Y

Integer

Single

0 = Tunnel everything
1 = Split tunneling
2 = Local LAN permitted

IPSec-Split-Tunnel-List

Y

Y

Y

String

Single

Specifies the name of the network or access list that describes the split tunnel inclusion list.

IPSec-Tunnel-Type

Y

Y

Y

Integer

Single

1 = LAN-to-LAN
2 = Remote access

IPSec-User-Group-Lock

Y

Boolean

Single

0 = Disabled
1 = Enabled

L2TP-Encryption

Y

Integer

Single

Bitmap:

1 = Encryption required
2 = 40 bit
4 = 128 bits
8 = Stateless-Req
15 = 40/128-Encr/Stateless-Req

L2TP-MPPC-Compression

Y

Integer

Single

0 = Disabled
1 = Enabled

MS-Client-Subnet-Mask

Y

Y

Y

String

Single

An IP address

PFS-Required

Y

Y

Y

Boolean

Single

0 = No
1 = Yes

Port-Forwarding-Name

Y

Y

String

Single

Name string (for example, "Corporate-Apps")

PPTP-Encryption

Y

Integer

Single

Bitmap:

1 = Encryption required
2 = 40 bits
4 = 128 bits
8 = Stateless-Required

Example:
15 = 40/128-Encr/Stateless-Req

PPTP-MPPC-Compression

Y

Integer

Single

0 = Disabled
1 = Enabled

Primary-DNS

Y

Y

Y

String

Single

An IP address

Primary-WINS

Y

Y

Y

String

Single

An IP address

Privilege-Level

Required-Client- Firewall-Vendor-Code

Y

Y

Y

Integer

Single

1 = Cisco Systems (with Cisco Integrated Client)
2 = Zone Labs
3 = NetworkICE
4 = Sygate
5 = Cisco Systems (with Cisco Intrusion Prevention Security Agent)

Required-Client-Firewall- Description

Y

Y

Y

String

Single

String

Required-Client-Firewall- Product-Code

Y

Y

Y

Integer

Single

Cisco Systems Products:

1 = Cisco Intrusion Prevention Security Agent or Cisco Integrated Client (CIC)

Zone Labs Products:

1 = Zone Alarm
2 = Zone AlarmPro
3 = Zone Labs Integrity

NetworkICE Product:

1 = BlackIce Defender/Agent

Sygate Products:

1 = Personal Firewall
2 = Personal Firewall Pro
3 = Security Agent

Require-HW-Client-Auth

Y

Y

Y

Boolean

Single

0 = Disabled
1 = Enabled

Require-Individual-User-Auth

Y

Y

Y

Integer

Single

0 = Disabled
1 = Enabled

Secondary-DNS

Y

Y

Y

String

Single

An IP address

Secondary-WINS

Y

Y

Y

String

Single

An IP address

SEP-Card-Assignment

Integer

Single

Not used

Simultaneous-Logins

Y

Y

Y

Integer

Single

0-2147483647

Strip-Realm

Y

Y

Y

Boolean

Single

0 = Disabled
1 = Enabled

TACACS-Authtype

Y

Y

Y

Interger

Single

TACACS-Privilege-Level

Y

Y

Y

Interger

Single

Tunnel-Group-Lock

Y

Y

String

Single

Name of the tunnel group or "none"

Tunneling-Protocols

Y

Y

Y

Integer

Single

1 = PPTP
2 = L2TP
4 = IPSec
8 = L2TP/IPSec
16 = WebVPN.
8 and 4 are mutually exclusive
(0 - 11, 16 - 27 are legal values)

Use-Client-Address

Y

Boolean

Single

0 = Disabled
1 = Enabled

User-Auth-Server-Name

Y

String

Single

IP address or hostname

User-Auth-Server-Port

Y

Integer

Single

Port number for server protocol

User-Auth-Server-Secret

Y

String

Single

Server password

WebVPN-ACL-Filters

Y

String

Single

Access-List name

WebVPN-Apply-ACL-Enable

Y

Y

Integer

Single

0 = Disabled
1 = Enabled

WebVPN-Citrix-Support-Enable

Y

Y

Integer

Single

0 = Disabled
1 = Enabled

WebVPN-Content-Filter- Parameters

Y

Y

Integer

Single

1 = Java & ActiveX
2 = Java scripts
4 = Images
8 = Cookies in images

Add the values to filter multiple parameters. For example: enter 10 to filter both Java scripts and cookies. (10 = 2 + 8)

WebVPN-Enable-functions

Integer

Single

Not used - deprecated

WebVPN-Exchange-Server- Address

String

Single

Not used - deprecated

WebVPN-Exchange-Server- NETBIOS-Name

String

Single

Not used - deprecated

WebVPN-File-Access-Enable

Y

Y

Integer

Single

0 = Disabled
1 = Enabled

WebVPN-File-Server-Browsing-
Enable

Y

Y

Integer

Single

0 = Disabled
1 = Enabled

WebVPN-File-Server-Entry- Enable

Y

Y

Integer

Single

0 = Disabled
1 = Enabled

WebVPN-Forwarded-Ports

Y

String

Single

Port-Forward list name

WebVPN-Homepage

Y

Y

String

Single

A URL such as http://example-portal.com.

WebVPN-Macro-Substitution-
Value1

Y

Y

String

Single

WebVPN-Macro-Substitution-
Value2

Y

Y

String

Single

WebVPN-Port-Forwarding- Auto-Download-Enable

Y

Y

Integer

Single

0 = Disabled
1 = Enabled

WebVPN-Port-Forwarding- Enable

Y

Y

Integer

Single

0 = Disabled
1 = Enabled

WebVPN-Port-Forwarding- Exchange-Proxy-Enable

Y

Y

Integer

Single

0 = Disabled
1 = Enabled

WebVPN-Port-Forwarding- HTTP-Proxy-Enable

Y

Y

Integer

Single

0 = Disabled
1 = Enabled

WebVPN-Single-Sign-On- Server-Name

Y

String

Single

Name of the SSO Server (1 - 31 characters).

WebVPN-SVC-Client-DPD

Y

Y

Integer

Single

0 = Disabled
n = Dead Peer Detection value in seconds (30 - 3600)

WebVPN-SVC-Compression

Y

Y

Integer

Single

0 = None
1 = Deflate Compression

WebVPN-SVC-Enable

Y

Y

Integer

Single

0 = Disabled
1 = Enabled

WebVPN-SVC-Gateway-DPD

Y

Y

Integer

Single

0 = Disabled
n = Dead Peer Detection value in seconds (30 - 3600)

WebVPN-SVC-Keepalive

Y

Y

Integer

Single

0 = Disabled
n = Keepalive value in seconds (15 - 600)

WebVPN-SVC-Keep-Enable

Y

Y

Integer

Single

0 = Disabled
1 = Enabled

WebVPN-SVC-Rekey-Method

Y

Y

Integer

Single

0 = None
1 = SSL
2 = New tunnel
3 = Any (sets to SSL)

WebVPN-SVC-Rekey-Period

Y

Y

Integer

Single

0 = Disabled
n = Retry period in minutes
(4 - 10080)

WebVPN-SVC-Required-Enable

Y

Y

Integer

Single

0 = Disabled
1 = Enabled

WebVPN-URL-Entry-Enable

Y

Y

Integer

Single

0 = Disabled
1 = Enabled

WebVPN-URL-List

Y

String

Single

URL-list name

Cisco-AV-Pair Attribute Syntax

The syntax of each Cisco-AV-Pair rule is as follows:

[Prefix] [Action] [Protocol] [Source] [Source Wildcard Mask] [Destination] [Destination Wildcard Mask] [Established] [Log] [Operator] [Port]

Table 3 describes the syntax rules.

Table 3 AV-Pair Attribute Syntax Rules

Field

Description

Prefix

A unique identifier for the AV pair. For example: ip:inacl#1= (for standard access lists) or webvpn:inacl# (for clientless SSL VPN access lists). This field only appears when the filter has been sent as an AV pair.

Action

Action to perform if rule matches: deny, permit.

Protocol

Number or name of an IP protocol. Either an integer in the range 0 - 255 or one of the following keywords: icmp, igmp, ip, tcp, udp.

Source

Network or host that sends the packet. Specify it as an IP address, a hostname, or the keyword "any." If using an IP address, the source wildcard mask must follow.

Source Wildcard Mask

The wildcard mask that applies to the source address.

Destination

Network or host that receives the packet. Specify as an IP address, a hostname, or the keyword "any." If using an IP address, the source wildcard mask must follow.

Destination Wildcard Mask

The wildcard mask that applies to the destination address.

Log

Generates a FILTER log message. You must use this keyword to generate events of severity level 9.

Operator

Logic operators: greater than, less than, equal to, not equal to.

Port

The number of a TCP or UDP port in the range 0 - 65535.

For example:
ip:inacl#1=deny ip 10.155.10.0 0.0.0.255 10.159.2.0 0.0.0.255 log
ip:inacl#2=permit TCP any host 10.160.0.1 eq 80 log
webvpn:inacl#1=permit url http://www.website.com
webvpn:inacl#2=deny smtp any host 10.1.3.5
webvpn:inacl#3=permit url cifs://mar_server/peopleshare1
Note Use Cisco-AV pair entries with the ip:inacl# prefix to enforce access lists for remote IPSec and SSL VPN Client (SVC) tunnels.

Use Cisco-AV pair entries with the webvpn:inacl# prefix to enforce access lists for SSL VPN clientless (browser-mode) tunnels.

Table 4 lists the tokens for the Cisco-AV-pair attribute:

Table 4 Security Appliance-Supported Tokens

Token

Syntax Field

Description

ip:inacl#Num=

N/A (Identifier)

(Where Num is a unique integer.) Starts all AV pair access control lists. Enforces access lists for remote IPSec and SSL VPN (SVC) tunnels.

webvpn:inacl#Num=

N/A (Identifier)

(Where Num is a unique integer.) Starts all clientless SSL AV pair access control lists. Enforces access lists for clientless (browser-mode) tunnels.

deny

Action

Denies action. (Default)

permit

Action

Allows action.

icmp

Protocol

Internet Control Message Protocol (ICMP)

1

Protocol

Internet Control Message Protocol (ICMP)

IP

Protocol

Internet Protocol (IP)

0

Protocol

Internet Protocol (IP)

TCP

Protocol

Transmission Control Protocol (TCP)

6

Protocol

Transmission Control Protocol (TCP)

UDP

Protocol

User Datagram Protocol (UDP)

17

Protocol

User Datagram Protocol (UDP)

any

Hostname

Rule applies to any host.

host

Hostname

Any alpha-numeric string that denotes a hostname.

log

Log

When the event is hit, a filter log message appears. (Same as permit and log or deny and log.)

lt

Operator

Less than value

gt

Operator

Greater than value

eq

Operator

Equal to value

neq

Operator

Not equal to value

range

Operator

Inclusive range. Should be followed by two values.

Hierarchical Navigation

Cisco Adaptive Security Device Manager

Enforcing Microsoft Active Directory Policies Using LDAP Attribute Maps

Downloads

Table Of Contents

Enforcing Microsoft Active Directory Policies Using LDAP Attribute Maps

How LDAP Attribute Maps Work

LDAP Attribute Map Configuration Examples

User-Based Attributes Policy Enforcement

Placing Users in a Specific Group-Policy

Enforcing Static IP Address Assignment for AnyConnect Tunnels

Enforcing Dial-in Allow or Deny Access

Enforcing Logon Hours and Time-of-Day Rules

Supported Cisco Attributes for LDAP Authorization

Cisco-AV-Pair Attribute Syntax
