FIPS 140-2 Non-Proprietary Security Policy for the Cisco ASA 5500 Series Security Appliance
This is a non-proprietary Cryptographic Module Security Policy for Cisco ASA 5510, ASA 5520, and ASA 5540 security appliances. This policy describes how the Cisco ASA 5500 series security appliances meet the requirements of FIPS 140-2. This document also includes instructions for configuring the security appliance in FIPS 140-2 mode. This policy was prepared as part of the Level 2 FIPS 140-2 validation for the Cisco ASA 5500 series security appliances.
Note This document may be copied in its entirety and without modification. All copies must include the copyright notice and statements on the last page.
FIPS 140-2 (Federal Information Processing Standards Publication 140-2 — Security Requirements for Cryptographic Modules) details the U.S. Government requirements for cryptographic security appliances. More information about the FIPS 140-2 standard and validation program is available on the NIST website at http://csrc.nist.gov/cryptval/.
This document includes the following sections:
FIPS 140-2 Submission Package
The security policy document is one document in a complete FIPS 140-2 Submission Package. In addition to this document, the complete submission package contains:
•Finite State Machine
•Other supporting documentation as additional references
With the exception of this non-proprietary security policy, the FIPS 140-2 validation documentation is proprietary to Cisco Systems, Inc. and is releasable only under appropriate non-disclosure agreements. For access to these documents, please contact Cisco Systems, Inc. See the "Obtaining Documentation and Submitting a Service Request" sectionfor more information.
The Cisco ASA 5500 series security appliance leverages Cisco's expertise in security and VPN solutions, and integrates the latest technologies from Cisco PIX 500 series security appliances, Cisco IPS 4200 Series Intrusion Prevention Systems, and Cisco VPN 3000 series concentrators.
The Cisco ASA 5500 series security appliances provide multiple integrated security and networking services, including:
•Advanced application-aware firewall services
•Market-leading Voice over IP (VoIP) and multimedia security
•Robust site-to-site and remote-access IPSec VPN connectivity
•Intelligent networking services
•Flexible management solutions
The Cisco ASA 5500 series security appliance is a high-performance, multifunction security appliance family delivering converged firewall, IPS, network anti-virus and VPN services. As a key component of the Cisco Self-Defending Network, it provides proactive threat mitigation that stops attacks before they spread through the network, controls network activity and application traffic, and delivers flexible VPN connectivity while remaining cost-effective and easy-to-manage.
In a single platform, the Cisco ASA 5500 series security appliance offers the following:
•Market-proven firewall, IPS, network anti-virus, and VPN capabilities
•Adaptive identification and mitigation services architecture providing granular policy control and future services extensibility
•Reduced deployment, operating costs, and complexity
Security Appliance Validation Level
Table 4 lists the level of validation for each area in the FIPS PUB 140-2.
Physical Characteristics and Security Appliance Interfaces
The Cisco ASA 5500 series security appliance family delivers enterprise-class security for medium business-to-enterprise networks in a modular, purpose-built appliance. Its versatile one-rack unit (1RU) design supports up to 8 10/100/1000 Gigabit Ethernet interfaces (on the ASA5520 and ASA5540) and 1 10/100 Fast Ethernet Management interface, making it an excellent choice for businesses requiring a cost-effective, resilient security solution with demilitarized zone (DMZ) support.
Each appliance is a multi-chip standalone security appliance, and the cryptographic boundary is defined as encompassing the "top," "front," "left," "right," and "bottom" surfaces of the case; all portions of the "backplane" of the case which are not designed to accommodate a removable interface or Cisco ASA 5500 series security appliance; and the inverse of the three-dimensional space within the case that would be occupied by an installed Cisco ASA 5500 series security appliance. The cryptographic boundary includes the connection apparatus between the Cisco ASA 5500 series security appliance and the motherboard/daughterboard that hosts the Cisco ASA 5500 series security appliance, but the boundary does not include the Cisco ASA 5500 series security appliance itself. In other words, the cryptographic boundary encompasses all hardware components within the case of the device except any installed modular Cisco ASA 5500 series security appliance.

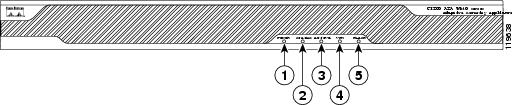

Figure 1 shows the ASA 5500 adaptive security appliance front panel LEDs.
Figure 1 ASA 5500 Adaptive Security Appliance Front Panel LEDs
Figure 2 shows the ASA 5500 adaptive security appliance rear panel LEDs and ports.
Figure 2 ASA 5500 Adaptive Security Appliance Rear Panel LEDs and Ports (AC Power Supply Model Shown)
USB 2.0 interfaces2
External CompactFlash slot
Serial Console port
Power indicator LED
Status indicator LED
Power indicator LED
1 The management 0/0 interface is a FastEthernet interface designed for management traffic only.
2 Not supported at this time.
3 GigabitEthernet interfaces, from right to left, GigabitEthernet 0/0, GigabitEthernet 0/1, GigabitEthernet 0/2, and GigabitEthernet 0/3.
Figure 3 shows the adaptive security appliance rear panel LEDs.
Figure 3 ASA 5500 Adaptive Security Appliance Rear Panel Link and Speed Indicator LEDs
Table 2 lists the rear MGMT and Network LEDs.
Table 2 Link and Speed LEDs
Indicator Color Description
Note The ASA 5510 adaptive security appliance supports only 10/100BaseTX. The ASA 5520 and the ASA 5540 support 1000BaseT.
Each security appliance provides a number of physical and logical interfaces to the device, and the physical interfaces provided by the security appliance are mapped to four FIPS 140-2 defined logical interfaces: data input, data output, control input, and status output.
The logical interfaces and their mapping are described in Table 3:
Table 3 Cisco ASA 5500 Series Security Appliance Physical Interface/Logical Interface Mapping
Physical Interface FIPS 140-2 Logical Interface
Multi-Function Service Card (MFSC) Interface
Compact Flash Type 1
Com 1 (Console Port)
Data Input Interface
Multi-Function Service Card (MFSC) Interface
Compact Flash Type 1
Com 1 (Console Port)
Data Output Interface
Multiple Service Function (MFS) Interface
Com 1 (Console Port)
Control Input Interface
Multi-Function Service Card (MFSC) Interface
CF Active LED
Com 1 (Console Port)
Status Output Interface
Com 2 (Aux Port)1
1 Physical interface not functional
Roles and Services
The security appliance can be accessed in one of the following ways:
•Telnet over IPSec
•ASDM via HTTPS/TLS
As required by FIPS 140-2, there are two main roles in the security appliance that operators may assume: a Crypto Officer role and User role. The security appliance supports role-based authentication, and the respective services for each role are described in the "Crypto Officer Services" section, and the "User Services" section.
Crypto Officer Services
The Crypto Officer role is responsible for the configuration and maintenance of the security appliance and authenticates from the enable command (for local authentication) or the login command (for AAA authentication) from the user services. The Crypto Officer services consist of the following:
•Configure the Security Appliance: Define network interfaces and settings; set the protocols the security appliance will support; enable interfaces and network services; set system date and time; load authentication information; and configure authentication servers, filters and access lists for interfaces and users, and privileges.
•Define Rules and Filters: Create packet filters that are applied to user data streams on each interface. Each filter consists of a set of Rules, which define a set of packets to permit or deny based on characteristics such as protocol ID, addresses, ports, TCP connection establishment, or packet direction.
•View Status: View the configuration, routing tables, active sessions, use gets to view SNMP MIB statistics, health, memory status, packet statistics, review accounting logs, and view physical interface status.
•Manage the Security Appliance: Log off users, shut down or reload the security appliance, view complete configurations, view full status, manage user rights, and restore configurations.
•Set Encryption/Bypass: Set up the configuration tables for IP tunneling. Set keys and algorithms to be used for each IP range or allow plain text packets to be sent from specified IP address.
•Install Cisco 5500 Series Security Appliance: Remove tamper evident seals to install or replace Cisco ASA 5500 series security appliances.
A user enters the system by accessing the console port with a terminal program or via IPSec protected Telnet or SSH session to a LAN port. The security appliance will prompt the user for their password. If the password is correct, the user is allowed entry to the executive program. The services available to the User role consist of the following:
•Status Functions: Image version currently running, installed hardware components, and version of hardware installed.
•Network Functions: Initiate diagnostic network services, such as ping.
•Directory Services: Display directory of files kept in flash memory.
The services accessing the Critical Service Parameters (CSP)s, the type of access and which role accesses the CSPs are listed in Table 4.
Table 4 Cisco ASA 5500 Series Adaptive Security Appliance Validation Level by Section
The security appliance supports either a password or digital certificates for authenticating IPSec users. To log on to the appliances for management purposes, an operator must connect to it through one of the management interfaces (Console Port, SSH, Telnet, or ASDM) and provide a password.
Table 5 describes the estimated strength of the authentication mechanism.
Cryptographic Key Management
The appliances use a variety of Critical Security Parameters during operation.
Table 6 lists the cryptographic keys used by the Cisco ASA 5500 series security appliance.
The security appliances include an array of self-tests that are run during startup and periodically during operations to prevent any secure data from being released and to insure all components are functioning correctly.
Table 7 lists the ASA 5500 adaptive security appliance power-on self-tests.
The security appliances perform all power-on self-tests automatically at boot when FIPS mode is enabled. All power-on self-tests must be passed before a User/Crypto Officer can perform services. The power-on self-tests are performed after the cryptographic systems are initialized but prior to the initialization of the LANs; this prevents the security appliance from passing any data during a power-on self-test failure. In the unlikely event that a power-on self-test fails, an error message is displayed on the console followed by a security appliance reboot.
Table 8 lists the conditional self-tests that the ASA 5500 adaptive security appliance performs.
Mitigation of Other Attacks
The security appliances do not claim to mitigate any attacks in a FIPS-approved mode of operation.
The Cisco ASA 5510, ASA 5520, and ASA 5540 adaptive security appliances meet FIPS 140-2 Level 2 requirements. This section describes how to place and keep the security appliances in a FIPS-approved mode of operation. Operating the security appliances without maintaining the following settings will remove the security appliances from the FIPS-approved mode of operation.
Crypto Officer Guidance - System Initialization
The security appliances were validated with adaptive security appliance software Version (file name: asa704-k8.bin). This is the only allowable image for FIPS-approved mode of operation.
The Crypto Officer must configure and enforce the following initialization steps:
Step 1 Ensure the security context mode is set to single mode.(config)# mode single
Step 2 Ensure the firewall mode is set to routed.(config)# no firewall transparent
Step 3 Disable the console output of system crash information, using the following command:(config)#crashinfo console disable
Step 4 Install 3DES/AES licenses to require the security appliance to use 3DES and AES (for data traffic and SSH).
Step 5 Enable "FIPS Mode" to allow the security appliance to internally enforce FIPS-compliant behavior, such as run power-on self-tests and bypass test, using the following command:(config)#fips enable
Step 6 Disable password recovery.(config)#no service password-recovery
Step 7 Set the configuration register to bypass ROMMON prompt at boot.(config)# config-register 0x1001
Step 8 Define the failover key to ensure encryption of the link to redundant security appliances prior to enabling failover.(config)#failover key hex <key>
Note The failover key hex <key> command should be entered with failover disabled. If failover is already enabled, the failover key hex <key> command will be replicated to the standby unit and will result in the key being sent off-device in clear-text, violating FIPS.
Note Failover is not required for FIPS mode of operation. If failover is to be enabled, then the configuration in Step 8 should be followed. Also, only LAN-based failover is allowed for FIPS mode of operation; serial link failover is not allowed in FIPS mode of operation. Failover should not be configured over the lowest-numbered interface, such as Ethernet 0; ports Ethernet 1 or above should be used. If the lowest-numbered interface is already implemented as the failover interface, the Crypto Officer should take the following action:
- Before upgrading to V7.0.4, copy the configuration to a location off the device
- Use a text editor to modify the interface configuration
- Change the failover cables to the specified failover interface
- Upgrade to V7.0.4 and reload the modified configuration
Step 9 Enable AAA authorization for the console.(config-terminal)#aaa authentication serial console LOCAL(config-terminal)#username <name> password <password>
Step 10 Enable AAA authorization for SSH and Telnet.(config-terminal)#aaa authentication ssh console LOCAL(config-terminal)#aaa authentication telnet console LOCAL
Step 11 Enable AAA authorization for Enable mode.(config-terminal)#aaa authentication enable console LOCAL
Step 12 Specify Privilege Level 15 for Crypto Officer and Privilege Level 1 for User and set up username/password for each role.(config-terminal)#username <name> password <password> privilege 15(config-terminal)#username <name> password <password> privilege 1
Step 13 Ensure passwords are at least 6 characters long.
Step 14 All default passwords, such as enable and telnet, should be replaced with new passwords.
Step 15 Apply tamper evident labels as described in the "Tamper Evidence" section.
Note The Crypto Officer may install any modules that only provide a physical interface, such as PIX-1FE, PIX-1GE-66, and PIX-4FE-66.
Step 16 Reboot the security appliance.
Crypto Officer Guidance - System Configuration
To operate in FIPS mode, the Crypto Officer must perform the following steps:
Step 1 Assign users a Privilege Level of 1.
Step 2 Define RADIUS and TACACS+ shared secret keys that are at least 6 characters long and secure traffic between the security appliance and the RADIUS/TACACS+ server via IPSec tunnel.
Note Perform this step only if RADIUS/TACACS+ is configured, otherwise proceed to Step 3.
Step 3 Configure the TLS protocol when using HTTPS to protect administrative functions. Due to known issues relating to the use of TLS with certain versions of the Java plugin, we recommend that you upgrade to JRE 1.5.0_05 or later.
The following configuration settings are known to work when launching ASDM in a TLS-only environment with JRE 1.5.0_05:
a. Configure the device to allow only TLSv1 packets using the following command:(config)# ssl server-version tlsv1-only
b. Uncheck SSL Version 2.0 in both the web browser and JRE security settings.
c. Check TLS V1.0 in both the web browser and JRE security settings.
Step 4 Configure the security appliance to use SSHv2. Note that all operators must still authenticate after remote access is granted.
Step 5 Configure the security appliance such that any remote connections via Telnet are secured through IPSec.
Step 6 Configure the security appliance such that only FIPS-approved algorithms are used for IPSec tunnels.
Step 7 Configure the security appliance such that error messages can only be viewed by an authenticated Crypto Officer.
Step 8 Configure SNMP v1 or v2c over a secure IPSec tunnel may be employed for authenticated, secure SNMP operations.
Step 9 Disable the FTP, and TFTP servers as well as HTTP for performing system management.
Step 10 Ensure that installed digital certificates are signed using FIPS approved algorithms (SHA-1).
Step 11 Ensure that 512-bit and 768-bit RSA keys are not used.
Step 12 Ensure that the DSA algorithm uses at least a 512-bit modulus.
Approved Cryptographic Algorithms
The appliances support many different cryptographic algorithms; however, only FIPS approved algorithms may be used. Use the following cryptographic algorithms:
•SHA-1 HMAC for hashed message authentication
•RSA signing and verifying
•DSA signing and verifying
•X9.31 for RNG
•TLS for Layer 7 security
Note Pursuant to the DES Transition Plan and the approval of the Withdrawal of Federal Information Processing Standard (FIPS) 46-3, Data Encryption Standard (DES); FIPS 74, Guidelines for Implementing and Using the NBS Data Encryption Standard; and FIPS 81, DES Modes of Operation, the DES algorithm should not be used in FIPS approved mode of operation. The DES algorithm must not be used when the 3DES/AES licenses are installed.
Each cryptographic implementation adaptive security appliance software with on-board acceleration has achieved the certifications listed in Table 9.
Table 9 Algorithm Certificates
Algorithm Adaptive Security Appliance Software ASA On-board Acceleration
Non-FIPS Approved Algorithms
The security appliances implement the following non-FIPS-approved cryptographic algorithms:
•Diffie-Hellman (allowed for use in FIPS mode)
All Critical Security Parameters are stored and protected within each appliance's tamper evident enclosure. The administrator is responsible for properly placing all tamper evident labels. The security labels recommended for FIPS 140-2 compliance are provided in the FIPS Kit (CVPNPIXASAFIPS/KIT). These security labels are very fragile and cannot be removed without clear signs of damage to the labels.
The Crypto Officer should inspect the tamper evident labels periodically to verify they are intact and the serial numbers on the applied tamper evident labels match the records in the security log.

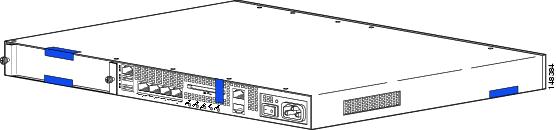

Apply the serialized tamper evident labels as follows (see Figure 4):
Figure 4 Cisco ASA 5500 Series Security Appliance Tamper Evident Label Placement
Step 1 Turn off and unplug the system before cleaning the chassis and applying labels.
Step 2 Clean the chassis of any grease, dirt, or oil before applying the tamper evident labels. Alcohol-based cleaning pads are recommended for this purpose.
Step 3 Apply a label to cover the security appliance's bottom/side portions of the case.
Step 4 On the back of the security appliance, apply one label to cover the CompactFlash slot and two labels to cover the Multiple Service Function slot.
Step 5 Record the serial numbers of the labels applied to the system in a security log.
The tamper evident seals are produced from a special thin gauge vinyl with self-adhesive backing. Any attempt to open the device will damage the tamper evident seals or the material of the security appliance cover. Because the tamper evident seals have non-repeated serial numbers, they may be inspected for damage and compared against the applied serial numbers to verify that the security appliance has not been tampered with. Tamper evident seals can also be inspected for signs of tampering, which include the following: curled corners, rips, and slices. The word "OPEN" may appear if the label was peeled back.
This document deals only with operations and capabilities of the security appliance in the technical terms of a FIPS 140-2 cryptographic security appliance security policy. More information is available on the security appliance from the sources listed in this section and from the following source:
•The NIST Cryptographic Module Validation Program website (http://csrc.ncsl.nist.gov/cryptval/) contains contact information for answers to technical or sales-related questions for the security appliance.
Obtaining Documentation and Submitting a Service Request
For information on obtaining documentation, submitting a service request, and gathering additional information, see the monthly What's New in Cisco Product Documentation, which also lists all new and revised Cisco technical documentation, at:
Subscribe to the What's New in Cisco Product Documentation as a Really Simple Syndication (RSS) feed and set content to be delivered directly to your desktop using a reader application. The RSS feeds are a free service and Cisco currently supports RSS Version 2.0.
AES—Advanced Encryption Standard
ASA—Adaptive Security Appliance
CMVP—Cryptographic Module Validation Program
CSP—Critical Security Parameter
DES—Data Encryption Standard
FIPS—Federal Information Processing Standard
HTTP—Hyper Text Transfer Protocol
KAT—Known Answer Test
LED—Light Emitting Diode
MAC—Message Authentication Code
NIST—National Institute of Standards and Technology
NVLAP—National Voluntary Laboratory Accreditation Program
RAM—Random Access Memory
RSA—Rivest Shamir and Adleman method for asymmetric encryption
SCEP—Simple Certificate Enrollment Protocol
security appliance—A security appliance may provide additional interfaces, feature acceleration or additional services. Security appliances may take a Circuit Board form factor SSM (for ASA appliances)
SHA—Secure Hash Algorithm
SSL—Secure Sockets Layer
SSM—Security Services Module
TLS—Transport Layer Security
