WBM Basic Procedures

---

This chapter provides an overview of the Web-Based Management (WBM) basic procedures. It provides an explanation on how to set up the WBM in the Guard and how to connect to the Guard's WBM.

Setting Up the WBM

Before setting up the Web-Based Management (WBM), some basic configuration of the Guard needs to be performed. The following information, at a minimum, must be known for the Guard to be managed:

•The IP address of the Guard

•Admin or config privileged user-name and password

---

Note Admin and config privileged users can configure WBM access for dynamic and show privilege users.

---

Enabling WBM on the Guard

For detailed information on the Guard's CLI, refer to the Cisco Guard User Guide.

Enable the WBM Service

To enable the Guard web based management service, perform the following from the Guard's command line interface:

1. From the Configuration command group level type the following:

service wbm

2. Press ENTER. The following screen appears:

admin@GUARD-conf> service wbm

admin@GUARD-conf>

To disable the WBM service:

From the Configuration command group level type the following:

no service wbm

Granting Access Permission to the WBM Service

To Grant permission for an IP address to access the Guard's WBM service perform the following:

1. From the Configuration command group level type the following:

permit wbm <ip-addr> [<ip-mask>]

Where:

•<ip-addr>—Indicates the IP address of the permitted user, that is, the IP address of the remote manager. Use * to indicate any IP address.

•[<ip-mask>]—(Optional) Indicates the IP mask of the permitted user.

2. Press ENTER. The following screen appears:

admin@GUARD-conf> permit wbm 10.0.0.192 255.255.255.240
admin@GUARD-conf>

---

Note We do not recommend permitting WBM access from any IP address after initial configuration due to security considerations.

---

To deny WBM access from a remote manager:

From the Configuration command group level type the following:

no permit wbm <ip-addr> [<ip-mask>]

Connecting From the Remote Manager's Station

To connect to the Guard WBM perform the following:

1. In the remote station, open the browser window.

2. Enter the Guard's IP address in the browser's address bar. Connect using https as shown below:

https://<ip-address>

---

Note https and not http is used.

---

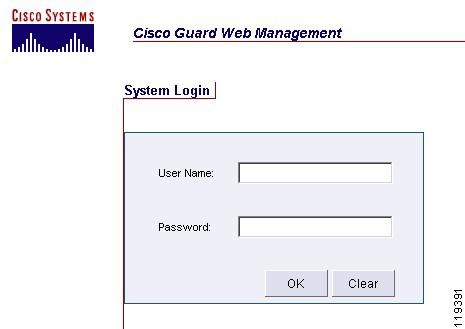

The following login screen appears:

3. Type your username and password.

4. Click OK.

An error message appears if the user name or password entered is incorrect.

After the user name and password are entered correctly, the Guards's main screen is displayed (see Figure 1-1).

---

Note If TACACS+ authentication is configured, the TACACS+ user database is used for user authentication rather than the local database. Refer to the "TACACS+ and Local Authentication Methods" section in Chapter 2, "Initial Procedures," in the Cisco Guard User Guide.

---

---

Tip If you fail to connect to the Guard:

•Make sure the correct user name and password are entered.

•Make sure the correct IP address is entered in the URL field of the browser and that you connected using https.

•Check the network connections of both the manager's station and the Guard.

•Try to connect to the Detector using ssh and see if it is indeed reachable.

•Verify that the WBM service is enabled and that access from the remote manager's IP address is permitted.

---
