Protecting Zones
This chapter describes how to perform tasks for protecting zones on the Cisco Guard using the Web-Based Management (WBM).
Processes described in this chapter must be performed after completing the Cisco Guard configuration and zone configuration described in the previous chapters of this guide.
This chapter includes the following sections:
•
Protecting the Zone (activate/deactivate protection)
•
•
Overview
Before activating the Cisco Guard's protection for a zone, it is recommended to let the Guard study the zone's traffic patterns. The learning process allows the Cisco Guard to learn the traffic patterns of each zone and to create sets of recommended thresholds according to statistical analysis of the traffic.
In case of an attack on the zone prior to completion of the zone learning phases, when the Guard hasn't yet adopted its protection policy to suite the zone traffic, the Guard has its `On-Demand' protection. In such a situation, the zone protection activates the Guard's anti-spoofing and anti-zombie mechanisms quickly. The default thresholds configured for a new zone, enable effective `On-Demand' protection. Refer to Chapter 6, "On-Demand Protection," in the Cisco Guard User Guide for further details.
After learning the zone traffic characteristics, the Guard is ready to protect the zone. You may wish to wait for an external indication (from the Cisco Detector or any other means) of an attack before setting the Guard to protect the zone, or command the Guard to protect the zone right after completing the zone configuration. During the zone protection process, the Guard diverts the zone traffic and applies its protection policies.
When the Guard protection policies sense abnormal or malicious traffic (by means of threshold violation), they dynamically configure a set of filters (Dynamic Filters) to direct the traffic to the appropriate protection module according to the attack severity.
The Guard's protection can be activated in two operation modes:
•
•
The operation mode is configured for each zone separately. See the "Creating Zones and Basic Zone Configuration" section in "Zone Creation and Configuration," for further details.
The Cisco Guard system provides a series of tools for adjusting a zone's protection mechanism while protection is active.
Note
Protecting the Zone
After learning the zone traffic characteristics, the Guard is ready to protect the Zone. During the zone protection process, the Guard diverts the zone traffic and applies its protection policies.
Figure 7-1 Protection Menu
Activating Protection
To activate zone protection, perform one of the following:
•
•
Note
Refer to Chapter 6, "On Demand Protection," in the Cisco Guard User Guide for further details.
Deactivating Protection
To deactivate the zone's protection, perform one of the following:
•
•
Zone Protection Verification
You may wish, now, to view the zone status and verify that the protection process is functioning properly. View the zone counters.
To view the zone counters:
From the Zone main menu, select Diagnostics > Counters.
To verify whether an attack is in progress, check the following:
Malicious traffic rate is greater than zero.
To verify the zone protection is functioning properly while an attack is in progress, check the following:
•
•
In case there is no attack on the zone and no indications of suspicious traffic, the Guard designates all diverted traffic as legitimate traffic and forwards it on to the zone. The Legitimate traffic counter would then equal that of the Received traffic counter.
See "Zone Statistics and Diagnostics," for further details.
Dynamic Filters
The Guard analyses the diverted zone traffic in search of policy threshold violation. Once a policy threshold violation is observed, the Guard analyses results into a set of filters that are continuously adapted to the zone traffic and type of DDoS attack. This filter set consists of the Dynamic filters. Once abnormal traffic is detected, the Dynamic filter, by default, refers the Guard to the User filters to compare between the User filters suggested action and the Guard suggested protection. You may access the dynamic filters and configure them to your needs.
For a comprehensive overview of Dynamic filters, refer to Chapter 8, "Advanced Filter Procedures," in the Cisco Guard User Guide.
To view the Dynamic filters, perform one of the following:
•
•

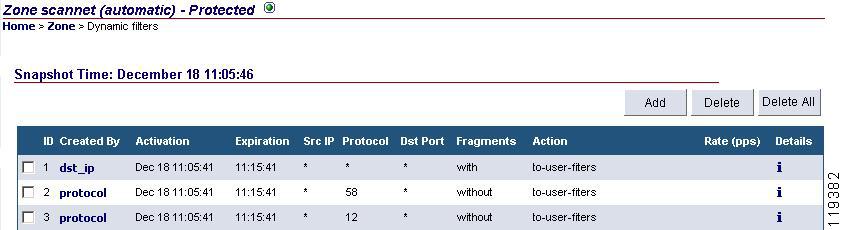

Figure 7-2 Dynamic Filters Table
The Dynamic filters table (Figure 7-2) displays the dynamic filters filtered according to the policy that created them.
The information in the table is related to the ongoing attack. The table includes the following information:
Indicates the policy that created the filter. Clicking on the policy name will display the Policy details (see the "Zone Policies" section in "Zone Traffic Learning and Policy Construction," for further details).
Indicates the date and time the filter was activated.
Indicates the filter expiration time. Once the filter expires, the Guard decides whether or not to deactivate the Dynamic filter that was produced by the policy according to the Dynamic filter termination criteria (see the "Dynamic Filter Termination" section for further details).
Indicates the source IP address the Dynamic filter is applied on.
Indicates the protocol number the Dynamic filter is applied on.
Indicates the destination port the Dynamic filter is applied on.
Indicates whether the attack stream contains fragmented packets.
Indicates the action taken by the filter. The following actions apply for the Dynamic filters:
•
•
•
•
•
•
•
Indicates the approximate attack rate.
Indicates whether additional information can be viewed for this filter. Click i for additional information.
A value of "*" for any of the parameters indicates one of the following:
•
•
To display detailed information on the filter:
Click i in the details column.
See the "Dynamic Filter Details" section for further details.
Dynamic Filter Termination
Once the Dynamic filter timeout expires, the Guard determines whether the Dynamic filter is to be inactivated. If the Guard decides not to deactivate the Dynamic filter, the filter's activation timeout resumes for another time span. The dynamic filters will be inactivated when one of the following applies:
•
•
–
–
See the "Creating Zones and Basic Zone Configuration" section in "Zone Creation and Configuration," for further details on threshold configuration.
Dynamic Filter Details
The Dynamic Filter Details provides detailed information on the dynamic filters.
To display the detected anomalies details table:
From the details column in the Dynamic Filter table, click i.
The Dynamic filter details screen (Figure 7-3) includes three tables:
•
•
Note
•

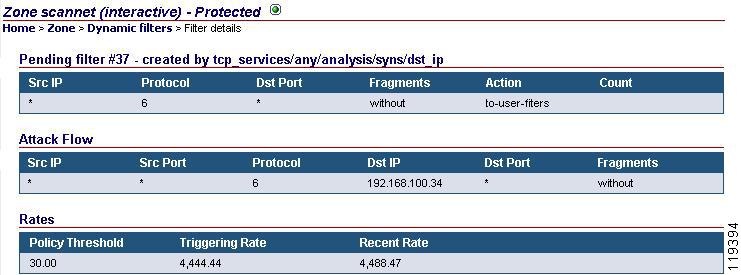

Figure 7-3 Dynamic Filter Details
Dynamic Filter Configuration
You may add or delete dynamic filters and configure them your needs.
Note
Deleting a Dynamic Filter
You may wish to delete a Dynamic filter.
To delete a Dynamic filter:
1.
2.
You may remove all Dynamic filters. The action is effective for a limited period of time since the Guard, being in Protection operation mode, continues to configure new Dynamic filters to adopt its protection to the dynamically changing traffic state.
Note
•
•
Adding a Dynamic Filter
To add a Dynamic filter:
In the Dynamic Filters Details Table (see Figure 7-2), click Add.
The Dynamic Filter Form is displayed.
Enter the following information to configure the Dynamic filter:
Directs traffic coming from a specified IP address to the Dynamic filter. Leave blank or enter * for `any'.
Directs traffic coming from a specified subnet to the Dynamic filter. Choose the subnet from the drop-down list.
Directs traffic from a specified protocol to the Dynamic filter. The protocol is denoted by the its well known number. Leave blank or enter * for `any'.
Directs traffic destined to a specified port to the Dynamic filter. Leave blank or enter * for `any'.
Denotes specified traffic type for the filter to operate on. Choose from the drop-down list one of the following:
•
•
•
Indicates the action the filter performs on the specified traffic type. Choose the action from the drop-down list:
•
•
•
•
•
•
•
Indicates the minimal time for the filter to be active (see the "Dynamic Filter Termination" section for further details).
Enter an integer to specify the desired time measured in seconds.
Leave Blank for unlimited time.
Note
Interactive Recommendations Mode
In the Interactive Recommendation mode, the Guard enables you to decide on the activation of the filters the policies launch. The Guard functions in accordance with your decision to accept or ignore the filter's activation. In this way, the Guard lets you decide on the production of its protection measures in real time. The Guard in an interactive mode enhances your control over the activation of the Guard's protective measures as a DDoS attack progresses.
The recommendations are a summary of the pending dynamic filters aggregated according to the policies that produced them. The Guard recommendation data consists of the policy name that recommended it, data on the traffic anomaly that resulted in policy activation, the number of pending filters and the recommended action.
For a comprehensive overview of the Interactive recommendations mode, refer to Chapter 10, "Interactive Recommendations Mode," in the Cisco Guard User Guide.
Note
1.
2.
3.
Activating the Interactive Recommendations Mode
The operation mode is a characteristic of a zone.
To activate the interactive recommendations mode:
1.
2.
3.
4.
See the "Creating Zones and Basic Zone Configuration" section in "Zone Creation and Configuration," for further details.
You may choose to end the interactive mode of operation at any time and thus return to the automatic operation mode. This results in the Guard disregarding the decisions made while in the interactive mode. The policies resume their role of automatically producing and activating their filters and automatically accept all pending Dynamic filters and recommendations.
Viewing New Recommendations
New recommendations are indicated by following icon.
The recommendations icon appears in the following locations:
•
•
•
•
When the Guard offers new recommendations, an additional indication is apparent in the form of a number of pending Dynamic filters that is greater than zero. This can be viewed in the Zone's status summary on the Zone's "home page" under Pending Dynamic filters.
To view new recommendations, perform one of the following:
•
•

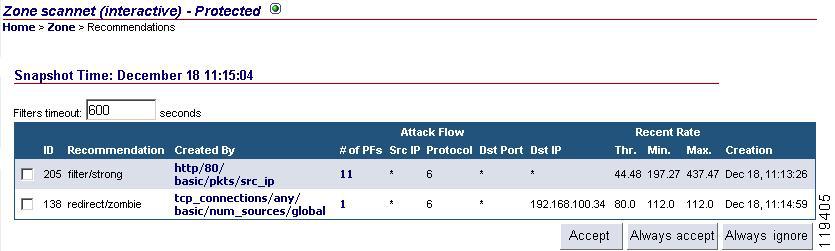

Figure 7-4 Recommendations
The Recommendations table provides the following information:
Indicates the protection recommendation ID number.
Indicates the recommended action.
Indicates the policy that created the filter. Click on the policy name to display the Policy details (see the "Configuring the Policy Operational Parameters" section in "Zone Traffic Learning and Policy Construction," for further details).
Indicates the number of pending Dynamic filters that constitute the recommendation.
Each pending filter was created as a result of traffic flow that violated the policy threshold.
Click on the number to view the pending dynamic filters that constitute the recommendation.
Provides Information on the attack flow:
•
•
•
•
Indicates the policy threshold, in pps, that was violated.
Recent Rate:
Minimum attack rate measured in pps.
Note
Recent Rate:
Maximum attack rate measured in pps.
Note
The date and time the recommendation was created.
A value of "*" for any of the parameters indicates one of the following:
•
•
Deciding on the Guard's Recommendations
The Guard enables you to decide on its policy's recommendations. Your decisions determine whether a pending filter will be activated, and for how long, or deactivated. You may also instruct the Guard to automatically, always activate, a specific policy's pending filters. This results in the Guard no longer displaying that policy's filters for you to decide on.
You may, alternatively, decide to instruct the Guard to prevent a policy from producing recommendations (and their pending filters). To prevent a policy from producing recommendations, the policy should be disabled or inactivated. See the "Configuring the Policy Operational Parameters" section in "Zone Traffic Learning and Policy Construction," for further details.
As the DDoS attack continues and changes its characteristics, so the Guard's policies continue to produce recommendations that you will have to view and decide on. Alternatively, you may change the operation mode to automatic during the ongoing attack.
The Guard activates the Dynamic Filters (see the "Dynamic Filters" section in this chapter for further details) produced by the policies for at least a user-defined (Filters timeout) time span.
Note
To decide on the Guard's recommendations:
1.
2.
3.
The available actions are:
You may also decide to selectively accept Pending Dynamic filters as opposed to accepting the recommendation. See the "Pending Dynamic Filters" section in this chapter for further details.
Note
Pending Dynamic Filters
The pending Dynamic filters measure each flow that violated a threshold. Pending Dynamic filters that were produced by the same policy are shown as a single recommendation.
To view the Pending Dynamic filters:
Click on the number of pending filters ("# of PFs" column) in the recommendations table (see Figure 7-4).
Figure 7-5 Pending Dynamic Filters
The Pending Dynamic filters table (Figure 7-5) provides the following information:
Indicates the policy that created the filter. Clicking on the policy name will display the Policy details (See the "Zone Policies" section in "Zone Traffic Learning and Policy Construction," for further details.).
Indicates the date and time the filter was created.
Indicates the source IP address of the attack stream.
Indicates the protocol number of the attack stream.
Indicates the destination port of the attack stream.
Indicates whether the attack stream contains fragmented packets.
Indicates the action taken by the filter.
Indicates the current attack rate measured by the filter in pps.
Indicates the triggering rate. The approximate attack rate that triggered the production of the dynamic filter.
Indicates whether additional information is available for this filter. Click i for additional information.
A value of "*" for any of the parameters indicates one of the following:
•
•
Guard activates the Dynamic Filters (see the "Dynamic Filters" section in this chapter for further details) produced by the policies for at least a user-defined time span (filter timeout).
Note
To selectively accept a pending Dynamic filter:
1.
2.
3.
To display detailed information for the filter:
Click i in the details column.
See the "Pending Dynamic Filter Details" section for further details.
Pending Dynamic Filter Details
The pending Dynamic filter details includes three tables:
•
•
•
Figure 7-6 Pending Dynamic Filter Details
