Cisco CRS Carrier Routing System
Ethernet Physical Layer Interface Module Installation Note
Document Part Number: OL-6437-13
This document describes the various Ethernet physical layer interface modules (PLIMs) used in the Cisco CRS router Carrier Routing System 16-slot, 8-slot, and 4-slot line card chassis (LCC). It provides an overview of the different Ethernet PLIMs and provides instructions on how to remove and install a PLIM and its associated components.
Contents
This document contains the following sections:
•
Changes to This Document
•Important Information
•About Physical Layer Interface Modules
•1-GE PLIMs
•10-GE PLIMs
•40-GE PLIMs
•100-GE PLIMs
•How to Remove or Install a PLIM
•Verifying the Installation of a PLIM
•How to Remove or Install a PLIM Cable Management Bracket
•Before You Remove or Install a Transceiver Module
•About PLIM Impedance Carriers
•Regulatory, Compliance, and Safety Information
•Obtaining Documentation, Obtaining Support, and Security Guidelines
Changes to This Document
Table 1 lists the technical changes made to this document since it was first printed.
Table 1 Changes to This Document
Revision
|
Date
|
Change Summary
|
OL-6437-13
|
June 2013
|
Added information about replacing an SFP on a line card that uses an articulated bracket.
|
OL-6437-12
|
September 2012
|
Added information about the new 1-port 100-GE IPoDWDM PLIM and the new 2-port and 4-port 40-GE OTU3 CFP PLIMs.
|
OL-6347-11
|
May 2012
|
Added information about the CFP-100G-SR10 optical module on the Cisco CRS-3 Series Router platform.
This CFP-100G-SR10 optical module enables connection to the Cisco CRS-3 Series Router 1-port 100-GE PLIM using multimode fiber rather than only single mode fiber.
|
OL-6347-10
|
February 2012
|
Added information about the articulated cable bracket for the 20-port 1-GE FLEX PLIM and the 42-port 1-GE XFP PLIM to the "Removing a PLIM Cable Management Bracket" section and the "Installing a PLIM Cable Management Bracket" section.
|
OL-6347-09
|
June 2011
|
Added information about XFP power budgeting for the 20-port and 14-port 10-GE XFP PLIMs. Added information about additional 10-GE and DWDM XFP modules supported on the 20-port, 14-port, 8-port, and 4-port 10-GE XFP PLIMS.
|
OL-6347-08
|
November 2010
|
Added information about SPAs supported by the 20-port 1-GE FLEX PLIM and the 2-port 10-GE FLEX PLIM.
|
OL-6347-07
|
October 2010
|
Added information about new 20-port and 14-port 10-GE XFP PLIMs.
|
OL-6347-06
|
April 2010
|
Added information about new 8-port and 4-port 10-GE XFP PLIMs, and added optics information about XFP modules for the new PLIMs.
|
OL-6347-05
|
July 2009
|
Corrections were made to the 4-port 10-GE PLIM, 42-port 1-GE PLIM, 20-port 1-GE FLEX PLIM, and 2-port 10-GE FLEX PLIM.
|
OL-6437-04
|
February 2007
|
•Added information about the extended-wavelength GE optics module to the "Ethernet PLIMs" section and the "About PLIM Impedance Carriers" section.
•"Obtaining Documentation, Obtaining Support, and Security Guidelines" section replaced the "Obtaining Documentation" section.
|
OL-6437-03
|
July 2006
|
•Added information about the 4-port 10-GE WDMPHY PLIM to the "10-GE Tunable WDMPHY PLIM" section.
•Added cable management information to the "How to Remove or Install a PLIM Cable Management Bracket" section.
•Added optics information for all GE PLIMs to the "About PLIM Impedance Carriers" section.
|
OL-6437-02
|
March 2006
|
•Reorganized part numbers and related documentation into the "Important Information" section.
•Added information about DWDM optics modules to the "8-Port 10-GE PLIM with XENPAK Optics Modules" section.
•Corrected product number from XENPAK-10GB-LR to CRS-XENPAK10GB-LR.
•Revised Figure 20 to show more details.
•Removed cable management bracket information from the "Guidelines for Card Installation and Removal" section because that procedure is described in installation guides.
•The following changes were made in the "How to Remove or Install a PLIM Cable Management Bracket" section:
–Added Caution about using the shutdown command before removing a XENPAK module.
–Added the "Prerequisites" section to explain how to determine if an attenuator is needed.
–Term "slot" was changed to "port" in regard to the XENPAK receptacles. The DWDM XENPAK module is now shown in Figure 32.
•Added the "Reporting Security Problems in Cisco Products" section.
•Removed references to POS PLIMs.
|
OL-6437-01
|
November 2004
|
Initial release of the document.
|
Important Information
This section contains the following sections:
•Product Numbers
•Router Hardware Installation
•Cisco IOS XR Software Release Requirements
•Hardware Revision Requirements
•Related Documentation
Product Numbers
Table 2 lists the Cisco product numbers for the products to which this publication applies.
Table 2 PLIM Descriptions and Software and Hardware Compatibility
Name
|
Product Number
|
Description
|
Minimum Cisco IOS XR Release
|
Hardware Revision Number
|
1x100-GE IPoDWDM PLIM
|
1-100GE-DWDM/C
|
Cisco CRS 1-port 100-GE IP over DWDM PLIM
|
4.2.3
|
—
|
2x40-GE OTU3 CFP PLIM
|
2-40GE-L/OTN
|
Cisco CRS 2-port 40-GE CFP PLIM
|
4.2.3
|
—
|
4x40-GE OTU3 CFP PLIM
|
4-40GE-L/OTN
|
Cisco CRS 4-port 40-GE CFP PLIM
|
4.2.3
|
—
|
1x100-GE CFP PLIM
|
1X100GBE
|
Cisco CRS 1-port 100-GE CFP PLIM
|
4.0.0
|
—
|
20x10-GE XFP PLIM
|
20X10GBE-WL-XFP
|
Cisco CRS 20-port 10-GE WAN/LAN XFP PLIM
|
4.0.0
|
—
|
14x10-GE XFP PLIM
|
14X10GBE-WL-XFP
|
Cisco CRS 14-port 10-GE WAN/LAN XFP PLIM
|
4.0.0
|
—
|
8x10-GE XFP PLIM
|
8-10GBE-WL-XFP
|
Cisco CRS-1 8-port 10-GE WAN/LAN XFP PLIM
|
3.8.4
|
—
|
4x10-GE XFP PLIM
|
4-10GBE-WL-XFP
|
Cisco CRS-1 4-port 10-GE WAN/LAN XFP PLIM
|
3.8.4
|
—
|
4x10-GE PLIM
|
4-10GE=
|
Cisco CRS-1 4-port 10-GE PLIM
|
3.8.1
|
—
|
42x1-GE PLIM
|
42-1GE=
|
Cisco CRS-1 42-port 1-GE PLIM
|
3.8.1
|
—
|
20x1-GE-FLEX
|
20-1GE-FLEX=
|
Cisco CRS-1 20-port 1-GE Flexible Interface Module
|
3.8.1
|
—
|
2x10-GE FLEX
|
2-10GE-WL-FLEX
2-10GE-WL-FLEX=
|
2x10-GE WAN/LAN Flexible Interface Module
|
3.8.1
|
—
|
4x10-GE DWDM PLIM
|
4-10GE-ITU/C=
|
Cisco CRS-1 4-Port 10-GE (C-band) DWDM PLIM
|
3.3
|
73-10209-02 A0
|
8x10-GE XENPAK PLIM
|
8-10GBE=
|
8-port 10-GE PLIM using XENPAK optics modules:
•From 1 to 8 single-mode, 10-GE optics modules: CRS-XENPAK10GB-LR=
CRS-XENPAK10GB-LR+=
CRS-XENPAK10GB-ER+=
•From 1 to 4 DWDM optics modules:
DWDM-XENPAK-60.61= to DWDM-XENPAK-30.33=1
|
3.0
|
73-9231-08 A0
|
PLIM impedance carrier
|
CRS-INT-IMPEDANCE=
|
Blank card carrier for each empty PLIM slot (required for EMI compliance and cooling)
|
3.0
|
—
|
Router Hardware Installation
For hardware installation and configuration information for the Cisco CRS router, see the router hardware installation documents in the "Related Documentation" section. These documents include information on the router switch fabric and how it affects operation of the PLIM. They also include PLIM slot locations and other requirements.
The PLIMs described in this document are supported on the 16-slot, 8-slot, and 4-slot Cisco CRS line card chassis.
Cisco IOS XR Software Release Requirements
Table 2 lists the Cisco IOS XR releases that are compatible with the CRS PLIMs.
For software configuration information, see the Cisco IOS XR software configuration and command reference publications for the installed Cisco IOS XR release at:
http://www.cisco.com/en/US/products/ps5763/products_installation_and_configuration_guides_list.
html
See the Cisco IOS XR software release notes for additional software release information at:
http://www.cisco.com/en/US/products/ps5763/prod_release_notes_list.html
Hardware Revision Requirements
To ensure compatibility with the software, your Ethernet PLIM should have a specific hardware revision number. This number is printed on a label affixed to the component side of the PLIM. The hardware revision number can also be displayed using the show diag command. Minimum revision numbers are listed in Table 2.
Related Documentation
For complete planning, installation, and configuration information, see the documents for your chassis type (16-slot, 8-slot, or 4-slot) listed in this section. Cisco CRS router product documentation is available on line at:
http://www.cisco.com/univercd/cc/td/doc/product/core/crs/index.htm
Hardware Documents
•Cisco CRS Carrier Routing System 16-Slot Line Card Chassis Site Planning Guide
•Cisco CRS Carrier Routing System 8-Slot Line Card Chassis Site Planning Guide
•Cisco CRS Carrier Routing System 4-Slot Line Card Chassis Site Planning Guide
•Cisco CRS Carrier Routing System 16-Slot Line Card Chassis System Description
•Cisco CRS Carrier Routing System 8-Slot Line Card Chassis System Description
•Cisco CRS Carrier Routing System 4-Slot Line Card Chassis System Description
•Cisco CRS Carrier Routing System 16-Slot Line Card Chassis Unpacking, Moving, and Securing Guide (attached to the crate)
•Cisco CRS Carrier Routing System 8-Slot Line Card Chassis Unpacking, Moving, and Securing Guide (attached to the crate)
•Cisco CRS Carrier Routing System 4-Slot Line Card Chassis Unpacking, Moving, and Securing Guide (attached to the crate)
•Cisco CRS Carrier Routing System 16-Slot Line Card Chassis Installation Guide
•Cisco CRS Carrier Routing System 8-Slot Line Card Chassis Installation Guide
•Cisco CRS Carrier Routing System 4-Slot Line Card Chassis Installation Guide
•Regulatory Compliance and Safety Information for the Cisco CRS-1 Carrier Routing System (ships with the product)
Software Documents
For a complete listing of software documentation available for the Cisco CRS router, see About Cisco IOS XR Software Documentation for your release, available on line at:
http://www.cisco.com/en/US/products/ps5763/products_documentation_roadmaps_list.html
About Physical Layer Interface Modules
A physical layer interface module (PLIM) provides the packet interfaces for the routing system. Optics modules on the PLIM contain ports to which fiber-optic cables are connected. User data is received and transmitted through the PLIM ports and converted between the optical signals (used in the network) and the electrical signals (used by Cisco CRS router components).
Each PLIM is paired with a modular services card (MSC) through the chassis midplane. The MSC provides Layer 3 services for the user data, and the PLIM provides Layer 1 and Layer 2 services. An MSC can be paired with different PLIMs to provide a variety of packet interfaces and port densities (for example, OC-192c/STM-64c POS and 10-GE).
MSCs and PLIMs are installed on opposite sides of the line card chassis and mate through the chassis midplane. Each MSC and PLIM pair is installed in corresponding chassis slots in the chassis (on opposite sides of the chassis). The chassis midplane enables you to remove and replace an MSC without disconnecting the user cables on the PLIM.
The Cisco CRS router supports the following number of PLIMs for each chassis type. You can mix and match PLIM types in the chassis.
•The 16-slot chassis supports from 1 to 16 PLIMs.
•The 8-slot chassis supports from 1 to 8 PLIMs.
•The 4-slot chassis supports from 1 to 4 PLIMs.
For additional information about the operation of MSCs and PLIMs, see Cisco CRS-1 Carrier Routing System Line Card Chassis System Description for the 16-slot, 8-slot, or 4-slot chassis.
Ethernet PLIMs
Ethernet PLIMs provide data packet buffering, Layer 2 processing, and multiplexing and demultiplexing of the GE data streams, including processing for VLANs and back-pressure signals from the MSC. In addition, PLIMs include power and clocking components, voltage and temperature sensors, and an identification EEPROM that stores initial configuration and PLIM hardware information.
The Ethernet PLIMs all share the following features:
•ARPA, IEEE 802.2/SAP, and IEEE 802.3/SNAP encapsulation
•IEEE 802.x flow control
•IEEE 802.1q VLAN support (with jumbo frames)
•IEEE 802.1p tagging
•Source and destination MAC and VLAN accounting
•Online insertion and removal (OIR)
•Cisco IOS XR CLI, S1008P, XML, and Craft Works Interface (CWI) network management tools
•Compliance with network and industry standards
For additional features and specifications, see the data sheets at:
http://www.cisco.com/en/US/products/ps5763/products_data_sheets_list.html

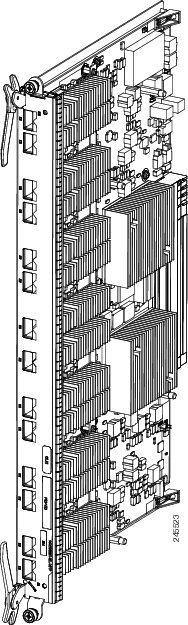

Figure 1 shows a typical PLIM. The 14-port 10-GE XFP PLIM is shown; other PLIMs are similar.
Figure 1 Typical PLIM—14-Port 10-GE XFP PLIM
The following sections provide information specific to the Ethernet PLIMs currently available for the Cisco CRS router:
•1-GE PLIMs
•10-GE PLIMs
•40-GE PLIMs
•100-GE PLIMs
1-GE PLIMs
This section provides information specific to the following 1-GE PLIMs:
•20-Port 1-GE Flex PLIM with SFP Optics Modules
•42-Port 1-GE PLIM with SFP Optics Modules
The following sections provide information about SFP optics modules:
•SFP Module Connections
•SFP Module Cabling and Connection Equipment
•Installing and Removing SFP Modules

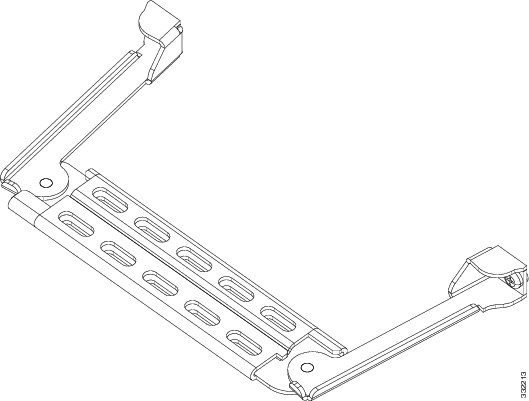

•Replacing a SFP on a Line Card that Uses an Articulated Bracket
20-Port 1-GE Flex PLIM with SFP Optics Modules
The 20-port 1-GE Flex PLIM supports from one to twenty pluggable SFP optics modules.
Ports and LEDs
The 20-port 1-GE Flex PLIM has the following LEDs:
•Status LED for the PLIM
•Port LEDs that indicate the port status
Figure 2 20-Port 1-GE Flex PLIM Front Panel
Table 3 describes the PLIM LEDs for the 20-Port 1-GE Flex PLIM.
Table 3 20-Port 1-GE Flex PLIM LED Descriptions
LED
|
State
|
Description
|
Status
|
Green
|
PLIM is properly seated and operating correctly.
|
Yellow
|
PLIM has a problem.
|
Off
|
PLIM is not properly seated or system power is off.
|
Port
|
On
|
Port is logically active and the laser is on.
|
Off
|
Port is not active.
|
Physical Characteristics
•Height—20.6 in. (52.3 cm)
•Depth—11.2 in. (28.5 cm)
•Width—1.8 in. (4.6 cm)
•Weight—8.6 lb (3.9 kg)
•Power consumption—150 W
The 20-Port 1-GE Flex PLIM has twenty electrical connectors that support SFP modules. Each port can send and receive traffic using cabling appropriate for the SFP module inserted.
20-Port 1-GE Flex PLIM SPA Support
The 20-Port 1-GE Flex PLIM provides 20 ports of IEEE 802.3-compliant GE interfaces and two available Cisco I-Flex shared port adapter (SPA) slots. These slots can support up to up to 2 additional half-height SPAs.
The SPAs supported in the two available Cisco I-Flex shared port adapter (SPA) slots can be Packet over SONET/SDH (PoS) or Ethernet. The following SPAs are supported:
•SPA-5X1GE-V2
•SPA-8X1GE
•SPA-8X1GE-V2
•SPA-10X1GE-V2
•SPA-1X10GE-L-V2
•SPA-1X10GE-WL-V2
•SPA-4XOC3-POS
•SPA-8XOC12-POS
•SPA-2XOC48POS/RPR
•SPA-4XOC48POS/RPR
•SPA-OC192POS-VSR
•SPA-OC192POS-XFP
Refer to the Installing and Removing a Shared Port Adapter chapter of the Cisco CRS-1 SIP and SPA Hardware Installation Guide online here: http://www.cisco.com/en/US/docs/interfaces_modules/shared_port_adapters/install_upgrade/crs/crs1/installation/guide/crsspain.html for instructions on replacing the SPAs.
Refer to the Overview: Cisco CRS-1 Shared Port Adapters chapter of the Cisco CRS-1 SIP and SPA Hardware Installation Guide online here: http://www.cisco.com/en/US/docs/interfaces_modules/shared_port_adapters/install_upgrade/crs/crs1/installation/guide/crsspaov.html for descriptions of each of the supported SPAs.
42-Port 1-GE PLIM with SFP Optics Modules
The 42-port 1-GE PLIM supports from one to forty two pluggable SFP optics modules.
Ports and LEDs
The 42-port 1-GE SFP PLIM has the following LEDs:
•Status LED for the PLIM
•Port LEDs that indicate the port status

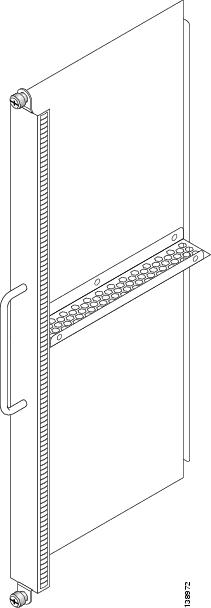

Figure 3 42-Port 1 GE SFP PLIM Front Panel
Table 4 describes the PLIM LEDs for the 42-Port 1-GE SFP PLIM.
Table 4 42-Port 1-GE PLIM LED Descriptions
LED
|
State
|
Description
|
Status
|
Green
|
PLIM is properly seated and operating correctly.
|
Yellow
|
PLIM has a problem.
|
Off
|
PLIM is not properly seated or system power is off.
|
Port
|
On
|
Port is logically active and the laser is on.
|
Off
|
Port is not active.
|
Physical Characteristics
•Height—20.6 in. (52.3 cm)
•Depth—11.2 in. (28.5 cm)
•Width—1.8 in. (4.6 cm)
•Weight—8.6 lb (3.9 kg)
•Power consumption—150 W
The interface connectors on the 42-port 1-GE SFP PLIM are eight individual fiber-optic receivers that support SFP modules. Each port can send and receive traffic using the optical fiber connections.
SFP Module Connections
The small form-factor pluggable (SFP) module is an input/output (I/O) device that plugs into the GE optical slots on the 20-Port 1-GE Flex PLIM or the 42-port 1-GE SFP PLIM, linking the port with a 1000BASE-X fiber-optic network.
Note The 20-Port 1-GE Flex PLIM and 42-port 1-GE SFP PLIM accept only the SFP modules listed as supported in this document. An SFP module check is run every time an SFP is inserted, and only SFP modules that pass this check can be used by the 20-port 1-GE PLIM or the 42-port 1-GE SFP PLIM.
SFP modules exist for technologies other than GE and for products other than the 20-Port 1-GE Flex PLIM and the 42-port 1-GE SFP PLIM. However, the information in this document pertains only to SFP modules that plug into the 20-Port 1-GE Flex PLIM or 42-port 1-GE SFP PLIM ports.

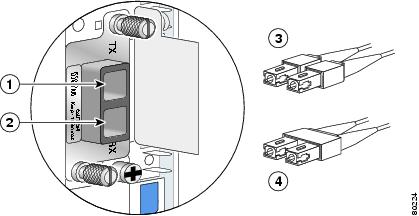

The SFP module has a receiver port (RX) and a transmitter port (TX) that compose one optical interface.
Table 5 and Table 6 provide SFP information and specifications.
Table 5 20-Port and 42-Port GE SFP Module Options
SFP Module Product Number
|
SFP Module
|
Description
|
SFP-GE-S
|
Short wavelength (1000BASE-SX)
|
Contains a Class 1 laser of 850 nm for 1000BASE-SX (short-wavelength) applications.
|
SFP-GE-L
|
Long wavelength/long haul (1000BASE-LX/LH)
|
Contains a Class 1 laser of 1310 nm for 1000BASE-LX/LH (long-wavelength) applications.
|
SFP-GE-Z
|
Extended wavelength (1000BASE-ZX)
|
Contains a Class 1 laser of 1550 nm for 1000BASE-ZX (extended-wavelength) applications.
|
Table 6 20-Port and 42-Port SFP Module Specifications
Specification
|
Description
|
Wavelength (nm)
|
SFP-GE-S: 770 to 860
SFP-GE-L: 1270 to 1355
SFP-GE-Z: 1500 to 1580
|
Cabling distance (maximum)
|
SFP-GE-S: 500 m on 50/125 micron MMF1 ; 300 m on 62.5/125 micron MMF
SFP-GE-L: 6.2 miles (10 km)
SFP-GE-Z: 49.7 miles (80 km)
|
Operating case temperature range
|
SFP-GE-S: 23 to 185 degrees F (-5 to 85 degrees C)
SFP-GE-L: 23 to 185 degrees F (-5 to 85 degrees C)
SFP-GE-Z: 23 to 185 degrees F (-5 to 85 degrees C)
|
Storage temperature range
|
SFP-GE-S: -40 to 185 degrees F (-40 to 85 degrees C)
SFP-GE-L: -40 to 185 degrees F (-40 to 85 degrees C)
SFP-GE-Z: -40 to 185 degrees F (-40 to 85 degrees C)
|
Supply voltage range
|
SFP-GE-S: 3.1 to 3.5 V
SFP-GE-L: 3.1 to 3.5 V
SFP-GE-Z: 3.1 to 3.5 V
|
SFP-GE-S Modules
The 1000BASE-SX (short-wavelength) module operates on standard multimode fiber-optic link spans of up to 500 m on 50/125 micron MMF (multimode fiber) and 300 m on 62.5/125 micron MMF.
SFP-GE-L Modules
The 1000BASE-LX/LH (long-wavelength/long-haul) module interfaces fully comply with the
IEEE 802.3z 1000BASE-LX standard. However, their higher optical quality allows them to reach 6.2 miles (10 km) over single-mode fiber (SMF) versus the 3.1 miles (5 km) specified in the standard.
SFP-GE-Z Modules
The 1000BASE-ZX (extended-wavelength) module operates on ordinary single-mode fiber-optic link spans of up to 49.7 miles (80 km). Link spans of up to 62.1 miles (100 km) are possible using premium single-mode fiber or dispersion-shifted single-mode fiber. (Premium single-mode fiber has a lower attenuation per unit length than ordinary single-mode fiber; dispersion-shifted single-mode fiber has both lower attenuation and less dispersion.)
The 1000BASE-ZX module must be coupled to single-mode fiber-optic cable, which is the type of cable typically used in long-haul telecommunications applications. The 1000BASE-ZX module does not operate correctly when coupled to multimode fiber, and it is not intended to be used in environments in which multimode fiber is frequently used (for example, building backbones or horizontal cabling).
The 1000BASE-ZX module is intended to be used as a Physical Medium Dependent (PMD) component for GE interfaces found on various switch and router products. It operates at a signaling rate of 1250 Mbaud, transmitting and receiving 8B/10B encoded data.
When shorter lengths of single-mode fiber are used, it may be necessary to insert an inline optical attenuator in the link to avoid overloading the receiver. Use the following guidelines:
•Insert a 10-dB inline optical attenuator between the fiber-optic cable plant and the receiving port on the 1000BASE-ZX module at each end of the link whenever the fiber-optic cable span is less than 15.5 miles (25 km).
•Insert a 5-dB inline optical attenuator between the fiber-optic cable plant and the receiving port on the 1000BASE-ZX module at each end of the link whenever the fiber-optic cable span is equal to or greater than 15.5 miles (25 km) but less than 31 miles (50 km).
SFP Module Cabling and Connection Equipment
Table 7 provides cabling specifications for the SFP modules that can be installed on the 20-Port 1-GE Flex PLIM and the 42-port 1-GE SFP PLIM. Note that all SFP ports have LC-type connectors.
The minimum cable distance for the SFP-GE-S is 6.5 feet (2 m), and the minimum link distance for the SFP-GE-Z is 6.2 miles (10 km) with an 8-dB attenuator installed at each end of the link. Without attenuators, the minimum link distance for the SFP-GE-Z is 24.9 miles (40 km).
Table 7 SFP Module Port Cabling Specifications for the 20-Port 1-GE Flex PLIM
SFP Modules
|
Wavelength (nm)
|
Fiber Type
|
Core Size (micron)
|
Modal Bandwidth (MHz/km)
|
Maximum
Cable Distance
|
SFP-GE-S
|
850
|
MMF1
|
62.5
|
160
|
722 ft (220 m)
|
| |
62.5
|
200
|
984 ft (300 m)
|
| |
50.0
|
400
|
1640 ft (500 m)
|
| |
50.0
|
500
|
1804 ft (550 m)
|
SFP-GE-L
|
1300
|
SMF
|
9/10
|
—
|
6.2 miles (10 km)
|
|
|
|
SFP-GE-Z
|
1550
|
SMF
|
9/10
|
—
|
49.7 miles (80 km)
|
| |
SMF2
|
8
|
—
|
62.1 miles (100 km)
|
Table 8 SFP Module Port Cabling Specifications for the 42-Port 1-GE SFP PLIM
SFP Modules
|
Wavelength (nm)
|
Fiber Type
|
Core Size (micron)
|
Modal Bandwidth (MHz/km)
|
Maximum
Cable Distance
|
SFP-GE-S
|
850
|
MMF1
|
62.5
|
160
|
722 ft (220 m)
|
| |
62.5
|
200
|
984 ft (300 m)
|
| |
50.0
|
400
|
1640 ft (500 m)
|
| |
50.0
|
500
|
1804 ft (550 m)
|
SFP-GE-L
|
1300
|
MMF2 and SMF
|
62.5
|
500
|
1804 ft (550 m)
|
| |
50.0
|
400
|
1804 ft (550 m)
|
| |
50.0
|
500
|
1804 ft (550 m)
|
| |
9/10
|
—
|
6.2 miles (10 km)
|
SFP-GE-Z
|
1550
|
SMF
|
9/10
|
—
|
49.7 miles (80 km)
|
| |
SMF3
|
8
|
—
|
62.1 miles (100 km)
|
Note The 1000BASE-ZX SFP modules provide an optical power budget of 21.5 dB. You should measure your cable plant with an optical loss test set to verify that the optical loss of the cable plant (including connectors and splices) is less than or equal to 21.5 dB. The optical loss measurement must be performed with a 1550-nm light source.
Installing and Removing SFP Modules
Before you remove or install an SFP module, read the installation information in this section and the safety information in the "Laser Safety" section.
Caution Protect the SFP modules by inserting clean dust covers into them after the cables are removed. Be sure to clean the optic surfaces of the fiber cables before you plug them back into the optical ports of another module. Avoid getting dust and other contaminants into the optical ports of your SFP modules, because the optics do not work correctly when obstructed with dust.
Caution It is strongly recommended that you do not install or remove the SFP module with fiber-optic cables attached to it because of the potential to damage the cable, the cable connector, or the optical interfaces in the module. Disconnect all cables before removing or installing the SFP module.
Removing and inserting an module can shorten its useful life, so you should not remove and insert modules any more often than is absolutely necessary.
SFP modules use one of four different latching devices to install and remove the module from a port. The four types of SFP module latching devices are described in the following sections:
•Bale Clasp SFP Module
•Mylar Tab SFP Module
•Actuator Button SFP Module
•Slide Tab SFP Module
Note When installing the SFP module, you should hear a click as the triangular pin on the bottom of the module snaps into the hole in the receptacle, indicating that the module is correctly seated and secured in the receptacle. Verify that the modules are completely seated and secured in their assigned receptacles on the line card by firmly pushing on each SFP module.
Bale Clasp SFP Module
The bale clasp SFP module has a clasp that you use to remove or install the module (see Figure 4).
Figure 4 Bale Clasp SFP Module
Installing a Bale Clasp SFP Module
To install this type of SFP module, follow these steps:
Step 1 Attach an ESD-preventive wrist or ankle strap and follow its instructions for use.
Step 2 Close the bale clasp before inserting the SFP module.
Step 3 Line up the SFP module with the port and slide it into the port (see Figure 5).

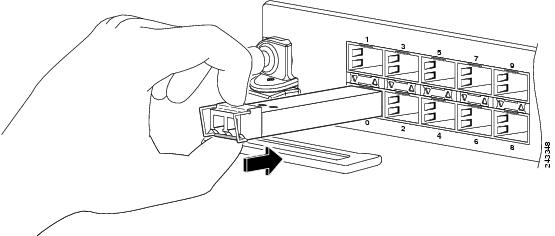

Figure 5 Installing a Bale Clasp SFP Module into a Port
Note When installing an SFP module, you should hear a click as the triangular pin on the bottom of the SFP module snaps into the hole in the receptacle, indicating that the module is correctly seated and secured in the receptacle. Verify that the SFP modules are completely seated and secured in their assigned receptacles on the line card by firmly pushing on each SFP module.

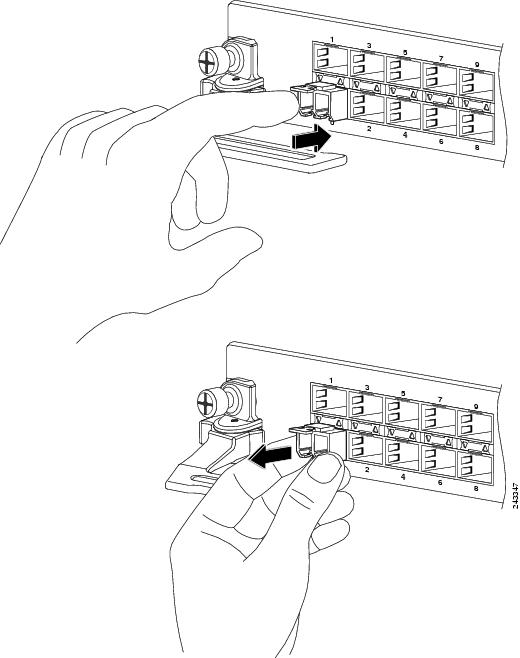

Removing a Bale Clasp SFP Module
To remove this type of SFP module, follow these steps:
Step 1 Attach an ESD-preventive wrist or ankle strap and follow its instructions for use.
Step 2 Disconnect and remove all interface cables from the ports; note the current connections of the cables to the ports on the line card.
Step 3 Open the bale clasp on the SFP module with your index finger in a downward direction, as shown in Figure 6. If the bale clasp is obstructed and you cannot use your index finger to open it, use a small flat-blade screwdriver or other long, narrow instrument to open the bale clasp.
Step 4 Grasp the SFP module between your thumb and index finger and carefully remove it from the port, as shown in Figure 6.

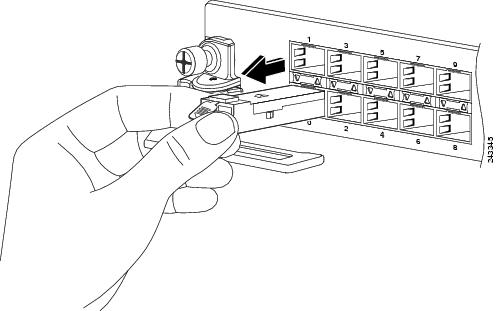

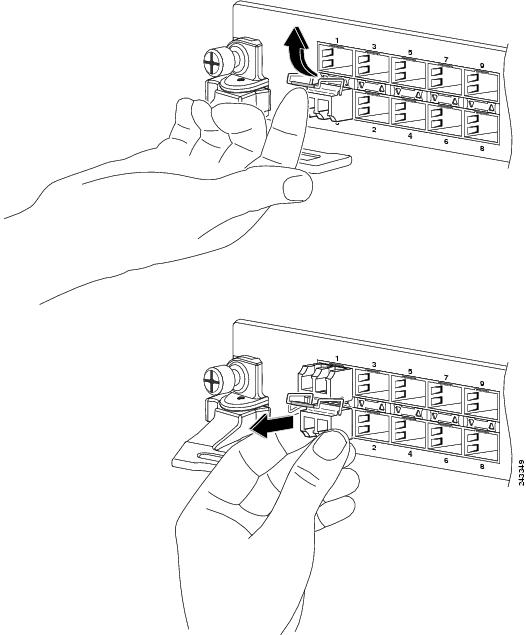

Figure 6 Removing a Bale Clasp SFP Module
Step 5 Place the removed SFP module on an antistatic mat, or immediately place it in a static shielding bag if you plan to return it to the factory.
Step 6 Protect your line card by inserting clean SFP module cage covers into the optical module cage when there is no SFP module installed.
Mylar Tab SFP Module
The mylar tab SFP module has a tab to pull to remove the module from a port (see Figure 7).
Figure 7 Mylar Tab SFP Module
Installing a Mylar Tab SFP Module
To install this type of SFP module, follow these steps:
Step 1 Attach an ESD-preventive wrist or ankle strap and follow its instructions for use.
Step 2 Line up the SFP module with the port, and slide it into place (see Figure 8).
Figure 8 Installing a Mylar Tab SFP Module
Note When installing an SFP module, you should hear a click as the triangular pin on the bottom of the SFP module snaps into the hole in the receptacle, indicating that the module is correctly seated and secured in the receptacle. Verify that the SFP modules are completely seated and secured in their assigned receptacles on the line card by firmly pushing on each SFP module.
Removing a Mylar Tab SFP Module
To remove this type of SFP module, follow these steps:
Step 1 Attach an ESD-preventive wrist or ankle strap and follow its instructions for use.
Step 2 Disconnect and remove all interface cables from the ports; note the current connections of the cables to the ports on the line card.
Step 3 Pull the tab gently in a slightly downward direction until it disengages from the port, then pull the SFP module out (see Figure 9).
Figure 9 Removing a Mylar Tab SFP Module
Step 4 Place the removed SFP module on an antistatic mat, or immediately place it in a static shielding bag if you plan to return it to the factory.
Step 5 Protect your line card by inserting clean SFP module cage covers into the optical module cage when there is no SFP module installed.
When pulling the tab to remove the SFP module, be sure to pull in a straight outward motion so you remove the SFP module from the port in a parallel direction. Do not twist or pull the tab, because you might disconnect it from the SFP module.
Actuator Button SFP Module
The actuator button SFP module includes a button that you push in order to remove the SFP module from a port (see Figure 10).
Figure 10 Actuator Button SFP Module
Installing an Actuator Button SFP Module
To install this type of SFP module, follow these steps:
Step 1 Attach an ESD-preventive wrist or ankle strap and follow its instructions for use.
Step 2 Line up the SFP module with the port and slide it in until the actuator button clicks into place (see Figure 11). Be sure not to press the actuator button as you insert the SFP module because you might inadvertently disengage the SFP module from the port.
Figure 11 Installing an Actuator Button SFP Module
Note When installing an SFP module, you should hear a click as the triangular pin on the bottom of the SFP module snaps into the hole in the receptacle, indicating that the module is correctly seated and secured in the receptacle. Verify that the SFP modules are completely seated and secured in their assigned receptacles on the line card by firmly pushing on each SFP module.
Removing an Actuator Button SFP Module
To remove this type of SFP module, follow these steps:
Step 1 Attach an ESD-preventive wrist or ankle strap and follow its instructions for use.
Step 2 Disconnect and remove all interface cables from the ports; note the current connections of the cables to the ports on the line card.
Step 3 Gently press the actuator button on the front of the SFP module until it clicks and the latch mechanism activates, releasing the SFP module from the port (see Figure 12).
Figure 12 Removing an Actuator Button SFP Module from a Port
Step 4 Grasp the actuator button between your thumb and index finger and carefully pull the SFP module from the port.
Step 5 Place the removed SFP module on an antistatic mat, or immediately place it in a static shielding bag if you plan to return it to the factory.
Step 6 Protect your line card by inserting clean SFP module cage covers into the optical module cage when there is no SFP module installed.
Slide Tab SFP Module
The slide tab SFP module has a tab underneath the front of the module that you use to disengage the module from a port (see Figure 13).
Figure 13 Slide Tab SFP Module
Installing a Slide Tab SFP Module
To install this type of SFP module into a line card, follow these steps:
Step 1 Attach an ESD-preventive wrist or ankle strap and follow its instructions for use.
Step 2 Line up the SFP module with the port and gently push on it until it snaps into the slot tightly (see Figure 14).
Figure 14 Installing a Slide Tab SFP Module
Note When installing an SFP module, you should hear a click as the triangular pin on the bottom of the SFP module snaps into the hole in the receptacle, indicating that the module is correctly seated and secured in the receptacle. Verify that the SFP modules are completely seated and secured in their assigned receptacles on the line card by firmly pushing on each SFP module.
Removing a Slide Tab SFP Module
To remove this type of SFP module, follow these steps:
Step 1 Attach an ESD-preventive wrist or ankle strap and follow its instructions for use.
Step 2 Disconnect and remove all interface cables from the ports; note the current connections of the cables to the ports on the line card.
Step 3 Grasp the SFP module between your thumb and index finger.
Step 4 With your thumb, push the slide tab on the bottom front of the SFP module in the direction of the line card to disengage the module from the line card port (see Figure 15).
Figure 15 Disengaging the Slide Tab
Step 5 With the tab still pushed, carefully pull the SFP module from the port as shown in Figure 16.
Caution You must disengage the SFP module by pushing on the slide tab before you can pull out the module. If you pull on the SFP module without disengaging the tab, you can damage the module.
Figure 16 Removing a Slide Tab SFP Module
Step 6 Place the removed SFP module on an antistatic mat, or immediately place it in a static shielding bag if you plan to return it to the factory.
Step 7 Protect your line card by inserting clean SFP module cage covers into the optical module cage when there is no SFP module installed.

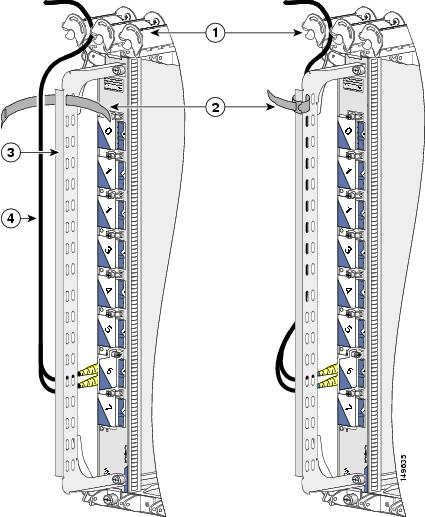

Replacing a SFP on a Line Card that Uses an Articulated Bracket
To replace a failed, defective, or retired SFP from a line card that is currently in service, and using an articulated cable management bracket, proceed as follows:

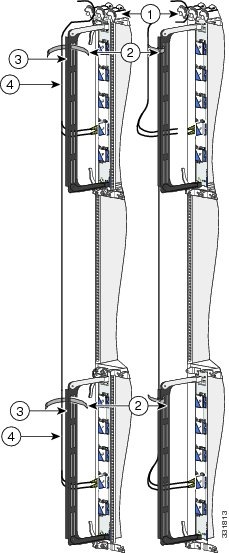

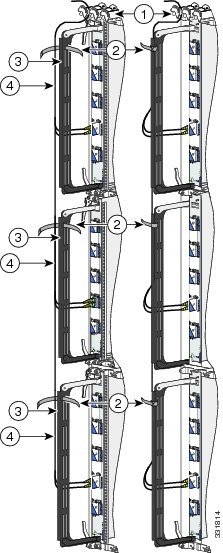

Step 1 For a line card with multiple articulated brackets, select the fibers to be removed from the bracket with the SFP to be removed.
For a line card with a single articulated bracket, begin with Step 2.
Step 2 Undo and remove the Velcro from the articulated bracket to release the fibers.
Step 3 From the physical location of the SFP to be removed, determine which end of the articulated bracket will be unscrewed:
•For the upper half of the line card, remove the top screw.
•For the lower half of the line card, remove the lower screw.
•If there is any interference with another installed bracket, choose the other screw location.
Step 4 Pivot the articulated bracket up or down, depending on which screw was removed.
Step 5 Label and disconnect the fibers from the port and put them aside.
Step 6 Remove the SFP.
Step 7 Replace with the new SFP (or a dust cap if the port is not going to be reused).
Step 8 Re-install the fibers that were removed in Step 5 per the labels.
Step 9 Pivot the articulated bracket back into position and secure.
Step 10 Re-dress and secure the fibers to the articulated bracket with Velcro.
10-GE PLIMs
This section provides information specific to the following 10-GE PLIMs:
•2-Port 10-GE Flex PLIM with XFP Optics Modules
•4-Port 10-GE PLIM with XENPAK Optics Modules
•4-Port 10-GE PLIM with XFP Optics Modules
•8-Port 10-GE PLIM with XENPAK Optics Modules
•8-Port 10-GE PLIM with XFP Optics Modules
•14-Port 10-GE PLIM with XFP Optics Modules
•20-Port 10-GE PLIM with XFP Optics Modules

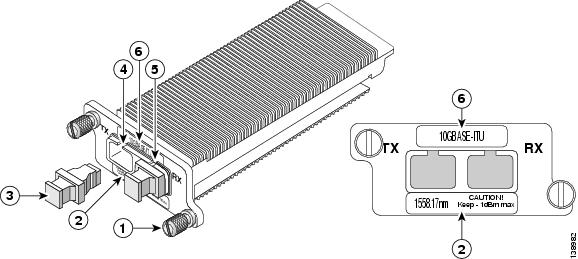

•10-GE PLIM with DWDM XENPAK Modules
•10-GE Tunable WDMPHY PLIM
The following sections provide information about XFP optics modules:
•Supported XFP Modules and Port Cabling Specifications
•XFP Optics Power Management
•Supported DWDM XFP Transceiver Modules
•Cabling and Specifications for 10-GE PLIMs
•How to Remove or Install a XENPAK Optics Module
•How to Remove or Install an XFP Module
2-Port 10-GE Flex PLIM with XFP Optics Modules
The 2-port 10-GE Flex PLIM supports from one to two pluggable XFP optics modules.
Supported XFP Optics Modules
•Single-mode short reach (SR) XFP module—XFP-10GLR-OC192SR
•Single-mode intermediate reach (IR) XFP module—XFP-10GER-OC192IR
•Single-mode very-long reach (ZR) XFP module—XFP-10GZR-OC192LR
Cisco qualifies the optics that are approved for use with its PLIMs.
Use a single-mode optical fiber that has a modal-field diameter of 8.7 ±0.5 microns (nominal diameter is approximately 10/125 micron) to connect your router to a network.
Ports and LEDs
The 2-port 10-GE Flex PLIM has:
•Two ports that accept XFP optics modules
•Status LED for the PLIM
•Port status LED for each port
Figure 17 shows the front panel of the 2-port 10-GE Flex PLIM.
Figure 17
2-Port 10-GE Flex PLIM front panel
1
|
Port Status LED
|
2
|
PLIM Status LED
|
Table 9 describes the PLIM LEDs for the 2-port 10-GE Flex PLIM.
Table 9 2-Port 10-GE Flex PLIM LED Descriptions
LED
|
State
|
Description
|
PLIM Status
|
Green
|
PLIM is properly seated and operating correctly.
|
Yellow
|
PLIM has a problem.
|
Off
|
PLIM is not properly seated or system power is off.
|
Port Status
|
On
|
Port is logically active and the laser is on.
|
Off
|
Port is not active.
|
Physical Characteristics
•Height—20.6 in. (52.3 cm)
•Depth—11.2 in. (28.5 cm)
•Width—1.8 in. (4.6 cm)
•Weight—8.4 lb (3.8 kg)
•Power consumption—33 W (with two optics modules)
2-Port 10-GE Flex PLIM SPA Support
The 2-Port 10-GE Flex PLIM provides two ports of IEEE 802.3ae-compliant 10 GE WAN/LAN-physical (PHY) layer interfaces and two available Cisco I-Flex shared port adapter (SPA) slots. These slots can support up to up to 2 additional half-height SPAs.
The SPAs supported in the two available Cisco I-Flex shared port adapter (SPA) slots can be Packet over SONET/SDH (PoS) or Ethernet. The following SPAs are supported:
•SPA-5X1GE-V2
•SPA-8X1GE
•SPA-8X1GE-V2
•SPA-10X1GE-V2
•SPA-1X10GE-L-V2
•SPA-1X10GE-WL-V2
•SPA-4XOC3-POS
•SPA-8XOC12-POS
•SPA-2XOC48POS/RPR
•SPA-4XOC48POS/RPR
•SPA-OC192POS-VSR
•SPA-OC192POS-XFP
Refer to the Installing and Removing a Shared Port Adapter chapter of the Cisco CRS-1 SIP and SPA Hardware Installation Guide online here: http://www.cisco.com/en/US/docs/interfaces_modules/shared_port_adapters/install_upgrade/crs/crs1/installation/guide/crsspain.html for instructions on replacing the SPAs.
Refer to the Overview: Cisco CRS-1 Shared Port Adapters chapter of the Cisco CRS-1 SIP and SPA Hardware Installation Guide online here: http://www.cisco.com/en/US/docs/interfaces_modules/shared_port_adapters/install_upgrade/crs/crs1/installation/guide/crsspaov.html for descriptions of each of the supported SPAs.
4-Port 10-GE PLIM with XENPAK Optics Modules
The 4-port 10-GE PLIM supports from one to four pluggable XENPAK optics modules, each providing full-duplex long-wavelength or extra-long-wavelength optics with subscriber connector (SC) fiber-optic interfaces.
Ports and LEDs
The 4-port 10-GE PLIM has:
•Four ports that accept XENPAK optics modules
•Status LED for the PLIM
•Port status LED for each port
Figure 18 shows the front panel of the 4-port 10-GE PLIM.
Figure 18 4-Port 10-GE PLIM front panel
Table 10 describes the PLIM LEDs for the 4-Port 10-GE XENPAK PLIM.
Table 10 4-Port 10-GE PLIM LED Descriptions
LED
|
State
|
Description
|
PLIM Status
|
Green
|
PLIM is properly seated and operating correctly.
|
Yellow
|
PLIM has a problem.
|
Off
|
PLIM is not properly seated or system power is off.
|
Port Status
|
On
|
Port is logically active and the laser is on.
|
Off
|
Port is not active.
|
Physical Characteristics
•Height—20.6 in. (52.3 cm)
•Depth—11.2 in. (28.5 cm)
•Width—1.8 in. (4.6 cm)
•Weight—8.4 lb (3.8 kg)
•Power consumption—75 W (with four optics modules)
4-Port 10-GE PLIM with XFP Optics Modules
The 4-port 10-GE XFP PLIM supports from one to four pluggable XFP optics modules.
Supported XFP Optics Modules
•Table 18 lists the XFP optical transceiver modules supported on the 4-port 10-GE XFP PLIM.
•Table 19 lists the DWDM XFP transceiver modules supported on the 4-port 10-GE XFP PLIM.
Cisco qualifies the optics that are approved for use with its PLIMs.
For the modules listed, use a single-mode optical fiber that has a modal-field diameter of 8.7 ±0.5 microns (nominal diameter is approximately 10/125 micron) to connect your router to a network.
Ports and LEDs
The 4-port 10-GE XFP PLIM has:
•Four ports that accept XFP optics modules
•Status LED for the PLIM
•LED for each port
Figure 19 shows the front panel of the 4-Port 10-GE XFP PLIM.
Figure 19 4-Port 10-GE XFP PLIM front panel
1
|
Port LED (one per port)
|
2
|
Status LED
|
Table 11 describes the PLIM LEDs for the 4-Port 10-GE XFP PLIM.
Table 11 4-Port 10-GE XFP PLIM LED Descriptions
LED
|
State
|
Description
|
Status
|
Green
|
PLIM is properly seated and operating correctly.
|
Yellow
|
PLIM has a problem.
|
Off
|
PLIM is not properly seated or system power is off.
|
Port
|
Green
|
Port is enabled by software and there is a valid link.
|
Yellow
|
Port LED is yellow under all other conditions not covered by green LED status.
|
Off
|
PLIM is not properly seated or system power is off.
|
Physical Characteristics
•Height—20.6 in. (52.3 cm)
•Depth—11.2 in. (28.5 cm)
•Width—1.8 in. (4.6 cm)
•Weight—8.4 lb (3.8 kg)
•Power consumption—74 W (with four optics modules)
8-Port 10-GE PLIM with XENPAK Optics Modules
The 8-port 10-GE PLIM supports from one to eight pluggable XENPAK optics modules, each providing full-duplex long-wavelength or extra-long-wavelength optics with subscriber connector (SC) fiber-optic interfaces. This PLIM is a Class 1 laser product.
 |
Warning Class 1 Laser Product. Statement 1008
|
Ports and LEDs
The 8-port 10-GE XENPAK PLIM has:
•Eight ports that accept XENPAK optics modules
•Status LED for the PLIM
•Port status LED for each port
Figure 20 shows the front panel of the 8-port 10-GE PLIM.

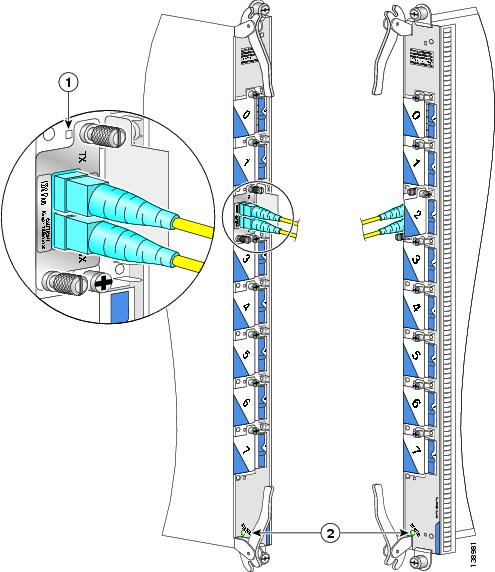

Figure 20 8-Port 10-GE PLIM Front Panel
1
|
Port 1 Status LED
|
2
|
PLIM Status LED
|
Table 12 describes the PLIM LEDs for the 8-Port 10-GE PLIM.
Table 12 8-Port 10-GE PLIM LED Descriptions
LED
|
State
|
Description
|
PLIM Status
|
Green
|
PLIM is properly seated and operating correctly.
|
Yellow
|
PLIM has a problem.
|
Off
|
PLIM is not properly seated or system power is off.
|
Port Status
|
On
|
Port is logically active and the laser is on.
|
Off
|
Port is not active.
|
Physical Characteristics
•Height—20.6 in. (52.3 cm)
•Depth—11.2 in. (28.5 cm)
•Width—1.8 in. (4.6 cm)
•Weight—8.4 lb (3.8 kg)
•Power consumption—150 W (with eight optics modules)
Oversubscription of 10-GE Ports
Processing on the 10-GE PLIM is performed by two PLIM hardware controllers, each of which can process up to 24 Gbps of traffic. Ports 0 to 3 are associated with one PLIM hardware controller, while ports 4 to 7 are associated with the second PLIM hardware controller. In addition, the PLIM ports are serviced by two MSC hardware controllers, the switching capacity of which is approximately 62 Mpps (million packets per second) each. Each MSC hardware controller is statically assigned to four of the eight ports.
Because of this PLIM design, the placement of the optics modules in the PLIM can greatly affect whether or not oversubscription occurs. For example, if modules are installed in ports 0 and 1, each interface has 10 Gbps of throughput. Adding another module in port 2 causes oversubscription on all interfaces (0, 1, and 2).
If your configuration cannot support oversubscription, use the following guidelines to determine the PLIM ports in which to install optics modules:
•Do not install more than four optics modules in each PLIM.
•Use the following port arrangements to provide optimal performance for up to four 10-GE interfaces in a 10-GE PLIM:
| |
Port Numbers
|
Option 1
|
0
|
2
|
5
|
7
|
Option 2
|
1
|
3
|
4
|
6
|
If your configuration can support oversubscription and you want to install more than four optics modules in a PLIM, we recommend that you install additional modules in empty ports, alternating between upper and lower ports and odd and even ports. For example, if you install a fifth optics module in an odd port in the upper set of ports (0 to 3), be sure to install the next module in an even port in the lower set of ports (4 to 7), and so on.
8-Port 10-GE PLIM with XFP Optics Modules
The 8-port 10-GE XFP PLIM supports from one to eight pluggable XFP optics modules.
Supported XFP Optics Modules
•Table 18 lists the XFP optical transceiver modules supported on the 8-port 10-GE XFP PLIM.
•Table 19 lists the DWDM XFP transceiver modules supported on the 8-port 10-GE XFP PLIM.
Cisco qualifies the optics that are approved for use with its PLIMs.
For the modules listed, use a single-mode optical fiber that has a modal-field diameter of 8.7 ±0.5 microns (nominal diameter is approximately 10/125 micron) to connect your router to a network.
Ports and LEDs
The 8-port 10-GE XFP PLIM has:
•Eight ports that accept XFP optics modules
•Status LED for the PLIM
•LED for each port
Figure 21 shows the front panel of the 8-Port 10-GE XFP PLIM.
Figure 21 8-Port 10-GE XFP PLIM front panel
1
|
Port LED (one per port)
|
2
|
Status LED
|
Table 13 describes the PLIM LEDs for the 8-Port 10-GE XFP PLIM.
Table 13 8-Port 10-GE XFP PLIM LED Descriptions
LED
|
State
|
Description
|
Status
|
Green
|
PLIM is properly seated and operating correctly.
|
Yellow
|
PLIM has a problem.
|
Off
|
PLIM is not properly seated or system power is off.
|
Port
|
Green
|
Port is enabled by software and there is a valid link.
|
Yellow
|
Port LED is yellow under all other conditions not covered by green LED status.
|
Off
|
PLIM is not properly seated or system power is off.
|
Physical Characteristics
•Height—20.6 in. (52.3 cm)
•Depth—11.2 in. (28.5 cm)
•Width—1.8 in. (4.6 cm)
•Weight—8.4 lb (3.8 kg)
•Power consumption—88 W (with eight optics modules)
14-Port 10-GE PLIM with XFP Optics Modules
The 14-port 10-GE XFP PLIM supports from one to fourteen pluggable XFP optics modules.
Supported XFP Optics Modules
Table 18 lists the XFP optical transceiver modules supported on the 14-port 10-GE XFP PLIM. Table 19 lists the DWDM XFP transceiver modules supported on the 14-port 10-GE XFP PLIM.
Cisco qualifies the optics that are approved for use with its PLIMs.
Note The 14-port XFP PLIM has a fixed power budget for the pluggable XFP optics. See "XFP Optics Power Management" section for detailed information.
For the modules listed, use a single-mode optical fiber that has a modal-field diameter of 8.7 ±0.5 microns (nominal diameter is approximately 10/125 micron) to connect your router to a network. Figure 22 shows the front panel of the 14-Port 10-GE XFP PLIMs.
Ports and LEDs
The 14-port 10-GE XFP PLIM has:
•Fourteen ports that accept XFP optics modules
•Status LED for the PLIM
•LED for each port
Figure 22 14-Port 10-GE XFP PLIM front panel
1
|
Port LED (one per port)
|
2
|
Status LED
|
Table 14 describes the PLIM LEDs for the 14-Port 10-GE XFP PLIM.
Table 14 14-Port 10-GE XFP PLIM LED Descriptions
LED
|
State
|
Description
|
PLIM Status
|
Green
|
PLIM is properly seated and operating correctly.
|
Yellow
|
PLIM is powered on, but initializing.
|
Off
|
PLIM is not properly seated, system power is off, or power up did not complete successfully.
|
Port
|
Green
|
Port is enabled by software and there is a valid link.
|
Yellow
|
Port LED is yellow under all other conditions not covered by green LED status.
|
Off
|
PLIM is not properly seated or system power is off.
|
Physical Characteristics
•Height—20.6 in (52.2 cm)
•Depth—11.2 in (28.4 cm)
•Width—1.8 in (4.49 cm)
•Weight—7.85 lbs (3.55 kg)
•Power consumption—150 W (115 W with no optics installed, 35 W optics budget)
20-Port 10-GE PLIM with XFP Optics Modules
The 20-port 10-GE XFP PLIM supports from one to twenty pluggable XFP optics modules.
Supported XFP Optics Modules
Table 18 lists the XFP optical transceiver modules supported on the 20-port 10-GE XFP PLIM. Table 19 lists the DWDM XFP transceiver modules supported on the 20-port 10-GE XFP PLIM.
Cisco qualifies the optics that are approved for use with its PLIMs.
Note The 20-port XFP PLIM has a fixed power budget for the pluggable XFP optics. See "XFP Optics Power Management" section for detailed information.
For the modules listed, use a single-mode optical fiber that has a modal-field diameter of 8.7 ±0.5 microns (nominal diameter is approximately 10/125 micron) to connect your router to a network.
Ports and LEDs
The 20-port 10-GE XFP PLIM has:
•Twenty ports that accept XFP optics modules
•Status LED for the PLIM
•Port status LED for each port
Figure 23 shows the front panel of the 20-Port 10-GE XFP PLIMs.
Figure 23 20-Port 10-GE XFP PLIM front panel
1
|
Port LED (one per port)
|
2
|
Status LED
|
Table 15 describes the PLIM LEDs for the 20-Port 10-GE XFP PLIM.
Table 15 20-Port 10-GE XFP PLIM LED Descriptions
LED
|
State
|
Description
|
PLIM Status
|
Green
|
PLIM is properly seated and operating correctly.
|
Yellow
|
PLIM is powered on, but initializing.
|
Off
|
PLIM is not properly seated, system power is off, or power up did not complete successfully.
|
Port
|
Green
|
Port is enabled by software and there is a valid link.
|
Yellow
|
Port LED is yellow under all other conditions not covered by green LED status.
|
Off
|
PLIM is not properly seated or system power is off.
|
Physical Characteristics
•Height—20.6 in (52.2 cm)
•Depth—11.2 in (28.4 cm)
•Width—1.8 in (4.49 cm)
•Weight—8.45 lb (3.82 kg)
•Power consumption—150 W (120 W with no optics installed, 30 W optics budget)
10-GE PLIM with DWDM XENPAK Modules
In addition to 10-GE modules, the 10-GE PLIM supports from one to four pluggable dense wavelength-division multiplexing (DWDM) XENPAK optics modules, each providing full-duplex long-wavelength DWDM optics with SC fiber-optic interfaces. See the "8-Port 10-GE PLIM with XENPAK Optics Modules" section for general information about the PLIM.
When using DWDM optics modules on your 10-GE PLIM, an empty slot must exist next to each installed DWDM module to provide optimal cooling for the DWDM optics. For this reason, you can install up to four DWDM XENPAK modules in the 10-GE PLIM. Given this restriction and to optimize the PLIM for oversubscription, you should use port positions 0, 2, 5, and 7.
Caution One to four DWDM XENPAK modules can be installed. If one DWDM XENPAK module is installed, a
maximum of four XENPAK modules can be installed in the PLIM.
Table 16 lists the part numbers and frequencies of the DWDM XENPAK optics modules that are compatible with the 10-GE PLIM.
Table 16 DWDM XENPAK Optics Modules
Part Number
|
Frequency (THz)
|
|
DWDM-XENPAK-30.33
|
195.9
|
1530.33
|
DWDM-XENPAK-31.12
|
195.8
|
1531.12
|
DWDM-XENPAK-31.90
|
195.7
|
1531.90
|
DWDM-XENPAK-32.68
|
195.6
|
1532.68
|
DWDM-XENPAK-34.25
|
195.4
|
1534.25
|
DWDM-XENPAK-35.04
|
195.3
|
1535.04
|
DWDM-XENPAK-35.82
|
195.2
|
1535.82
|
DWDM-XENPAK-36.61
|
195.1
|
1536.61
|
DWDM-XENPAK-38.19
|
194.9
|
1538.19
|
DWDM-XENPAK-38.98
|
194.8
|
1538.98
|
DWDM-XENPAK-39.77
|
194.7
|
1539.77
|
DWDM-XENPAK-40.56
|
194.6
|
1540.56
|
DWDM-XENPAK-42.14
|
194.4
|
1542.14
|
DWDM-XENPAK-42.94
|
194.3
|
1542.94
|
DWDM-XENPAK-43.73
|
194.2
|
1543.73
|
DWDM-XENPAK-44.53
|
194.1
|
1544.53
|
DWDM-XENPAK-46.12
|
193.9
|
1546.12
|
DWDM-XENPAK-46.92
|
193.8
|
1546.92
|
DWDM-XENPAK-47.72
|
193.7
|
1547.72
|
DWDM-XENPAK-48.51
|
193.6
|
1548.51
|
DWDM-XENPAK-50.12
|
193.4
|
1550.12
|
DWDM-XENPAK-50.92
|
193.3
|
1550.92
|
DWDM-XENPAK-51.72
|
193.2
|
1551.72
|
DWDM-XENPAK-52.52
|
193.1
|
1552.52
|
DWDM-XENPAK-54.13
|
192.9
|
1554.13
|
DWDM-XENPAK-54.94
|
192.8
|
1554.94
|
DWDM-XENPAK-55.75
|
192.7
|
1555.75
|
DWDM-XENPAK-56.55
|
192.6
|
1556.55
|
DWDM-XENPAK-58.17
|
192.4
|
1558.17
|
DWDM-XENPAK-58.98
|
192.3
|
1558.98
|
DWDM-XENPAK-59.79
|
192.2
|
1559.79
|
DWDM-XENPAK-60.61
|
192.1
|
1560.61
|
10-GE Tunable WDMPHY PLIM
The 4-port 10-GE WDMPHY PLIM provides four 10-GE dense wavelength-division multiplexing (DWDM) interfaces that support both G.709 Generic Forward Error Correction (GFEC) and high-gain Enhanced Forward Error Correction (EFEC) and extend reach up to 2000 km without requiring signal regeneration. The 4-port 10-GE WDMPHY PLIM is also completely tunable across the C band with 50-GHz spacing and supports router-to-router SONET/SDH-like OAMP.
The 4-port 10-GE WDMPHY PLIM provides four 10-GE DWDM lucent connector (LC) fiber-optic interfaces. This PLIM is a Class 1 laser product.
|
Warning Class 1 Laser Product. Statement 1008
|
Ports and LEDs
The 4-port 10-GE WDMPHY PLIM has the following LEDs:
•Status LED for the PLIM
•Three port LEDs that indicate the port status

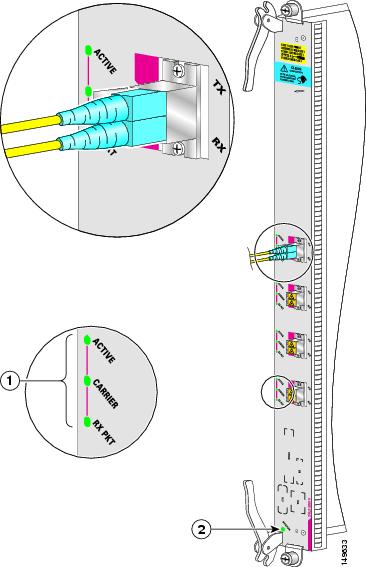

Figure 24 shows the front panel of the 4-port 10-GE WDMPHY PLIM.
Figure 24 4-Port 10-GE WDMPHY PLIM Front Panel
Table 17 describes the PLIM LEDs for the 10-GE WDMPHY PLIM.
Table 17 10-GE WDMPHY PLIM LED Descriptions
LED
|
State
|
Description
|
Status
|
Green
|
PLIM is properly seated and operating correctly.
|
Yellow
|
PLIM has a problem.
|
Off
|
PLIM is not properly seated or system power is off.
|
Active
|
Green
|
Interface is up.
|
Off
|
Interface is down.
|
Carrier
|
On
|
No error indicated.
|
Off
|
OTN loss of frame (LOF) if G.709 is enabled; loss of block lock if G.709 is disabled.
|
Rx Pkt
|
Green (flashing)
|
Packets are being received on the port.
|
Off
|
No packets are being received on the port.
|
Physical Characteristics
•Height—20.6 in. (52.3 cm)
•Depth—11.2 in. (28.5 cm)
•Width—1.8 in. (4.6 cm)
•Weight—8.6 lb (3.9 kg)
•Power consumption—150 W
Supported XFP Modules and Port Cabling Specifications
Table 18 lists the XFP modules supported on the 8-port 10-GE XFP, 4-port 10-GE XFP, 20-port 10-GE XFP, and 14-port 10-GE XFP PLIMs, and provides cabling specifications.
Table 18 Supported XFP Modules and Port Cabling Specifications
Part Number
|
Description
|
Wavelength (nm)
|
Fiber Type
|
Typical Maximum Distance
|
XFP-10G-MM-SR, V02
|
Multirate 10GBASE-SR
|
850
|
MMF
|
85.3 to 984.3 feet
(26 m to 300 m)
|
XFP10GLR-192SR-L, V01
|
Low Power multirate XFP supporting 10GBASE-LR and OC-192 SR
|
1310
|
SMF
|
6.213 miles
(10 km)
|
XFP10GER-192IR-L, V01
|
Low Power multirate XFP supporting 10GBASE-ER and OC-192 IR
|
1550
|
SMF
|
24.85 miles
(40 km)
|
XFP-10G-ZR-OC192LR, V03
|
Multirate 10GBASE-ZR and OC-192/STM-64 LR-2 XFP
|
1550
|
SMF
|
49.70 miles (80 km)
|
XFP Optics Power Management
The 20- and 14-port XFP PLIMs have a fixed power budget for the pluggable XFP optics:
•The 20-port 10-GE XFP PLIM has a power budget of 30 watts. It can have all 20 ports filled with XFP10GLR-192SR-L V01 (10KM -> 1.5W) XFPs. If you use optics other than SR, such as XFP10GER-192IR-L V01 (40KM -> 2.5W) XFPs you must be careful not to exceed the power budget, which may result in some ports remaining unpowered. Also, unsupported optics will not power up. Cisco IOS XR software enables the ports in a sequence that allows the configuration to remain within the optics power budget.
•The 14-port 10-GE XFP PLIM has a power budget of 30 watts. You can have all 14 ports filled with a combination of SR (1.5W) 10km XFPs and LR (2.5W) 40km XFPs. If you use optics other than SR or LR, you must be careful not to exceed the power budget, which may result in some ports remaining unpowered. Cisco IOS XR software enables the ports in a sequence that allows the configuration to remain within the optics power budget.
•For more details on how the software controls PLIM power consumption, see Cisco IOS XR Interface and Hardware Component Command Reference for the Cisco CRS Router.
The XFP pluggable optics for the 20- and 14-port XFP PLIMs have different power consumptions based on their reach and type. The number of XFPs which will power up in a PLIM depends on their aggregate power consumption within the allocated power budget.
During XFP insertion, the power is allotted to the optics based on the insertion order of the XFPs. On boot up and reload, priority is re-assigned to the lower numbered ports.
The recommended insertion sequence is to alternate between inserting XFPs in lowest numbered ports for each interface device driver ASIC to avoid oversubscription. The insertion order for a 20 Port PLIM would be "0,10,1,11,2,12,...9,19." For a 14 Port PLIM, insertion order would be "0,7,1,8,...6,13."
If the PLIM power budget is exceeded, a console log message is displayed informing the user the power budget has been exceeded and to remove the XFP:
plim_[x]ge: %L2-PLIM-6-NO_POWER_XFP : Port <port number>, Not enough power available
to power XFP, powering off
Any unpowered XFPs should be removed to ensure that the same XFPs that were powered before a reload are the same XFPs that are powered after a reload. Removing the unpowered XFPs prevents the powered down XFPs being given priority after the reload.
A show command is provided to indicate how much of the XFP power budget is currently used and how much power an XFP is consuming:
show controllers tenGigE 0/3/0/0 internal
Supported DWDM XFP Transceiver Modules
Table 19 lists the DWDM XFP transceiver modules supported on the 8-port 10-GE XFP, 4-port 10-GE XFP, 20-port 10-GE XFP, and 14-port 10-GE XFP PLIMs, and provides center wavelength, frequency, and channel numbering specifications.
Table 19 Supported DWDM XFP Transceivers
Part Number
|
Description
|
Channel ID
|
Frequency (THz)
|
Center Wavelength (nm)
|
DWDM-XFP-60.61 V02
|
Cisco 10GBASE-DWDM 1560.61 nm XFP (100 GHz ITU grid)
|
4
|
192.1
|
1560.61
|
DWDM-XFP-59.79 V02
|
Cisco 10GBASE-DWDM 1559.79 nm XFP (100 GHz ITU grid)
|
6
|
192.2
|
1559.79
|
DWDM-XFP-58.98 V02
|
Cisco 10GBASE-DWDM 1558.98 nm XFP (100 GHz ITU grid)
|
8
|
192.3
|
1558.98
|
DWDM-XFP-58.17 V02
|
Cisco 10GBASE-DWDM 1558.17 nm XFP (100 GHz ITU grid)
|
10
|
192.4
|
1558.17
|
DWDM-XFP-56.55 V02
|
Cisco 10GBASE-DWDM 1556.55 nm XFP (100 GHz ITU grid)
|
14
|
192.6
|
1556.55
|
DWDM-XFP-55.75 V02
|
Cisco 10GBASE-DWDM 1555.75 nm XFP (100 GHz ITU grid)
|
16
|
192.7
|
1555.75
|
DWDM-XFP-54.94 V02
|
Cisco 10GBASE-DWDM 1554.94 nm XFP (100 GHz ITU grid)
|
18
|
192.8
|
1554.94
|
DWDM-XFP-54.13 V02
|
Cisco 10GBASE-DWDM 1554.13 nm XFP (100 GHz ITU grid)
|
20
|
192.9
|
1554.13
|
DWDM-XFP-52.52 V02
|
Cisco 10GBASE-DWDM 1552.52 nm XFP (100 GHz ITU grid)
|
24
|
193.1
|
1552.52
|
DWDM-XFP-51.72 V02
|
Cisco 10GBASE-DWDM 1551.72 nm XFP (100 GHz ITU grid)
|
26
|
193.2
|
1551.72
|
DWDM-XFP-50.92 V02
|
Cisco 10GBASE-DWDM 1550.92 nm XFP (100 GHz ITU grid)
|
28
|
193.3
|
1550.92
|
DWDM-XFP-50.12 V02
|
Cisco 10GBASE-DWDM 1550.12 nm XFP (100 GHz ITU grid)
|
30
|
193.4
|
1550.12
|
DWDM-XFP-48.51 V02
|
Cisco 10GBASE-DWDM 1548.51 nm XFP (100 GHz ITU grid)
|
34
|
193.6
|
1548.51
|
DWDM-XFP-47.72 V02
|
Cisco 10GBASE-DWDM 1547.72 nm XFP (100 GHz ITU grid)
|
36
|
193.7
|
1547.72
|
DWDM-XFP-46.92 V02
|
Cisco 10GBASE-DWDM 1546.92 nm XFP (100 GHz ITU grid)
|
38
|
193.8
|
1546.92
|
DWDM-XFP-46.12 V02
|
Cisco 10GBASE-DWDM 1546.12 nm XFP (100 GHz ITU grid)
|
40
|
193.9
|
1546.12
|
DWDM-XFP-44.53 V02
|
Cisco 10GBASE-DWDM 1544.53 nm XFP (100 GHz ITU grid)
|
44
|
194.1
|
1544.53
|
DWDM-XFP-43.73 V02
|
Cisco 10GBASE-DWDM 1543.73 nm XFP (100 GHz ITU grid)
|
46
|
194.2
|
1543.73
|
DWDM-XFP-42.94 V02
|
Cisco 10GBASE-DWDM 1542.94 nm XFP (100 GHz ITU grid)
|
48
|
194.3
|
1542.94
|
DWDM-XFP-42.14 V02
|
Cisco 10GBASE-DWDM 1542.14 nm XFP (100 GHz ITU grid)
|
50
|
194.4
|
1542.14
|
DWDM-XFP-40.56 V02
|
Cisco 10GBASE-DWDM 1540.56 nm XFP (100 GHz ITU grid)
|
54
|
194.8
|
1540.56
|
DWDM-XFP-39.77 V02
|
Cisco 10GBASE-DWDM 1539.77 nm XFP (100 GHz ITU grid)
|
56
|
194.7
|
1539.77
|
DWDM-XFP-38.98 V02
|
Cisco 10GBASE-DWDM 1539.98 nm XFP (100 GHz ITU grid)
|
58
|
194.8
|
1539.98
|
DWDM-XFP-38.19 V02
|
Cisco 10GBASE-DWDM 1538.19 nm XFP (100 GHz ITU grid)
|
60
|
194.9
|
1538.19
|
DWDM-XFP-36.61 V02
|
Cisco 10GBASE-DWDM 1536.61 nm XFP (100 GHz ITU grid)
|
64
|
195.1
|
1536.61
|
DWDM-XFP-35.82 V02
|
Cisco 10GBASE-DWDM 1535.82 nm XFP (100 GHz ITU grid)
|
66
|
195.2
|
1535.82
|
DWDM-XFP-35.04 V02
|
Cisco 10GBASE-DWDM 1535.04 nm XFP (100 GHz ITU grid)
|
68
|
195.3
|
1535.04
|
DWDM-XFP-34.25 V02
|
Cisco 10GBASE-DWDM 1534.25 nm XFP (100 GHz ITU grid)
|
70
|
195.4
|
1534.25
|
DWDM-XFP-32.68 V02
|
Cisco 10GBASE-DWDM 1532.68 nm XFP (100 GHz ITU grid)
|
74
|
195.6
|
1532.68
|
DWDM-XFP-31.90 V02
|
Cisco 10GBASE-DWDM 1531.90 nm XFP (100 GHz ITU grid)
|
76
|
195.7
|
1531.90
|
DWDM-XFP-31.12 V02
|
Cisco 10GBASE-DWDM 1531.12 nm XFP (100 GHz ITU grid)
|
78
|
195.8
|
1531.12
|
DWDM-XFP-30.33 V02
|
Cisco 10GBASE-DWDM 1530.33 nm XFP (100 GHz ITU grid)
|
80
|
195.5
|
1530.33
|
Cabling and Specifications for 10-GE PLIMs
The following sections provide information about specifications and cabling for 10-GE Ethernet PLIMs:
•Specifications for 10-GE XENPAK Interfaces
•Specifications for 10-GE DWDM XENPAK Interfaces
•Specifications for 10-GE DWDM Tunable Interfaces
•Cabling a 10-GE XFP Transceiver
•About Fiber-Optic Interface Cables
•Removing and Installing Fiber-Optic Interface Cables
•Cleaning Fiber-Optic Connectors
Specifications for 10-GE XENPAK Interfaces
The 10-GE XENPAK optics modules use single-mode fiber-optics with SC connectors. The maximum distance for single-mode installations is determined by the amount of light loss in the fiber path. If your environment requires the light to travel close to the typical maximum distance (as listed in Table 20), you should use an optical time domain reflectometer (OTDR) to measure the power loss.
Two types of 10-GE XENPAK interfaces are available: long wavelength, 1310 nanometers (nm), and extra-long wavelength, 1550 nm.
Table 20 lists the specifications for the 10-GE XENPAK interfaces. The actual distance in any given case depends on the quality of the fiber connected to the transceiver.
Table 20 10-GE XENPAK Optics Specifications
Specification
|
Long Wavelength
|
Extra Long Wavelength
|
Target distance
|
6.2 miles (10 km)
|
24.8 miles (40 km)1 ,2
|
Operating Wavelength Range
|
1260-1355 nm
|
1530-1565 nm
|
Transmitter
|
|
Transmit optical power range
|
-8.2 to +0.5 dBm
|
-4.7 to +4.0 dBm
|
Receiver
|
|
Receive optical power range
|
-14.4 to +0.5 dBm
|
-15.8 to -1.0 dBm
|
Optical Link
|
|
Fiber type
|
G.652 (single-mode fiber [SMF])
|
G.652 (SMF)
|
Optical power budget
|
9.4 dB
|
15 dB
|
Compliance
|
IEEE 802.3ae 10GBASE-LR
|
IEEE 802.3ae 10GBASE-ER
|
Tip The abbreviation dBm (decibel) indicates dB referenced to 1.0 milliwatt. One milliwatt is zero dBm.
Specifications for 10-GE DWDM XENPAK Interfaces
The 10-GE DWDM XENPAK optics modules use single-mode fiber-optics with SC connectors. When the input power is more than the maximum receive power, you need an attenuator installed in the RX port to bring the optical power to the receiver to the correct range.
The 10-GE DWDM XENPAK interfaces are long-wavelength, 1310 nanometers (nm).
Table 21 lists the specifications of the 10-GE DWDM XENPAK interfaces.
Table 21 10-GE DWDM XENPAK Optics Specifications
Specification
|
Value
|
Transmitter
|
Spectral width1
|
0.2 nm
|
Transmit optical power range
|
-1 to +3 dBm
|
Side-mode suppression ratio (SMSR)
|
30 dB
|
Transmitter extinction ratio (OMI)
|
9 dB
|
Receiver
|
Receiver optical input wavelength
|
1530 to 1565 nm
|
Receiver damage threshold
|
-1 dBm
|
Dispersion tolerance
|
-500 to 1600 ps/nm
|
Receive optical power range2
|
-24 to -7 dBm
|
Caution Input optical power to the XENPAK module must be less than -1 dBm to avoid damaging the receiver.
Caution Never connect a fiber loopback to the TX and RX ports without an attenuator. Use a 15 dB attenuator for direct fiber loopbacks.
Specifications for 10-GE DWDM Tunable Interfaces
Each 10-GE DWDM line interface provides one 10-Gbps, long-reach, ITU-compliant, 50-GHz-spaced optical interface using LC connectors supporting 10-GE LAN PHY interfaces. The output line interface is tunable across 82 adjacent 50-GHz wavelengths, enabling support for C-Band DWDM networks. Table 22 lists the optics specifications of the interfaces on the 10-GE WDMPHY PLIM.
Table 22 10-GE WDMPHY PLIM Optics Specifications
Specification
|
Value
|
Nominal wavelengths (lambdaTnom)
|
C-Band Unit: Fully tunable from 1529.55 to 1561.84
|
Spectral range (lambdaTmin to lambdaTmax)
|
1530 to 1561 nm
|
Spectral width at 20dB (lambda delta20)
|
25 GHz
|
Optical Transmitter
|
Type
|
Lithium niobate external modulator
|
Output power (PTmin to PTmax)
|
+3 dBm, +6 dBm
|
Required optical return loss, minimum (ORLmin)
|
27 dB
|
Extinction ratio, minimum (reminx)
|
>10.5 dB
|
Optical Receiver
|
Type
|
Avalanche photo diode (APD)
|
Chromatic dispersion tolerance (DLRmax)
|
Up to ±1200 ps/nm (2 dB penalty)
|
Reflectance between far-end TX and near-end RX (maximum)
|
-27 dB
|
Receiver reflectance (maximum)
|
-14 dB
|
Input wavelength bandwidth (lambdac_rx)
|
1290 nm to 1605 nm
|
Table 23 indicates the optical performance of the 10-GE WDMPHY PLIM.
Table 23 Optical Performance of 10-GE WDMPHY PLIM
|
|
FEC Type
|
Pre-FEC BER
|
Post-FEC BER
|
Input Power Sensitivity
|
CD Tolerance
|
23 dB
|
OFF
|
Less than 10E-12
|
—
|
-8 to -20 dBm C-Band
|
±1200 ps/nm
|
19 dB
|
OFF
|
Less than 10E-12
|
—
|
-8 to -20 dBm C-Band
|
±1000 ps/nm
|
19 dB
|
OFF
|
Less than 10E-12
|
—
|
-8 to -22 dBm C-Band
|
—
|
10 dB
|
GFEC
|
Less than 10E-5
|
Less than 10E-15
|
-8 to -18 dBm
|
±800 ps/nm
|
8.5 dB
|
GFEC
|
Less than 10E-5
|
Less than 10E-15
|
-8 to -18 dBm
|
—
|
19 dB
|
EFEC
|
Less than 7 x 10E-4
|
Less than 10E-15
|
-8 to -26 dBm
|
±800 ps/nm
|
19 dB
|
EFEC
|
Less than 7 x 10E-4
|
Less than 10E-15
|
-8 to -27 dBm
|
—
|
7 dB
|
EFEC
|
Less than 7 x 10E-4
|
Less than 10E-15
|
-8 to -18 dBm
|
±800 ps/nm
|
5 dB
|
EFEC
|
Less than 7 x 10E-4
|
Less than 10E-15
|
-8 to -18 dBm
|
—
|
Caution Input optical power to the 10-GE WDMPHY PLIM must be less than 0 dBm to avoid damaging the receiver.
Cabling a 10-GE XFP Transceiver
Use this procedure to cable 10-GE XFP transceivers:
Note Before removing the dust plugs and making any optical connections, follow these guidelines:
•Always keep the protective dust plugs on the unplugged fiber-optic cable connectors and the transceiver optical bores until you are ready to make a connection.
•Always inspect and clean the LC connector end faces just before making any connections. For more information on cleaning fiber-optic connections, see the "How to Remove or Install a PLIM Cable Management Bracket," page 69.
•Always grasp the LC connector housing to plug or unplug a fiber-optic cable.
Step 1 Remove the dust plugs from the optical network interface cable LC connectors (see Figure 34). Save the dust plugs for future use.
Step 2 Inspect and clean the LC connector's fiber-optic end faces.
Step 3 Remove the dust plugs from the XFP transceiver module optical bores.
Step 4 Immediately attach the network interface cable LC connectors to the XFP transceiver module. (See Figure 25 for an illustration of cabling the XFP transceiver module.)
Figure 25 Cabling a10-GE XFP Transceiver Module
About Fiber-Optic Interface Cables
Do we need to add a pic of the SR4 cable/connector here? Email out to verify.
The Ethernet PLIMs use single-mode fiber-optic interface cables to connect to another Ethernet interface, router, or switch. The 10-GE PLIM with 10-GE XENPAK modules and 10-GE DWDM XENPAK modules use cables with SC connectors (see Figure 26 and Figure 27); the 10-GE WDMPHY PLIM uses cables with LC connectors (see Figure 28 and Figure 29).
Note Fiber-optic cables are not available from Cisco Systems. They can be purchased from cable vendors.
Single-mode cables are generally yellow in color. You can use two cables with simplex connectors or one cable with dual, keyed connectors.
|
Warning Because invisible radiation may be emitted from the aperture of the port when no fiber cable is connected, avoid exposure to radiation and do not stare into open apertures. Statement 125
|
Figure 26 Simplex SC Cable Connector (Single Mode)
1
|
SC cable connector
|
2
|
Spring-action disconnect latch
|
Figure 27 Duplex SC Cable Connector
Figure 28 Simplex LC Cable Connector
1
|
LC connector
|
2
|
Spring-action disconnect latch
|
Figure 29 Duplex LC Cable Connector
Removing and Installing Fiber-Optic Interface Cables
This section contains information on removing and installing fiber-optic interface cables to connect your router to another router or switch.
Required Tools and Equipment
You need the following tools and part to remove or install interface cables:
•ESD-preventive wrist strap
•Medium (Number 2) Phillips screwdriver
•Interface cables
Removing Fiber-Optic Interface Cables
To remove interface cables, see Figure 30 and follow these steps:
Step 1 Attach an ESD-preventive wrist or ankle strap to your wrist and follow its instructions for use.
Step 2 Press on the spring-action disconnect latch to disconnect the interface cable connectors from the PLIM interface ports. When the cable is removed from the 10-GE PLIM, the spring-loaded cover plate folds over to cover the interface port. Note that the other PLIMs do not have spring-loaded cover plates that cover their interface ports.
Warning Because invisible radiation may be emitted from the aperture of the port when no fiber cable is connected, avoid exposure to radiation and do not stare into open apertures. Statement 125
Note You do not have to remove the interface cables from the PLIM cable management bracket. If you are replacing the PLIM, you can remove the cable management bracket from the PLIM. After you install a new PLIM, you can attach the cable management bracket to the new PLIM and reattach the interface cables. See the "How to Remove or Install a PLIM Cable Management Bracket" section.

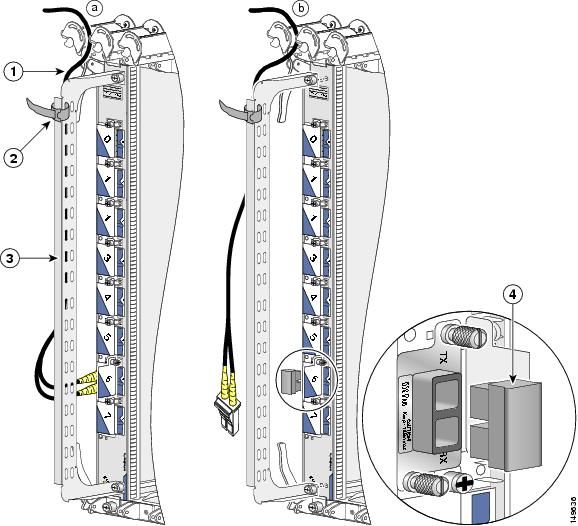

Figure 30 Interface Cables Installation and Removal (10-GE PLIM Shown)
1
|
Fiber cable
|
3
|
Cable management bracket
|
2
|
Velcro strap
|
4
|
Dust plug
|
Installing Fiber-Optic Interface Cables
Use two simplex connectors or one duplex connector (see Figure 26, Figure 27, Figure 28 or Figure 29).
Note Optical fiber cables are available from cable vendors. These cables are not available from Cisco.
|
Warning Because invisible radiation may be emitted from the aperture of the port when no fiber cable is connected, avoid exposure to radiation and do not stare into open apertures. Statement 125
|
|
Warning Class 1 Laser Product. Statement 1008
|
Note Connectors on the fiber-optic cables must be free of dust, oil, or other contaminants. Before connecting the cable to the PLIM, carefully clean the fiber-optic connectors using an alcohol wipe or other suitable cleanser. See the "How to Remove or Install a PLIM Cable Management Bracket" section for more information.
To install interface cables, follow these steps:
Step 1 For a 10-GE PLIM, open the spring-loaded plate that covers the port. Note that the other PLIMs do not have spring-loaded cover plates that cover their interface ports. Remove the connector dust cover if one is present.
Step 2 Align the connector end of the cable to the appropriate port. Observe the receive (RX) and transmit (TX) cable relationship on the cables, as shown in Figure 31.
Step 3 Attach a fiber cable between the port in the PLIM and the device to which the PLIM is connected.
Step 4 Insert the fiber cable connector until it clicks and locks into place.
Step 5 Repeat these steps until all cabling is completed.
Figure 31 Simplex or Duplex SC Fiber Cable Attachment (10-GE PLIM Shown)
1
|
TX connector
|
3
|
Simplex cables
|
2
|
RX connector
|
4
|
Duplex cable
|
Note The fiber-optic connectors must be free of dust, oil, or other contaminants. Carefully clean the fiber- optic connectors using an alcohol wipe or other suitable cleanser.
Cleaning Fiber-Optic Connectors
It is important to inspect and clean fiber-optic components before making a fiber-optic connection (for example, plugging a fiber-optic connector into a fiber-optic receptacle). Any contamination in the fiber connection can cause the optic component or the whole system to fail. Even microscopic dust particles, oil from human hands, film residues (condensed from vapors in the air), and powdery coatings (left after water or other solvents evaporate) can cause a variety of problems for optical connections.
Caution With the high-powered lasers now in use, any contaminant can be burned into the fiber end face if it blocks the core while the laser is turned on. This burning may damage the optical surface enough that it cannot be cleaned.
For instructions on how to clean fiber-optic components, see:
http://www.cisco.com/warp/public/127/cleanfiber2.html
Always follow the fiber-optic cleaning procedures carefully. The goal is to eliminate any dust or contamination and provide a clean environment for the fiber-optic connection. Inspection, cleaning, and reinspection are critical steps that must be performed before making any fiber-optic connection.
How to Remove or Install a XENPAK Optics Module
The 10-GE XENPAK PLIMs support the DWDM XENPAK optics modules listed in Table 16. These optics modules are installed in ports on the PLIM and provide the optical interface connectors for the PLIM.
Note XENPAK optics modules are keyed so that they cannot be inserted incorrectly. The PLIM automatically shuts down any optics module that is not a valid type.
Figure 32 shows a DWDM XENPAK optics module.
Figure 32 DWDM XENPAK Optics module
1
|
Captive installation screws
|
4
|
Transmit (TX) optical bore
|
2
|
Center wavelength warning label
|
5
|
Receive (RX) optical bore
|
3
|
Dust plug
|
6
|
XENPAK module label
|
This section contains the following procedures:
•Removing a XENPAK Optics Module
•Installing a XENPAK Optics Module
Prerequisites
To stay within the maximum received power specification on the RX side of the XENPAK module, an attenuator might be required. To determine if an attenuator is needed for the XENPAK module, see "Specifications for 10-GE XENPAK Interfaces" section.
Required Tools and Equipment
Have the following equipment available before you install or remove a XENPAK module:
•Dust plugs to keep unused ports clean
•Antistatic surface on which to place the module
•Attenuator, if one is determined to be needed in the prerequisites
Removing a XENPAK Optics Module
This section describes how to remove a XENPAK optics module from the PLIM.
Step 1 Use the shutdown command before you remove a XENPAK optics module.
Caution It is important to use the
shutdown command to prevent anomalies from occurring when you install a new XENPAK module.
Step 2 Disconnect any network interface cables that are attached to the optics module, and install the optical bore dust plugs.
Step 3 Loosen the two captive screws securing the optics module in the PLIM.
Step 4 Carefully pull the two captive screws to disconnect the optics module from the connector within the PLIM port.
Step 5 Grasp the edges of the optics module, and carefully slide it from the PLIM port.
Step 6 Place the optics module on an antistatic surface.
Installing a XENPAK Optics Module
This section describes how to install a XENPAK optics module in the PLIM.
Step 1 Remove the optics module from its protective packaging.
Step 2 Align the optics module with the PLIM port, and slide the module into the port until the back of the optics module faceplate is flush with the PLIM faceplate. This step ensures proper connection between the PLIM connector and the optics module connector. XENPAK modules are keyed so that they cannot be inserted incorrectly.
Step 3 Secure the optics module by tightening the two captive installation screws. Do not cross-thread or overtighten the captive screws.
Note Make sure that the optics module is fully inserted into the PLIM port and that the captive screws are fully tightened before attaching the fiber-optic interface cable to the optics module connector.
Step 4 Remove the optical bore dust plugs from the optics module, and attach the network interface cable to the optics module connector.
How to Remove or Install an XFP Module
The 10-GE XFP PLIMs support the XFP optics modules listed in Table 18. The 10-GE XFP transceiver module is a hot-swappable I/O device that plugs into 10-GE ports (see Figure 33). The XFP transceiver module connects the electrical circuitry of the system with the optical network.
Note The dual LC connector on the XFP transceiver modules supports network interface cables with either Physical Contact (PC) or Ultra-Physical Contact (UPC) polished face types. The dual LC connector on the XFP transceiver modules does not support network interface cables with an Angle Polished Connector (APC) polished face type.
Caution We strongly recommended that you do not install or remove the XFP module with fiber-optic cables attached to it because of the potential of damaging the cable, the cable connector, or the optical interfaces in the XFP module. Disconnect all cables before removing or installing an XFP module.
Removing and inserting an XFP module can shorten its useful life, so you should not remove and insert XFP modules more often than what is absolutely necessary.
Figure 33 10-GE XFP Transceiver Module
1
|
Transmit optical bore
|
2
|
Receive optical bore
|
3
|
Transceiver socket connector
|
4
|
Bale clasp (locked position)
|
5
|
Dust plug
|
6
|
Bale clasp (unlocked position)
|
Installing a 10-GE XFP Transceiver Module
Caution The XFP transceiver is a static-sensitive device. Always use an ESD wrist strap or similar individual grounding device when handling XFP transceivers or coming into contact with system modules.
To install an XFP transceiver, follow these steps:
Step 1 Remove the XFP transceiver from its protective packaging.
Note Do not remove the optical bore dust plug until directed to do so in Step 4.
Step 2 Check the label on the XFP transceiver body to verify that you have the correct model for your network.
Step 3 Position the XFP transceiver in front of the XFP socket opening on the module. Slide the XFP transceiver part of the way into the transceiver socket on the system module front panel.
Step 4 Remove the optical bore dust plug from the XFP transceiver.
Step 5 Pivot the bale clasp up so that it is parallel with the transceiver body (see Figure 34).
Step 6 Continue sliding the XFP transceiver into the socket until the XFP transceiver is mated with the transceiver socket connector.
Step 7 Latch the XFP transceiver in the transceiver socket by pivoting the bale clasp down so that the bale clasp is perpendicular to the transceiver body (see Figure 34).
Caution If the latch is not fully engaged, you may accidentally disconnect the XFP transceiver.
Figure 34 Installing the 10-GE XFP Transceiver Module
Step 8 Immediately reinstall the dust plug in the XFP transceiver optical bores. Do not remove the dust plug until you are ready to attach the network interface cable.
Note 10-Gigabit XFP transceivers are keyed to prevent incorrect insertion.
Removing a 10-GE XFP Transceiver Module
Caution The XFP transceiver is a static-sensitive device. Always use an ESD wrist strap or similar individual grounding device when handling XFP transceivers or coming into contact with modules.
If you are removing an XFP transceiver, follow these steps:
Step 1 Disconnect the network interface cable from the XFP transceiver connectors.
Step 2 Pivot the XFP transceiver bale clasp up to release the XFP transceiver from the socket (see Figure 35).
Step 3 Slide the XFP transceiver out of the socket. Pivot the bale clasp down and immediately install the dust plug in the XFP transceiver optical bores (see Figure 35).
Step 4 Immediately place the XFP transceiver in an antistatic bag.
Figure 35 Removing a 10-GE XFP Transceiver
40-GE PLIMs
This section provides information specific to the following 40-GE PLIMs:
•2-Port 40-GE OTU3 PLIM with CFP Optics Module
•4-Port 40-GE OTU3 PLIM with CFP Optics Module
The CFP Transceiver Module supported for the 2-port and 4-port PLIMs is described in the following section: 40-GE Ethernet CFP Transceiver Module.
2-Port 40-GE OTU3 PLIM with CFP Optics Module
The 2-port 40-GE OTU3 PLIM supports up to 2 40-GE C Form-factor Pluggable (CFP) optics modules.
The 2-port and 4-port 40-GE OTU3 CFP PLIM and the 1-port 100-GE IPoDWDM PLIM are examples of high powered PLIMs. High powered PLIMs are confined to upper slots, but are allowed in lower slots only if another identical PLIM is installed directly above. This restriction applies solely to the standard 16-slot chassis; the 4-slot and 8-slot chassis are excepted.
Power Management Restrictions
If you want to fill your chassis with these PLIMs, the following power management restrictions apply:
•8-slot chassis - 2 slots must be left void (one in zone 1 and one in zone 3)
•16-slot chassis - 4 slots must be left void (one each in zones 1, 3, 4 and 6)
•8-slot and 16-slot enhanced chassis - no restrictions
Supported CFP Optical Transceiver Modules
•CFP-40G-LR4
•CFP-40G-FR
•CFP-40G-SR4
Note SR4 optics do not support OTN.
Cisco qualifies the optics that are approved for use with its PLIMs.
For more details, see 40-GE Ethernet CFP Transceiver Module.
Ports and LEDs
The 2-port 40-GE OTU3 CFP PLIM has:
•Two ports that accept CFP optics modules
•Status LED for the PLIM
•One LED indicator for each port
Figure 39 shows the front panel of the 2-port 40-GE OTU3 CFP PLIMs.
Figure 36 2-port 40-GE OTU3 CFP PLIM front panel
1
|
Port LED (one per port)
|
2
|
Status LED
|
Table 27 describes the PLIM LEDs for the 2-port 40-GE OTU3 CFP PLIM.
Table 24 2-port 40-GE OTU3 CFP PLIM LED Descriptions
LED
|
State
|
Description
|
Status
|
Green
|
PLIM is powered on and operating correctly.
|
Yellow
|
PLIM is powered on but is initializing.
|
Off
|
PLIM is powered off or power on did not complete successfully.
|
Port
|
Green
|
Port is enabled by software and there is a valid link.
|
Yellow
|
The port is enabled by software, but there is a problem with the link.
|
Off
|
Port is not enabled by software or the PLIM is powered off.
|
Physical Characteristics
•Height—20.6 in (52.2 cm)
•Depth—11.2 in (28.4 cm)
•Width—1.8 in (4.49 cm)
•Weight—9.45 lb (4.27 kg)
•Power consumption—160 W
4-Port 40-GE OTU3 PLIM with CFP Optics Module
The 4-port 40-GE OTU3 PLIM supports up to 4 40-GE C Form-factor Pluggable (CFP) optics modules.
The 4-port 40-GE OTU3 CFP PLIM and the 1-port 100-GE IPoDWDM PLIM are examples of high powered PLIMs. High powered PLIMs are confined to upper slots, but are allowed in lower slots only if another identical PLIM is installed directly above. This restriction applies solely to the standard 16-slot chassis; the 4-slot and 8-slot chassis are excepted.
Power Management Restrictions
If you want to fill your chassis with these PLIMs, the following power management restrictions apply:
•4-slot chassis - 1 slot must be left void (meaning that a PLIM blank must be inserted)
•8-slot chassis - 2 slots must be left void (one in zone 1 and one in zone 3)
•16-slot chassis - 4 slots must be left void (one each in zones 1, 3, 4 and 6)
•8-slot and 16-slot enhanced chassis - no restrictions
Supported CFP Optical Transceiver Modules
•CFP-40G-LR4
•CFP-40G-FR
•CFP-40G-SR4
Note SR4 optics do not support OTN.
Cisco qualifies the optics that are approved for use with its PLIMs.
For more details, see 40-GE Ethernet CFP Transceiver Module.
Ports and LEDs
The 4-port 40-GE OTU3 CFP PLIM has:
•Four ports that accept CFP optics modules
•Status LED for the PLIM
•One LED indicator for each port
Figure 39 shows the front panel of the 4-port 40-GE OTU3 CFP PLIMs.
Figure 37 4-port 40-GE OTU3 CFP PLIM front panel
1
|
Port LED (one per port)
|
2
|
Status LED
|
Table 27 describes the PLIM LEDs for the 4-port 40-GE OTU3 CFP PLIM.
Table 25 4-port 40-GE OTU3 CFP PLIM LED Descriptions
LED
|
State
|
Description
|
Status
|
Green
|
PLIM is powered on and operating correctly.
|
Yellow
|
PLIM is powered on but is initializing.
|
Off
|
PLIM is powered off or power on did not complete successfully.
|
Port
|
Green
|
Port is enabled by software and there is a valid link.
|
Yellow
|
The port is enabled by software, but there is a problem with the link.
|
Off
|
Port is not enabled by software or the PLIM is powered off.
|
Physical Characteristics
•Height—20.6 in (52.2 cm)
•Depth—11.2 in (28.4 cm)
•Width—1.8 in (4.49 cm)
•Weight—11.769 lb (5.34 kg)
•Power consumption—185 W
Oversubscription of 40-GE Ports
Processing on the 4-port 40-GE OTU3 CFP PLIM is performed by two PLIM hardware controllers, each of which can process up to 80 Gbps of traffic. Ports 0 and 1 are associated with one PLIM hardware controller, while ports 2 and 3 are associated with the second PLIM hardware controller. In addition, the PLIM ports are serviced by line card hardware controllers that have a total switching capacity of 140 Gbps.
Because of this PLIM design, maximum throughput on the 4-port 40-GE OTU3 CFP PLIM is limited to 140 Gbps evenly distributed across the four ports. A second limitation exists, this time at the individual PLIM hardware controller level. For certain packet sizes, the effective bandwidth of the PLIM hardware controller can drop to as low as 73 Gbps (maximum 80 Gbps), which is distributed evenly to it's 2 connected ports (36.5 Gbps per port). Effective bandwidth of the PLIM hardware controller usually drops below 80Gbps at smaller packet sizes (traffic streams that contain a relatively high proportion of packets sized below 128 bytes).
40-GE Ethernet CFP Transceiver Module
The 40-GE CFP transceiver module is a hot-swappable I/O device that plugs into 40-GE ports. The CFP transceiver module connects the electrical circuitry of the system with the optical network.
Caution If no CFP optics module is to be installed in a port, the open port must be covered with a CFP-COVER (shipped with the card). The CFP-COVER is required under this condition to preserve the integrity of the card and is required for EMC and Safety compliance and proper cooling in the chassis.
Note Review the safety information and guidelines before installing or removing a CFP transceiver module. See How to Remove or Install a PLIM.

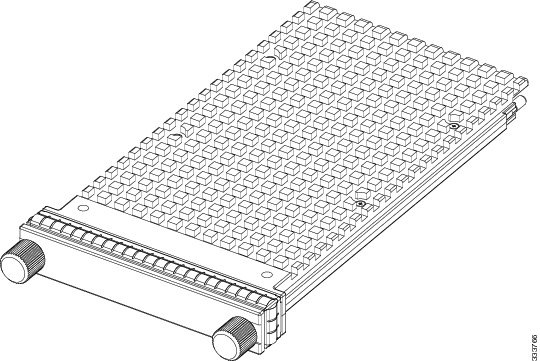

Figure 38 CFP Transceiver Module
Note The CFP may also be a flat top. See Figure 40.
Table 28 provides cabling specifications for the CFP modules that can be installed on the 2- or 4-port 40-GE OTU3 CFP PLIM.
Table 26 CFP Module Port Cabling Specifications
Part Number
|
Wavelength (nm)
|
Fiber Type
|
Connector Type
|
Typical Maximum Distance
|
CFP-40G-LR4
|
1271
1291
1311
1331
|
SMF
|
SC
|
10 km
|
CFP-40G-FR
|
1547.5
|
SMF
|
SC
|
2 km
|
CFP-40G-SR4
|
850
|
MMF
|
MPO (Multipath Optical)
|
100 m
|
100-GE PLIMs
This section provides information specific to the following 100-GE PLIMs:
•1-Port 100-GE PLIM with CFP Optics Module
•1-Port 100-GE PLIM with IP over DWDM
1-Port 100-GE PLIM with CFP Optics Module
The 1-port 100-GE CFP PLIM supports a single 100-GE C Form-factor Pluggable (CFP) optics module.
Supported CFP Optical Transceiver Modules
•CFP-100GE-LR4, V01
•CFP-100G-SR10
Cisco qualifies the optics that are approved for use with its PLIMs.
For the modules listed, use a single-mode optical fiber that has a modal-field diameter of 8.7 ±0.5 microns (nominal diameter is approximately 10/125 micron) to connect your router to a network.
For more details, see 100-GE Ethernet CFP Transceiver Module
Ports and LEDs
The 1-port 100-GE CFP PLIM has:
•One port that accepts a CFP optics module
•Status LED for the PLIM
•Four LED indicators for the single port
Figure 39 shows the front panel of the 1-Port 100-GE CFP PLIMs.
Figure 39 1-Port 100-GE CFP PLIM front panel
1
|
Active LED
|
2
|
Link LED
|
3
|
Tx PKT LED
|
4
|
Rx PKT LED
|
5
|
Status LED
|
Table 27 describes the PLIM LEDs for the 1-Port 100-GE CFP PLIM.
Table 27 1-Port 100-GE CFP PLIM LED Descriptions
LED
|
State
|
Description
|
PLIM Status
|
Green
|
PLIM is properly seated and operating correctly.
|
Yellow
|
PLIM is powered on, but initializing.
|
Off
|
PLIM is not properly seated, system power is off, or power up did not complete successfully.
|
Active
|
Green
|
Port is enabled by software and there is a valid link.
|
Yellow
|
Port is enabled by software, but there is a problem with the link.
|
Off
|
Port is not enabled by software.
|
Link
|
Green
|
Valid link is achieved.
|
Off
|
Valid link is not achieved.
|
Tx PKT
|
Green (flashing)
|
Packets are being transmitted on the port.
|
Off
|
No packets are being transmitted on the port.
|
Rx PKT
|
Green (flashing)
|
Packets are being received on the port.
|
Off
|
No packets are being received on the port.
|
Physical Characteristics
•Height—20.6 in (52.2 cm)
•Depth—11.2 in (28.4 cm)
•Width—1.8 in (4.49 cm)
•Weight—7.17 lbs (3.24 kg)
•Power consumption—150 W
100-GE Ethernet CFP Transceiver Module
The 100-GE CFP transceiver module is a hot-swappable I/O device that plugs into 100-GE ports (see Figure 40). The CFP transceiver module connects the electrical circuitry of the system with the optical network.
Figure 40 CFP Transceiver Module
The CFP uses duplex single mode SC fiber cabling. Table 28 provides cabling specifications for the CFP modules that can be installed on the 1-Port 100-GE CFP PLIM.
Caution A CFP optics module must be installed in the CFP transceiver module slot of each 100GE PLIM installed in the Cisco CRS chassis (see
Figure 39 and
Figure 40). The CFP transceiver module preserves the integrity of the card and is required for EMI and Safety compliance and proper cooling in the chassis.
Note Review the safety information and guidelines before installing or removing a CFP transceiver module. See How to Remove or Install a PLIM.
Table 28 CFP Module Port Cabling Specifications
Part Number
|
Description
|
Wavelength (nm)
|
Fiber Type
|
Typical Maximum Distance
|
CFP-100GE-LR4, V01
|
100-GE pluggable optical transceiver modules
|
1295.56
1300.055
1304.585
1309.14
|
SMF
|
6.213 miles
(10 km)
|
CFP-100G-SR10
|
100 GE over 10 short-reach optical lanes (SR10) optics (multimode fiber)
|
1295.56
1300.055
1304.585
1309.14
|
MMF
|
100 m
|
1-Port 100-GE PLIM with IP over DWDM
The 1-port 100-GE DWDM PLIM supports the IP over DWDM optics module.
The 1-port 100-GE IPoDWDM PLIM and 4-port 40-GE OTU3 CFP PLIM are examples of high powered PLIMs. High powered PLIMs are confined to upper slots, but are allowed in lower slots only if another identical PLIM is installed directly above. This restriction applies solely to the standard 16-slot chassis; the 4-slot and 8-slot chassis are excepted.
Power Management Restrictions
If you want to fill your chassis with these PLIMs, the following power management restrictions apply:
•4-slot chassis - 1 slot must be left void (meaning that a PLIM blank must be inserted)
•8-slot chassis - 2 slots must be left void (one in zone 1 and one in zone 3)
•16-slot chassis - 4 slots must be left void (one each in zones 1, 3, 4 and 6)
•8-slot and 16-slot enhanced chassis - no restrictions
Ports and LEDs
The 1-port 100-GE IPoDWDM PLIM has:
•One port that accepts a DWDM optics module that is not pluggable
•Status LED for the PLIM
•One LED indicator for the single port
Cisco qualifies the optics that are approved for use with its PLIMs.
Figure 39 shows the front panel of the 1-port 100-GE IPoDWDM PLIMs.
Figure 41 1-Port 100-GE DWDM PLIM front panel
Table 27 describes the PLIM LEDs for the 1-port 100-GE IPoDWDM PLIM.
Table 29 1-Port 100-GE CFP PLIM LED Descriptions
LED
|
State
|
Description
|
Status
|
Green
|
PLIM is powered on and operating correctly.
|
Yellow
|
PLIM is powered on but is initializing.
|
Off
|
PLIM is powered off or power up did not complete successfully.
|
Port
|
Green
|
Port is enabled by software and there is a valid link.
|
Yellow
|
Port is enabled by software, but there is a problem with the link.
|
Off
|
Port is not enabled by software.
|
Physical Characteristics
•Height—20.6 in (52.2 cm)
•Depth—11.2 in (28.4 cm)
•Width—1.8 in (4.49 cm)
•Weight—8.325 lb (3.78 kg)
•Power consumption—195 W
How to Remove or Install a PLIM
A PLIM provides the data interfaces for the routing system and mates with its associated MSC through the chassis midplane.
This section contains the following procedures:
•Removing a PLIM
•Installing a PLIM
Removing a PLIM
This section describes how to remove a PLIM from the line card chassis.
Caution The system may indicate a hardware failure if you do not follow proper procedures. Remove or install only one PLIM at a time. Allow at least 15 seconds for the system to complete the preceding tasks before removing or installing another PLIM.
Required Tools and Equipment
You need the following tools to remove a PLIM:
•ESD-preventive wrist strap
•Medium (Number 2) Phillips screwdriver
To remove a PLIM, see Figure 42 and follow these steps:
Step 1 Attach an ESD-preventive wrist strap and follow its instructions for use.
Step 2 Identify the card to be replaced, and unplug the interface cables connected to the card. Be sure to note the current connections of the cables to the ports on the PLIM.
Warning Because invisible radiation may be emitted from the aperture of the port when no fiber cable is connected, avoid exposure to radiation and do not stare into open apertures. Statement 125
Step 3 For the 10-GE PLIMs, remove the XENPAK or XFP optics modules from the card and set them aside. See the "How to Remove or Install a PLIM Cable Management Bracket" section or "How to Remove or Install an XFP Module" section.
Step 4 Loosen the two captive screws holding the card in place.
Step 5 Grasp the two card ejector levers and simultaneously pivot both ejector levers 90 degrees (70 degrees for a newer PLIM) away from the front edge of the card carrier to unseat the card from the backplane (see Figure 42).
Step 6 Grasp the cable management bracket and gently pull the PLIM halfway from the slot.
Step 7 Slide the card from the slot, using one hand under the PLIM to support and guide it (see Figure 42). Avoid touching the PLIM printed circuit board, components, or any connector pins. Do not lift cards by the cable management bracket; lift them from the bottom.
Step 8 Place the PLIM directly into an antistatic sack or other ESD-preventive container.
Step 9 Insert another PLIM or an impedance carrier into the empty card slot.

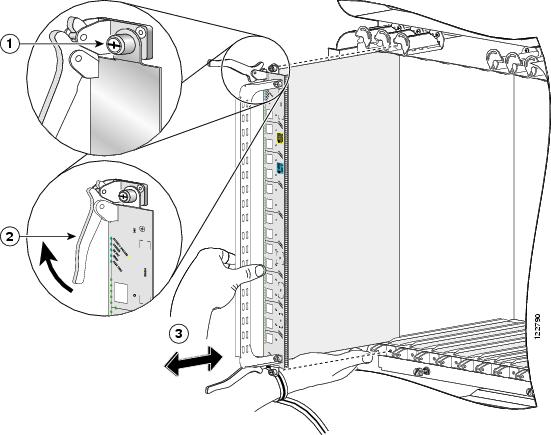

Figure 42 Removing or Installing a PLIM
1
|
Captive screw
|
2
|
Ejector lever
|
3
|
Direction of installation or removal
|
Installing a PLIM
This section describes how to install a PLIM in the line card chassis. You can install a PLIM in any slot not occupied by a route processor (RP) card (or a fan controller card, 16-slot chassis only). If you install a new MSC or PLIM, you must first remove the impedance carrier card from the available slot.
Caution The system may indicate a hardware failure if you do not follow proper procedures. Remove or install only one PLIM at a time. Allow at least 15 seconds for the system to complete the preceding tasks before removing or installing another PLIM.
Required Tools and Equipment
You need the following tools and part to install a PLIM:
•ESD-preventive wrist strap
•Medium (Number 2) Phillips screwdriver
•PLIM
Steps
To install a PLIM, see Figure 42 and follow these steps:
Step 1 Attach the ESD-preventive wrist strap and follow its instructions for use.
Step 2 Remove the PLIM from its antistatic packaging.
Step 3 Remove the PLIM impedance carrier from the slot you need to fill and set it aside.
Note Remove only one impedance carrier and install one PLIM at a time. Be sure to verify that each PLIM is fully installed and secured before installing another card.
Step 4 Grasp the cable management bracket with one hand and place your other hand under the carrier to support and guide the card into the correct slot. Slide the card halfway into the correct slot. Avoid touching the card circuitry or any connectors.
Step 5 Pivot both card ejector levers so that the openings on the card ejector cams at the top and bottom of the card pass over the tabs on each side of the card cage slot.
Caution Verify that the openings on the card ejector cams pass over the tabs; otherwise, one or both ejector levers might bind when you attempt to close the ejector levers, thereby damaging or breaking one or both ejector levers.
Step 6 Continue sliding the card into the card cage slot until the openings on the card ejector cams engage the tabs on each side of the card cage slot.
Note Guide pins located on the midplane connector make initial contact with the card connector as you slide a card into its slot. After the guide pins make contact, continue pushing on the card carrier until the card ejector levers begin pivoting forward toward the handle in the card carrier.
Step 7 To seat the card in the midplane connector, grasp both card ejector levers and pivot them inward toward the handle in the card carrier until they are flush against the front edge of the card carrier.
Step 8 Engage both captive screws on the PLIM, and then tighten the screws.
Caution Be sure to engage both captive screws on the PLIM before you begin to tighten the screws; otherwise, the PLIM might not seat properly.
Caution To ensure adequate space for additional PLIMs, always tighten the captive installation screws on each newly installed PLIM
before you insert another PLIM. These screws also prevent accidental removal and provide proper grounding and EMI shielding for the system.
Step 9 For the 10-GE PLIM, install the XENPAK or XFP optics modules. See the "How to Remove or Install a PLIM Cable Management Bracket" section or "How to Remove or Install an XFP Module" section.
Step 10 If this PLIM is new, install the PLIM cable management bracket. See the "Installing a PLIM Cable Management Bracket" section.
Step 11 Install the interface cables. We recommend that you clean the fiber-optic connections before attaching the cables. For cleaning instructions, see: http://www.cisco.com/warp/public/127/cleanfiber2.html.
Step 12 If this PLIM is new, configure it for operation. For instructions, see Cisco IOS XR Interface and Hardware Component Configuration Guide and Cisco IOS XR Interface and Hardware Component Command Reference, available at:
http://www.cisco.com/univercd/cc/td/doc/product/ioxsoft/iox33/index.htm
|
Warning Because invisible radiation may be emitted from the aperture of the port when no fiber cable is connected, avoid exposure to radiation and do not stare into open apertures. Statement 125
|
Verifying the Installation of a PLIM
This section describes how to verify that a PLIM has been properly installed. See the figure showing the front panel of your PLIM for the locations of the port and Status LEDs on the front panel of the PLIM (for example, see Figure 2 for the 20-port 1-GE PLIM with SFP optics modules or see Figure 22 for the 14-port 10-GE XFP PLIM).
If a PLIM fails to operate or power up on installation:
•Make sure that the PLIM is seated firmly in the line card chassis slot. One easy way to verify physical installation is to see whether the front faceplate of the PLIM is even with the fronts of the other PLIMs installed in the card cage.
•Make sure that the corresponding MSC is installed and operating correctly.
•Check whether the ejector levers are latched and that the captive screws are fastened properly. If you are uncertain, unlatch the levers, loosen the screws, and attempt to reseat the PLIM.
•Determine whether there are any active alarms by looking at the alarm LEDs on the alarm module (16-slot chassis) or the route processor (8-slot or 4-slot chassis). See Cisco CRS-1 Carrier Routing System Line Card Chassis System Description for more information about alarms.
•Examine the power shelves (16-slot chassis) or power distribution units (PDUs) (8-slot and 4-slot chassis) to see whether the chassis, as a whole, is receiving power.
Use the LEDs on the PLIM to verify the correct installation and operation of the card.
How to Remove or Install a PLIM Cable Management Bracket
Cisco CRS chassis include a cable management system that organizes the interface cables entering and exiting the router, keeping them out of the way and free of sharp bends.
Caution Excessive bending of interface cables can damage the cables.
The cable management system consists of two separate components:
•The line card chassis arrives preinstalled with a horizontal cable management bracket on the front of the chassis and an optional horizontal cable management bracket available for the rear of the chassis. The cable management system organizes the interface cables entering and exiting the different cards, keeping them out of the way and free of sharp bends. See the appropriate Cisco CRS installation guide for more information on the chassis cable management bracket.
•A cable management bracket that attaches to a PLIM.
This section describes how to remove and install the two types of PLIM cable management bracket. Figure 43 shows the PLIM cable management bracket. Figure 44 shows the articulated PLIM cable management bracket, designed for installing on the 20-port 1-GE FLEX PLIM and the 42-port 1-GE XFP PLIM.
Figure 43 PLIM Cable Management Bracket
Figure 44 PLIM Articulated Cable Management Bracket
Note the following:
•The front leg of the articulated PLIM cable management bracket is light gray. The articulated bracket can be moved for ease of cabling or uncabling. Always connect your interface cables starting with the interface at the top of the PLIM and always disconnect your interface cables starting with the interface at the bottom of the PLIM.
•For details about replacing a SFP from a line card that uses an articulated bracket, see Replacing a SFP on a Line Card that Uses an Articulated Bracket.
•You do not have to remove the interface cables from the PLIM cable management bracket. If you are replacing the PLIM, you can remove the cable management bracket from the PLIM. After you install a new PLIM, you can attach the cable management bracket to the new PLIM and reattach the interface cables. See the "Removing and Installing Fiber-Optic Interface Cables" section.
Caution Do not use the cable management bracket alone as a handle to pull out or push in the PLIM. One hand must be under the PLIM to support its weight when carrying the PLIM. The cable management bracket is designed to hold the interface cables and may break if you use the bracket to push, pull, or carry the PLIM after it is removed from the router.
Required Tools and Equipment
You need the following tools and part to remove or install a PLIM cable management bracket:
•ESD-preventive wrist strap
•Medium (Number 2) Phillips screwdriver
•PLIM
•PLIM cable management bracket
Removing a PLIM Cable Management Bracket
To remove a PLIM cable management bracket, follow the steps below. For an example of a fixed PLIM cable management bracket refer to Figure 45 (the 10-GE PLIM is shown in the illustration, but the installation procedure is similar for all PLIMs). For an example of an articulated PLIM cable management bracket designed for installing on the 20-port 1-GE FLEX PLIM refer to Figure 46 and for an example of an articulated PLIM cable management bracket designed for installing on the 42-port 1-GE XFP PLIM refer to Figure 47.
Step 1 Attach an ESD-preventive wrist or ankle strap and follow its instructions for use.
Step 2 Note the current interface cable connections to the ports on each PLIM.
Step 3 Starting with the interface cable for the bottom port on the PLIM, disconnect the cable from the PLIM interface.
Note It is not necessary to remove the interface cables from the PLIM cable management bracket. The bracket (with attached cables) can be hooked to the chassis cable management bracket or a bracket on the chassis until a new PLIM is installed.
Step 4 Proceed upward and remove the interface from the Velcro strap on the end of the cable standoff (see callout 2 on Figure 45, Figure 46, or Figure 47). Avoid any tight twists or sharp bends in the cable.
Figure 45 PLIM Cable Management Installation and Removal
1
|
Chassis cable management tray
|
3
|
PLIM cable management bracket
|
2
|
Velcro straps
|
4
|
Fiber cable
|
Figure 46 Articulated PLIM Cable Management Bracket Installation and Removal (20-Port PLIM)
1
|
Chassis cable management tray
|
3
|
PLIM cable management bracket
|
2
|
Velcro straps
|
4
|
Fiber cable
|
Figure 47 Articulated PLIM Cable Management Bracket Installation and Removal (42-Port PLIM)
1
|
Chassis cable management tray
|
3
|
PLIM cable management bracket
|
2
|
Velcro straps
|
4
|
Fiber cable
|
Step 5 Repeat Step 3 and Step 4 for all remaining interface cables, then proceed to Step 6.
Step 6 Loosen the captive installation screw at each end of the cable management bracket and remove the bracket from the PLIM.
Installing a PLIM Cable Management Bracket
To install a PLIM cable management bracket, follow these steps:
Step 1 Attach an ESD-preventive wrist or ankle strap and follow its instructions for use.
Step 2 Attach the PLIM cable management bracket to the PLIM as follows:
a. Position the cable management bracket over the front of the PLIM faceplate.
Note When you are installing the articulated PLIM cable management bracket, ensure that the pin next to the captive screw goes into the proper hole before you attempt to tighten the captive screws to secure the bracket to the PLIM.
b. Insert and tighten the captive screws to secure the bracket to the PLIM.
c. Starting with the bottom port on the PLIM, connect each interface cable to the intended port.
Step 3 Carefully wrap the cables with the supplied Velcro strap (refer to callout 2 on Figure 45, Figure 46, or Figure 47). Avoid any tight twists or sharp bends in the cable.
Before You Remove or Install a Transceiver Module
Review the following sections carefully before you remove or install any type of transceiver module:
•Safety Guidelines
•Preventing Electrostatic Discharge
•Guidelines for Card Installation and Removal
Safety Guidelines
Before you perform any procedure in this document, review the safety guidelines in this section to avoid injuring yourself or damaging the equipment. See the "Laser Safety" section.
The following guidelines are for your safety and to protect equipment. The guidelines do not include all hazards. Be alert.
Note Review the safety warnings listed in Regulatory Compliance and Safety Information for the Cisco CRS-1 Carrier Routing System before installing, configuring, or troubleshooting any installed card.
•Never attempt to lift an object that might be too heavy for you to lift by yourself.
•Keep the work area clear and dust free during and after installation. Do not allow dirt or debris to enter into any laser-based components.
•Keep tools and router components away from walk areas.
•Do not wear loose clothing, jewelry, and other items that could get caught in the router while working with OIMs, SFCs, and their associated components.
•Use Cisco equipment in accordance with its specifications and product-usage instructions.
•Do not work alone if potentially hazardous conditions exist.
•Make sure your installation follows national and local electrical codes: in the United States, National Fire Protection Association (NFPA) 70, United States National Electrical Code; in Canada, Canadian Electrical Code, part I, CSA C22.1; in other countries, International Electrotechnical Commission (IEC) 60364, part 1 through part 7.
•Connect only a DC power source that follows the safety extra-low voltage (SELV) requirements in UL/CSA/IEC/EN 60950-1 and AS/NZS 60590 to the FCC DC-input power system.
•Make sure that you have a readily accessible two-poled disconnect device incorporated in the fixed wiring of an LCC configured with the DC-input power system.
•The LCC requires short-circuit (overcurrent) protection to be provided as part of the building installation.
Preventing Electrostatic Discharge
Electrostatic discharge (ESD) damage, which can occur when electronic cards or components are improperly handled, results in complete or intermittent failures. We recommend that you use an ESD-preventive strap whenever you handle network equipment or components.
Following are guidelines for preventing ESD damage:
•Always use an ESD-preventive wrist or ankle strap, and ensure that it makes good skin contact. Connect the equipment end of the connection cord to an ESD connection socket on the router or a bare metal surface on the chassis.
•Handle a card by its ejector levers, when applicable, or metal carrier only; avoid touching the board or connector pins.
•Place a removed card component side up on an antistatic surface or in a static-shielding bag. If you plan to return the component to the factory, immediately place it in a static-shielding bag.
•Avoid contact between the card and clothing. The wrist strap protects the board only from ESD voltage on the body; ESD voltage on clothing can still cause damage.
Guidelines for Card Installation and Removal
Guidelines for card installation and removal include the following:
•Online insertion and removal (OIR) is supported, enabling you to remove and install cards while the router is running. OIR is seamless to users on the network, maintains all routing information, and ensures session preservation. Notifying the software or resetting the power is not required. However, you have the option of using the shutdown command before removing a card.
•Each PLIM and its corresponding MSC function as a pair. If either card is removed, the other card is essentially powered down (although the router can still identify and inventory the cards).
•PLIMs in the line card chassis are attached to the chassis by way of a pair of ejector levers and captive screws. The two ejector levers are used to release the PLIM from its midplane connector. The ejector levers and captive screws are located on the upper and lower ends of the faceplate of the card (see Figure 48).
Figure 48 Ejector Levers and Captive Screws
1
|
Captive screw
|
2
|
Ejector lever
|
Caution When you remove a PLIM, always use the ejector levers to ensure that the connector pins disconnect from the midplane in the sequence expected by the router.
The router can indicate a hardware failure if you do not follow proper procedures. Remove or install only one card at a time. Wait at least 15 seconds before removing or installing another card.
About PLIM Impedance Carriers
A PLIM impedance carrier must be installed in each empty PLIM slot in the Cisco CRS chassis (see Figure 49). The impedance carrier preserves the integrity of the chassis and is required for EMI compliance and proper cooling in the chassis.
Figure 49 PLIM Impedance Carrier
Regulatory, Compliance, and Safety Information
This section contains information on laser safety.
For other regulatory, compliance, and safety information, including translated safety warnings, see the Regulatory Compliance and Safety Information for the Cisco CRS-1 Carrier Routing System publication.
Laser Safety
Do not stare into operational transceiver module ports. The following laser warning applies:
|
Warning Because invisible laser radiation may be emitted from the aperture of the port when no cable is connected, avoid exposure to laser radiation and do not stare into open apertures. Statement 70
|
Obtaining Documentation, Obtaining Support, and Security Guidelines
For information on obtaining documentation, obtaining support, providing documentation feedback, security guidelines, and also recommended aliases and general Cisco documents, see the monthly What's New in Cisco Product Documentation, which also lists all new and revised Cisco technical documentation, at:
http://www.cisco.com/en/US/docs/general/whatsnew/whatsnew.html
This document is to be used in conjunction with the documents listed in the "Related Documentation" section.
Cisco and the Cisco logo are trademarks or registered trademarks of Cisco and/or its affiliates in the U.S. and other countries. To view a list of Cisco trademarks, go to this URL: www.cisco.com/go/trademarks. Third-party trademarks mentioned are the property of their respective owners. The use of the word partner does not imply a partnership relationship between Cisco and any other company. (1110R)
Cisco CRS Carrier Routing System Ethernet Physical Layer Interface Module Installation Note
© 2012 Cisco Systems, Inc. All rights reserved.
Feedback
