Cisco Unified Border Element (SP Edition) Distributed Model Overview

---

This chapter presents an overview of the Cisco Unified Border Element (SP Edition), supported features, and deployment of Cisco Unified Border Element (SP Edition) on the Cisco ASR 1000 Series Routers.

Cisco Unified Border Element (SP Edition) was formerly known as Integrated Session Border Controller and may be commonly referred to in this document as the session border controller (SBC).

Contents

•General Overview

•Supported Features on Cisco Unified Border Element (SP Edition) Distributed Model

•Deployment of Cisco Unified Border Element (SP Edition) Distributed Model

•Cisco Unified Border Element (SP Edition) DBE Deployment Scenario

General Overview

Cisco Unified Border Element (SP Edition) is integrated with other features on the Cisco ASR 1000 Series Routers without requiring additional application-specific hardware, such as service blades. Cisco Unified Border Element (SP Edition) is integrated with Layer 2 and Layer 3 services, such as security, QoS, IP Multicast, that eliminate the need to create an overlay network of standalone SBC appliances. With Integrated SBC, SBC functionality and routing functionality both reside on the Cisco ASR 1000 Series Router. The integration also allows SBC to build on the security and admission control features and virtual private network (VPN) awareness of the Cisco ASR 1000 Series Routers.

In general, session border controllers are used as key components in interconnecting Voice over IP (VoIP) and multimedia networks of different enterprise customers and service providers. SBCs are deployed at the edge of networks to meet the need for secure, intelligent border element functions. Using SBCs, the end user can make voice and video calls to another end user without being concerned about protocols, network reachability, or safety of the network.

The SBC enables direct IP-to-IP interconnect between multiple administrative domains for session-based services providing protocol interworking, security, and admission control and management. The SBC is a session-aware device that controls access to VoIP and other types of primarily media-related networks. A primary purpose of an SBC is to protect the interior of the network from excessive call load and malicious traffic.

The SBC functions break down into two logically distinct areas, as follows:

•The signaling border element (SBE) function. SBEs may support functions that include interworking between various signaling protocols such as H.323 and Session Initiation Protocol (SIP), call admission control, advanced routing policy management, network attack detection, or call billing using RADIUS or DIAMETER. As part of the call admission control function, an SBE informs the data border element (DBE) of the various quality of service (QoS) and Network Address and Port Translation (NAPT) requirements for the call. An SBE typically controls one or more media gateways.

An SBE may be known as a media gateway controller (MGC).

•The data border element (DBE) controls access of media packets to the network, provides differentiated services and quality of service (QoS) for different media streams, and prevents service theft. The DBE consists of a set of data path functions and responds to the requests made by the SBE to open pinholes, taking into account the specified Network Address Translation (NAT)/firewall traversal and QoS requirements.

The distributed model of the Cisco Unified Border Element (SP Edition) implements the DBE function on the Cisco ASR 1000 Series Aggregation Services Routers. A table of DBE-supported features is listed in Table 1-1.

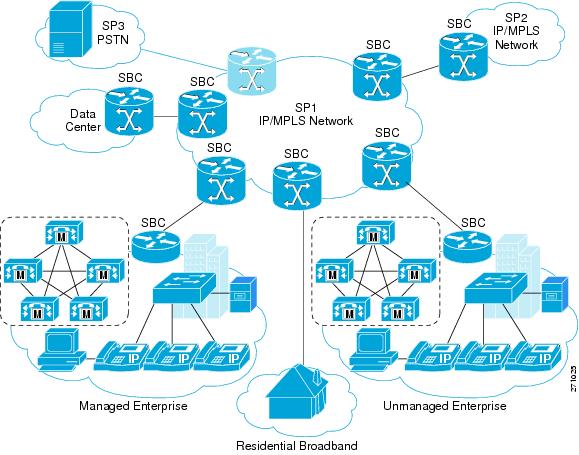

Figure 1-1 shows an example SBE/DBE architecture; your SBC architecture may differ.

Figure 1-1 Example of SBC High Level Architecture

Distributed and Unified Models

The SBC can operate in two modes or models—unified and distributed.

•In the unified model, both the SBE and DBE logical entities co-exist on the same network element.

•In the distributed model, the SBE and the DBE entities reside on different network elements. Logically, each of the SBE entities could control multiple DBE elements. The DBE is controlled by one SBE at any one time.

Figure 1-2 illustrates the unified model.

Figure 1-2 Unified SBC Model

Cisco Unified Border Element (SP Edition) can run under the distributed model and provide the DBE functionality.

The distributed model offers advantages over the unified model, as follows:

•Scalable to a larger number of sessions.

•Operational advantages, because the SBE can be upgraded or serviced separately from the DBE.

•The distributed model aligns well with typical voice deployments where the SBE can be co-located with part of the call agent.

•The many-to-many interface offers capability to load share and balance across networks. Operators have the flexibility to optimize on loading of the SBE or DBE.

Figure 1-3 illustrates the distributed model.

Figure 1-3 Distributed SBC Model

Supported Features on Cisco Unified Border Element (SP Edition) Distributed Model

The supported features roadmap lists the features documented in this guide and provides links to where they are documented. Any related configuration commands for a feature are listed and documented in the Cisco Unified Border Element (SP Edition) Command Reference: Distributed Model.

---

Note Table 1-1 lists only the Cisco IOS XE software release that introduced support for a given feature in a given Cisco IOS XE software release train. Unless noted otherwise, subsequent releases of that Cisco IOS XE software release train also support that feature.

---

Table 1-1 lists features in alphabetical order and associated commands that are supported on the Cisco Unified Border Element (SP Edition) DBE deployment on the Cisco ASR 1000 Series Routers.

Table 1-1 Supported Features on Cisco Unified Border Element (SP Edition) Distributed Model

Release	Feature Name	Related SBC Commands	Chapter Where Documented
Cisco IOS XE Release 2.1	Billing and Call Detail Records	None.	Chapter 11, "Quality Monitoring and Statistics Gathering"
Cisco IOS XE Release 2.1	DBE Signaling Pinhole Support	None.	Chapter 7, "H.248 Services—Signaling and Control"
Cisco IOS XE Release 2.1	DBE Status Notification	None.	Chapter 11, "Quality Monitoring and Statistics Gathering"
Cisco IOS XE Release 2.1	DSCP Marking and IP Precedence Marking	None.	Chapter 5, "Quality of Service and Bandwidth Management"
Cisco IOS XE Release 2.1	DTMF Interworking	dtmf-duration	Chapter 3, "DTMF Interworking"
Cisco IOS XE Release 2.1	Enabling Optional H.248 Packages	package	Chapter 6, "H.248 Packages—Signaling and Control"
Cisco IOS XE Release 2.1	Enhanced Event Notification and Auditing	h248-association-timeout h248-event-storage h248-preserve-gates	Chapter 11, "Quality Monitoring and Statistics Gathering"
Cisco IOS XE Release 2.1	Extension to H.248 Audit Support	None.	Chapter 7, "H.248 Services—Signaling and Control"
Cisco IOS XE Release 2.1	Extension to H.248 Termination Wildcarding Support	None.	Chapter 7, "H.248 Services—Signaling and Control"
Cisco IOS XE Release 2.1	Firewall (Media Pinhole Control)	None.	Chapter 8, "Integrated Session Border Controller Security"
Cisco IOS XE Release 2.1	Flexible Address Prefix Provisioning	None.	Chapter 7, "H.248 Services—Signaling and Control"
Cisco IOS XE Release 2.2	Full Support for Wildcard Response	None.	Chapter 7, "H.248 Services—Signaling and Control"
Cisco IOS XE Release 2.1	H.248 Address Reporting Package	None.	Chapter 8, "Integrated Session Border Controller Security"
Cisco IOS XE Release 2.1	H.248 Gate Information (Ginfo) Package Becomes Optional	None.	Chapter 6, "H.248 Packages—Signaling and Control"
Cisco IOS XE Release 2.1	H.248 Network Package Quality Alert Event and Middlebox Pinhole Timer Expired Event	h248-media-alert-event	Chapter 11, "Quality Monitoring and Statistics Gathering"
Cisco IOS XE Release 2.2	H.248 Protocol—Acknowledgment Support for Three-Way Handshake	None.	Chapter 6, "H.248 Packages—Signaling and Control"
Cisco IOS XE Release 2.1	H.248 Segmentation Package Support	package segment max-pdu-size package segment seg-timer-value show sbc dbe controllers	Chapter 6, "H.248 Packages—Signaling and Control"
Cisco IOS XE Release 2.2	H.248 ServiceChange Handoff	None.	Chapter 7, "H.248 Services—Signaling and Control"
Cisco IOS XE Release 2.1	H.248 Session Failure Reaction Package	None.	Chapter 6, "H.248 Packages—Signaling and Control"
Cisco IOS XE Release 2.1	H.248 Termination State Control Package	show sbc dbe media-flow-stats show sbc dbe signaling-flow-stats	Chapter 6, "H.248 Packages—Signaling and Control"
Cisco IOS XE Release 2.1	H.248 Traffic Management Package Support	None.	Chapter 5, "Quality of Service and Bandwidth Management"
Cisco IOS XE Release 2.1	H.248 VLAN Package Syntax-Level Support	show sbc dbe media-flow-stats show sbc dbe signaling-flow-stats	Chapter 6, "H.248 Packages—Signaling and Control"
Cisco IOS XE Release 2.1	H.248.1v3 Support	h248-version	Chapter 6, "H.248 Packages—Signaling and Control"
Cisco IOS XE Release 2.2	Improved Media Timeout Detection	media-timeout	Chapter 11, "Quality Monitoring and Statistics Gathering,"
Cisco IOS XE Release 2.3	In-Service Provisioning of H.248 Controllers	None.	Chapter 7, "H.248 Services—Signaling and Control"
Cisco IOS XE Release 2.1	Integrated Session Border Controller High Availability	None.	Chapter 10, "High Availability Support"
Cisco IOS XE Release 2.1	Interim Authentication Header Support	transport (see interim-auth-header keyword)	Superseded by Interim Authentication Header Full Support
Cisco IOS XE Release 2.2	Interim Authentication Header Full Support	transport inbound outbound	Chapter 8, "Integrated Session Border Controller Security"
Cisco IOS XE Release 2.1	IP NAPT Traversal Package and Latch and Relatch Support	h248-napt-package	Chapter 8, "Integrated Session Border Controller Security"
Cisco IOS XE Release 2.2	IPsec Pinhole Support—Twice NAT for IPv4 and No NAT for IPv6	media-address ipv4 media-address pool ipv4 media-address ipv6 media-address pool ipv6	Chapter 7, "H.248 Services—Signaling and Control"
Cisco IOS XE Release 2.1	IPv4 Twice NAPT	None.	Chapter 9, "Topology Hiding"
Cisco IOS XE Release 2.1	IPv6 Inter-Subscriber Blocking	None.	Chapter 9, "Topology Hiding"
Cisco IOS XE Release 2.1	IPv6 Support	ipv6 address (session border controller) media-address ipv6 media-address pool ipv6 port-range (ipv6) debug sbc filter (see ipv6 keyword) show sbc dbe media-flow-stats (see ipv6 keyword) show sbc dbe signaling-flow-stats (see ipv6 keyword)	Chapter 9, "Topology Hiding"
Cisco IOS XE Release 2.1	Local Source Properties (Address and Port)	None.	Chapter 8, "Integrated Session Border Controller Security"
Cisco IOS XE Release 2.1	Locally Hairpinned Sessions	None.	Chapter 7, "H.248 Services—Signaling and Control"
Cisco IOS XE Release 2.1	Logging Level in Configuring H.248 Logging Level	logging level logging filter control protocol	Chapter 2, "Configuring Integrated Session Border Controller"
Cisco IOS XE Release 2.1	Media Address Pools	media-address pool ipv4 media-address pool ipv6 port-range	Chapter 4, "Media Address Pools"
Cisco IOS XE Release 2.1	MGC-Controlled Gateway-Wide Properties	None.	Chapter 6, "H.248 Packages—Signaling and Control"
Cisco IOS XE Release 2.1	MGC-Specified Local Addresses or Ports	None.	Chapter 7, "H.248 Services—Signaling and Control"
Cisco IOS XE Release 2.1	Multi-Stream Terminations	None.	Chapter 7, "H.248 Services—Signaling and Control"
Cisco IOS XE Release 2.1	NAPT and NAT Traversal	None.	Chapter 8, "Integrated Session Border Controller Security"
Cisco IOS XE Release 2.1	Nine-Tier Termination Name Hierarchy	None.	Chapter 7, "H.248 Services—Signaling and Control"
Cisco IOS XE Release 2.1	Optional Local and Remote Descriptors	None.	Chapter 7, "H.248 Services—Signaling and Control"
Cisco IOS XE Release 2.1	Provisioned Inactivity Timer	h248-inactivity-duration	Chapter 11, "Quality Monitoring and Statistics Gathering"
Cisco IOS XE Release 2.1	QoS Bandwidth Allocation	None.	Chapter 5, "Quality of Service and Bandwidth Management"
Cisco IOS XE Release 2.1	Remote Source Address Mask Filtering	media-address ipv4 media-address pool ipv4	Chapter 8, "Integrated Session Border Controller Security"
Cisco IOS XE Release 2.1	RTCP Policing	None.	Chapter 5, "Quality of Service and Bandwidth Management"
Cisco IOS XE Release 2.3	RTCP maximum burst size policing parameter feature in RTCP Policing	None.	Chapter 5, "Quality of Service and Bandwidth Management"
Cisco IOS XE Release 2.1	RTP Specific Behavior Support	None.	Chapter 7, "H.248 Services—Signaling and Control"
Cisco IOS XE Release 2.1	ServiceChange Notification for Interface Status Change	sbc interface-id termination-id rootidname	Chapter 7, "H.248 Services—Signaling and Control"
Cisco IOS XE Release 2.1	T-MAX Timer	tmax-timer	Chapter 7, "H.248 Services—Signaling and Control"
Cisco IOS XE Release 2.1	The tsc-Delay Timer	None.	Chapter 7, "H.248 Services—Signaling and Control"
Cisco IOS XE Release 2.1	transaction-pending functionality	transaction-pending	Cisco Unified Border Element (SP Edition) Command Reference: Distributed Model
Cisco IOS XE Release 2.1	Two-Rate Three-Color Policing and Marking	control-dscp marker-dscp pdr-coefficient show sbc dbe forwarder-stats	Chapter 5, "Quality of Service and Bandwidth Management"

Deployment of Cisco Unified Border Element (SP Edition) Distributed Model

Deployment of the DBE function on the Cisco ASR 1000 Series Routers integrates a subset of the Cisco Unified Border Element (SP Edition) feature set with Cisco IOS XE software. A likely deployment scenario is that typical routing and broadband features are configured on the Cisco ASR 1000 Series Routers serving as the DBE operating with an external SBE. The Cisco Unified Border Element (SP Edition) functionality on the Cisco ASR 1000 Series Routers comprises both DBE and SBE functions, with DBE being the first to be deployed.

DBE deployment of the Cisco Unified Border Element (SP Edition) feature set is an optional feature supported on the Cisco ASR 1000 Series Routers. DBE deployment on the Cisco ASR 1000 Series Routers does not include SBE support and no SBE-related CLIs are implemented.

In the deployed distributed model, the SBE and the DBE entities reside on different network elements and the DBE is controlled by one SBE at any one time. The SBE interacts with the DBE using the H.248 Megaco (media gateway controller) protocol. The SBE controls the DBE via the H.248 interface. In this model, the bearer (or media flow) always flows through the DBE, and the SBE participates only in the signaling flow.

The DBE is responsible for the media flows and consists of a set of data path functions. The DBE responds to the requests made by the SBE to open pinholes, taking into account the specified NAT/firewall traversal and QoS requirements.

For the DBE, a new interface type is defined for the SBC virtual interface. You configure a virtual interface as part of the SBC configuration and the virtual interface has media IPs as primary or secondary IP addresses. The SBC virtual interface does not support any existing Cisco IOS features.

The Cisco IOS XE image containing Cisco Unified Border Element (SP Edition) software leverages existing Cisco IOS install and packaging facilities for software release, delivery, and installation.

Cisco IOS commands have been introduced to configure the DBE. For information on commands, see the Cisco Unified Border Element (SP Edition) Command Reference: Distributed Model.

Cisco Unified Border Element (SP Edition) DBE Deployment Scenario

One potential deployment scenario for the distributed model of Cisco Unified Border Element (SP Edition) is in a network architecture where the service provider (SP) provides voice, data, and video services to their residential broadband customers over a single link.

This scenario requires the SP to provide capabilities such as opening pinholes for the duration of a conversation, and doing this without exposing the devices behind the firewall to malicious threats. In addition, given that voice is extremely sensitive to issues such as delay, latency, and packet loss, ensuring adequate performance is a challenge. QoS mechanisms can be implemented to ensure proper priority is assigned to voice packets.

In this deployment scenario, multiple applications share a common link. Thus a mechanism that will limit bandwidth available to individual applications to ensure appropriate end-to-end quality is needed. For voice, this would involve correctly marking the packet to ensure appropriate priority, as well as controlling the number of simultaneous calls at the network entry point. Because the SP cannot dictate what IP phones their customers use, protocol conversion functionality is needed—especially H.323-to-SIP conversion.

Service providers require measurement of traffic for reporting and billing purposes in this potential scenario. Some carriers may also want to offer service level agreement (SLA) for voice, for which they want to be able to provide their customers with the proof that these SLAs are being met.

Figure 1-4 illustrates a deployment where Integrated SBC is used for VoIP interworking.

Figure 1-4 Integrated SBC Used for VoIP Interworking
