Connecting the Router
This chapter describes how to connect Cisco 860 series, Cisco 880 series, and Cisco 890 series Integrated Services Routers (ISRs) to Ethernet devices, Power over Ethernet (PoE), and a network. The chapter contains the following sections:
•
Preparing to Connect the Router
•Connecting a PC, Server, or Workstation
•Connecting a Phone
•Connecting an External Ethernet Switch
•Connecting the V.92 modem Port
•Connecting a Terminal or PC to the Console Port
•Connecting a Modem to the Auxiliary Port
•Connecting the 3G Card
•Installing the 3G Adapter for Extended Cable/Antenna
•Connecting an FE Line to an FE WAN Port
•Connecting an GE Line to an GE WAN Port
•Connecting an xDSL Line
•Connecting Power over Ethernet
•Connecting the AC Adapter
•Connecting an FXS Line
•Connecting an FXO Line
•Connecting a Voice ISDN BRI Line
•Connecting a Small-form-factor Pluggable Module
•Verifying Connections
Note For compliance and safety information, see Regulatory Compliance and Safety Information Roadmap that ships with the router and Regulatory Compliance and Safety Information for Cisco 800 Series and SOHO Series Routers.
Note The illustrations in this chapter show a wireless router with antennas attached. Nonwireless routers do not have antennas or antenna connectors on the back panel. However, the procedures for connecting devices to the router are the same for both wireless and nonwireless routers.
Note Depending on the features available for your router, some content in this chapter may not apply to your router.
Preparing to Connect the Router
Before you connect the router to the devices, install the router according to the instructions in Chapter 2 "Installing the Router."
Preventing Damage to the Router
To prevent damage to your router, follow these guidelines when connecting devices to your router:
•Turn off power to the devices and to the router until all connections are completed.
Caution Do not turn on the devices until after you have completed all connections to the router.
•Connect the color-coded cables supplied by Cisco to the color-coded ports on the back panel.
•If you must supply your own cable, see "Technical Specifications," for cabling specifications. If this appendix does not provide specifications for a particular cable, we strongly recommend ordering the cable from Cisco.
Connecting a PC, Server, or Workstation
To connect a PC (or other Ethernet devices) to an Ethernet switch port, follow these steps:
Step 1 Connect one end of the yellow Ethernet cable to an Ethernet switch port on the router. Figure 3-1 shows a Cisco 888W router connected to a PC.

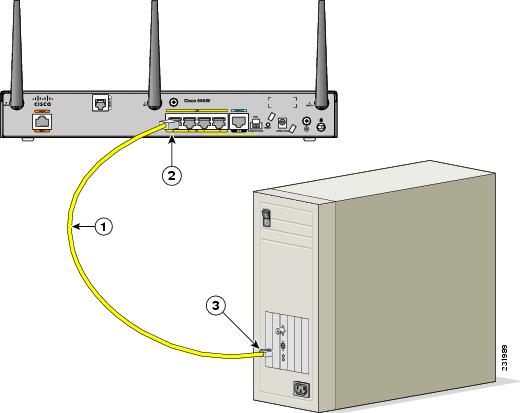

Figure 3-1 Connecting a Server, PC, or Workstation
1
|
Yellow Ethernet cable supplied with the router
|
3
|
RJ-45 port on the network interface card
|
2
|
Ethernet switch port on the router
|
|
|
Step 2 Connect the other end of the cable to the RJ-45 port on the network interface card (NIC) that is installed in the PC, server, or workstation.
Step 3 (Optional) Connect additional servers, PCs, or workstations to the other Ethernet switch ports.
Note Use the Cisco Configuration Express to configure the Internet connection settings. See Cisco Configuration Professional Quick Start Guide for more information.
Connecting a Phone
To connect an 802.3af-compliant phone to an Ethernet switch port, follow these steps:
Note A power source must be provided for the phone to function. This can be done in two ways, the phone can be powered via the PoE function using the PoE enabled Ethernet ports or by using an external AC power source connected to the phone.
Step 1 Connect one end of the yellow Ethernet cable to Ethernet switch port 0 or port 1 on the router. Figure 3-2 shows a Cisco 888W router connected to a phone.

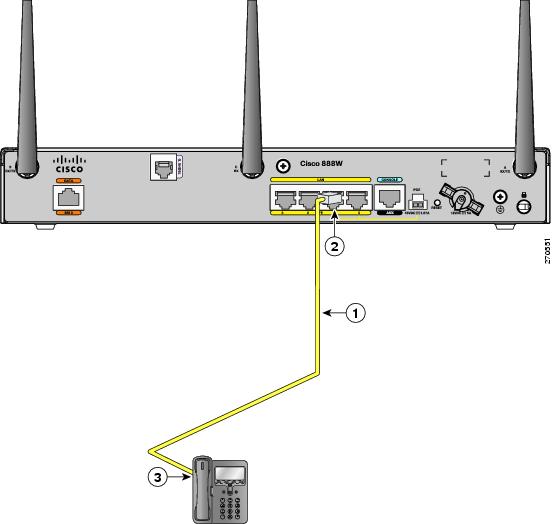

Figure 3-2 Connecting a Phone
1
|
Yellow Ethernet cable
|
3
|
RJ-45 port on a phone
|
2
|
Ethernet switch port 1 on the router
|
|
|
Step 2 Connect the other end of the cable to the RJ-45 port on the phone.
Connecting an External Ethernet Switch
If more than four PCs in an office must be connected to each other, you can add Ethernet connections to the router by connecting an external Ethernet switch to the Ethernet switch on the router.
To connect an external Ethernet switch to an Ethernet switch port on the router, complete the following steps:
Step 1 Connect one end of the yellow Ethernet cable to an Ethernet switch port on the router. Figure 3-3 shows a Cisco 888W router connected to an Ethernet switch.
Figure 3-3 Connecting to an Ethernet Switch
1
|
Ethernet switch port on the router
|
3
|
Yellow CAT5 Ethernet cable, RJ-45-to-RJ-45, connecting to an external Ethernet switch port
|
2
|
Available port on the external Ethernet switch
|
|
|
Step 2 Connect the other end of the cable to the available port on the Ethernet switch to add additional Ethernet connections.
Step 3 Turn on the Ethernet switch.
Connecting the V.92 modem Port
 |
Warning Hazardous network voltages are present in WAN ports regardless of whether power to the unit is OFF or ON. To avoid electric shock, use caution when working near WAN ports. When detaching cables, detach the end away from the unit first. Statement 1026
|
For dialup connection to your service provider network through the V.92 port, follow the steps given after Figure 3-4, which show this connection.

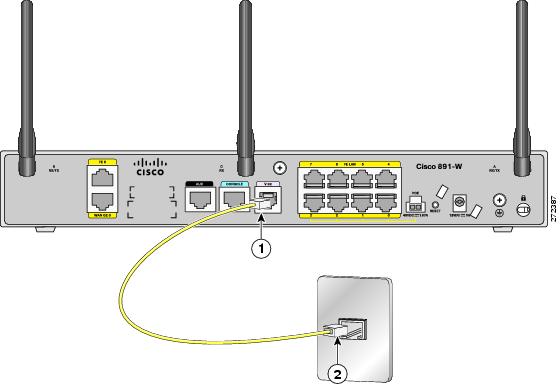

Figure 3-4 Connecting to Your Service Provider Through the V.92 port
1
|
V.92 port on the router
|
2
|
Telephone wall outlet
|
To connect the router to your service provide network through the V.92 port, follow these steps:
Step 1 Connect one end of the straight-through R-J11 cable to the V.92 port.
Step 2 Connect the other end of the straight through R-J11 cable to an RJ-11 telephone wall outlet.
Connecting a Terminal or PC to the Console Port
Connect a terminal or PC to the Console Auxiliary (Aux) port either to configure the software by using the CLI or to troubleshoot problems with the router.
To connect a terminal or PC to the console port on the router and access the CLI, follow these steps:
Step 1 Connect the RJ-45 end of a DB-9-to-RJ-45 serial cable to the RJ-45 Console Aux port on the router. Figure 3-5 shows the RJ-45 end of the serial cable connected to the Console Aux port on the router.

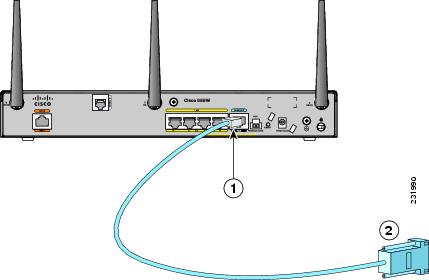

Figure 3-5 Connecting a Terminal or PC to the Console Port
1
|
RJ-45 connector to the Console Aux port on the router
|
2
|
DB-9 connector
|
Step 2 Connect the DB-9 end of the DB-9-to-RJ-45 serial cable to the to the COM port on your laptop or PC.
Note Some laptops and PCs do not come with DB-9 serial port connectors and may require a USB-to-serial port adapter.
Step 3 To communicate with the router, start a terminal emulator application.
Terminal Emulator Settings
Use the following settings for the terminal emulator connection:
•9600 baud
•8 data bits, no parity
•1 stop bit
•No flow control
When the terminal emulator establishes communications, the router prompt is displayed.
For more information on terminal emulation settings, see Applying Correct Terminal Emulator Settings for Console Connections.
Connecting a Modem to the Auxiliary Port
To connect a modem to the router, follow these steps:
Step 1 Connect the RJ-45 end of the adapter cable to the Aux port on the router as shown in Figure 3-6.
Figure 3-6 Connecting a Modem to the Aux Port
1
|
Aux port (RJ-45)
|
3
|
DB-9 to DB-25 modem adapter (if required)
|
2
|
Light blue console cable
|
4
|
Modem
|
Step 2 Connect the DB-9 end of the console cable to the DB-9 end of the modem adapter.
Step 3 Connect the DB-25 end of the modem adapter to the modem.
Step 4 Make sure that your modem and the router auxiliary port are configured for the same transmission speed (up to 115200 bits per second [b/s] is supported) and support mode control with data carrier detect (DCD) and data terminal ready (DTR).
Connecting the 3G Card
Note The Cisco 880G router does not support online insertion and removal (OIR) of the third generation (3G)card. You must enter the shutdown command on the cellular interface before you remove the 3G card from the router.
To connect and secure the 3G card, follow these steps:
Step 1 Align the 3G card to the 3G express card slot, as shown in Figure 3-7. Keep the card parallel to the surface and firmly push the card into the slot.
Tip Holding the 3G card on the flat metal surface makes it easier to align and insert the 3G card.
Note When inserting the card into the 3G express card slot, you may hear a metal-on-metal sound as the 3G card rubs against the internal metal cage. The 3G card is designed to fit tightly into the 3G express card slot. Firm pressure may be required to insert the card.
Note Global System for Mobile Communications (GSM) customers need to insert a SIM card, provided by their network carrier, into the 3G card.

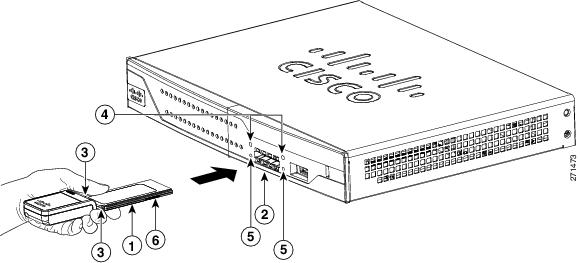

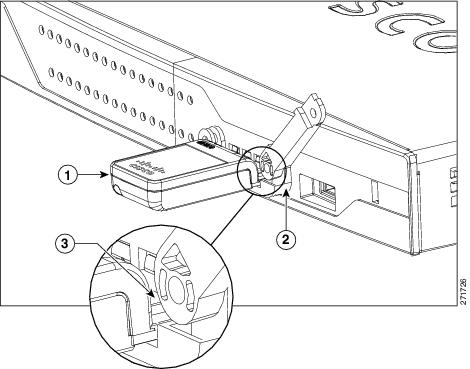

Figure 3-7 Inserting the 3G Card
1
|
3G card with the Cisco logo facing up
|
4
|
Screw holes for locking bracket
|
2
|
3G express card slot
|
5
|
Pin holes for aligning the locking bracket
|
3
|
Notches on the 3G card
|
6
|
SIM slot (in HSPA1 cards only)
|
Step 2 Open the top of the anti-theft locking bracket, as shown in Figure 3-8.

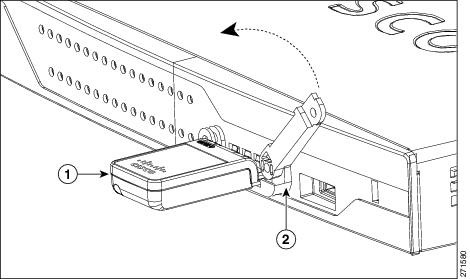

Figure 3-8 Opening the Anti-theft Locking Bracket
1
|
Pins on the locking bracket for alignment
|
|
|
Step 3 Slide the opened locking bracket under the 3G card. The locking bracket should align with the notches on either side of the 3G card, as shown in Figure 3-9, and the pins on the locking bracket should be inserted into the corresponding holes in the router.
Figure 3-9 Installing the Locking Bracket
1
|
3G card
|
3
|
Notch on the 3G card
|
2
|
Locking bracket
|
|
|
Step 4 Close the locking bracket, as shown in Figure 3-10.
Figure 3-10 Closing the Locking Bracket
1
|
3G card
|
2
|
Locking bracket
|
Step 5 Insert the screws, as shown in Figure 3-11, and tighten with a number 2 Phillips screwdriver.

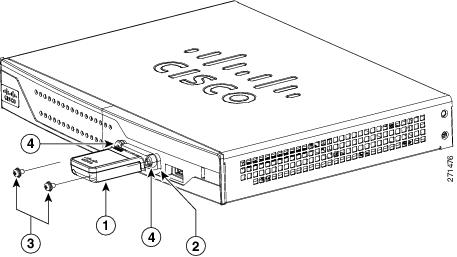

Figure 3-11 Inserting the Screws
1
|
3G card
|
3
|
Screws
|
2
|
Locking bracket
|
4
|
Screw holes on the locking bracket
|
Step 6 To connect the antenna to the 3G card, insert the antenna connector into the antenna connector receptacle on the 3G card.
Note The antenna connector receptacle may be located on the left, right, or front of the 3G card, depending on your card.
Figure 3-12 shows the antenna connected to the 3G card with an SSMB type plug, and Figure 3-13 shows the antenna with the SMK-TS-9 connector.

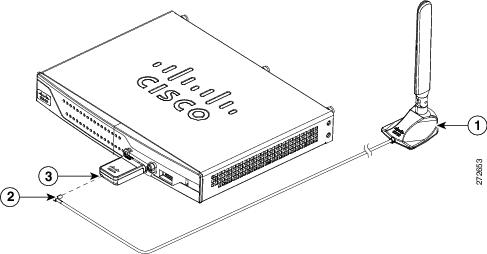

Figure 3-12 Antenna connected to the 3G Card with SSMB connector
1
|
Antenna on a cradle
|
3
|
Antenna connector receptacle1
|
2
|
Antenna SSMB connector
|
|
|
Figure 3-13 Antenna with the SMK-TS- 9 Connector
If you are using an extension cable, you must attach the 3G adapter for extended cable antenna to the body of the router. Depending on the SKU ordered, the adapters come with different connectors. Table 3-1 lists the different adapters and SKUs supported by each adapter. For instructions on how to install the adapter, see the "Installing the 3G Adapter for Extended Cable/Antenna" section. Otherwise, follow Step 7.
Table 3-1 3G Adapters and Supported SKUs
3G Adapter SKU
|
Description
|
SKUs Supported
|
3G-ACC-SMKTS9-TNC
|
3G adapter for extended cable/antenna with an SMK-TS-9 to TNC connector. Use this with the pentaband dipole indoor antenna (3G-ANTM-SMKTS9).
|
PCEX-3G-HSPA-R6, CISCO881G-G-K9
|
3G-ACC-SSMB-TNC
|
3G adapter for extended cable/antenna with an SSMB to TNC connector. Use this with the pentaband dipole indoor antenna shipped with your product.
|
PCEX-3G-HSPA, PCEX-3G-HSPA-A, PCEX-3G-CDMA-S, PCEX-3G-CDMA-V, PCEX-3G-CDMA-B, CISCO881G-A-K9, CISCO881G-S-K9, CISCO881G-V-K9
|
Step 7 Clean the flat surface to which you will affix the antenna.
Step 8 Remove the protective tape from the adhesive on the bottom of the antenna cradle, then firmly press the cradle to the flat surface.
Installing the 3G Adapter for Extended Cable/Antenna
For better signal and reception, if you are using the Cisco 3G Adapter for Extended Cable/Antenna, 3G-ACC-SMKTS9-TNC, follow these steps to install it:
Step 1 Locate and remove the Phillips screw on the left side of the router as shown in Figure 3-14. Keep the screw aside for Step 4.

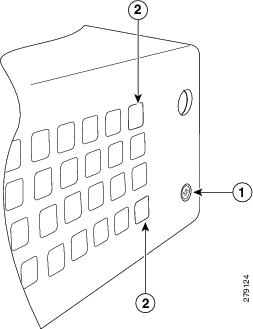

Figure 3-14 Locating the Phillips Screw
1
|
Phillips screw on the left side of router
|
2
|
Air vent holes to be aligned with adapter
|
Step 2 Locate the hooks on the adapter as shown in Figure 3-15.
Figure 3-15 Locating the Hooks on the Adapter
Step 3 Align and insert the hooks of the adapter into the air vent holes on the left side router body as shown in Figure 3-16.

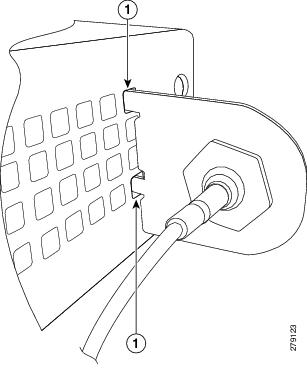

Figure 3-16 Inserting the Hooks
1
|
Hooks aligned and inserted into the router.
|
Step 4 Align the circular adapter hole with the hole on the router chassis from where you removed the screw in Step 1 and use the screw to attach the adapter to the router as shown in Figure 3-17.
Figure 3-17 Attaching the Adapter
Step 5 Connect the extension cable to the 3G card as described in the "Connecting the 3G Card" section. The complete assembly is shown in Figure 3-18.
Figure 3-18 Adapter Connected to 3G Card and Router Chassis
1
|
Router chassis
|
4
|
SSMB or SMK-TS-9 connector
|
2
|
3G adapter for extended cable/antenna
|
5
|
3G card inserted into the router
|
3
|
Cable
|
6
|
3G card
|
Now the adapter is ready for use with the extension cable. Table 3-2 lists the loss information for the ultra-low-loss (ULL) LMR 400 cables available with the adpater for the 3G fixed platforms.
Table 3-2 Cisco Adapter Cables for Use with 3G Fixed Routers
Cisco Product Number
|
Antenna Adapter Length
|
Insertion Loss
|
Frequency (MHz)
|
3G-ACC-SSMB-TNC
|
14.5 inches
|
0.66 dB
|
2100
|
3G-ACC-TS9-TNC
|
13.5 inches
|
0.62 dB
|
2100
|
For additional information on all the available cables and antennas available for 3G, go to: http://www.cisco.com/en/US/docs/routers/access/1800/1861/software/feature/guide/mrwlsgsm.html#wp1262730
Connecting a Data BRI Port
You can connect the Data BRI port to the ISDN service provider as a backup link to the WAN port in case the primary xDSL (general term referring to various forms of DSL, including global industry standard symmetrical high-speed DSL [G.SHDSL]) WAN service fails. The Data BRI connection is not available on the third-generation (3G) models.
The cabling requirements for the ISDN S/T connection are as follows:
•You must provide two unshielded Category 5 cables. The first cable connects the NT1 box to the splitter, and the second cable connects the splitter to the wall jack.
•There are RJ-45 connectors at both ends of the default orange ISDN S/T cable. However, an RJ-45-to-RJ-11 ISDN S/T cable is available upon request if the wall jack at the site requires an RJ-11 connector. Contact your router reseller for the appropriate cable.
Caution Both LAN and WAN ports use RJ-45 connectors. Use caution when connecting cables to these connectors. To avoid damage to the router, do not connect telephone-network voltage (TNV) circuits (such as ISDN or DSL circuits) to safety extra-low voltage (SELV) circuits (such as LAN circuits).
Although the following procedure shows a Cisco 888W data router, this procedure applies to all Cisco 880 series router with a Data BRI port.
To connect the Data BRI port to the ISDN service provider, follow these steps:
Step 1 Connect one end of the orange ISDN S/T cable to the Data BRI port on the router. Figure 3-19 shows a Data BRI connection.

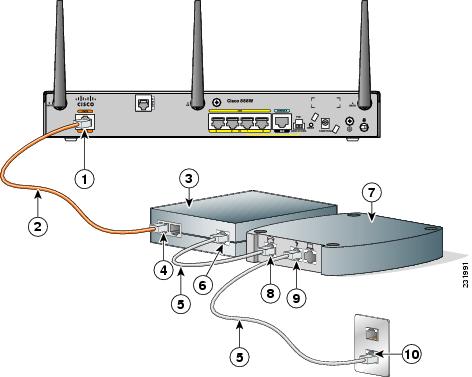

Figure 3-19 Connecting the Data BRI Port to the ISDN Line
1
|
Data BRI port on the router
|
6
|
U-port on the NT1 box
|
2
|
ISDN S/T cable
|
7
|
xDSL splitter (provided by the xDSL service provider)
|
3
|
Network termination 1 (NT1) box
|
8
|
Telephone line port on the splitter
|
4
|
S/T port on the NT1 box
|
9
|
Telecommunication service port on the splitter
|
5
|
Unshielded CAT 5 cable
|
10
|
Wall jack
|
Step 2 Connect the other end of the orange ISDN S/T cable to the S/T port on the NT1 box.
Step 3 Connect the first unshielded CAT 5 cable from the U-port on the NT1 box to the telephone line port on the splitter.
Step 4 Connect the second unshielded Category 5 cable from the telecommunication service port on the splitter to the wall jack to allow a link to the network service provider.
Connecting an FE Line to an FE WAN Port
To connect the Fast Ethernet (FE) WAN port on the router, follow these steps:
Step 1 Connect one end of the yellow cable to the FE WAN port as shown in Figure 3-20.

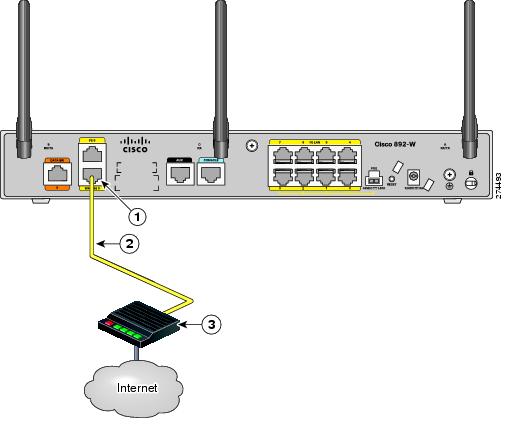

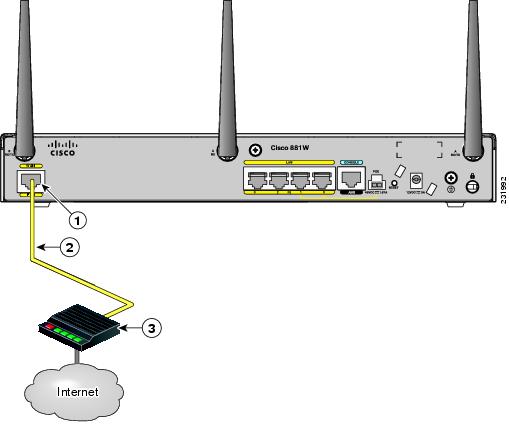

Figure 3-20 Connecting the FE WAN Port
1
|
FE WAN port
|
3
|
Modem connected to the Internet
|
2
|
CAT 5 cable
|
|
|
Step 2 Connect the other end of cable to an available port on the modem.
Connecting an GE Line to an GE WAN Port
To connect the Gigabit Ethernet (GE) WAN port on the router, follow these steps:
Step 1 Connect one end of the yellow cable to the GE WAN port as shown in Figure 3-21.
Figure 3-21 Connecting the GE WAN Port
1
|
GE WAN port
|
3
|
Modem connected to the Internet
|
2
|
CAT 5 cable
|
|
|
Step 2 Connect the other end of cable to an available port on the modem.
Connecting an xDSL Line
|
Warning Hazardous network voltages are present in WAN ports regardless of whether power to the unit is OFF or ON. To avoid electric shock, use caution when working near WAN ports. When detaching cables, detach the end away from the unit first. Statement 1026
|
Caution Cisco Systems DSL WAN Interfaces are tested for compliance with regulatory standards such as FCC Part 68, ITU-T K.21, IEC 61000-4-5, and CSA/EN/IEC/UL 60950-1. These standards assume Primary Protection devices protect the Customer Premise Equipment (CPE). These devices are normally installed by the service provider, local exchange carrier or qualified service person and are located at the telecom service provider entrance, network interface box, or demarcation point. See
Figure 3-22 for the likely location of the primary protection device. The primary protection device must be suitable for the xDSL interface employed. Please contact your sales team or qualified service person for further information and installation.
Caution To reduce the risk of fire, use only No. 26 AWG or larger (e.g., 24 AWG) UL Listed or CSA Certified Telecommunication Line Cord.
|
Warning IMPORTANT SAFETY INSTRUCTIONS
When using your telephone equipment, basic safety precautions should always be followed to reduce the risk of fire, electric shock and injury to persons, including the following:
- Do not use this product near water - for example, near a bathtub, washbowl, kitchen sink or laundry tub, in a wet basement or near a swimming pool.
- Avoid using a telephone (other than a cordless type) during an electrical storm. There may be a remote risk of electric shock from lightning.
- Do not use the telephone to report a gas leak in the vicinity of the leak.
- Use only the power cord and batteries indicated in this manual. Do not dispose of batteries in a fire. They may explode. Check with local codes for possible special disposal instructions.
SAVE THESE INSTRUCTIONS
|

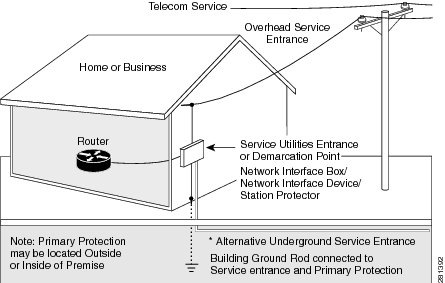

Figure 3-22 Primary Protection Device Location
To connect the router to a global industry standard symmetrical high-speed DSL (G.SHDSL) line, very-high-speed digital subscriber line 2 (VDSL2) port, or an ADSL2+ line, follow these steps:
Step 1 Connect one end of an RJ-11 (RJ-45 on 880 E models) cable to the port on the router. See Figure 3-23.
Figure 3-23 Connecting the xDSL Line
1
|
G.SHDSL port, VDSL2oPOTs port, or ADSL2+ port
|
2
|
DSL wall jack
|
Step 2 Connect the other end of the cable to the DSL wall jack.
Caution The primary WAN port is designed for an RJ-45 connector only. Damage to the primary WAN port may occur if a non RJ-45 connector is inserted
Note The DSL line must be provisioned by your service provider and correctly configured so that the LED shows the carrier detect (CD) status. On Cisco 860VAE routers, check the DSL Link LED.
Connecting Power over Ethernet
|
Warning This unit might have more than one power supply connection. All connections must be removed to de-energize the unit. Statement 1028
|
|
Warning This product must be connected to a power-over-ethernet (PoE) IEEE 802.3af compliant power source or an IEC60950 compliant limited power source. Statement 353
|
Figure 3-24 shows how to connect the 48-VDC Power over Ethernet (PoE) power adapter to your router. The PoE adapter provides power to ports 0 and 1 of the 4-port 10/100 FE switch on the Cisco 880 series routers and ports 0,1, 2, and 3 of the 8-port 10/100 FE switch on the Cisco 890 series routers.
Note The router must also be connected to an AC power outlet through a 12-VDC adapter. To connect the router to an AC outlet, see "Connecting the AC Adapter" section.
Note Be sure that the internal PoE is enabled for this connection procedure to work.

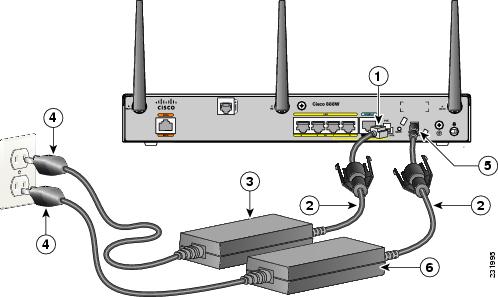

Figure 3-24 Connecting PoE
1
|
48-VDC PoE input jack
|
4
|
AC plug
|
2
|
Power cord
|
5
|
12-VDC input power-jack plug
|
3
|
Power adapter—48 VDC
|
6
|
Power adapter—12 VDC
|
Connecting the AC Adapter
|
Warning The device is designed to work with TN power systems. Statement 19
|
|
Warning This product relies on the building's installation for short-circuit (overcurrent) protection. Ensure that a fuse or circuit breaker no larger than 120VAC, 20A U.S. (240VAC, 16 to 20A international) is used on the phase conductors (all current-carrying conductors). The fuse or circuit breaker must have adequate safety approvals recognized by the country of usage. Statement 119
|
|
Warning This unit might have more than one power supply connection. All connections must be removed to de-energize the unit. Statement 1028
|
To connect your Cisco 860 series or Cisco 880 series ISR to an AC power outlet, follow these steps:
Step 1 Connect the router to an AC power outlet as shown in Figure 3-25.

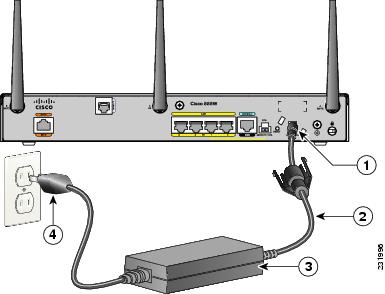

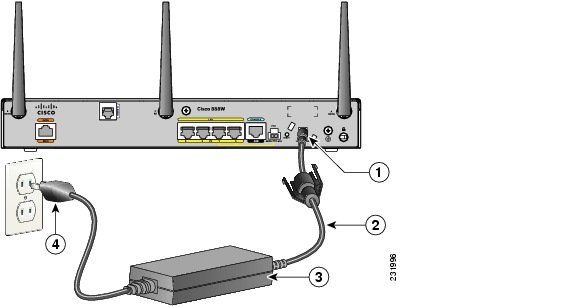

Figure 3-25 Connecting the AC Adapter
1
|
12-VDC plug
|
3
|
Power adapter—12 VDC
|
2
|
Power cord
|
4
|
AC plug
|
Step 2 To secure the power cord to the router, attach the power lock clip to the power cord, slide the clip to the end of the DC plug, and secure the retaining clip into the router chassis. See Figure 3-26.

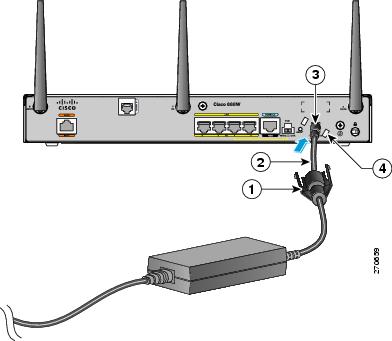

Figure 3-26 Securing the Power Cord
1
|
Power lock clip
|
3
|
DC plug
|
2
|
Power cord
|
4
|
Lock holes on either side of the power connector
|
Step 3 Snap the latches into the holes on either side of the power connector. See Figure 3-27.
Figure 3-27 Power Lock Clip Latched Into the Holes on Either Side of the Power Connector
1
|
Power lock clip
|
3
|
Power adapter
|
2
|
Power cord
|
4
|
AC plug
|
Connecting an FXS Line
Use a standard straight-through RJ-11 modular telephone cable to connect a Foreign Exchange Service (FXS) port to a telephone or fax machine.
|
Warning This equipment contains a ring signal generator (ringer), which is a source of hazardous voltage. Do not touch the RJ-11 (phone) port wires (conductors), the conductors of a cable connected to the RJ-11 port, or the associated circuit-board when the ringer is active. The ringer is activated by an incoming call.
|
|
Warning Hazardous network voltages are present in WAN ports regardless of whether power to the unit is OFF or ON. To avoid electric shock, use caution when working near WAN ports. When detaching cables, detach the end away from the unit first. Statement 1026
|
|
Warning For connections outside the building where the equipment is installed, the following ports must be connected through an approved network termination unit with integral circuit protection: FXS.
|
To connect the FXS line, follow these steps:
Step 1 Connect one end of the straight-through RJ-11 cable to the FXS port. Figure 3-28 shows an FXS line connection.

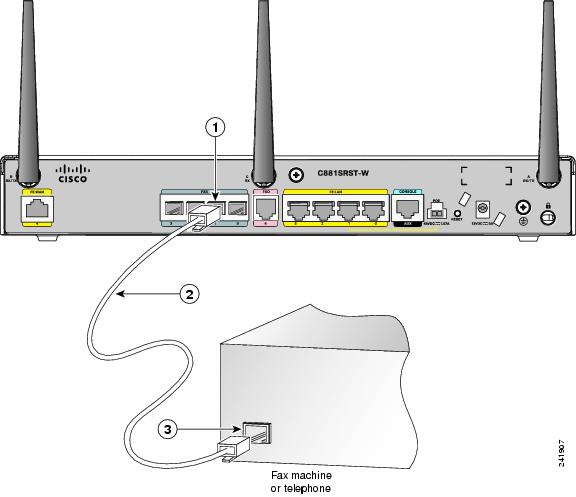

Figure 3-28 Connecting an FXS Line
1
|
FXS port
|
3
|
RJ-11 port
|
2
|
RJ-11 cable
|
|
|
Step 2 Connect the other end of the cable to the RJ-11 port on the fax machine or telephone.
Connecting an FXO Line
Use a straight-through RJ-11 cable to connect the FXO voice port to the PSTN or PBX through a telephone wall outlet.
|
Warning Hazardous network voltages are present in WAN ports regardless of whether power to the unit is OFF or ON. To avoid electric shock, use caution when working near WAN ports. When detaching cables, detach the end away from the unit first. Statement 1026
|
To connect the FXO line, follow these steps:
Step 1 Connect one end of the straight-through RJ-11 cable to the FXO port. See Figure 3-29.

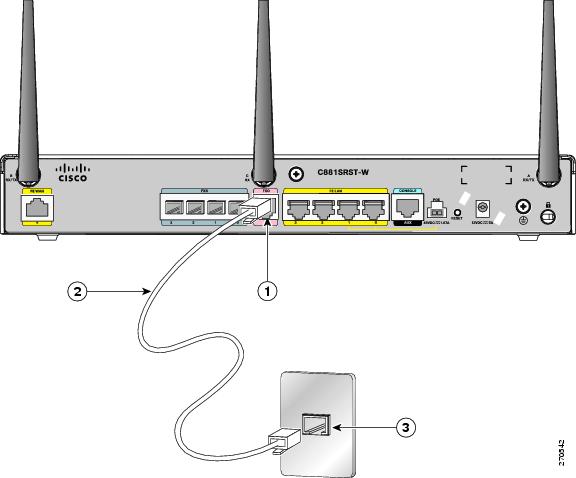

Figure 3-29 Connecting an FXO Line
1
|
FXO port
|
3
|
Telephone outlet
|
2
|
RJ-11 cable
|
|
|
Step 2 Connect the other end of the RJ-11 cable to a telephone wall outlet.
Note If you have specified the use of a private line automatic ringdown (PLAR) off-premises extension (OPX) connection mode for an FXO voice port (with loop resistance less than 8000 Ohm), you must ensure that the soft-offhook option is enabled on the port.
This option allows a stepped offhook resistance during seizure, which avoids overloading the circuit during offhook in the event that ringing voltage is present on the circuit at the same time as the trunk seizure. The stepped offhook resistance is initially set to 800 Ohms, then adjusts to 50 Ohms when ringing voltage is not present.
To enable the soft-offhook command on the port, and to access the connection command with plar opx syntax, see the Cisco Command Lookup Tool.
Connecting a Voice ISDN BRI Line
Use a straight-through RJ-45 cable to connect the voice BRI port to the ISDN network through a telephone outlet or other device.
Caution To prevent damage to the router, be sure to connect the BRI cable to the BRI connector only, and not to any other RJ-45 connector.
To connect the voice BRI line, follow these steps:
Step 1 Connect one end of a straight-through RJ-45-to-RJ-45 cable to the Voice BRI port.
Note When the interface is configured as NT and is connecting to a TE device, use a crossover cable. See Table A-12.
Figure 3-30 shows a voice BRI line connection.

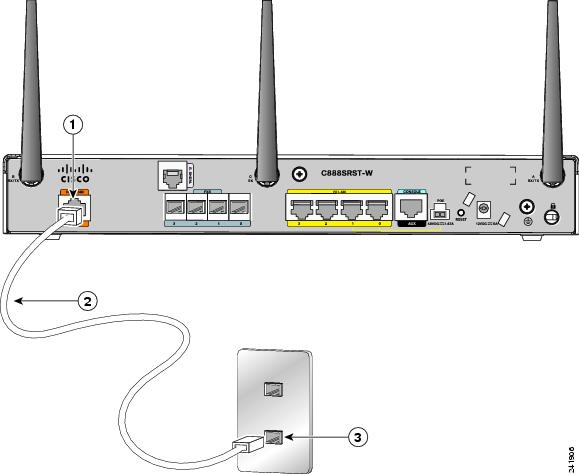

Figure 3-30 Connecting a Voice BRI Line
1
|
Voice BRI port
|
3
|
Telephone outlet
|
2
|
RJ-45 cable
|
|
|
Step 2 Connect the other end of the cable to the RJ-45 telephone outlet or other device.
Connecting a Small-form-factor Pluggable Module
This section describes how to connect and remove an SFP module and contains the following information:
•Safety Warnings
•Installing an SFP Module
•Removing an SFP Module
•Online Insertion and Removal
Safety Warnings
Laser Safety Warnings
Optical SFPs use a small laser to generate the fiber-optic signal. Keep the optical transmit and receive ports covered whenever a cable is not connected to the port.
|
Warning Because invisible laser radiation may be emitted from the aperture of the port when no fiber cable is connected, avoid exposure to laser radiation and do not stare into open apertures. Statement 70
|
|
Warning Class 1 laser product. Statement 1008
|
|
Warning Do not stare into the laser beam. Statement 1010
|
|
Warning Invisible laser radiation present. Statement 1016
|
|
Warning Ultimate disposal of this product should be handled according to all national laws and regulations. Statement 1040
|
|
Warning Invisible laser radiation may be emitted from the end of the unterminated fiber cable or connector. Do not view directly with optical instruments. Viewing the laser output with certain optical instruments (for example, eye loupes, magnifiers, and microscopes) within a distance of 100 mm may pose an eye hazard. Statement 1056
|
|
Warning Use of controls, adjustments, or performing procedures other than those specified may result in hazardous radiation exposure. Statement 1057
|
Installing an SFP Module
To connect and secure the SFP module, follow these steps:
Step 1 Slide the SFP into the SFP port connector until it locks into position (see Figure 3-31).
Tip If the SFP uses a bale-clasp latch (see Figure 3-31), the handle should be on top of the SFP module.
Figure 3-31 Installing an SFP Module
Caution Caution Do not remove the optical port plugs from the SFP until you are ready to connect cabling.
Step 2 Connect the network cable to the SFP module.
Removing an SFP Module
Follow these steps to remove the SFP module from a Cisco 892F series router:
Step 1 Disconnect all cables from the SFP.
|
Warning Because invisible laser radiation may be emitted from the aperture of the port when no fiber cable is connected, avoid exposure to laser radiation and do not stare into open apertures. Statement 70
|
Caution The latching mechanism used on many SFPs locks the SFP into place when cables are connected. Do not pull on the cabling in an attempt to remove the SFP.
Step 2 Disconnect the SFP latch. See Figure 3-32.
Note SFP modules use various latch designs to secure the module in the SFP port. Latch designs are not linked to SFP model or technology type. For information on the SFP technology type and model, see the label on the side of the SFP.
Figure 3-32 Figure 5-42 Disconnecting SFP Latch Mechanisms
1
|
Sliding latch
|
3
|
Bale-clasp latch
|
2
|
Swing and slide latch
|
4
|
Plastic collar latch
|
Tip Use a pen, screwdriver, or other small straight tool to gently release a bale-clasp handle if you cannot reach it with your fingers.
Step 3 Grasp the SFP on both sides and remove it from the router.
Online Insertion and Removal
Online insertion and removal (OIR) of the SFP module is supported on the Cisco 892F ISRs.
Note If an SFP module is inserted with auto-failover or SFP media-type already configured, the port is forced to the speed and duplex capability of the SFP. For a 100 base SFP, the speed is set to 100 and duplex can be configured to either half or full. For a 1000 base SFP, the speed is set to 1000 and duplex is set to full.
Verifying Connections
To verify that all devices are properly connected to the router, first turn on all the connected devices, then check the LEDs. To verify router operation, refer to Table 3-3.
For full LED description, see Table 1-4 and Table 1-2.
Table 3-3 Verifying the Router Operation
Power and Link
|
LEDs to Check
|
Normal Patterns
|
Power
|
OK
|
On when power is supplied to the router.
|
To servers, PCs, workstations, or an external Ethernet switch connected to the LAN ports (FE01 , FE1, FE2, or FE3)
|
LAN 0, LAN 1, LAN 2, or LAN 3
|
On when the FE LAN port is physically connected to a server, PC, workstation, or external Ethernet switch.
|
To FE WAN line
|
WAN FE4
|
On when the WAN Ethernet carrier has detected status.
Blinks when receiving or transmitting data.
|
To xDSL2 line
|
xDSL CD
|
Green when the line is connected to the xDSL DSLAM3 .
|
xDSL Data
|
Green when receiving or sending data.
|
To ISDN line
|
Data BRI LNK
|
Green when the ISDN line is connected.
|
Data BRI B1 and B2
|
Green when the channel is connected.
|
3G4
|
WWAN5
|
Green when service is established.
Slow blinking when searching for service.
|
RSSI6
|
Amber when service is not established.
Green when signal strength is high.
Off or slow blinking when signal strength is low.
Fast blinking when signal strength is medium.
|
CDMA7
|
Green when service is established.
|
GSM8
|
Green when service is established.
|
To PPP9 clients
|
PPP
|
Green when either a PPPoE10 or PPPoA11 client is running.
|
To VPN12 tunnel
|
VPN
|
Green when a crypto session is running.
|
To wireless LAN
|
WLAN LINK
|
Wireless LAN link status:
•Green if at least one client is associated.
•Off if no client is associated.
|
WLAN 2.4 GHz
|
Wireless LAN 2.4-GHz status:
•Green when radio is connected, SSID13 is configured, signal is being transmitted, and client is associated.
•Slow blinking when radio is connected, SSID is configured, and signal is being transmitted.
|
WLAN 5.0 GHz
|
Wireless LAN 5.0-GHz status:
•Green when radio is connected, SSID is configured, signal is being transmitted, and client is associated.
•Slow blinking when radio is connected, SSID is configured, and signal is being transmitted.
|
PoE14
|
PoE 0 (880 and 890 series only)
|
PoE power status:
•Green when connected and powered.
•Amber when there is a fault with the inline power supply.
|
PoE 1 (880 and 890 series only)
|
PoE 2 (890 series only)
|
PoE 3 (890 series only)
|
SFP15
|
EN
|
Green when the interface is up.
|
S
|
Blinking green indicates port speed. Slow blinking for 100Base SFPs and fast blinking for 1000Base SFPs.
|
To LAN GE/FE line (860VAE models only)
|
LAN
|
Blinking when there is LAN activity (traffic in either direction).
Off when the link is down.
|
To DSL line (860VAE models only)
|
DSL LINK
|
On when DSL WAN Mode is selected and DSL training complete.
Blinking when DSL WAN Mode is selected but incomplete DSL LinkUp state such as in-training (slow initially, fast when almost be connected), or controller "OFF", or no cable attached to DSL connector.
Off when the device is powered off; or GE_WAN_Mode is selected.
|
DSL ACT
|
On when the DSL interface is up.
Blinking when there is DSL WAN activity (traffic in either direction).
Faster blinking when there is heavier traffic.
Off when the device is powered off or the DSL WAN interface is down.
|
To WAN GE line (860VAE models only)
|
GE Mode
|
On when GE WAN Mode is selected.
Off when the device is powered off or when DSL_WAN_Mode is selected.
|
GE ACT
|
On when the GE WAN interface is up.
Blinking when there is GE WAN activity (traffic in either direction).
Off when the device is powered off or when the GE WAN interface is down.
|
