Overview
The Cisco 800 series routers connect small professional offices or telecommuters over Integrated Services Digital Network (ISDN) Basic Rate Interface (BRI) lines to the Corporate LANs and the Internet. The routers offer bridging and multiprotocol routing capability between LAN and WAN ports.
This chapter contains the following topics:
•
LEDs
Feature Summary
Table 1-1 summarizes the features of the Cisco 800 series routers.
Table 1-1 Cisco 800 Series Feature Summary
10BASE-T Ethernet port(s)
All
Provides connection to 10BASE-T (10 Mbps) Ethernet networks. Compatible with 10/100-Mbps devices.
ISDN BRI S/T port
Cisco 801 and 803
Provides connection to ISDN S/T network.
ISDN BRI U port
Cisco 802 and 804
Provides connection to ISDN U network.
IDSL port
Cisco 802 IDSL and 804 IDSL
Provides connection to IDSL network.
Telephone ports
Cisco 803 and 804
Provide connection to telephone, fax machine, or modem, which are connected to telephone services through ISDN line.
Internal Network Termination 1 (NT1)
Cisco 802 and 804
Eliminates need for an external NT1 in North America.1
Flash memory
All
8 MB of Flash memory.2
Dynamic RAM (DRAM)
All
4 MB of DRAM.2
Easily distinguishable ISDN B-channel LEDs
All
ISDN B-channel LEDs in a different color from other LEDs.
Ease of installation
All
Color-coded ports and cables to reduce the chance of error.
Cisco IOS software
All
Supports Cisco IOS software.
Cisco 800 Fast Step application
All
Provides a Windows 95-, Windows 98-, and Windows NT-based software tool for basic configurations.
Console port
All
Provides connection to terminal or PC for software configuration using command-line interface and for troubleshooting.
Note
Cable lock
All
Provides a way to physically secure the router.
Locking power connector
All
Locks power connector in place.
Wall-mount feature
All
Brackets on router bottom provide a way to mount router on wall or vertical surface.
1 Although the ISDN U interfaces on the Cisco 802 and Cisco 804 routers provide internal NT1s, the routers themselves do not function as NT1s. You cannot connect S/T devices to Cisco 802 and Cisco 804 routers.
2 An additional 8 MB of Flash memory and 4 or 8 MB of DRAM can be added at the factory or later. You can order upgrade kits and have trained and qualified personnel add the memory. The Cisco product number for the 8-MB Flash memory upgrade kit is MEM800-8F and the numbers for the DRAM upgrade kits are MEM800-4D and MEM800-8D.
Router Ports Summary
Table 1-2 lists the Cisco 800 series routers and ports.
Front Panels
The figures in this section show the front panel of the Cisco 800 series routers.

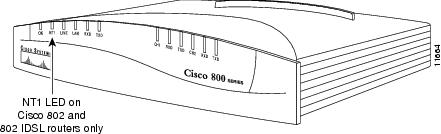

Figure 1-1 Cisco 801, Cisco 802, and Cisco 802 IDSL Front Panel

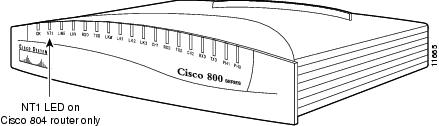

Figure 1-2 Cisco 803 and Cisco 804 Front Panel
Figure 1-3 Cisco 804 IDSL Front Panel
Back Panels
The figures in this section show the back panel of each of the Cisco 800 series routers.
If the symbol of suitability (
) appears above a port, you can connect the port directly to a public network that follows the European Union standards.
Warning
) appears above a port, you must not connect the port to a public network that follows the European Union standards. Connecting the port to this type of public network can cause severe injury or damage your router.

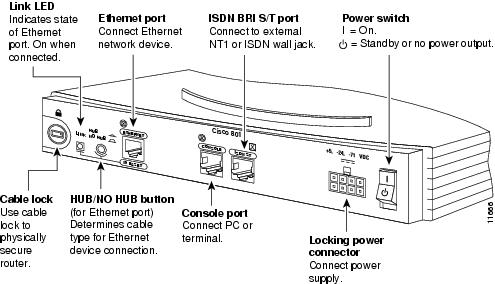

Figure 1-4 Cisco 801 Router Back Panel

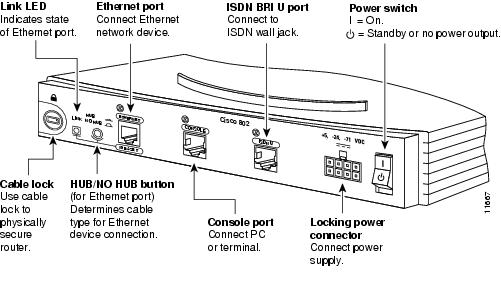

Figure 1-5 Cisco 802 Router Back Panel

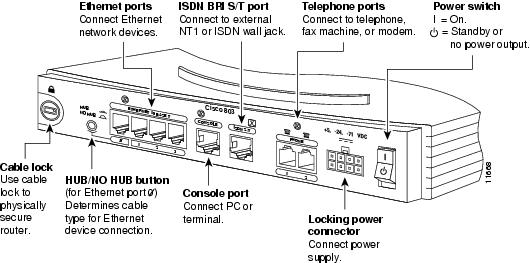

Figure 1-6 Cisco 803 Router Back Panel

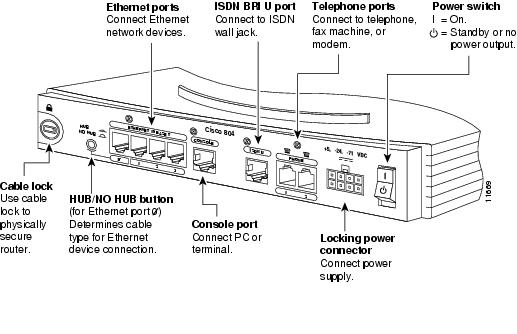

Figure 1-7 Cisco 804 Router Back Panel

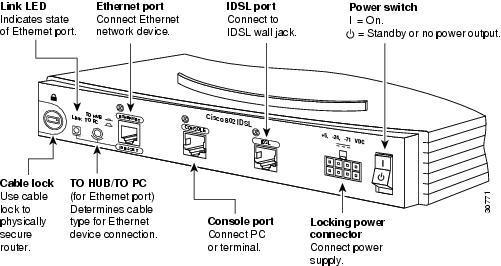

Figure 1-8 Cisco 802 IDSL Router Back Panel

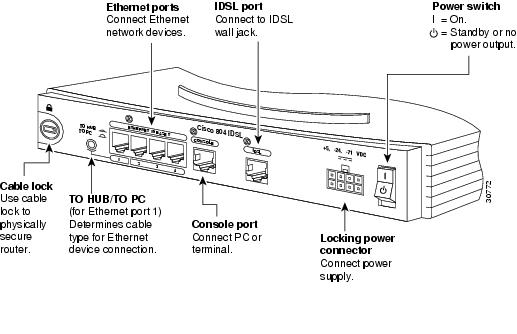

Figure 1-9 Cisco 804 IDSL Router Back Panel
LEDs
Table 1-3 summarizes the function of each LED.
Table 1-3 LED Functions
OK
Green
On when power is supplied to the router and when the router completes the self-test procedure and begins operating.
NT1
Green
Not applicable for Cisco 801 and 803 routers.
On when the internal NT1 and the ISDN switch are synchronized.
Blinks when the internal NT1 and the ISDN switch are attempting to synchronize.LINE
Green
On when the ISDN interface and the ISDN terminal device are synchronized.
LAN
Green
On when packets are sent to or received from an Ethernet port.
LAN RXD
Green
The RXD LED to the right of the LAN LED. Blinks when an Ethernet port receives a packet.
LAN TXD
Green
The TXD LED to the right of the LAN LED. Blinks when an Ethernet port sends a packet.
LKØ, LK1, LK2, LK3
Green
Cisco 803 and 804 routers only.
On when the Ethernet device is connected.
Off when the Ethernet device is not connected.
Blinks when the connection has a problem. See the "Troubleshooting" chapter.ETHERNET 1, 2, 3, 4
Green
Cisco 804 IDSL routers only.
The numbered LEDs above the ETHERNET label
On when the Ethernet device is connected.
Off when the Ethernet device is not connected.
Blinks when the connection has a problem. See the "Troubleshooting" chapter.CH1
Orange
Blinks when placing or receiving a call on the first ISDN B channel.
On when a call is connected on the first ISDN B channel.
For IDSL routers, see the Note following this table.CH1 RXD
Orange
The RXD LED to the right of the CH1 LED. Blinks when packets are received from the first ISDN B channel.
CH1 TXD
Orange
The TXD LED to the right of the CH1 LED. Blinks when packets are sent from the first ISDN B channel.
CH2
Orange
Blinks when placing or receiving a call on the second ISDN B channel.
On when a call is connected on the second ISDN B channel.
For IDSL routers, see the Note following this table.CH2 RXD
Orange
The RXD LED to the right of the CH2 LED. Blinks when packets are received from the second ISDN B channel.
CH2 TXD
Orange
The TXD LED to the right of the CH2 LED. Blinks when packets are sent from the second ISDN B channel.
PH1,PH2
Green
Cisco 803 and 804 routers only.
On when basic telephone service is in use.LINK
Green
On back panel of Cisco 801, 802, and 802 IDSL routers only.
On when Ethernet device is connected.
Blinks when the connection has a problem. Refer to the "Troubleshooting" chapter.
