Installing and Configuring HSSI Network Processor Modules in Cisco 4000 Series Routers
Product Number: NP-1HSSI
This document describes how to install and configure High Speed Serial Interface (HSSI) network processor modules in Cisco 4500, Cisco 4500-M, Cisco 4700, and Cisco 4700-M routers. The HSSI network processor module provides full-duplex connectivity at Synchronous Optical Network (SONET) OC-1 (51.840 MHz), T3 (44.736 MHz), and E3 (34.368 MHz) rates. The actual rate of the interface depends on the external data service unit (DSU) and the type of service it is connected to.
Note
Cisco 4000 and Cisco 4000-M routers do not support the HSSI network processor module.
Use this document in conjunction with the Cisco 4000 Series Installation Guide publication (depending on your router model), the Cisco 4000 Series Regulatory Compliance and Safety Information document, and the Cisco IOS configuration guides and command references. If you have questions or need help, refer to the section "Cisco Connection Online" later in this document.
This document includes the following sections:
•
•
•
•
•
•
•
CautionBefore performing procedures described in this document, review the section "Safety Recommendations."
Hardware and Software Requirements
Before you install the HSSI network processor module, make sure your Cisco 4000 series router meets the following hardware and software requirements:
•
•
•
Note
HSSI modules are subject to the following restrictions:
•
•
Safety Recommendations
Follow these guidelines to ensure general safety:
•
•
•
•
•
•
Safety Warnings
Safety warnings appear throughout this publication in procedures that, if performed incorrectly, may harm you. A warning symbol precedes each warning statement.
Warning
Means danger. You are in a situation that could cause bodily injury. Before you work on any equipment, be aware of the hazards involved with electrical circuitry and be familiar with standard practices for preventing accidents. To see translations of the warnings that appear in this publication, refer to the Regulatory Compliance and Safety Information document that accompanied this device.
Waarschuwing Dit waarschuwingssymbool betekent gevaar. U verkeert in een situatie die lichamelijk letsel kan veroorzaken. Voordat u aan enige apparatuur gaat werken, dient u zich bewust te zijn van de bij elektrische schakelingen betrokken risico's en dient u op de hoogte te zijn van standaard maatregelen om ongelukken te voorkomen. Voor vertalingen van de waarschuwingen die in deze publicatie verschijnen, kunt u het document Regulatory Compliance and Safety Information (Informatie over naleving van veiligheids- en andere voorschriften) raadplegen dat bij dit toestel is ingesloten.
Varoitus Tämä varoitusmerkki merkitsee vaaraa. Olet tilanteessa, joka voi johtaa ruumiinvammaan. Ennen kuin työskentelet minkään laitteiston parissa, ota selvää sähkökytkentöihin liittyvistä vaaroista ja tavanomaisista onnettomuuksien ehkäisykeinoista. Tässä julkaisussa esiintyvien varoitusten käännökset löydät laitteen mukana olevasta Regulatory Compliance and Safety Information -kirjasesta (määräysten noudattaminen ja tietoa turvallisuudesta).
Attention Ce symbole d'avertissement indique un danger. Vous vous trouvez dans une situation pouvant causer des blessures ou des dommages corporels. Avant de travailler sur un équipement, soyez conscient des dangers posés par les circuits électriques et familiarisez-vous avec les procédures couramment utilisées pour éviter les accidents. Pour prendre connaissance des traductions d'avertissements figurant dans cette publication, consultez le document Regulatory Compliance and Safety Information (Conformité aux règlements et consignes de sécurité) qui accompagne cet appareil.
Warnung Dieses Warnsymbol bedeutet Gefahr. Sie befinden sich in einer Situation, die zu einer Körperverletzung führen könnte. Bevor Sie mit der Arbeit an irgendeinem Gerät beginnen, seien Sie sich der mit elektrischen Stromkreisen verbundenen Gefahren und der Standardpraktiken zur Vermeidung von Unfällen bewußt. Übersetzungen der in dieser Veröffentlichung enthaltenen Warnhinweise finden Sie im Dokument Regulatory Compliance and Safety Information (Informationen zu behördlichen Vorschriften und Sicherheit), das zusammen mit diesem Gerät geliefert wurde.
Avvertenza Questo simbolo di avvertenza indica un pericolo. La situazione potrebbe causare infortuni alle persone. Prima di lavorare su qualsiasi apparecchiatura, occorre conoscere i pericoli relativi ai circuiti elettrici ed essere al corrente delle pratiche standard per la prevenzione di incidenti. La traduzione delle avvertenze riportate in questa pubblicazione si trova nel documento Regulatory Compliance and Safety Information (Conformità alle norme e informazioni sulla sicurezza) che accompagna questo dispositivo.
Advarsel Dette varselsymbolet betyr fare. Du befinner deg i en situasjon som kan føre til personskade. Før du utfører arbeid på utstyr, må du vare oppmerksom på de faremomentene som elektriske kretser innebærer, samt gjøre deg kjent med vanlig praksis når det gjelder å unngå ulykker. Hvis du vil se oversettelser av de advarslene som finnes i denne publikasjonen, kan du se i dokumentet Regulatory Compliance and Safety Information (Overholdelse av forskrifter og sikkerhetsinformasjon) som ble levert med denne enheten.
Aviso Este símbolo de aviso indica perigo. Encontra-se numa situação que lhe poderá causar danos físicos. Antes de começar a trabalhar com qualquer equipamento, familiarize-se com os perigos relacionados com circuitos eléctricos, e com quaisquer práticas comuns que possam prevenir possíveis acidentes. Para ver as traduções dos avisos que constam desta publicação, consulte o documento Regulatory Compliance and Safety Information (Informação de Segurança e Disposições Reguladoras) que acompanha este dispositivo.
¡Advertencia! Este símbolo de aviso significa peligro. Existe riesgo para su integridad física. Antes de manipular cualquier equipo, considerar los riesgos que entraña la corriente eléctrica y familiarizarse con los procedimientos estándar de prevención de accidentes. Para ver una traducción de las advertencias que aparecen en esta publicación, consultar el documento titulado Regulatory Compliance and Safety Information (Información sobre seguridad y conformidad con las disposiciones reglamentarias) que se acompaña con este dispositivo.
Varning! Denna varningssymbol signalerar fara. Du befinner dig i en situation som kan leda till personskada. Innan du utför arbete på någon utrustning måste du vara medveten om farorna med elkretsar och känna till vanligt förfarande för att förebygga skador. Se förklaringar av de varningar som förkommer i denna publikation i dokumentet Regulatory Compliance and Safety Information (Efterrättelse av föreskrifter och säkerhetsinformation), vilket medföljer denna anordning.
Warning
Read the installation instructions before you connect the system to its power source.
Warning
Only trained and qualified personnel should be allowed to install or replace this equipment.
Warning
Before working on a chassis or working near power supplies, unplug the power cord on AC units; disconnect the power at the circuit breaker on DC units.
Warning
Ultimate disposal of this product should be handled according to all national laws and regulations.
Safety with Electricity
Warning
Before working on equipment that is connected to power lines, remove jewelry (including rings, necklaces, and watches). Metal objects will heat up when connected to power and ground and can cause serious burns or weld the metal object to the terminals.
Warning
To avoid electric shock, do not connect safety extra-low voltage (SELV) circuits to telephone-network voltage (TNV) circuits. LAN ports contain SELV circuits, and WAN ports contain TNV circuits. Both LAN and WAN ports may use RJ-45 connectors. Use caution when connecting cables.
Warning
Hazardous network voltages are present in WAN ports regardless of whether power to the router is OFF or ON. To avoid electric shock, use caution when working near WAN ports. When detaching cables, detach the end away from the router first.
Warning
The ISDN connection is regarded as a source of voltage that should be inaccessible to user contact. Do not attempt to tamper with or open any public telephone operator (PTO)-provided equipment or connection hardware. Any hardwired connection (other than by a nonremovable, connect-one-time-only plug) must be made only by PTO staff or suitably trained engineers.
Follow these guidelines when working on equipment powered by electricity:
•
•
•
•
•
•
•
Warning
Before opening the chassis, disconnect the telephone-network cables to avoid contact with telephone-network voltages.
Warning
Do not work on the system or connect or disconnect cables during periods of lightning activity.
•
Warning
Do not touch the power supply when the power cord is connected. For systems with a power switch, line voltages are present within the power supply even when the power switch is OFF and the power cord is connected. For systems without a power switch, line voltages are present within the power supply when the power cord is connected.
•
•
•
•
•
•
•
Preventing Electrostatic Discharge Damage
Electrostatic discharge (ESD) can damage equipment and impair electrical circuitry. It occurs when electronic printed circuit cards are improperly handled and can result in complete or intermittent failures. Always follow ESD prevention procedures when removing and replacing cards. Ensure that the router chassis is electrically connected to earth ground. Wear an ESD-preventive wrist strap, ensuring that it makes good skin contact. Connect the clip to an unpainted surface of the chassis frame to safely channel unwanted ESD voltages to ground. To properly guard against ESD damage and shocks, the wrist strap and cord must operate effectively. If no wrist strap is available, ground yourself by touching the metal part of the chassis.
CautionTo avoid damaging ESD-sensitive components, ensure that you have discharged all static electricity from your body before opening the chassis.
CautionFor safety, periodically check the resistance value of the antistatic strap, which should be between 1 and 10 megohms (Mohm).
Required Tools and Equipment
You need the following tools and equipment to install an HSSI network processor module in a Cisco 4000 series chassis slot:
•
•
•
•
•
Removing the Component Tray
To install a network processor module, you must first remove the component tray from the chassis.
Warning
Before working on a chassis or working near power supplies, unplug the power cord on AC units; disconnect the power at the circuit breaker on DC units.
Warning
Do not touch the power supply when the power cord is connected. For systems with a power switch, line voltages are present within the power supply even when the power switch is OFF and the power cord is connected. For systems without a power switch, line voltages are present within the power supply when the power cord is connected.
The following warning applies to routers with DC power supplies:
Warning
Before performing any of the following procedures, ensure that power is removed from the DC circuit. To ensure that all power is OFF, locate the circuit breaker on the panel board that services the DC circuit, switch the circuit breaker to the OFF position, and tape the switch handle of the circuit breaker in the OFF position.
Some Cisco 4000 series routers have a safety latch tab on the chassis (see ) and others do not (see ).

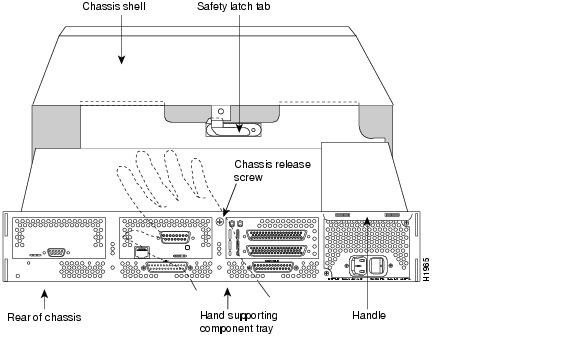

Figure 1 Component Tray Removal for Chassis With a Safety Latch

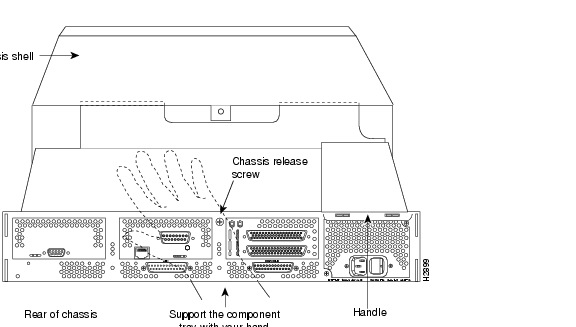

Figure 2 Component Tray Removal for Chassis Without a Safety Latch
Follow these steps to remove the component tray from a chassis:
Step 1
Step 2
Step 3
Warning
Before opening the chassis, disconnect the telephone-network cables to avoid contact with telephone-network voltages.
Warning
Do not work on the system or connect or disconnect cables during periods of lightning activity.
Step 4
•
•
•
Step 5
CautionWhen you remove the component tray from the chassis, support it from underneath, either on your work surface or with your hands.
Step 6
If your chassis has a safety latch (see ), slide the component tray out of the chassis shell just until the safety latch catches. Support the component tray with one hand, push down on the safety latch tab, and pull the component tray out the rest of the way.
If your chassis does not have a safety latch (see ), support the component tray with one hand while you slide it out of the chassis shell.
Step 7
shows the component tray for the Cisco 4500 and Cisco 4700 routers and older versions of the Cisco 4500-M router. shows the component tray for the Cisco 4700-M router and newer versions of the Cisco 4500-M router.
Figure 3 Cisco 4500, Cisco 4700, and Older Cisco 4500-M Component Tray
Figure 4 Cisco 4700-M and Newer Cisco 4500-M Component Tray
Removing Network Processor Modules
If you need to remove any network processor modules, follow the procedure in this section.
CautionSome network processor modules are fastened to the rear of the chassis with two external screws. You must remove these screws before you can lift the module out of the chassis.
Step 1
Step 2
Step 3
CautionDo not wiggle the module's handle or exert any side-to-side pressure. The handle can work loose and damage the module.

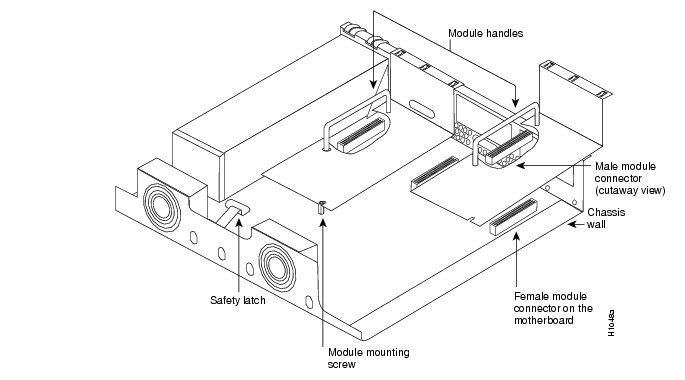

Figure 5 Removing Network Processor Modules
CautionIf any of the modules have daughter cards projecting at right angles to the module (see ), do not bend the module during installation, because the daughter cards could become disconnected. Carefully reseat any loosened cards, handling them by the edges without touching any components.

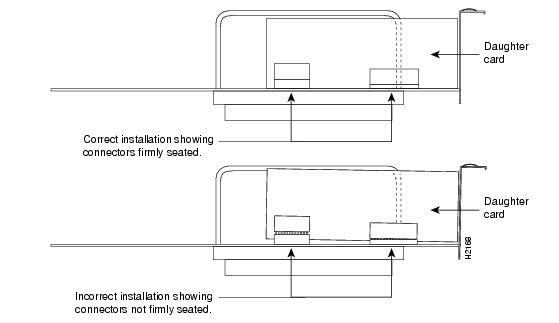

Figure 6 Network Processor Module Daughter Card Connections
Inserting Network Processor Modules
Follow these steps to insert a new or replacement network processor module:
Step 1
Step 2
Step 3
Step 4
CautionDo not overtorque the screws, because this can damage the module or the underlying system board. The maximum torque is 7 inch-lb.
Replacing the Component Tray
Follow these steps to replace the component tray in the chassis shell:
Step 1
Step 2
Making Final Connections to the Router
Follow these steps to make final connections to the router:
Step 1
Step 2
If you have a DC-powered router, rewire the DC-input power supply (40 to 72 VDC) to the terminal block. The proper wiring sequence is ground to ground, positive to positive, and negative to negative. (See Figure 7.) After connecting the DC power cables, use a screwdriver to reinstall the terminal block cover.

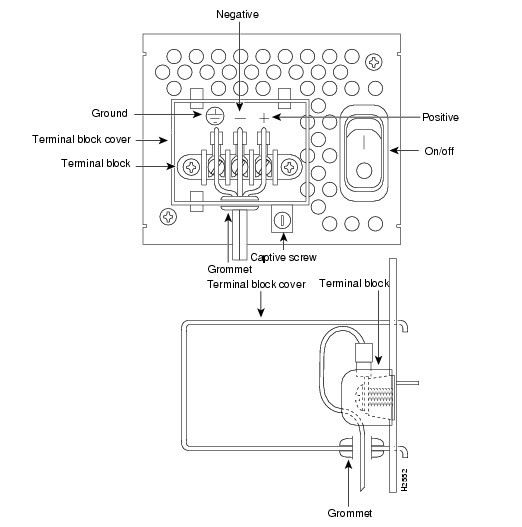

Figure 7 DC-Input Power Supply Connections
Warning
The illustration shows the DC power supply terminal block. Wire the DC power supply using the appropriate lugs at the wiring end, as illustrated. The proper wiring sequence is ground to ground, positive to positive (line to L), and negative to negative (neutral to N). Note that the ground wire should always be connected first and disconnected last.
Warning
After wiring the DC power supply, remove the tape from the circuit breaker switch handle and reinstate power by moving the handle of the circuit breaker to the ON position.
Step 3
Step 4
Warning
This equipment is intended to be grounded. Ensure that the host is connected to earth ground during normal use.
If you have questions or need help, refer to the section "Cisco Connection Online" later in this document.
Connecting the HSSI Network Processor Module to a Network
You can connect the HSSI network processor module to a network in one of two ways:
•
•
Note
CautionAlthough the HSSI connector and cable resemble SCSI-II connectors and cables, they are not identical. Proper operation with a SCSI-II cable is not guaranteed.

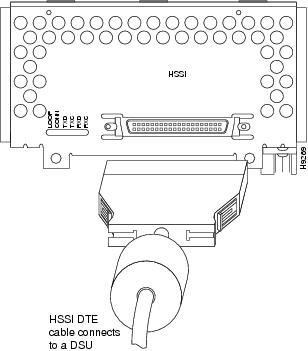

Figure 8 Connecting an HSSI DTE Cable
Figure 9 Connecting a Null Modem Cable
HSSI Pinouts
The section describes the following pinouts:
For signals that have polarity, pins in the range 1 to 25 are positive and pins in the range 26 to 50 are negative.
HSSI Network Processor Module LEDs

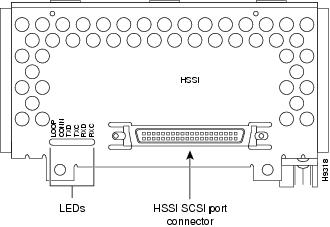

shows HSSI network processor module LEDs, and describes their function.
Figure 10 HSSI Network Processor Module LEDs
Configuring the HSSI Interface
Whenever you install a new interface, or if you want to change the configuration of an existing interface, you must configure it. If you replace a module that was already configured, the router recognizes it and brings up the interface using the existing configuration.
Before you configure an interface, have the following information available:
•
•
Timesaver
Obtain this information from your system administrator or network plan before you begin to configure the router.
To configure an HSSI interface, you must use configuration mode (manual configuration). In this mode, you can enter Cisco IOS commands at the router prompt.
Before you begin to configure an interface, disconnect all WAN cables from the router to keep it from trying to run the AutoInstall process. The router tries to run AutoInstall whenever you power it ON if there is a WAN connection on both ends and the router does not have a valid configuration file stored in nonvolatile random-access memory (NVRAM) (for instance, when you add a new interface). It can take several minutes for the router to determine that AutoInstall is not connected to a remote Transmission Control Protocol/Internet Protocol (TCP/IP) host.
If you have questions or need help, refer to the section "Cisco Connection Online" later in this document for more information.
Configuring the HSSI Interface for Connection to a DSU
This section describes basic configuration, including enabling the interface and specifying IP routing. Depending on your own requirements and the protocols you plan to route, you might also need to enter other configuration commands.
To configure the HSSI interface for connection to a DSU using an HSSI DTE cable, follow this procedure:
Step 1
Step 2
Would you like to enter the initial dialog? [yes]:Answer no. You now enter the normal operating mode of the router.
Note
Step 3
Router> enablePassword:Configuration changes can be made only in enable mode. The prompt changes to the privileged EXEC (enable) prompt (Router#):
Router#Step 4
Router# config terminalRouter(config)#The router enters global configuration mode, indicated by the Router(config)# prompt.
Step 5
Router(config)# ip routingFor complete information about global configuration commands, refer to the Cisco IOS configuration guides and command references.
Step 6
Router(config)# interface hssi 0The prompt changes again to show that you are in interface configuration mode.
Note
Step 7
Router(config-int)# ip address 145.22.4.67 255.255.255.0Step 8
Router(config-int)# no shutdownStep 9
Step 10
Step 11
Router# show running-configTo see the configuration currently stored in NVRAM, enter the show startup-config command at the enable prompt.
Router# show startup-configStep 12
Router# copy running-config startup-configBuilding configuration. . .[OK]Router#Continue with the section "Checking the Configuration" later in this document to check the interface configuration using show commands.
Configuring the HSSI Interface for Back-to-Back Operation
This section describes how to configure the HSSI interface for back-to-back operation. Back-to-back operation allows you to verify operation of the HSSI port or link routers directly to build a larger node.
To configure the HSSI interface for back-to-back operation using an HSSI null modem cable, follow this procedure:
Step 1
Step 2
Would you like to enter the initial dialog? [yes]:Answer no. You now enter the normal operating mode of the router.
Note
Step 3
Router> enablePassword:Configuration changes can be made only in enable mode. The prompt changes to the privileged EXEC (enable) prompt (Router#):
Router#Step 4
Router# config terminalRouter(config)#The router enters global configuration mode, indicated by the Router(config)# prompt.
Step 5
Router(config)# ip routingFor complete information about global configuration commands, refer to the Cisco IOS configuration guides and command references.
Step 6
Router(config)# interface hssi 0The prompt changes again to show that you are in interface configuration mode.
Note
Step 7
Router(config-int)# hssi internal-clockStep 8
Router# show running-configTo see the configuration currently stored in NVRAM, enter the show startup-config command at the enable prompt.
Router# show startup-configStep 9
Router# copy running-config startup-configBuilding configuration. . .[OK]Router#Step 10
Continue with the next section to check the interface configuration using show commands.
Checking the Configuration
After configuring the new interface, use the following show commands to display the status of the new interface or all interfaces.
•
•
•
•
•
If an interface is down and you configured it as up, or if the displays indicate that the hardware is not functioning properly, make sure that the network interface is properly connected and terminated. If you still have problems, refer to the section "Cisco Connection Online" later in this document.
Shutting Down an Interface
If you are removing a network processor module permanently, or to replace it with a different or reconfigured module, shut down (disable) the interface first to prevent anomalies. When you shut down an interface, it is designated administratively down in show command displays.
Follow this procedure to shut down an interface:
Step 1
Step 2
Router> enablePassword:Configuration changes can be made only in enable mode. The prompt changes to the privileged EXEC (enable) prompt (Router#):
Router#Step 3
Router# config terminalRouter(config)#The router enters global configuration mode, indicated by the Router(config)# prompt.
Step 4
Router(config)# interface hssi 0The prompt changes again to show that you are in interface configuration mode.
Note
Step 5
Router(config-int)# shutdownStep 6
Router# copy running-config startup-config[OK]Router#Step 7
Router# show interface hssi 0Hssi0 is administratively down, line protocol is downHardware is MXTStep 8
Router(config-int)# interface hssi 0Router(config-int)# no shutdownRouter(config-int)# ^zRouter# copy running-config startup-config[OK]Router# show interface hssi 0Hssi0 is up, line protocol is upHardware is MXTFCC Class B Compliance
