Overview of the Cisco 4000 Series Routers

Series Specifications

Software Compatibility

Memory Systems

Memory Requirements in the Cisco 4000 Series

Shared Memory Requirements

Main Memory Requirements

Cisco RPS Support

Overview

Quasi-Redundant Power

Fully Redundant Power

RPS Features

Overview of the Cisco 4000 Series Routers

The Cisco 4000 series consists of the Cisco 4000-M, the Cisco 4500-M, and the Cisco 4700-M. All models provide a configurable modular router platform using network processor modules—individual modules that when installed in the router are ready for external network connections. Performance is the key distinction between the Cisco 4000-M, Cisco 4500-M, and Cisco 4700-M.

For maximum performance in the Cisco 4000 series, the Cisco 4700-M contains a 133-MHz RISC microprocessor, 16 to 64 MB main memory, and a 512-KB secondary cache. The faster speed of the Cisco 4700-M allows higher throughput for high-speed interfaces. The 512-KB secondary cache is useful for process switching applications such as compression and encryption.

The Cisco 4500-M contains a 100-MHz RISC microprocessor and 8 to 32 MB of main memory. The Cisco 4000-M contains a 40-MHz CISC microprocessor and 4 to 32 MB of main memory.

All Cisco 4000 series routers provide flexibility, allowing network managers to easily reconfigure the router when needs change.

The Cisco 4000 series routers support up to three network processor modules at a time. The following network processor modules are available at the publication date of this guide:

•Single-port Fast Ethernet with 100BaseT and MII connectors provided for the port

•Single-port and dual-port Ethernet with 10BaseT and AUI connectors provided for each port

•Six-port Ethernet with 10BaseT connectors provided for each port

•Dual-port and four-port synchronous serial supporting EIA/TIA-232, EIA/TIA-449, V.35, X.21, NRZ/NRZI, DTE/DCE, or EIA-530 DTE interfaces on each port

•Dual-port high-speed synchronous serial and 16-port low-speed synchronous/asynchronous serial. The high-speed ports supports EIA/TIA-232, EIA/TIA-449, V.35, X.21, NRZ/NRZI, DTE/DCE, or EIA-530 DTE interfaces. The low-speed ports support EIA/TIA-232, V.35, or X.21 interfaces in DTE or DCE mode. Each low-speed port can be individually configured for synchronous or asynchronous.

•Single-port HSSI

•Single-port and dual-port Token Ring

•Dual attachment single-mode FDDI

•Single attachment or dual attachment multimode FDDI

•Four-port or eight-port ISDN BRI

•Four-port balanced or unbalanced G.703/G.704

•Single-port channelized T1/ISDN PRI

•Single-port balanced or unbalanced channelized E1/ISDN PRI

•Single-port ATM with single-mode OC-3 and long-reach capability, multimode OC-3, DS-3, or E3 interfaces

Note   For information about modules released after publication of this guide, see the configuration note packet shipped with your router.

Note   EIA/TIA-232 and EIA-TIA-449 were known as recommended standards RS-232 and RS-449 before their acceptance as standards by the Electronics Industries Association (EIA) and Telecommunications Industry Association (TIA)

shows the front panel of a Cisco 4000 series router.

Figure 1-1 Cisco 4000 Series Chassis—Front Panel

Series Specifications

Design specifications for the Cisco 4000 series are as follows:

•Modular router platform.

•Flash memory capability.

•User-upgradable network processor modules, shared memory, and processor local memory.

•Hardware thermal alarm to warn of excessively high operating temperature.

•Can be rack-mounted in either a standard 19-inch rack or a telco rack.

•Can be mounted on a wall or placed on a desk or table.

•Support for up to three network processor modules at a time. Network processor modules can be placed in any of the three available positions in almost any desired combination. See the Cisco Product Catalog for complete configuration details.

The BRI four-port and eight-port network interface modules can not be used in the same chassis with the channelized T1/ISDN PRI network interface module or the channelized E1/ISDN PRI network interface module.

The Cisco 4000-M does not support Fast Ethernet, HSSI, 2T16S, ATM, or six-port Ethernet network processor modules.The Cisco 4000-M can support only one FDDI network processor module in combination with any two other types of network processor modules.

The Cisco 4500-M and Cisco 4700-M can support two FDDI network processor modules. If you are only using one FDDI module, install it in the center slot for optimum heat dissipation.

The Cisco 4500-M and Cisco 4700-M can support one ATM network processor module or up to three six-port Ethernet network processor modules. The single-port Ethernet module is not supported on the Cisco 4500-M or the Cisco 4700-M.

Note   The Cisco 4500-M and Cisco 4700-M support all network processor modules except the single-port Ethernet network processor module.

For complete configuration information, refer to the Cisco Product Catalog, which is available on the Web at http://www.cisco.com.

Table 1-1 lists the network processor module interface options available for the Cisco 4000 series when this guide was printed. For current modules, see the configuration note packet that shipped with your router.

Interface Options

Port Options

Part Numbers

Ethernet

Single port, dual port, or six port

NP-1E=, NP-2E=, NP-6E=

Fast Ethernet

Single port

NP-1FE=

Synchronous serial

Dual port or four port

NP-2T=, NP-4T=

Synchronous/asynchronous
serial¹

Dual high-speed ports and 16 low-speed ports

NP-2T16S=

HSSI

Single HSSI port

NP-1HSSI=

Token Ring

Dual port or single port

NP-1RV2=, NP-2R=

Multimode FDDI

Single attachment or dual attachment

NP-1F-D-MM=, NP-1F-S-M=

Single-mode FDDI

Dual attachment

NP-1F-D-SS=

BRI

Four port or eight port

NP-4B=, NP-8B=

G.703

Four port (balanced or unbalanced)²

NP-4GB=, NP-4GU=

Channelized T1/ISDN PRI

Single channelized T1/PRI port

NP-CT1=

Channelized E1/ISDN PRI

Single channelized E1/PRI port

NP-CE1=

ATM

Single ATM port

NP-1A-SM=,NP-1A-MM=, NP-1A-DS3=, NP-1A-E3=

¹Each low-speed port can be individually configured for synchronous or asynchronous.

²For G.703 and G.704 connections, balanced or unbalanced ports must be matched with the corresponding balanced or unbalanced cable.

lists the specifications of the Cisco 4000 series routers.

Table 1-1 System Specifications

Description

Specification

Dimensions (H x W x D)

3.4 x 17.6 x 17.7" (8.6 x 44.7 x 45 cm)

Weight

24 lb (10.9 kg) (including the chassis and network processor modules)

Power

100-240 VAC, 50-60 Hz, 3.0-1.5A or 40-72 VDC, 5-2.8A

Wire gauge for DC-input power connections

14 AWG¹

Network interface options

Ethernet, serial, Token Ring, FDDI, BRI, G.703, channelized T1/PRI, channelized E1/PRI, ATM

Serial interfaces

EIA/TIA-232, EIA/TIA-449^,V.35, X.21, NRZ/NRZI, DTE/DCE, EIA-530 DTE

Console port

EIA/TIA-232 DB-25 female connector

Auxiliary port

EIA/TIA-232 DB-25 male connector

Nonoperating temperature

- 40-185×F (- 40-85×C)

Operating humidity

5-95%, noncondensing

Operating temperature

32-104×F (0-40×C)

Regulatory compliance

FCC Class A, FCC Part 68, Canadian DOC Class A, CS-03, UL 1950 2nd edition, CAN/CSA 950-M93, EN60950 with Amendments 1 and 2, AN/NZS 3260, NOM 019

Additional regulatory compliance is in the Cisco 4000 Series Public Network Certification document that shipped with your router.)

¹AWG = American Wire Gauge

Software Compatibility

Network processor modules must be supported by the appropriate level of system software. The minimum system software version for the original Cisco 4000 was Software Release 9.1; for the Cisco 4000-M, Software Release 9.14; for the Cisco 4500, and Cisco 4500-M, Cisco Internetwork Operating System (Cisco IOS) Release 10.2; for the Cisco 4700-M, Cisco IOS Release 10.3(10). lists the minimum system software versions for network processor modules.

Table 1-2 Minimum Software Release Version

Network Processor Module Type

Minimum Software Release Version

Multimode FDDI

Software Release 9.14(1)

Fast Ethernet

Cisco IOS Release 11.1(5) or 11.2(2)P

Dual Ethernet

Software Release 9.14(2)

Six-port Ethernet

Cisco IOS Release 10.3(6)

Single-mode FDDI

Software Release 9.14(3)

Dual and Version 2 Token Ring

Software Release 9.14(5)

Four-port serial

Software Release 9.14(6)

2T16S-RS232 and 2T16S-V.35

Cisco IOS Release 11.2(3)P for synchronous operation

Cisco IOS Release 11.2(4)P for asynchronous operation

2T16S-X.21

Cisco IOS Release 11.2(5)P

HSSI

Cisco IOS Release 11.2(5)P

ISDN BRI

Cisco IOS Release 10.2

G.703

Cisco IOS Release 10.2(7)

Channelized T1/ISDN PRI

Cisco IOS Release 10.3(4)

Channelized E1/ISDN PRI

Cisco IOS Release 10.3(4)

ATM OC-3C

Cisco IOS Release 10.3(4)

ATM DS-3 and E3

Cisco IOS Release 11.0(5)

Note   The Cisco 4000 can no longer be ordered, but Cisco IOS Releases 10.0, 10.2, and 10.3 are supported on installed Cisco 4000 routers. The Cisco 4500 can no longer be ordered, but Cisco IOS Releases 10.1, 10.2, and 10.3 are supported on installed Cisco 4500 routers. The Cisco 4700 can no longer be ordered, but Cisco IOS Release 10.3 is supported on installed Cisco 4700 routers.

lists the processor and memory specifications of the Cisco 4000 series routers.

Table 1-3 Cisco 4000 Series Processor and Memory Specifications

Description

Cisco 4000-M

Cisco 4500-M

Cisco 4700-M

Processor

40-MHz Motorola 68EC030

100-MHz IDT Orion RISC¹

133-MHz IDT Orion RISC

Main memory (DRAM)²

4, 8, 16, or 32 MB

8, 16, or 32 MB

16, 32, or 64 MB

Secondary cache memory

None

None

512 KB

Shared memory (DRAM)

4 or 16 MB

4, 8, or 16 MB

4, 8, or 16 MB

Flash memory

4 or 8 MB

4, 8, 16, 32, or 64 MB

4, 8, 16, 32, or 64 MB

NVRAM³

128 KB

128 KB

128 KB

Boot ROM

128 KB-8 MB

128-512 KB

128-512 KB

Boot Flash

Not available

4-16 MB

4-16 MB

¹The Orion microprocessor is based on the MIPS R4400 and is pin-compatible.

²DRAM = dynamic random-access memory.

³NVRAM = nonvolatile random-access memory.

Memory Systems

The Cisco 4000 series memory systems (see ) have the following functions:

•Main memory—Stores the running configuration and routing tables. The Cisco IOS software executes from main memory.

•Shared memory—Used for packet buffering by the router's network interfaces.

•Flash memory—Stores the operating system software image. In the Cisco 4500-M and 4700-M, the Flash memory also stores the boot helper software.

•NVRAM—Stores the system configuration file and the virtual configuration register.

•Boot EPROM—In the Cisco 4000-M, erasable programmable read-only memory (EPROM)-based memory stores the boot helper—a subset of the Cisco IOS software—and the ROM monitor. In the Cisco 4500-M and Cisco 4700-M, only the ROM monitor is EPROM based. The boot helper image allows you to boot the router when Flash memory does not contain a valid system image. In the Cisco 4500-M and 4700-M, the ROM monitor allows you to boot a system image from Flash memory if a boot helper image is not present in boot Flash memory.

The differences between the memory systems in the Cisco 4000 series allows enhanced software upgradability in the Cisco 4500-M and Cisco 4700-M.

Note   See the appendixes "Cisco 4000 Series Virtual Configuration Register," "Cisco 4000-M ROM Monitor," and "Cisco 4500-M and Cisco 4700-M ROM Monitor" for more information on the ROM Monitor.

Figure 1-2 Cisco 4000 Series Memory Systems and Software Images

Memory Requirements in the Cisco 4000 Series

Each module in the Cisco 4000 series can change memory configurations to accommodate internetworking demands. The memory requirements are affected by the following factors:

•The number of Cisco IOS software images a system stores can be increase by adding Flash memory.

•Network expansion, the use of additional protocols or Cisco IOS services, or newer Cisco IOS releases may require additional main memory

•I/O performance or more physical or virtual interfaces may require additional shared memory.

Shared Memory Requirements

The standard configuration for shared memory is 4 MB for the Cisco 4000 series. 4 MB of memory is enough for most configurations with fewer than 24 physical or virtual interfaces. Routers with multiple ISDN BRI network processor modules or with 24 or more physical and virtual interfaces require 8 to 16 MB of shared memory.

Note   The types and numbers of network processor modules installed in a system does not affect main or flash memory requirements.

Table 1-4 Cisco 4000-M Shared Memory Requirements

Network Processor Module

Per-Module Shared Memory Requirements

Single-port Ethernet

0.1 MB

Dual-port Ethernet and dual-port serial

0.2 MB

Dual-port Token Ring, four-port serial, and G.703/G.704 serial

0.4 MB

Eight-port BRI, CT1/PRI, and CE1/PRI

1.0 MB

FDDI

2.0 MB

Table 1-5 Cisco 4500-M and Cisco 4700-M Shared Memory Requirements

Network Processor Module

Per-Module Shared
Memory Requirements

Dual-port Ethernet and dual-port serial

0.4 MB

Single-port Fast Ethernet

1.7 MB

Dual-port Token Ring, four-port serial, and G.703/G.704 serial

0.6 MB

Six-port Ethernet, Eight-port BRI, CT1/PRI, and CE1/PRI

1.2 MB

ATM and one FDDI¹

2.0 MB

Two FDDI²

3.0 MB

Dual-port high-speed synchronous serial and 16-port low-speed synchronous serial

0.6 MB

HSSI

1.0 MB

¹FDDI modules are an exception in that two FDDI modules do not require double the shared memory of one FDDI module.

²FDDI modules are an exception in that two FDDI modules do not require double the shared memory of one FDDI module.

Note   For more information, see product bulletin number 419, "Memory Options for Cisco 4000 Series," on the Web at http://www.cisco.com. This bulletin contains information such as minimum memory requirements for each Cisco IOS image, current shared memory requirements, and sample configurations.

Main Memory Requirements

The amount of main memory required by a Cisco 4000 series router is affected by the size of the network and by the access list configurations. However, it is difficult to quantify the exact main memory requirements based only on network size. Use the following guidelines to determine approximate main memory requirements.

Note   If your memory requirements fall near the upper end of one of the available main memory options, consider installing the next larger memory option to allow for network growth.

Main memory requirement guidelines for Cisco 4000 series routers are as follows:

•The 4 MB of main memory standard in the Cisco 4000-M will only suffice on routers with knowledge of very small networks and which run very few protocols.

•The 8 MB of main memory standard in the Cisco 4500-M and the 16 MB of main memory standard in the Cisco 4700-M generally suffices on routers running Cisco IOS Release 10.2.

•16 MB of main memory, optional in the Cisco 4500-M and standard in the Cisco 4700-M, generally suffices on routers using Cisco IOS Release 10.3 or later.

•The 64 MB main memory option for the Cisco 4700-M is recommended for routers using Border Gateway Protocol (BGP).

Cisco RPS Support

The Cisco 4000-M, 4500-M, or 4700-M router now supports connection to the Cisco Redundant Power System (RPS). The router supports an RPS in two ways:

•The chassis ships with an RPS adapter plate installed by the factory

•The user installs an RPS adapter plate at the site

For more information, refer to the Cisco RPS Hardware Installation Guide and Installing the Cisco RPS Adapter Plate in Cisco 4000 Routers. This section provides an overview of the Cisco RPS and describes basic features.

shows the front panel of the Cisco RPS, and shows the rear panel.

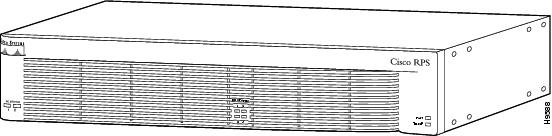

Figure 1-3     Cisco RPS Front Panel

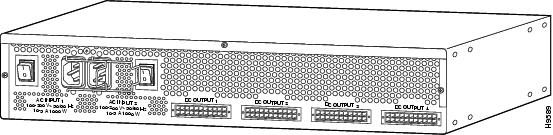

Figure 1-4     Cisco RPS Rear Panel

Caution

Use the Cisco RPS (model PWR600-AC-RPS) only to power the external device.

Seul le système d'alimentation redondant Cisco (RPS modèle PWR600-AC-RPS) doit servir à alimenter le dispositif externe.

Das externe Gerät darf nur mit einer redundanten Stromversorgung von Cisco, Modell PWR600-AC-RPS, betrieben werden.

Para alimentar el dispositivo externo, usar exclusivamente el sistema de alimentación redundante (redundant power system = RPS) Cisco, modelo PWR600-AC-RPS.

Overview

The Cisco RPS provides power system redundancy to external devices (such as routers, switches, or hubs). The system includes two fully redundant AC input power modules and four DC output power modules for connection to external devices. The Cisco RPS supports the following power source configurations: quasi-redundant and fully redundant.

Quasi-Redundant Power

The Cisco RPS can provide a quasi-redundant power source for up to four external devices that use 150W or less each. You can use a one-to-one cable (one connector at each end of the cable) to connect up to four external devices to the four DC output power modules, as shown in . When using one-to-one cables, the power source is quasi-redundant because there are two AC input power modules for the Cisco RPS and one DC power output module for each external device. The AC input to the Cisco RPS is fully redundant, but the DC output to the external devices is not.

Figure 1-5      Quasi-Redundant Configuration

Fully Redundant Power

The Cisco RPS can provide a fully redundant power source for up to two Cisco 4000 series routers. You can use a two-to-one cable to connect up to two external devices to the four DC output power modules on the rear panel of the Cisco RPS, as shown in . The two-to-one cable is a Y-shaped cable with two connectors at one end of the cable and one connector at the other end. Two connectors at one end of the Y-shaped cable connect to two DC output power modules. The other end of the cable connects to one external device. When using two-to-one cables, the power source is fully redundant because there are two AC input modules and two DC output power modules connected to each external device. If any power module fails, there is a full backup.

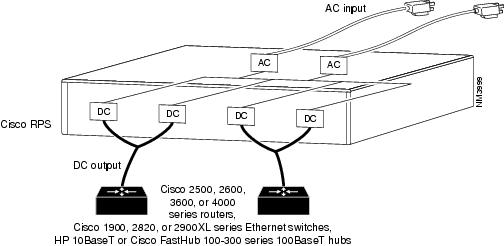

Figure 1-6     Fully Redundant Configuration

RPS Features

The following features are standard:

•Two AC input power cords

•Two fully redundant AC input power modules

•Four 150W DC output power modules

•Four one-to-one cables (PWR600-AC-RPS-CAB)

•Rack-mountable chassis (two rack units in height, 19-inch rack-mount brackets included)

•Redundant cooling

•LEDs for the AC and DC status, fans, and temperature
