Installing the Multiservice Interchange Card in Cisco 3660 Routers

Product Numbers: MIX-3660-64, 78-5921-03, 78-3020-03

This document describes the multiservice interchange card (MIX). The MIX adds TDM connection capabilities between MIX-enabled network modules on a Cisco 3660 multiservice platform.

MIX functionality permits connection of TDM streams between separate network modules to support applications that are sensitive to time delay, such as voice and video. With MIX, different types of traffic can be combined on a single T1 or E1 connection, giving customers the flexibility to manage traffic through their routers efficiently, as either traditional TDM connections or in packet-based format. In addition, extended availability drop and insert (EADI) capabilities have been enhanced to allow MIX connections across slots to stay up through a router reload.

Use this document in conjunction with your router installation and configuration guide, the Regulatory Compliance and Safety Information document for your router, and the Cisco IOS configuration guides and command references. If you have questions or need help, see the "Obtaining Technical Assistance" section.

This document contains the following sections:

•Software Requirements

•Safety Recommendations

•Tools and Equipment Needed

•Installing the MIX in the Internal TDM Slot

•Verifying MIX Connections

•Obtaining Technical Assistance

Caution Before performing procedures described in this document, review the "Safety Recommendations" section.

Software Requirements

The multiservice interchange card requires Cisco IOS Release 12.1(5)XM or later.

For details on configuring MIX functionality in Cisco IOS software, refer to Multiservice Interchange (MIX) for the 3660 Multiservice Platform at the following location:

http://www.cisco.com/univercd/cc/td/doc/product/software/ios121/121newft/121limit/121x/121xm/121xm_5/ft_mix.htm

Safety Recommendations

Follow these guidelines to ensure general safety:

•Keep the chassis area clear and dust-free during and after installation.

•Keep tools away from walk areas where you or others could fall over them.

•Do not wear loose clothing that could get caught in the chassis. Fasten your tie or scarf and roll up your sleeves.

•Wear safety glasses when working under any conditions that might be hazardous to your eyes.

•Do not perform any action that creates a potential hazard to people or makes equipment unsafe.

Safety Warnings

Safety warnings appear throughout this publication in procedures that, if performed incorrectly, may harm you. A warning symbol precedes each warning statement.

Warning   Means danger. You are in a situation that could cause bodily injury. Before you work on any equipment, be aware of the hazards involved with electrical circuitry and be familiar with standard practices for preventing accidents. To see translations of the warnings that appear in this publication, refer to the Regulatory Compliance and Safety Information document that accompanied this device.

Waarschuwing  Dit waarschuwingssymbool betekent gevaar. U verkeert in een situatie die lichamelijk letsel kan veroorzaken. Voordat u aan enige apparatuur gaat werken, dient u zich bewust te zijn van de bij elektrische schakelingen betrokken risico's en dient u op de hoogte te zijn van standaard maatregelen om ongelukken te voorkomen. Voor vertalingen van de waarschuwingen die in deze publicatie verschijnen, kunt u het document Regulatory Compliance and Safety Information (Informatie over naleving van veiligheids- en andere voorschriften) raadplegen dat bij dit toestel is ingesloten.

Varoitus  Tämä varoitusmerkki merkitsee vaaraa. Olet tilanteessa, joka voi johtaa ruumiinvammaan. Ennen kuin työskentelet minkään laitteiston parissa, ota selvää sähkökytkentöihin liittyvistä vaaroista ja tavanomaisista onnettomuuksien ehkäisykeinoista. Tässä julkaisussa esiintyvien varoitusten käännökset löydät laitteen mukana olevasta Regulatory Compliance and Safety Information -kirjasesta (määräysten noudattaminen ja tietoa turvallisuudesta).

Attention  Ce symbole d'avertissement indique un danger. Vous vous trouvez dans une situation pouvant causer des blessures ou des dommages corporels. Avant de travailler sur un équipement, soyez conscient des dangers posés par les circuits électriques et familiarisez-vous avec les procédures couramment utilisées pour éviter les accidents. Pour prendre connaissance des traductions d'avertissements figurant dans cette publication, consultez le document Regulatory Compliance and Safety Information (Conformité aux règlements et consignes de sécurité) qui accompagne cet appareil.

Warnung  Dieses Warnsymbol bedeutet Gefahr. Sie befinden sich in einer Situation, die zu einer Körperverletzung führen könnte. Bevor Sie mit der Arbeit an irgendeinem Gerät beginnen, seien Sie sich der mit elektrischen Stromkreisen verbundenen Gefahren und der Standardpraktiken zur Vermeidung von Unfällen bewußt. Übersetzungen der in dieser Veröffentlichung enthaltenen Warnhinweise finden Sie im Dokument Regulatory Compliance and Safety Information (Informationen zu behördlichen Vorschriften und Sicherheit), das zusammen mit diesem Gerät geliefert wurde.

Avvertenza  Questo simbolo di avvertenza indica un pericolo. La situazione potrebbe causare infortuni alle persone. Prima di lavorare su qualsiasi apparecchiatura, occorre conoscere i pericoli relativi ai circuiti elettrici ed essere al corrente delle pratiche standard per la prevenzione di incidenti. La traduzione delle avvertenze riportate in questa pubblicazione si trova nel documento Regulatory Compliance and Safety Information (Conformità alle norme e informazioni sulla sicurezza) che accompagna questo dispositivo.

Advarsel  Dette varselsymbolet betyr fare. Du befinner deg i en situasjon som kan føre til personskade. Før du utfører arbeid på utstyr, må du vare oppmerksom på de faremomentene som elektriske kretser innebærer, samt gjøre deg kjent med vanlig praksis når det gjelder å unngå ulykker. Hvis du vil se oversettelser av de advarslene som finnes i denne publikasjonen, kan du se i dokumentet Regulatory Compliance and Safety Information (Overholdelse av forskrifter og sikkerhetsinformasjon) som ble levert med denne enheten.

Aviso  Este símbolo de aviso indica perigo. Encontra-se numa situação que lhe poderá causar danos físicos. Antes de começar a trabalhar com qualquer equipamento, familiarize-se com os perigos relacionados com circuitos eléctricos, e com quaisquer práticas comuns que possam prevenir possíveis acidentes. Para ver as traduções dos avisos que constam desta publicação, consulte o documento Regulatory Compliance and Safety Information (Informação de Segurança e Disposições Reguladoras) que acompanha este dispositivo.

¡Advertencia!  Este símbolo de aviso significa peligro. Existe riesgo para su integridad física. Antes de manipular cualquier equipo, considerar los riesgos que entraña la corriente eléctrica y familiarizarse con los procedimientos estándar de prevención de accidentes. Para ver una traducción de las advertencias que aparecen en esta publicación, consultar el documento titulado Regulatory Compliance and Safety Information (Información sobre seguridad y conformidad con las disposiciones reglamentarias) que se acompaña con este dispositivo.

Varning!  Denna varningssymbol signalerar fara. Du befinner dig i en situation som kan leda till personskada. Innan du utför arbete på någon utrustning måste du vara medveten om farorna med elkretsar och känna till vanligt förfarande för att förebygga skador. Se förklaringar av de varningar som förkommer i denna publikation i dokumentet Regulatory Compliance and Safety Information (Efterrättelse av föreskrifter och säkerhetsinformation), vilket medföljer denna anordning.

Warning Read the installation instructions before you connect the system to its power source.

Warning Only trained and qualified personnel should be allowed to install or replace this equipment.

Warning Before working on a chassis or working near power supplies, unplug the power cord on AC units; disconnect the power at the circuit breaker on DC units.

Warning Ultimate disposal of this product should be handled according to all national laws and regulations.

Safety with Electricity

Warning Before working on equipment that is connected to power lines, remove jewelry (including rings, necklaces, and watches). Metal objects will heat up when connected to power and ground and can cause serious burns or weld the metal object to the terminals.

Warning To avoid electric shock, do not connect safety extra-low voltage (SELV) circuits to telephone-network voltage (TNV) circuits. LAN ports contain SELV circuits, and WAN ports contain TNV circuits. Both LAN and WAN ports may use RJ-45 connectors. Use caution when connecting cables.

Warning Hazardous network voltages are present in WAN ports regardless of whether power to the router is OFF or ON. To avoid electric shock, use caution when working near WAN ports. When detaching cables, detach the end away from the router first.

Warning The ISDN connection is regarded as a source of voltage that should be inaccessible to user contact. Do not attempt to tamper with or open any public telephone operator (PTO)-provided equipment or connection hardware. Any hardwired connection (other than by a nonremovable, connect-one-time-only plug) must be made only by PTO staff or suitably trained engineers.

Warning Before opening the chassis, disconnect the telephone-network cables to avoid contact with telephone-network voltages.

Warning Do not work on the system or connect or disconnect cables during periods of lightning activity.

Warning Do not touch the power supply when the power cord is connected. For systems with a power switch, line voltages are present within the power supply even when the power switch is OFF and the power cord is connected. For systems without a power switch, line voltages are present within the power supply when the power cord is connected.

Follow these guidelines when working on equipment powered by electricity:

•Locate the emergency power OFF switch in the room in which you are working. Then, if an electrical accident occurs, you can quickly shut the power OFF.

•Before working on the router, turn OFF the power and unplug the power cord.

•Disconnect all power before doing the following:

–Installing or removing a router chassis

–Working near power supplies

•Do not work alone if potentially hazardous conditions exist.

•Never assume that power is disconnected from a circuit. Always check.

•Look carefully for possible hazards in your work area, such as moist floors, ungrounded power extension cables, and missing safety grounds.

• If an electrical accident occurs, proceed as follows:

–Use caution; do not become a victim yourself.

–Turn OFF power to the router.

–If possible, send another person to get medical aid. Otherwise, determine the condition of the victim and then call for help.

–Determine if the person needs rescue breathing or external cardiac compressions; then take appropriate action.

Preventing Electrostatic Discharge Damage

Electrostatic discharge (ESD) can damage equipment and impair electrical circuitry. It occurs when electronic printed circuit cards are improperly handled and can result in complete or intermittent failures. Always follow ESD prevention procedures when removing and replacing cards. Ensure that the router chassis is electrically connected to earth ground. Wear an ESD-preventive wrist strap, ensuring that it makes good skin contact. Connect the clip to an unpainted surface of the chassis frame to safely channel unwanted ESD voltages to ground. To properly guard against ESD damage and shocks, the wrist strap and cord must operate effectively. If no wrist strap is available, ground yourself by touching the metal part of the chassis.

Caution For safety, periodically check the resistance value of the antistatic strap, which should be between 1 and 10 megohm (Mohm).

Tools and Equipment Needed

You will need the following tools and parts to install a multiservice interchange card on the router:

•Number 2 Phillips screwdriver

•T-15 Torx screwdriver

•ESD-preventive wrist strap

•MIX card assembly

Installing the MIX in the Internal TDM Slot

The multiservice interchange card does not require an external network connection; it attaches directly to the TDM slot on the Cisco 3660 motherboard. (See Figure 1.)

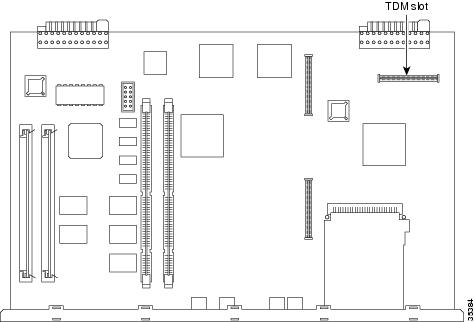

Figure 1 Location of TDM Slot on the Cisco 3660 Motherboard

The procedure for installing a multiservice interchange card consists of:

1. Removing the Motherboard Tray

2. Installing the Multiservice Interchange Card

3. Replacing the Motherboard Tray

The sections that follow describe these procedures.

Removing the Motherboard Tray

This section describes the procedure for removing the motherboard tray. You must remove the motherboard tray to access the internal components.

Warning Do not touch the power supply when the power cord is connected. Line voltages are present within the power supply even when the power switch is OFF and the power cord is connected.

Warning Before removing the motherboard tray, disconnect the telephone-network cables to avoid contact with telephone-network voltages.

To remove the motherboard tray:

Step 1 Power OFF the router.

Step 2 Disconnect all cables from the motherboard panel.

Step 3 Loosen the captive mounting screw on the front of the motherboard tray. (See part 1 of Figure 2.)

Step 4 Rotate the tray levers to their open position (out and away from the motherboard tray). (See part 2 of Figure 2.)

Step 5 Pull the tray levels to slide the motherboard tray out of the chassis. (See part 3 of Figure 2).

Figure 2 Removing the Motherboard Tray

Installing the Multiservice Interchange Card

To install a MIX in the internal TDM slot, do the following:

Step 1 Remove the two metal screws that hold down the motherboard near the TDM slot. (See Figure 3 for the locations of the screws.)

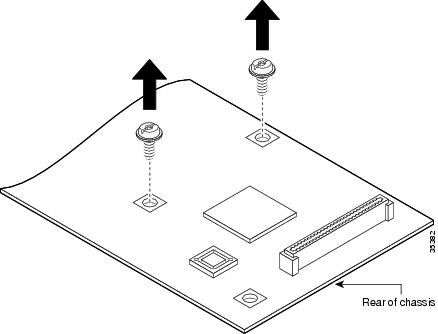

Figure 3 Removing Motherboard Screws Near the TDM Slot

Step 2 Attach the metal standoffs provided with the MIX in place of the screws removed in Step 1. (See Figure 4 for the location.)

Step 3 Ensure the MIX is correctly aligned with the TDM slot, then press down on it until it seats completely into the connector.

Step 4 Insert the metal screws removed in Step 1 through the MIX into the metal standoffs.

Figure 4 Attaching the MIX to the Motherboard

Replacing the Motherboard Tray

To replace the motherboard tray in the chassis:

Step 1 Align the motherboard tray with the guides in the chassis and slide it gently into the slot. (See part 1 of Figure 5.)

Step 2 Push the motherboard tray into place until you feel its edge connector mate securely with the connector on the backplane. (See part 2 of Figure 5.)

Step 3 Rotate the tray levers in to their closed position so that the motherboard tray is secure. (See part 3 of Figure 5.)

Step 4 Fasten the motherboard tray's captive mounting screw into the hole on the chassis, using a Phillips screwdriver. (See part 4 of Figure 5.)

Step 5 Apply the MIX-3660-64 label that comes with the multiservice interchange card onto the faceplate of the motherboard tray.

Step 6 Reinstall the chassis on the wall, rack, desktop, or table.

Step 7 Reconnect all cables.

Figure 5 Replacing the Motherboard Tray

Verifying MIX Connections

To verify correct installation of the MIX card, enter the show diag command. For further details on configuring a Cisco 3660 router for MIX functionality, refer to Multiservice Interchange (MIX) for the Cisco 3660 Multiservice Platform at the following location:

http://www.cisco.com/univercd/cc/td/doc/product/software/ios121/121newft/121limit/121x/121xm/121xm_5/ft_mix.htm

show diag 0—Lists the onboard port adapters for the router. The MIX information is appended to the end of the list.

A sample output is shown below:

Router> show diag 0

3660 Chassis type:ENTERPRISE

c3600 Backplane EEPROM:

        Hardware Revision        :1.0

        Part Number              :800-04740-02

        Board Revision           :A0

        Deviation Number         :0-0

        Fab Version              :02

        PCB Serial Number        :HAD03411035

        RMA Test History         :00

        RMA Number               :0-0-0-0

        RMA History              :00

        Chassis Serial Number    :JAB034585UX

        Chassis MAC Address      :0030.9405.1530

        MAC Address block size   :112

        Manufacturing Test Data  :00 00 00 00 00 00 00 00

        Fab Part Number          :28-2651-02

        Number of Slots          :6

        EEPROM format version 4

        EEPROM contents (hex):

          0x00:04 FF 40 00 C8 41 01 00 C0 46 03 20 00 12 84 02

          0x10:42 41 30 80 00 00 00 00 02 02 C1 8B 48 41 44 30

          0x20:33 34 31 31 30 33 35 03 00 81 00 00 00 00 04 00

          0x30:C2 8B 4A 41 42 30 33 34 35 38 35 55 58 C3 06 00

          0x40:30 94 05 15 30 43 00 70 C4 08 00 00 00 00 00 00

          0x50:00 00 85 1C 0A 5B 02 01 06 FF FF FF FF FF FF FF

          0x60:FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF

          0x70:FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF

Backplane TDM Switch :

        Hardware Revision        :1.0

        Part Number              :800-03700-01

        Board Revision           :A0

        Deviation Number         :0-0

        Fab Version              :02

        PCB Serial Number        :JAB9801ABCD

        RMA Test History         :00

        RMA Number               :0-0-0-0

        RMA History              :00

        EEPROM format version 4

        EEPROM contents (hex):

          0x00:04 FF 40 01 E1 41 01 00 C0 46 03 20 00 0E 74 01

          0x10:42 41 30 80 00 00 00 00 02 02 C1 8B 4A 41 42 39

          0x20:38 30 31 41 42 43 44 03 00 81 00 00 00 00 04 00

          0x30:FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF
