Mounting Bracket Installation on Cisco 2691, Cisco 3631, and Cisco 3725 Routers
Product Numbers: ACS-2RU-RM-19=, ACS-2RU-RM-23=
This document describes the procedure to install 19- and 23-inch mounting brackets on Cisco 2691, Cisco 3631, and Cisco 3725 routers. Use this document in conjunction with the hardware installation guide and the regulatory compliance and safety information document for your Cisco router, which you can access as follows:
Hardware Installation Guide
•From Cisco.com at http://www.cisco.com, select Products & Services > Routers > Your router platform > Installation Guides Books > Hardware installation guide for your router
•On the Documentation CD-ROM or on the previous Cisco website, navigate to the following URL:
http://www.cisco.com/univercd/cc/td/doc/product/access/acs_mod/, then select your router platform and navigate to the hardware installation guide.
Regulatory Compliance and Safety Information Document
•From Cisco.com at http://www.cisco.com, select Products & Services > Routers > Your router platform > Technical details > Regulatory Approvals and Compliance > Cisco 2600 Series, 3600 Series, and 3700 Series Regulatory Compliance and Safety Information
•On the Documentation CD-ROM or on the previous Cisco website, navigate to the following URL:
If you have questions or need help, see the "Obtaining Documentation" section.
This document includes the following sections:
Follow these guidelines to ensure general safety:
•Keep the chassis area clear and dust-free during and after installation.
•Do not wear loose clothing that could get caught in the chassis. Fasten your tie or scarf and roll up your sleeves.
•Wear safety glasses when working under any conditions that might be hazardous to your eyes.
•Do not perform any action that creates a potential hazard to people or makes the equipment unsafe.
Tools and Equipment Needed
You need the following tools and equipment to install rack-mount brackets:
•Number 2 Phillips screwdriver
Bracket Kit Contents
This mounting-bracket kit contains the following items:
•Bracket pair for mounting a router in a 19-inch rack
•Bracket pair for mounting a router in a 23-inch NEBS/ETSI rack
•Screws for attaching brackets to the router chassis
Note The slots in the wide bracket are for securing cables with cable ties.

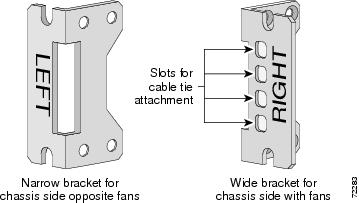

Figure 1 Brackets for 19-Inch Rack-Mounting

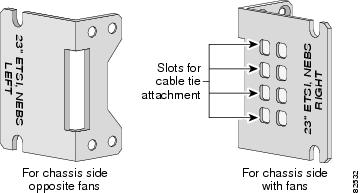

Figure 2 Brackets for 23-Inch Rack Mounting
Attaching Brackets to Router Chassis
Attach the mounting brackets to the chassis in one of the following ways, using the screws provided in the bracket kit:
•Front mounting (see Figure 3.)
•Rear mounting (see Figure 4.)
•Center mounting with front panel forward (see Figure 5.)
•Center mounting with rear panel forward (see Figure 6.)
Use a number 2 Phillips screwdriver to install the bracket screws.
Note Be sure to attach the wider bracket (marked RIGHT) to the side with the cooling fans. This provides extra clearance for cooling air.

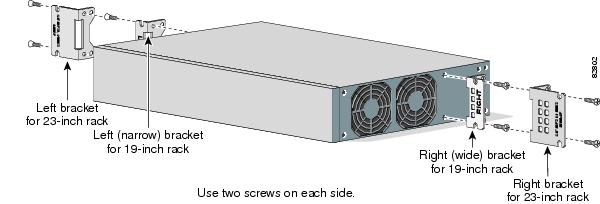

Figure 3 Bracket Installation—Front Mounting

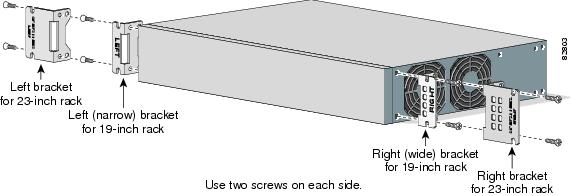

Figure 4 Bracket Installation—Rear Mounting

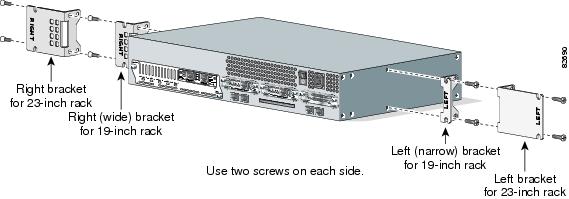

Figure 5 Bracket Installation—Center Mounting with Front Panel Forward
Figure 6 Bracket Installation—Center Mounting with Rear Panel Forward
Installing the Router in a Rack
Install the chassis in the rack using the appropriate rack-mounting screws. Use two screws on each side.
Warning To prevent bodily injury when mounting or servicing this unit in a rack, you must take special precautions to ensure that the system remains stable. The following guidelines are provided to ensure your safety:
•This unit should be mounted at the bottom of the rack if it is the only unit in the rack.
•When mounting this unit in a partially filled rack, load the rack from the bottom to the top with the heaviest component at the bottom of the rack.
•If the rack is provided with stabilizing devices, install the stabilizers before mounting or servicing the unit in the rack.
Note To see translations of the warnings that appear in this publication, refer to the Regulatory Compliance and Safety Information document that accompanied this device.
What to Do After Installing the Router
After you have installed the router, refer to one or more of the following documents for information about the required chassis grounding, LAN and WAN connections, power connections, and router configuration:
•Quick start guide that shipped with your router
•Hardware installation guide, available on the CD-ROM that shipped with your router and online at Cisco.com
•Cisco IOS software configuration documentation, available on the CD-ROM that shipped with your router and online at Cisco.com
For additional information about obtaining documentation, see the "Obtaining Documentation" section below.
