Overview of the Cisco 2524 and Cisco 2525 Routers
Overview of the Cisco 2524 and Cisco 2525 Routers
The Cisco 2524 and Cisco 2525 routers provide LAN and WAN access in a low-cost modular router platform that can grow with your internetworking needs. The Cisco 2524 offers an Ethernet (attachment unit interface [AUI] or 10BaseT) LAN connection, and the Cisco 2525 offers a Token Ring (shielded twisted-pair [STP] or unshielded twisted-pair [UTP]) LAN connection. Both routers can accommodate up to three WAN modules—two synchronous serial and one Integrated Services Digital Network (ISDN).
The choice of synchronous serial WAN modules is as follows:
•
2-wire switched 56-kbps data service unit/channel service unit (DSU/CSU)
•
•
•
Note
The choice of ISDN WAN modules is as follows:
•
•
The ISDN WAN modules are designed so that you cannot insert them into the synchronous serial WAN slots. A blank slot cover is installed over unused slots.
Features
The Cisco 2524 and Cisco 2525 routers include the following features:
•
•
•
•
•
•
•
•
Note
shows the front panel, which is the same for both routers.
Figure 1-1 Cisco 2524 and Cisco 2525 Front Panel
shows the rear panel of the Cisco 2524 router, and shows the rear panel of the Cisco 2525 router.

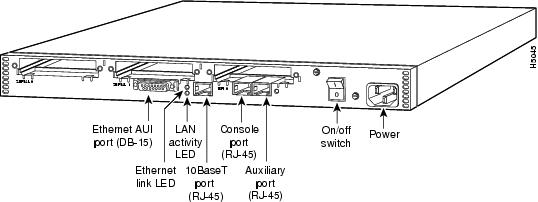

Figure 1-2 Cisco 2524 Rear Panel

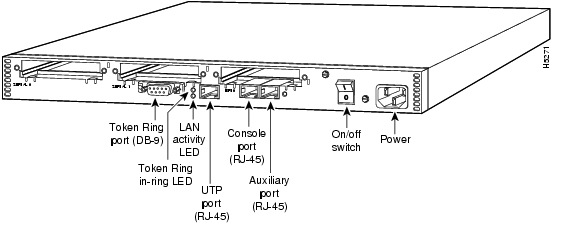

Figure 1-3 Cisco 2525 Rear Panel
through show the WAN modules. shows the blank slot cover.

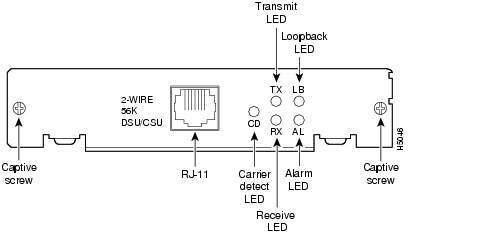

Figure 1-4 2-Wire Switched 56-kbps DSU/CSU WAN Module

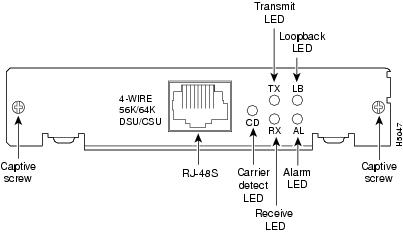

Figure 1-5 4-Wire 56/64-kbps DSU/CSU WAN Module

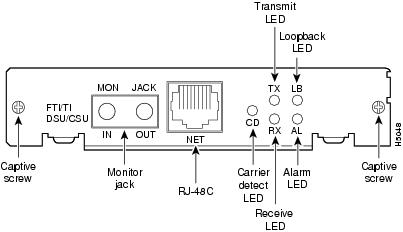

Figure 1-6 Fractional T1/T1 DSU/CSU WAN Module
Figure 1-7 Five-in-One Synchronous Serial WAN Module
Figure 1-8 ISDN BRI WAN Module
Figure 1-9 ISDN BRI with Integrated NT1 WAN Module
Figure 1-10 Blank Slot Cover
Specifications
The specifications of the Cisco 2524 and Cisco 2525 routers are listed in .
Table 1-1 System Specifications
Dimensions (H x W x D)
1.75 x 17.5 x 10.56" one rack unit (4.44 x 44.45 x 26.82 cm)
Weight
10 lb (4.5 kg)
Input voltage, AC power supply
Current
Frequency
Power dissipationInput voltage, DC power supply
Current
Power dissipation40W, 40-72 VDC3
1.5-1.0A
40W (maximum), 135.5 Btus/hrProcessor
20-MHz Motorola 68EC030
WAN interface options
•
•
•
•
•
•
LAN interface options
Cisco 2524: Ethernet AUI (DB-15) or 10BaseT (RJ-45)
Cisco 2525: Token Ring STP (DB-9) or UTP (RJ-45)Synchronous serial interfaces (five-in-one synchronous serial WAN module)
•
•
•
Console and auxiliary ports
Asynchronous serial (RJ-45)
Operating environment
32-104×F (0-40×C)
Nonoperating temperature
-40-185×F (-40-85×C)
Operating humidity
5-95%, noncondensing
Noise level
34 dB6 @ 3' (0.914 m)
Regulatory compliance
•
•
•
1 VAC = volts alternating current.
2 BTU = British thermal unit.
3 VDC = volts direct current.
4 NRZ = nonreturn to zero; NRZI = nonreturn to zero inverted.
5 DTE = data terminal equipment; DCE = data communications equipment.
6 dB = decibels.
FCC Part 68
The following text is required for FCC Part 68 regulatory compliance:
The equipment complies with Part 68 of the FCC rules. On the bottom of the equipment is a label that shows the FCC registration number.
If the equipment causes harm to the telephone network, the telephone company may temporarily discontinue service. If possible, advance notification is given; otherwise, notification is given as soon as possible. The telephone company will advise the customer of the right to file a complaint with the FCC.
The telephone company may make changes in its facility, equipment, operations, or procedures that could affect the proper operation of the equipment; advance notification and the opportunity to maintain uninterrupted service will be given.
If you experience difficulty with the Cisco 2524 or Cisco 2525 router, please contact Cisco Systems at 800 553-NETS (6387) or 408 526-4000 for repair and warranty information. If your equipment is causing harm to the telephone network, the telephone company may request that you disconnect the equipment until the problem is resolved.
The module contains no user-serviceable parts.
An FCC-compliant telephone cord and a modular plug is provided with the equipment. The equipment is designed to be connected to the telephone network or premises wiring using an FCC-compatible modular jack that is Part 68 compliant.
lists information that may be required when applying to the local telephone company for leased-line facilities.
Table 1-2 Information About Leased-Line Facilities
