Cabling Specifications

Management Card Console Cable and Pinouts

Console and Auxiliary Port Signals and Pinouts

BRI Port Pinout and Signals

Token Ring Pinout

Serial Cable Assemblies and Pinouts

EIA-530

EIA/TIA-232

EIA/TIA-449

V.35

X.21

Cabling Specifications

This appendix provides the following pinout information:

•, Table D-1

•, Table D-2

•, Table D-3

•, Table D-4

•,

•, Table D-6

•, Table D-7

•, Table D-8

•, Table D-9

•, Table D-10

•, Table D-11

•, Table D-12

•, Table D-13

•, Table D-14

•, Table D-15

•, Table D-16

Management Card Console Cable and Pinouts

shows the management card console cable, and lists the pinouts.

Figure D-1 Management Card Console Cable

Table D-1 Management Card Console Port Pinouts

RJ-45 Pins

Description

DB-25 Female Pins

1

RxD

3

2

GND

7

-

CTS

5¹

-

RTS

41

8

TxD

2

¹Pins 5 and 4 are connected.

Console and Auxiliary Port Signals and Pinouts

Following are the pinouts for the router card auxiliary port (Table D-2), and the router card console port (Table D-3):

Note To use the auxiliary port as a console port, you must set jumpers on the router card. See the section "Router Card Jumper Settings" in the appendix "."

Table D-2 Router Card Auxiliary Port Pinouts (RJ-45)

Auxiliary Port

Pin

Signal

Input/Output

1

RTS

Output

2

DTR

Output

3

TXD

Output

4

GND

-

5

GND

-

6

RXD

Input

7

DSR

Input

8

CTS

Input

Table D-3 Router Card Console Port Pinouts (RJ-45)

Console Port

Pin

Signal

Input/Output

1

-

-

2

DTR

Output

3

TxD

Output

4

GND

-

5

GND

-

6

RxD

Input

7

DSR

Input

8

-

-

Refer to for a list of the pins used on the RJ-45 connector, the male/female DTE adapter, the male/female DCE adapter, and the male modem adapter used to connect terminals and modems to the Cisco hub. The connection of pins between the RJ-45 connector and the end device depends on the type of cable used, either straight or rolled. A straight cable connects pin 1 to pin 1, pin 2 to pin 2, and so on. A rolled cable connects pin 1 to pin 8, pin 2 to pin 7, and so on. The Cisco 2517 and Cisco 2519 ships with a rolled cable. Refer to for the cable and adapter configurations that can be used to connect terminals and modems to the Cisco 2517.

Table D-4 Pins for the RJ-45 Connector, M/F DTE, M DCE, and MMOD

Cable

DB-25 Adapters

RJ-45 Pins

M/F DTE Pins¹

M DCE Pins

MMOD Pins²

1

4

5

5

2

20

6

8

3

2

3

3

4

7

7

7

5

7

7

7

6

3

2

2

7

6

20

20

8

5

4

4

¹The FDTE adapter that is available through Cisco is labeled "Terminal."

²The MMOD adapter that is available through Cisco is labeled "Modem."

Adapters

Table D-5 Connection Configuration

Router Card Port

RJ-45 Cable Type

DB-25 Adapter

End Device

Console/auxiliary

Rolled

FDTE

Terminal

Console/auxiliary

Straight

FDCE

Terminal

Console/auxiliary

Rolled

MDCE¹

Modem

Console/auxiliary

Straight

MDTE¹

Modem

Auxiliary/console

Rolled

MMOD¹

Modem

¹Modify by removing DB-25 pin 6 and replacing it in the Pin 8 position.

BRI Port Pinout and Signals

Table D-6 lists the router card BRI port pinout and signals.

Table D-6 BRI Port Pinout (RJ-45)

Pin¹

TE²

NT³

Polarity

3

Transmit

Receive

+

4

Receive

Transmit

+

5

Receive

Transmit

-

6

Transmit

Receive

-

¹Pins 1, 2, 7, and 8 are not used.

²TE refers to terminal terminating layer 1 aspects of TE1, TA, and NT2 functional groups.

³NT refers to network terminating layer 1 aspects of NT1 and NT2 functional groups.

Caution

To prevent damage to the system, make certain you connect the BRI cable to the BRI connector only and not to any other RJ-45 connector. The console, auxiliary, Token Ring, and BRI ports all use RJ-45 connectors.

Token Ring Pinout

lists the pinout for the Token Ring interface ports.

Table D-7 Token Ring Port Pinout (RJ-45)

RJ-45 Pins

Signal

1

GND

2

GND

3

Tx

4

Rx

5

Tx

6

Rx

7

GND

8

Not used

Serial Cable Assemblies and Pinouts

The following illustrations and tables provide assembly drawings and pinouts for the EIA-530 DCE, and EIA/TIA-232, EIA/TIA-449, V.35, and X.21 DTE and DCE cables.

EIA-530

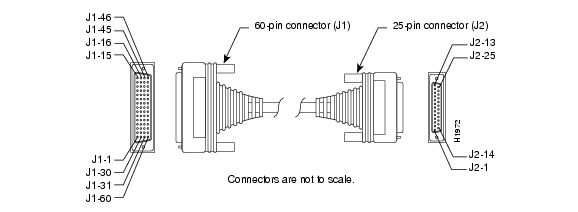

Figure D-2 shows the EIA-530 serial cable assembly, and Table D-8 lists the pinouts. Arrows indicate signal direction: —> indicates DTE to DCE, and <— indicates DCE to DTE.

Figure D-2 EIA-530 Serial Cable Assembly

Table D-8 EIA-530 DTE Cable Pinout (DB-60 to DB-25)

60 Pin¹

Signal

25 Pin

Signal

Direction
DTE DCE²

J1-1
J1-2

CTS/RTS+
CTS/RTS-

J2-5
J2-13

CB(A), CTS+
CB(B), CTS-

<—
<—

J1-3
J1-4

DSR/DTR+
DSR/DTR-

J2-6
J2-22

CC(A), DSR+
CC(B), DSR-

<—
<—

J1-5
J1-6

DCD/DCD+
DCD/DCD-

J2-8
J2-10

CF(A), DCD+
CF(B), DCD-

<—
<—

J1-7
J1-8

DTR/DSR+
DTR/DSR-

J2-20
J2-23

CD(A), DTR+
CD(B), DTR-

—>
—>

J1-9
J1-10

RTS/CTS+
RTS/CTS-

J2-4
J2-19

CA(A), RTS+
CA(B), RTS-

—>
—>

J1-11
J1-12

TxD/RxD+
TxD/RxD-

J2-2
J2-14

BA(A), TxD+
BA(B), TxD-

—>
—>

J1-13
J1-14

TxCE/TxC+
TxCE/TxC-

J2-24
J2-11

DA(A), TxCE+
DA(B), TxCE-

—>
—>

J1-24
J1-23

TxC/RxC+
TxC/RxC-

J2-15
J2-12

DB(A), TxC+
DB(B), TxC-

<—
<—

J1-26
J1-25

RxC/TxCE+
RxC/TxCE-

J2-17
J2-9

DD(A), RxC+
DD(B), RxC-

<—
<—

J1-28
J1-27

RxD/TxD+
RxD/TxD-

J2-3
J2-16

BB(A), RxD+
BB(B), RxD-

<—
<—

J1-44
J1-45

LL/DCD
Circuit_GND

J2-18
J2-7

LL
Circuit_ GND

—>
-

J1-46
J1-47

Shield_GND
MODE_2

J2-1
-

Shield
-

Shorted

J1-48
J1-49

GND
MODE_1

-
-

-
-

Shorted

J1-51
J1-52

GND
MODE_DCE

-
-

-
-

Shorted

¹Any pin not referenced is not connected.

²The EIA-530 interface cannot be operated in DCE mode. A DCE cable is not available for the EIA-530 interface.

EIA/TIA-232

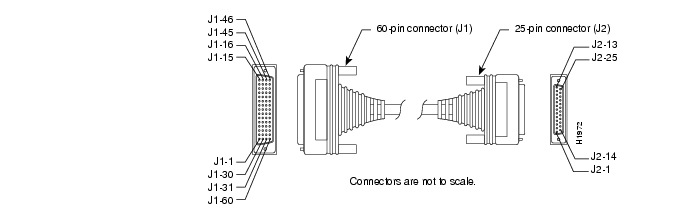

Figure D-3 shows the EIA/TIA-232 cable assembly; Table D-9 lists the DTE pinout; and Table D-10 lists the DCE pinout. Arrows indicate signal direction: —> indicates DTE to DCE, and <— indicates DCE to DTE.

Figure D-3 EIA/TIA-232 Cable Assembly

Table D-9 EIA/TIA-232 DTE Cable Pinout (DB-60 to DB-25)

60 Pin¹

Signal

Description

Direction

25 Pin

Signal

J1-50
J1-51
J1-52

MODE_0
GND
MODE_DCE

Shorting group

-

-

-

J1-46

Shield GND

Single

-

J2-1

Shield GND

J1-41
Shield

TxD/RxD
-

Twisted pair no. 5

—>
-

J2-2
Shield

TxD
-

J1-36
Shield

RxD/TxD
-

Twisted pair no. 9

<—
-

J2-3
Shield

RxD
-

J1-42
Shield

RTS/CTS
-

Twisted pair no. 4

—>
-

J2-4
Shield

RTS
-

J1-35
Shield

CTS/RTS
-

Twisted pair no. 10

<—
-

J2-5
Shield

CTS
-

J1-34
Shield

DSR/DTR
-

Twisted pair no. 11

<—
-

J2-6
Shield

DSR
-

J1-45
Shield

Circuit GND
-

Twisted pair no. 1

-
-

J2-7
Shield

Circuit GND
-

J1-33
Shield

DCD/LL
-

Twisted pair no. 12

<—
-

J2-8
Shield

DCD
-

J1-37
Shield

TxC/NIL
-

Twisted pair no. 8

<—
-

J2-15
Shield

TxC
-

J1-38
Shield

RxC/TxCE
-

Twisted pair no. 7

<—
-

J2-17
Shield

RxC
-

J1-44
Shield

LL/DCD
-

Twisted pair no. 2

—>
-

J2-18
Shield

LTST
-

J1-43
Shield

DTR/DSR
-

Twisted pair no. 3

—>
-

J2-20
Shield

DTR
-

J1-39
Shield

TxCE/TxC
-

Twisted pair no. 6

—>
-

J2-24
Shield

TxCE
-

¹Any pin not referenced is not connected.

Table D-10 EIA/TIA-232 DCE Cable Pinout (DB-60 to DB-25)

60 Pin¹

Signal

Description

Direction

25 Pin

Signal

J1-50
J1-51

MODE_0
GND

Shorting group

-

-

-

J1-46

Shield GND

Single

-

J2-1

Shield GND

J1-36
Shield

RxD/TxD
-

Twisted pair no. 9

<—
-

J2-2
Shield

TxD
-

J1-41
Shield

TxD/RxD
-

Twisted pair no. 5

—>
-

J2-3
Shield

RxD
-

J1-35
Shield

CTS/RTS
-

Twisted pair no. 10

<—
-

J2-4
Shield

RTS
-

J1-42
Shield

RTS/CTS
-

Twisted pair no. 4

—>
-

J2-5
Shield

CTS
-

J1-43
Shield

DTR/DSR
-

Twisted pair no. 3

—>
-

J2-6
Shield

DSR
-

J1-45
Shield

Circuit GND
-

Twisted pair no. 1

-
-

J2-7
Shield

Circuit GND

J1-44
Shield

LL/DCD
-

Twisted pair no. 2

—>
-

J2-8
Shield

DCD
-

J1-39
Shield

TxCE/TxC
-

Twisted pair no. 7

—>
-

J2-15
Shield

TxC
-

J1-40
Shield

NIL/RxC
-

Twisted pair no. 6

—>
-

J2-17
Shield

RxC
-

J1-33
Shield

DCD/LL
-

Twisted pair no. 12

<—
-

J2-18
Shield

LTST
-

J1-34
Shield

DSR/DTR
-

Twisted pair no. 11

<—
-

J2-20
Shield

DTR
-

J1-38
Shield

RxC/TxCE
-

Twisted pair no. 8

<—
-

J2-24
Shield

TxCE
-

¹Any pin not referenced is not connected.

EIA/TIA-449

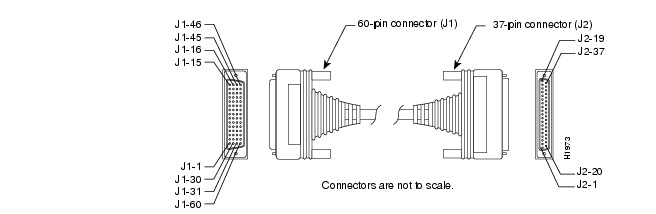

Figure D-4 shows the EIA/TIA-449 cable assembly; Table D-11 lists the DTE pinout, and Table D-12 lists the DCE pinout. Arrows indicate signal direction: —> indicates DTE to DCE, and <— indicates DCE to DTE.

Figure D-4 EIA/TIA-449 Cable Assembly

Table D-11 EIA/TIA-449 DTE Cable Pinout (DB-60 to DB-37)

60 Pin¹

Signal

Description

Direction

37 Pin

Signal

J1-49
J1-48

MODE_1
GND

Shorting group

-

-

-

J1-51
J1-52

GND
MODE_DCE

Shorting group

-

-

-

J1-46

Shield_GND

Single

_

J2-1

Shield GND

J1-11
J1-12

TxD/RxD+
TxD/RxD-

Twisted pair no. 6

—>
—>

J2-4
J2-22

SD+
SD-

J1-24
J1-23

TxC/RxC+
TxC/RxC-

Twisted pair no. 9

<—
<—

J2-5
J2-23

ST+
ST-

J1-28
J1-27

RxD/TxD+
RxD/TxD-

Twisted pair no. 11

<—
<—

J2-6
J2-24

RD+
RD-

J1-9
J1-10

RTS/CTS+
RTS/CTS-

Twisted pair no. 5

—>
—>

J2-7
J2-25

RS+
RS-

J1-26
J1-25

RxC/TxCE+
RxC/TxCE-

Twisted pair no. 10

<—
<—

J2-8
J2-26

RT+
RT-

J1-1
J1-2

CTS/RTS+
CTS/RTS-

Twisted pair no. 1

<—
<—

J2-9
J2-27

CS+
CS-

J1-44
J1-45

LL/DCD
Circuit_GND

Twisted pair no. 12

—>
_

J2-10
J2-37

LL
SC

J1-3
J1-4

DSR/DTR+
DSR/DTR-

Twisted pair no. 2

<—
<—

J2-11
J2-29

DM+
DM-

J1-7
J1-8

DTR/DSR+
DTR/DSR-

Twisted pair no. 4

—>
—>

J2-12
J2-30

TR+
TR-

J1-5
J1-6

DCD/DCD+
DCD/DCD-

Twisted pair no. 3

<—
<—

J2-13
J2-31

RR+
RR-

J1-13
J1-14

TxCE/TxC+
TxCE/TxC-

Twisted pair no. 7

—>
—>

J2-17
J2-35

TT+
TT-

J1-15
J1-16

Circuit_GND
Circuit_GND

Twisted pair no. 9

-
-

J2-19
J2-20

SG
RC

¹Any pin not referenced is not connected.

Table D-12 EIA/TIA-449 DCE Cable Pinout (DB-60 to DB-37)

60 Pin¹

Signal

Description

Direction

37 Pin

Signal

J1-49
J1-48

MODE_1
GND

Shorting group

-

-

-

J1-46

Shield_GND

Single

-

J2-1

Shield GND

J1-28
J1-27

RxD/TxD+
RxD/TxD-

Twisted pair no. 11

<—
<—

J2-4
J2-22

SD+
SD-

J1-13
J1-14

TxCE/TxC+
TxCE/TxC-

Twisted pair no. 7

—>
—>

J2-5
J2-23

ST+
ST-

J1-11
J1-12

TxD/RxD+
TxD/RxD-

Twisted pair no. 6

—>
—>

J2-6
J2-24

RD+
RD-

J1-1
J1-2

CTS/RTS+
CTS/RTS-

Twisted pair no. 1

<—
<—

J2-7
J2-25

RS+
RS-

J1-24
J1-23

TxC/RxC+
TxC/RxC-

Twisted pair no. 9

—>
—>

J2-8
J2-26

RT+
RT-

J1-9
J1-10

RTS/CTS+
RTS/CTS-

Twisted pair no. 5

—>
—>

J2-9
J2-27

CS+
CS-

J1-29
J1-30

NIL/LL
Circuit_GND

Twisted pair no. 12

—>
-

J2-10
J2-37

LL
SC

J1-7
J1-8

DTR/DSR+
DTR/DSR-

Twisted pair no. 4

—>
—>

J2-11
J2-29

DM+
DM-

J1-3
J1-4

DSR/DTR+
DSR/DTR-

Twisted pair no. 2

<—
<—

J2-12
J2-30

TR+
TR-

J1-5
J1-6

DCD/DCD+
DCD/DCD-

Twisted pair no. 3

—>
—>

J2-13
J2-31

RR+
RR-

J1-26
J1-25

RxC/TxCE+
RxC/TxCE-

Twisted pair no. 10

<—
<—

J2-17
J2-35

TT+
TT-

J1-15
J1-16

Circuit_GND
Circuit_GND

Twisted pair no. 8

_
_

J2-19
J2-20

SG
RC

¹Any pin not referenced is not connected.

V.35

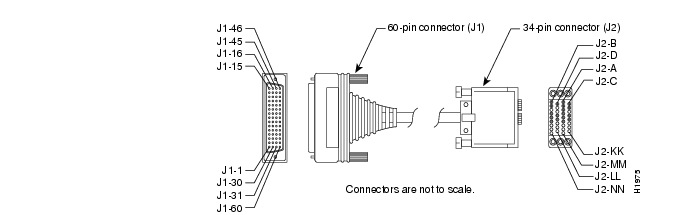

Figure D-5 shows the V.35 cable assembly; Table D-13 lists the DTE pinout, and Table D-14 lists the DCE pinout. Arrows indicate signal direction: —> indicates DTE to DCE, and <— indicates DCE to DTE.

Figure D-5 V.35 Cable Assembly

Table D-13 V.35 DTE Cable Pinout (DB-60 to 34-Pin)

60 Pin¹

Signal

Description

Direction

34 Pin

Signal

J1-49
J1-48

MODE_1
GND

Shorting group

-

-

-

J1-50
J1-51
J1-52

MODE_0
GND
MODE_DCE

Shorting group

-

-

-

J1-53
J1-54
J1-55
J1-56

TxC/NIL
RxC_TxCE
RxD/TxD
GND

Shorting group

-

-

-

J1-46

Shield_GND

Single

-

J2-A

Frame GND

J1-45
Shield

Circuit_GND
-

Twisted pair no. 12

-
-

J2-B
Shield

Circuit GND
-

J1-42
Shield

RTS/CTS
-

Twisted pair no. 9

—>
-

J2-C
Shield

RTS
-

J1-35
Shield

CTS/RTS
-

Twisted pair no. 8

<—
-

J2-D
Shield

CTS
-

J1-34
Shield

DSR/DTR
-

Twisted pair no. 7

<—
-

J2-E
Shield

DSR
-

J1-33
Shield

DCD/LL
-

Twisted pair no. 6

<—
-

J2-F
Shield

RLSD
-

J1-43
Shield

DTR/DSR
-

Twisted pair no. 10

—>
-

J2-H
Shield

DTR
-

J1-44
Shield

LL/DCD
-

Twisted pair no. 11

—>
-

J2-K
Shield

LT
-

J1-18
J1-17

TxD/RxD+
TxD/RxD-

Twisted pair no. 1

—>
—>

J2-P
J2-S

SD+
SD-

J1-28
J1-27

RxD/TxD+
RxD/TxD-

Twisted pair no. 5

<—
<—

J2-R
J2-T

RD+
RD-

J1-20
J1-19

TxCE/TxC+
TxCE/TxC-

Twisted pair no. 2

—>
—>

J2-U
J2-W

SCTE+
SCTE-

J1-26
J1-25

RxC/TxCE+
RxC/TxCE-

Twisted pair no. 4

<—
<—

J2-V
J2-X

SCR+
SCR-

J1-24
J1-23

TxC/RxC+
TxC/RxC-

Twisted pair no. 3

<—
<—

J2-Y
J2-AA

SCT+
SCT-

¹Any pin not referenced is not connected.

Table D-14 V.35 DCE Cable Pinout (DB-60 to 34-Pin)

60 Pin¹

Signal

Description

Direction

34 Pin

Signal

J1-49
J1-48

MODE_1
GND

Shorting group

-

-

-

J1-50
J1-51

MODE_0
GND

Shorting group

-

-

-

J1-53
J1-54
J1-55
J1-56

TxC/NIL
RxC_TxCE
RxD/TxD
GND

Shorting group

-

-

-

J1-46

Shield_GND

Single

-

J2-A

Frame GND

J1-45
Shield

Circuit_GND
-

Twisted pair no. 12

-
-

J2-B
Shield

Circuit GND
-

J1-35
Shield

CTS/RTS
-

Twisted pair no. 8

<—
-

J2-C
Shield

RTS
-

J1-42
Shield

RTS/CTS
-

Twisted pair no. 9

—>
-

J2-D
Shield

CTS
-

J1-43
Shield

DTR/DSR
-

Twisted pair no. 10

—>
-

J2-E
Shield

DSR
-

J1-44
Shield

LL/DCD
-

Twisted pair no. 11

—>
-

J2-F
Shield

RLSD
-

J1-34
Shield

DSR/DTR
-

Twisted pair no. 7

<—
-

J2-H
Shield

DTR
-

J1-33
Shield

DCD/LL
-

Twisted pair no. 6

<—
-

J2-K
Shield

LT
-

J1-28
J1-27

RxD/TxD+
RxD/TxD-

Twisted pair no. 5

<—
<—

J2-P
J2-S

SD+
SD-

J1-18
J1-17

TxD/RxD+
TxD/RxD-

Twisted pair no. 1

—>
—>

J2-R
J2-T

RD+
RD-

J1-26
J1-25

RxC/TxCE+
RxC/TxCE-

Twisted pair no. 4

<—
<—

J2-U
J2-W

SCTE+
SCTE-

J1-22
J1-21

NIL/RxC+
NIL/RxC-

Twisted pair no. 3

—>
—>

J2-V
J2-X

SCR+
SCR-

J1-20
J1-19

TxCE/TxC+
TxCE/TxC-

Twisted pair no. 2

—>
—>

J2-Y
J2-AA

SCT+
SCT-

¹Any pin not referenced is not connected.

X.21

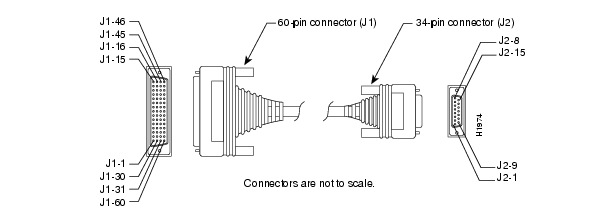

shows the X.21 cable assembly; Table D-15 lists the DTE pinout, and Table D-16 lists the DCE pinout. Arrows indicate signal direction: —> indicates DTE to DCE, and <— indicates DCE to DTE.

Figure D-6 X.21 Cable Assembly

Table D-15 X.21 DTE Cable Pinout (DB-60 to DB-15)

60 Pin¹

Signal

Description

Direction

15 Pin

Signal

J1-48
J1-47

GND
MODE_2

Shorting group

-

-

-

J1-51
J1-52

GND
MODE_DCE

Shorting group

-

-

-

J1-46

Shield_GND

Single

-

J2-1

Shield GND

J1-11
J1-12

TxD/RxD+
TxD/RxD-

Twisted pair no. 3

—>
—>

J2-2
J2-9

Transmit+
Transmit-

J1-9
J1-10

RTS/CTS+
RTS/CTS-

Twisted pair no. 2

—>
—>

J2-3
J2-10

Control+
Control-

J1-28
J1-27

RxD/TxD+
RxD/TxD-

Twisted pair no. 6

<—
<—

J2-4
J2-11

Receive+
Receive-

J1-1
J1-2

CTS/RTS+
CTS/RTS-

Twisted pair no. 1

<—
<—

J2-5
J2-12

Indication+
Indication-

J1-26
J1-25

RxC/TxCE+
RxC/TxCE-

Twisted pair no. 5

<—
<—

J2-6
J2-13

Timing+
Timing-

J1-15
Shield

Control_GND
-

Twisted pair no. 4

-
-

J2-8
Shield

Control GND
-

¹Any pin not referenced is not connected.

Table D-16 X.21 DCE Cable Pinout (DB-60 to DB-15)

60 Pin¹

Signal

Description

Direction

15 Pin

Signal

J1-48
J1-47

GND
MODE_2

Shorting group

-

-

-

J1-46

Shield_GND

Single

-

J2-1

Shield GND

J1-28
J1-27

RxD/TxD+
RxD/TxD-

Twisted pair no. 6

<—
<—

J2-2
J2-9

Transmit+
Transmit-

J1-1
J1-2

CTS/RTS+
CTS/RTS-

Twisted pair no. 1

<—
<—

J2-3
J2-10

Control+
Control-

J1-11
J1-12

TxD/RxD+
TxD/RxD-

Twisted pair no. 3

—>
—>

J2-4
J2-11

Receive+
Receive-

J1-9
J1-10

RTS/CTS+
RTS/CTS-

Twisted pair no. 2

—>
—>

J2-5
J2-12

Indication+
Indication-

J1-24
J1-23

TxC/RxC+
TxC/RxC-

Twisted pair no. 4

—>
—>

J2-6
J2-13

Timing+
Timing-

J1-15
Shield

Control_GND
-

Twisted pair no. 5

-
-

J2-8
Shield

Control GND
-

¹Any pin not referenced is not connected.
