Overview of the Router
lists the router models discussed in this publication and provides a summary of the interfaces supported on each model. These router models are similar in functionality, but differ in the number of interfaces supported.
Table 1-1 Summary of Router Interfaces
Cisco 2501/
CPA25011
-
2
-
Cisco 2502/
CPA2502-
1
2
-
Cisco 2503/
CPA25031
-
2
1
Cisco 2504/
CPA2504-
1
2
1
Cisco 2513/
CPA25131
1
2
-
Cisco 2514/
CPA25142
-
2
-
Cisco 25154
-
2
2
-
1 AUI = attachment unit interface.
2 ISDN = Integrated Services Digital Network.
3 BRI = Basic Rate Interface.
4 A CPA2515 model is not available.
Note
Throughout the remainder of the publication, one model number will be used in text references. For example, references to the model 2501 router will apply to both the Cisco 2501 and CPA2501 routers.
Hardware Features
In addition to the interfaces listed in , the routers include the following hardware features:
•
•
•
•
•
Note
to show the rear panels of the router models discussed in this publication.

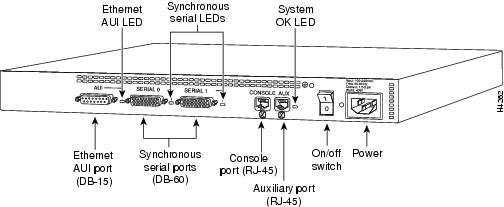

Figure 1-1 Model 2501 Router Rear Panel
Figure 1-2 Model 2502 Router Rear Panel

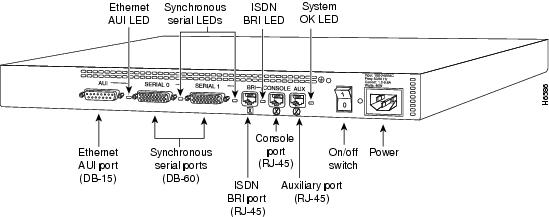

Figure 1-3 Model 2503 Router Rear Panel
Figure 1-4 Model 2504 Router Rear Panel

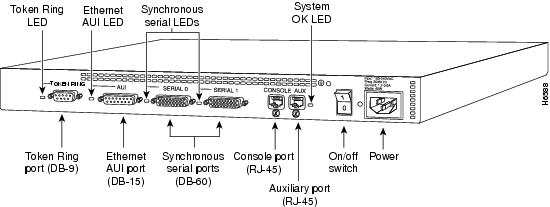

Figure 1-5 Model 2513 Router Rear Panel

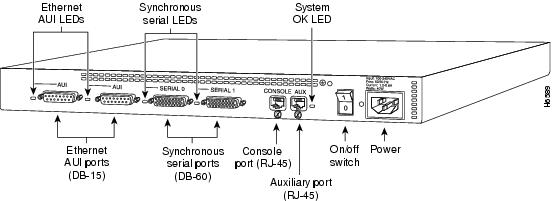

Figure 1-6 Model 2514 Router Rear Panel
Figure 1-7 Model 2515 Router Rear Panel
System Specifications
The system specifications of the routers are listed in Table 1-2.
Table 1-2 System Specifications
Dimensions (H x W x D)
1.75 x 17.5 x 10.56 in. (4.44 x 44.45 x 26.82 cm),
one rack unitWeight
10 lb (4.5 kg)
Input voltage, AC power supply
Current
Frequency
Power dissipation100 to 240 VAC
1.2 to 0.6A
50/60 Hz
40W (maximum), 135.5 Btus1 /hrInput voltage, DC power supply
Current
Power dissipation40W, 40 to 72 VDC
1.5 to 1.0A
40W (maximum), 135.5 Btus/hrProcessor
20-MHz Motorola 68EC030
Interfaces
See for a list of interfaces supported on each router model.
•
•
•
•
•
•
Operating environment
32 to 104×F (0 to 40×C)
Nonoperating temperature
-40 to 185×F (-40 to 85×C)
Operating humidity
5 to 95%, noncondensing
Noise level
34 dBa @ 3 ft (0.914 m)
Regulatory compliance
FCC Class A and Canadian DOC Class A
For more regulatory information, refer to the document that accompanied your router.
1 Btus = British thermal units.
2 IEEE = Institute of Electrical and Electronic Engineers.
3 The synchronous serial interface supports the following standards in data terminal equipment (DTE) and data communications equipment (DCE) mode: EIA/TIA-232, EIA/TIA-449, V.35, and X.21. The EIA-530 standard is supported in DTE mode only.
4 External network terminal 1 (NT1) device required.
