Configuring the 3G Wireless High-Speed WAN Interface Card for Cisco 1841, and 2800 and 3800 Series Routers (HWIC-3G-CDMA-x)

---

First Published: March 14, 2007
Revised: July 16, 2007

The Third Generation (3G) Wireless High-Speed WAN Interface Card (HWIC) is a multiband, multiservice WAN card for use over Code Division Multiple Access/Evolution-Data Optimized (CDMA/EVDO) networks. Its primary application is WAN connectivity as a backup data link for critical data applications. However, the 3G wireless HWIC can also function as the primary WAN connection. It is supported on the following Cisco integrated services routers (Cisco ISRs):

•Cisco 1841

•Cisco 2800 series

•Cisco 3800 series

The 3G wireless HWIC provides the following functionality:

•Broadband WAN connectivity using high speed cellular data technology

•Support for the following technologies:

–Evolution-Data Optimized (EVDO) Revision (Rev) A

–EVDO Release 0

–Single channel Radio Transmission Technology (1xRTT)

•Automatic best-network selection

•Supports over-the-air service provisioning (OTASP) and Internet over-the-air (IOTA) data profile provisioning

•Multiple product SKUs for multiple CDMA carriers

•Multiple external antenna options

•Static and dynamic IP addressing

•Modem-based support for mobile IP

•Cellular interface based on the async interface in Cisco IOS

•Network Address Translation (NAT) support

•Security features such as Firewall, intrusion-detection systems (IDS), intrusion-prevention systems (IPS), and IPSec VPN on the router

•WAN switchover using Cisco IOS backup interface feature

Table 1 shows the SKU and the frequencies supported by the 3G wireless WAN HWICs.

Table 1 SKU Description and Supported Frequencies

SKU Number	Description	Region	Frequency Bands
HWIC-3G-CDMA-x	EVDO Rev A/Rel 0/1xRTT, where x is an initial for a specific carrier	US	800/1900MHz

Figure 1 shows the front panel of the HWIC-3G-CDMA-x.

Figure 1 Front Panel of HWIC-3G-CDMA-x

1	Mounting Screws	4	LEDs
2	Diagnostic Port	5	Diversity Antenna Connector
3	Main Antenna Connector

---

Note The diagnostic port is not required for normal operation. It is used only for advanced radio diagnostics. Please refer to "Modem Troubleshooting Using the Diagnostic Port" section for details on enabling this port and the diagnostic tools that are supported.

---

Table 2 explains each of the LEDs with their functionality and the different states. The LEDs provide a visual indication of your available services. Please refer to Chapter 13 in the Cisco Interface Cards Hardware Installation Guide for details on hardware installation.

Table 2 3G Wireless HWIC (CDMA) LED Descriptions

LED	Description
RSSI	Off: Low RSSI (under -100 dBm).
	Slow Green Blink: Low or medium RSSI (-99 to -90 dBm).
	Fast Green Blink: Medium RSSI (-89 to -70 dBm).
	Solid Green: High RSSI (-69 dBm or higher).
	Solid Yellow: No service or no RSSI detected.
WWAN	Off: HWIC in reset mode or not powered.
	Slow blink: Searching for service.
	Solid Green: Active service; no traffic detected.
	Fast Blink: Active service, and traffic detected proportional to blink rate.
1xRTT	1xRTT is the active service.
EVDO	1xEVDO is the active service.
Note Both 1xRTT and EVDO Off: No service is active. Note If the RSSI LED is solid yellow, it means that no service and no RSSI are detected. Note Active service means the currently available service. Your 3G WAN wireless HWIC automatically selects the best available connection.

The 3G wireless HWIC provides the following software functionality:

•Modem activation—You can activate the modem either by using Cisco IOS commands either manually or by using over-the-air service provisioning (OTASP).

•Modem management—You can access modem software and hardware information, radio and network status, and data profile information using Cisco IOS commands.

•Dial-on-demand routing (DDR)—This allows you to set up a data call when there is data traffic to be sent over the wireless network.

•Fallback connection (DDR backup)—The 3G wireless HWIC allows you to configure the cellular modem to initiate a dialup connection when connection to a primary service is lost.

•Teardown after fallback (part of fallback DDR)—After a primary connection has failed and the cellular connection is in fallback mode, the 3G wireless HWIC tears down the connection when the primary connection is available.

•Automatic teardown—After a configurable timeout value, the 3G wireless HWIC automatically tears down a connection if there has been no activity.

•Portable application—You can move the router into different coverage areas (different base stations within the same service provider network) and the router establishes a connection with the nearest cell infrastructure automatically.

•Autodetect—The 3G wireless HWIC automatically detects and uses the best available service.

•Firmware upgrade—You can upgrade the firmware on the modem by using Cisco IOS commands.

Feature History

Release	Modification
12.4(11)XV	This feature was introduced.
12.4(15)T	This feature was integrated into Cisco IOS Release 12.4(15)T.

Finding Support Information for Platforms and Cisco IOS Software Images

Use Cisco Feature Navigator to find information about platform support and Cisco IOS software image support. Access Cisco Feature Navigator at http://www.cisco.com/go/fn. You must have an account on Cisco.com. If you do not have an account or have forgotten your username or password, click Cancel at the login dialog box and follow the instructions that appear.

Contents

•Prerequisites for Configuring the 3G Wireless HWIC

•Restrictions for Configuring the 3G Wireless HWIC

•Technology Overview

•Configuring the 3G Wireless HWIC

•Configuration Examples for the 3G Wireless HWIC

•Modem Firmware Upgrade

•Command Reference

•Troubleshooting Tips, page 71

Prerequisites for Configuring the 3G Wireless HWIC

The following are prerequisites to configuring the 3G wireless HWICs:

•You must have service availability from a wireless service provider, and you must have network coverage where your router will be physically located. For a complete list of supported carriers, see the data sheet at the following URL: http://www.cisco.com/go/3g

•You must subscribe to a service plan with a wireless service provider. For manual activation, you will need the following specific information from the provider:

–Master Subsidy Lock (MSL) number

–Mobile Directory number (MDN)

–MSID

–Electronic Serial Number (ESN)

---

Note The ESN number is on the modem itself, as shown in Figure 2. Make sure that your service is registered with the ESN number. You can also obtain the ESN by using the show cellular hardware command.

---

•You must install the required antennas before you configure the 3G wireless HWIC. See the following URLs for instructions on how to install the antennas:

–3G-ANTM1919D—See the Cisco Multiband Swivel Mount Dipole Antenna (3G-ANTM1919D)

–3G-ANTM1916-CM—See the Cisco Multiband Omnidirectional Ceiling Mount Antenna (3G-ANTM1916-CM)

–3G-AE015-R (Antenna Extension)—See the Cisco Single-Port Antenna Stand for Multiband TNC Male-Terminated Portable Antenna (3G-AE015-R)

•You must make sure to check your LEDs for signal reception as described in Table 2.

•You should be familiar with Cisco IOS.

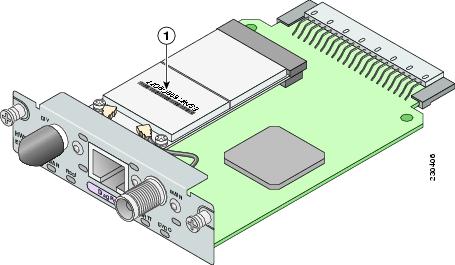

Figure 2 Location of the ESN Number

1	The ESN is located on the modem that is attached to the back of the 3G wireless HWIC. The ESN is just below the barcode.

Restrictions for Configuring the 3G Wireless HWIC

The following restrictions apply to the Cisco 3G Wireless HWICs:

•Data connection can be originated only by the 3G wireless HWIC. Remote dial-in is not supported.

•Throughput—Because of the shared nature of wireless communications, the amount of throughput that is experienced varies, depending on the number of active users or congestion in a network.

•Cellular networks have higher latency, compared to wired networks. Latency rates depend on the technology and carrier. Latency can increase because of network congestion.

•VoIP is not supported.

•Any restrictions that are a part of the terms of service from your carrier.

Technology Overview

This section contains the following topics:

•CDMA Network Overview

•Supported Cisco Antennas and Cables

CDMA Network Overview

CDMA is a standard for mobile communication. A typical CDMA network includes terminal equipment, mobile termination, base transceiver station (BTS), base station controller (BSC), packet data serving node (PDSN), and other data network entities. The PDSN is the interface between a BSC and a internet gateway.

Figure 3 shows the relationship of the components of a typical CDMA network, including a PDSN and a branch office with the 3G wireless HWIC.

As the figure shows, the branch office connects to a radio tower and a BTS. The BTS connects to a BSC, which contains a component called the packet control function (PCF). The PCF communicates with the Cisco PDSN for data communication and with the mobile switching center (MSC) for voice.

Figure 3 Overview of the CDMA Network

Supported Cisco Antennas and Cables

Table 3 lists the Cisco antennas that are supported for use on the 3G wireless HWIC

.

Table 3 Cisco Antennas Supported on the 3G Wireless HWIC

Cisco Part Number	Antenna Type	Maximum Gain and Frequency Range	Description
3G-ANTM1919D	Dipole Omnidirectional	0 dBi (806-960 MHz) 0 dBi (1710-2170 MHz)	This is the default antenna. Multiband faceplate mounted dipole antenna. For more information, see the Cisco Multiband Swivel Mount Dipole Antenna (3G-ANTM1919D) document.
3G-ANTM1916-CM	High-Gain Ceiling-Mount Omnidirectional	1.5 dBi (806-960 MHz) 2.5 dBi (1710-2170 MHz)	Multiband ceiling-mounted omnidirectional antenna. For more information, see the Cisco Multiband Omnidirectional Ceiling Mount Antenna (3G-ANTM1916-CM) document.
3G-AE015-R (Antenna Extension)	Extension Base	0.8 GHz-6.0 GHz	This antenna extension is a base with a 15-foot cable included for use with dipole omnidirectional antennas. For more information, see the Cisco Single-Port Antenna Stand for Multiband TNC Male-Terminated Portable Antenna (3G-AE015-R) document.

Table 4 lists insertion loss information for the ultra-low loss (ULL) LMR 400 extension cables available from Cisco for use with the ceiling-mounted antenna.

Table 4 Cisco Extension Cables for Use with Antennas

Cisco Product Number	Cable Length	Insertion Loss	Frequency (MHz)
3G-CAB-ULL-20	20 ft (6 m)	1.50 dB max.	2100
3G-CAB-ULL-50	50 ft (15 m)	3.50 dB max.	2100

Figure 4 shows the various antenna options with the 3G wireless HWIC.

Figure 4 Antenna Options

Configuring the 3G Wireless HWIC

To configure the 3G wireless HWIC, you must do the following procedures:

•Modem Activation and Provisioning

•Data Call Set up

Modem Activation and Provisioning

To activate and provision your modem, follow these procedures:

•Verifying Signal Strength and Service Availability

•Activating the Modem

Verifying Signal Strength and Service Availability

SUMMARY STEPS

To verify the signal strength and service availability on your modem, use the following commands beginning in the EXEC mode.

---

Note For modem activation, you should be attached to a 1xRTT/EVDO service.

---

1. show cellular network

2. show cellular radio

3. show cellular all

DETAILED STEPS

Use the following commands to verify the signal strength and service availability on your modem beginning in the EXEC mode:

	Command or Action	Purpose
Step 1	Router# show cellular <slot/wic/port> network Example: Router# show cellular 0/0/0 network	Displays information about the carrier network, cell site, and available service.
Step 2	Router# show cellular <slot/wic/port> radio Example: Router# show cellular 0/0/0 radio	Shows the radio signal strength. Note The RSSI should be better than -90 dBm for steady and reliable connection and better than -80 dBm for optimal data throughput.
Step 3	Router# show cellular <slot/wic/port> all Example: Router# show cellular 0/0/0 all	Shows consolidated information about the modem, profiles created, radio signal strength, network security, and so forth.

Activating the Modem

The activation procedures may differ depending upon your carrier. Consult your carrier, and follow one of the following procedures:

•Manual Activation

•Activating Using OTASP

The following table lists activation and provisioning process suupported by different wireless carriers.

Activation Process	Carrier
Manual Activation using MDN/MSID/MSL	Sprint
OTASP Activation	Verizon Wireless
IOTA for Data Profile refresh	Sprint

Manual Activation

---

Note You must have valid MDN, MSL, and MSID information from your carrier before you start this procedure.

---

To configure a modem profile manually, use the following command beginning in EXEC mode:

cellular slot/wic_slot/port cdma activate manual mdn msid sid nid msl

For more infomation about the parameters, see the "cellular cdma activate manual" section

In addition to activation, the modem data profile provisioning is done using a process called IOTA. IOTA is initiated automatically when you use the cellular cdma activate manual command.

Here is a sample output from this command:

router#cellular 0/0/0 cdma activate manual 1234567890 1234567890 1234 12 12345

NAM 0 will be configured and will become Active

Modem will be activated with following Parameters

MDN :1234567890; MSID :1234567890; SID :1234; NID 12:

Checking Current Activation Status

Modem activation status: Not Activated

Begin Activation

Account activation - Step 1 of 5

Account activation - Step 2 of 5

Account activation - Step 3 of 5

Account activation - Step 4 of 5

Account activation - Step 5 of 5

Secure Commit Result: Succeed

Done Configuring - Resetting the modem

The activation of the account is Complete

Waiting for modem to be ready to start IOTA

Beginning IOTA

router#

*Feb  6 23:29:08.459: IOTA Status Message Received. Event: IOTA Start, Result: SUCCESS

*Feb  6 23:29:08.459: Please wait till IOTA END message is received

*Feb  6 23:29:08.459: It can take up to 5 minutes

*Feb  6 23:29:27.951: OTA State = SPL unlock, Result = Success

*Feb  6 23:29:32.319: OTA State = Parameters commited to NVRAM, Result = Success

*Feb  6 23:29:40.999: Over the air provisioning complete; Result:Success

*Feb  6 23:29:41.679: IOTA Status Message Received. Event: IOTA End, Result: SUCCESS

---

Note The IOTA start and end must have "success" as the resulting output. If you receive an error message, you can run IOTA independently by using the cellular cdma activate iota command.

---

---

Tip A periodic refresh of the data profile may be needed as required by your carrier. Use the following command to refresh the data profile: cellular cdma activate iota.

---

Activating Using OTASP

To provision and activate your modem using OTASP, use the following command beginning in EXEC mode:

cellular slot/wic_slot/port cdma activate otasp phone_number

---

Note You need to obtain the phone number for use with this command from your carrier. The standard OTASP calling number is *22899.

---

Data Call Set up

To set up a data call, use the following procedures:

•Configuring the Cellular Interface

•Configuring DDR

•Configuring DDR Backup

Figure 5 shows a data call setup using the 3G wireless HWIC.

Figure 5 Data Call Setup with the HWIC-3G-CDMA

Configuring the Cellular Interface

To configure the cellular interface, enter the following commands in the cellular interface mode.

SUMMARY STEPS

1. configure terminal

2. interface cellular <slot/wic/port>

3. encapsulation ppp

4. ppp chap password 0 <password>

5. asynchronous mode interactive

6. ip address negotiated

---

Note The modem supports both mobile IP (MIP) and simple IP (SIP). In both modes, the modem authenticates with the network. However, when the modem is configured in MIP-preferred mode (ask your carrier which mode is supported), if MIP authentication fails, the modem tries to set up a SIP call. The modem uses SIP authentication parameters derived during modem provisioning and passes the CHAP authentication challenge to the cellular interface. The purpose of the authentication challenge is to keep the cellular interface informed of Link Control Protocol (LCP) negotiations between the modem and the network. The authentication challenge from the modem does not have a username, so under the cellular interface, you should configure a default CHAP password, i.e., configure only the ppp chap password and not the ppp chap hostname. If your carrier supports only MIP, you do not need to configure either of the two parameters.

---

DETAILED STEPS

	Command or Action	Purpose
Step 1	Router# configure terminal Example: Router# configure terminal	Enters global configuration mode from the terminal.
Step 2	Router(config)# interface cellular <slot/wic/port> Example: Router (config)# interface cellular 0/0/0	Specifies the cellular interface.
Step 3	Router(config-if)# encapsulation ppp Example: Router (config-if)# encapsulation ppp	Specifies PPP encapsulation for an interface configured for dedicated asynchronous mode or dial-on-demand routing (DDR).
Step 4	Router (config-if)# ppp chap password <password> Example: Router (config-if)# ppp chap password cisco	Defines an interface-specific CHAP password. Note You can set the password to any value. This password is used only when the modem has failed MIP authentication and fails over to SIP mode. The modem ignores the CHAP authentication response from the cellular interface.
Step 5	Router(config-if)# async mode interactive Example: Router (config-if)# async mode interactive	Returns a line that has been placed into dedicated asynchronous network mode to interactive mode, thereby enabling the slip and ppp EXEC commands.
Step 6	Router(config-if)# ip address negotiated Example: Router (config-if)# ip address negotiated	Specifies that the IP address for a particular interface is obtained via PPP/IPCP address negotiation.

---

Note When static IP address is required for the cellular interface, the address may be configured as ip address negotiated. During IPCP, the network ensures that the correct static IP address is allocated to the device. If a tunnel interface is configured with ip address unnumbered <cellular interface>, it is necessary to configure the actual static IP address under the cellular interface, in place of ip address negotiated. For a sample cellular interface configuration, see "Basic Cellular Interface Configuration: Example" section.

---

Configuring DDR

To configure DDR for the cellular interface, follow these steps:

SUMMARY STEPS

1. configure terminal

2. interface cellular <slot/wic/port>

3. dialer in-band

4. dialer idle-timeout <seconds>

5. dialer string <string>

6. dialer group <number>

7. exit

8. dialer-list <dialer-group> protocol <protocol-name> {permit | deny | list <access-list-number> | access-group}>

9. ip access-list<access list number>permit <ip source address>

10. line <slot/wic/port>

11. script dialer <regexp>

12. exit

13. chat-script <script name> "" "ATDT#777" TIMEOUT <timeout value> CONNECT

14. interface cellular <slot/wic/port>

15. dialer string <string>

	Command or Action	Purpose
Step 1	Router# configure terminal Example: Router# configure terminal	Enters global configuration mode from the terminal.
Step 2	Router(config)# interface cellular <slot/wic/port> Example: Router (config)# interface cellular 0/0/0	Specifies the cellular interface.
Step 3	Router(config-if)# dialer in-band Example: Router (config-if)# dialer in-band	Enables DDR and configures the specified serial interface to use in-band dialing.
Step 4	Router(config-if)# dialer idle-timeout <seconds> Example: Router (config-if)# dialer idle-timeout 30	Specifies the duration of idle time, in seconds, after which a line will be disconnected.
Step 5	Router(config-if)# dialer string <string> Example: Router (config-if)# dialer string cdma	Specifies the number or string to dial. Use the name of the CHAT script here.
Step 6	Router(config-if)# dialer-group <number> Example: Router (config-if)# dialer-group 1	Specifies the number of the dialer access group to which the specific interface belongs.
Step 7	Router(config-if)# exit Example: Router (config-if)# exit	Enters the global configuration mode.
Step 8	Router(config)# dialer-list <dialer-group> protocol <protocol-name> {permit | deny | list <access-list-number> | access-group}> Example: Router (config)# dialer-list 1 protocol ip list 1	Creates a dialer list for traffic of interest and permits access to an entire protocol.
Step 9	Router(config)# ip access-list<access list number>permit <ip source address> Example: Router (config)# ip access list 1 permit any	Defines traffic of interest.
Step 10	Router(config)# line <slot/wic/port> Example: Router (config-line)# line 0/0/0	Specifies the line configuration mode.
Step 11	Router(config-line)script dialer <regexp> Example: Router (config-line)# script-dialer cdma	Specifies a default modem chat script.
Step 12	Router(config-line)exit Example: Router (config-line)# exit	Exits line configuration mode.
Step 13	Router(config)# chat-script <script name> "" "ATDT#777" TIMEOUT <timeout value> CONNECT Example: Router (config)# chat-script cdma "" "ATDT#777" TIMEOUT 60 "CONNECT"	Defines the ATDT commands when the dialer is initiated.
Step 14	Router(config)# interface cellular <slot/wic/port> Example: Router (config)# interface cellular 0/1/0	Specifies the cellular interface.
Step 15	Router(config-if)# dialer string <string> Example: Router (config)# dialer string cdma	Specifies the dialer script (defined using the chat script command).

Configuring DDR Backup

To monitor the primary connection and initiate the backup connection when needed, the router can use one of the following methods:

•Backup Interface—The backup interface that stays in standby mode until the primary interface line protocol is detected as down and then is brought up.

•Floating Static Route—The route through the backup interface has an administrative distance that is greater than the administrative distance of the primary connection route and therefore would not be in the routing table until the primary interface goes down.

•Dialer Watch—Dialer watch is a backup feature that integrates dial backup with routing capabilities.

Configuring Interfaces to Use a Backup Interface

To configure one or more interfaces to use a backup interface, use the following commands, beginning in global configuration mode.

SUMMARY STEPS

1. interface type number

2. backup interface cellular number

3. backup delay enable-delay disable-delay

DETAILED STEPS

	Command or Action	Purpose
Step 1	Router(config)# interface type number Example: Router(config)# interface ATM0/0/0	Specifies the interface to be backed up and begins interface configuration mode.
Step 2	Router(config-if)# backup interface cellular <number> Example: Router(config-if)# backup interface cellular0/3/0	Specifies the cellular interface as backup.
Step 3	Router(config-if)# backup delay enable-delay disable-delay Example: Router(config-if)# backup delay enable delay	Specifies delay between the physical interface going down and the backup interface being enabled, and between the physical interface coming back up and the backup being disabled.

---

Note You cannot configure a backup interface for the cellular interface and any other asynchronous serial interface.

---

Configuring DDR Backup Using Dialer Watch

To initiate dialer watch, you must configure the interface to perform DDR and backup. Use traditional DDR configuration commands, such as dialer maps, for DDR capabilities. To enable dialer watch on the backup interface and create a dialer list, use the following commands in interface configuration mode.

SUMMARY STEPS

1. configure terminal

2. interface type number

3. dialer watch group group-number

4. dialer watch-list group-number ip ip-address address-mask

5. dialer-list <dialer-group> protocol <protocol name> {permit | deny | list <access list number> | access-group}

6. ip access-list <access list number> permit <ip source address>

7. interface cellular <slot/wic/port>

8. dialer-group <dialer group number>

DETAILED STEPS

	Command or Action	Purpose
Step 1	Router# configure terminal Example: Router# configure terminal	Enters global configuration mode from the terminal.
Step 2	Router(config)# interface type number Example: Router (config)# interface ATM0/0/0	Specifies the interface.
Step 3	Router(config-if)# dialer watch-group group-number Example: Router(config-if)# dialer watch-group 2	Enables dialer watch on the backup interface.
Step 4	Router(config)# dialer watch-list group-number ip ip-address address-mask Example: Router(config-if)# dialer watch-list 2 ip 10.4.0.254 255.255.0.0	Defines a list of all IP addresses to be watched.
Step 5	Router(config)# dialer-list <dialer-group> protocol <protocol-name> {permit | deny | list <access-list-number> | access-group}> Example: Router(config)# dialer-list 2 protocol ip permit	Creates dialer list for traffic of interest and permits access to an entire protocol.
Step 6	Router(config)# ip access-list<access list number>permit <ip source address> Example: Router(config)# access list 2 permit 10.4.0.0	Defines traffic of interest. Note Do not use the access list permit all command to avoid sending traffic to the IP network. This may result in call termination.
Step 7	Router(config)# interface cellular<slot/wic_slot/port> Example: Router(config)# interface cellular 0/1/0	Enters the interface configuration mode.
Step 8	Router(config-if)# dialer-group <dialer group number> Example: Router(config-if)# dialer-group 2	Maps a dialer list to the dialer interface.

Configuring DDR Backup Using Floating Static Route

To configure a floating static default route on the secondary interface beginning in the global configuration mode, perform the following tasks.

---

Note Make sure you have ip classless enabled on your router.

---

SUMMARY STEPS

1. configure terminal

2. ip route network-number network-mask {ip address | interface} [administrative distance] [name name]

DETAILED STEPS

	Command or Action	Purpose
Step 1	Router# configure terminal Example: Router# configure terminal	Enters global configuration mode from the terminal.
Step 2	Router(config)# ip route network-number network-mask {ip-address | interface} [administrative distance] [name name] Example: Router (config)# ip route 0.0.0.0 Dialer 2 track 234	Establishes a floating static route with the configured administrative distance through the specified interface. Note A higher administrative distance should be configured for the route through the backup interface, so that it is used only when the primary interface is down.

Configuration Examples for the 3G Wireless HWIC

This section provides the following configuration examples:

•Basic Cellular Interface Configuration: Example

•Tunnel over Cellular Interface Configuration: Example

•3G Wireless Modem as Backup with NAT and IPSec: Example

Basic Cellular Interface Configuration: Example

The following is an example configuration where the cellular interface is used as a primary and is configured as the default route:

chat-script cdma "" "ATDT#777" TIMEOUT 60 "CONNECT"

!

interface Cellular0/0/0

 ip address negotiated

 encapsulation ppp

 dialer in-band

 dialer string cdma

 dialer-group 1

 async mode interactive

 ppp chap password 0 cisco

!

ip route 0.0.0.0 0.0.0.0 Cellular0/0/0

!

!

access-list 1 permit any

dialer-list 1 protocol ip list 1

!

line 0/0/0

 exec-timeout 0 0

 script dialer cdma

 login

 modem InOut

Tunnel over Cellular Interface Configuration: Example

The following sample configuration shows the configuration of the static IP address when a tunnel interface is configured using the ip address unnumbered <cellular interface> command:

interface Tunnel2

 ip unnumbered Cellular0/3/0

 tunnel source Cellular0/3/0

 tunnel destination 128.107.248.254

interface Cellular0/3/0

 bandwidth receive 1400000

 ip address 23.23.0.1 255.255.0.0

 ip nat outside

 ip virtual-reassembly

 encapsulation ppp

 no ip mroute-cache

 dialer in-band

 dialer idle-timeout 0

 dialer string cdma

 dialer-group 1

 async mode interactive

 no ppp lcp fast-start

 ppp chap password 0 cisco

 ppp ipcp dns request

! traffic of interest through the tunnel/cellular interface

ip route 10.10.0.0 255.255.0.0 Tunnel2

3G Wireless Modem as Backup with NAT and IPSec: Example

The following sample configuration shows the configuration of the 3G wireless modem on the router as backup with NAT and IPSec:

ip dhcp excluded-address 10.4.0.254

!

ip dhcp pool cdmapool

   network 10.4.0.0 255.255.0.0

   dns-server 66.209.10.201 66.102.163.231

   default-router 10.4.0.254

!

!

chat-script cdma "" "atdt#777" TIMEOUT 30 "CONNECT"

crypto isakmp policy 1

 encr 3des

 authentication pre-share

crypto isakmp key abcd address 128.107.241.234

!

!

crypto ipsec transform-set abcd ah-sha-hmac esp-3des

!

crypto map cdma1 10 ipsec-isakmp

 set peer 128.107.241.234

 set transform-set abcd

 match address 103

!

!

interface ATM0/0/0

 no ip address

 ip virtual-reassembly

 load-interval 30

 no atm ilmi-keepalive

 dsl operating-mode auto

!

interface ATM0/0/0.1 point-to-point

 backup interface Cellular0/3/0

 ip nat outside

 ip virtual-reassembly

 no snmp trap link-status

 pvc 0/35

  pppoe-client dial-pool-number 2

 !

!

interface Cellular0/3/0

 bandwidth receive 1400000

 ip address negotiated

 ip nat outside

 ip virtual-reassembly

 encapsulation ppp

 no ip mroute-cache

 dialer in-band

 dialer idle-timeout 0

 dialer string cdma

 dialer-group 1

 async mode interactive

 no ppp lcp fast-start

 ppp chap password 0 cisco

 ppp ipcp dns request

 crypto map cdma1

!

interface Vlan104

 description used as default gateway address for DHCP clients

 ip address 10.4.0.254 255.255.0.0

 ip nat inside

 ip virtual-reassembly

!

interface Dialer2

 ip address negotiated

 ip mtu 1492

 ip nat outside

 ip virtual-reassembly

 encapsulation ppp

 load-interval 30

 dialer pool 2

 dialer-group 2

 ppp authentication chap callin

 ppp chap hostname cisco@dsl.com

 ppp chap password 0 cisco

 ppp ipcp dns request

 crypto map cdma1

!

ip local policy route-map track-primary-if

ip route 0.0.0.0 0.0.0.0 Dialer2 track 234

ip route 0.0.0.0 0.0.0.0 Cellular0/3/0 254

!

!

ip nat inside source route-map nat2cell interface Cellular0/3/0 overload

ip nat inside source route-map nat2dsl interface Dialer2 overload

!

ip sla 1

 icmp-echo 209.131.36.158 source-interface Dialer2

 timeout 1000

 frequency 2

ip sla schedule 1 life forever start-time now

access-list 1 permit any

access-list 2 permit 10.4.0.0 0.0.255.255

access-list 3 permit any

access-list 101 permit ip 10.4.0.0 0.0.255.255 any

access-list 102 permit icmp any host 209.131.36.158

access-list 103 permit ip host 166.138.186.119 128.107.0.0 0.0.255.255

access-list 103 permit ip host 75.40.113.246 128.107.0.0 0.0.255.255

dialer-list 1 protocol ip list 1

dialer-list 2 protocol ip permit

!

!

route-map track-primary-if permit 10

 match ip address 102

 set interface Dialer2

!

route-map nat2dsl permit 10

 match ip address 101

 match interface Dialer2

!

route-map nat2cell permit 10

 match ip address 101

 match interface Cellular0/3/0

!

line 0/3/0

 exec-timeout 0 0

 script dialer cdma

 login

 modem InOut

Modem Firmware Upgrade

The 3G wireless HWIC has an embedded modem from Sierra Wireless (MC5725). The modem firmware can be upgraded by using Cisco IOS commands. The firmware is packaged in a tar distribution file and can be downloaded from the wireless software download page on Cisco.com. Use the following procedure to upgrade the modem firmware:

---

Caution Before upgrading the modem to a new firmware version, please check whether the new firmware version has been certified by your wireless service provider. Using an uncertified firmware version on the modem may affect the wireless service provider network adversely.

---

Refer to the following website for the latest certified firmware version for your carrier and IOS compatibility:

http://www.cisco.com/en/US/products/hw/routers/networking_solutions_products_generic_content0900aecd80601f7e.html

SUMMARY STEPS

1. Go to the Cisco Wireless WAN software download website at:

http://tools.cisco.com/support/downloads/go/Redirect.x?mdfid=278875243

2. Download the appropriate CDMA firmware release under Wireless Integrated Switches and Routers.

3. Use the archive command to extract the firmware distribution into the router flash memory:

archive tar /xtract source-url destination-url

4. Use the following command to initiate the firmware upgrade process:

microcode reload cellular pa-bay slot cdma modem-provision

DETAILED STEPS

	Command or Action	Purpose
Step 1	Go to the Cisco Wireless WAN software download website at http://tools.cisco.com/support/downloads/go/Redirect.x?mdfid=278875243	Provides access to Cisco Wireless WAN software downloads. Select firmware for Cisco 3G wireless HWIC. Note This website is only available to registered Cisco.com users.
Step 2	Download the appropriate CDMA firmware release under Wireless Integrated Switches and Routers.	Downloads the modem firmware package to a TFTP/FTP server that is accessible from the router in which the 3G wireless HWIC is installed.
Step 3	router# archive tar /xtract source-url destination-url Example: Router# archive tar /xtract tftp://192.168.1.1/MC5725_00_57_00_vzw_package.t ar flash:	Uncompresses the files of the modem firmware package and copies them to a location that is accessible by the router in which the 3G wireless HWIC is installed. source-url—URL of the source location with the firmware TAR filename. Valid URLs can refer to TFTP or HTTP servers or to router flash memory. destination-url—URL of the destination where the tar file would be extracted. Use router flash.
Step 4	router# microcode reload cellular pa-bay slot cdma modem-provision	Initiates the firmware upgrade process. pa-bay—Use 0 for HWIC. slot—Slot number where the HWIC is plugged in. Note This command requires the cellular interface to be in administrative shutdown mode. The firmware upgrade process may take up to 15 minutes, during which the modem is inaccessible.

---

Caution Do not disconnect power or switch the router off during the firmware upgrade process. Either action may result in permanent modem failure.

---

Command Reference

This section documents new commands only.

•cellular cdma activate iota

•cellular cdma activate manual

•cellular cdma activate otasp

•debug cellular driver

•debug cellular firmware

•debug cellular messages all

•debug cellular messages async

•debug cellular messages data

•debug cellular messages management

•debug cellular messages virt-con

•show cellular all

•show cellular connection personality

•show cellular connection

•show cellular hardware

•show cellular network

•show cellular profile

•show cellular radio

•show cellular security

•show controllers cellular

•show interfaces cellular

•show run interface cellular

cellular cdma activate iota

To periodically refresh the modem data profile using Internet-based over-the-air provisioning (IOTA), use the cellular cdma activate iota command in privileged EXEC mode. IOTA is used to activate the modem data profile by certain wireless service providers. Use this command to display the current active connection state and statistics. (Ask your carrier whether IOTA is supported and how often a refresh is needed.)

cellular slot/wic_slot/port cdma activate iota

Syntax Description

slot/wic_slot/port

Numeric values that indicate the router slot, WAN interface card (WIC) slot, and port.

Command Default

None.

Command Modes

EXEC

Command History

Release	Modification
12.4(11)XV	This command was introduced.
12.4(15)T	This command was integrated into Cisco IOS Release 12.4(15)T.

Usage Guidelines

You can verify the updated modem data profile by using the show cellular slot/wic_slot/port profile command.

---

Note Use this command only if you are using an HWIC-3G-CDMA-S interface card.

---

Examples

The following example shows output from the cellular cdma activate iota command:

router # cellular 0/0/0 cdma activate iota

Begin IOTA

router#

*Feb  6 23:32:21.339: IOTA Status Message Received. Event: IOTA Start, Result: SUCCESS

*Feb  6 23:32:21.339: Please wait till IOTA END message is received

*Feb  6 23:32:21.339: It can take up to 5 minutes

*Feb  6 23:32:40.867: OTA State = SPL unlock, Result = Success

*Feb  6 23:32:45.235: OTA State = Parameters commited to NVRAM, Result = Success

*Feb  6 23:32:52.087: Over the air provisioning complete; Result:Success

*Feb  6 23:32:52.615: IOTA Status Message Received. Event: IOTA End, Result: SUCCESS

Related Commands

Command	Description
cellular cdma activate manual	Manually activates a cellular account using the over the air service (OTA) procedure.
show cellular profile	Displays the cellular profile information.

cellular cdma activate manual

To manually activate the modem, use the cellular cdma activate manual command in privileged EXEC mode.

---

Note The modem activation process is specific to the carrier. Ask your carrier whether manual activation—using MDN, MSID, and MSN—or activation using over-the-air service provisioning (OTASP) is supported.

---

cellular slot/wic_slot/port cdma activate manual mdn msid sid nid msl

Syntax Description

slot/wic_slot/port	Numeric values that indicate the router slot, WAN interface card (WIC) slot, and port.
mdn	Ten digit mobile directory number (MDN).
msid	Ten digit mobile subscriber identification number (MSID).
sid	System ID (SID) number between 0 and 32767. Note Use the show cellular network command to obtain the system ID.
nid	Network ID (NID) number between 0 and 65535. Note Use the show cellular network command to obtain the network ID.
msl	Mobile subscriber lock, to be obtained from your service provider.

Command Default

None.

Command Modes

EXEC

Command History

Release	Modification
12.4(11)XV	This command was introduced.
12.4(15)T	This command was integrated into Cisco IOS Release 12.4(15)T.

Usage Guidelines

Use the show cellular network command to obtain the SID and NID.

You can verify whether the modem has been activated using the show cellular slot/wic_slot/port all command.

---

Note Use this command only if you have an HWIC-3G-CDMA-S interface card.

---

Examples

The following is sample output from the cellular cdma activate manual command:

router# cellular 0/0/0 cdma activate manual 9135938079 9135938079 4183 87 907148

NAM 0 will be configured and will become Active

Modem will be activated with following Parameters

MDN :9135938079; MSID :9135938079; SID :4183; NID 87:

Checking Current Activation Status

Modem activation status: Not Activated

Begin Activation

Account activation - Step 1 of 5

Account activation - Step 2 of 5

Account activation - Step 3 of 5

Account activation - Step 4 of 5

Account activation - Step 5 of 5

Secure Commit Result: Succeed

Done Configuring - Resetting the modem

The activation of the account is Complete

Waiting for modem to be ready to start IOTA

Beginning IOTA

router#

*Feb  6 23:29:08.459: IOTA Status Message Received. Event: IOTA Start, Result: SUCCESS

*Feb  6 23:29:08.459: Please wait till IOTA END message is received

*Feb  6 23:29:08.459: It can take up to 5 minutes

*Feb  6 23:29:27.951: OTA State = SPL unlock, Result = Success

*Feb  6 23:29:32.319: OTA State = Parameters commited to NVRAM, Result = Success

*Feb  6 23:29:40.999: Over the air provisioning complete; Result:Success

*Feb  6 23:29:41.679: IOTA Status Message Received. Event: IOTA End, Result: SUCCESS

The following is sample output from the show cellular profile command after the modem has been activated:

router# show cellular 0/3/0 profile

Profile Information

====================

Electronic Serial Number (ESN) = 0x603C6426

Modem activated = YES

Account Information:

======================

Activation Date: 20070221

Phone Number (MDN) : 2029976763

Mobile Station Identifier (MSID) : 2029976763

Data Profile Info:

=====================

Number of data profiles configured : 1

Current active data profile : 0

Data Profile 0 Information (Active)

==================================

NAI (Network Access Identifier) = 2029976763@vzw3g.com

MN-HA SS = Set

MN-HA SPI = 300

MN-AAA SS = Set

MN-AAA SPI = 2

Reverse Tunneling Preference = Set

Home Address = 0.0.0.0

Primary Home Agent Address = 255.255.255.255

Secondary Home Agent Address = 255.255.255.255

Related Commands

Command	Description
cellular cdma activate iota	Manually activates a cellular account using the Internet over-the-air service procedure.
show cellular profile	Displays the cellular profile information.

cellular cdma activate otasp

To activate a wireless account using over-the-air service provisioning (OTASP), use the cellular cdma activate otasp command in privileged EXEC mode.

---

Note The modem activation process is specific to the carrier. Check with your carrier if they support manual activation—using MDN, MSID, and MSN—or activation using OTASP.

---

cellular slot/wic_slot/port cdma activate otasp phone_number

Syntax Description

slot/wic_slot/port	Numeric values that indicate the router slot, WAN interface card (WIC) slot, and port.
phone_number	Phone number that you must dial to begin activation using OTASP. This number is specific to a wireless provider. For Verizon Wireless, it is *22899.

Command Default

None.

Command Modes

Privileged EXEC

Command History

Release	Modification
12.4(11)XV	This command was introduced.
12.4(15)T	This command was integrated into Cisco IOS Release 12.4(15)T.

Usage Guidelines

You can verify the modem activation using the show cellular slot/wic_slot/port all command.

---

Note Use this command only if you are using an HWIC-3G-CDMA-V interface card.

---

Examples

The following example shows output of the cellular cdma activate otasp command:

router# cellular 0/1/0 cdma activate otasp *22899

Beginning OTASP activation

OTASP number is *22899

router#

*Feb  6 23:18:45.393: OTA State = SPL unlock, Result = Success

*Feb  6 23:19:10.229: OTA State = PRL downloaded, Result = Success

*Feb  6 23:19:11.169: OTA State = Profile downloaded, Result = Success

*Feb  6 23:19:11.173: OTA State = MDN downloaded, Result = Success

*Feb  6 23:19:12.537: OTA State = Parameters commited to NVRAM, Result = Success

*Feb  6 23:19:14.613: Over the air provisioning complete; Result:Success

The following is a sample output from the show cellular profile command after the modem has been activated:

router#show cellular 0/3/0 profile

Profile Information

====================

Electronic Serial Number (ESN) = 0x603C6426

Modem activated = YES

Account Information:

======================

Activation Date: 20070221

Phone Number (MDN) : 2029976763

Mobile Station Identifier (MSID) : 2029976763

Data Profile Info:

=====================

Number of data profiles configured : 1

Current active data profile : 0

Data Profile 0 Information (Active)

==================================

NAI (Network Access Identifier) = 2029976763@vzw3g.com

MN-HA SS = Set

MN-HA SPI = 300

MN-AAA SS = Set

MN-AAA SPI = 2

Reverse Tunneling Preference = Set

Home Address = 0.0.0.0

Primary Home Agent Address = 255.255.255.255

Secondary Home Agent Address = 255.255.255.255

Related Commands

Command	Description
show cellular profile	Displays the cellular profile information.

debug cellular driver

To debug the Cisco IOS driver for the cellular interface, use the debug cellular driver command in EXEC mode.

debug cellular slot/wic_slot/port driver {crcdump | errdump | errors}

Syntax Description

slot/wic_slot/port	Numeric values that indicate the router slot, WAN interface card (WIC) slot, and port.
crcdump	CRC error details.
errdump	Other error details.
errors	Errors debugging.

Command Default

None

Command Modes

EXEC

Command History

Release	Modification
12.4(11)XV	This command was introduced.
12.4(15)T	This command was integrated into Cisco IOS Release 12.4(15)T.

Usage Guidelines

Use this command for debugging purposes only.

Related Commands

Command	Description
debug cellular messages async	Debugs cellular async.
debug cellular messages data	Prints Cisco IOS data path debug messages.
debug cellular firmware	Displays Cisco IOS firmware information.
debug cellular messages management	Prints management path messages, such as CnS.
debug cellular messages dm	Prints diagnostics monitor (DM) messages from the Qualcomm CDMA chipset.
debug cellular messages virt-con	Redirects the Nios II console driver messages to display them in the Cisco IOS router console environment.

debug cellular firmware

To see the Cisco IOS firmware information, use the debug cellular firmware command in EXEC mode.

debug cellular slot/wic_slot/port firmware

Syntax Description

slot/wic_slot/port

Numeric values that indicate the router slot, WAN interface card (WIC) slot, and port.

Command Default

None

Command Modes

EXEC

Command History

Release	Modification
12.4(11)XV	This command was introduced.
12.4(15)T	This command was integrated into Cisco IOS Release 12.4(15)T.

Usage Guidelines

Use this command for debugging purposes only.

Related Commands

Command	Description
debug cellular messages async	Debugs cellular async.
debug cellular messages data	Prints Cisco IOS data path debug messages.
debug cellular driver	Debugs the Cisco IOS driver.
debug cellular messages management	Prints management path messages, such as CnS.
debug cellular messages dm	Prints diagnostics monitor (DM) messages from the Qualcomm CDMA chipset.
debug cellular messages virt-con	Redirects the Nios II console driver messages to display them in the Cisco IOS router console environment.

debug cellular messages all

To print all Cisco IOS driver debug messages, use the debug cellular messages all command in EXEC mode.

debug cellular slot/wic_slot/port messages all

Syntax Description

slot/wic_slot/port

Numeric values that indicate the router slot, WAN interface card (WIC) slot, and port.

Command Default

None

Command Modes

EXEC

Command History

Release	Modification
12.4(11)XV	This command was introduced.
12.4(15)T	This command was integrated into Cisco IOS Release 12.4(15)T.

Usage Guidelines

Use this command for debugging purposes only.

Related Commands

Command	Description
debug cellular messages async	Debugs cellular async.
debug cellular messages data	Prints Cisco IOS data path debug messages.
debug cellular driver	Debugs the Cisco IOS driver.
debug cellular firmware	Displays Cisco IOS firmware information.
debug cellular messages management	Prints management path messages, such as CnS.
debug cellular messages dm	Prints diagnostics monitor (DM) messages from the Qualcomm CDMA chipset.
debug cellular messages virt-con	Redirects the Nios II console driver messages to display them in the Cisco IOS router console environment.

debug cellular messages async

To debug cellular async, use the debug cellular messages async command in EXEC mode.

debug cellular slot/wic_slot/port messages async

Syntax Description

slot/wic_slot/port

Numeric values that indicate the router slot, WAN interface card (WIC) slot, and port.

Command Default

None

Command Modes

EXEC

Command History

Release	Modification
12.4(11)XV	This command was introduced.
12.4(15)T	This command was integrated into Cisco IOS Release 12.4(15)T.

Usage Guidelines

Use this command for debugging purposes only.

Related Commands

Command	Description
debug cellular messages all	Prints all Cisco IOS driver debug messages.
debug cellular messages data	Prints Cisco IOS data path debug messages.
debug cellular driver	Debugs the Cisco IOS driver.
debug cellular firmware	Displays Cisco IOS firmware information.
debug cellular messages management	Prints management path messages, such as CnS.
debug cellular messages dm	Prints diagnostics monitor (DM) messages from the Qualcomm CDMA chipset.
debug cellular messages virt-con	Redirects the Nios II console driver messages to display them in the Cisco IOS router console environment.

debug cellular messages data

To print Cisco IOS data path debug messages, use the debug cellular messages data command in EXEC mode.

show cellular slot/wic_slot/port messages data

Syntax Description

slot/wic_slot/port

Numeric values that indicate the router slot, WAN interface card (WIC) slot, and port.

Command Default

None

Command Modes

EXEC

Command History

Release	Modification
12.4(11)XV	This command was introduced.
12.4(15)T	This command was integrated into Cisco IOS Release 12.4(15)T.

Usage Guidelines

Use this command for debugging purposes only.

Related Commands

Command	Description
debug cellular messages all	Prints all Cisco IOS driver debug messages.
debug cellular messages async	Debugs cellular async.
debug cellular driver	Debugs the Cisco IOS driver.
debug cellular firmware	Displays Cisco IOS firmware information.
debug cellular messages management	Prints management path messages, such as CnS.
debug cellular messages dm	Prints diagnostics monitor (DM) messages from the Qualcomm CDMA chipset.
debug cellular messages virt-con	Redirects the Nios II console driver messages to display them in the Cisco IOS router console environment.

debug cellular messages dm

To print Diagnostics Monitor (DM) messages from the Qualcomm CDMA chipset, use the debug cellular messages dm command in EXEC mode.

debug cellular slot/wic_slot/port messages dm

Syntax Description

slot/wic_slot/port

Numeric values that indicate the router slot, WAN interface card (WIC) slot, and port.

Command Default

There is no default for this command.

Command Modes

EXEC

Command History

Release	Modification
12.4(11)XV	This command was introduced.
12.4(15)T	This command was integrated into Cisco IOS Release 12.4(15)T.

Usage Guidelines

Use this command for debugging purposes only.

Related Commands

Command	Description
debug cellular messages all	Prints all Cisco IOS driver debug messages.
debug cellular messages async	Debugs cellular async.
debug cellular messages data	Prints Cisco IOS data path debug messages.
debug cellular driver	Debugs the Cisco IOS driver.
debug cellular firmware	Displays Cisco IOS firmware information.
debug cellular messages management	Prints management path messages, such as CnS.
debug cellular messages virt-con	Redirects the Nios II console driver messages to display them in the Cisco IOS router console environment.

debug cellular messages management

To print management path messages, such as CnS, use the debug cellular messages management command in EXEC mode.

debug cellular slot/wic_slot/port messages management

Syntax Description

slot/wic_slot/port

Numeric values that indicate the router slot, WAN interface card (WIC) slot, and port.

Command Default

None

Command Modes

EXEC

Command History

Release	Modification
12.4(11)XV	This command was introduced.
12.4(15)T	This command was integrated into Cisco IOS Release 12.4(15)T.

Usage Guidelines

Use this command for debugging purposes only.

Related Commands

Command	Description
debug cellular messages all	Prints all Cisco IOS driver debug messages.
debug cellular messages async	Debugs cellular async.
debug cellular messages data	Prints Cisco IOS data path debug messages.
debug cellular driver	Debugs the Cisco IOS driver.
debug cellular firmware	Displays Cisco IOS firmware information.
debug cellular messages virt-con	Redirects the Nios II console driver messages to display them in the Cisco IOS router console environment.

debug cellular messages virt-con

To redirect the Nios II console driver messages to display them in the Cisco IOS router console environment, use the debug cellular virt-con command in EXEC mode.

debug cellular slot/wic_slot/port virt-con {clear | disable | dump-data-structs | log | monitor | wrapper-on | wrapper-off}

Syntax Description

slot/wic_slot/port	Numeric values that indicate the router slot, WAN interface card (WIC) slot, and port.
clear	(Optional) Clears all virtual console debug log messages.
disable	(Optional) Disables virtual console real-time debug monitoring.
dump-data-structurs	(Optional) Dumps virtual console data structures.
log	(Optional) Displays virtual console messages from the debug log.
monitor	(Optional) Enables monitoring of real-time virtual console debug messages.
wrapper-on	(Optional) Disables wraparound for virtual console log messages.
wrapper-off	(Optional) Enables wraparound for virtual console log messages.

Command Default

There is no default for this command.

Command Modes

EXEC

Command History

Release	Modification
12.4(11)XV	This command was introduced.
12.4(15)T	This command was integrated into Cisco IOS Release 12.4(15)T.

Usage Guidelines

Use this command for debugging purposes only.

Related Commands

Command	Description
debug cellular messages all	Prints all Cisco IOS driver debug messages.
debug cellular messages async	Debugs cellular async.
debug cellular messages data	Prints Cisco IOS data path debug messages.
debug cellular driver	Debugs the Cisco IOS driver.
debug cellular firmware	Displays Cisco IOS firmware information.
debug cellular messages management	Prints management path messages, such as CnS.
debug cellular messages dm	Prints diagnostics monitor (DM) messages from the Qualcomm CDMA chipset.

show cellular all

To display all the modem information in one listing, use the show cellular all command in privileged EXEC mode.

show cellular slot/wic_slot/port all

Syntax Description

slot/wic_slot/port

Numeric values that indicate the router slot, WAN interface card (WIC) slot, and port.

Command Default

None

Command Modes

Privileged EXEC

Command History

Release	Modification
12.4(11)XV	This command was introduced.
12.4(15)T	This command was integrated into Cisco IOS Release 12.4(15)T.

Usage Guidelines

The command usage is the same for Global System for Mobile Communications (GSM) and code division multiple acces (CDMA), although the output is different for each.

Examples

This section contains:

•Sample Output for 3G-HWIC-GSM

•Sample Output for 3G-HWIC-CDMA

Sample Output for 3G-HWIC-GSM

The following example shows output from the show cellular all command for slot 0, WIC slot 0, port 0:

router# show cellular 0/0/0 all

Hardware Information

====================

Modem Firmware Version = U1_2_22MCAP G:/WORK

Modem Firmware built = 04/17/06

Hardware Version = E2

International Mobile Subscriber Identity (IMSI) = 001012345678901

International Mobile Equipment Identity (IMEI) = 352678010002779

Factory Serial Number (FSN) = S2128751274E2OK

Modem Status = Online

Current Modem Temperature = 28 deg C, State = Normal

Profile Information

====================

Profile 1 = INACTIVE*

--------

PDP Type = IPv4, Header Compression = OFF

Data Compression = OFF

Access Point Name (APN) = vpn.com

Authentication = CHAP

Username: wapuser1, Password: wap

 * - Default profile

Data Connection Information

===========================

Data Transmitted = 0 bytes, Received = 0 bytes

Profile 1, Packet Session Status = INACTIVE

        Inactivity Reason = Normal inactivate state

Profile 2, Packet Session Status = INACTIVE

        Inactivity Reason = Normal inactivate state

Profile 3, Packet Session Status = INACTIVE

        Inactivity Reason = Normal inactivate state

Profile 4, Packet Session Status = INACTIVE

        Inactivity Reason = Normal inactivate state

Profile 5, Packet Session Status = INACTIVE

        Inactivity Reason = Normal inactivate state

Profile 6, Packet Session Status = INACTIVE

        Inactivity Reason = Normal inactivate state

Profile 7, Packet Session Status = INACTIVE

        Inactivity Reason = Normal inactivate state

Profile 8, Packet Session Status = INACTIVE

        Inactivity Reason = Normal inactivate state

Profile 9, Packet Session Status = INACTIVE

        Inactivity Reason = Normal inactivate state

Profile 10, Packet Session Status = INACTIVE

        Inactivity Reason = Normal inactivate state

router#

Network Information

===================

Current Service Status = No service, Service Error = None

Current Service = Invalid

Packet Service = None

Packet Session Status = Inactive

Current Roaming Status = Home

Network Selection Mode = Automatic

Country = 0, Network =

Mobile Country Code (MCC) = 0

Mobile Network Code (MNC) = 0

Location Area Code (LAC) = 0

Routing Area Code (RAC) = 255

Cell ID = 0

Primary Scrambling Code = 0

PLMN Selection = Automatic

Radio Information

=================

Current Band = None, Channel Number = 0

Current RSSI = -110 dBm

Modem Security Information

==========================

Card Holder Verification (CHV1) = Disabled

SIM Status = OK

SIM User Operation Required = None

Number of Retries remaining = 3

router#

Sample Output for 3G-HWIC-CDMA

The following example shows the output from the show cellular all command for slot 0, WIC slot 3, port 0:

router# show cellular 0/0/0 all

Hardware Information

====================

Modem Firmware Version = p2005600

Modem Firmware built = 11-14-06

Hardware Version = 1.0

Electronic Serial Number (ESN) = 0x6032688F

Preferred Roaming List (PRL) Version = 20224

Current Modem Temperature = 32 degrees Celsius

Profile Information

====================

Electronic Serial Number (ESN) = 0x6032688F

Modem activated = YES

Account Information:

======================

Activation Date: Not available

Phone Number (MDN) : 9135938079

Mobile Station Identifier (MSID) : 9135938079

Data Profile Info:

=====================

Number of data profiles configured : 2

Current active data profile : 1

Data Profile 0 Information

==================================

NAI (Network Access Identifier) = 6032688F@hcm.sprintpcs.com

MN-HA SS = Set

MN-HA SPI = 1234

MN-AAA SS = Set

MN-AAA SPI = 1234

Reverse Tunneling Preference = Set

Home Address = 0.0.0.0

Primary Home Agent Address = 68.28.15.12

Secondary Home Agent Address = 68.28.31.12

Data Profile 1 Information (Active)

==================================

NAI (Network Access Identifier) = productmarketing432@sprintpcs.com

MN-HA SS = Set

MN-HA SPI = 1234

MN-AAA SS = Set

MN-AAA SPI = 1234

Reverse Tunneling Preference = Set

Home Address = 0.0.0.0

Primary Home Agent Address = 68.28.81.76

Secondary Home Agent Address = 68.28.89.76

Data Connection Information

===========================

Phone number of outgoing call =

HDR AT State = Idle, HDR Session State = Open

HDR Session Info:

    UATI (Hex) = 0084:0AC0:0000:0000:000A:05DC:A821:DCFC

    Color Code = 32, RATI = 0xFFFFFFFF

    Session duration = 0 msecs, Session start = 0 msecs

    Session end = 0 msecs, Authentication Status = Not authenticated

HDR DRC Value = 11, DRC Cover = 0, RRI = Pilot only

Current Transmitted = 0 bytes, Received = 0 bytes

Total Transmitted = 0 KB, Received = 0 KB

Current Call Status = DISCONNECTED

Current Call Duration = 30 secs

Total Call Duration = 4482879 seconds

Current Call State =

Last Call Disconnect Reason = Base station release (No reason)

Last Connection Error = None

HDR DDTM (Data Dedicated Transmission Mode) Preference = Off

Mobile IP Error Code (RFC-2002) = 0 (Registration accepted)

Network Information

===================

Current Service = 1xEV-DO (Rev A) and 1xRTT

Current Roaming Status(1xRTT) = HOME, (HDR) = HOME

Current Idle Digital Mode = HDR

Current System Identifier (SID) = 4183

Current Network Identifier (NID) = 87

Current Call Setup Mode = Mobile IP only

Serving Base Station Longitude = 0 deg 0 min 0 sec

Serving Base Station Latitude = 0 deg 0 min 0 sec

Current System Time = Tue Feb 6 15:12:18 2007

Radio Information

=================

1xRTT related info

------------------

Current RSSI = -94 dBm, ECIO = -8 dBm

Current Channel Number = 50

Current Channel State = Acquired

Current Band Class = Band Class 1

HDR (1xEVDO) related info

-------------------------

Current RSSI = -83 dBm, ECIO = -0 dBm

Current Channel Number = 25

Current Band Class = Band Class 1

Sector ID (Hex) = 0084:0AC0:0000:0000:000A:05DC:A801:1202

Subnet Mask = 104, Color Code = 32, PN Offset = 240

Rx gain control(Main) = 0 dBm, Diversity = Unavailable

Tx total power = -2 dBm, Tx gain adjust = 1536 dBm

Carrier to interference (C/I) ratio = 7

Modem Security Information

==========================

Modem PIN Security UNLOCKED

Power-up lock DISABLED

router#

Related Commands

Command	Description
cellular cdma activate otasp	Activates a cellular account using the over the air service provisioning (OTASP).
show cellular hardware	Displays the cellular modem hardware information.
show cellular network	Displays the cellular network (base station) information.
show cellular profile	Displays the cellular profile information.
show cellular radio	Displays the cellular modem radio statistics.
show cellular security	Displays the modem lock state.
show controllers cellular	Displays the SMS messages received by the cellular modem.

show cellular connection personality

To display the negotiated personalities when the 1xEVDO-Rev A service is acquired by the modem, use the show cellular connection personality command in EXEC mode.

show cellular slot/wic_slot/port connection personality

Syntax Description

slot/wic_slot/port

Numeric values that indicate the router slot, WAN interface card (WIC) slot, and port.

Command Default

There is no default for this command.

Command Modes

EXEC

Command History

Release	Modification
	This command was introduced.

Usage Guidelines

None

Examples

The following example shows output for code division multiple access (CDMA) for slot 0, WIC slot 0, port 0:

c2800#show cellular 0/0/0 connection personality

No Active Personalities Negotiated

c2800#

Related Commands

Command	Description
cellular cdma activate iota	Activates a cellular account unsing the internet over the air service (OTA) procedure.
cellular cdma activate manual	Manually activates a cellular account unsing the over the air service (OTA) procedure or over the air service provisioning (OTASP).
cellular cdma activate otasp	Activates a cellular account unsing the over the air service (OTA) procedure or over the air service provisioning (OTASP).
debug cellular messages all	Displays the cellular modem hardware information.
debug cellular messages data	Displays the cellular network (base station) information.
debug cellular messages management	Displays the cellular profile information.
show cellular radio	Displays the cellular modem radio statistics.
show cellular security	Displays the modem lock state.
show controllers cellular	Displays the SMS messages received by the cellular modem.

show cellular connection

To display the current active connection state and data statistics, use the show cellular connection command in privileged EXEC mode.

show cellular slot/wic_slot/port connection

Syntax Description

slot/wic_slot/port

Numeric values that indicate the router slot, WAN interface card (WIC) slot, and port.

Command Default

None

Command Modes

Privileged EXEC

Command History

Release	Modification
12.4(11)XV	This command was introduced.
12.4(15)T	This command was integrated into Cisco IOS Release 12.4(15)T.

Usage Guidelines

The command usage is the same for Global System for Mobile Communications (GSM) and code division multiple acces (CDMA), although the output is different for each.

Examples

This section contains:

•Sample Output for 3G-HWIC-GSM

•Sample Output for 3G-HWIC-CDMA

Sample Output for 3G-HWIC-GSM

The following is sample output for slot 1, wic 0, port 1.

router# show cellular 1/0/1 connection

Data Transmitted = 1066807500 bytes, Received = 1066807500 bytes

Profile 1, Packet Session Status = ACTIVE

        IP address = 1.5.97.2

Profile 2, Packet Session Status = INACTIVE

        Inactivity Reason = Normal inactivate state

Table 5 describes each output field.

Table 5 Output Description

Field	Description
Data Transmitted	Total data transmitted by the modem. Can be cleared by the clear counters command.
Data Received	Total data received by the modem. Can be cleared by the clear counters command.
Profile <profile number>	Indicates the profiles configured in the modem. A total of 16 profiles can be configured.
Packet Session Status	Packet Data Protocol (PDP) session status of the profile. Active when the call is made and PDP context has become active in the modem.
IP Address	IP address of the cellular interface received during IPCP negotiation.
Inactivity Reason	Reason why the profile is inactive.

Sample Output for 3G-HWIC-CDMA

The following example is sample output for slot 0, WIC slot 0, port 0 from the show cellular connection command:

router# show cellular 0/0/0 connection

Phone number of outgoing call =

HDR AT State = Idle, HDR Session State = Open

HDR Session Info:

    UATI (Hex) = 0084:0AC0:0000:0000:000A:05DC:A821:DCFC

    Color Code = 32, RATI = 0xFFFFFFFF

    Session duration = 0 msecs, Session start = 0 msecs

    Session end = 0 msecs, Authentication Status = Not authenticated

HDR DRC Value = 11, DRC Cover = 0, RRI = Pilot only

Current Transmitted = 0 bytes, Received = 0 bytes

Total Transmitted = 0 KB, Received = 0 KB

Current Call Status = DISCONNECTED

Current Call Duration = 30 secs

Total Call Duration = 4482879 seconds

Current Call State =

Last Call Disconnect Reason = Base station release (No reason)

Last Connection Error = None

HDR DDTM (Data Dedicated Transmission Mode) Preference = Off

Mobile IP Error Code (RFC-2002) = 0 (Registration accepted)

router#

Table 6 describes each output field.

Table 6 Description of Sample Output for CDMA

Field	Description
Phone number of outgoing call	Shows the phone number of the data call dialed.
HDR AT State	Indicates the AT state. Will show as CONNECTED when the CONNECT is received from the modem while dialing out. This is valid only for 1xEVDO.
HDR Session State	Will indicate as OPEN once the HDR session is established. This is valid only for 1xEVDO
UATI	Unicast Access Terminal Identifier (UATI) obtained by the modem or access terminal (AT) from the base station during session establishment.
Color Code	HDR session color code for the sector.
RATI	HDR Random Access Terminal Identifier used for opening a session.
Session Duration	HDR session duration in milliseconds.
Session Start	Phone uptime in units of milliseconds at session start.
Session End	Phone uptime in units of milliseconds at session end.
Authentication Status	Modem or access terminal authentication status with the base station.
HDR DRC Value	The data rate channel value specified by the access terminal. The access terminal uses DRC value to specify the requested transmission rate
DRC Cover	DRC cover value used by the access terminal to specify the transmitting sector.
RRI	Indicates the rate of the reverse traffic data channel.
Current Transmitted	Number of bytes transmitted by the modem to the base station. This will be cleared when the call is disconnected.
Current Received	Number of bytes received by the modem from the base station. This will be cleared when the call is disconnected.
Current call status	Current call status of the modem, such as CONNECTED, DISCONNECTED, DORMANT, CONNECTING, or ERROR.
Privacy Mode	Current privacy status of the call in progress.
Service Option	Service option for the call in progress.
Current Call Duration	Duration of the call in progress. A call status of DISCONNECTED displays the call duration of the last call.
Total Transmitted	Total number of kilobytes transmitted from the modem. This will be cleared by the clear counters command.
Total Received	Total number of kilobytes received by the modem. This will be cleared by the clear counters command.
Total Call Duration	Total duration of calls made from the modem. This will be updated when the current call in progress is disconnected.
Current Call State	Indicates the type of call made.
Last Call Disconnect Reason	Indicates why the last call was disconnected.
Last Connection Error	Indicates the error code if the call status indicates an error.
Mobile IP Error Code	Indicates the error code in accordance with RFC-2002 if the call is a mobile IP call. Note The current call setup mode is in Simple IP only. In this case show cellular connection will not display Mobile IP Error Code. Mobile IP error code is displayed when call setup mode is either "Mobile IP only" mode or "Mobile IP Preferred with SIP fallback" mode.

Related Commands

Command	Description
cellular cdma activate manual	Manually activates a cellular account using the over-the-air service (OTA) procedure.
show cellular hardware	Displays the cellular modem hardware information.
show cellular network	Displays the cellular network (base station) information.
show cellular profile	Displays the cellular profile information.
show cellular radio	Displays the cellular modem radio statistics.
show cellular security	Displays the modem lock state.
show controllers cellular	Displays HWIC hardware- and driver-specific information.

show cellular hardware

To display the cellular modem hardware information, use the show cellular hardware command in privileged EXEC mode.

show cellular slot/wic_slot/port hardware

Syntax Description

slot/wic_slot/port

Numeric values that indicate the router slot, WAN interface card (WIC) slot, and port.

Command Default

None

Command Modes

Privileged EXEC

Command History

Release	Modification
12.4(11)XV	This command was introduced.
12.4(15)T	This command was integrated into Cisco IOS Release 12.4(15)T.

Usage Guidelines

The command usage is the same for Global System for Mobile Communications (GSM) and code division multiple acces (CDMA), although the output is different for each.

Examples

This section contains:

•Sample Output for HWIC-3G-GSM

•Sample Output for HWIC-3G-CDMA

Sample Output for HWIC-3G-GSM

The following example shows output for slot 0, WIC slot 0, port 0:

router# show cellular 0/0/0 hardware

Modem Firmware Version = H1_0_0_1MCAP C:/WS/

Modem Firmware built = 09/08/06

Hardware Version = 1.0

International Mobile Subscriber Identity (IMSI) = <number>

International Mobile Equipment Identity (IMEI) = <number>

Factory Serial Number (FSN) = X2819460254100D

Modem Status = Online

Current Modem Temperature = 33 deg C, State = Normal

Table 7 Output Description for show cellular hardware command

Field	Description
Modem Firmware Version	Firmware version of the modem.
Modem Firmware Built	Date firmware was built in mm-dd-yy format.
Hardware Version	Modem hardware version.
International Mobile Subscriber Identity (IMSI)	IMSI is stored in the SIM. IMSI consists of MCC (mobile country code, 3 digits), MNC (mobile network code, 3 digits for N. America and 2 digits for rest of the world) and MSIN (mobile station identification number). The MCC and MNC in the IMSI identify the subscribers in the PLMN (Public Land Mobile Network).
International Mobile Equipment Identity (IMEI)	Number that uniquely identifies the modem in a GSM/UMTS network.
Factory Serial Number (FSN)	Unique serial number of the modem.
Modem Status	Will be online if the modem has booted up correctly; otherwise will be offline and the modem will not be usable.
Current Modem Temperature	Radio temperature of the modem in degrees Celsius. State is normal when temperature is between 5 to 185°F (-15° to 85°C). If state reaches critical 226.4°F (108°C), the modem will be shutdown.

Sample Output for HWIC-3G-CDMA

The following example shows output for slot 0, WIC slot 0, port 0:

router# show cellular 0/0/0 hardware

Modem Firmware Version = p2005600

Modem Firmware built = 11-14-06

Hardware Version = 1.0

Electronic Serial Number (ESN) = 0x6032688F

Preferred Roaming List (PRL) Version = 20224

Current Modem Temperature = 32 degrees Celsiuss

Table 8 describes each output field.

Table 8 Output Description for show cellular hardware command

Field	Description
Modem Firmware Version	Firmware version of the modem.
Modem Firmware Built	Date firmware was built in mm-dd-yy format.
Hardware Version	Modem hardware version.
Electronic Serial Number	Unique serial number of the modem.
Preferred Roaming List (PRL) Version	PRL version is unique to a service provider. This indicates to the modem which channels the modem should scan.
Current Modem Temperature	Radio temperature of the modem in degrees Celsius.

Related Commands

Command	Description
show cellular radio	Displays the cellular modem radio statistics.
show cellular security	Displays the modem lock state.
show controllers cellular	Displays HWIC hardware- and driver-specific information.

show cellular network

To display information about the carrier network and service, use the show cellular network command in privileged EXEC mode.

show cellular slot/wic_slot/port network

Syntax Description

slot/wic_slot/port

Numeric values that indicate the router slot, WAN interface card (WIC) slot, and port.

Command Default

None

Command Modes

Privileged EXEC

Command History

Release	Modification
12.4(11)XV	This command was introduced.
12.4(15)T	This command was integrated into Cisco IOS Release 12.4(15)T.

Usage Guidelines

The command usage is the same for Global System for Mobile Communications (GSM) and code division multiple acces (CDMA), although the outputs differ.

Examples

This section contains:

•Sample Output for HWIC-3G-GSM

•Sample Output for HWIC-3G-CDMA

Sample Output for HWIC-3G-GSM

The following example shows output for HWIC-3G-GSM in slot 0, WIC slot 0, port 0:

router# show cellular 0/0/0 network

Current Service Status = Normal, Service Error = None

Current Service = Combined

Packet Service = UMTS/WCDMA (Attached)

Packet Session Status = Inactive

Current Roaming Status = Roaming

Network Selection Mode = Automatic

Country = USA, Network = CINGULAR

Mobile Country Code (MCC) = 310

Mobile Network Code (MNC) = 380

Location Area Code (LAC) = 56997

Routing Area Code (RAC) = 253

Cell ID = 4503

Primary Scrambling Code = 169

PLMN Selection = Automatic

Registered PLMN = Cingular , Abbreviated =

Service Provider =

Table 9 describes each output field.

Table 9 Output Description for show cellular hardware command for GSM

Field	Description
Current Service Status	Indicates whether service is available.
Current Service Error	Shows the error in case there is no service
Current Idle Digital Mode	Idle mode of the modem.
Packet Service	Indicates the type of service available. For normal operation, the modem should be attached.
Packet Session Status	Status of PDP session. When data transfer is taking place, packet session will be active.
Current Roaming Status	Indicates whether the modem is in the home network or is roaming.
Network Selection Mode	Can be manual selection mode or automatic selection mode. Set to automatic by default.
Country	Country string given by the base station.
Network	Network string given by the base station.
Mobile Country Code	Country code given by the base station. The modem will be in the home network only if the country code given by the base station matches the MCC of the IMSI and the network code given by the base station matches the MNC of the IMSI.
Mobile Network Code	Network code given by the base station. The modem will be in the home network only if the country code given by the base station matches the MCC of the IMSI and the network code given by the base station matches the MNC of the IMSI.
Location Area Code	LAC given by the base station.
Routing Area Code	RAC given by the base station.
Cell ID	Cell ID given by the base station.
PLMN Selection	Default is automatic.

Sample Output for HWIC-3G-CDMA

The following example shows output for slot 0, WIC slot 0, port 0:

router# show cellular 0/0/0 network

Current Service = 1xEV-DO (Rev A) and 1xRTT

Current Roaming Status(1xRTT) = HOME, (HDR) = HOME

Current Idle Digital Mode = HDR

Current System Identifier (SID) = 4183

Current Network Identifier (NID) = 87

Current Call Setup Mode = Mobile IP only

Serving Base Station Longitude = 0 deg 0 min 0 sec

Serving Base Station Latitude = 0 deg 0 min 0 sec

Current System Time = Tue Feb 6 15:16:9 2007

Table 10 Output Description for show cellular hardware command for CDMA

Field	Description
Current Service	Service attached by the modem.
Current Roaming Status	Indicates whether the modem is in the home network or roaming.
Current Idle Digital Mode	Idle mode of the modem.
Current System Identifier	SID received by the modem (applicable only for 1xRTT).
Current Network Identifier	NID received by the modem (applicable only for 1xRTT).
Current BSS Longitude/Latitude	Geographic location of the BSS (if this information is received from the BSS).
Current System Time	System time received from the base station.

Related Commands

Command	Description
show cellular radio	Displays the cellular modem radio statistics.
show cellular security	Displays the modem lock state.
show controllers cellular	Displays HWIC hardware and driver-specific information.

show cellular profile

To display the cellular profile information, use the show cellular profile command in privileged EXEC mode.

show cellular slot/wic_slot/port profile

Syntax Description

slot/wic_slot/port

Numeric values that indicate the router slot, WAN interface card (WIC) slot, and port.

Command Default

None

Command Modes

Privileged EXEC

Command History

Release	Modification
12.4(11)XV	This command was introduced.
12.4(15)T	This command was integrated into Cisco IOS Release 12.4(15)T.

Usage Guidelines

The command usage is the same for Global System for Mobile Communications (GSM) and code division multiple acces (CDMA), although the output is different for each.

Examples

This section contains:

•Sample Output for HWIC-3G-GSM

•Sample Output for HWIC-3G-CDMA

Sample Output for HWIC-3G-GSM

The following example shows output for HWIC-3G-GSM for slot 0, WIC slot 1, port 1:

router# show cellular 0/1/1 profile

Profile 1 = ACTIVE

--------

PDP Type = IPv4, Header Compression = ON

Data Compression = ON

PDP address = 0x7F000201

Access Point Name (APN) = enzo.cisco.com

Authentication = CHAP

Username: cisco, Password: lab

Primary DNS address = 127.0.2.1

Source Address = 127.0.2.1 255.255.255.0

Profile 2 = INACTIVE

---------

PDP Type = IPv4, Header Compression = ON

Data Compression = ON

PDP address = 0x7F000202

Access Point Name (APN) = enzo.cingular.com

Authentication = CHAP

Username: cisco, Password: lab

Primary DNS address = 127.0.2.1

Source Address = 127.0.2.2 255.255.255.0

Table 11 Field Descriptions for show cellular profile command

Field	Description
Profile <number>	Shows whether a particular profile is ACTIVE or INACTIVE. The profile is ACTIVE when the PDP context is active. This happens when a data call is successfully established.
PDP Type	Indicates the packet data protocol (PDP) type. Supported type is IPv4.
PDP Address	Shows the IP address assigned for the PDP context during PPP negotiation.
Access Point Name	Access Point Name for the profile. This information is provided by the service provider.
Authentication	PPP authentication supported. CHAP and PAP are supported. The type of authentication to be used is provided by the service provider.
Username	Username to be used for PPP authentication. This information is provided by the service provider.
Password	Password to be used for PPP authentication. This information is provided by the service provider.

Sample Output for HWIC-3G-CDMA

The following example shows output for HWIC-3G-CDMA for slot 0, WIC slot 1, port 1:

router# show cellular 0/0/0 profile

Electronic Serial Number (ESN) = 0x6032688F

Modem activated = YES

Account Information:

======================

Activation Date: Not available

Phone Number (MDN) : 1234567890

Mobile Station Identifier (MSID) : 1234567890

Data Profile Info:

=====================

Number of data profiles configured : 2

Current active data profile : 1

Data Profile 0 Information

==================================

NAI (Network Access Identifier) = 6032688F@hcm.sprintpcs.com

MN-HA SS = Set

MN-HA SPI = 1234

MN-AAA SS = Set

MN-AAA SPI = 1234

Reverse Tunneling Preference = Set

Home Address = 0.0.0.0

Primary Home Agent Address = 68.28.15.12

Secondary Home Agent Address = 68.28.31.12

Data Profile 1 Information (Active)

==================================

NAI (Network Access Identifier) = productmarketing432@sprintpcs.com

MN-HA SS = Set

MN-HA SPI = 1234

MN-AAA SS = Set

MN-AAA SPI = 1234

Reverse Tunneling Preference = Set

Home Address = 0.0.0.0

Primary Home Agent Address = 68.28.81.76

Secondary Home Agent Address = 68.28.89.76

"*" Indicates the default profile.

Table 12 Field Description

Field	Description
Electronic Serial Number	A unique serial number for the CDMA modem.
Modem Activated	Indicates the activation status of the modem. Yes indicates that the modem is activated on the carrier network.
Data Profile	A data profile consists of the mobile IP (MIP) settings for the data connection. These settings are populated on the modem by the network using OTASP/IOTA.
ProvDate	Date the modem was provisioned, in yyyy/mm/dd format.
MDN	Mobile Directory Number assigned to the modem by the carrier during provisioning.
MIN	Mobile Identity Number assigned to the modem by the carrier during provisioning

Table 12 describes the output fields from the command.

Related Commands

Command	Description
cellular cdma activate manual	Manually activates a cellular account using the over-the-air service (OTA) procedure.
cellular cdma activate otasp	Activates a cellular account using the over the air service provisioning (OTASP).
cellular cdma activate iota	Provisions data profile using Internet-based over-the-air provisioning (IOTA). Note IOTA is supported only with certain wireless service providers. Please check with your wireless service provider.

show cellular radio

To display the cellular modem radio statistics, use the show cellular radio command in user privileged EXEC mode.

show cellular slot/wic_slot/port radio [history <all | per-hour | per-min | per-sec>]

Syntax Description

slot/wic_slot/port	Numeric values that indicate the router slot, WAN interface card (WIC) slot, and port.
history	Displays the RSSI history.
all	Complete RSSI history.
per-hour	Per-hour RSSI history.
per-min	Per-minute RSSI history.
per-sec	Per-second RSSI history.

Command Default

None

Command Modes

Privileged EXEC

Command History

Release	Modification
12.4(11)XV	This command was introduced.
12.4(15)T	This command was integrated into Cisco IOS Release 12.4(15)T.

Usage Guidelines

The command usage is the same for Global System for Mobile Communications (GSM) and code division multiple acces (CDMA), although the output is different for each.

Examples

This section contains:

•Sample Output for HWIC-3G-GSM

•Sample Output for HWIC-3G-CDMA

Sample Output for HWIC-3G-GSM

The following example shows output for HWIC-3G-GSM in slot 0, WIC slot 0, port 0:

router# show cellular 0/0/0 radio

Current Band = WCDMA 1900, Channel Number = 9721

Current RSSI(RSCP) = -91 dBm

Table 13 Output Description for show cellular radio command for GSM

Field	Description
Current Band	GPRS/UMTS band to which the modem is attached.
Channel Number	Channel number to which the modem is attached.
Current RSSI	Current radio signal strength on the modem. (-125 dbm indicates no signal.)

Sample Output for HWIC-3G-CDMA

The following example shows output for HWIC-3G-CDMA in slot 0, WIC slot 0, port 0:

router#show cellular 0/0/0 radio

1xRTT related info

------------------

Current RSSI = -95 dBm, ECIO = -6 dBm

Current Channel Number = 50

Current Channel State = Acquired

Current Band Class = Band Class 1

HDR (1xEVDO) related info

-------------------------

Current RSSI = -88 dBm, ECIO = -2 dBm

Current Channel Number = 25

Current Band Class = Band Class 1

Sector ID (Hex) = 0084:0AC0:0000:0000:000A:05DC:A801:1202

Subnet Mask = 104, Color Code = 32, PN Offset = 240

Rx gain control(Main) = 0 dBm, Diversity = Unavailable

Tx total power = -2 dBm, Tx gain adjust = 1536 dBm

Carrier to interference (C/I) ratio = 2

Table 14 Output Description for show cellular radio command for HWIC-3G-CDMA

Field	Description
Current RSSI	Current radio signal strength in dbm (-125 dbm indicates no signal).
Current ECIO	Current energy per chip (ECIO) in dbm.
Current Channel Number	Current channel number to which the modem is attached to the base station.
Current Channel State	Indicates whether the modem is scanning or has acquired the channel.
Current Band Class	Current band class that the modem is attached to.
Sector ID	Sector ID of the base station to which the modem is attached.
Subnet Mask	Subnet mask of the sector.
Color Code	Color code of the sector.
PN Offset	PN offset for the sector.
Rx Gain Control	Received gain control for the modem.
Tx Total Power	Transmitted power.

Related Commands

Command	Description
show cellular all	Displays the consolidated information about the modem.
show controllers cellular	Displays HWIC-hardware and driver-specific information.

show cellular security

To display the SIM status (only for HWIC-3G-GSM) and modem lock state, use the show cellular security command in privileged EXEC mode.

show cellular slot/wic_slot/port security

Syntax Description

slot/wic_slot/port

Numeric values that indicate the router slot, WAN interface card (WIC) slot, and port.

Command Default

None

Command Modes

Privileged EXEC

Command History

Release	Modification
12.4(11)XV	This command was introduced.
12.4(15)T	This command was integrated into Cisco IOS Release 12.4(15)T.

Usage Guidelines

The command usage is the same for Global System for Mobile Communications (GSM) and code division multiple acces (CDMA), although the output is different for each.

Examples

This section contains:

•Sample Output for HWIC-3G-GSM

•Sample Output for HWIC-3G-CDMA

Sample Output for HWIC-3G-GSM

The following example shows output for an HWIC-3G-GSM in slot 0, WIC slot 0, port 0:

router# show cellular 0/0/0 security

Card Holder Verification (CHV1) ENABLED

SIM Status = OK

SIM User Operation Required = CHV1

Number of Retries remaining = 3

Table 15 describes the output from this command:

Table 15 Output Description

Filed	Description
Card Holder Verification	If enabled, access to the SIM is restricted.
SIM Status	Indicates whether the SIM is present or removed from the SIM socket.
SIM User Operation Required	If the SIM is protected (for example, because of CHV1 enabled), it will indicate the type of user operation required.
Number of Retries Remaining	Indicates the number of attempts remaining in case the SIM is locked. If the number of retries becomes zero, the SIM is blocked and becomes unusable.

Sample Output for HWIC-3G-CDMA

The following example shows output for an HWIC-3G-CDMA in slot 0, WIC slot 0, port 0:

router# show cellular 0/0/0 security

Modem PIN Security UNLOCKED

Power-up lock DISABLED

Table 16 describes the output for this command.

Table 16 Output Description

Field	Description
Modem PIN Security	If the modem is locked, you cannot make calls without unlocking.
Power-up Lock	Shows whether the modem will be locked on power-up.

Related Commands

Command	Description
show cellular all	Displays the consolidated information about the modem.

show controllers cellular

To display high-speed WAN interface card (HWIC) hardware and driver-specific information, use the show controllers cellular command in privilege EXEC mode.

show controllers cellular slot/wic_slot/port

Syntax Description

slot/wic_slot/port

Numeric values that indicate the router slot, WAN interface card (WIC) slot, and port.

Command Default

There is no default for this command.

Command Modes

Privilege EXEC

Command History

Release	Modification
12.4(11)XV	This command was introduced.
12.4(15)T	This command was integrated into Cisco IOS Release 12.4(15)T.

Usage Guidelines

Use this command to capture the output for debugging or troubleshooting purposes only.

Related Commands

Command	Description
show interfaces cellular	Displays statistics for the cellular interfaces.
show run interface cellular	Displays the current running configuration for the cellular interface.

show interfaces cellular

To display statistics for the cellular interface, use the show interfaces cellular command in EXEC mode.

show interfaces cellular slot/wic_slot/port

Syntax Description

slot/wic_slot/port

Numeric values that indicate the router slot, WAN interface card (WIC) slot, and port.

Command Default

There is no default for this command.

Command Modes

EXEC

Command History

Release	Modification
12.4(11)XV	This command was introduced.
12.4(15)T	This command was integrated into Cisco IOS Release 12.4(15)T.

Usage Guidelines

When you enter this command, encapsulation should be PPP and all signals, such as DCD, DSR, DTR, RTS, and CTS, should be up during normal operation.

Examples

This section contains:

•Sample Output for 3G-HWIC-GSM

•Sample Output for 3G-HWIC-CDMA

Sample Output for HWIC-3G-GSM

The following example shows the cellular interface statistics for HWIC-3G-GSM in slot 0, WIC slot 0, port 0 for GSM:

router#

router# show interfaces cellular 0/0/0

Cellular0/0/0 is up, line protocol is up

  Hardware is HSDPA/UMTS/EDGE/GPRS-850/900/1800/1900/2100MHz

  Internet address is 1.5.97.2/32

  MTU 1500 bytes, BW 384 Kbit, RxBW 2400000 Kbit, DLY 100000 usec,

     reliability 255/255, txload 1/255, rxload 1/255

  Encapsulation PPP, LCP Open

  Open: IPCP, loopback not set

  Keepalive not set

  Time to interface disconnect: idle 3w3d

  Last input 00:20:21, output 00:20:21, output hang never

  Last clearing of "show interface" counters 00:00:01

  Input queue: 1/75/0/0 (size/max/drops/flushes); Total output drops: 0

  Queueing strategy: weighted fair

  Output queue: 0/1000/64/0 (size/max total/threshold/drops)

     Conversations  0/16/16 (active/max active/max total)

     Reserved Conversations 0/0 (allocated/max allocated)

     Available Bandwidth 288 kilobits/sec

  30 second input rate 0 bits/sec, 0 packets/sec

  30 second output rate 0 bits/sec, 0 packets/sec

     0 packets input, 0 bytes, 0 no buffer

     Received 0 b

*Feb  7 22:55:33.985: %CLEAR-5-COUNTERS: Clear counter on all interfaces by
consoleroadcasts, 0 runts, 0 giants, 0 throttles

     0 input errors, 0 CRC, 0 frame, 0 overrun, 0 ignored, 0 abort

     0 packets output, 0 bytes, 0 underruns

     0 output errors, 0 collisions, 0 interface resets

     0 output buffer failures, 0 output buffers swapped out

     0 carrier transitions

     DCD=up  DSR=up  DTR=up  RTS=up  CTS=up

Sample Output for HWIC-3G-CDMA

The following example shows the output for an HWIC-3G-CDMA in slot 0, WIC slot 0, port 0 for the show interfaces cellular command.

router#   show int cellular 0/0/0

Cellular0/0/0 is up (spoofing), line protocol is up (spoofing)

  Hardware is EVDO Rev A/Rel 0/1xRTT-800/1900MHz / SP

  Internet address will be negotiated using IPCP

  MTU 1500 bytes, BW 9 Kbit, DLY 100000 usec,

     reliability 255/255, txload 1/255, rxload 1/255

  Encapsulation PPP, LCP Closed, loopback not set

  Keepalive not set

  Last input never, output never, output hang never

  Last clearing of "show interface" counters never

  Input queue: 0/75/0/0 (size/max/drops/flushes); Total output drops: 0

  Queueing strategy: weighted fair

  Output queue: 0/1000/64/0 (size/max total/threshold/drops)

     Conversations  0/0/16 (active/max active/max total)

     Reserved Conversations 0/0 (allocated/max allocated)

     Available Bandwidth 6 kilobits/sec

  30 second input rate 0 bits/sec, 0 packets/sec

  30 second output rate 0 bits/sec, 0 packets/sec

     0 packets input, 0 bytes, 0 no buffer

     Received 0 broadcasts, 0 runts, 0 giants, 0 throttles

     0 input errors, 0 CRC, 0 frame, 0 overrun, 0 ignored, 0 abort

     0 packets output, 0 bytes, 0 underruns

     0 output errors, 0 collisions, 0 interface resets

     0 output buffer failures, 0 output buffers swapped out

     0 carrier transitions

     DCD=up  DSR=up  DTR=up  RTS=up  CTS=up

Related Commands

Command	Description
show cellular radio	Displays the cellular modem radio statistics.
show controllers cellular	Displays HWIC hardware and driver-specific information.
show run interface cellular	Displays the current running configuration for the cellular interface.

show run interface cellular

To see the current running configuration for the cellular interface, use the show run interface cellular command in privileged EXEC mode.

show run interface cellular slot/wic_slot/port

Syntax Description

slot/wic_slot/port

Numeric values that indicate the router slot, WAN interface card (WIC) slot, and port.

Command Default

There is no default for this command.

Command Modes

Privileged EXEC

Command History

Release	Modification
12.4(11)XV	This command was introduced.
12.4(15)T	This command was integrated into Cisco IOS Release 12.4(15)T.

Examples

The following example shows the output of the command for 3G HWIC in slot 0, WIC slot 0, port 0:

router#show running-config interface cellular 0/0/0

interface Cellular0/0/0

 ip address negotiated

 ip access-group 10 out

 ip nat outside

 ip virtual-reassembly

 encapsulation ppp

 no ip mroute-cache

 load-interval 30

 dialer in-band

 dialer idle-timeout 2147483

 dialer string cdma

 dialer-group 2

 async mode interactive

 no peer default ip address

 fair-queue

 ppp ipcp dns request

 routing dynamic

end router#

Related Commands

Command	Description
show controllers cellular	Displays HWIC hardware and driver-specific information.
show interfaces cellular	Displays statistics for the cellular interfaces.

Troubleshooting Tips

If you are encountering issues with the working of the 3G wireless HWIC, this section will help you troubleshoot and pinpoint the cause of failure.

Verifying Configuration

To verify your configuration and to make sure that your connection is up and running, follow these step:

---

Step 1 After creating a profile with the create cellular profile command, send a ping from a router or attached host.

Step 2 If you do not get any response, to find where failure is occurring, run the following debug commands:

•debug chat script

•debug PPP negotiation

•show cellular all

•show interface cellular

•show running-config

•show controllers cellular

Step 3 Save the output from all these commands and contact your system administrator.

---

Checking Signal Strength

If the RSSI level is very low, for example, less than -110 dBm, it means one of the following:

•Your antenna is not connected

•The antenna is not working properly

•There is no service in your area

If all the above are connected and working as they should, contact your system administrator.

Call Setup Using CHAT Script

The following is a sample output for a call that is set up using CHAT script. It shows a received IP address from the network and indicates that the call setup is successful and the data path is open:

Debugs enabled:

debug modem

debup chat

debug ppp negotiation

debug ppp event

debup ppp error

router# ping www.yahoo.com

Translating "www.yahoo.com"...domain server (255.255.255.255)

*Mar  1 23:42:57.398: CHAT0/1/0: Attempting async line dialer script

*Mar  1 23:42:57.398: CHAT0/1/0: Dialing using Modem script: sprint & System script: none

*Mar  1 23:42:57.402: CHAT0/1/0: process started

*Mar  1 23:42:57.402: CHAT0/1/0: Asserting DTR

*Mar  1 23:42:57.402: CHAT0/1/0: Chat script sprint started

*Mar  1 23:42:57.402: CHAT0/1/0: Sending string: atdt#777

*Mar  1 23:42:57.402: CHAT0/1/0: Expecting string: CONNECT

*Mar  1 23:42:58.710: CHAT0/1/0: Completed match for expect: CONNECT

*Mar  1 23:42:58.710: CHAT0/1/0: Chat script sprint finished, status = Success

*Mar  1 23:42:58.878: TTY0/1/0: no timer type 1 to destroy

*Mar  1 23:42:58.878: TTY0/1/0: no timer type 0 to destroy

*Mar  1 23:42:58.878: TTY0/1/0: no timer type 2 to destroy

*Mar  1 23:43:00.878: %LINK-3-UPDOWN: Interface Cellular0/1/0, changed state to up

*Mar  1 23:43:00.878: Ce0/1/0 PPP: Using dialer call direction

*Mar  1 23:43:00.878: Ce0/1/0 PPP: Treating connection as a callout

*Mar  1 23:43:00.878: Ce0/1/0 PPP: Session handle[CD00000E] Session id[5]

*Mar  1 23:43:00.878: Ce0/1/0 PPP: Phase is ESTABLISHING, Active Open

*Mar  1 23:43:00.878: Ce0/1/0 PPP: No remote authentication for call-out

*Mar  1 23:43:00.878: Ce0/1/0 LCP: O CONFREQ [Closed] id 5 len 20

*Mar  1 23:43:00.878: Ce0/1/0 LCP:    ACCM 0x000A0000 (0x0206000A0000)

*Mar  1 23:43:00.878: Ce0/1/0 LCP:    MagicNumber 0x4597FB75 (0x05064597FB75)

*Mar  1 23:43:00.878: Ce0/1/0 LCP:    PFC (0x0702)

*Mar  1 23:43:00.878: Ce0/1/0 LCP:    ACFC (0x0802)

*Mar  1 23:43:00.878: Ce0/1/0 LCP: I CONFREQ [REQsent] id 12 len 20

*Mar  1 23:43:00.882: Ce0/1/0 LCP:    ACCM 0x00000000 (0x020600000000)

*Mar  1 23:43:00.882: Ce0/1/0 LCP:    MagicNumber 0x7F576333 (0x05067F576333)

*Mar  1 23:43:00.882: Ce0/1/0 LCP:    PFC (0x0702)

*Mar  1 23:43:00.882: Ce0/1/0 LCP:    ACFC (0x0802)

*Mar  1 23:43:00.882: Ce0/1/0 LCP: O CONFACK [REQsent] id 12 len 20

*Mar  1 23:43:00.882: Ce0/1/0 LCP:    ACCM 0x00000000 (0x020600000000)

*Mar  1 23:43:00.882: Ce0/1/0 LCP:    MagicNumber 0x7F576333 (0x05067F576333)

*Mar  1 23:43:00.882: Ce0/1/0 LCP:    PFC (0x0702)

*Mar  1 23:43:00.882: Ce0/1/0 LCP:    ACFC (0x0802)

*Mar  1 23:43:00.882: Ce0/1/0 LCP: I CONFACK [ACKsent] id 5 len 20

*Mar  1 23:43:00.882: Ce0/1/0 LCP:    ACCM 0x000A0000 (0x0206000A0000)

*Mar  1 23:43:00.882: Ce0/1/0 LCP:    MagicNumber 0x4597FB75 (0x05064597FB75)

*Mar  1 23:43:00.882: Ce0/1/0 LCP:    PFC (0x0702)

*Mar  1 23:43:00.882: Ce0/1/0 LCP:    ACFC (0x0802)

*Mar  1 23:43:00.882: Ce0/1/0 LCP: State is Open

*Mar  1 23:43:00.882: Ce0/1/0 PPP: Phase is FORWARDING, Attempting Forward

*Mar  1 23:43:00.882: Ce0/1/0 PPP: Phase is ESTABLISHING, Finish LCP

*Mar  1 23:43:00.882: Ce0/1/0 PPP: Phase is UP

*Mar  1 23:43:00.882: Ce0/1/0 IPCP: O CONFREQ [Closed] id 1 len 22

*Mar  1 23:43:00.882: Ce0/1/0 IPCP:    Address 0.0.0.0 (0x030600000000)

*Mar  1 23:43:00.882: Ce0/1/0 IPCP:    PrimaryDNS 0.0.0.0 (0x810600000000)

*Mar  1 23:43:00.882: Ce0/1/0 IPCP:    SecondaryDNS 0.0.0.0 (0x830600000000)

*Mar  1 23:43:00.882: Ce0/1/0 PPP: Process pending ncp packets

*Mar  1 23:43:00.882: Ce0/1/0 IPCP: I CONFREQ [REQsent] id 4 len 10

*Mar  1 23:43:00.886: Ce0/1/0 IPCP:    Address 68.28.57.69 (0x0306441C3945)

*Mar  1 23:43:00.886: Ce0/1/0 IPCP: O CONFACK [REQsent] id 4 len 10

*Mar  1 23:43:00.886: Ce0/1/0 IPCP:    Address 68.28.57.69 (0x0306441C3945)

*Mar  1 23:43:00.886: Ce0/1/0 IPCP: I CONFNAK [ACKsent] id 1 len 22

*Mar  1 23:43:00.886: Ce0/1/0 IPCP:    Address 70.12.159.189 (0x0306460C9FBD)

*Mar  1 23:43:00.886: Ce0/1/0 IPCP:    PrimaryDNS 68.28.58.11 (0x8106441C3A0B)

*Mar  1 23:43:00.886: Ce0/1/0 IPCP:    SecondaryDNS 68.28.50.11 (0x8306441C320B)

*Mar  1 23:43:00.886: Ce0/1/0 IPCP: O CONFREQ [ACKsent] id 2 len 22

*Mar  1 23:43:00.886: Ce0/1/0 IPCP:    Address 70.12.159.189 (0x0306460C9FBD)

*Mar  1 23:43:00.886: Ce0/1/0 IPCP:    PrimaryDNS 68.28.58.11 (0x8106441C3A0B)

*Mar  1 23:43:00.886: Ce0/1/0 IPCP:    SecondaryDNS 68.28.50.11 (0x8306441C320B)

*Mar  1 23:43:00.886: Ce0/1/0 IPCP: I CONFACK [ACKsent] id 2 len 22

*Mar  1 23:43:00.886: Ce0/1/0 IPCP:    Address 70.12.159.189 (0x0306460C9FBD)

*Mar  1 23:43:00.886: Ce0/1/0 IPCP:    PrimaryDNS 68.28.58.11 (0x8106441C3A0B)

*Mar  1 23:43:00.886: Ce0/1/0 IPCP:    SecondaryDNS 68.28.50.11 (0x8306441C320B)

*Mar  1 23:43:00.886: Ce0/1/0 IPCP: State is Open

*Mar  1 23:43:00.886: Ce0/1/0 IPCP: Install negotiated IP interface address 70.12.159.189

*Mar  1 23:43:00.890: Ce0/1/0 IPCP: Install route to 68.28.57.69

*Mar  1 23:43:00.890: Ce0/1/0 IPCP: Add link info for cef entry 68.28.57.69

*Mar  1 23:43:01.878: %LINEPROTO-5-UPDOWN: Line protocol on Interface Cellular0/1/0,
changed state to up

*Mar  1 23:43:01.890: %LINEPROTO-5-UPDOWN: Line protocol on Interface Tunnel1, changed
state to up (68.28.50.11) [OK]

Type escape sequence to abort.

Sending 5, 100-byte ICMP Echos to 209.131.36.158, timeout is 2 seconds:

!!!!!

Success rate is 100 percent (5/5), round-trip min/avg/max = 188/196/204 ms

Modem Troubleshooting Using the Diagnostic Port

The RJ-45 port on the faceplate of the 3G wireless HWIC provides access to the debug port on the Sierra Wireless modem. By connecting an industry-standard diagnostic tool, such as Qualcomm CAIT/QXDM or Spirent UDM to this port, you can perform radio-level diagnostics and traffic monitoring on the modem. Use the following test command to turn diagnostics on:

router# test cell-hwic slot/port/wic dm-port on

The cable used to connect the PC/Laptop running the diagnostic tool is the standard Cisco router console cable (RJ-45 to DB-9).

---

Note To enable test commands, you must enter the service internal command in the global configuration mode.

---

Any Internet Protocol (IP) addresses used in this document are not intended to be actual addresses. Any examples, command display output, and figures included in the document are shown for illustrative purposes only. Any use of actual IP addresses in illustrative content is unintentional and coincidental

© 2007 Cisco Systems, Inc. All rights reserved.
