Table Of Contents
FXO, FXS, and E&M Voice Interface Card Support on Cisco 1700 Series Routers
VIC2-2FXS, VIC2-2FXO, and VIC2-4FXO
Restrictions on VIC2-4FXO Usage
CAMA Functionality on VIC2-2FXO and VIC2-4FXO
Configuration and Verification
Obtaining Technical Assistance
Obtaining Additional Publications and Information
FXO, FXS, and E&M Voice Interface Card Support on Cisco 1700 Series Routers
This document describes the support on the Cisco 1751 and Cisco 1760 routers for the following new voice interface cards (VICs):
•
VIC2-2FXO, the 2-port Foreign Exchange Office (FXO) VIC, including CAMA functionality
•
•
•
This document contains the following sections:
•
•
VIC2-2FXS, VIC2-2FXO, and VIC2-4FXO
An FXS interface connects directly to a standard telephone, fax machine, PBX, or similar device, and supplies ring, voltage, and dial tone to the station.
An FXO interface connects local calls to a public switched telephone network (PSTN) central office or to a PBX that does not support E&M signaling. This is the interface a standard telephone provides.
To configure the ports on the 2-port VIC2-2FXS VIC, the 2-port VIC2-2FXO VIC and the 4-port VIC2-4FXO VIC, refer to the "Configure FXS or FXO Voice Ports" section in the Cisco 1751 Router Software Configuration Guide.
Note
Restrictions on VIC2-4FXO Usage
When configured for operation in countries that use the TBR21 mode, the use of VIC2-4FXO cards is subject to the following limitations.
•
•
When not operating in the TBR21 mode, these limitations do not apply.
These restrictions do not apply to VIC2-2FXO cards.
CAMA Functionality on VIC2-2FXO and VIC2-4FXO
The 2-port VIC2-2FXO VIC and the 4-port VIC2-4FXO VIC have the capabilty to operate in the Centralized Automated Message Accounting (CAMA) mode of operation.
Software Requirements
CAMA functionality on VIC2-2FXO and VIC2-4FXO VICs in Cisco 1751 and Cisco 1760 routers requires Cisco IOS Release 12.3(2)XA or later.
Overview of CAMA
CAMA is a signaling protocol that was originally designed for toll call billing purposes but has been adapted to carry a single telephone number for Enhanced 911 (E911) purposes. E911 is an emergency telephone system capable of automatically displaying the callback number (and in some cases the location) of a person who dials 911 to request emergency help from public safety agencies.
The North American emergency E911 phone system consists of a voice network that is built largely outside of the normal PSTN on which common voice traffic rides. Calls to emergency services are treated specially because they are routed differently from normal traffic within the PSTN. Calls to emergency services are routed on the basis of the calling number, not the called number. The calling number is checked against a database of emergency service providers that cross-references the service providers for the caller's particular location. When this information is determined, the call is then routed to the proper public service answering point (PSAP), which dispatches services to the caller's location.
During setup of a call to E911, before the audio channel is connected, the calling number is transmitted to each switching point, known as a Selective Router (SR), via CAMA. CAMA is used because it carries both the calling and called number using in-band signaling.This allows the telephone system to send a station identification number to the PSAP through the telephone company's E911 equipment. CAMA trunks are used in 80 percent of the E911 network today.
The calling number is needed at the PSAP for two reasons:
•
•
Figure 1 shows the topography in existing E911 networks. Figure 2 shows an E911 network using the VIC2-2FXO or VIC2-4FXO card, configured for CAMA, in a Cisco 1751 or Cisco 1760 router.
Figure 1 Existing E911 Networks

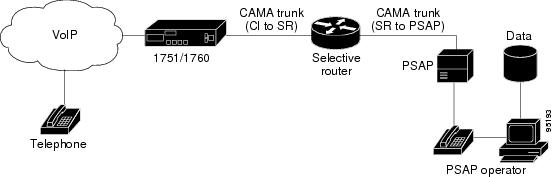

Figure 2 Analog CAMA E911 Networks
Configuring CAMA
To configure a VIC2-2FXO or VIC2-4FXO card to recognize CAMA signaling, perform the following steps in global configuration mode.
Note
The CAMA signaling options are as follows:
•
•
•
•
NPD values range from 0 through 3. Examples of telephone numbers in this signaling option are:
–
–
Note
Configuring ANI Mapping
To configure a VIC2-2FXO or VIC2-4FXO card for 8-digit ANI transmission, perform the following steps in global configuration mode.
Configuration and Verification
The following example shows the configuration of the VIC2-2FXO card for 8-digit transmission. In this example, ANI mapping is shown for the following area codes (NPAs): 0=408, 1=510, 2=650, 3=415.
voice-port 0/0ani mapping 0 408ani mapping 1 510ani mapping 2 650ani mapping 3 415signal cama KP-NPD-NXX-XXXX-STshutno shutConfiguration may be verified by use of the show run command, or the show voice port command, or the show voice port summary command.
router # show run...!voice-port 0/0ani mapping 0 408ani mapping 1 510ani mapping 2 650ani mapping 3 415signal cama KP-NPD-NXX-XXXX-ST!...endThe following example shows the result of a show voice port summary command on a router with a VIC2-2FXO card in slot 0. Port 0 is configured for CAMA, and port 1 is configured for normal FXO operation.
router# show voice port summary----------------------------------------------------PORT CH SIG-TYPE ADMIN OPER STATUS STATUS EC========= == ============ ===== ==== ======== ======== ==0/0 -- fxo-cama up up idle on-hook y0/1 -- fxo-ls up up idle on-hook yVIC2-2E/M
An E&M interface connects remote calls from an IP network to PBX trunk lines (tie lines) for local distribution.
To configure the ports on the 2-port VIC2-2E/M VIC, refer to the "Configure E&M Voice Ports section" in the Cisco 1751 Router Software Configuration Guide.
Note
Related Documentation
For information on installing FXO, FXS, and E&M VICs in Cisco 1700 series routers, refer to the following:
•
For additional information about installing and configuring the Cisco 1751 and Cisco 1760 routers, go to the Cisco 1700 series routers website
http://www.cisco.com/univercd/cc/td/doc/product/access/acs_mod/1700/index.htm
and refer to the following documentation:
•
•
•
•
