Configuring ISDN
This chapter describes how to configure a Cisco router to dial into a central-site router over an ISDN line and provides verification steps and troubleshooting tips.
This chapter contains the following sections:
•
Before You Begin
•Dial-Up ISDN Connection to a Central-Site Router
•Dial-Up ISDN Connection with Dialer Profiles
•Leased-Line ISDN Connection to a Central-Site Router
•Dial-In ISDN BRI Pool
Before You Begin
The configurations in this chapter are based on the following assumptions:
•Your Cisco router hardware is correctly installed in accordance with the Hardware Installation Guide for your Cisco router.
•Your Cisco router is using multilink Point-to-Point Protocol (PPP).
•Your ISDN line is installed and correctly configured. Refer to the "Configuring the ISDN Line" chapter in the Hardware Installation Guide for more information on ordering and configuring your ISDN line.
Before you begin configuration, be aware of the following:
•You need to enter the commands in the order shown in the task tables.
•The values shown in italic are examples. For the values shown, you should instead enter values appropriate for your network.
•You should be familiar with Cisco IOS software and its conventions.
Note To use the verification steps described in this chapter, you must be familiar with Cisco IOS commands and command modes. When you use the verification steps, you need to change to different command modes. If you are not familiar with command modes, see the "Understanding Command Modes" section in the "Introduction to Router Configuration" chapter.
Dial-Up ISDN Connection to a Central-Site Router
This section tells how to configure your Cisco router for Internetwork Packet Exchange (IPX) when dialing out over an ISDN line. Configure your router for IP if you want to use Internet services, such as the World Wide Web, or if the network that you are dialing into uses IP. Configure your router for IPX if your network uses IPX network services, such as NetWare file servers or print servers.
This configuration assumes that the Cisco router is dialing into a central-site router.
Note If you are using IP but not IPX on your network, do not enter the commands that include the ipx keyword.
These are the major tasks in configuring your router:
•Configuring Global Parameters
•Configuring Security
•Configuring the Fast Ethernet Interface
•Configuring the ISDN Interface
•Configuring Static Routes and Dialing Behavior
•Configuring Command-Line Access to the Router

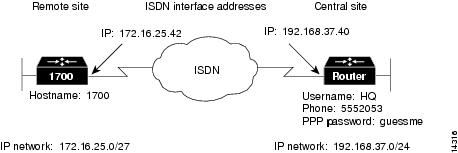

Figure 5-1 shows the configuration example used in this section.
Figure 5-1 ISDN Configuration Example—Dial-Up ISDN Connection to Central Site Router
Configuring Global Parameters
Follow these steps to configure the router for global parameters.
| |
Command
|
Task
|
Step 1
|
configure terminal
|
Enter configuration mode.
|
Step 2
|
service timestamps debug datetime msec
|
Configure the router to show the date and time of all debug messages.
This command is optional, but it is recommended if you use debug commands to troubleshoot your configuration.
|
Step 3
|
service timestamps log datetime msec
|
Configure the router to show the date and time of all log messages.
This command is optional, but it is recommended if you use the verification steps described in this guide. This feature is enabled for all the command output examples shown in this guide.
|
Step 4
|
isdn switch-type basic-ni
|
Configure the type of central office switch used on the ISDN interface. Use the keyword that matches the ISDN switch type that you are using:
•basic-1tr6—German 1TR6 ISDN switches
•basic-5ess—Basic rate 5ESS switches
•basic-dms100—NT DMS-100 basic rate switches
•basic-net3—NET3 ISDN switches
•basic-ni—National ISDN-1 switches
•basic-nwnet3—Norway NET3 switches (phase 1)
•basic-nznet3—New Zealand NET3 switches
•basic-ts013—Australian TS013 switches
•ntt—Japanese NTT ISDN switches
•vn2—French VN2 ISDN switches
•vn3—French VN3 ISDN switches
|
Step 5
|
ipx routing 0060.834f.66dd
|
(Optional) Enable IPX routing and configure the router with an IPX address.
|
Configuring Security
Follow these steps to configure the router with security measures.
| |
Command
|
Task
|
Step 1
|
enable password <user>
|
Specify a password to prevent unauthorized access to the router.
|
Step 2
|
hostname Router
|
Configure the router with a host name, which is used in prompts and default configuration file names.
For PPP authentication, the host name entered with this command must match the username of the central-site router.
|
Step 3
|
username HQ password <guessme>
|
Specify the password used during caller identification and Challenge Handshake Authentication Protocol (CHAP) and Password Authentication Protocol (PAP) authentication.
For CHAP and PAP authentication, the username entered with this command must match the host name of the central-site router.
|
Configuring the Fast Ethernet Interface
Follow these steps to configure the Fast Ethernet interface, which connects your router to the local network.
| |
Command
|
Task
|
Step 1
|
interface fastethernet0
|
Enter configuration mode for the Fast Ethernet interface.
|
Step 2
|
ip address 172.16.25.42 255.255.255.224
|
Configure this interface with an IP address and a subnet mask.
|
Step 3
|
ipx network ABC
|
(Optional) Enable IPX routing on this interface and assign the interface with an IPX network address.
|
Step 4
|
no shutdown
|
Enable the interface and the configuration changes you have just made on the interface.
|
Step 5
|
exit
|
Exit configuration mode for this interface.
|
Verifying Your Configuration
You can verify your configuration by checking that the Fast Ethernet interface has the correct IP address:
Step 1 From the privileged EXEC command mode, enter the show arp command:
Step 2 You should see command output similar to the following:
Protocol Address Age (min) Hardware
Addr Type Interface
Internet 171.16.25.42 - 0060.834f.66dd ARPA Fast
Ethernet0
Step 3 The IP address, as shown in the command output example, should be your router Fast Ethernet IP address. If it is not, then reenter the IP address with ip address interface command.
Step 4 To continue configuration, reenter global configuration mode.
Configuring the ISDN Interface
Follow these steps to configure the ISDN interface, which connects the router to the central-site router over the wide-area network.
| |
Command
|
Task
|
Step 1
|
interface BRI0
|
Enter configuration mode for the ISDN interface.
|
Step 2
|
description ISDN connectivity
|
Add a description of this interface to help you remember what is attached to it.
|
Step 3
|
isdn spid1 555987601
|
Enter the service profile identifier (SPID) number assigned by the ISDN service provider to the B1 channel.
This step is required only when the service provider has assigned a SPID to your ISDN line. Not all ISDN lines have SPIDs.
|
Step 4
|
isdn spid2 555987602
|
Define the SPID number assigned by the ISDN service provider to the B2 channel.
This step is required only when the service provider has assigned a SPID to your ISDN line. Not all ISDN lines have SPIDs.
|
Step 5
|
ip unnumbered fastethernet0
|
Enable IP routing on this interface without assigning an IP address.
|
Step 6
|
dialer map ip 192.168.37.40 name HQ 5552053
|
Configure this interface to place a call to multiple sites and to authenticate calls from multiple sites based on IP address and dialer string (phone number).
The name you enter after the name keyword in this command must match the name entered with the username command in the "Configuring Security" section.
|
Step 7
|
ipx network 123
|
(Optional) Enable IPX routing on this interface and assign an IPX network address to the interface.
|
Step 8
|
no ipx route-cache
|
(Optional) Disable IPX fast switching on this interface.
|
Step 9
|
ipx watchdog-spoof
|
(Optional) Set the router to respond to local server watchdog packets on behalf of a remote client (called spoofing).
|
Step 10
|
dialer map ipx 123.0000.0003.eccb name HQ broadcast 5552053
|
(Optional) Configure this interface to call multiple sites, based on IPX address and dialer string (phone number).
|
Step 11
|
dialer load-threshold 70
|
Configure bandwidth on demand by setting the maximum load before the router places another call to a destination.
|
Step 12
|
dialer-group 1
|
Assign the dialer interface to a dialer group.
|
Step 13
|
no fair-queue
|
Disable weighted fair queuing on this interface.
|
Step 14
|
encapsulation ppp
|
Configure this interface for PPP encapsulation.
|
Step 15
|
ppp authentication chap pap
|
Enable CHAP and PAP authentication on this interface. CHAP authentication is attempted first. If the central-site router does not support CHAP, then PAP is used for authentication.
|
Step 16
|
ppp multilink
|
Enable multilink PPP on this interface.
|
Step 17
|
no shutdown
|
Enable the interface and the configuration changes you have just made on the interface.
|
Step 18
|
exit
|
Exit configuration mode for this interface.
|
Verifying Your Configuration
You can verify your configuration to this point by confirming the ISDN line status:
Step 1 From the privileged EXEC command mode, enter the show isdn status command.
You should see command output similar to the following:
The current ISDN Switchtype = basic-5ess
TEI = 80, State = MULTIPLE_FRAME_ESTABLISHED
No Active Layer 3 Call(s)
Total Allocated ISDN CCBs =
Step 2 Confirm that the current ISDN switch type matches the actual switch type that you are using. In the output example, the switch type is "basic-5ess."
Step 3 Confirm that the "Layer 1 status: ACTIVE" message appears in the command output. In the output example, the status is "ACTIVE."
Step 4 Confirm that the "State = MULTIPLE_FRAME_ESTABLISHED" message appears in the command output. The output example shows this message.
In some cases, you might see a "State = TEI_ASSIGNED" message instead of the "State = MULTIPLE_FRAME_ESTABLISHED" message. This message also means that the ISDN line is correctly configured.
Step 5 To continue configuration, reenter global configuration mode.
Tips
If you are having problems, do the following:
•Make sure that you entered the no shutdown command for the ISDN interface while in interface configuration mode. This enables the configuration changes that you made on the interface.
•Make sure that any external Network Termination 1 (NT1) equipment is functioning correctly. Refer to the documentation that came with the NT1.
•Check with the ISDN service provider to make sure that the ISDN line is correctly configured.
Configuring Static Routes and Dialing Behavior
Follow these steps to configure some parameters that control how and when the router dials the central-site router.
| |
Command
|
Task
|
Step 1
|
ip route 0.0.0.0 0.0.0.0 192.168.37.40
|
Establish a static IP route to the remote network.
|
Step 2
|
ip route 192.168.37.40 255.255.255.255 BRI0
|
Establish a static IP route to the central-site router through this interface.
|
Step 3
|
access-list 101 permit icmp any any
|
Define a standard access list based on Internet Control Message Protocol (ICMP) traffic.
|
Step 4
|
access-list 101 permit ip any any
|
Define a standard access list based on IP traffic.
|
Step 5
|
dialer-list 1 protocol ip list 101
|
Specify a dialer list both by list number and by protocol (IP) to define the packets of interest that can trigger a call to the destination.
|
Step 6
|
access-list 900 deny any any all any 457
|
(Optional) Define a standard access list based on IPX network variables.
|
Step 7
|
access-list 900 deny rip any rip any rip
|
(Optional) Define a standard access list based on IPX network variables.
|
Step 8
|
access-list deny sap and sap any sap
|
(Optional) Define a standard access list based on IPX network variables.
|
Step 9
|
access-list 900 permit any any all any all
|
(Optional) Define a standard access list based on IPX network variables.
|
Step 10
|
dialer-list 1 protocol ipx list 900
|
(Optional) Specify an access list both by list number and by protocol (IPX) to define the packets that will trigger the router to make a call to the destination.
|
Verifying Your Configuration
You can verify your configuration to this point by
•Confirming the Static IP Route
•Confirming the IPX Route
•Confirming Connectivity to the Central-Site Router
•Confirming Multilink PPP Configuration for the B1 Channel
•Confirming Multilink PPP Configuration for the B2 Channel
Confirming the Static IP Route
You can verify your configuration by confirming the static IP route:
Step 1 From the privileged EXEC command mode, enter the show ip route command.
Substitute the IP address of the central-site router ISDN interface for the IP address shown in the example.
Step 2 Confirm that the "directly connected via BRI" message (shown in the output example) appears in the command output:
Router# show ip route 192.168.37.40
Routing entry for 192.168.37.40/32
Known via "connected", distance 0, metric 0 (connected)
Routing Descriptor Blocks:
* directly connected, via BRI0
Route metric is 0, traffic share count is 1
Step 3 To continue configuration, reenter global configuration mode.
Confirming the IPX Route
Step 1 From the privileged EXEC command mode, enter the show ipx route command. You should see command output similar to the following:
Router# show ipx route 123
Codes: C - Connected primary network, c - Connected secondary
network
S - Static, F - Floating static, L - Local (internal), W -
IPXWAN
R - RIP, E - EIGRP, N - NLSP, X - External, A - Aggregate
2 Total IPX routes. Up to 1 parallel paths and 16 hops allowed.
Step 2 Confirm that the IPX network number (123, in this example) matches the IPX network number that you configured with the ipx network command when you configured the Fast Ethernet interface.
Step 3 To continue configuration, reenter global configuration mode.
Confirming Connectivity to the Central-Site Router
You can verify your configuration by confirming connectivity to the central-site router:
Step 1 From the privileged EXEC command mode, enter the ping command, followed by the IP address of the central-site router. You should see command output similar to the following:
Router# ping 192.168.37.40
Type escape sequence to abort.
Sending 5, 100-byte ICMP Echos to 192.168.37.40, timeout is 2 seconds:
Success rate is 80 percent (4/5), round-trip min/avg/max = 40/43/48 ms
*Mar 1 03:37:46.526: %LINK-3-UPDOWN: Interface BRI0:1, changed state
to up
*Mar 1 03:37:46.923: %LINEPROTO-5-UPDOWN: Line protocol on Interface
BRI0:1, changed state to up
*Mar 1 03:37:46.939: %LINK-3-UPDOWN: Interface Virtual-Access1,
changed state to up
*Mar 1 03:37:47.923: %LINEPROTO-5-UPDOWN: Line protocol on Interface
Virtual-Access1, changed state to up
*Mar 1 03:35:57.217: %ISDN-6-CONNECT: Interface BRI0:1 is now
connected to 5552053 HQ
Step 2 Note the percentage in the "Success rate" line. If the success rate is 60 percent (3/5) or greater, your router is successfully transferring data to the central-site router.
Step 3 To continue configuration, reenter global configuration mode.
Confirming Multilink PPP Configuration for the B1 Channel
Perform the two verification procedures in this section to verify that multilink PPP is configured on the ISDN B1 channel.
For the first verification procedure, perform these steps:
Step 1 From the privileged EXEC mode, confirm that the ISDN is connected to the remote site by entering the ping command, followed by the IP address of the central-site router:
Router# ping 192.168.37.40
Step 2 Enter the show ppp multilink command.
Step 3 Confirm that the "Master link is Virtual-Access1" message appears in the command output.
Router# show ppp multilink
Bundle HQ, 1 member, Master link is Virtual-Access1
0 lost fragments, 0 reordered, 0 unassigned, sequence 0x0/0x0
rcvd/sent
0 discarded, 0 lost received, 1/255 load
Step 4 If you do not see the message in the output, do one or both of the following:
•Confirm that multilink PPP is configured on the central-site router that you are connecting to.
•If multilink PPP is configured on the central-site router, use the show interface command as described in the second verification procedure.
Step 5 To continue configuration, reenter global configuration mode.
For the second verification procedure, perform these steps:
Step 1 From the privileged EXEC command mode, confirm that the ISDN line is connected to the remote site by entering the ping command, followed by the IP address of the central-site router:
Router# ping 192.168.37.40
Step 2 Enter the show interface virtual-access 1 command.
Step 3 Confirm that the "Open: IPCP" message appears in the command output:
Router# show interface virtual-access 1
Virtual-Access1 is up, line protocol is up
Hardware is Virtual Access interface
MTU 1500 bytes, BW 64 Kbit, DLY 100000 usec, rely 255/255, load
1/255
Encapsulation PPP, loopback not set, keepalive set (10 sec)
DTR is pulsed for 5 seconds on reset
Last input 00:00:01, output never, output hang never
Last clearing of "show interface" counters 00:54:41
Output queue 0/40, 0 drops; input queue 0/75, 0 drops
5 minute input rate 0 bits/sec, 0 packets/sec
5 minute output rate 0 bits/sec, 0 packets/sec
708 packets input, 150742 bytes, 0 no buffer
Received 0 broadcasts, 0 runts, 0 giants
0 input errors, 0 CRC, 0 frame, 0 overrun, 0 ignored, 0 abort
709 packets output, 157653 bytes, 0 underruns
0 output errors, 0 collisions, 0 interface resets
0 output buffer failures, 0 output buffers swapped out
Step 4 To continue configuration, reenter global configuration mode.
Confirming Multilink PPP Configuration for the B2 Channel
Perform the two procedure in this section to verify that multilink PPP is configured on the ISDN B2 channel.
Step 1 From the privileged EXEC command mode, confirm that the ISDN line is connected to the remote site by entering the ping command, followed by the IP address of the central-site router:
Router# ping 192.168.37.40
Step 2 Create enough network traffic so that the second ISDN B channel dials the remote site.
Note One way to perform Step 2 is to reduce the amount of data needed to cause the second B channel to dial. To reduce the amount (called the threshold), use the dialer load-threshold command, which is described in Step 11 of the "Configuring the ISDN Interface" section.
Step 3 Check LEDs B1 and B2.
If both LEDs are lit solid, multilink PPP is correctly configured for both ISDN B channels.
Step 4 To continue configuration, reenter global configuration mode.
Tips
If you are having problems, do the following:
•Confirm that your router is configured with the correct IP address.
•Confirm that you have correctly configured the static IP routes with the ip route command.
Configuring Command-Line Access to the Router
Follow these steps to configure some parameters that control access to the router.
| |
Command
|
Task
|
Step 1
|
line console 0
|
Specify the console terminal line.
|
Step 2
|
exec-timeout 5
|
Set the interval that the EXEC command interpreter waits until user input is detected.
|
Step 3
|
line vty 0 4
|
Specify a virtual terminal for remote console access.
|
Step 4
|
password <lineaccess>
|
Specify a password on the line.
|
Step 5
|
login
|
Enable password checking at terminal session login.
|
Step 6
|
end
|
Exit configuration mode.
|
Troubleshooting
If you are having problems or the if output that you received during the verification steps is very different from that shown in the command output examples, you can troubleshoot your router, using the Cisco IOS debug commands. The debug commands provide extensive command output that is not included in this document.
Following are debug commands that are helpful when troubleshooting ISDN with IP routing. Follow these commands with the ping command to display the debug output:
•debug dialer events
•debug isdn events
•debug isdn q931
•debug isdn q921
•debug ppp negotiation
•debug ppp authentication
•debug ppp multilink events
Dial-Up ISDN Connection with Dialer Profiles
This section describes how to configure dialer profiles for ISDN. If you followed the instructions for configuring ISDN in the previous sections of this chapter, you might not have to perform all of the steps shown in this section.
Figure 5-2 shows the configuration example used in this section.
Figure 5-2 ISDN Configuration Example—Dial-Up ISDN Connection with Dialer Profiles
These are the major tasks in configuring your router:
•Configuring Global Parameters
•Configuring Security
•Configuring the Fast Ethernet Interface
•Configuring the ISDN Interface
•Configuring the Dialer Interface
•Configuring When the Router Dials Out
•Configuring Command-Line Access to the Router
Configuring Global Parameters
Follow these steps to configure the router for global parameters.
| |
Command
|
Task
|
Step 1
|
configure terminal
|
Enter configuration mode.
|
Step 2
|
service timestamps debug datetime msec
|
Configure the router to show the date and time of all debug messages.
This command is optional, but it is recommended if you use debug commands to troubleshoot your configuration.
|
Step 3
|
service timestamps log datetime msec
|
Configure the router to show the date and time of all log messages.
This command is optional, but it is recommended if you use the verification steps described in this guide. This feature is enabled for all the command output examples shown in this guide.
|
Step 4
|
isdn switch-type basic-ni
|
Configure the type of central office switch being used on the ISDN interface. Use the keyword that matches the ISDN switch type that you are using:
•basic-1tr6—German 1TR6 ISDN switches
•basic-5ess—Basic rate 5ESS switches
•basic-dms100—NT DMS-100 basic rate switches
•basic-net3—NET3 ISDN switches
•basic-ni—National ISDN-1 switches
•basic-nwnet3—Norway NET3 switches (phase 1)
•basic-nznet3—New Zealand NET3 switches
•basic-ts013—Australian TS013 switches
•ntt—Japanese NTT ISDN switches
•vn2—French VN2 ISDN switches
•vn3—French VN3 ISDN switches
|
Verifying Your Configuration
You can verify your configuration to this point by checking the ISDN line status as follows:
Step 1 From the privileged EXEC command mode, enter the show isdn status command.
You should see command output similar to the following:
The current ISDN Switchtype = basic-5ess
TEI = 80, State = MULTIPLE_FRAME_ESTABLISHED
No Active Layer 3 Call(s)
Total Allocated ISDN CCBs =
Step 2 Confirm that the current ISDN switch type matches the actual switch type that you are using.
Step 3 Confirm that the "Layer 1 status: ACTIVE" message appears in the command output, as shown in the output example.
Step 4 Confirm that the "State = MULTIPLE_FRAME_ESTABLISHED" message appears in the command output, as shown in the output example.
Note In some cases, you might see a "State = TEI_ASSIGNED" message instead of the "State = MULTIPLE_FRAME_ESTABLISHED" message. This message also means that the ISDN line is correctly configured.
Step 5 To continue configuration, reenter global configuration mode.
Tips
If you are having problems, do the following:
•Make sure that any external NT1 is functioning correctly. Refer to the documentation that came with the NT1.
•Check with the ISDN service provider to make sure that the ISDN line is correctly configured.
Configuring Security
Follow these steps to configure the router with security measures.
| |
Command
|
Task
|
Step 1
|
hostname Router
|
Configure the router with a host name, which is used in prompts and default configuration filenames.
For PPP authentication, the host name entered with this command must match the username of the central-site router.
|
Step 2
|
enable password <user>
|
Specify a password to prevent unauthorized access to the router.
|
Step 3
|
username HQ password <guessme>
|
Specify the password that will be used during CHAP caller identification and PAP.
For PPP authentication, the username entered with this command must match the host name of the central-site router.
|
Configuring the Fast Ethernet Interface
Follow these steps to configure the Fast Ethernet interface, which connects your router to the local network.
| |
Command
|
Task
|
Step 1
|
interface fastethernet0
|
Enter configuration mode for the Fast Ethernet interface.
|
Step 2
|
ip address 172.16.25.42 255.255.255.224
|
Configure this interface with an IP address and a subnet mask.
|
Step 3
|
ipx network ABC
|
Enable IPX routing on this interface.
|
Step 4
|
no shutdown
|
Enable the interface and the configuration changes you have just made on the interface.
|
Step 5
|
exit
|
Exit configuration mode for this interface.
|
Configuring the ISDN Interface
Follow these steps to configure the ISDN interface, which connects the router to the central-site router over the wide-area network.
| |
Command
|
Task
|
Step 1
|
interface BRI0
|
Enter configuration mode for the ISDN interface.
|
Step 2
|
description ISDN connectivity
|
Add a description of the ISDN interface to help you remember what is attached to it.
|
Step 3
|
isdn spid1 555987601
|
Enter the SPID number that has been assigned by the ISDN service provider for the B1 channel.
This step is required only when the service provider has assigned a SPID to your ISDN line. Not all ISDN lines required SPIDs.
|
Step 4
|
isdn spid2 555987602
|
Define the SPID number that has been assigned by the ISDN service provider for the B2 channel.
This step is required only when the service provider has assigned a SPID to your ISDN line. Not all ISDN lines required SPIDs.
|
Step 5
|
no ip address
|
Disable IP routing on this interface.
|
Step 6
|
dialer pool-member 1
|
Put this interface in a dialing pool.
As an option, you can also assign a priority to the interface with this command.
|
Step 7
|
encapsulation ppp
|
Set the encapsulation method on this interface to PPP.
|
Step 8
|
ppp authentication chap pap
|
Enable CHAP and PAP authentication on this interface. CHAP authentication is attempted first. If the central-site router does not support CHAP, then PAP is used for authentication.
|
Step 9
|
ppp multilink
|
Enable multilink PPP on this interface.
|
Step 10
|
no shutdown
|
Enable the interface and the configuration changes you have just made on the interface.
|
Step 11
|
exit
|
Exit configuration mode for this interface.
|
Configuring the Dialer Interface
Follow these steps to create a dialer interface and configure it for dial-on-demand routing (DDR).
| |
Command
|
Task
|
Step 1
|
interface Dialer10
|
Create a dialer interface.
|
Step 2
|
ip unnumbered fastethernet0
|
Enable IP routing on this interface without assigning an IP address.
|
Step 3
|
ipx network 123
|
Enable IPX routing on this interface.
|
Step 4
|
no ipx route-cache
|
Disable IPX fast switching on this interface.
|
Step 5
|
ipx watchdog-spoof
|
Set the router to respond to a local server watchdog packets on behalf of a remote client (called spoofing).
|
Step 6
|
dialer remote-name HQ
|
Specify the central-site router CHAP authentication name.
|
Step 7
|
dialer string 5552053
|
Specify the string (telephone number) to be called for this interface when calling a single site.
|
Step 8
|
dialer pool 1
|
Put this interface in a dialing pool.
As an option, you can also assign a priority to the interface with this command.
|
Step 9
|
dialer-group 1
|
Assign the dialer interface to a dialer group.
|
Step 10
|
encapsulation ppp
|
Set the encapsulation method on this interface to PPP.
|
Step 11
|
ppp authentication chap pap
|
Enable CHAP and PAP authentication on this interface. CHAP authentication is attempted first. If the central-site router does not support CHAP, then PAP is used for authentication.
|
Step 12
|
ppp multilink
|
Enable multilink PPP on this interface.
|
Step 13
|
no shutdown
|
Enable the interface and the configuration changes you have just made on the interface.
|
Step 14
|
exit
|
Exit configuration mode for this interface.
|
Verifying Your Configuration
You can verify your configuration to this point by confirming the Multilink PPP Configuration for the B1 Channel.
Step 1 Confirm that the ISDN is up and connected to the central-site router.
Step 2 From the privileged EXEC command mode, enter the show ppp multilink command.
Step 3 Confirm that the "Master link is Virtual-Access1" message appears in the command output, as shown in the output example.
Router# show ppp multilink
Bundle HQ, 1 member, Master link is Virtual-Access1
0 lost fragments, 0 reordered, 0 unassigned, sequence 0x0/0x0
rcvd/sent
0 discarded, 0 lost received, 1/255 load
Step 4 Return to the privileged EXEC command mode, and enter the show interface command.
Step 5 Confirm that the "LCP Open, multilink Open" message appears in the command output, as shown in the output example.
Router# show interface bri 0 1 2
BRI0:1 is up, line protocol is up
Hardware is BRI with U interface and external S bus interface
MTU 1500 bytes, BW 64 Kbit, DLY 20000 usec, rely 255/255, load
3/255
Encapsulation PPP, loopback not set, keepalive set (10 sec)
Last input 00:00:00, output 00:00:00, output hang never
Last clearing of "show interface" counters never
Queueing strategy: fifo...
Step 6 To continue configuration, reenter global configuration mode.
Configuring When the Router Dials Out
Follow these steps to configure parameters that control how and when the router dials the central-site router.
| |
Command
|
Task
|
Step 1
|
ip route 192.168.37.0 255.255.255.0 192.168.37.40
|
Establish a static IP route to the remote network.
|
Step 2
|
ip route 192.168.37.40 255.255.255.255 BRI0
|
Establish a static IP route to the remote network through the router BRI.
|
Step 3
|
access-list 101 permit icmp any any
|
Define a standard access list based on your network.
|
Step 4
|
access-list 101 deny ip any any
|
Define a standard access list based on your network.
|
Step 5
|
access-list 900 deny any any all any 457
|
Define a standard access list based on your network.
|
Step 6
|
access-list 900 deny rip any rip any rip
|
Define a standard access list based on your network.
|
Step 7
|
access-list 900 deny sap any sap any sap
|
Define a standard access list based on your network.
|
Step 8
|
access-list 900 permit any any all any all
|
Define a standard access list based on your network.
|
Step 9
|
dialer-list 1 protocol ip list 101
|
Specify an access list both by list number and by protocol (IP) to define the packets of interest that can trigger a call to the destination.
|
Step 10
|
dialer-list 1 protocol ipx list 900
|
Specify an access list both by list number and by protocol (IPX) to define the packets of interest that can trigger a call to the destination.
|
Verifying Your Configuration
You can verify your configuration to this point by
•Confirming the IP Static Route
•Confirming Connectivity to the Central-Site Router
Confirming the IP Static Route
You can verify your configuration to this point by checking the static IP route as follows:
Step 1 From the privileged EXEC command mode, enter the show ip route command.
Substitute the IP address of the central-site router ISDN interface for the IP address shown in the example.
Step 2 Confirm that the "directly connected via BRI" message appears, as shown in the command output.
Router# show ip route 192.168.37.40
Routing entry for 192.168.37.40/32
Known via "connected", distance 0, metric 0 (connected)
Routing Descriptor Blocks:
* directly connected, via BRI0
Step 3 To continue configuration, reenter global configuration mode.
Confirming Connectivity to the Central-Site Router
You can verify your configuration to this point by testing connectivity to the central-site router, as follows:
Step 1 From the privileged EXEC command mode, enter the ping command, followed by the IP address of the central-site route to have the router dial the central-site router. You should see output similar to the following:
Router# ping 192.168.37.40
Type escape sequence to abort.
Sending 5, 100-byte ICMP Echos to 192.168.37.40, timeout is 2 seconds:
Success rate is 80 percent (4/5), round-trip min/avg/max = 40/43/48 ms
*Mar 1 03:37:46.526: %LINK-3-UPDOWN: Interface BRI0:1, changed state
to up
*Mar 1 03:37:46.923: %LINEPROTO-5-UPDOWN: Line protocol on Interface
BRI0:1, changed state to up
*Mar 1 03:37:46.939: %LINK-3-UPDOWN: Interface Virtual-Access1,
changed state to up
*Mar 1 03:37:47.923: %LINEPROTO-5-UPDOWN: Line protocol on Interface
Virtual-Access1, changed state to up
*Mar 1 03:35:57.217: %ISDN-6-CONNECT: Interface BRI0:1 is now
connected to 5552053 HQ
Step 2 Wait for the "ISDN-6-CONNECT" message, as shown in the commmand output example.
Step 3 Enter the ping command, followed by the IP address of the central-site router again:
Router# ping 192.168.37.40
Type escape sequence to abort.
Sending 5, 100-byte ICMP Echos to 192.168.37.40, timeout is 2 seconds:
Success rate is 100 percent (5/5), round-trip min/avg/max = 40/43/48
ms
*Mar 1 03:37:46.526: %LINK-3-UPDOWN: Interface BRI0:1, changed state
to up
*Mar 1 03:37:46.923: %LINEPROTO-5-UPDOWN: Line protocol on Interface
BRI0:1, changed state to up
*Mar 1 03:37:46.939: %LINK-3-UPDOWN: Interface Virtual-Access1,
changed state to up
*Mar 1 03:37:47.923: %LINEPROTO-5-UPDOWN: Line protocol on Interface
Virtual-Access1, changed state to up
*Mar 1 03:35:57.217: %ISDN-6-CONNECT: Interface BRI0:1 is now
connected to 5552053 HQ
If the success rate, as shown in the command output, is 100 percent, this verification step is successful.
Step 4 To continue configuration, reenter global configuration mode.
Tips
If you are having problems, do the following:
•Make sure that the router is configured with the correct IP address.
•Make sure that the router is configured with the correct static routes.
Configuring Command-Line Access to the Router
Follow these steps to configure parameters that control access to the router, such as what type of terminal line can be used with the router, how long the user has to input a command before the router times out, and what password is used to start a terminal session with the router.
| |
Command
|
Task
|
Step 1
|
line console 0
|
Specify the console terminal line.
|
Step 2
|
exec-timeout 5
|
Set the interval that the EXEC command interpreter waits until user input is detected.
|
Step 3
|
line vty 0 4
|
Specify a virtual terminal for remote console access
|
Step 4
|
password <lineaccess>
|
Specify a password on the line.
|
Step 5
|
login
|
Enable password checking at terminal session login.
|
Step 6
|
end
|
Exit configuration mode.
|
Troubleshooting Dialer Profile Problems
If you are having problems, or if the output that you received during the verification steps is very different from that shown in the command output examples, you can troubleshoot your router, using the Cisco IOS debug commands. The debug commands provide extensive command output that is not included in this document.
The following are debug commands that are helpful in troubleshooting dialer profiles with ISDN. You need to follow most of these commands with the ping command to display debug output:
•debug dialer
•debug isdn events
•debug dialer events
•debug isdn q931
•debug isdn q921
•debug ppp negotiation
•debug ppp authentication
•debug ppp multilink events
Leased-Line ISDN Connection to a Central-Site Router
This section describes how to configure the router so that it uses the ISDN line as a leased-line connection to the central-site router. Unlike a switched connection to the central-site router, in which the router dials the central-site router only when it detects specified types and amounts of data traffic, a leased-line ISDN connection is always connected to the central office switch.
In addition to the assumptions described in the "Before You Begin" section at the beginning of this chapter, this configuration is based on the additional assumption that both ISDN B channels are connecting to the same central-site router.
These are the major tasks in configuring your router for a leased-line ISDN connection:
•Configuring Global Parameters
•Configuring Security
•Configuring IPX Routing
•Configuring the ISDN Line for Leased Line
•Configuring the Fast Ethernet Interface
•Clearing the ISDN Interface
•Configuring the ISDN Subinterfaces
•Configuring Dynamic IP Routing
•Configuring Command-Line Access to the Router
Figure 5-3 shows the configuration example that is used in this section.
Figure 5-3 ISDN Configuration Example—Leased-Line Connection to a Central-Site Router
Configuring Global Parameters
Follow these steps to configure the router for global parameters.
| |
Command
|
Task
|
Step 1
|
configure terminal
|
Enter configuration mode.
|
Step 2
|
service timestamps debug datetime msec
|
Configure the router to show the date and time of all debug messages.
This command is optional, but it is recommended if you use debug commands to troubleshoot your configuration.
|
Step 3
|
service timestamps log datetime msec
|
Configure the router to show the date and time of all log messages.
This command is optional, but it is recommended if you use the verification steps described in this guide. This feature is enabled for all the command output examples shown in this guide.
|
Step 4
|
isdn switch-type basic-ni
|
Configure the type of central office switch used on the ISDN interface. Use the keyword that matches the ISDN switch type that you are using:
•basic-1tr6—German 1TR6 ISDN switches
•basic-5ess—Basic rate 5ESS switches
•basic-dms100—NT DMS-100 basic rate switches
•basic-net3—NET3 ISDN switches
•basic-ni—National ISDN-1 switches
•basic-nwnet3—Norway NET3 switches (phase 1)
•basic-nznet3—New Zealand NET3 switches
•basic-ts013—Australian TS013 switches
•ntt—Japanese NTT ISDN switches
•vn2—French VN2 ISDN switches
•vn3—French VN3 ISDN switches
|
Configuring Security
Follow these steps to configure the router with security measures.
| |
Command
|
Task
|
Step 1
|
enable password <user>
|
Specify a password to prevent unauthorized access to the router.
|
Step 2
|
hostname Router
|
Configure the router with a host name, which is used in prompts and default configuration filenames.
For PPP authentication, the host name entered with this command must match the username of the central-site router.
|
Step 3
|
username HQ password <guessme>
|
Specify the password used during caller identification and CHAP and PAP authentication.
For CHAP and PAP authentication, the username entered with this command must match the host name of the central-site router.
|
Configuring IPX Routing
Perform this step to enable IPX routing on the router. The default setting for the router is "IPX routing disabled."
Command
|
Task
|
ipx routing 0060.834f.66dd
|
Enable IPX routing, and configure the router with an IPX address.
|
Configuring the ISDN Line for Leased Line
Follow these steps to set up the ISDN line for a leased-line configuration.
| |
Command
|
Task
|
Step 1
|
multilink virtual-template 1
|
Define a virtual template from which this multilink PPP bundle interface can replicate its interface parameters.
|
Step 2
|
isdn leased-line BRI0 128
|
Configure the BRI interface to use the ISDN physical connection as a leased-line service. If you want to combine both B channels into a single data pipe, enter the 128 keyword with this command.
|
Configuring the Fast Ethernet Interface
Use this table to configure the Fast Ethernet interface, which connects your router to the local network.
| |
Command
|
Task
|
Step 1
|
interface fastethernet0
|
Enter configuration mode for the Fast Ethernet interface.
|
Step 2
|
ip address 192.168.38.42 255.255.255.0
|
Configure this interface with an IP address and a subnet mask.
|
Step 3
|
ipx network ABC
|
Configure this interface with an IPX network address.
|
Step 4
|
interface virtual-template1
|
Associate the virtual template with this interface.
|
Step 5
|
ip address 192.168.40.40 255.255.255.0
|
Configure the virtual template interface with an IP address and a subnet mask.
|
Step 6
|
ipx network 123
|
Configure the virtual template interface with an IPX network address.
|
Step 7
|
encapsulation ppp
|
Set the encapsulation method on this interface to PPP.
|
Step 8
|
ppp multilink
|
Enable multilink PPP on this interface.
|
Step 9
|
no shutdown
|
Enable the interface and the configuration changes you have just made on the interface.
|
Step 10
|
exit
|
Exit configuration mode for this interface.
|
Clearing the ISDN Interface
Follow these steps to clear the IP address from the ISDN interface.
| |
Command
|
Task
|
Step 1
|
interface BRI0
|
Enter configuration mode for the BRI interface.
|
Step 2
|
no ip address
|
Disable IP routing on the BRI0 interface.
|
Step 3
|
exit
|
Exit configuration mode for this interface.
|
Configuring the ISDN Subinterfaces
Follow these steps to create and configure two ISDN subinterfaces, which connect your router to the central-site router over the wide-area network.
| |
Command
|
Task
|
Step 1
|
interface BRI0:1
|
Enter configuration mode for the BRI0:1 subinterface
|
Step 2
|
ip unnumbered Virtual-Template1
|
Enable IP routing on this interface without assigning an IP address.
|
Step 3
|
encapsulation ppp
|
Set the encapsulation method on this interface to PPP.
|
Step 4
|
ppp multilink
|
Enable multilink PPP on this interface.
|
Step 5
|
interface BRI0:2
|
Enter configuration mode for the BRI0:2 subinterface.
|
Step 6
|
ip unnumbered Virtual-Template1
|
Enable IP routing on this interface without assigning an IP address.
|
Step 7
|
encapsulation ppp
|
Set the encapsulation method on this interface to PPP.
|
Step 8
|
ppp multilink
|
Enable multilink PPP on this interface.
|
Step 9
|
exit
|
Exit configuration mode for this interface.
|
Configuring Dynamic IP Routing
Follow these steps to configure the router for dynamic IP routing.
| |
Command
|
Task
|
Step 1
|
ip classless
|
Configure the router to forward packets addressed to a subnet of a network with no network default route.
|
Step 2
|
ip route 0.0.0.0 0.0.0.0 192.168.40.41
|
Specify dynamic routing.
|
Verifying Your Configuration
You can verify your configuration by confirming connectivity to the central-site router.
Step 1 From the privileged EXEC command mode, enter the ping command, followed by the IP address of the central-site route to have the router dial the central-site router. You should see output similar to the following:
Router# ping 192.168.37.40
Type escape sequence to abort.
Sending 5, 100-byte ICMP Echos to 192.168.37.40, timeout is 2 seconds:
Success rate is 80 percent (4/5), round-trip min/avg/max = 40/43/48 ms
*Mar 1 03:37:46.526: %LINK-3-UPDOWN: Interface BRI0:1, changed state
to up
*Mar 1 03:37:46.923: %LINEPROTO-5-UPDOWN: Line protocol on Interface
BRI0:1, changed state to up
*Mar 1 03:37:46.939: %LINK-3-UPDOWN: Interface Virtual-Access1,
changed state to up
*Mar 1 03:37:47.923: %LINEPROTO-5-UPDOWN: Line protocol on Interface
Virtual-Access1, changed state to up
*Mar 1 03:35:57.217: %ISDN-6-CONNECT: Interface BRI0:1 is now
connected to 5552053 HQ
Step 2 Wait for the "ISDN-6-CONNECT" message, as shown in the command output example.
Step 3 Enter the ping command, followed by the IP address of the central-site router again:
Router# ping 192.168.37.40
Type escape sequence to abort.
Sending 5, 100-byte ICMP Echos to 192.168.37.40, timeout is 2 seconds:
Success rate is 100 percent (5/5), round-trip min/avg/max = 40/43/48
ms
*Mar 1 03:37:46.526: %LINK-3-UPDOWN: Interface BRI0:1, changed state
to up
*Mar 1 03:37:46.923: %LINEPROTO-5-UPDOWN: Line protocol on Interface
BRI0:1, changed state to up
*Mar 1 03:37:46.939: %LINK-3-UPDOWN: Interface Virtual-Access1,
changed state to up
*Mar 1 03:37:47.923: %LINEPROTO-5-UPDOWN: Line protocol on Interface
Virtual-Access1, changed state to up
*Mar 1 03:35:57.217: %ISDN-6-CONNECT: Interface BRI0:1 is now
connected to 5552053 HQ
If the success rate is 100 percent, this verification step is successful.
Step 4 If the router is not successfully transferring data to the central-site router (if the success rate is less than 60 percent), do the following:
•Use the show ip route command to confirm that the routing table entries for the central-site router are correct.
•Use the show interface bri0 command to confirm that the ISDN interface is active and that IPCP, IPXCP, and Multilink are shown as "Open."
Step 5 To continue configuration, reenter global configuration mode.
Configuring Command-Line Access to the Router
Follow these steps to configure parameters that control access to the router, such as what type of terminal line is used with the router, how long the router waits for a user entry before it times out, and what password is used to start a terminal session with the router.
| |
Command
|
Task
|
Step 1
|
ip classless
|
Configure the router to forward packets addressed to a subnet of a network with no network default route.
|
Step 2
|
ip route 0.0.0.0 0.0.0.0 192.168.40.41
|
Specify dynamic routing.
|
Step 3
|
ip classless
|
Configure the router to forward packets addressed to a subnet of a network with no network default route.
|
Step 4
|
ip route 0.0.0.0 0.0.0.0 192.168.40.41
|
Specify dynamic routing.
|
Step 5
|
ip classless
|
Configure the router to forward packets addressed to a subnet of a network with no network default route.
|
Step 6
|
ip route 0.0.0.0 0.0.0.0 192.168.40.41
|
Specify dynamic routing.
|
Troubleshooting Problems with Leased Lines
If you are having problems or if the output that you received during the verification steps is very different from that shown in the command output examples, you can troubleshoot your router, using the Cisco IOS debug commands. The debug commands provide extensive command output that is not included in this document.
The following debug commands are helpful in troubleshooting an ISDN leased line. Follow these commands with the ping command to display debug output.
•debug ppp negotiation
•debug isdn events
•debug q931
•debug q921
Dial-In ISDN BRI Pool
This section describes how to configure a Cisco router with two ISDN BRI interfaces to function as a dial-in server. In this example, the Cisco router functions as the central-site router that accepts dial-in connections from remote routers.
These are the major tasks in configuring your router for dial-in ISDN connections:
•Configuring Global Parameters
•Configuring Security
•Configuring the Fast Ethernet Interface
•Configuring the ISDN Interfaces
•Configuring a Dialer Interface
•Configuring EIGRP Routing
•Configuring IP Static Routes and Dial-In Parameters
•Configuring Command-Line Access to the Router
Figure 5-4 shows the configuration example used in this section.
Figure 5-4 ISDN Configuration Example—Dial-In ISDN BRI Pool
Configuring Global Parameters
Follow these steps to configure global router parameters.
| |
Command
|
Task
|
Step 1
|
configure terminal
|
Enter configuration mode.
|
Step 2
|
service timestamps debug datetime msec
|
Configure the router to show the date and time of all debug messages.
This command is optional, but it is recommended if you use debug commands to troubleshoot your configuration.
|
Step 3
|
service timestamps log datetime msec
|
Configure the router to show the date and time of all log messages.
This command is optional, but it is recommended if you use the verification steps described in this guide. This feature is enabled for all the command output examples shown in this guide.
|
Step 4
|
isdn switch-type basic-ni
|
Configure the type of central office switch being used on the ISDN interface. Use the keyword that matches the ISDN switch type that you are using:
•basic-1tr6—German 1TR6 ISDN switches
•basic-5ess—Basic rate 5ESS switches
•basic-dms100—NT DMS-100 basic rate switches
•basic-net3—NET3 ISDN switches
•basic-ni—National ISDN-1 switches
•basic-nwnet3—Norway NET3 switches (phase 1)
•basic-nznet3—New Zealand NET3 switches
•basic-ts013—Australian TS013 switches
•ntt—Japanese NTT ISDN switches
•vn2—French VN2 ISDN switches
•vn3—French VN3 ISDN switches
|
Configuring Security
Follow these steps to configure security measures.
| |
Command
|
Task
|
Step 1
|
enable password <user>
|
Specify a password to prevent unauthorized access to the router.
|
Step 2
|
hostname Router
|
Configure the router with a host name, which is used in prompts and default configuration filenames.
For PPP authentication, the host name entered with this command must match the username of the central-site router.
|
Step 3
|
username jason password <foot>
username wei password <letmein>
username sammy password <bar>
username tito password <knockknock>
|
Specify the password used during caller identification and CHAP and PAP authentication.
For CHAP and PAP authentication, the host name of every remote router that dials into the Cisco router must be entered with this command, along with the password used to authenticate the router.
|
Configuring the Fast Ethernet Interface
Follow these steps to configure the Fast Ethernet interface, which connects your router to the local network.
| |
Command
|
Task
|
Step 1
|
interface fastethernet0
|
Enter configuration mode for this interface.
|
Step 2
|
ip address 171.68.15.33 255.255.255.248
|
Configure this interface with an IP address and a subnet mask.
|
Step 3
|
no shutdown
|
Enable this interface and the configuration changes that you have just made.
|
Step 4
|
exit
|
Exit configuration mode for this interface.
|
Configuring the ISDN Interfaces
Follow these steps to configure the two ISDN interfaces that accept calls from remote routers.
| |
Command
|
Task
|
Step 1
|
interface BRI0
|
Enter configuration mode for the first ISDN interface.
|
Step 2
|
no ip address
|
Remove any IP addresses that might be assigned to this interface.
|
Step 3
|
encapsulation ppp
|
Configure the interface for PPP packet encapsulation.
|
Step 4
|
dialer rotary-group 100
|
Configure this interface to be included in the dialer rotary group that you will configure in the "Configuring a Dialer Interface" section.
|
Step 5
|
no fair queue
|
Disable weighted fair queueing on this interface.
|
Step 6
|
no shutdown
|
Enable this interface and the configuration changes you have just made.
|
Step 7
|
exit
|
Exit configuration mode for this interface.
|
Step 8
|
interface BRI1
|
Enter configuration mode for the second ISDN interface.
|
Step 9
|
no ip address
|
Remove any IP addresses that might be assigned to this interface.
|
Step 10
|
encapsulation ppp
|
Configure the interface for PPP packet encapsulation.
|
Step 11
|
dialer rotary-group 100
|
Configure this interface to be included in the dialer rotary group that you will configure in the "Configuring a Dialer Interface" section.
|
Step 12
|
no fair queue
|
Disable weighted fair queuing on this interface.
|
Step 13
|
no shutdown
|
Enable this interface and the configuration changes you have just made.
|
Step 14
|
exit
|
Exit configuration mode for this interface.
|
Configuring a Dialer Interface
Follow these steps to configure the two ISDN interfaces as one dialer interface that accepts calls from remote routers.
| |
Command
|
Task
|
Step 1
|
interface dialer 100
|
Create a dialer rotary group interface, and enter configuration mode for that interface. The number (in this example, 100) is an integer that you select to identify the interface.
|
Step 2
|
ip address 172.16.12.4 255.255.255.240
|
Configure this interface with an IP address.
|
Step 3
|
encapsulation ppp
|
Configure this interface for PPP encapsulation.
|
Step 4
|
dialer in-band
|
Specify that DDR is supported on this interface.
|
Step 5
|
dialer idle-timeout 300
|
Configure the ISDN line to go down after a specified number of seconds elapses with no network traffic.
|
Step 6
|
dialer map ip 172.16.12.6 name jason broadcast 5553756
dialer map ip 172.16.12.7 name wei broadcast 5553756
dialer map ip 172.16.12.8 name sammy broadcast 5553756
dialer map ip 172.16.12.9 name tito broadcast 5553756
|
Configure this interface to receive and authenticate calls from multiple sites, based on IP address and dialer string. You must enter this command for every remote router that will dial into your router.
The name you enter after the name keyword in this command must match the name entered with the username command in the "Configuring Security" section.
|
Step 7
|
dialer load-threshold 70
|
Configure bandwidth on demand by setting the maximum load before the router places another call to a destination.
|
Step 8
|
dialer-group 1
|
Assign the dialer interface to a dialer group.
|
Step 9
|
no fair-queue
|
Disable weighted fair queuing on this interface.
|
Step 10
|
ppp multilink
|
Enable multilink PPP on this interface.
|
Step 11
|
ppp authentication chap
|
Enable CHAP or PAP authentication on this interface.
|
Step 12
|
no shutdown
|
Enable the dialer interface and the configuration changes that you have just made.
|
Step 13
|
exit
|
Exit configuration mode for this interface.
|
Configuring EIGRP Routing
Follow these steps to configure the router for Enhanced Interior Gateway Routing Protocol (EIGRP) and IP routing parameters that the router uses to connect to the central-site router.
| |
Command
|
Task
|
Step 1
|
router eigrp 109
|
Configure the IP EIGRP routing process, and enter router configuration mode.
|
Step 2
|
network 171.68.0.0
|
Specify a list of networks for the EIGRP routing process by entering the IP address of the directly connected network.
|
Step 3
|
redistribute static
|
Configure the router to distribute IP static routers from one routing domain to another.
|
Step 4
|
exit
|
Exit router configuration mode.
|
Configuring IP Static Routes and Dial-In Parameters
Follow these steps to configure an IP static router and the access lists that define what type of network traffic the router will accept.
| |
Command
|
Task
|
Step 1
|
ip route 171.68.0.0 255.255.255.240 171.68.12.1
|
Configure an IP static route used to route data received from remote routers.
|
Step 2
|
access-list 101 deny ip any host 255.255.255.255
|
Define a standard access list based on IP network variables.
|
Step 3
|
access-list 101 permit ip any any
|
Define a standard access list based on IP network variables.
|
Step 4
|
dialer-list 1 list 101
|
Specify a dialer list both by list number and by protocol (IP) to define the packets of interest that can trigger a call to the destination.
|
Configuring Command-Line Access to the Router
Follow these steps to configure parameters that control access to the router, such as what type of terminal line can be used with the router, how long the router waits for a user entry before it times out, and what password is used to start a terminal session with the router.
| |
Command
|
Task
|
Step 1
|
line console 0
|
Specify the console terminal line.
|
Step 2
|
exec-timeout 5
|
Set the interval that the EXEC command interpreter waits until user input is detected.
|
Step 3
|
line vty 0 4
|
Specify a virtual terminal for remote console access.
|
Step 4
|
password <lineaccess>
|
Specify a password on the line.
|
Step 5
|
login
|
Enable password checking at terminal session login.
|
Step 6
|
end
|
Exit configuration mode.
|
